Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-header.h>

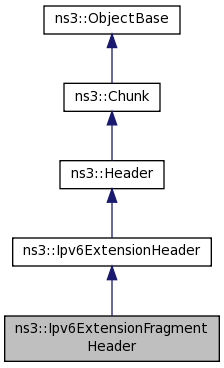

Inheritance diagram for ns3::Ipv6ExtensionFragmentHeader:

Collaboration diagram for ns3::Ipv6ExtensionFragmentHeader:

Public Member Functions
	Ipv6ExtensionFragmentHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionFragmentHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

uint32_t	GetIdentification () const
	Get the field "Identification". More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

bool	GetMoreFragment () const
	Get the status of "More Fragment" bit. More...

uint16_t	GetOffset () const
	Get the field "Offset". More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetIdentification (uint32_t identification)
	Set the "Identification" field. More...

void	SetMoreFragment (bool moreFragment)
	Set the status of "More Fragment" bit. More...

void	SetOffset (uint16_t offset)
	Set the "Offset" field. More...

Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionHeader ()
	Destructor. More...

uint16_t	GetLength () const
	Get the length of the extension. More...

uint8_t	GetNextHeader () const
	Get the next header. More...

void	SetLength (uint16_t length)
	brief Set the length of the extension. More...

void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_identification
	Identifier of the packet. More...

uint16_t	m_offset
	Offset of the fragment and More Fragment bit. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Extension Fragment.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 330 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionFragmentHeader::Ipv6ExtensionFragmentHeader ( )

Constructor.

Definition at line 333 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::SetLength().

Here is the call graph for this function:

ns3::Ipv6ExtensionFragmentHeader::~Ipv6ExtensionFragmentHeader ( )

virtual

Destructor.

Definition at line 340 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionFragmentHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 397 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_identification, m_offset, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

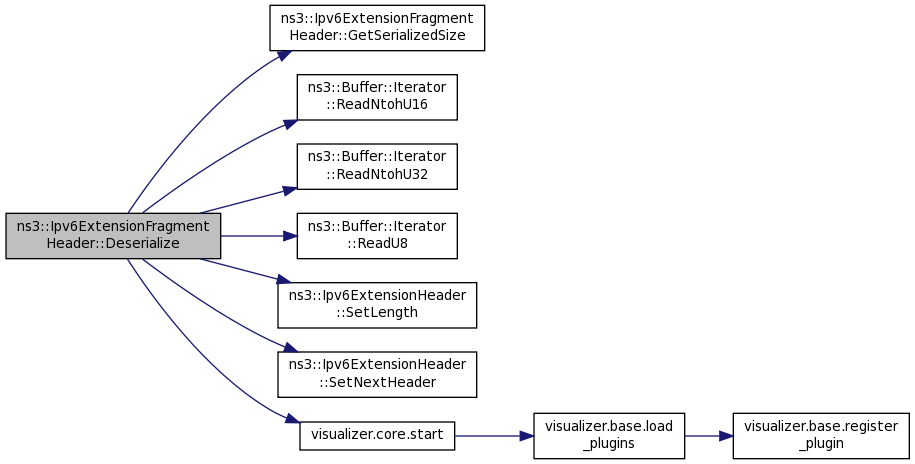

Here is the call graph for this function:

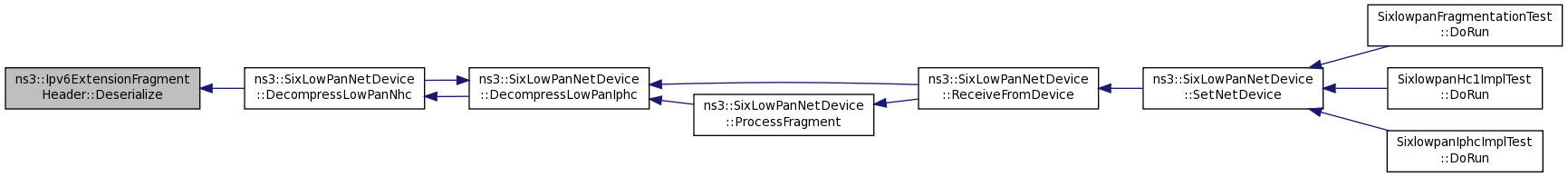

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionFragmentHeader::GetIdentification ( void ) const

Get the field "Identification".

Returns: the identifier of the fragment

Definition at line 371 of file ipv6-extension-header.cc.

References m_identification.

Referenced by ns3::Ipv6ExtensionFragment::Process().

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionFragmentHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 328 of file ipv6-extension-header.cc.

References GetTypeId().

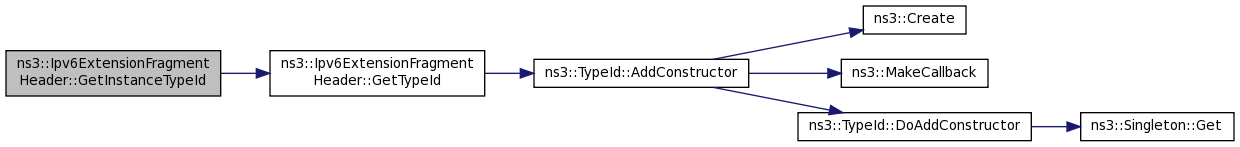

Here is the call graph for this function:

bool ns3::Ipv6ExtensionFragmentHeader::GetMoreFragment ( ) const

Get the status of "More Fragment" bit.

Returns: the status of "More Fragment" bit.

Definition at line 361 of file ipv6-extension-header.cc.

References m_offset.

Referenced by Print(), and ns3::Ipv6ExtensionFragment::Process().

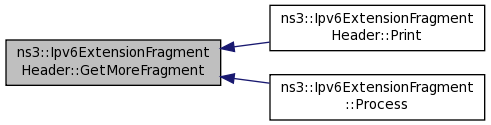

Here is the caller graph for this function:

uint16_t ns3::Ipv6ExtensionFragmentHeader::GetOffset ( ) const

Get the field "Offset".

Returns: the offset of the fragment

Definition at line 351 of file ipv6-extension-header.cc.

References m_offset.

Referenced by Print(), and ns3::Ipv6ExtensionFragment::Process().

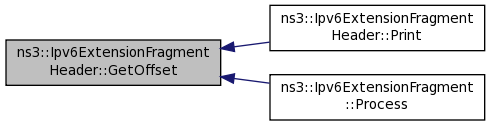

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionFragmentHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 382 of file ipv6-extension-header.cc.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), and ns3::Ipv6ExtensionFragment::GetFragments().

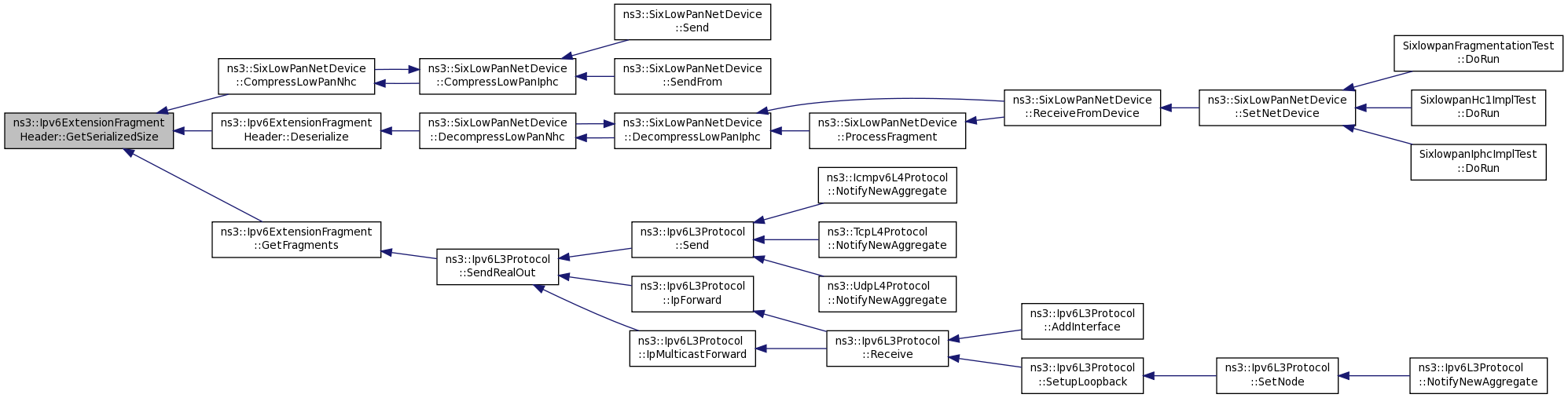

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionFragmentHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 319 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 376 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), GetMoreFragment(), ns3::Ipv6ExtensionHeader::GetNextHeader(), GetOffset(), and m_identification.

Here is the call graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 387 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetNextHeader(), m_identification, m_offset, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetIdentification ( uint32_t identification )

Set the "Identification" field.

Parameters

identification the identifier of the fragment

Definition at line 366 of file ipv6-extension-header.cc.

References m_identification.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetMoreFragment ( bool moreFragment )

Set the status of "More Fragment" bit.

Parameters

moreFragment the bit "More Fragment"

Definition at line 356 of file ipv6-extension-header.cc.

References m_offset.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

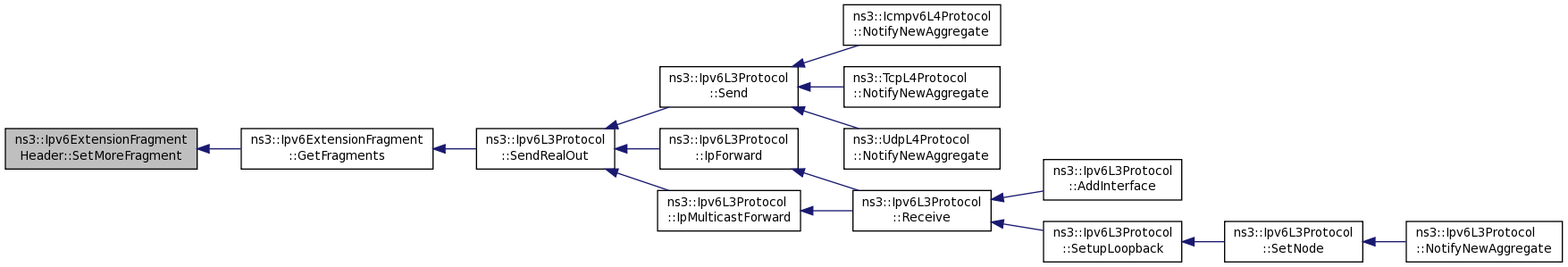

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetOffset ( uint16_t offset )

Set the "Offset" field.

Parameters

offset the offset of the fragment

Definition at line 344 of file ipv6-extension-header.cc.

References m_offset.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

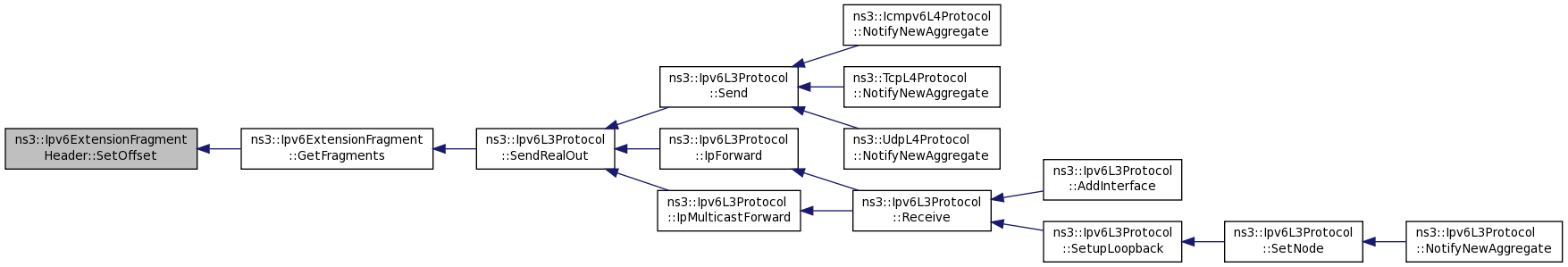

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Ipv6ExtensionFragmentHeader::m_identification

private

Identifier of the packet.

Definition at line 426 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetIdentification(), Print(), Serialize(), and SetIdentification().

uint16_t ns3::Ipv6ExtensionFragmentHeader::m_offset

private

Offset of the fragment and More Fragment bit.

Definition at line 421 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetMoreFragment(), GetOffset(), Serialize(), SetMoreFragment(), and SetOffset().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
src/internet/model/ipv6-extension-header.cc
