Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-header.h>

Inheritance diagram for ns3::Ipv6Header:

Collaboration diagram for ns3::Ipv6Header:

Public Types
enum	NextHeader_e { IPV6_EXT_HOP_BY_HOP = 0, IPV6_IPV4 = 4, IPV6_TCP = 6, IPV6_UDP = 17, IPV6_IPV6 = 41, IPV6_EXT_ROUTING = 43, IPV6_EXT_FRAGMENTATION = 44, IPV6_EXT_CONFIDENTIALITY = 50, IPV6_EXT_AUTHENTIFICATION = 51, IPV6_ICMPV6 = 58, IPV6_EXT_END = 59, IPV6_EXT_DESTINATION = 60, IPV6_SCTP = 135, IPV6_EXT_MOBILITY = 135, IPV6_UDP_LITE = 136 }
	IPv6 next-header value. More...

Public Member Functions
	Ipv6Header (void)
	Constructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

Ipv6Address	GetDestinationAddress (void) const
	Get the "Destination address" field. More...

uint32_t	GetFlowLabel (void) const
	Get the "Flow label" field. More...

uint8_t	GetHopLimit (void) const
	Get the "Hop limit" field (TTL). More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

uint8_t	GetNextHeader (void) const
	Get the next header. More...

uint16_t	GetPayloadLength (void) const
	Get the "Payload length" field. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

Ipv6Address	GetSourceAddress (void) const
	Get the "Source address" field. More...

uint8_t	GetTrafficClass (void) const
	Get the "Traffic class" field. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetDestinationAddress (Ipv6Address dst)
	Set the "Destination address" field. More...

void	SetFlowLabel (uint32_t flow)
	Set the "Flow label" field. More...

void	SetHopLimit (uint8_t limit)
	Set the "Hop limit" field (TTL). More...

void	SetNextHeader (uint8_t next)
	Set the "Next header" field. More...

void	SetPayloadLength (uint16_t len)
	Set the "Payload length" field. More...

void	SetSourceAddress (Ipv6Address src)
	Set the "Source address" field. More...

void	SetTrafficClass (uint8_t traffic)
	Set the "Traffic class" field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type identifier. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv6Address	m_destinationAddress
	The destination address. More...

uint32_t	m_flowLabel: 20
	The flow label. More...

uint8_t	m_hopLimit
	The Hop limit value. More...

uint8_t	m_nextHeader
	The Next header number. More...

uint16_t	m_payloadLength
	The payload length. More...

Ipv6Address	m_sourceAddress
	The source address. More...

uint32_t	m_trafficClass: 8
	The traffic class. More...

uint32_t	m_version: 4
	The version (always equal to 6). More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Packet header for IPv6.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 33 of file ipv6-header.h.

Member Enumeration Documentation

enum ns3::Ipv6Header::NextHeader_e

IPv6 next-header value.

Enumerator
IPV6_EXT_HOP_BY_HOP
IPV6_IPV4
IPV6_TCP
IPV6_UDP
IPV6_IPV6
IPV6_EXT_ROUTING
IPV6_EXT_FRAGMENTATION
IPV6_EXT_CONFIDENTIALITY
IPV6_EXT_AUTHENTIFICATION
IPV6_ICMPV6
IPV6_EXT_END
IPV6_EXT_DESTINATION
IPV6_SCTP
IPV6_EXT_MOBILITY
IPV6_UDP_LITE

Definition at line 40 of file ipv6-header.h.

Constructor & Destructor Documentation

ns3::Ipv6Header::Ipv6Header ( void )

Constructor.

Definition at line 35 of file ipv6-header.cc.

References SetDestinationAddress(), and SetSourceAddress().

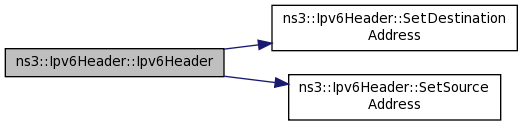

Here is the call graph for this function:

Member Function Documentation

uint32_t ns3::Ipv6Header::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 165 of file ipv6-header.cc.

References GetSerializedSize(), m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, m_version, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

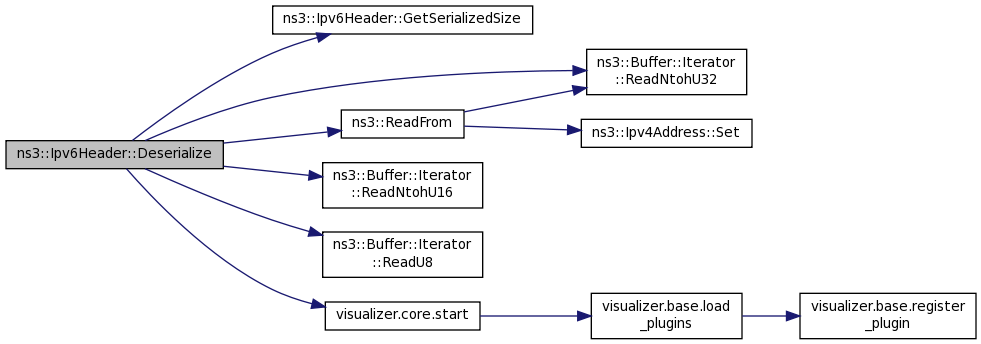

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Header::GetDestinationAddress ( void ) const

Get the "Destination address" field.

Returns: the destination address

Definition at line 112 of file ipv6-header.cc.

References m_destinationAddress.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Icmpv6L4Protocol::HandlePacketTooBig(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6Extension::ProcessOptions(), ns3::Icmpv4L4Protocol::Receive(), ns3::Ipv6L3Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::Icmpv6L4Protocol::Receive(), ns3::dsr::DsrRouting::Receive(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv6StaticRouting::RouteInput(), ns3::Ipv6ListRouting::RouteOutput(), ns3::Ipv6StaticRouting::RouteOutput(), and ns3::Ipv6L3Protocol::SendRealOut().

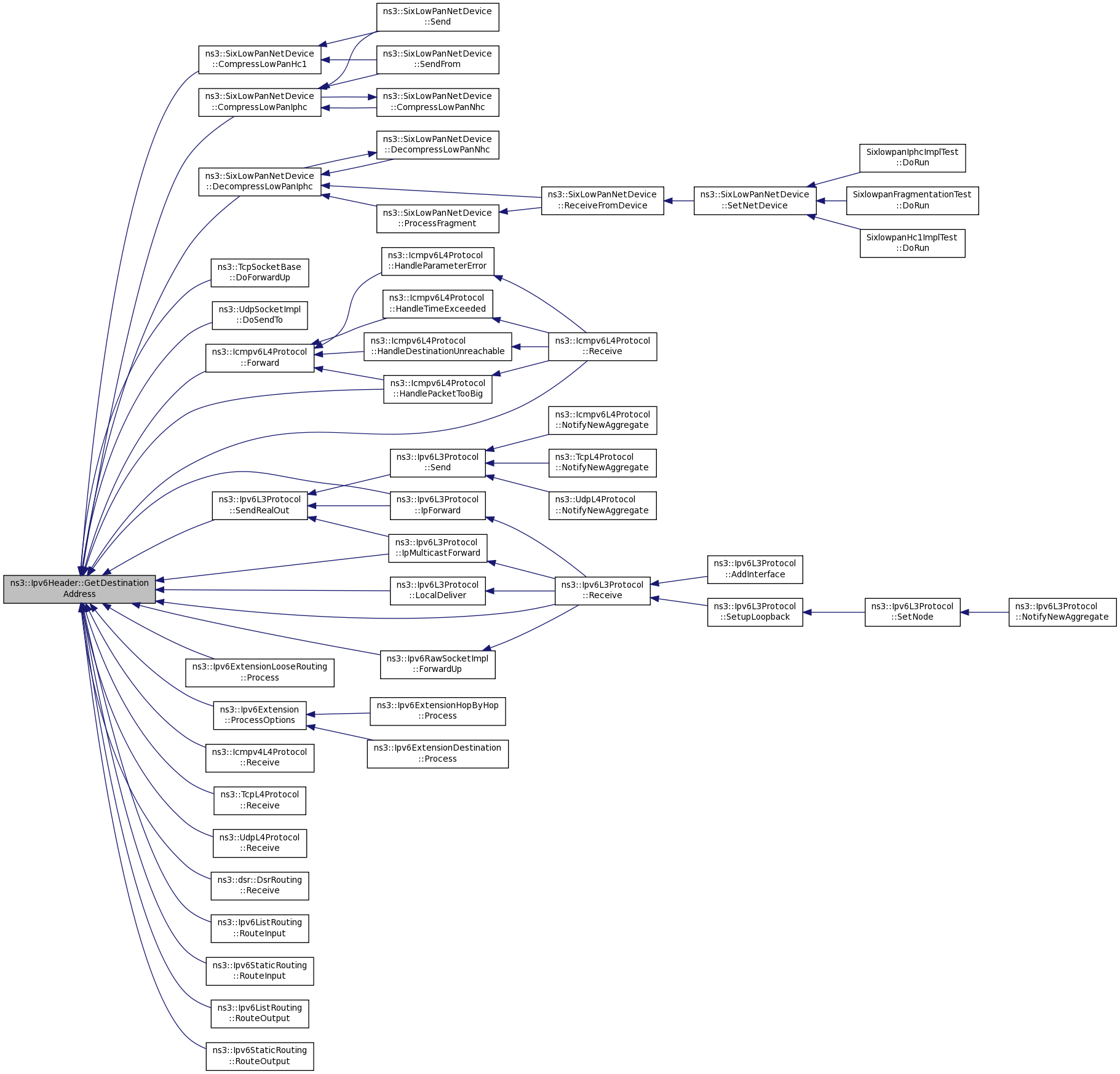

Here is the caller graph for this function:

uint32_t ns3::Ipv6Header::GetFlowLabel ( void ) const

Get the "Flow label" field.

Returns: the flow label value

Definition at line 62 of file ipv6-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), and ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

uint8_t ns3::Ipv6Header::GetHopLimit ( void ) const

Get the "Hop limit" field (TTL).

Returns: the hop limit value

Definition at line 92 of file ipv6-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), ns3::Icmpv6L4Protocol::Forward(), ns3::UdpSocketImpl::ForwardUp6(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), and ns3::Ipv6ExtensionLooseRouting::Process().

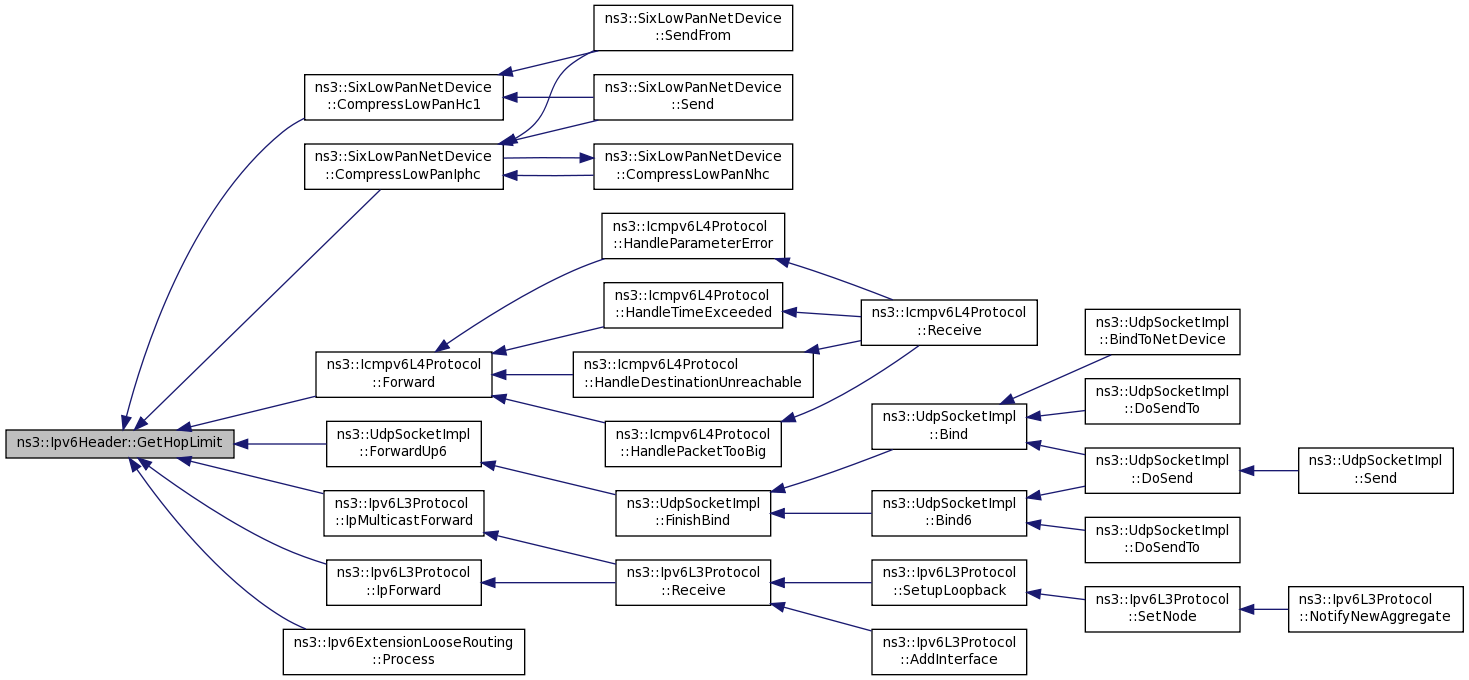

Here is the caller graph for this function:

TypeId ns3::Ipv6Header::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 126 of file ipv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::Ipv6Header::GetNextHeader ( void ) const

Get the next header.

Returns: the next header number

Definition at line 82 of file ipv6-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::LocalDeliver(), and ns3::Ipv6L3Protocol::Receive().

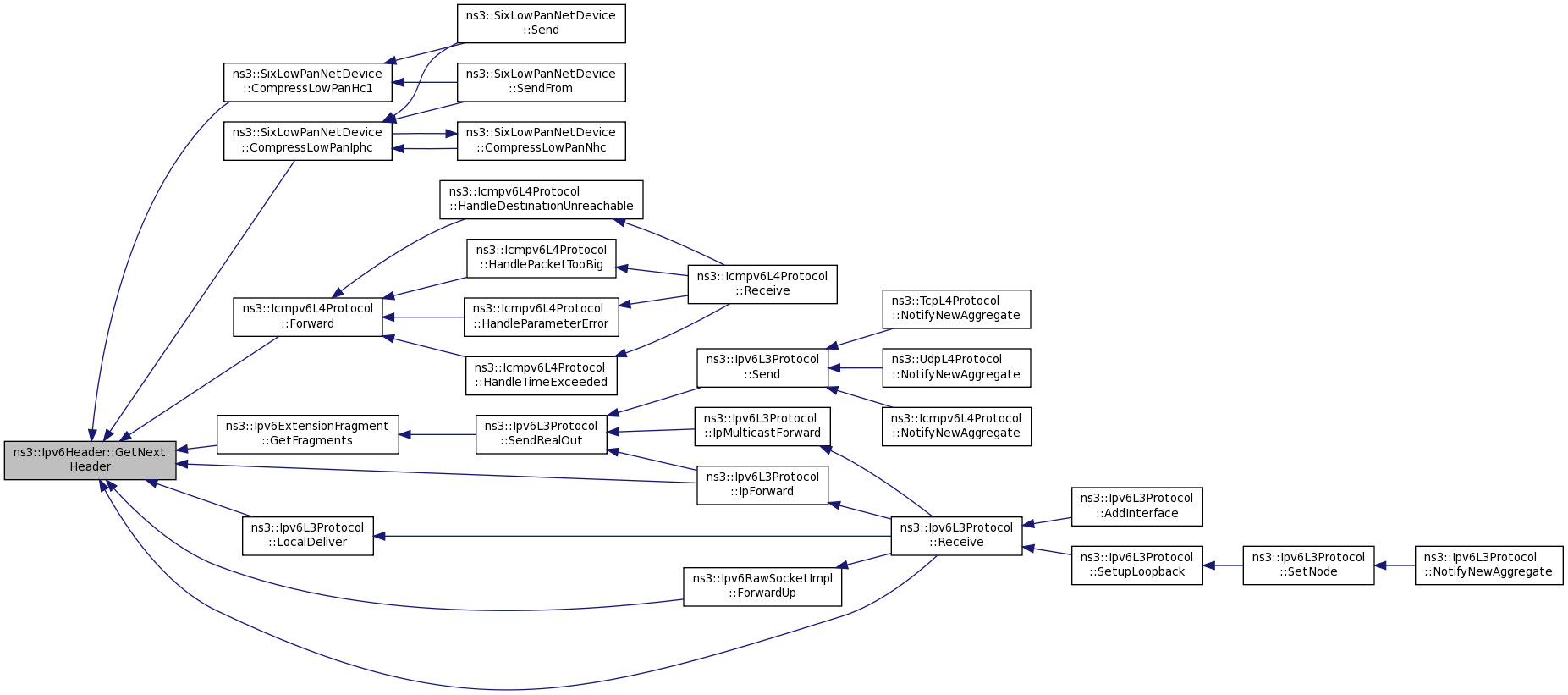

Here is the caller graph for this function:

uint16_t ns3::Ipv6Header::GetPayloadLength ( void ) const

Get the "Payload length" field.

Returns: the payload length

Definition at line 72 of file ipv6-header.cc.

References m_payloadLength.

Referenced by ns3::Ipv6L3Protocol::Receive().

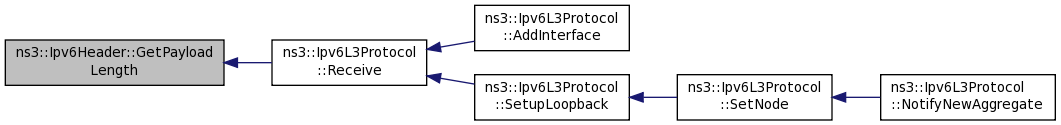

Here is the caller graph for this function:

uint32_t ns3::Ipv6Header::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 144 of file ipv6-header.cc.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Icmpv6L4Protocol::HandleDestinationUnreachable(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ipv6RawSocketImpl::SendTo().

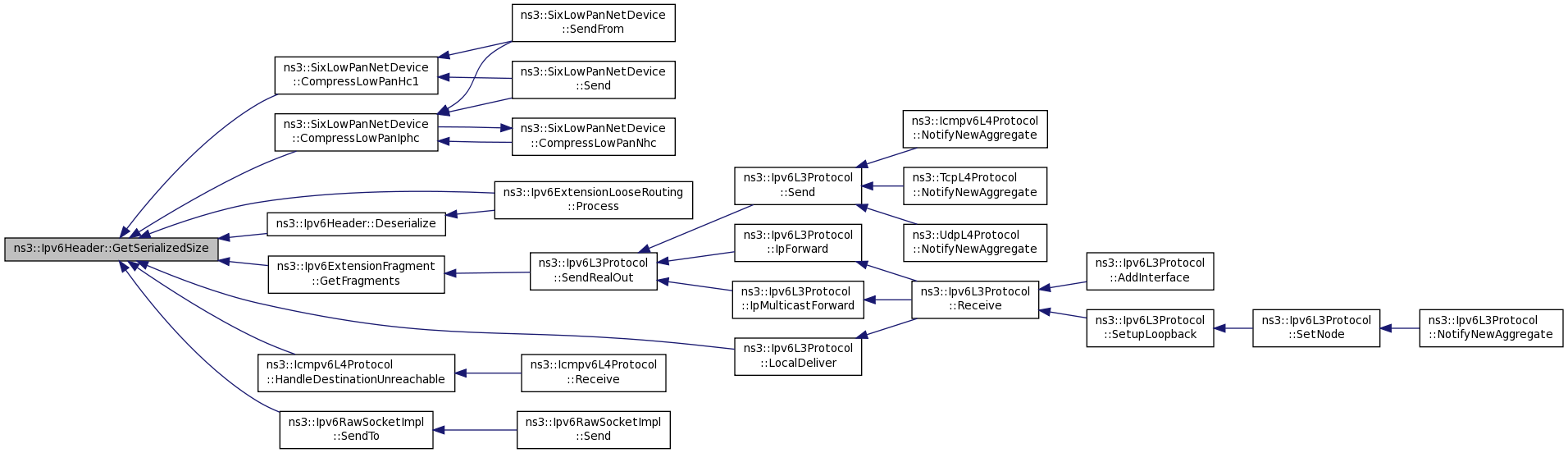

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Header::GetSourceAddress ( void ) const

Get the "Source address" field.

Returns: the source address

Definition at line 102 of file ipv6-header.cc.

References m_sourceAddress.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), ns3::Ipv6ExtensionFragment::HandleFragmentsTimeout(), ns3::Radvd::HandleRead(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv6ExtensionRouting::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6Extension::ProcessOptions(), ns3::Icmpv4L4Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::Icmpv6L4Protocol::Receive(), ns3::dsr::DsrRouting::Receive(), ns3::Ipv6StaticRouting::RouteInput(), ns3::Ipv6ListRouting::RouteOutput(), and ns3::Ipv6L3Protocol::SendRealOut().

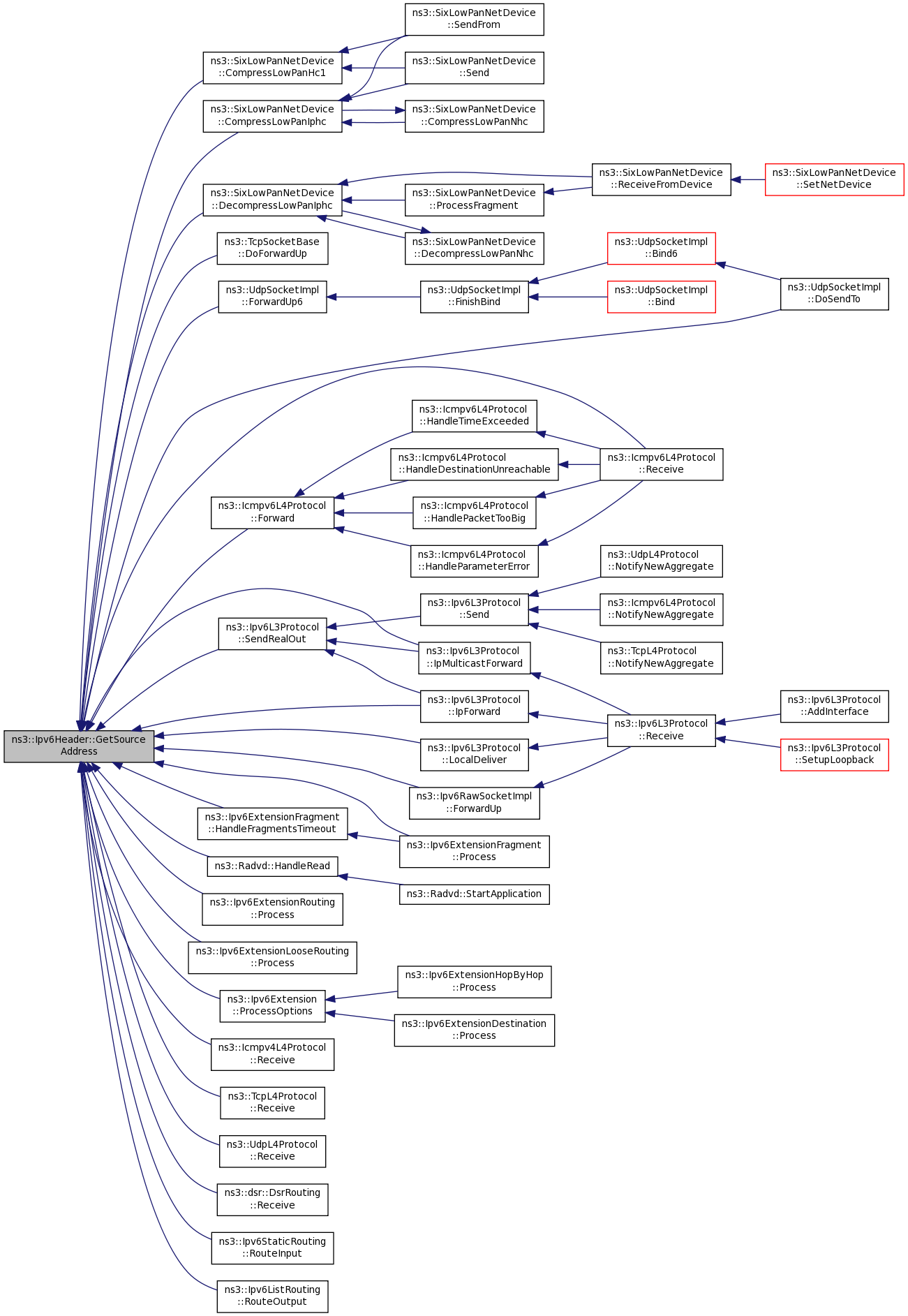

Here is the caller graph for this function:

uint8_t ns3::Ipv6Header::GetTrafficClass ( void ) const

Get the "Traffic class" field.

Returns: the traffic value

Definition at line 52 of file ipv6-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), ns3::SixLowPanNetDevice::CompressLowPanIphc(), and ns3::UdpSocketImpl::ForwardUp6().

Here is the caller graph for this function:

TypeId ns3::Ipv6Header::GetTypeId ( void )

static

Get the type identifier.

Returns: type identifier

Definition at line 117 of file ipv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Header::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Implements ns3::Header.

Definition at line 131 of file ipv6-header.cc.

References m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, and m_version.

void ns3::Ipv6Header::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Definition at line 149 of file ipv6-header.cc.

References m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Header::SetDestinationAddress ( Ipv6Address dst )

Set the "Destination address" field.

Parameters

dst	the destination address

Definition at line 107 of file ipv6-header.cc.

References m_destinationAddress.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::UdpSocketImpl::DoSendTo(), Ipv6Header(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::TcpL4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::TcpL4Protocol::Send(), ns3::TcpL4Protocol::SendPacket(), ns3::Ipv6RawSocketImpl::SendTo(), and ns3::TcpSocketBase::SetupEndpoint6().

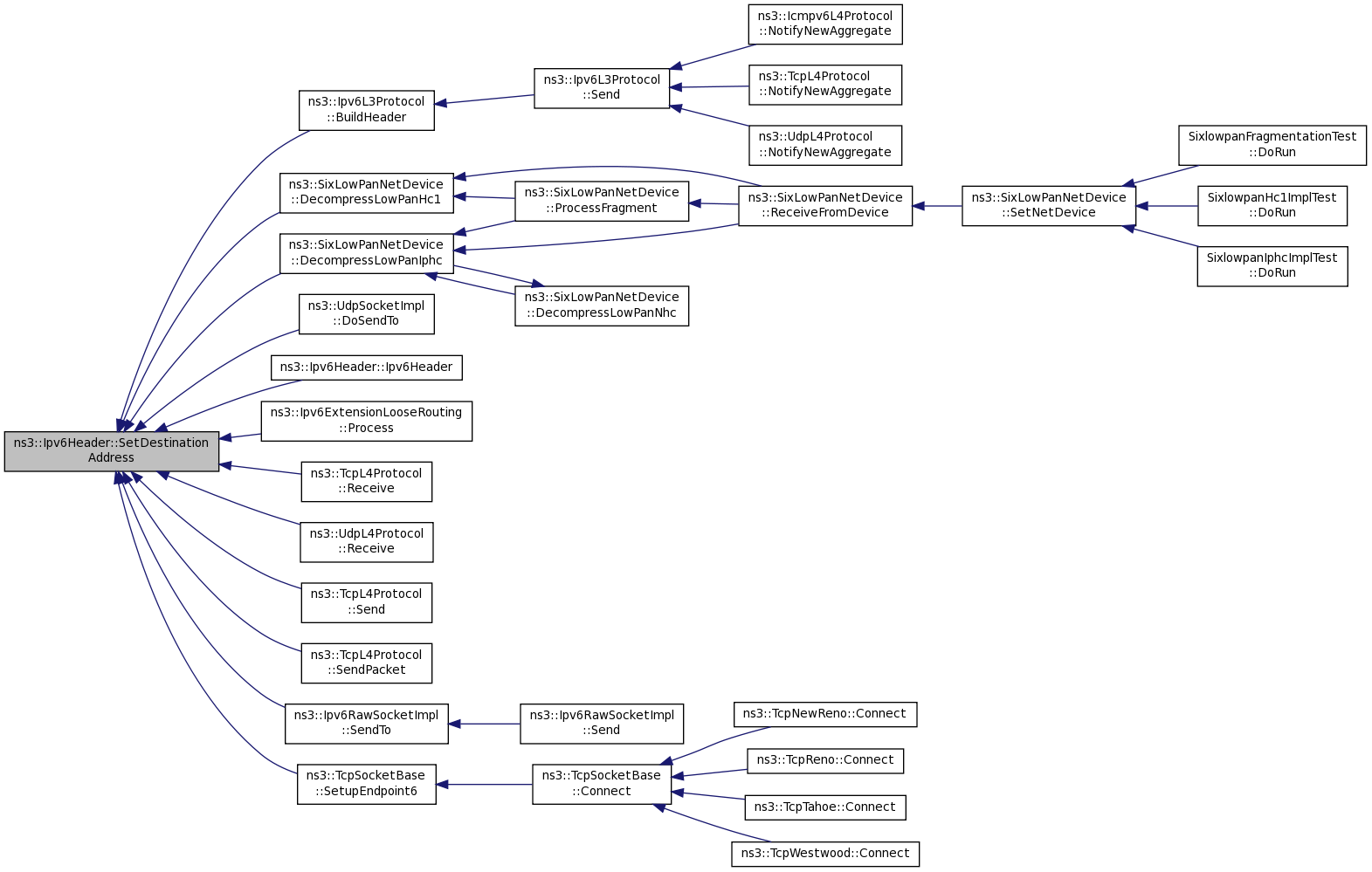

Here is the caller graph for this function:

void ns3::Ipv6Header::SetFlowLabel ( uint32_t flow )

Set the "Flow label" field.

Parameters

flow	the 20-bit value

Definition at line 57 of file ipv6-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1(), and ns3::SixLowPanNetDevice::DecompressLowPanIphc().

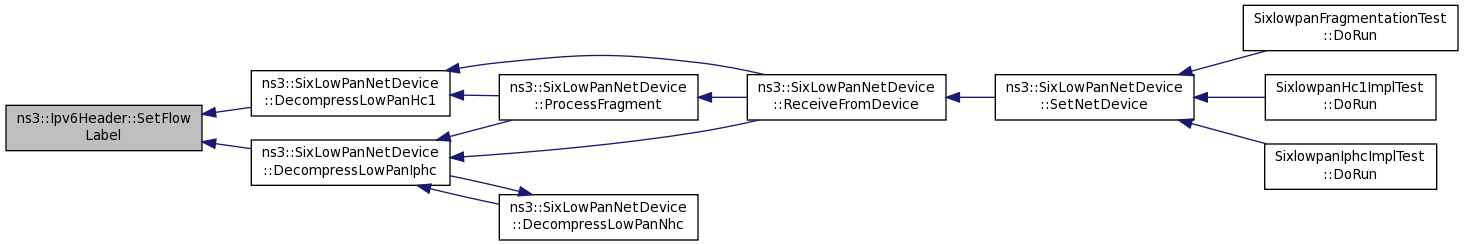

Here is the caller graph for this function:

void ns3::Ipv6Header::SetHopLimit ( uint8_t limit )

Set the "Hop limit" field (TTL).

Parameters

limit the 8-bit value

Definition at line 87 of file ipv6-header.cc.

References m_hopLimit.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), and ns3::Ipv6ExtensionLooseRouting::Process().

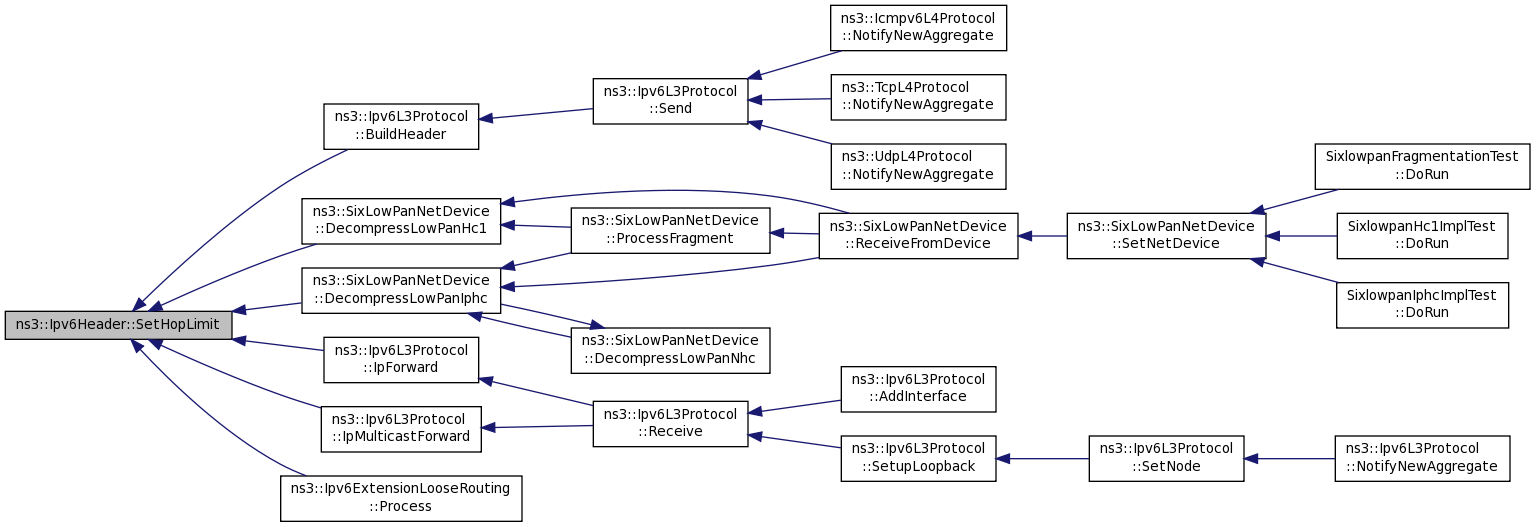

Here is the caller graph for this function:

void ns3::Ipv6Header::SetNextHeader ( uint8_t next )

Set the "Next header" field.

Parameters

next	the next header number

Definition at line 77 of file ipv6-header.cc.

References m_nextHeader.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6ExtensionFragment::Process(), ns3::TcpL4Protocol::Send(), and ns3::TcpL4Protocol::SendPacket().

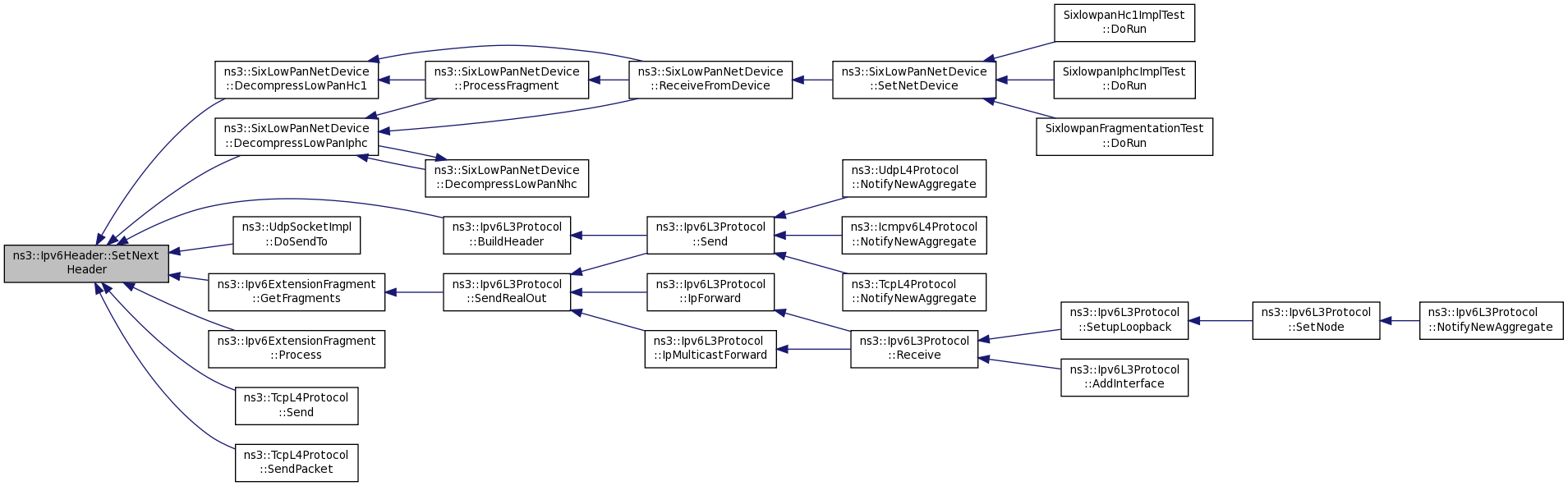

Here is the caller graph for this function:

void ns3::Ipv6Header::SetPayloadLength ( uint16_t len )

Set the "Payload length" field.

Parameters

len	the length of the payload in bytes

Definition at line 67 of file ipv6-header.cc.

References m_payloadLength.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), and ns3::Ipv6ExtensionFragment::GetFragments().

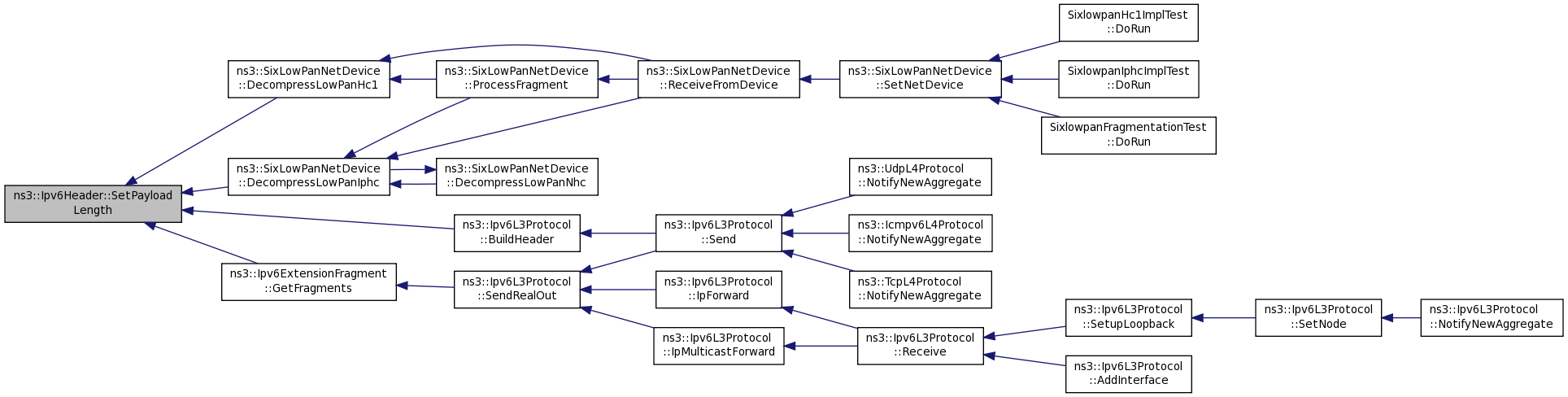

Here is the caller graph for this function:

void ns3::Ipv6Header::SetSourceAddress ( Ipv6Address src )

Set the "Source address" field.

Parameters

src	the source address

Definition at line 97 of file ipv6-header.cc.

References m_sourceAddress.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), ns3::UdpSocketImpl::DoSendTo(), Ipv6Header(), ns3::TcpL4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), and ns3::TcpL4Protocol::SendPacket().

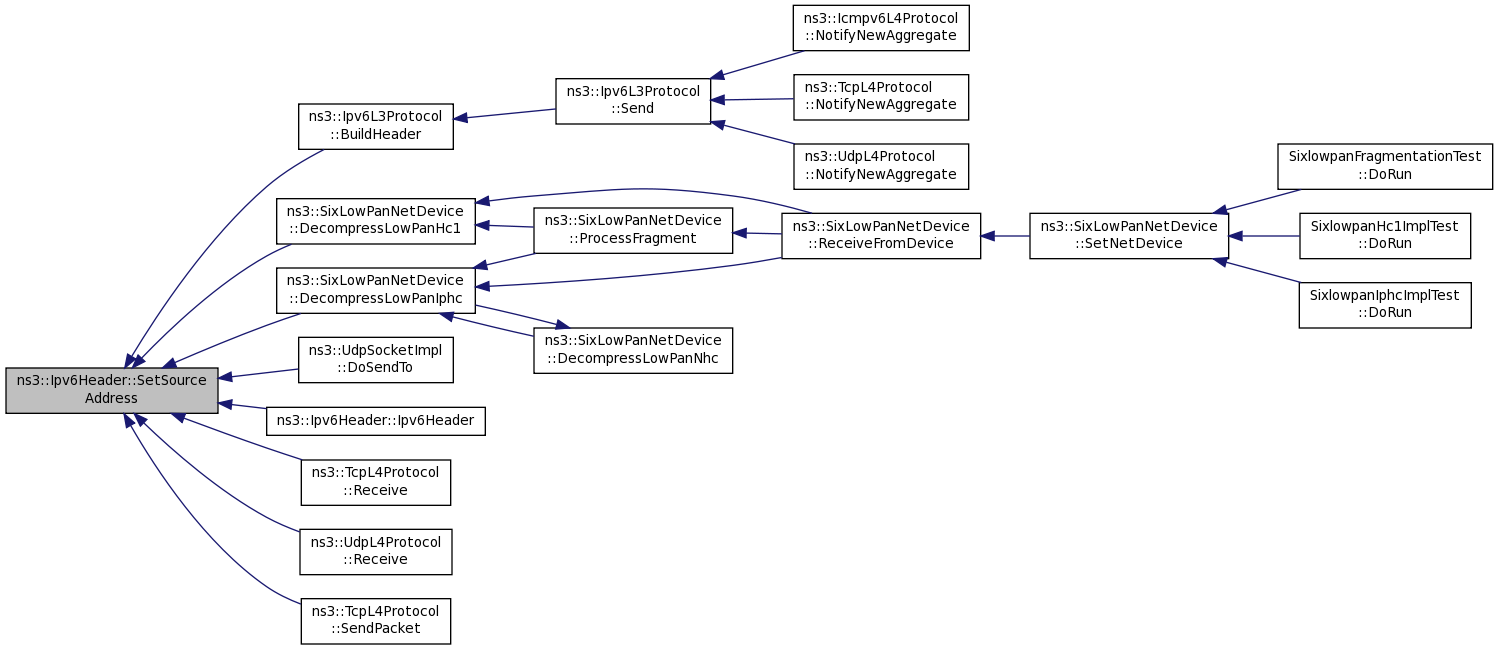

Here is the caller graph for this function:

void ns3::Ipv6Header::SetTrafficClass ( uint8_t traffic )

Set the "Traffic class" field.

Parameters

traffic the 8-bit value

Definition at line 47 of file ipv6-header.cc.

References m_trafficClass.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanHc1(), and ns3::SixLowPanNetDevice::DecompressLowPanIphc().

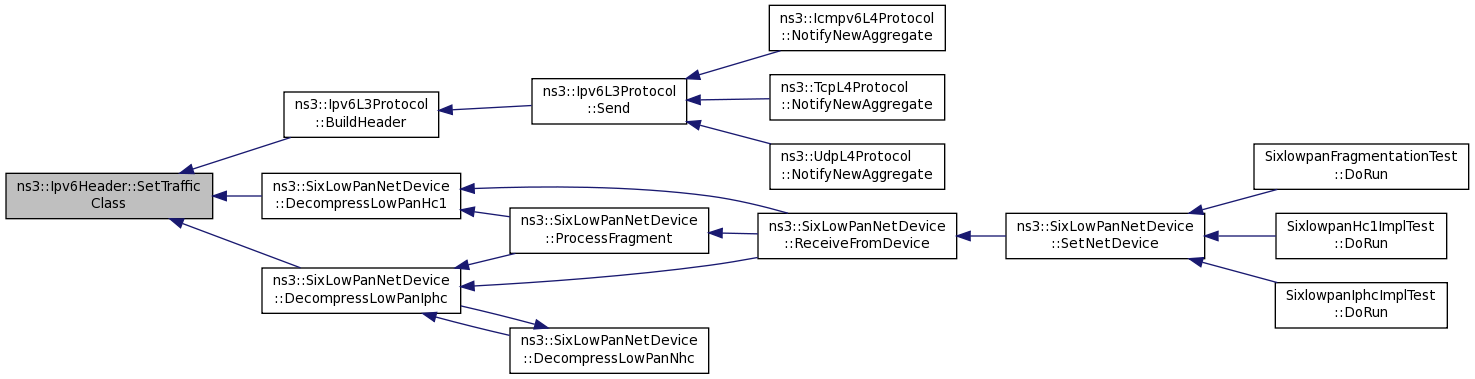

Here is the caller graph for this function:

Member Data Documentation

Ipv6Address ns3::Ipv6Header::m_destinationAddress

private

The destination address.

Definition at line 225 of file ipv6-header.h.

Referenced by Deserialize(), GetDestinationAddress(), Print(), Serialize(), and SetDestinationAddress().

uint32_t ns3::Ipv6Header::m_flowLabel

private

The flow label.

Note: This is 20-bit value.

Definition at line 200 of file ipv6-header.h.

Referenced by Deserialize(), GetFlowLabel(), Print(), Serialize(), and SetFlowLabel().

uint8_t ns3::Ipv6Header::m_hopLimit

private

The Hop limit value.

Definition at line 215 of file ipv6-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

uint8_t ns3::Ipv6Header::m_nextHeader

private

The Next header number.

Definition at line 210 of file ipv6-header.h.

Referenced by Deserialize(), GetNextHeader(), Print(), Serialize(), and SetNextHeader().

uint16_t ns3::Ipv6Header::m_payloadLength

private

The payload length.

Definition at line 205 of file ipv6-header.h.

Referenced by Deserialize(), GetPayloadLength(), Print(), Serialize(), and SetPayloadLength().

Ipv6Address ns3::Ipv6Header::m_sourceAddress

private

The source address.

Definition at line 220 of file ipv6-header.h.

Referenced by Deserialize(), GetSourceAddress(), Print(), Serialize(), and SetSourceAddress().

uint32_t ns3::Ipv6Header::m_trafficClass

private

The traffic class.

Definition at line 194 of file ipv6-header.h.

Referenced by Deserialize(), GetTrafficClass(), Print(), Serialize(), and SetTrafficClass().

uint32_t ns3::Ipv6Header::m_version

private

The version (always equal to 6).

Definition at line 190 of file ipv6-header.h.

Referenced by Deserialize(), and Print().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-header.h
src/internet/model/ipv6-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
