the list of simulation nodes. More...

#include <node-list.h>

Public Types
typedef std::vector< Ptr< Node > >::const_iterator	Iterator

Static Public Member Functions
static uint32_t	Add (Ptr< Node > node)

static Iterator	Begin (void)

static Iterator	End (void)

static uint32_t	GetNNodes (void)

static Ptr< Node >	GetNode (uint32_t n)

Detailed Description

the list of simulation nodes.

Every Node created is automatically added to this list.

Definition at line 40 of file node-list.h.

Member Typedef Documentation

typedef std::vector< Ptr<Node> >::const_iterator ns3::NodeList::Iterator

Definition at line 43 of file node-list.h.

Member Function Documentation

uint32_t ns3::NodeList::Add ( Ptr< Node > node )

static

Parameters

node	node to add

Returns: index of node in list.

This method is called automatically from Node::Node so the user has little reason to call it himself.

Definition at line 176 of file node-list.cc.

References ns3::NodeListPriv::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::Node::Construct().

Here is the call graph for this function:

Here is the caller graph for this function:

NodeList::Iterator ns3::NodeList::Begin ( void )

static

Returns: a C++ iterator located at the beginning of this list.

Definition at line 182 of file node-list.cc.

References ns3::NodeListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::GlobalRouteManagerImpl::BuildGlobalRoutingDatabase(), ns3::AnimationInterface::ConnectLte(), ns3::GlobalRouteManagerImpl::DeleteGlobalRoutes(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), ns3::GlobalRouteManagerImpl::FindOutgoingInterfaceId(), ns3::Ipv4NixVectorRouting::FlushGlobalNixRoutingCache(), ns3::NodeContainer::GetGlobal(), ns3::GlobalRouteManagerImpl::InitializeRoutes(), ns3::Ns2MobilityHelper::Install(), ns3::FlowMonitorHelper::InstallAll(), ns3::BuildingsHelper::MakeMobilityModelConsistent(), ns3::AnimationInterface::RecalcTopoBounds(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider(), ns3::GlobalRouteManagerImpl::SPFAddASExternal(), ns3::GlobalRouteManagerImpl::SPFIntraAddRouter(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), ns3::GlobalRouteManagerImpl::SPFIntraAddTransit(), ns3::AnimationInterface::StartAnimation(), and ns3::AnimationInterface::TrackIpv4Route().

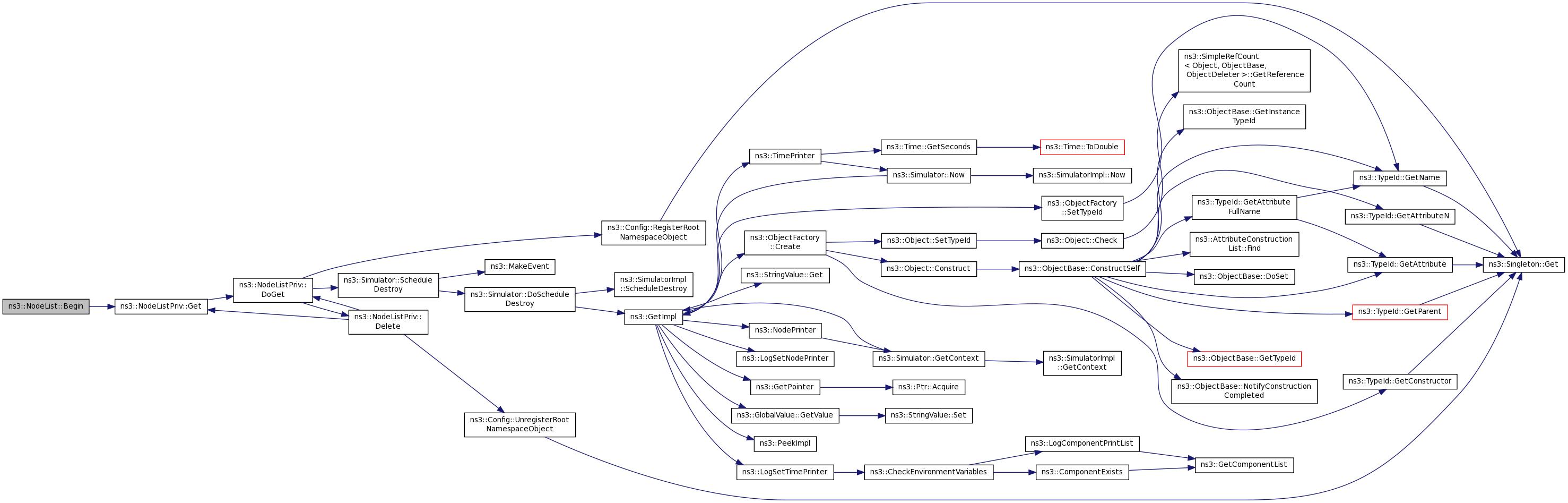

Here is the call graph for this function:

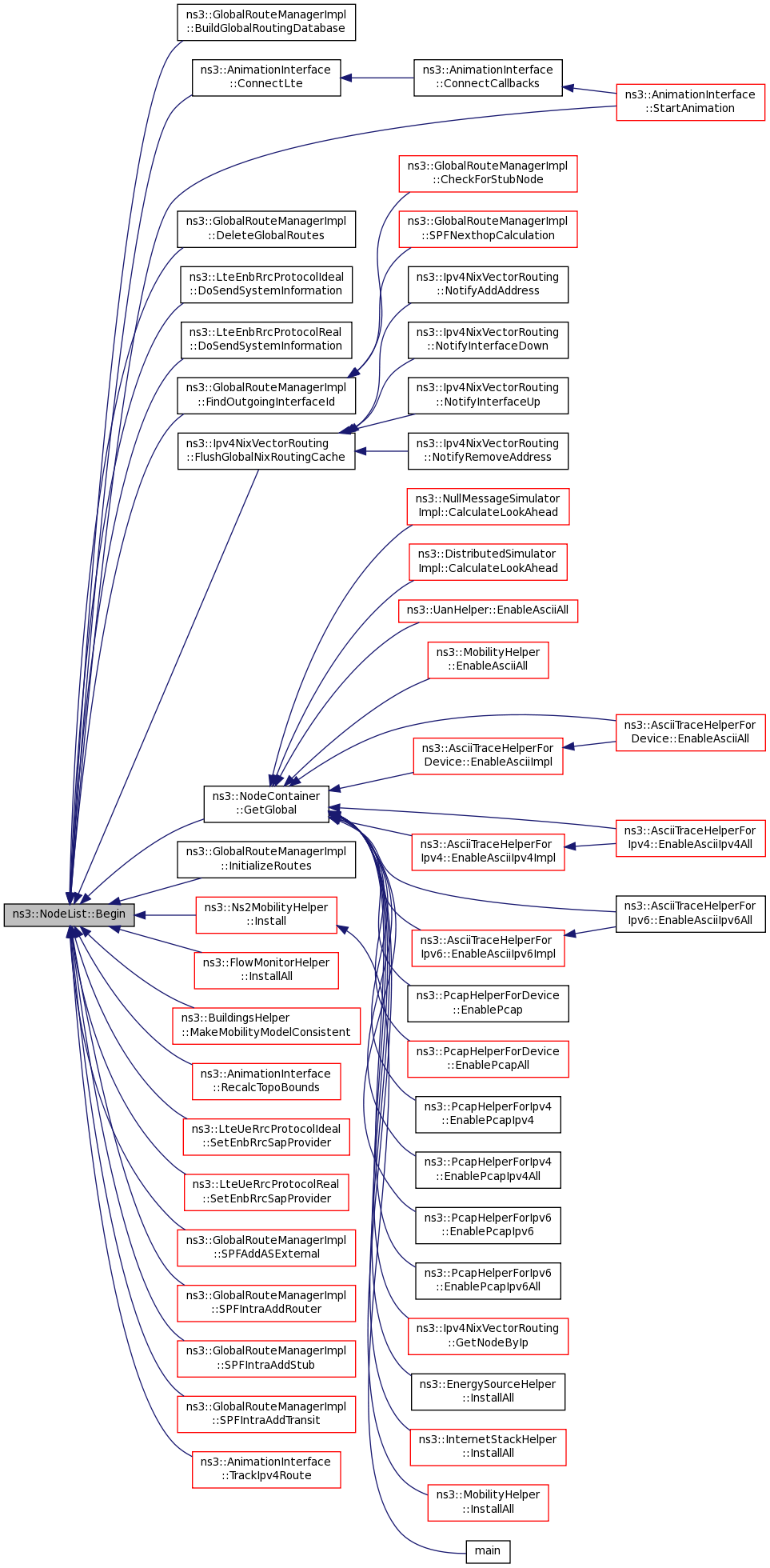

Here is the caller graph for this function:

NodeList::Iterator ns3::NodeList::End ( void )

static

Returns: a C++ iterator located at the end of this list.

Definition at line 188 of file node-list.cc.

References ns3::NodeListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::GlobalRouteManagerImpl::BuildGlobalRoutingDatabase(), ns3::AnimationInterface::ConnectLte(), ns3::GlobalRouteManagerImpl::DeleteGlobalRoutes(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), ns3::GlobalRouteManagerImpl::FindOutgoingInterfaceId(), ns3::Ipv4NixVectorRouting::FlushGlobalNixRoutingCache(), ns3::NodeContainer::GetGlobal(), ns3::GlobalRouteManagerImpl::InitializeRoutes(), ns3::Ns2MobilityHelper::Install(), ns3::FlowMonitorHelper::InstallAll(), ns3::BuildingsHelper::MakeMobilityModelConsistent(), ns3::AnimationInterface::RecalcTopoBounds(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider(), ns3::GlobalRouteManagerImpl::SPFAddASExternal(), ns3::GlobalRouteManagerImpl::SPFIntraAddRouter(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), ns3::GlobalRouteManagerImpl::SPFIntraAddTransit(), ns3::AnimationInterface::StartAnimation(), and ns3::AnimationInterface::TrackIpv4Route().

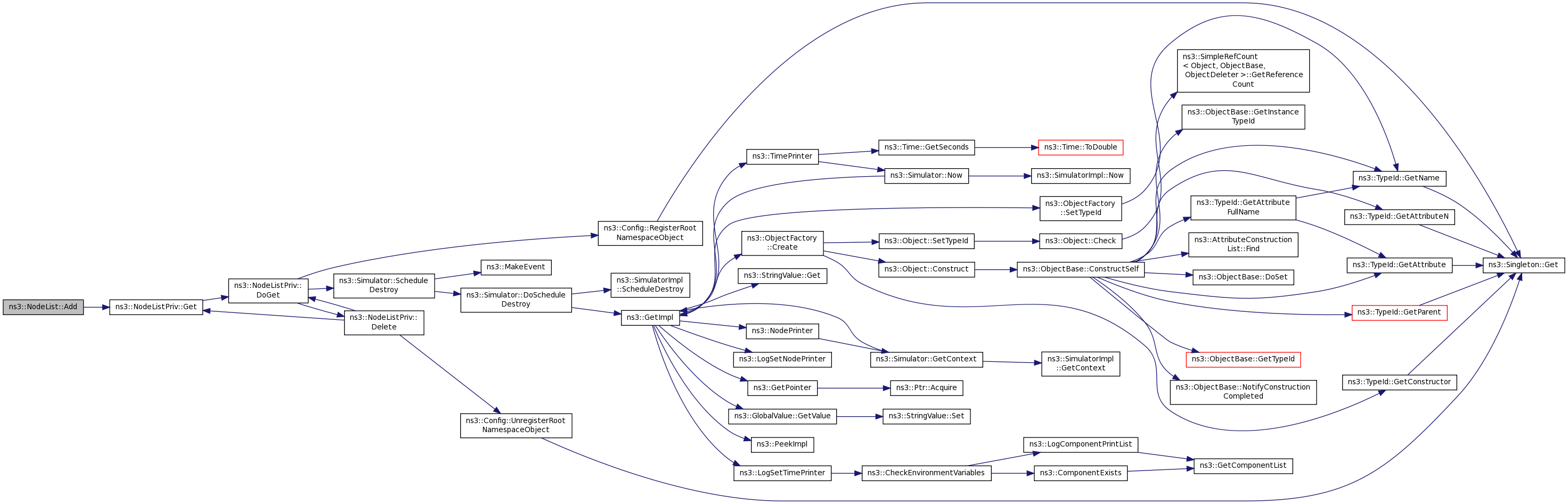

Here is the call graph for this function:

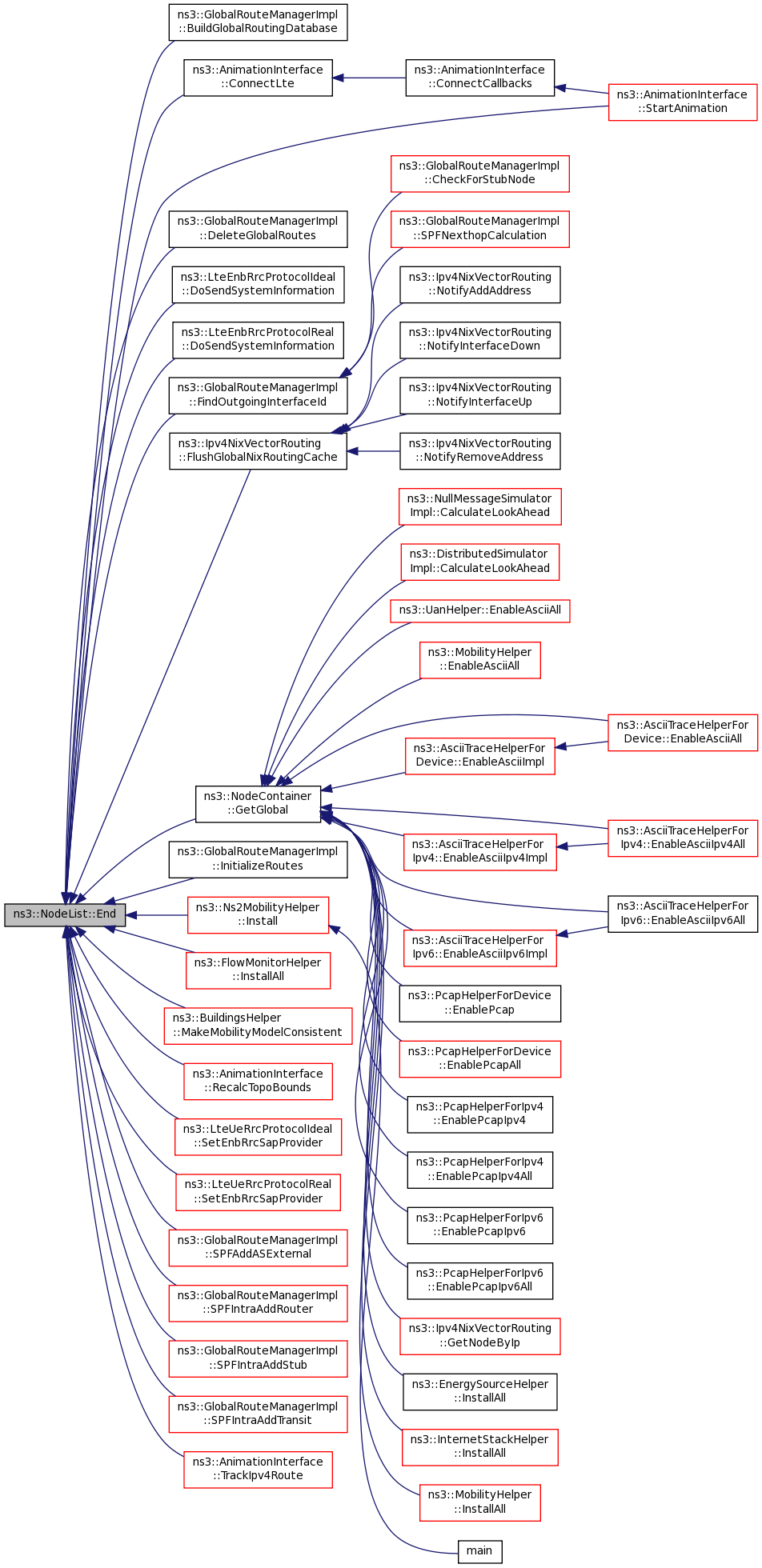

Here is the caller graph for this function:

uint32_t ns3::NodeList::GetNNodes ( void )

static

Returns: the number of nodes currently in the list.

Definition at line 200 of file node-list.cc.

References ns3::NodeListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::dsr::DsrRouting::GetIDfromIP(), ns3::dsr::DsrOptions::GetIDfromIP(), ns3::dsr::DsrRouting::GetIPfromMAC(), ns3::Ipv4NixVectorRouting::GetNixVector(), ns3::dsr::DsrRouting::GetNodeWithAddress(), ns3::dsr::DsrOptions::GetNodeWithAddress(), main(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllEvery(), ns3::dsr::DsrOptionSR::Process(), ns3::GlobalRouteManagerImpl::SPFCalculate(), and ns3::AnimationInterface::StartAnimation().

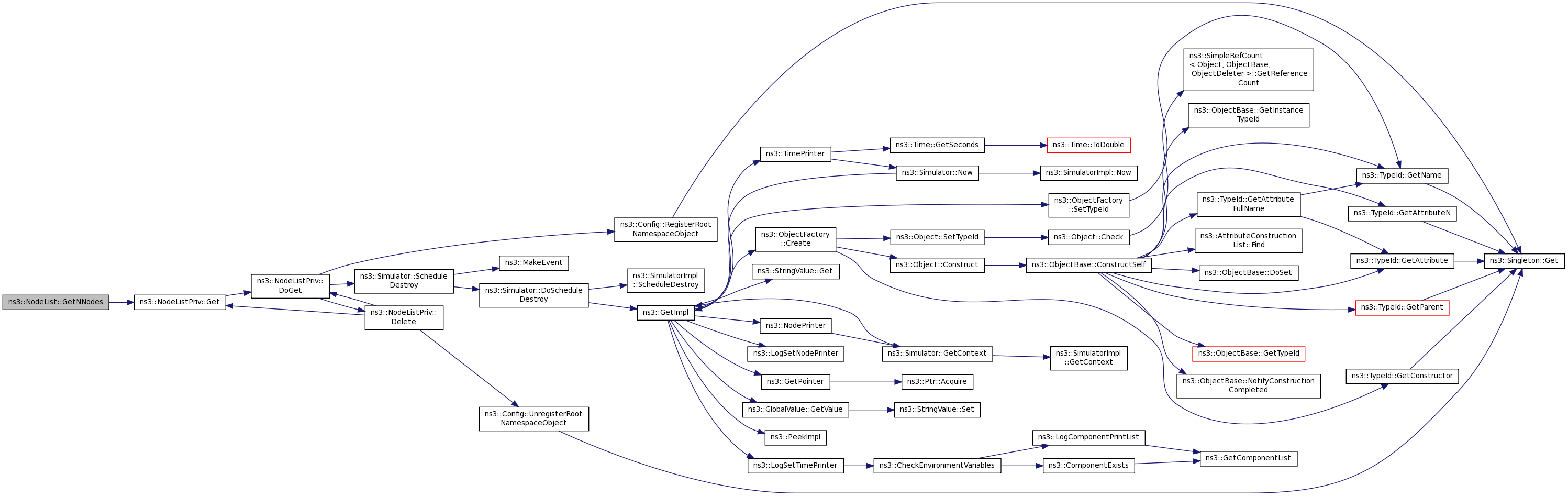

Here is the call graph for this function:

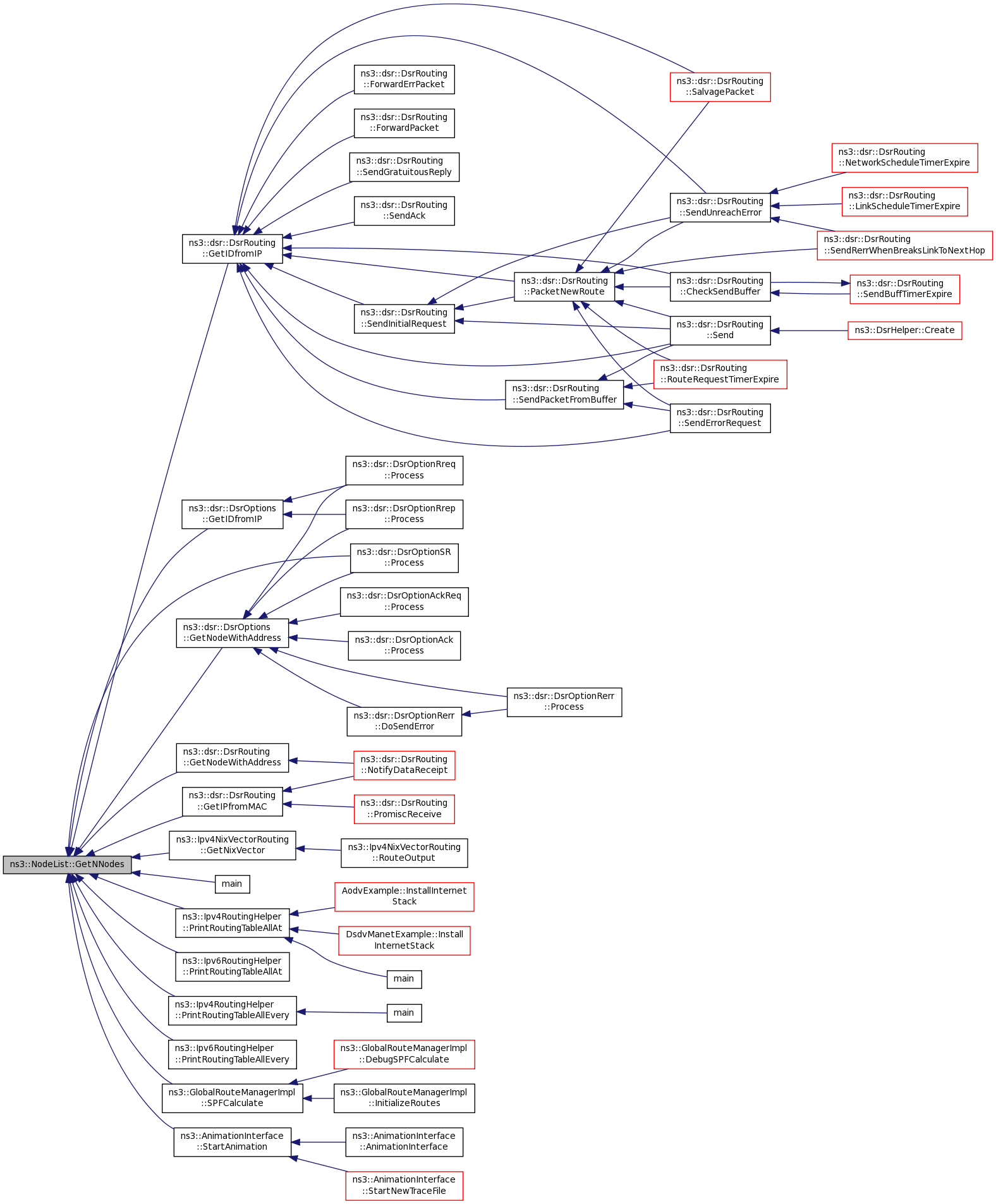

Here is the caller graph for this function:

Ptr< Node > ns3::NodeList::GetNode ( uint32_t n )

static

Parameters

n	index of requested node.

Returns: the Node associated to index n.

Definition at line 194 of file node-list.cc.

References ns3::NodeListPriv::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::AnimationInterface::AppendXMLRemainingEnergy(), ns3::PyViz::FindNetDeviceStatistics(), ns3::dsr::DsrRouting::GetIDfromIP(), ns3::dsr::DsrOptions::GetIDfromIP(), ns3::dsr::DsrRouting::GetIPfromID(), ns3::dsr::DsrRouting::GetIPfromMAC(), ns3::AnimationInterface::GetIpv4Address(), ns3::dsr::DsrRouting::GetNetDeviceFromContext(), ns3::GlobalRoutingLSA::GetNode(), ns3::AnimationInterface::GetNodeFromContext(), ns3::dsr::DsrRouting::GetNodeWithAddress(), ns3::dsr::DsrOptions::GetNodeWithAddress(), main(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllEvery(), ns3::dsr::DsrOptionSR::Process(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ns3::AnimationInterface::RecursiveIpv4RoutePathSearch(), ns3::GrantedTimeWindowMpiInterface::SendPacket(), ns3::NullMessageMpiInterface::SendPacket(), ns3::AnimationInterface::ShowNode(), ns3::PyViz::TraceDevQueueDrop(), ns3::PyViz::TraceNetDevRxCommon(), ns3::PyViz::TraceNetDevTxCommon(), ns3::AnimationInterface::TrackIpv4RoutePaths(), ns3::AnimationInterface::UpdateNodeColor(), ns3::AnimationInterface::UpdateNodeDescription(), and ns3::AnimationInterface::WifiPhyRxBeginTrace().

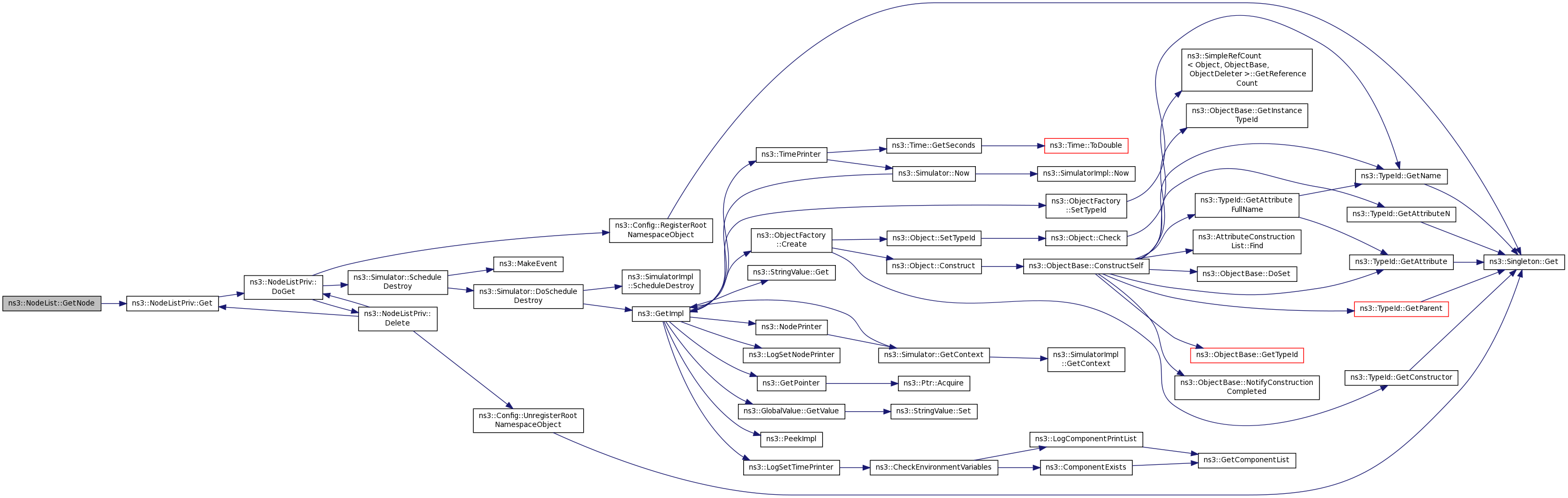

Here is the call graph for this function:

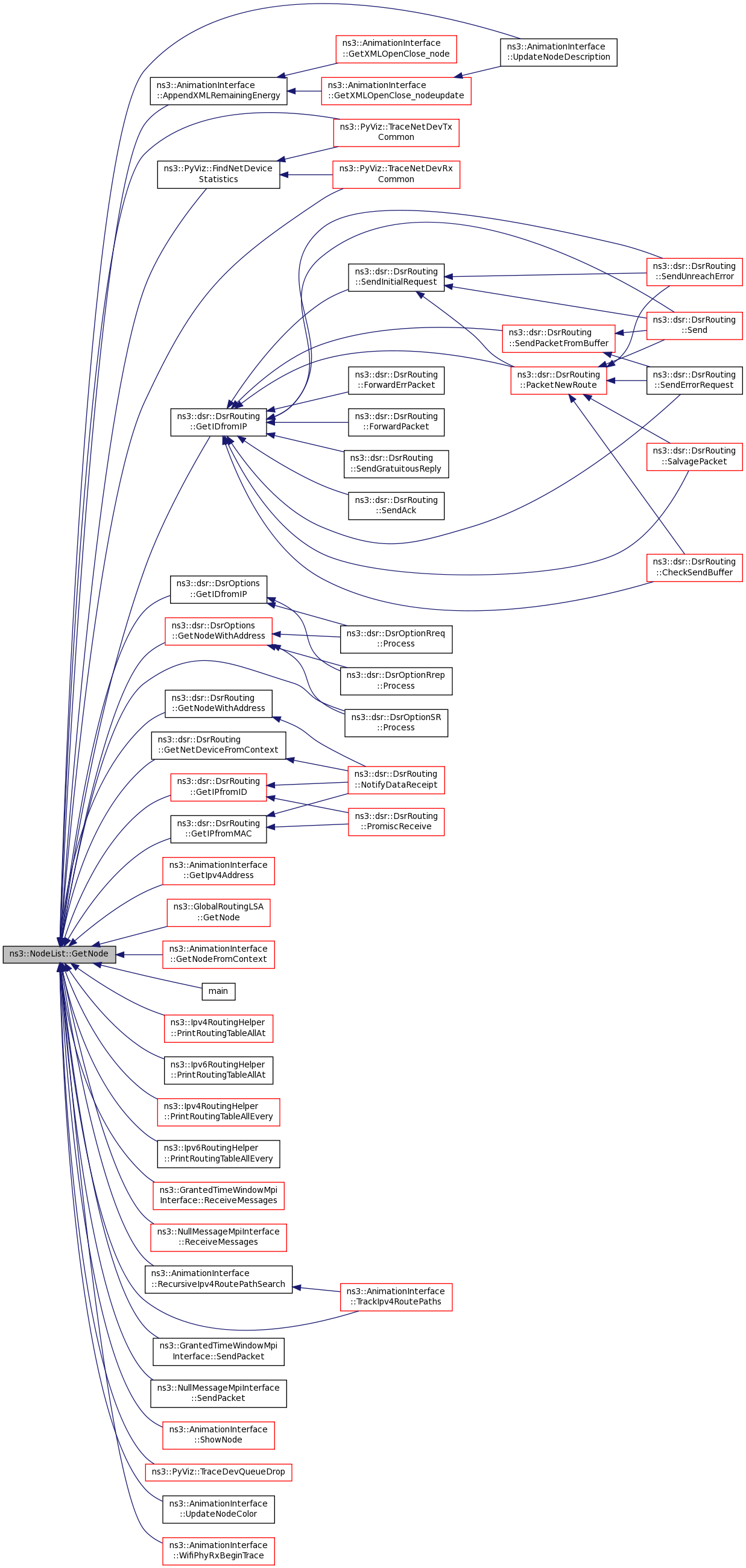

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/network/model/node-list.h
src/network/model/node-list.cc
