ns3::NqosWaveMacHelper Class Reference

#include <wave-mac-helper.h>

+ Inheritance diagram for ns3::NqosWaveMacHelper:
+ Collaboration diagram for ns3::NqosWaveMacHelper:

Public Member Functions

 NqosWaveMacHelper (void)
 Create a NqosWaveMacHelper to make life easier for people who want to work with non-QOS Wave MAC layers. More...

virtual ~NqosWaveMacHelper (void)

virtual void SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

- Public Member Functions inherited from ns3::NqosWifiMacHelper
 NqosWifiMacHelper ()
 Create a NqosWifiMacHelper to make life easier for people who want to work with non-QOS Wifi MAC layers. More...

virtual ~NqosWifiMacHelper ()

- Public Member Functions inherited from ns3::WifiMacHelper
virtual ~WifiMacHelper ()


Static Public Member Functions

static NqosWaveMacHelper Default (void)
 Create a mac helper in a default working state. More...

- Static Public Member Functions inherited from ns3::NqosWifiMacHelper
static NqosWifiMacHelper Default (void)
 Create a mac helper in a default working state. More...


Additional Inherited Members

- Protected Attributes inherited from ns3::NqosWifiMacHelper
ObjectFactory m_mac


Detailed Description

Definition at line 31 of file wave-mac-helper.h.

Constructor & Destructor Documentation

ns3::NqosWaveMacHelper::NqosWaveMacHelper ( void  )

Create a NqosWaveMacHelper to make life easier for people who want to work with non-QOS Wave MAC layers.

Definition at line 34 of file wave-mac-helper.cc.

ns3::NqosWaveMacHelper::~NqosWaveMacHelper ( void  )
virtual
Internal:
Destroy a NqosWaveMacHelper.

Definition at line 38 of file wave-mac-helper.cc.

Member Function Documentation

NqosWaveMacHelper ns3::NqosWaveMacHelper::Default ( void  )
static

Create a mac helper in a default working state.

i.e., this is an ocb mac by default.

Definition at line 43 of file wave-mac-helper.cc.

References SetType().

Referenced by main().

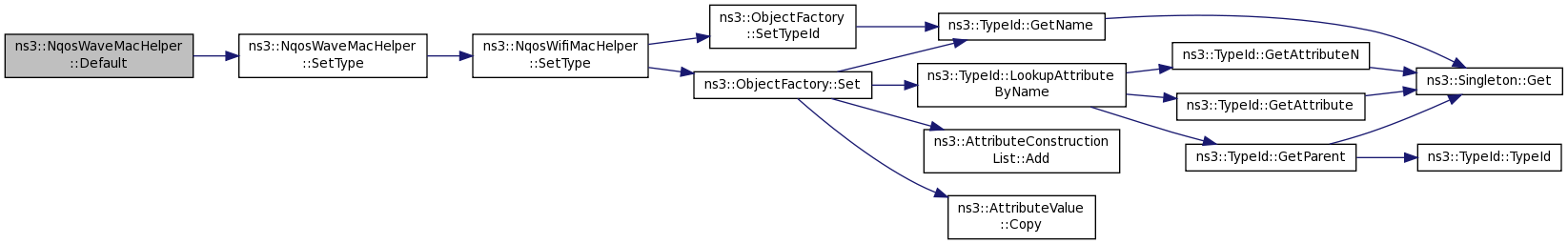

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::NqosWaveMacHelper::SetType ( std::string  type,
std::string  n0 = "",
const AttributeValue v0 = EmptyAttributeValue (),
std::string  n1 = "",
const AttributeValue v1 = EmptyAttributeValue (),
std::string  n2 = "",
const AttributeValue v2 = EmptyAttributeValue (),
std::string  n3 = "",
const AttributeValue v3 = EmptyAttributeValue (),
std::string  n4 = "",
const AttributeValue v4 = EmptyAttributeValue (),
std::string  n5 = "",
const AttributeValue v5 = EmptyAttributeValue (),
std::string  n6 = "",
const AttributeValue v6 = EmptyAttributeValue (),
std::string  n7 = "",
const AttributeValue v7 = EmptyAttributeValue ()
)
virtual
Parameters
typethe type of ns3::WifiMac to create.
n0the name of the attribute to set
v0the value of the attribute to set
n1the name of the attribute to set
v1the value of the attribute to set
n2the name of the attribute to set
v2the value of the attribute to set
n3the name of the attribute to set
v3the value of the attribute to set
n4the name of the attribute to set
v4the value of the attribute to set
n5the name of the attribute to set
v5the value of the attribute to set
n6the name of the attribute to set
v6the value of the attribute to set
n7the name of the attribute to set
v7the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

note: Here we require users set type with OcbWifiMac or its subclass, otherwise it will become error

Reimplemented from ns3::NqosWifiMacHelper.

Definition at line 54 of file wave-mac-helper.cc.

References NS_FATAL_ERROR, and ns3::NqosWifiMacHelper::SetType().

Referenced by Default().

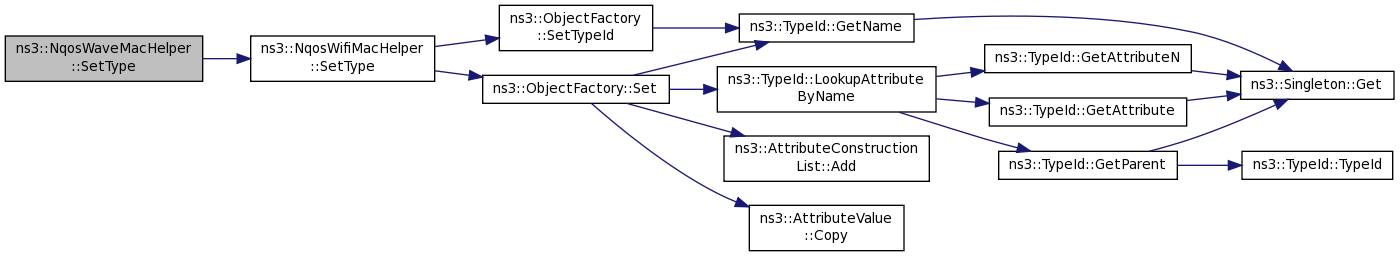

+ Here is the call graph for this function:

+ Here is the caller graph for this function:


The documentation for this class was generated from the following files:
