base class for all MAC-level wifi objects. More...

#include <wifi-mac.h>

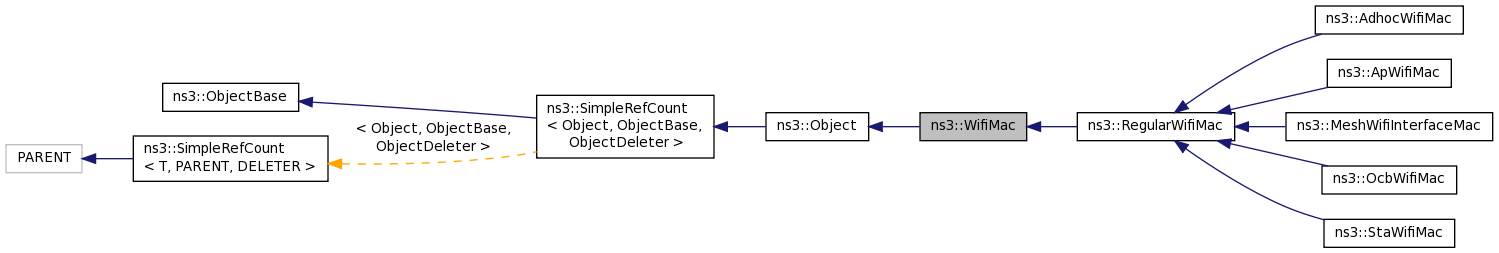

Inheritance diagram for ns3::WifiMac:

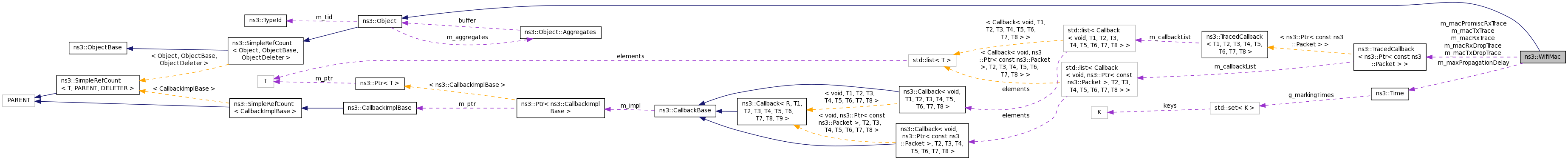

Collaboration diagram for ns3::WifiMac:

Public Member Functions
void	ConfigureStandard (enum WifiPhyStandard standard)

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)=0

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0

virtual Time	GetAckTimeout (void) const =0

virtual Mac48Address	GetAddress (void) const =0

virtual Time	GetBasicBlockAckTimeout (void) const

virtual Mac48Address	GetBssid (void) const =0

virtual Time	GetCompressedBlockAckTimeout (void) const

virtual Time	GetCtsTimeout (void) const =0

virtual Time	GetEifsNoDifs (void) const =0

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

virtual Time	GetPifs (void) const =0

virtual Time	GetRifs (void) const =0

virtual Time	GetSifs (void) const =0

virtual Time	GetSlot (void) const =0

virtual Ssid	GetSsid (void) const =0

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetAckTimeout (Time ackTimeout)=0

virtual void	SetAddress (Mac48Address address)=0

virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

virtual void	SetCtsTimeout (Time ctsTimeout)=0

virtual void	SetEifsNoDifs (Time eifsNoDifs)=0

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

virtual void	SetLinkDownCallback (Callback< void > linkDown)=0

virtual void	SetLinkUpCallback (Callback< void > linkUp)=0

void	SetMaxPropagationDelay (Time delay)

virtual void	SetPifs (Time pifs)=0

virtual void	SetPromisc (void)=0
	Sets the interface in promiscuous mode. More...

virtual void	SetRifs (Time rifs)=0

virtual void	SetSifs (Time sifs)=0

virtual void	SetSlot (Time slotTime)=0

virtual void	SetSsid (Ssid ssid)=0

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)=0

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)=0

virtual bool	SupportsSendFrom (void) const =0

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	Configure80211_10Mhz (void)
	Configure appropriate timing parameters for 802.11 with 10Mhz channel spacing. More...

void	Configure80211_5Mhz ()
	Configure appropriate timing parameters for 802.11 with 5Mhz channel spacing. More...

void	Configure80211a (void)
	Configure appropriate timing parameters for 802.11a. More...

void	Configure80211b (void)
	Configure appropriate timing parameters for 802.11b. More...

void	Configure80211g (void)
	Configure appropriate timing parameters for 802.11g. More...

void	Configure80211n_2_4Ghz (void)
	Configure appropriate timing parameters for 802.11n operating at 2.4Ghz. More...

void	Configure80211n_5Ghz (void)
	Configure appropriate timing parameters for 802.11n operating at 5Ghz. More...

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)=0

Static Private Member Functions
static Time	GetDefaultBasicBlockAckDelay (void)
	Return the default basic block ACK delay. More...

static Time	GetDefaultBasicBlockAckTimeout (void)
	Return the default basic block ACK timeout. More...

static Time	GetDefaultCompressedBlockAckDelay (void)
	Return the default compressed block ACK delay. More...

static Time	GetDefaultCompressedBlockAckTimeout (void)
	Return the default compressed block ACK timeout. More...

static Time	GetDefaultCtsAckDelay (void)

static Time	GetDefaultCtsAckTimeout (void)

static Time	GetDefaultEifsNoDifs (void)

static Time	GetDefaultMaxPropagationDelay (void)

static Time	GetDefaultRifs (void)

static Time	GetDefaultSifs (void)

static Time	GetDefaultSlot (void)

Private Attributes
TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

Time	m_maxPropagationDelay

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::WifiMac is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac

Attributes

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 44 of file wifi-mac.h.

Member Function Documentation

void ns3::WifiMac::Configure80211_10Mhz ( void )

private

Configure appropriate timing parameters for 802.11 with 10Mhz channel spacing.

Definition at line 346 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

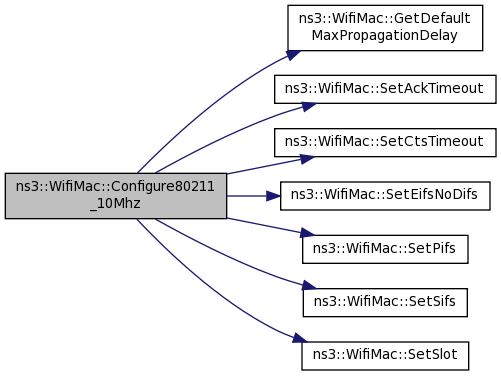

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211_5Mhz ( void )

private

Configure appropriate timing parameters for 802.11 with 5Mhz channel spacing.

Definition at line 357 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

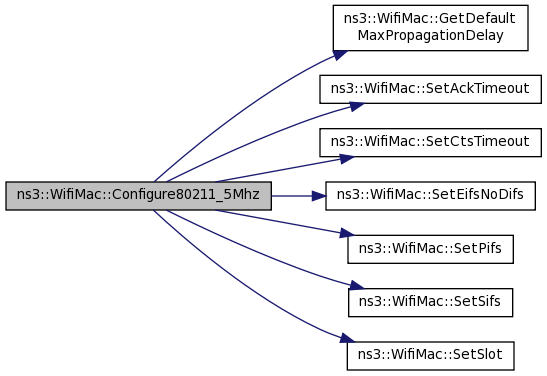

Here is the call graph for this function:

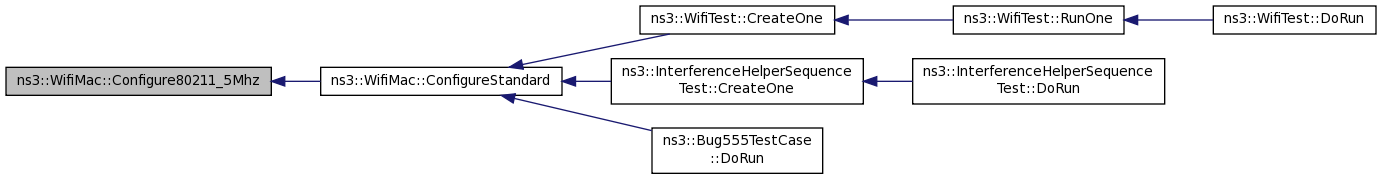

Here is the caller graph for this function:

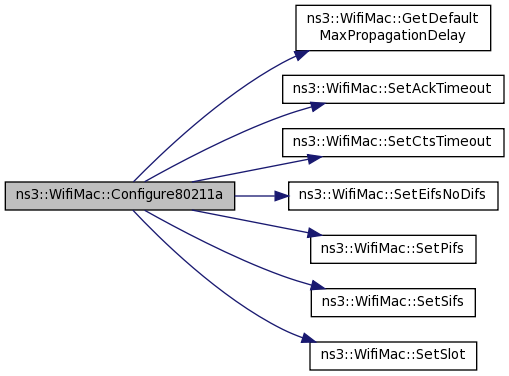

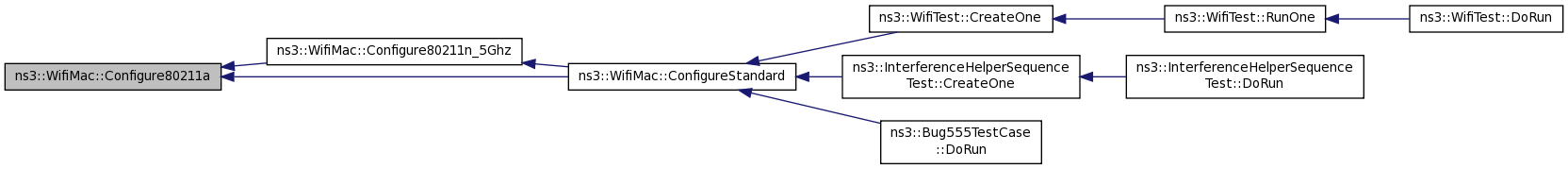

void ns3::WifiMac::Configure80211a ( void )

private

Configure appropriate timing parameters for 802.11a.

Definition at line 312 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by Configure80211n_5Ghz(), and ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211b ( void )

private

Configure appropriate timing parameters for 802.11b.

Definition at line 323 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

Here is the call graph for this function:

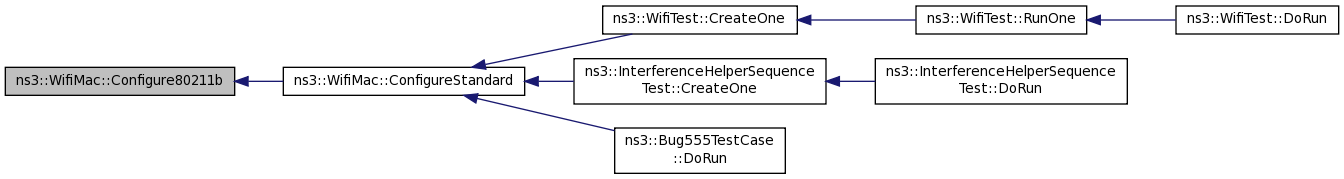

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211g ( void )

private

Configure appropriate timing parameters for 802.11g.

Definition at line 334 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by Configure80211n_2_4Ghz(), and ConfigureStandard().

Here is the call graph for this function:

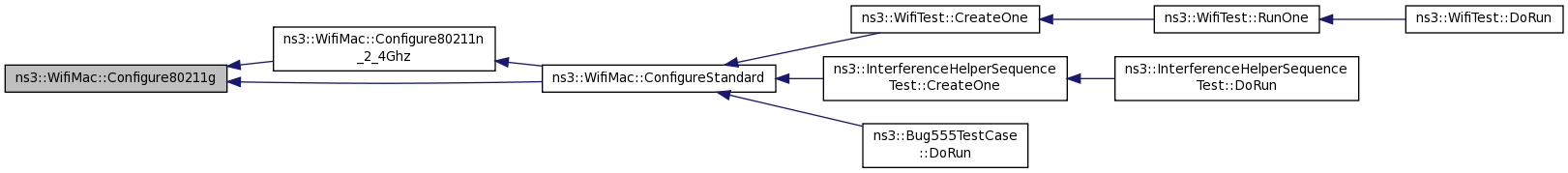

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211n_2_4Ghz ( void )

private

Configure appropriate timing parameters for 802.11n operating at 2.4Ghz.

Definition at line 368 of file wifi-mac.cc.

References Configure80211g(), GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), and SetRifs().

Referenced by ConfigureStandard().

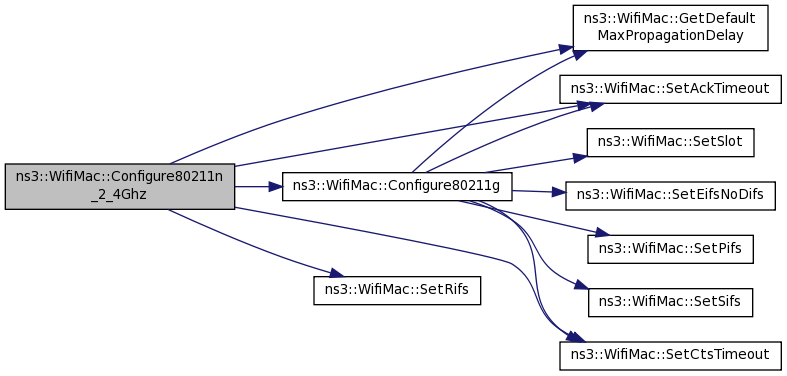

Here is the call graph for this function:

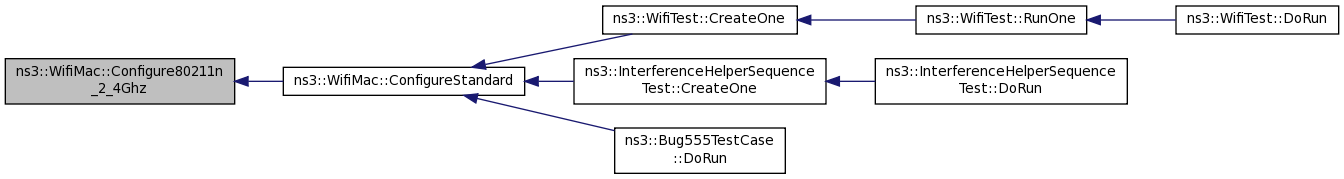

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211n_5Ghz ( void )

private

Configure appropriate timing parameters for 802.11n operating at 5Ghz.

Definition at line 376 of file wifi-mac.cc.

References Configure80211a(), GetDefaultMaxPropagationDelay(), SetAckTimeout(), SetCtsTimeout(), and SetRifs().

Referenced by ConfigureStandard().

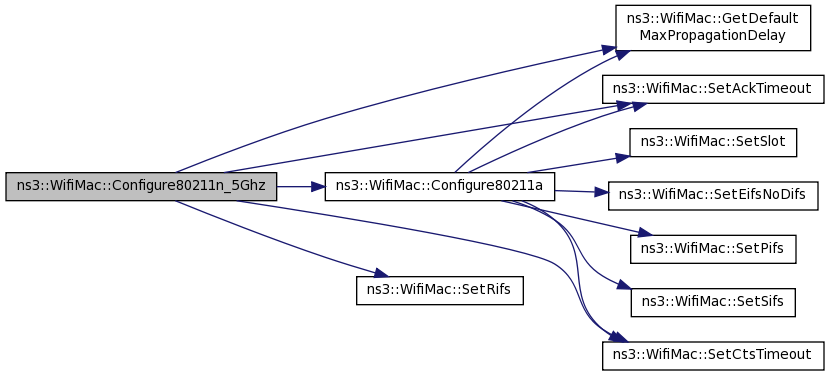

Here is the call graph for this function:

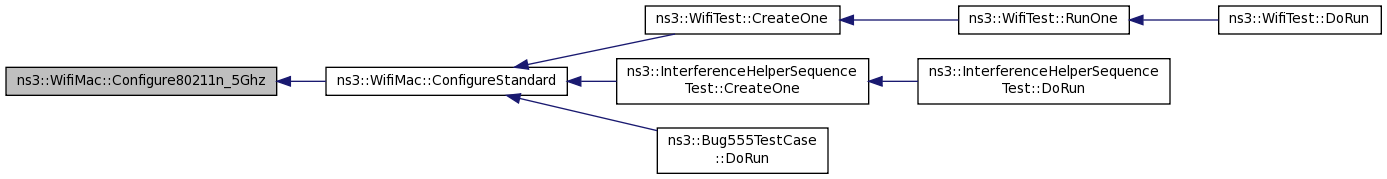

Here is the caller graph for this function:

void ns3::WifiMac::ConfigureDcf	(	Ptr< Dcf >	dcf,
		uint32_t	cwmin,
		uint32_t	cwmax,
		enum AcIndex	ac
	)

protected

Parameters

dcf	the DCF to be configured
cwmin	the minimum congestion window for the DCF
cwmax	the maximum congestion window for the DCF
ac	the access category for the DCF

Configure the DCF with appropriate values depending on the given access category.

Definition at line 385 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, and NS_FATAL_ERROR.

Referenced by ns3::RegularWifiMac::FinishConfigureStandard().

Here is the caller graph for this function:

void ns3::WifiMac::ConfigureStandard ( enum WifiPhyStandard standard )

Parameters

standard the wifi standard to be configured

Definition at line 276 of file wifi-mac.cc.

References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), FinishConfigureStandard(), NS_ASSERT, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

Referenced by ns3::WifiTest::CreateOne(), ns3::InterferenceHelperSequenceTest::CreateOne(), and ns3::Bug555TestCase::DoRun().

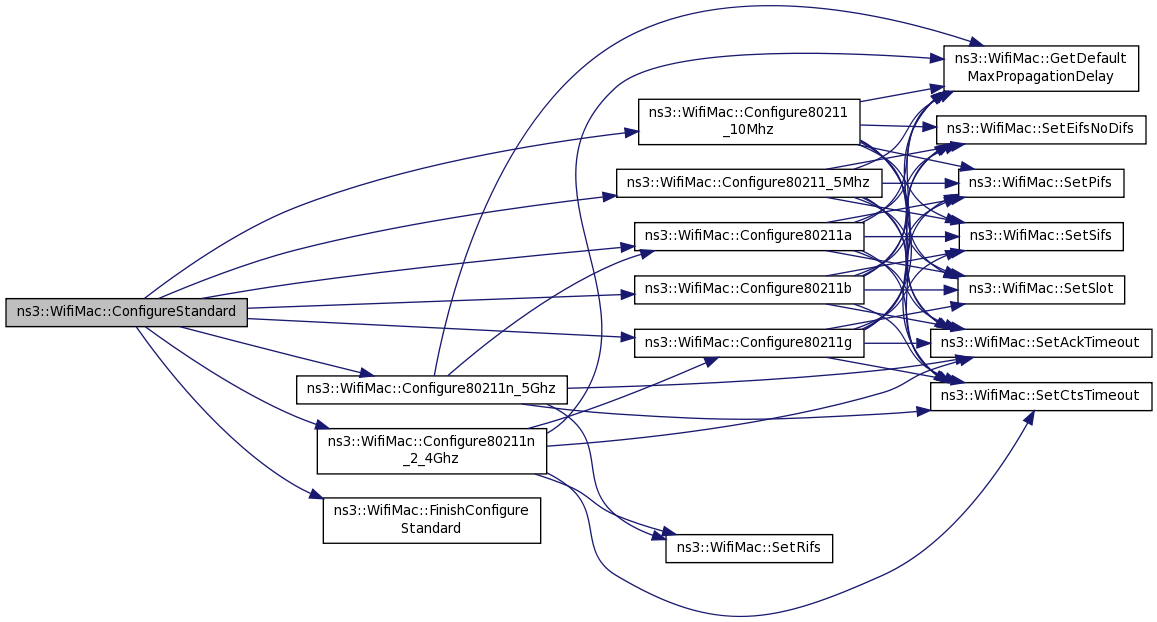

Here is the call graph for this function:

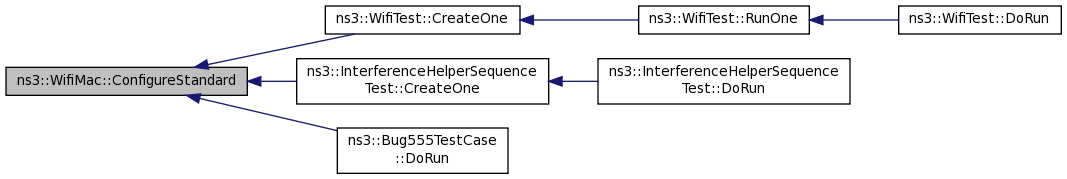

Here is the caller graph for this function:

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in ns3::RegularWifiMac, ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::StaWifiMac.

virtual void ns3::WifiMac::FinishConfigureStandard ( enum WifiPhyStandard standard )

privatepure virtual

Parameters

standard the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard. Subclasses should implement this method to configure their dcf queues according to the requested standard.

Implemented in ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, and ns3::OcbWifiMac.

Referenced by ConfigureStandard().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetAckTimeout ( void ) const

pure virtual

Returns: the current ACK timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetAddress ( void ) const

pure virtual

Returns: the MAC address associated to this MAC layer.

Implemented in ns3::RegularWifiMac.

Time ns3::WifiMac::GetBasicBlockAckTimeout ( void ) const

virtual

Returns: the current basic block ACK timeout duration.

Reimplemented in ns3::RegularWifiMac.

Definition at line 119 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetBssid ( void ) const

pure virtual

Returns: the bssid of the network this device belongs to.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Time ns3::WifiMac::GetCompressedBlockAckTimeout ( void ) const

virtual

Returns: the current compressed block ACK timeout duration.

Reimplemented in ns3::RegularWifiMac.

Definition at line 132 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetCtsTimeout ( void ) const

pure virtual

Returns: the current CTS timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultBasicBlockAckDelay ( void )

staticprivate

Return the default basic block ACK delay.

Currently it returns 250 microseconds.

Returns: the default basic block ACK delay

Definition at line 81 of file wifi-mac.cc.

Referenced by GetDefaultBasicBlockAckTimeout().

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultBasicBlockAckTimeout ( void )

staticprivate

Return the default basic block ACK timeout.

Returns: the default basic block ACK timeout

Definition at line 94 of file wifi-mac.cc.

References GetDefaultBasicBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), and GetDefaultSlot().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckDelay ( void )

staticprivate

Return the default compressed block ACK delay.

Currently it returns 76 microseconds.

Returns: the default compressed block ACK delay

Definition at line 87 of file wifi-mac.cc.

Referenced by GetDefaultCompressedBlockAckTimeout().

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckTimeout ( void )

staticprivate

Return the default compressed block ACK timeout.

Returns: the default compressed block ACK timeout

Definition at line 103 of file wifi-mac.cc.

References GetDefaultCompressedBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), and GetDefaultSlot().

Referenced by GetTypeId().

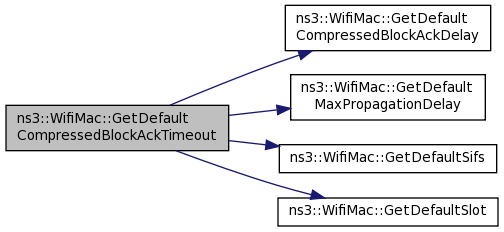

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCtsAckDelay ( void )

staticprivate

Returns: the default CTS-ACK delay

Return a default value for 802.11a at 6Mbps (44 microseconds)

Definition at line 61 of file wifi-mac.cc.

Referenced by GetDefaultCtsAckTimeout(), and GetDefaultEifsNoDifs().

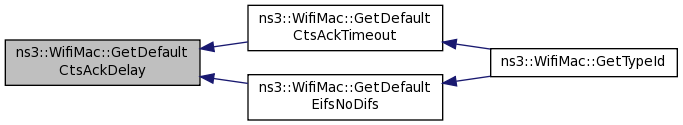

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCtsAckTimeout ( void )

staticprivate

Returns: the default CTS and ACK timeout

Return the default CTS and ACK timeout. Cts_Timeout and Ack_Timeout are specified in the Annex C (Formal description of MAC operation, see details on the Trsp timer setting at page 346)

Definition at line 67 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), and GetDefaultSlot().

Referenced by GetTypeId().

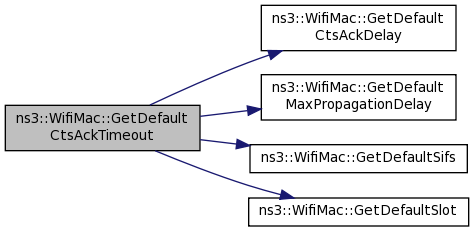

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultEifsNoDifs ( void )

staticprivate

Returns: the default extended interframe space (EIFS) without DCF interframe space (DIFS)

Return default SIFS + default CTS-ACK delay

Definition at line 56 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), and GetDefaultSifs().

Referenced by GetTypeId().

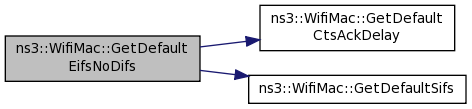

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultMaxPropagationDelay ( void )

staticprivate

Returns: the default maximum propagation delay

By default, we get the maximum propagation delay from 1000 m and speed of light (3e8 m/s).

Definition at line 32 of file wifi-mac.cc.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

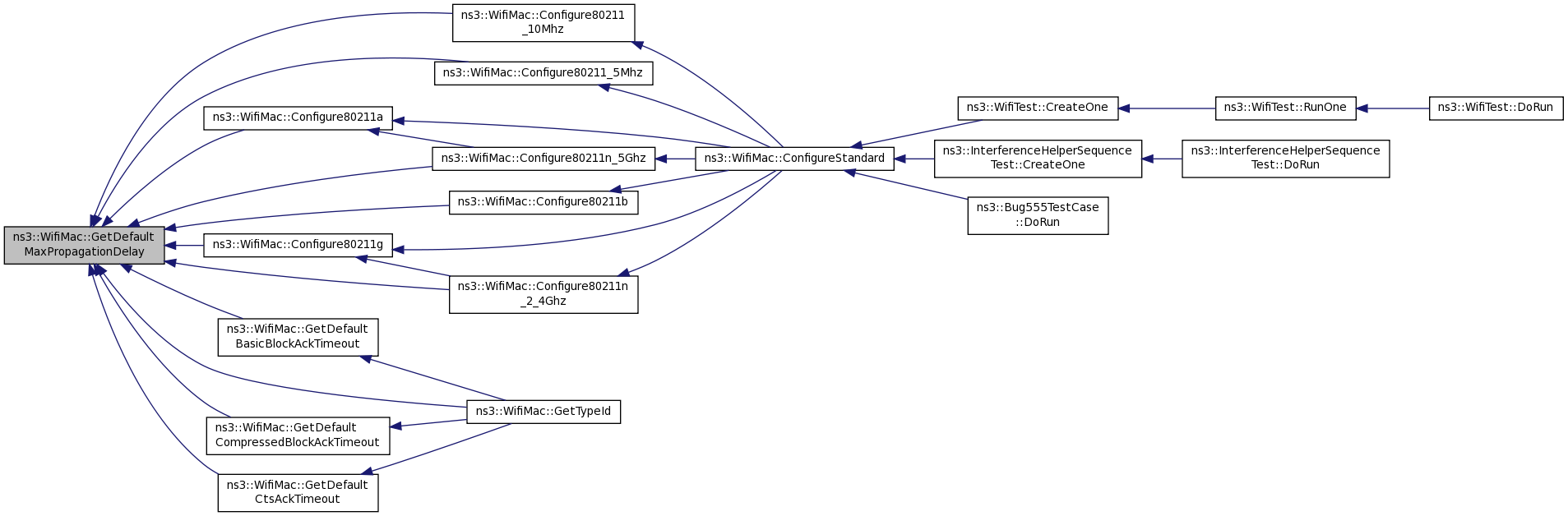

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultRifs ( void )

staticprivate

Returns: the default reduced interframe space (RIFS)

Return a default RIFS value for 802.11n (2 microseconds).

Definition at line 50 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultSifs ( void )

staticprivate

Returns: the default short interframe space (SIFS)

Return a default SIFS value for 802.11a (16 microseconds).

Definition at line 44 of file wifi-mac.cc.

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), GetDefaultEifsNoDifs(), and GetTypeId().

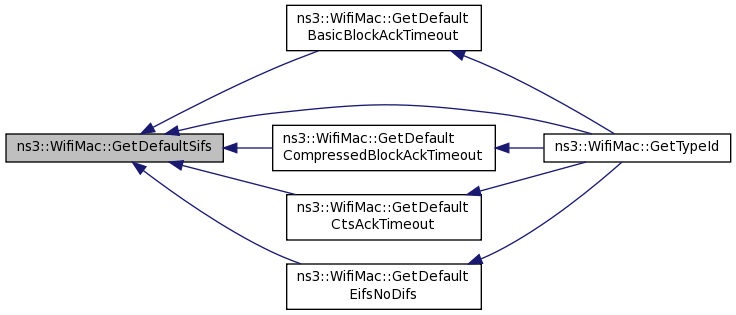

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultSlot ( void )

staticprivate

Returns: the default slot duration

Return a default slot value for 802.11a (9 microseconds).

Definition at line 38 of file wifi-mac.cc.

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

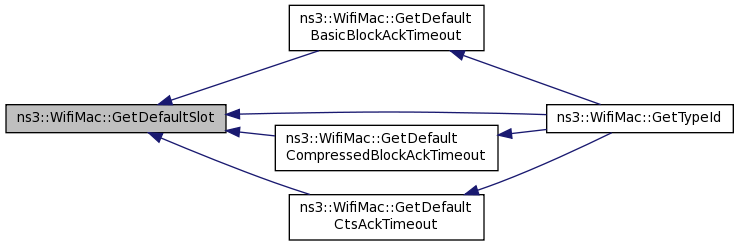

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetEifsNoDifs ( void ) const

pure virtual

Returns: the current EIFS minus DIFS duration

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::WifiMac::GetMaxPropagationDelay ( void ) const

Returns: the maximum propagation delay.

Unused for now.

Definition at line 240 of file wifi-mac.cc.

References m_maxPropagationDelay.

Time ns3::WifiMac::GetMsduLifetime ( void ) const

Returns: the maximum lifetime of an MSDU.

Unused for now.

Definition at line 235 of file wifi-mac.cc.

virtual Time ns3::WifiMac::GetPifs ( void ) const

pure virtual

Returns: the current PIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetRifs ( void ) const

pure virtual

Returns: the current RIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetSifs ( void ) const

pure virtual

Returns: the current SIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetSlot ( void ) const

pure virtual

Returns: the current slot duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Ssid ns3::WifiMac::GetSsid ( void ) const

pure virtual

Returns: the ssid which this MAC layer is going to try to stay in.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::WifiMac::GetTypeId ( void )

static

Definition at line 139 of file wifi-mac.cc.

References GetAckTimeout(), GetBasicBlockAckTimeout(), GetCompressedBlockAckTimeout(), GetCtsTimeout(), GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), GetDefaultEifsNoDifs(), GetDefaultMaxPropagationDelay(), GetDefaultRifs(), GetDefaultSifs(), GetDefaultSlot(), GetEifsNoDifs(), GetPifs(), GetRifs(), GetSifs(), GetSlot(), GetSsid(), m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_maxPropagationDelay, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), SetAckTimeout(), SetBasicBlockAckTimeout(), SetCompressedBlockAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), ns3::TypeId::SetParent(), SetPifs(), SetRifs(), SetSifs(), SetSlot(), and SetSsid().

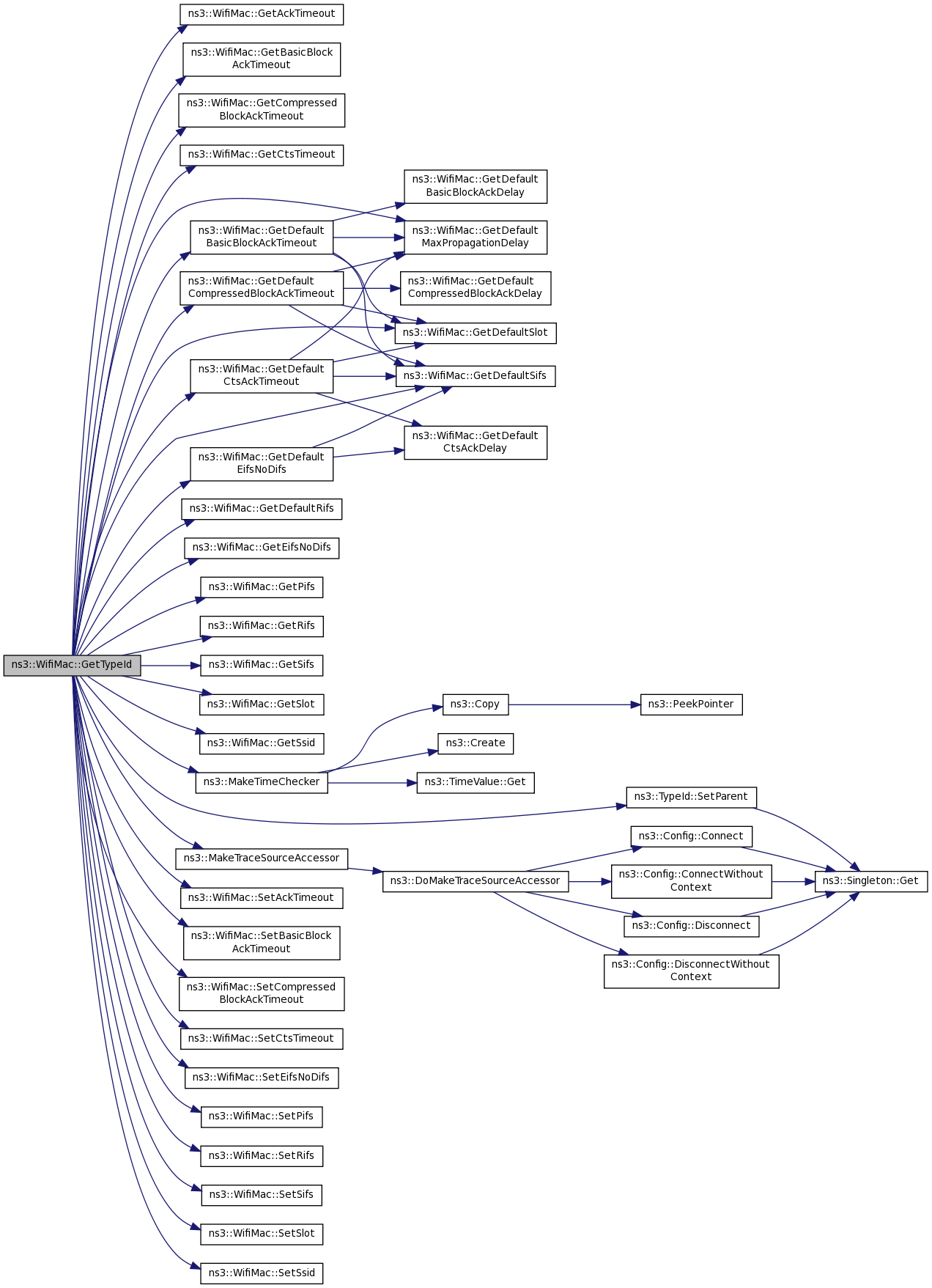

Here is the call graph for this function:

void ns3::WifiMac::NotifyPromiscRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received promiscuously

Public method used to fire a MacPromiscRx trace. Implemented for encapsulation purposes.

Definition at line 264 of file wifi-mac.cc.

References m_macPromiscRxTrace.

void ns3::WifiMac::NotifyRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received

Public method used to fire a MacRx trace. Implemented for encapsulation purposes.

Definition at line 258 of file wifi-mac.cc.

References m_macRxTrace.

void ns3::WifiMac::NotifyRxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet we received but is not destined for us

Public method used to fire a MacRxDrop trace. Implemented for encapsulation purposes.

Definition at line 270 of file wifi-mac.cc.

References m_macRxDropTrace.

Referenced by ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

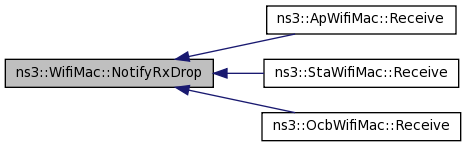

Here is the caller graph for this function:

void ns3::WifiMac::NotifyTx ( Ptr< const Packet > packet )

Parameters

packet the packet being enqueued

Public method used to fire a MacTx trace. Implemented for encapsulation purposes. Note this trace indicates that the packet was accepted by the device only. The packet may be dropped later (e.g. if the queue is full).

Definition at line 246 of file wifi-mac.cc.

References m_macTxTrace.

void ns3::WifiMac::NotifyTxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet being dropped

Public method used to fire a MacTxDrop trace. Implemented for encapsulation purposes. This trace indicates that the packet was dropped before it was transmitted (e.g. when a STA is not associated with an AP).

Definition at line 252 of file wifi-mac.cc.

References m_macTxDropTrace.

Referenced by ns3::StaWifiMac::Enqueue().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetAckTimeout ( Time ackTimeout )

pure virtual

Parameters

ackTimeout the duration of an ACK timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

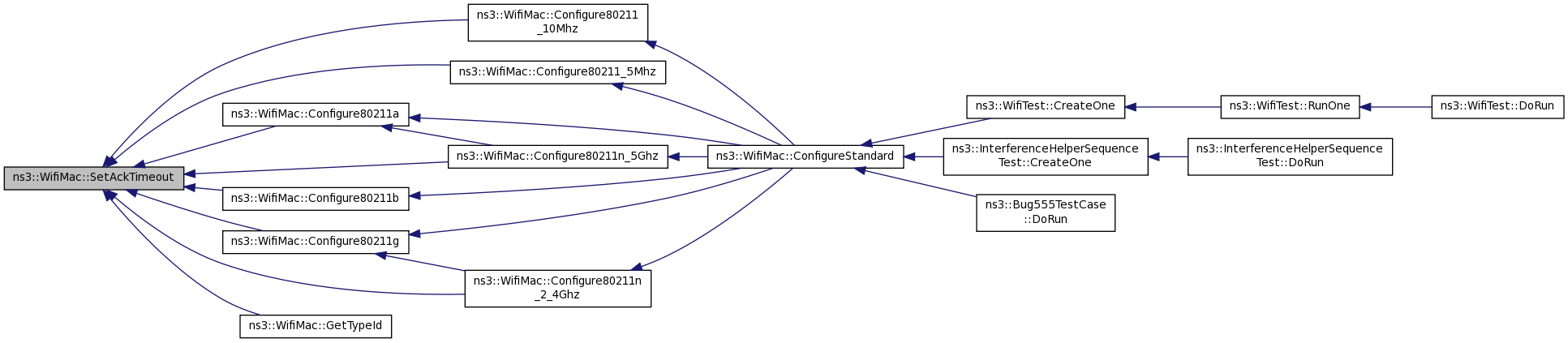

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetAddress ( Mac48Address address )

pure virtual

Parameters

address the current address of this MAC layer.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

void ns3::WifiMac::SetBasicBlockAckTimeout ( Time blockAckTimeout )

virtual

Parameters

blockAckTimeout the duration for basic block ACK timeout.

Sets the timeout for basic block ACK.

Reimplemented in ns3::RegularWifiMac.

Definition at line 113 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiMac::SetCompressedBlockAckTimeout ( Time blockAckTimeout )

virtual

Parameters

blockAckTimeout Sets the timeout for compressed block ACK.

Reimplemented in ns3::RegularWifiMac.

Definition at line 126 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetCtsTimeout ( Time ctsTimeout )

pure virtual

Parameters

ctsTimeout the duration of a CTS timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetEifsNoDifs ( Time eifsNoDifs )

pure virtual

Parameters

eifsNoDifs the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

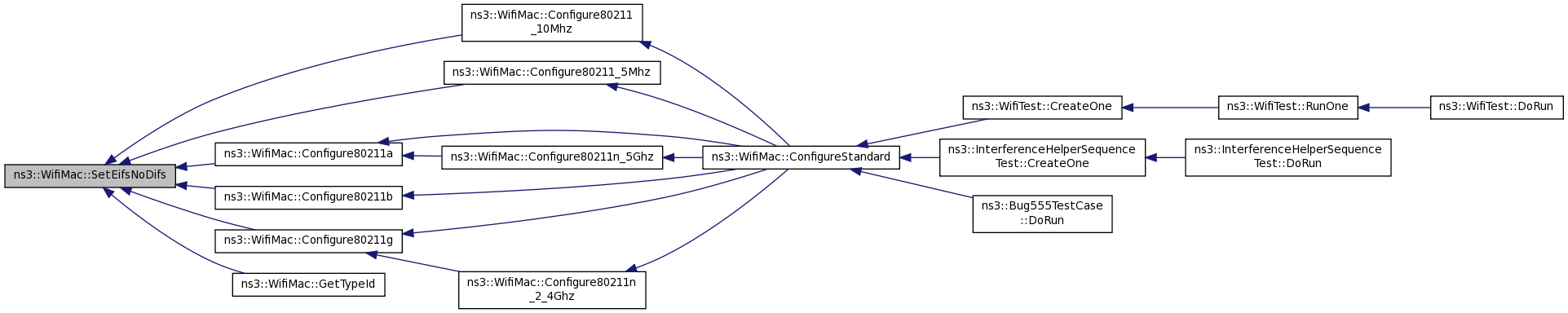

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetForwardUpCallback ( Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback )

pure virtual

Parameters

upCallback the callback to invoke when a packet must be forwarded up the stack.

virtual void ns3::WifiMac::SetLinkDownCallback ( Callback< void > linkDown )

pure virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

virtual void ns3::WifiMac::SetLinkUpCallback ( Callback< void > linkUp )

pure virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implemented in ns3::RegularWifiMac, ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

void ns3::WifiMac::SetMaxPropagationDelay ( Time delay )

Parameters

delay the max propagation delay.

Unused for now.

Definition at line 229 of file wifi-mac.cc.

References m_maxPropagationDelay.

virtual void ns3::WifiMac::SetPifs ( Time pifs )

pure virtual

Parameters

pifs	the pifs duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetPromisc ( void )

pure virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetRifs ( Time rifs )

pure virtual

Parameters

rifs	the rifs duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

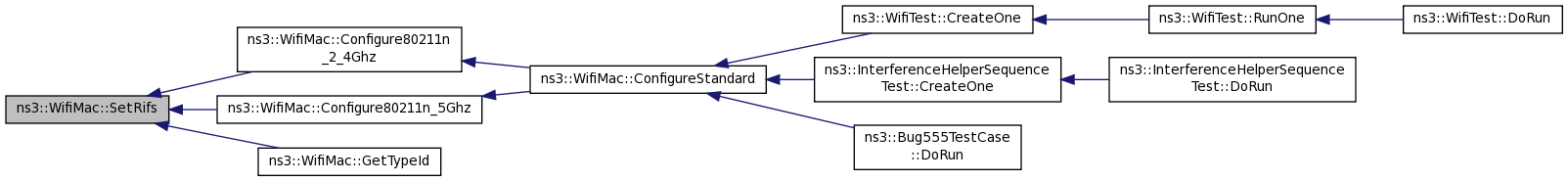

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSifs ( Time sifs )

pure virtual

Parameters

sifs	the sifs duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSlot ( Time slotTime )

pure virtual

Parameters

slotTime the slot duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSsid ( Ssid ssid )

pure virtual

Parameters

ssid	the current ssid of this MAC layer.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetWifiPhy ( Ptr< WifiPhy > phy )

pure virtual

Parameters

phy	the physical layer attached to this MAC.

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > stationManager )

pure virtual

Parameters

stationManager the station manager attached to this MAC.

Implemented in ns3::RegularWifiMac, and ns3::ApWifiMac.

virtual bool ns3::WifiMac::SupportsSendFrom ( void ) const

pure virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Member Data Documentation

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 427 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyPromiscRx().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource

Definition at line 444 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also: class CallBackTraceSource

Definition at line 436 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRx().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See also: class CallBackTraceSource

Definition at line 418 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 410 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTx().

Time ns3::WifiMac::m_maxPropagationDelay

private

Definition at line 373 of file wifi-mac.h.

Referenced by GetMaxPropagationDelay(), GetTypeId(), and SetMaxPropagationDelay().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac.h
src/wifi/model/wifi-mac.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Config Paths

Attributes

TraceSources

Member Function Documentation

Member Data Documentation
