#include <adhoc-wifi-mac.h>

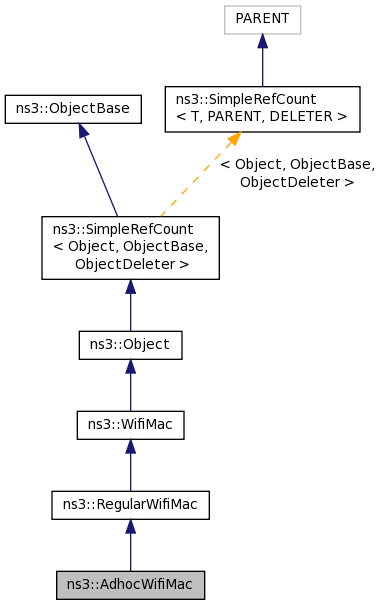

Inheritance diagram for ns3::AdhocWifiMac:

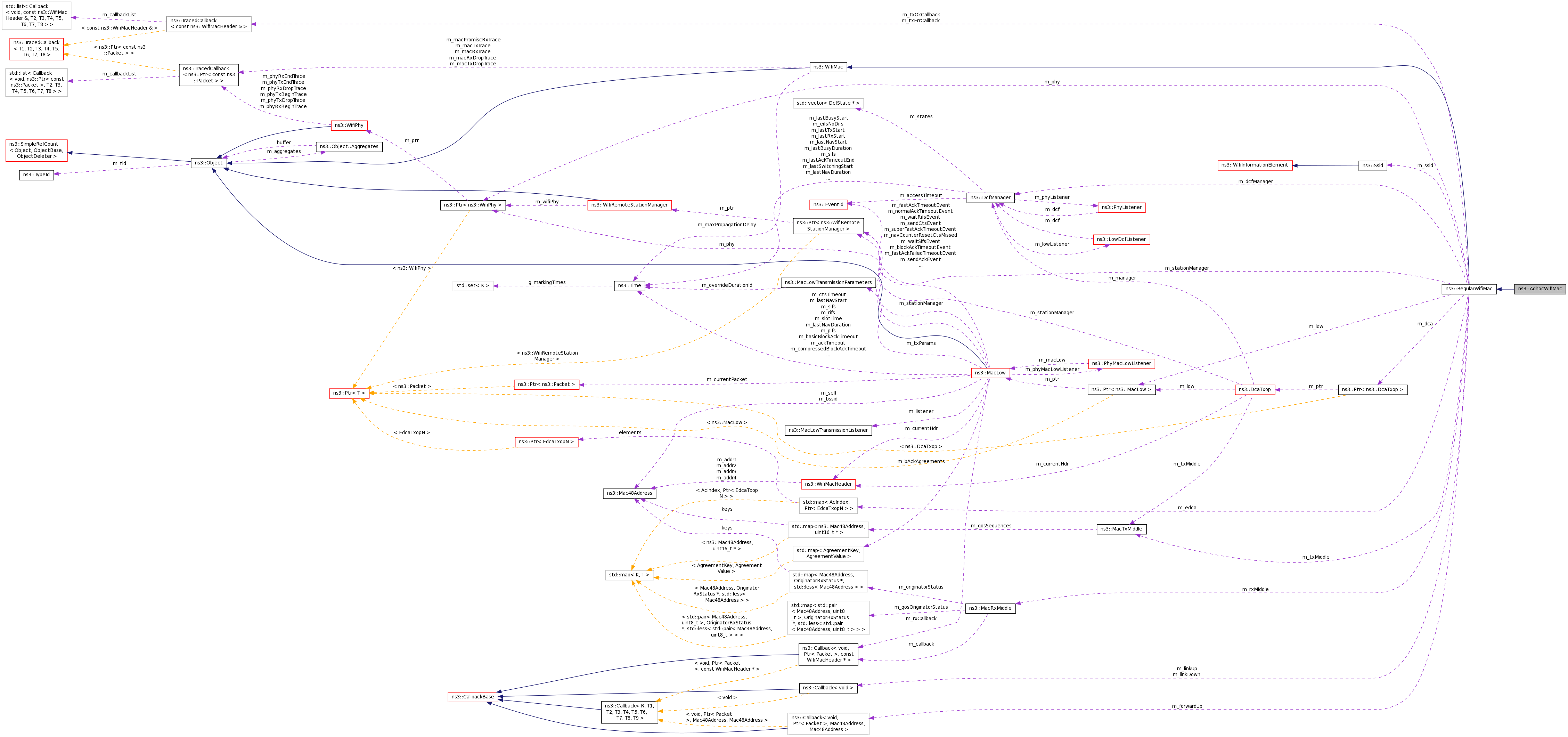

Collaboration diagram for ns3::AdhocWifiMac:

Public Member Functions
	AdhocWifiMac ()

virtual	~AdhocWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)

virtual void	SetAddress (Mac48Address address)

virtual void	SetLinkUpCallback (Callback< void > linkUp)

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

Time	GetAckTimeout (void) const

virtual Mac48Address	GetAddress (void) const

virtual Time	GetBasicBlockAckTimeout (void) const

virtual Mac48Address	GetBssid (void) const

virtual Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

bool	GetCtsToSelfSupported () const
	Return whether the device supports CTS-to-self capability. More...

Time	GetEifsNoDifs (void) const

Time	GetPifs (void) const

Time	GetRifs (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

virtual Ssid	GetSsid (void) const

virtual Ptr< WifiPhy >	GetWifiPhy () const

virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const

void	SetAckTimeout (Time ackTimeout)

virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void	SetBssid (Mac48Address bssid)

virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)

virtual void	SetLinkDownCallback (Callback< void > linkDown)

void	SetPifs (Time pifs)

virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

virtual void	SetSsid (Ssid ssid)

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< EdcaTxopN >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopN >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

Ptr< DcaTxop >	GetDcaTxop (void) const
	Accessor for the DCF object. More...

bool	GetHtSupported () const
	Return whether the device supports QoS. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< EdcaTxopN >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< EdcaTxopN >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca
	This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

DcfManager *	m_dcfManager
	DCF manager (access to channel) More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

bool	m_htSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11n. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

MacRxMiddle *	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

MacTxMiddle *	m_txMiddle
	TX middle (aggregation etc.) More...

Detailed Description

Config Paths

ns3::AdhocWifiMac is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::AdhocWifiMac
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::AdhocWifiMac

No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet
TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 36 of file adhoc-wifi-mac.h.

Constructor & Destructor Documentation

ns3::AdhocWifiMac::AdhocWifiMac ( )

Definition at line 56 of file adhoc-wifi-mac.cc.

References ns3::ADHOC_STA, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetTypeOfStation().

Here is the call graph for this function:

ns3::AdhocWifiMac::~AdhocWifiMac ( )

virtual

Definition at line 64 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AdhocWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 84 of file adhoc-wifi-mac.cc.

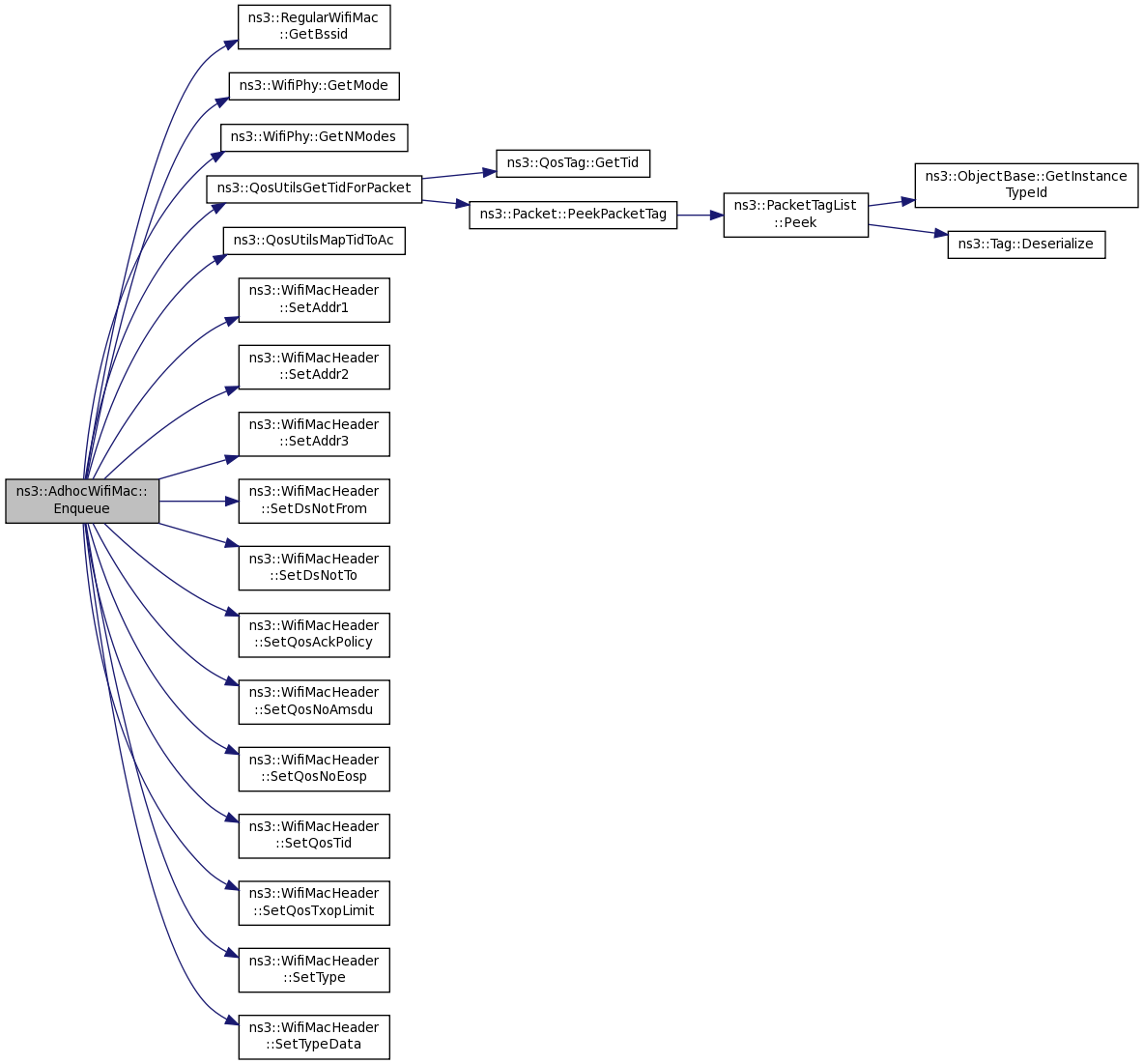

Here is the call graph for this function:

TypeId ns3::AdhocWifiMac::GetTypeId ( void )

static

Definition at line 47 of file adhoc-wifi-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

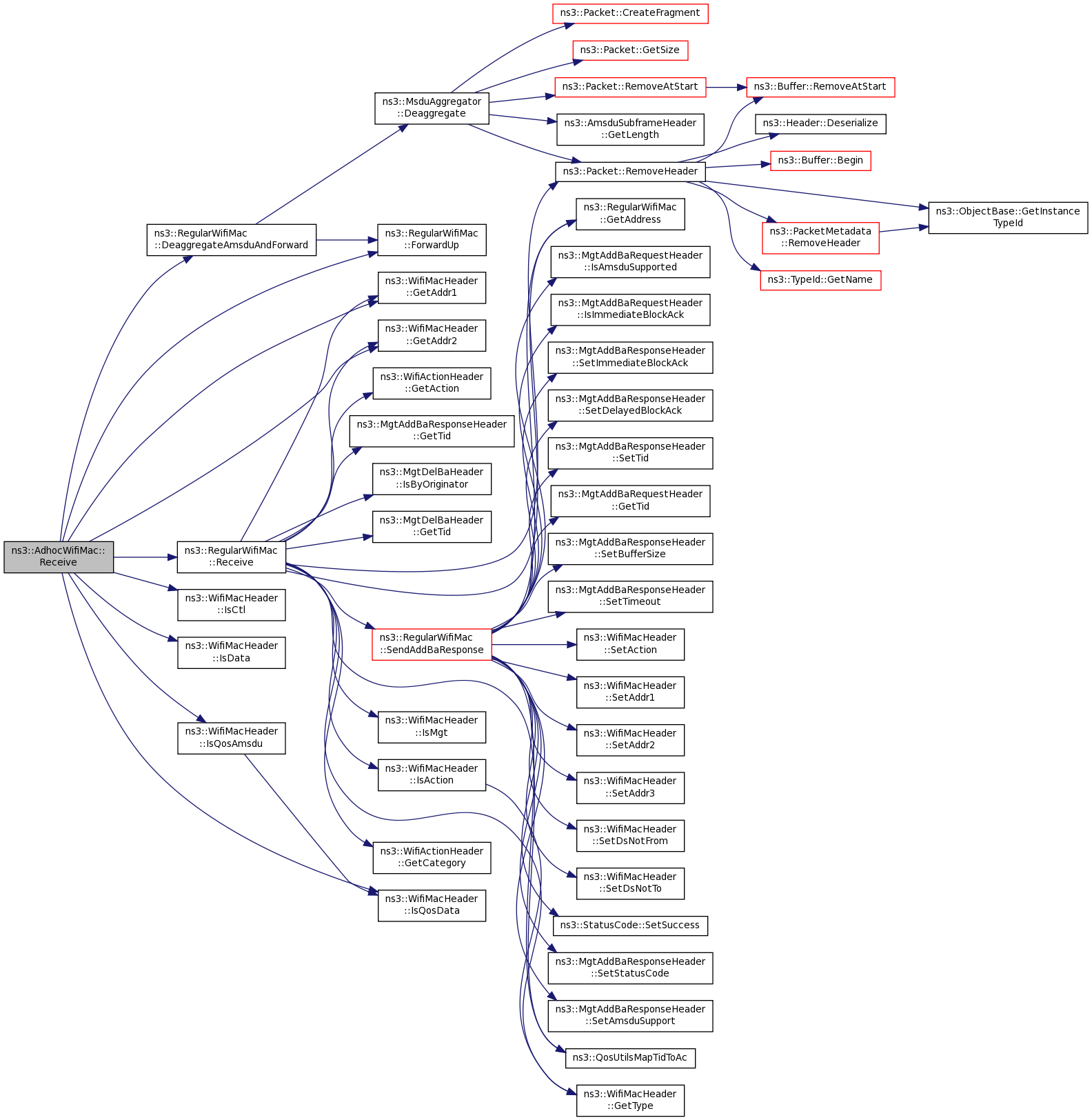

void ns3::AdhocWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

privatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters
