ns3::WifiRemoteStationManager Class Reference

hold a list of per-remote-station state. More...

#include <wifi-remote-station-manager.h>

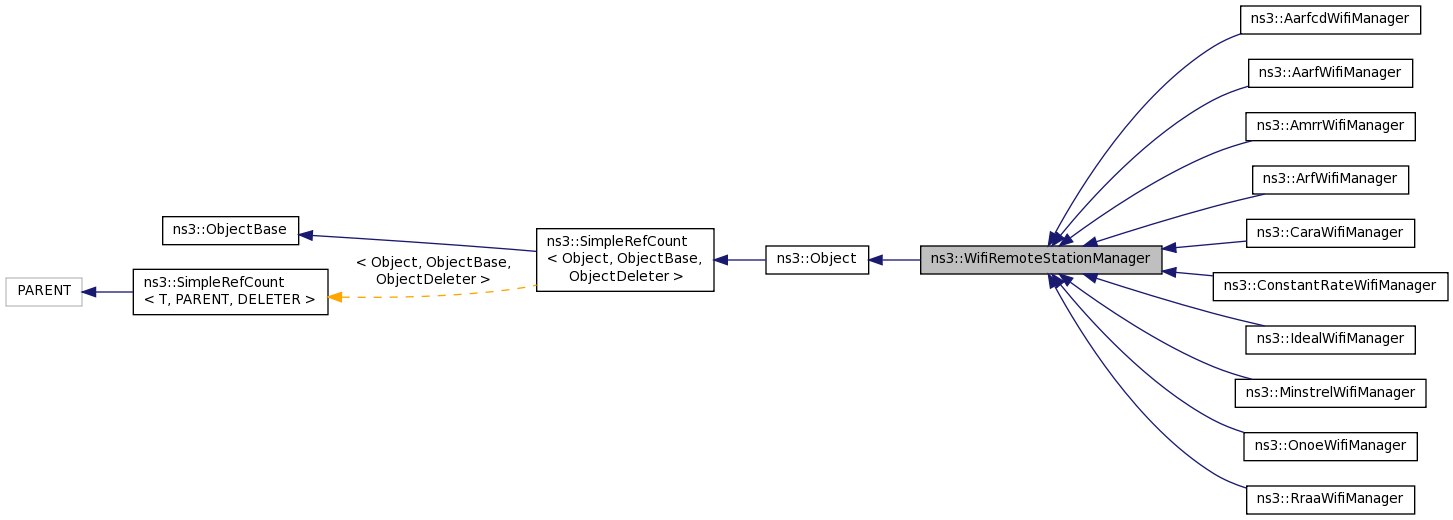

Inheritance diagram for ns3::WifiRemoteStationManager:

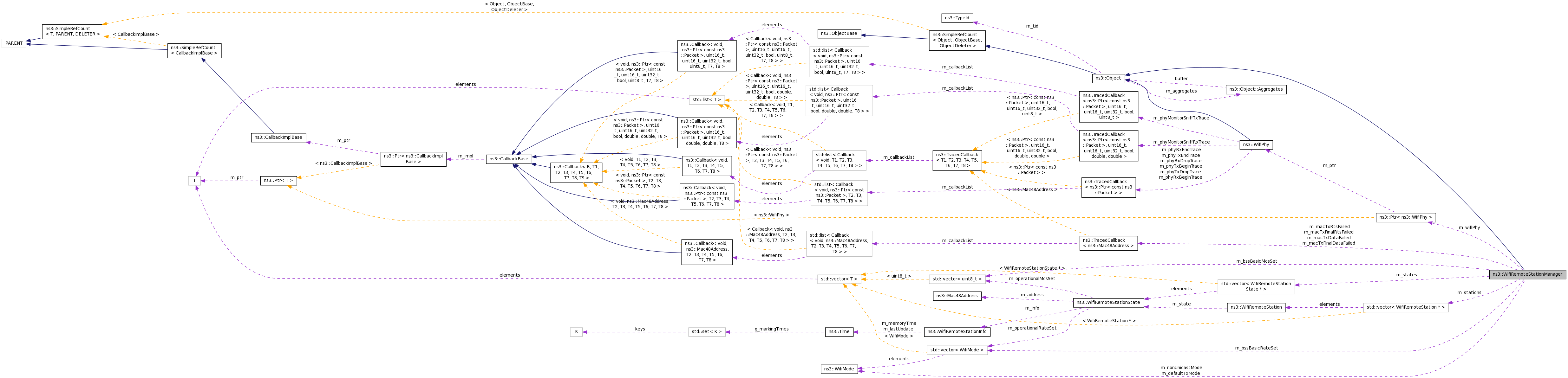

Collaboration diagram for ns3::WifiRemoteStationManager:

Public Member Functions
	WifiRemoteStationManager ()
virtual	~WifiRemoteStationManager ()

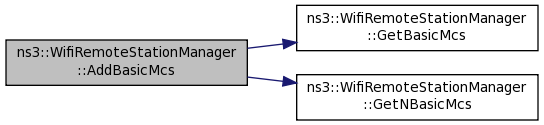

void	AddBasicMcs (uint8_t mcs)
	Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

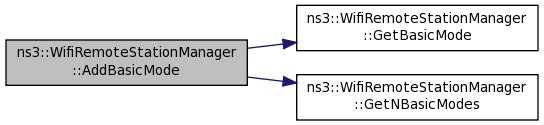

void	AddBasicMode (WifiMode mode)
	Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

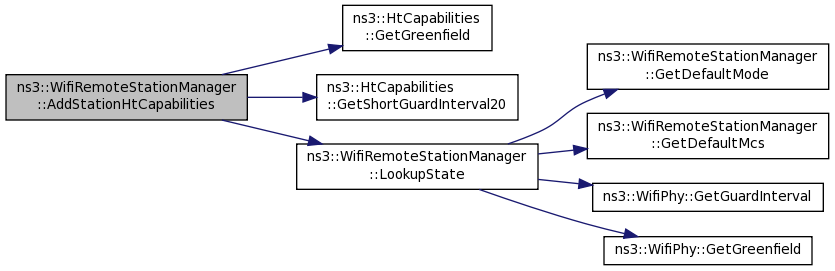

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
	Records HT capabilities of the remote station. More...
void	AddSupportedMcs (Mac48Address address, uint8_t mcs)
	Record the MCS index supported by the station. More...
void	AddSupportedMode (Mac48Address address, WifiMode mode)
	Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

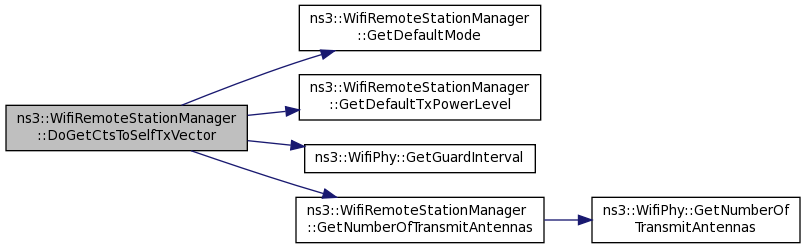

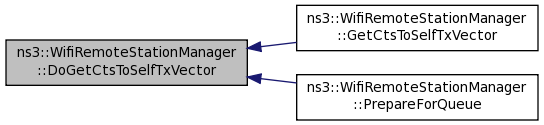

WifiTxVector	DoGetCtsToSelfTxVector (void)
	Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager. More...
WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)
uint8_t	GetBasicMcs (uint32_t i) const
	Return the MCS at the given list index. More...

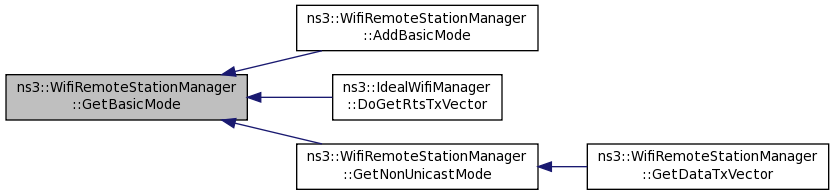

WifiMode	GetBasicMode (uint32_t i) const
	Return a basic mode from the set of basic modes. More...

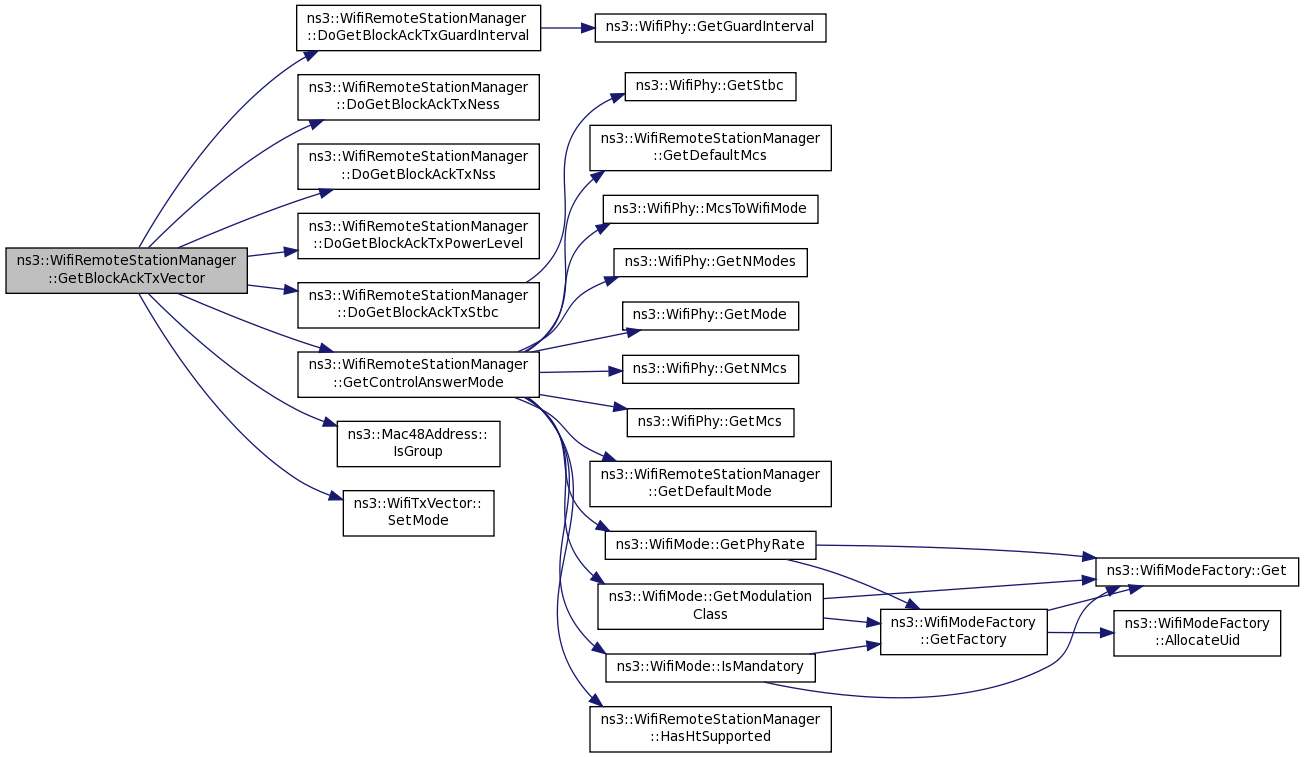

WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)
WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

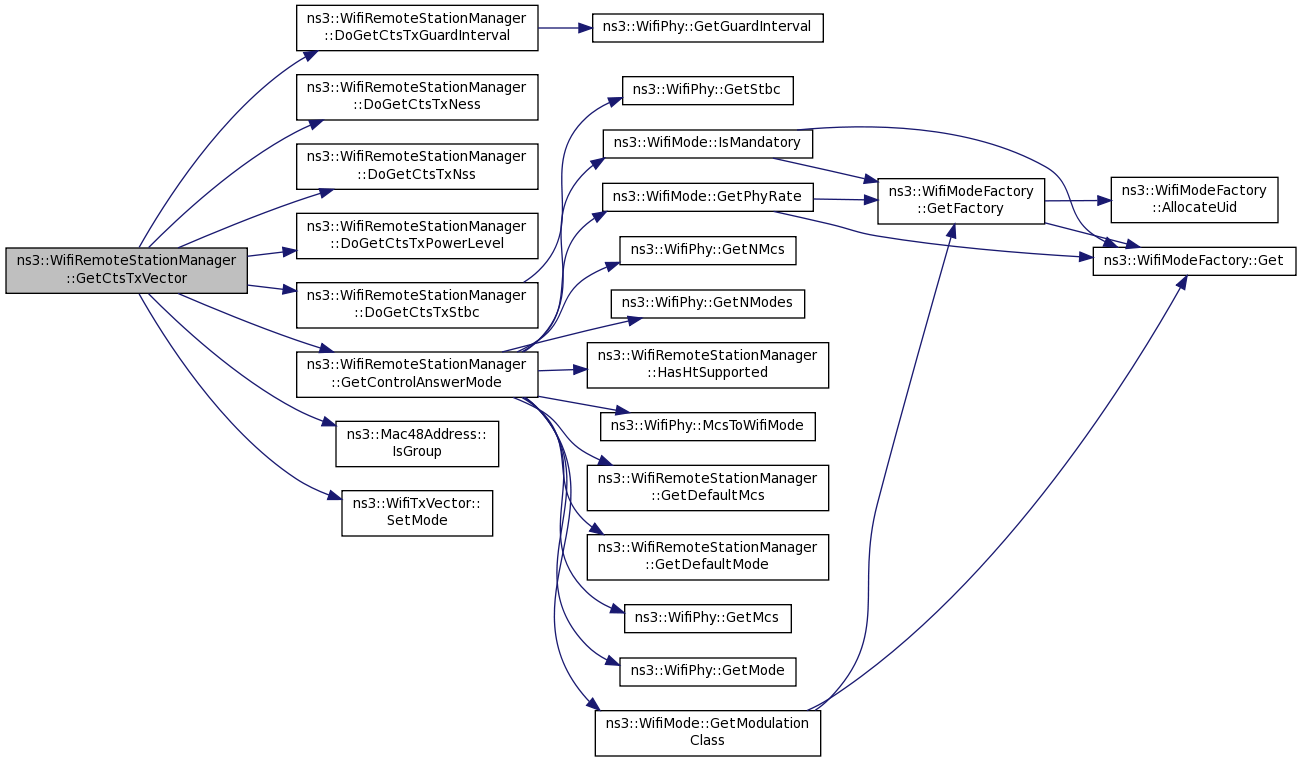

WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

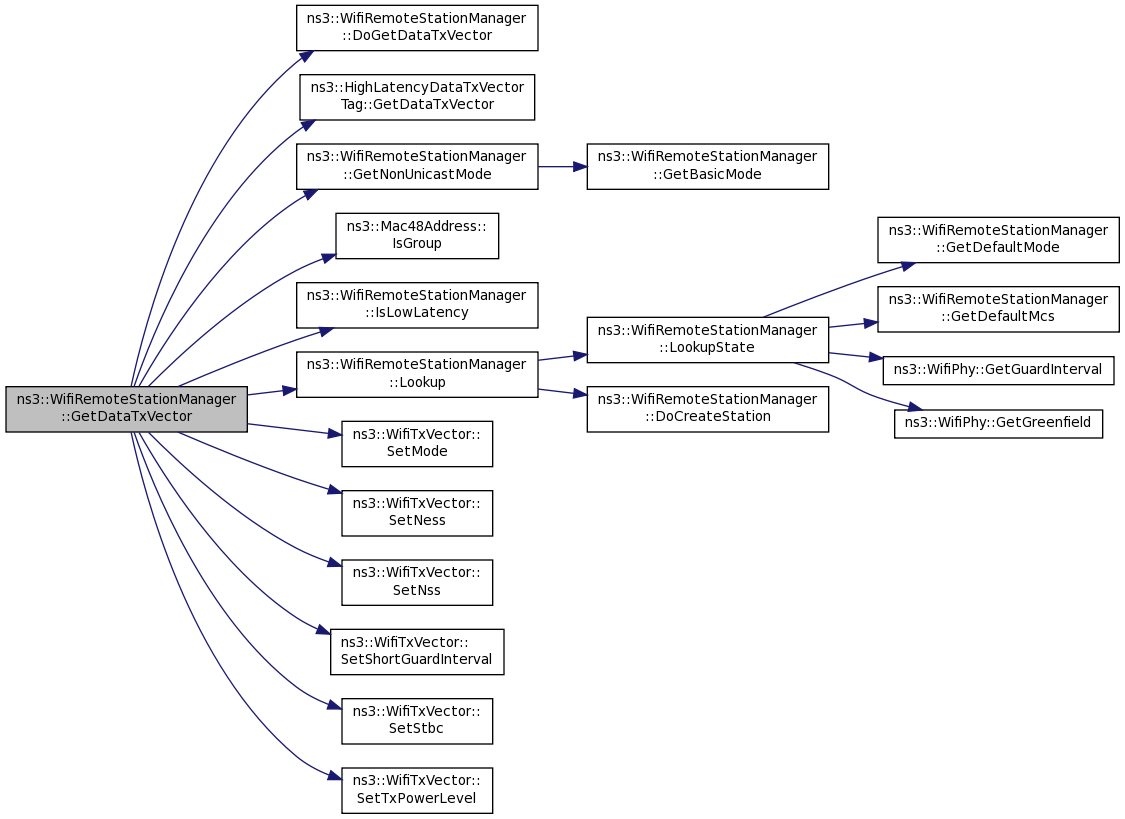

WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

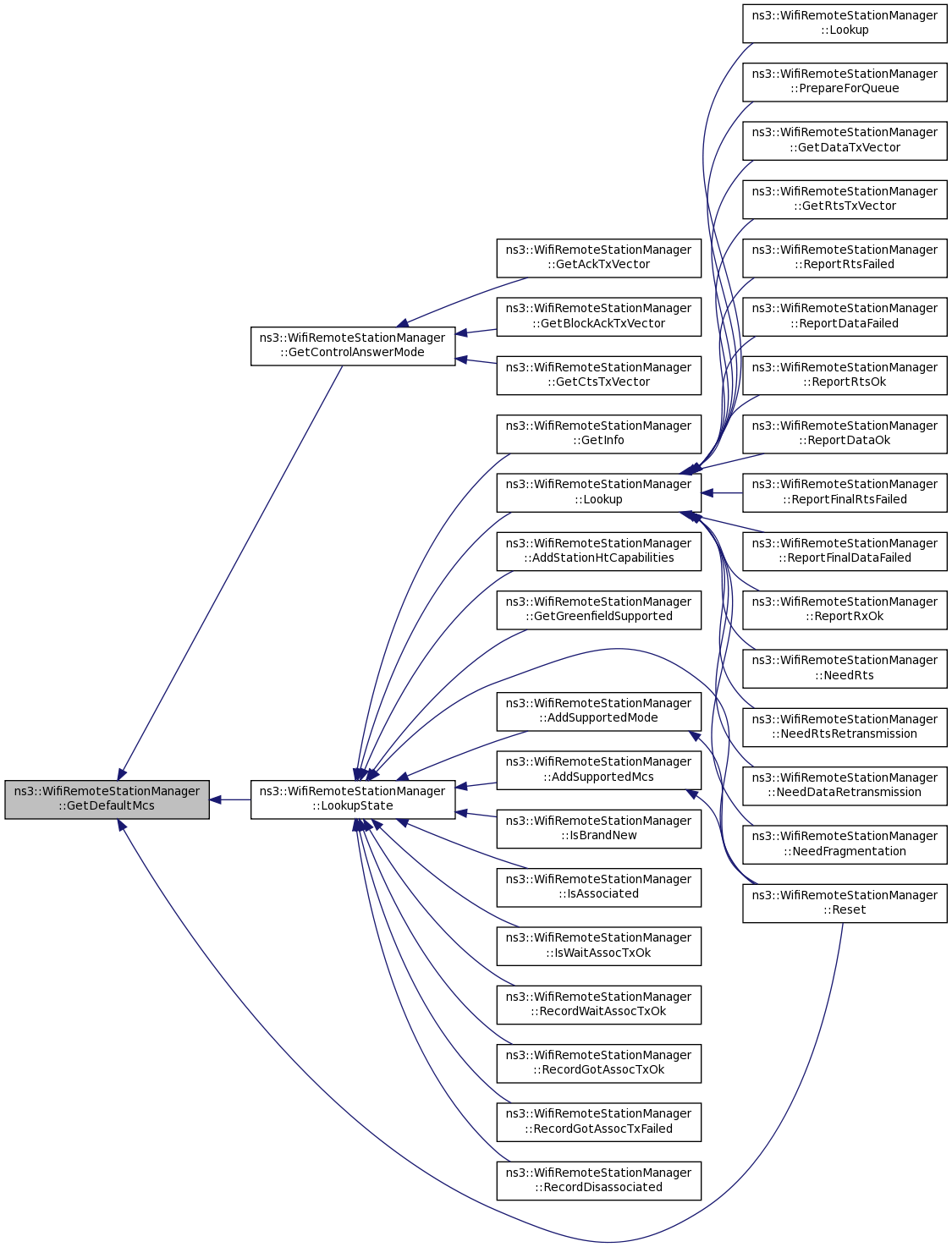

uint8_t	GetDefaultMcs (void) const
	Return the default Modulation and Coding Scheme (MCS) index. More...

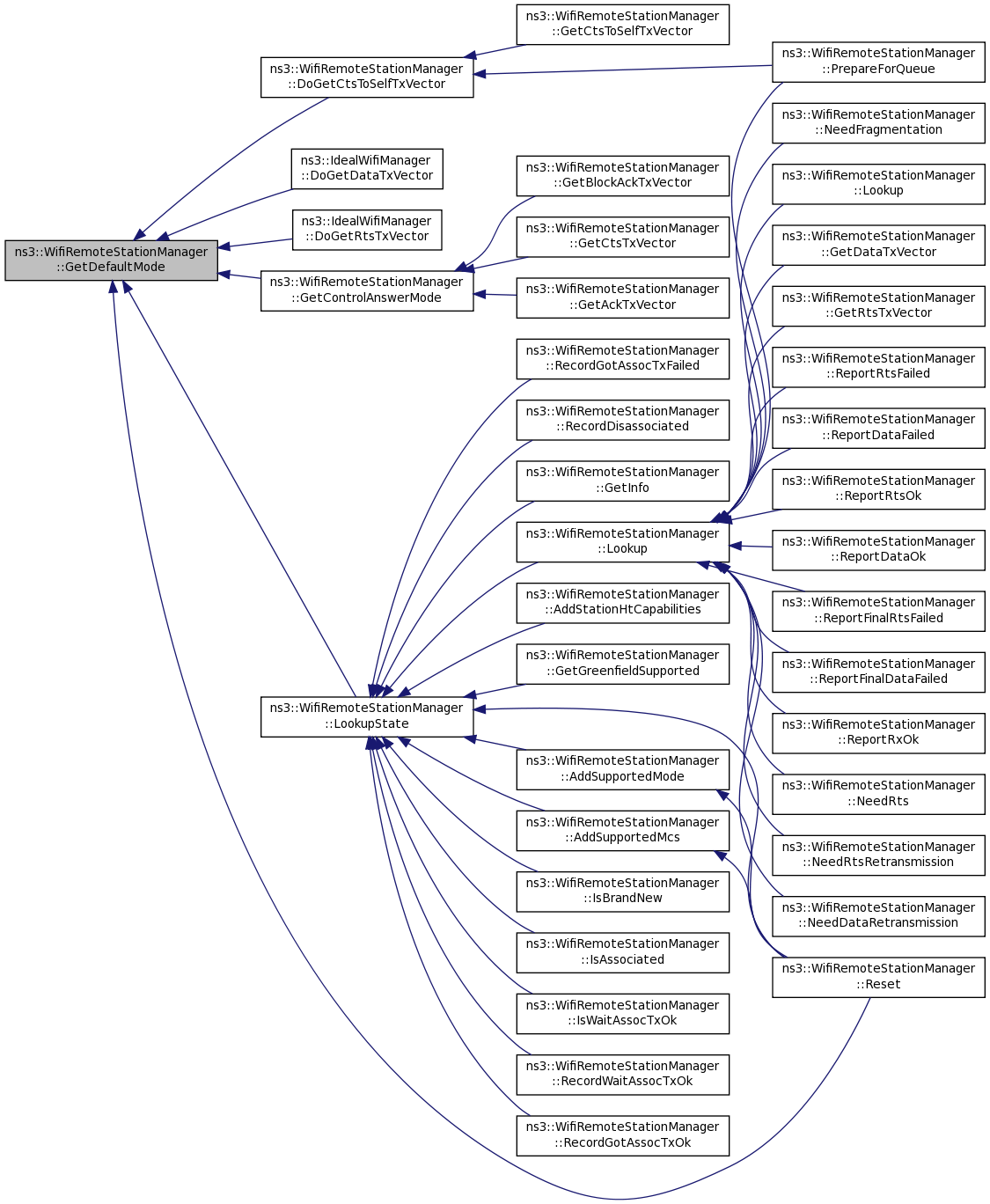

WifiMode	GetDefaultMode (void) const
	Return the default transmission mode. More...

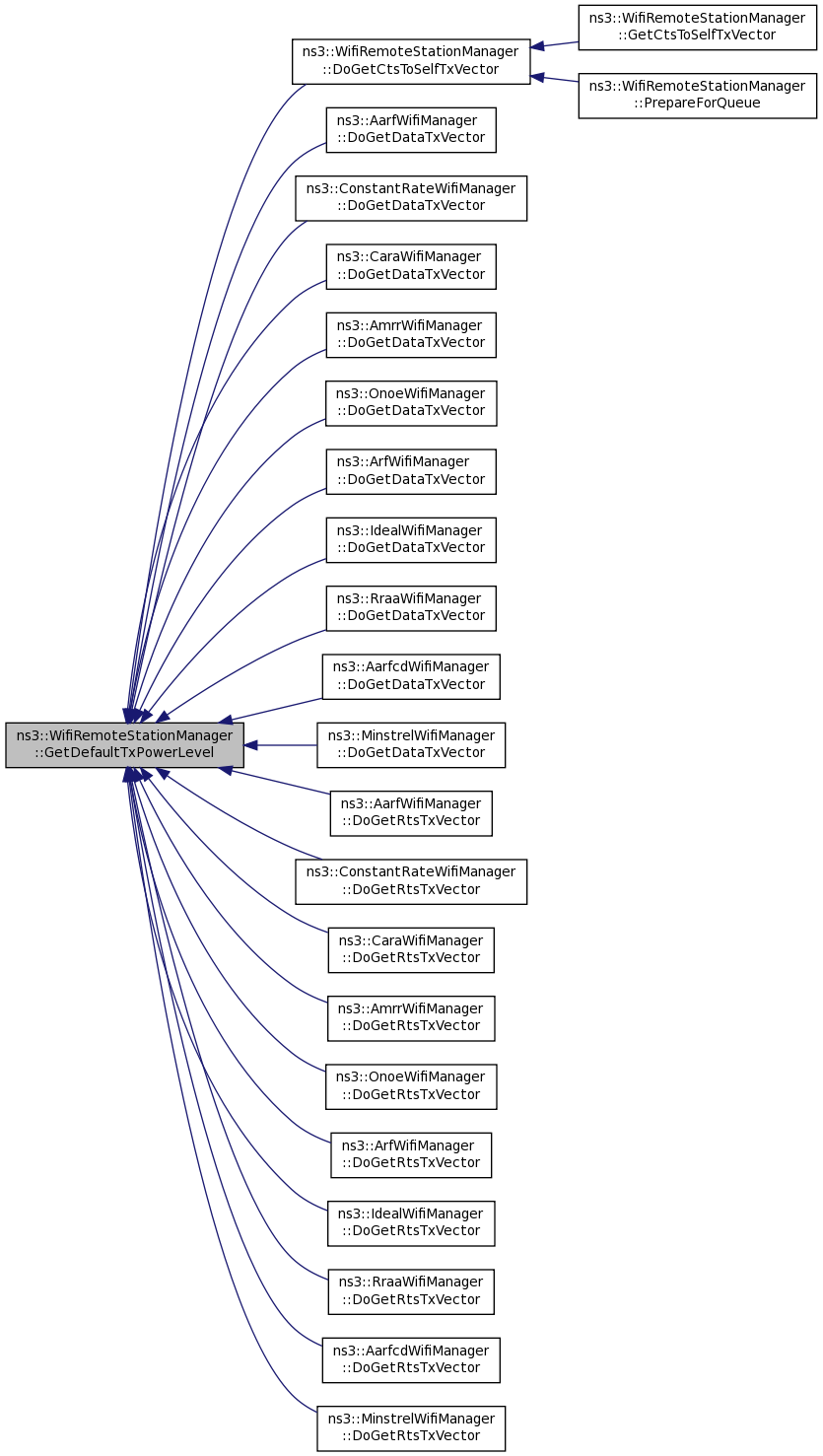

uint8_t	GetDefaultTxPowerLevel (void) const

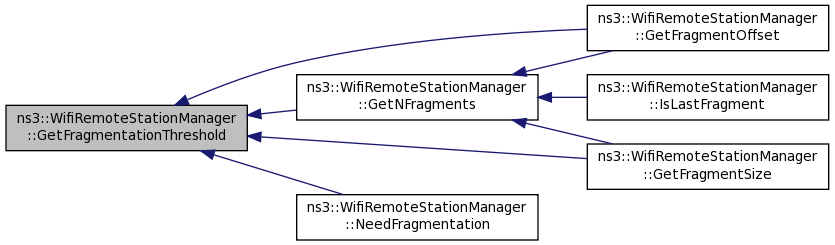

uint32_t	GetFragmentationThreshold (void) const
	Return the fragmentation threshold. More...

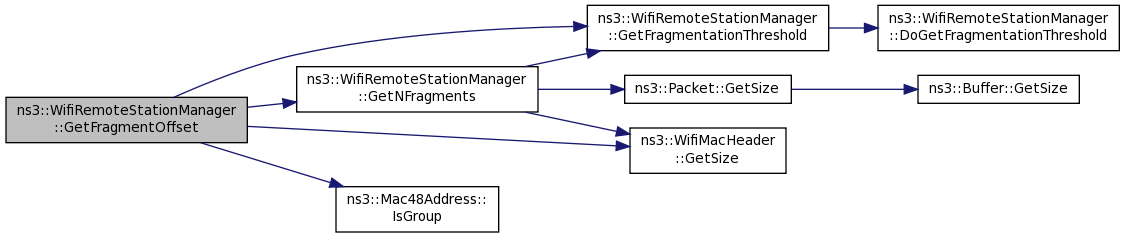

uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

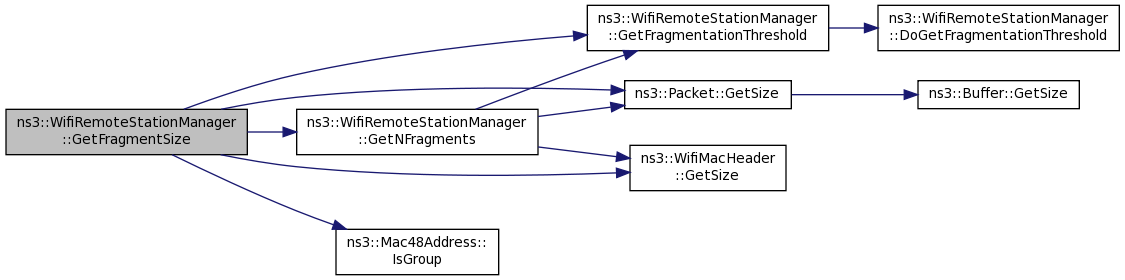

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

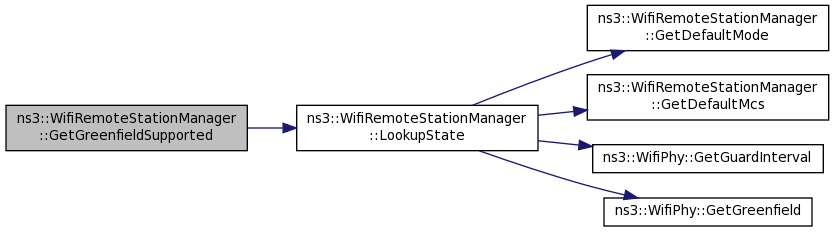

bool	GetGreenfieldSupported (Mac48Address address) const
	Return whether the station supports Greenfield or not. More...

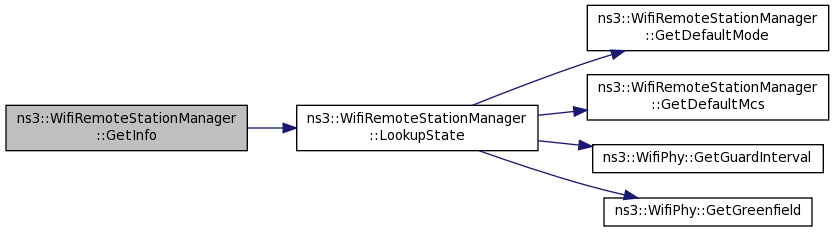

WifiRemoteStationInfo	GetInfo (Mac48Address address)
uint32_t	GetMaxSlrc (void) const
	Return the maximum STA long retry count (SLRC). More...
uint32_t	GetMaxSsrc (void) const
	Return the maximum STA short retry count (SSRC). More...
uint32_t	GetNBasicMcs (void) const
	Return the number of basic MCS index. More...

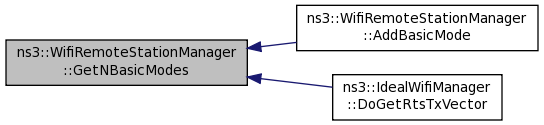

uint32_t	GetNBasicModes (void) const
	Return the number of basic modes we support. More...
WifiMode	GetNonUnicastMode (void) const
	Return a mode for non-unicast packets. More...

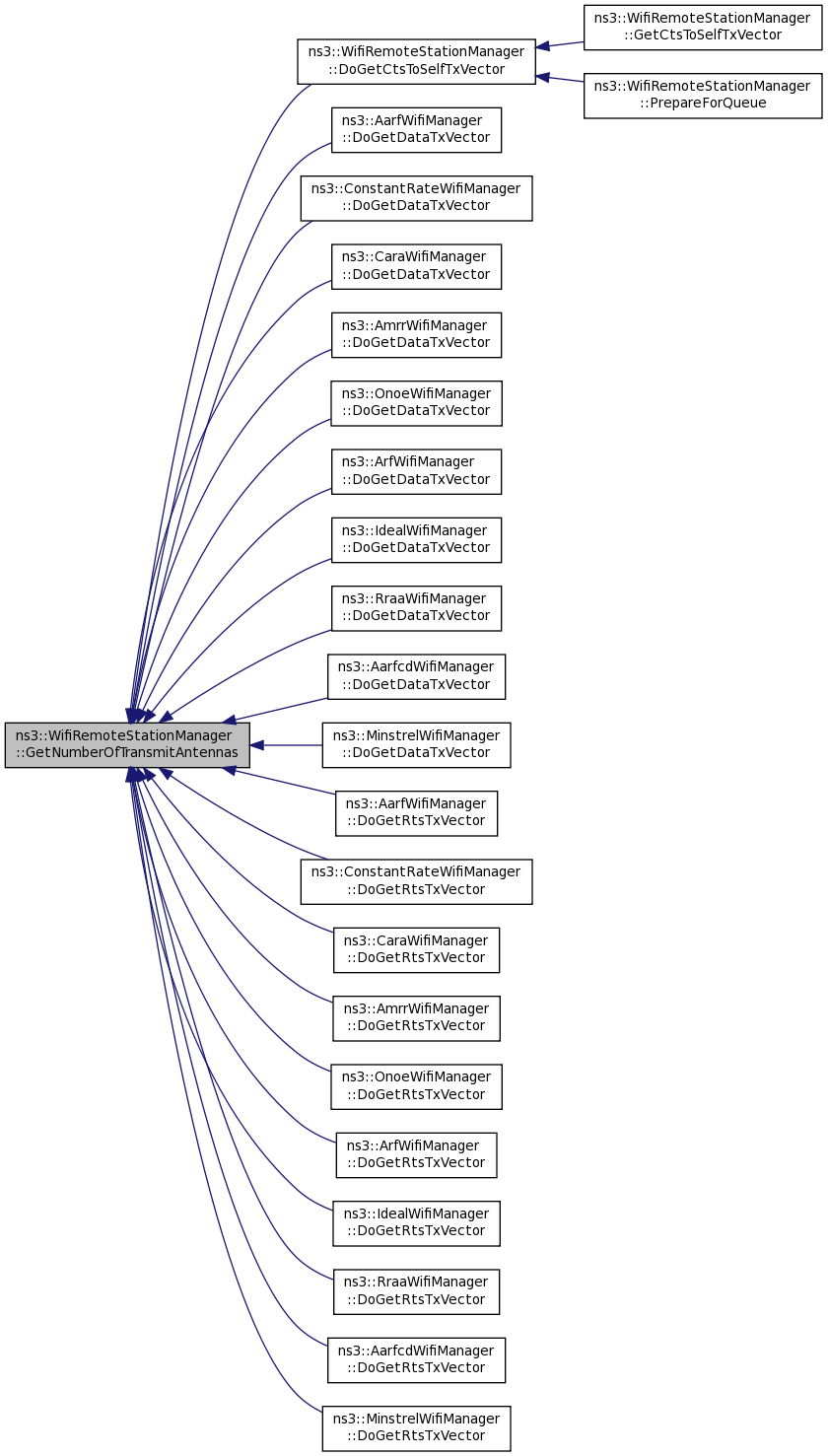

uint32_t	GetNumberOfTransmitAntennas (void)
uint32_t	GetRtsCtsThreshold (void) const
	Return the RTS threshold. More...

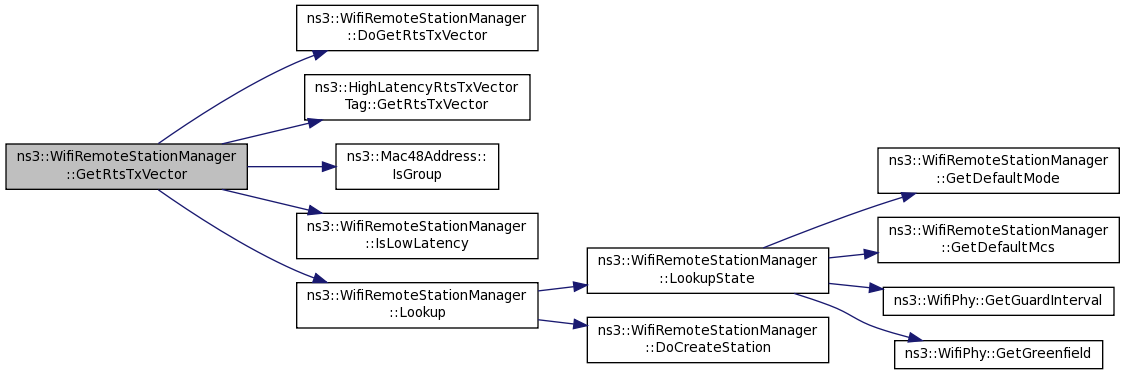

WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

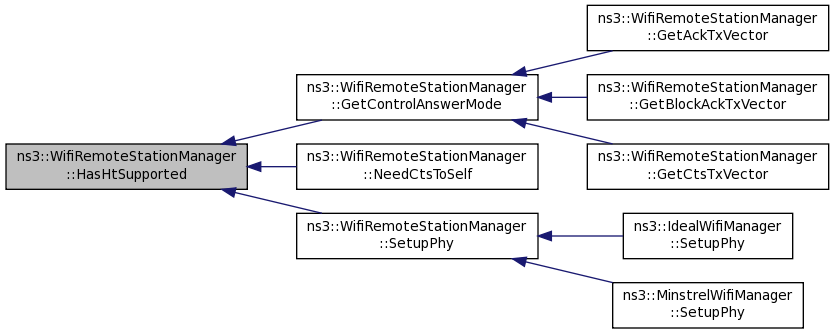

bool	HasHtSupported (void) const
	Return whether the device has HT capability support enabled. More...

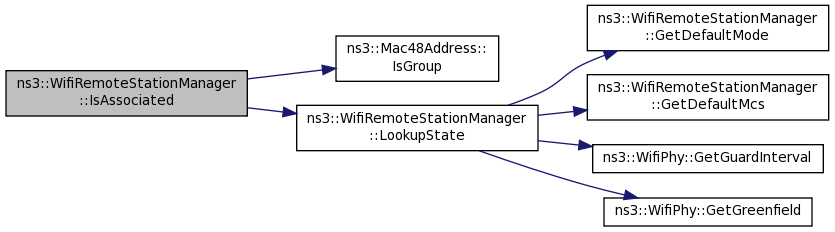

bool	IsAssociated (Mac48Address address) const
	Return whether the station associated. More...
bool	IsBrandNew (Mac48Address address) const
	Return whether the station state is brand new. More...

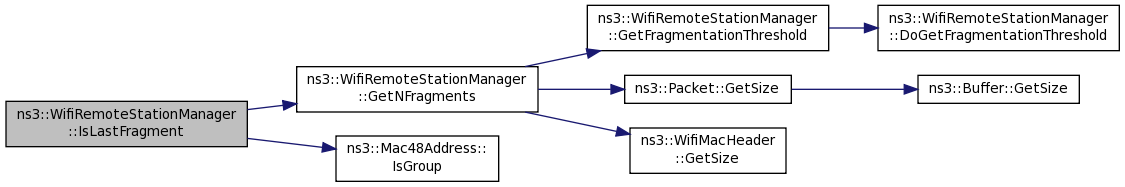

bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool	IsWaitAssocTxOk (Mac48Address address) const
	Return whether we are waiting for an ACK for the association response we sent. More...

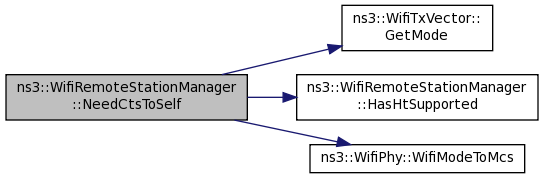

bool	NeedCtsToSelf (WifiTxVector txVector)
	Return if we need to do Cts-to-self before sending a DATA. More...

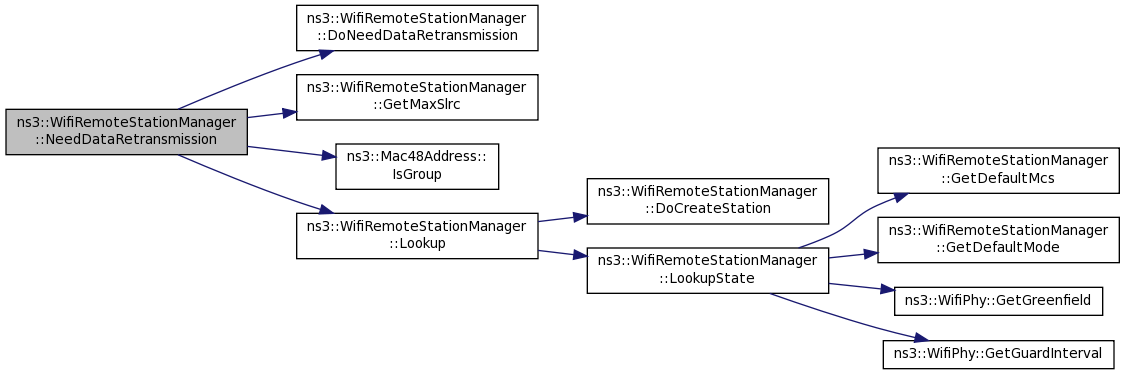

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

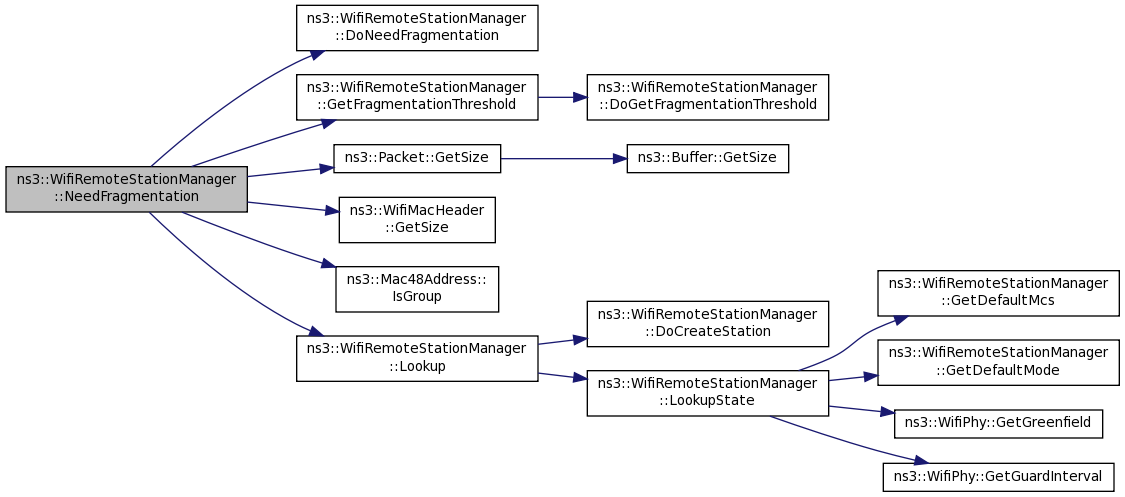

bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

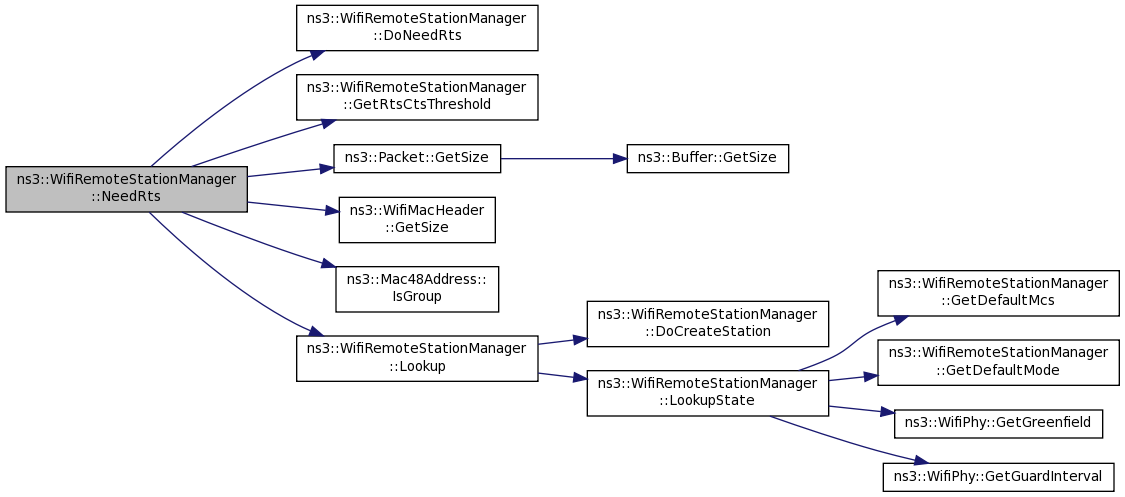

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

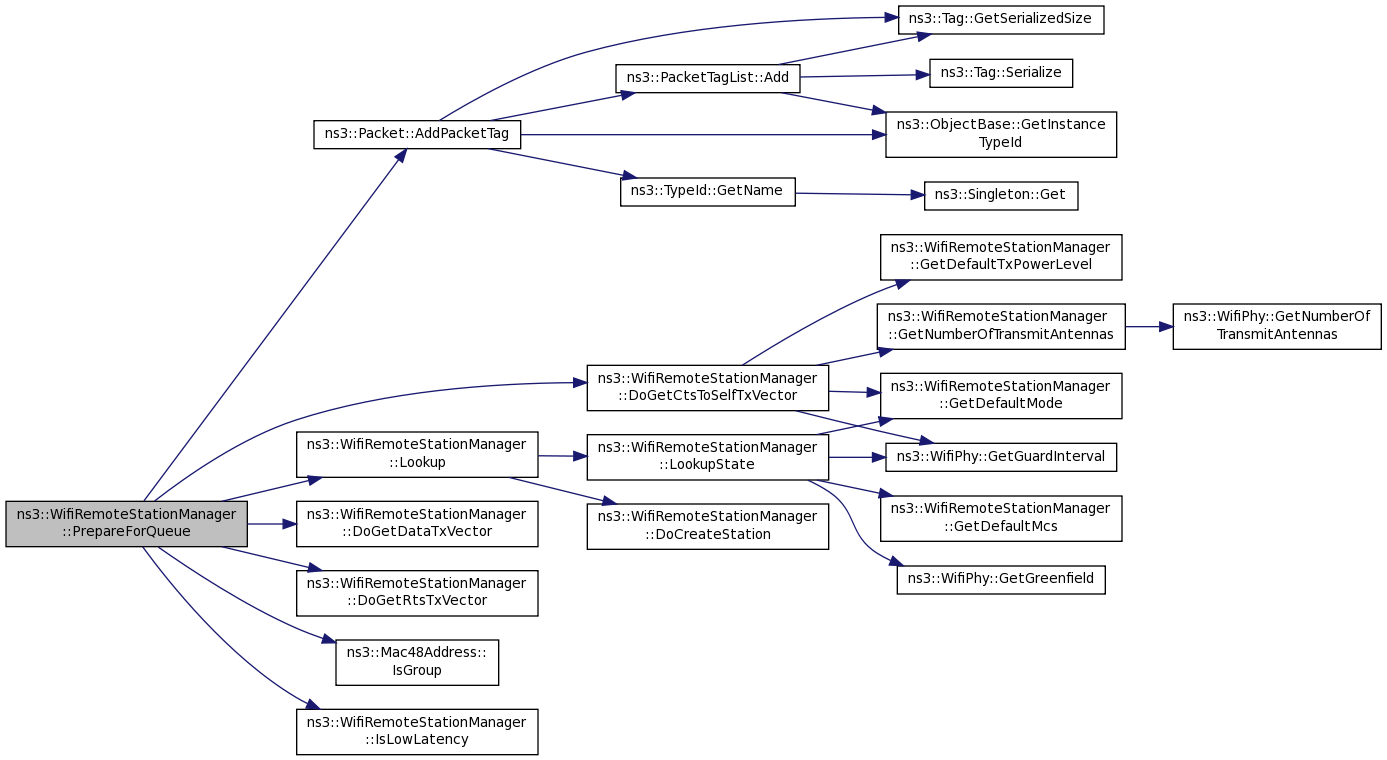

void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
void	RecordDisassociated (Mac48Address address)
	Records that the STA was disassociated. More...
void	RecordGotAssocTxFailed (Mac48Address address)
	Records that we missed an ACK for the association response we sent. More...

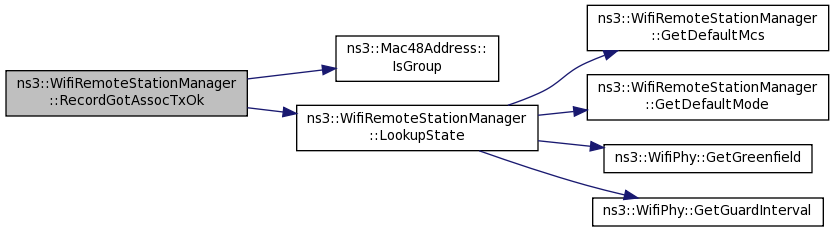

void	RecordGotAssocTxOk (Mac48Address address)
	Records that we got an ACK for the association response we sent. More...
void	RecordWaitAssocTxOk (Mac48Address address)
	Records that we are waiting for an ACK for the association response we sent. More...

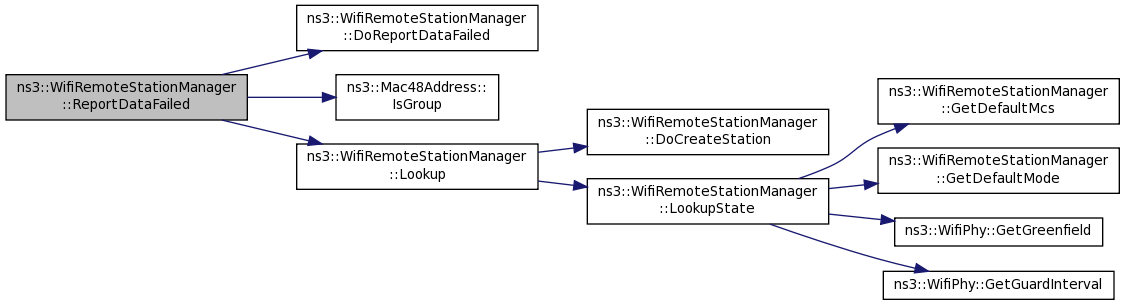

void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...
void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
	Should be invoked whenever we receive the Ack associated to a data packet we just sent. More...
void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false. More...

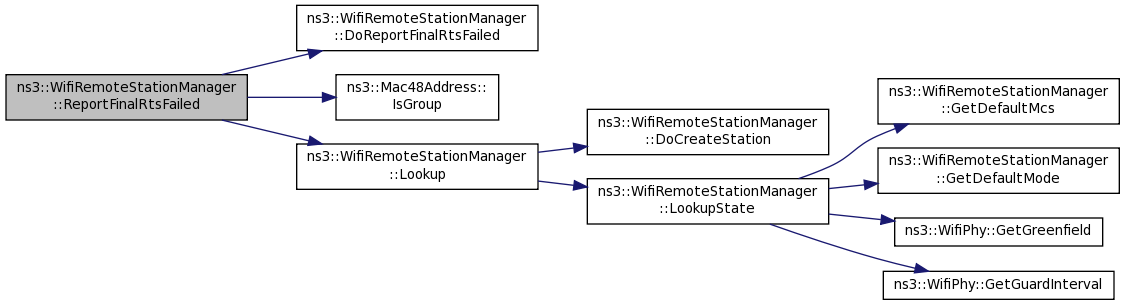

void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false. More...
void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...
void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	Should be invoked whenever we receive the Cts associated to an RTS we just sent. More...
void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

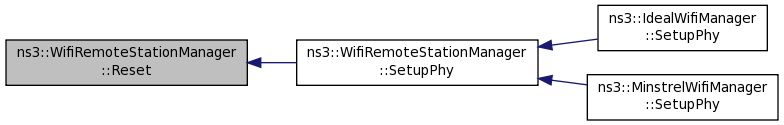

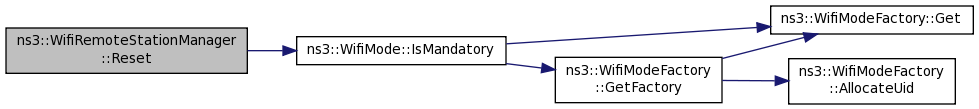

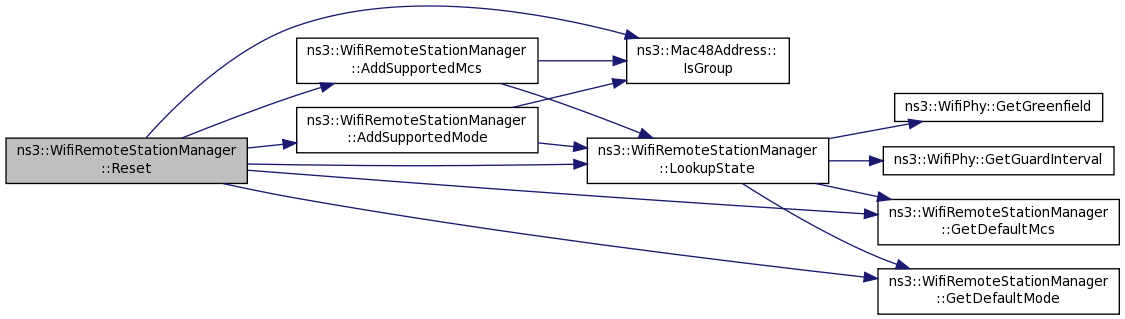

void	Reset (void)
	Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...
void	Reset (Mac48Address address)
	Invoked in an AP upon disassociation of a specific STA. More...
void	SetDefaultTxPowerLevel (uint8_t txPower)
	Set the default transmission power level. More...
void	SetFragmentationThreshold (uint32_t threshold)
	Sets a fragmentation threshold. More...
void	SetHtSupported (bool enable)
	Enable or disable HT capability support. More...
void	SetMaxSlrc (uint32_t maxSlrc)
	Sets the maximum STA long retry count (SLRC). More...
void	SetMaxSsrc (uint32_t maxSsrc)
	Sets the maximum STA short retry count (SSRC). More...
void	SetRtsCtsThreshold (uint32_t threshold)
	Sets the RTS threshold. More...

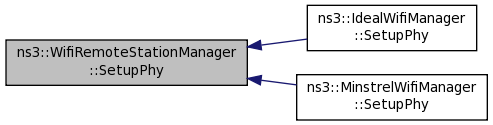

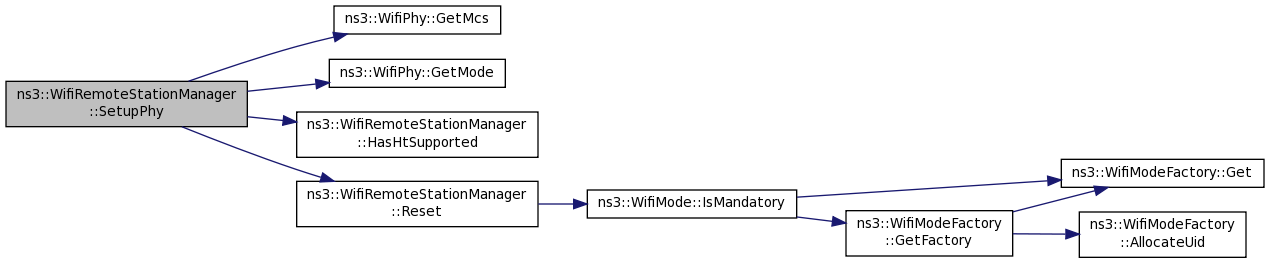

virtual void	SetupPhy (Ptr< WifiPhy > phy)
	Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

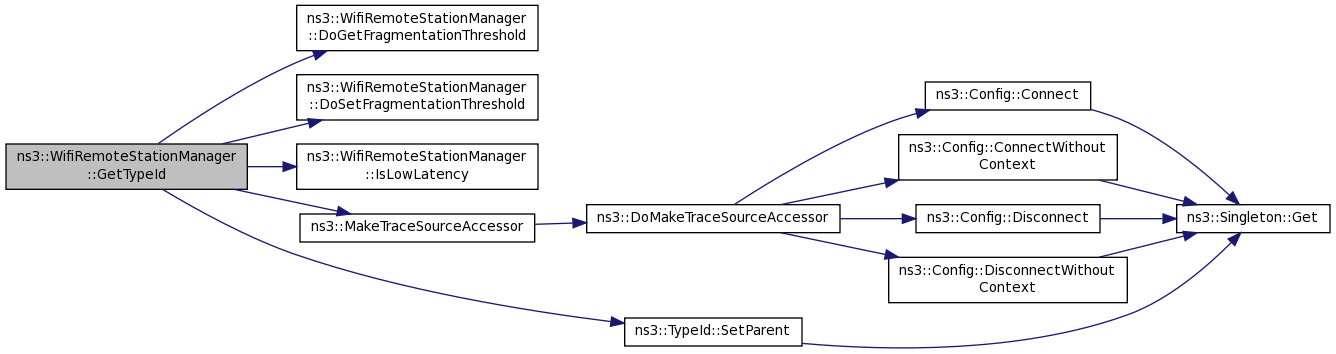

static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
bool	GetGreenfield (const WifiRemoteStation *station) const
	Return whether the station supports Greenfield or not. More...

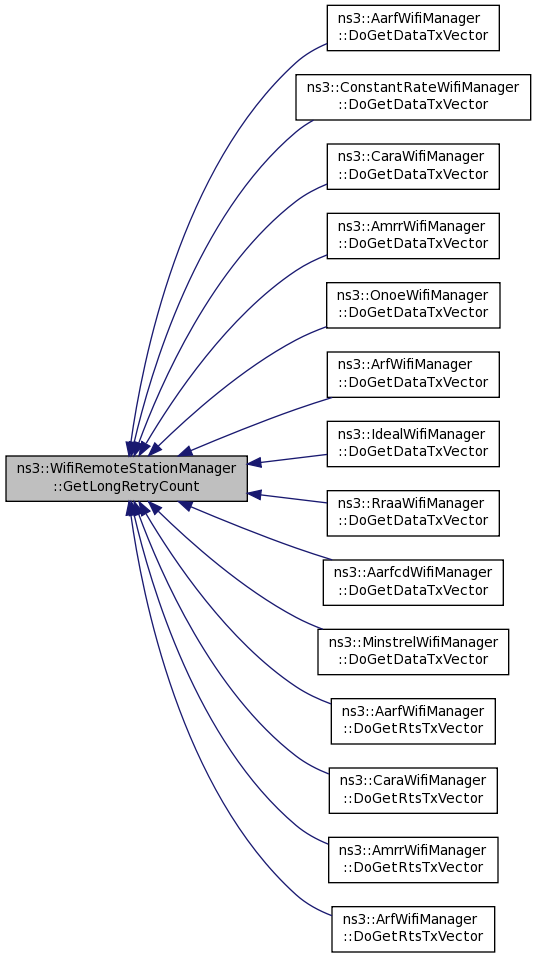

uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const
	Return the long retry limit of the given station. More...
uint8_t	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
	Return the MCS index supported by the specified station at the specified index. More...
uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const
	Return the number of MCS supported by the given station. More...

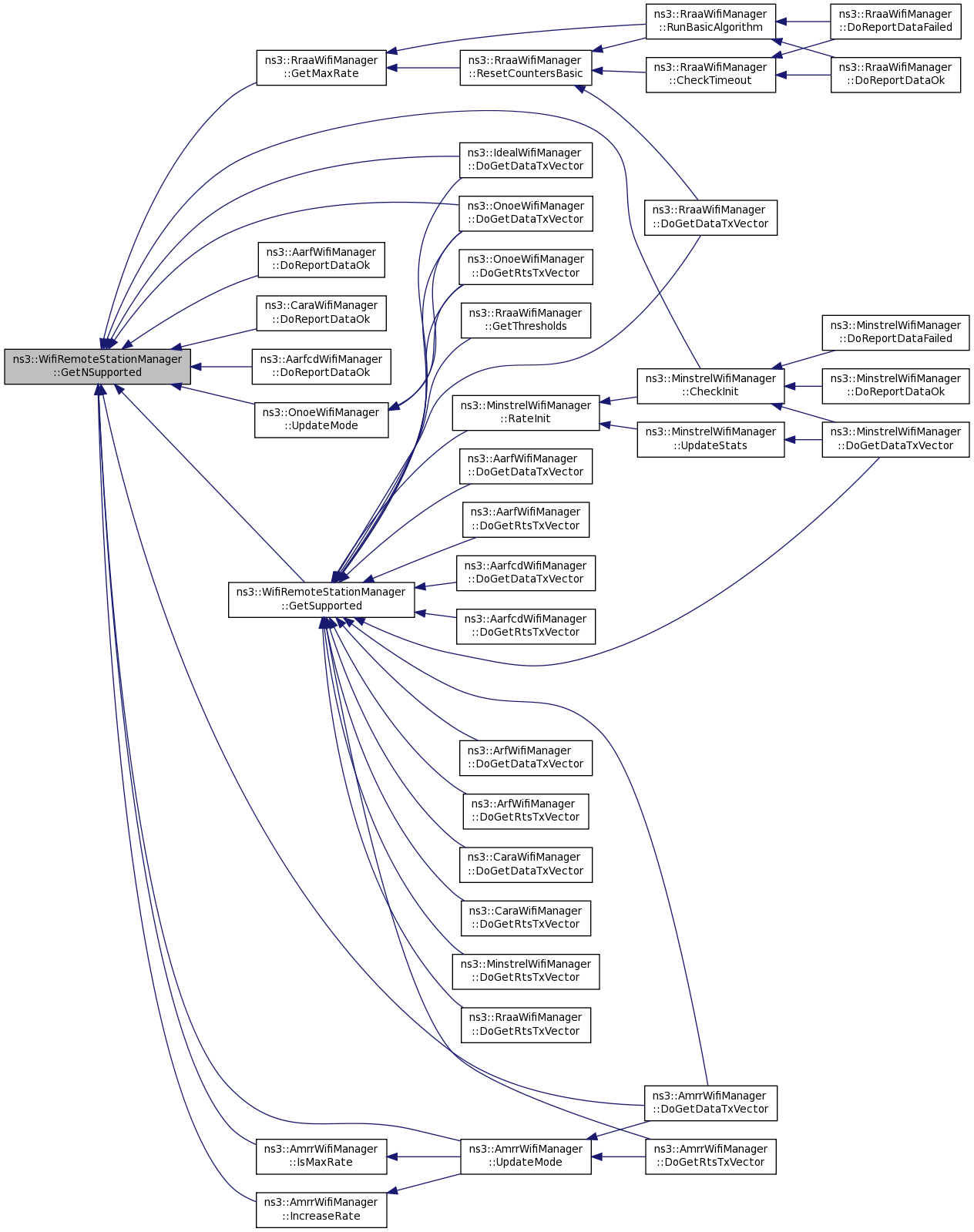

uint32_t	GetNSupported (const WifiRemoteStation *station) const
	Return the number of modes supported by the given station. More...

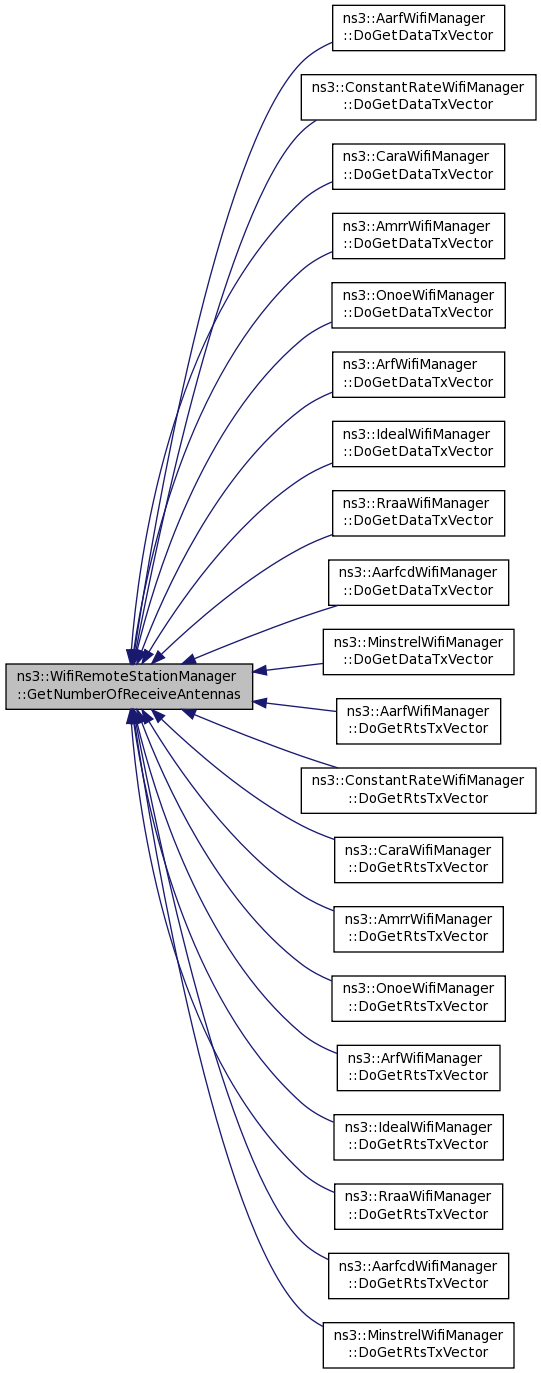

uint32_t	GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const
	Return the number of receive antenna the station has. More...
uint32_t	GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const
	Return the number of transmit antenna the station has. More...

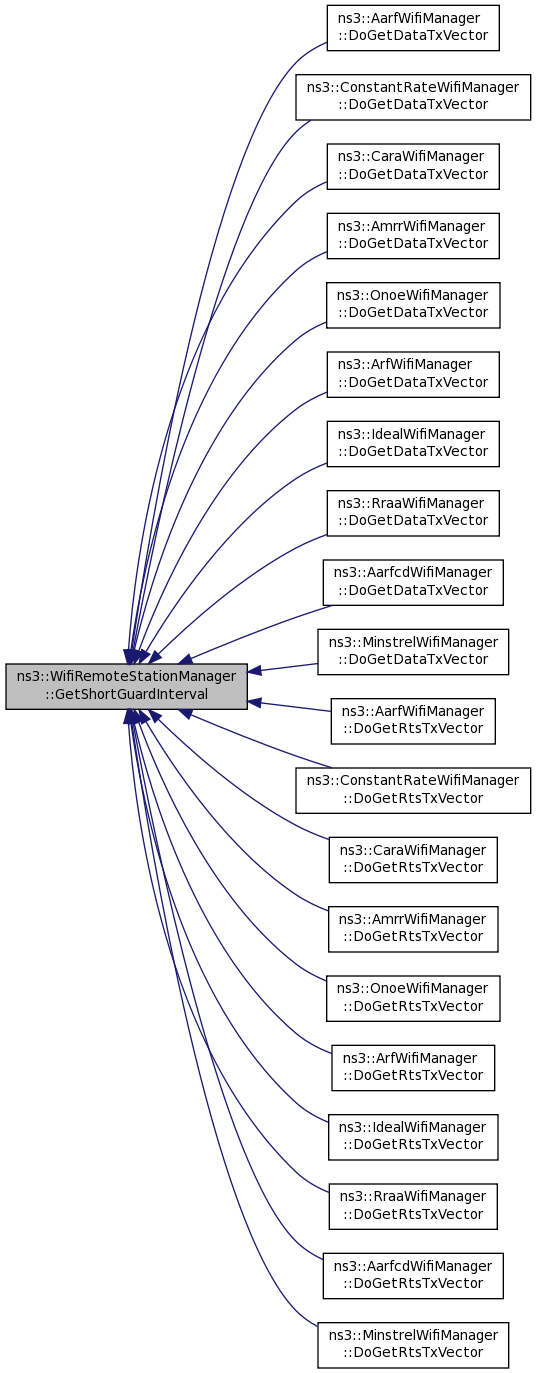

bool	GetShortGuardInterval (const WifiRemoteStation *station) const
	Return whether the given station supports short guard interval. More...

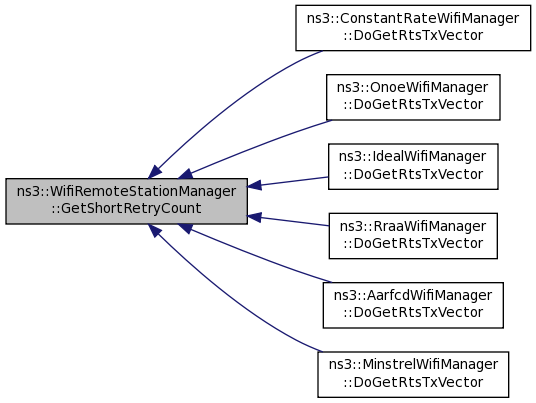

uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const
	Return the short retry limit of the given station. More...

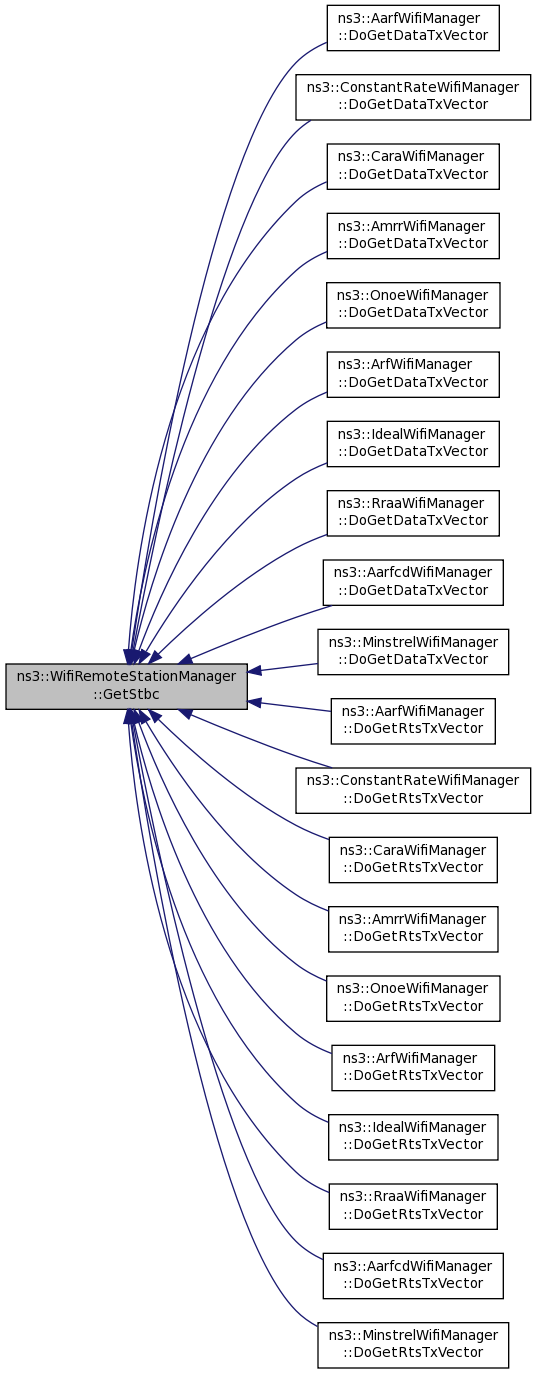

bool	GetStbc (const WifiRemoteStation *station) const
	Return whether the given station supports space-time block coding (STBC). More...

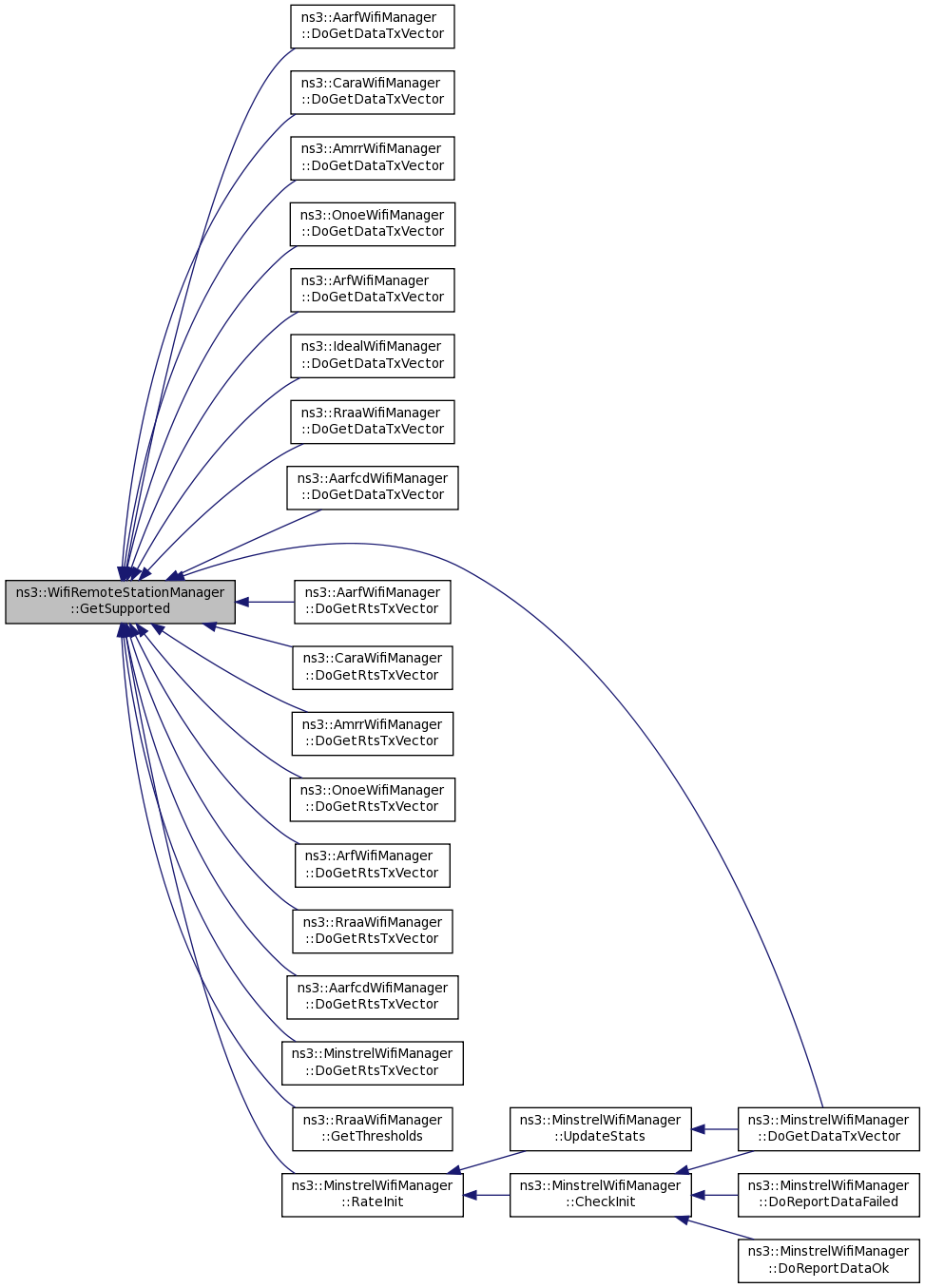

WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const
	Return whether mode associated with the specified station at the specified index. More...
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::vector < WifiRemoteStation * >	Stations
	A vector of WifiRemoteStations. More...
typedef std::vector < WifiRemoteStationState * >	StationStates
	A vector of WifiRemoteStationStates. More...

Private Member Functions

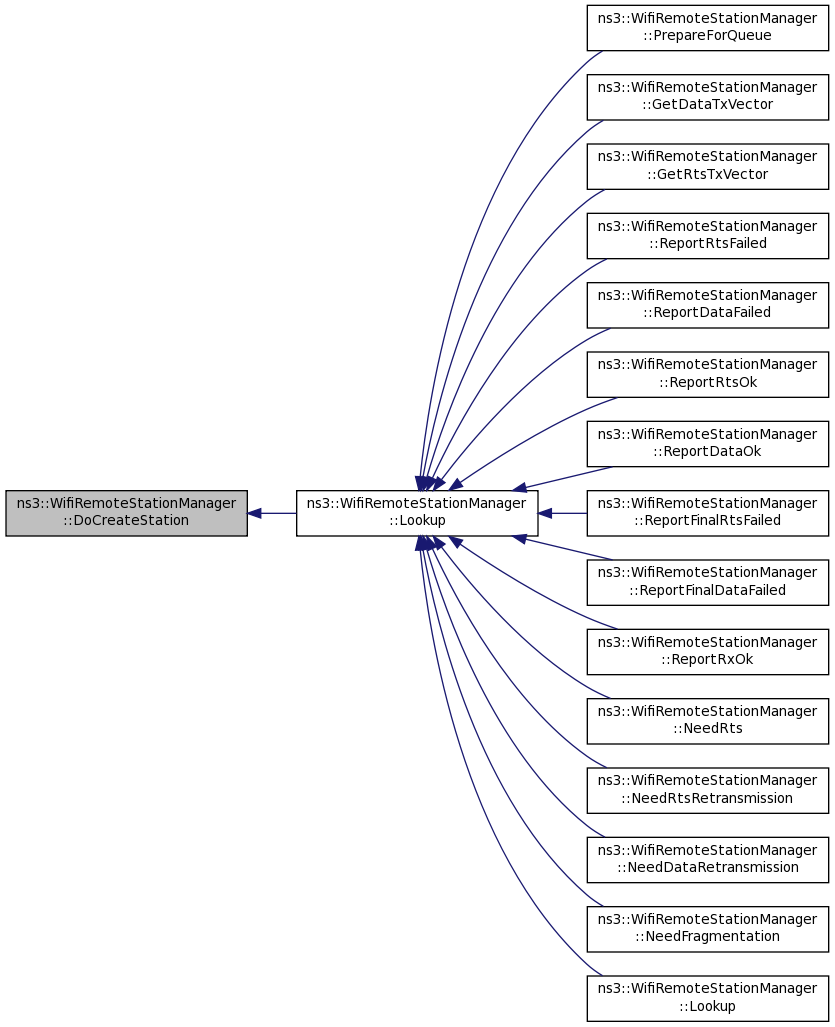

virtual WifiRemoteStation *	DoCreateStation (void) const =0
virtual bool	DoGetAckTxGuardInterval (Mac48Address address, WifiMode ackMode)
virtual uint8_t	DoGetAckTxNess (Mac48Address address, WifiMode ackMode)
virtual uint8_t	DoGetAckTxNss (Mac48Address address, WifiMode ackMode)
virtual uint8_t	DoGetAckTxPowerLevel (Mac48Address address, WifiMode ackMode)
virtual bool	DoGetAckTxStbc (Mac48Address address, WifiMode ackMode)
virtual bool	DoGetBlockAckTxGuardInterval (Mac48Address address, WifiMode blockAckMode)
virtual uint8_t	DoGetBlockAckTxNess (Mac48Address address, WifiMode blockAckMode)
virtual uint8_t	DoGetBlockAckTxNss (Mac48Address address, WifiMode blockAckMode)
virtual uint8_t	DoGetBlockAckTxPowerLevel (Mac48Address address, WifiMode blockAckMode)
virtual bool	DoGetBlockAckTxStbc (Mac48Address address, WifiMode blockAckMode)
virtual bool	DoGetCtsTxGuardInterval (Mac48Address address, WifiMode ctsMode)
virtual uint8_t	DoGetCtsTxNess (Mac48Address address, WifiMode ctsMode)
virtual uint8_t	DoGetCtsTxNss (Mac48Address address, WifiMode ctsMode)
virtual uint8_t	DoGetCtsTxPowerLevel (Mac48Address address, WifiMode ctsMode)
virtual bool	DoGetCtsTxStbc (Mac48Address address, WifiMode ctsMode)
virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)=0

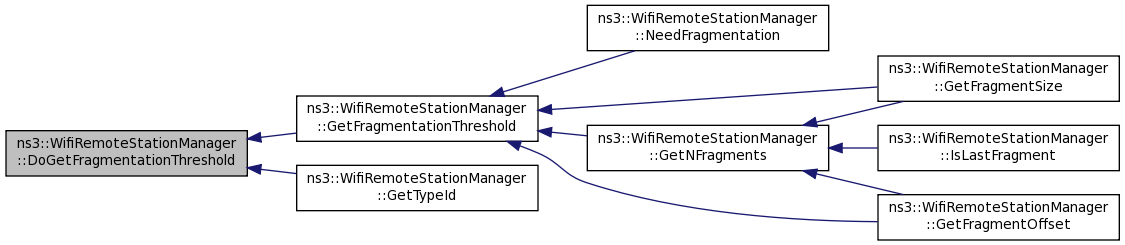

uint32_t	DoGetFragmentationThreshold (void) const
	Return the current fragmentation threshold. More...

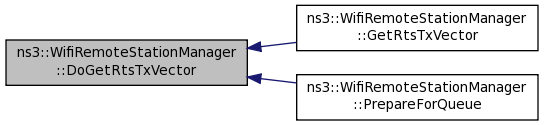

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)=0
virtual bool	DoNeedDataRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedRts (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedRtsRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual void	DoReportDataFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportRtsFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...
virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0
	This method is a pure virtual method that must be implemented by the sub-class. More...

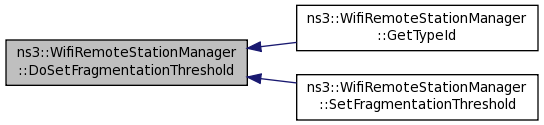

void	DoSetFragmentationThreshold (uint32_t threshold)
	Actually sets the fragmentation threshold, it also checks the validity of the given threshold. More...

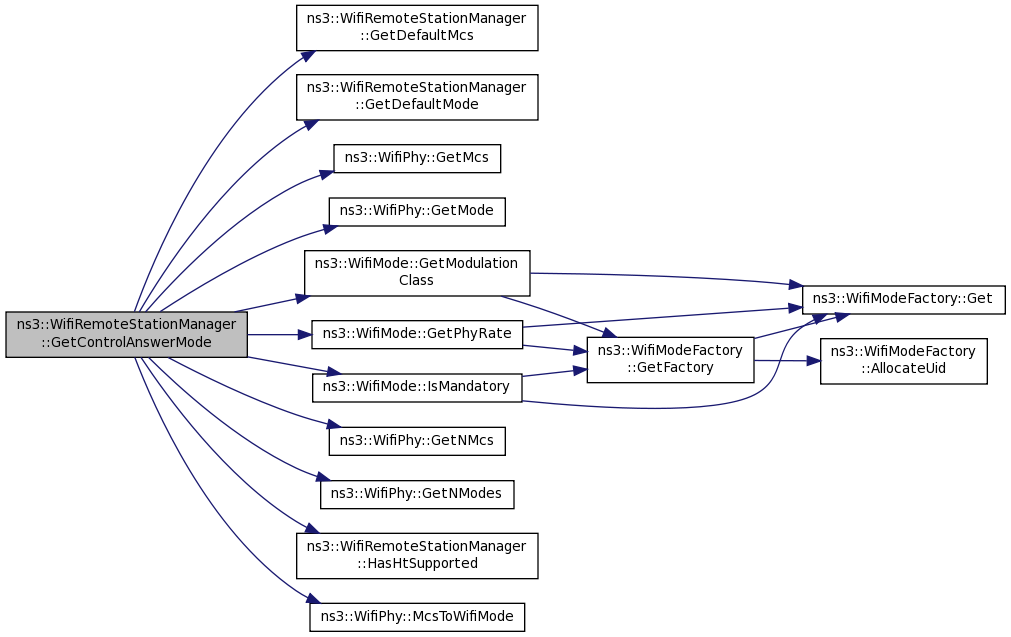

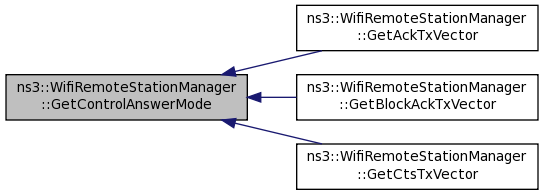

WifiMode	GetControlAnswerMode (Mac48Address address, WifiMode reqMode)

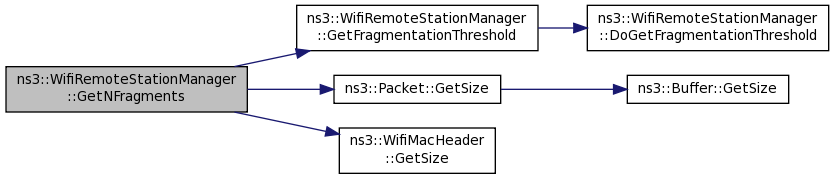

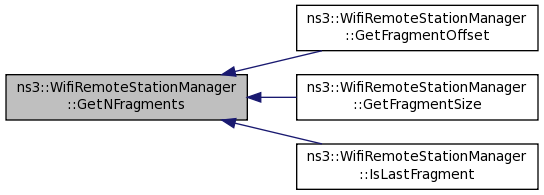

uint32_t	GetNFragments (const WifiMacHeader *header, Ptr< const Packet > packet)
	Return the number of fragments needed for the given packet. More...

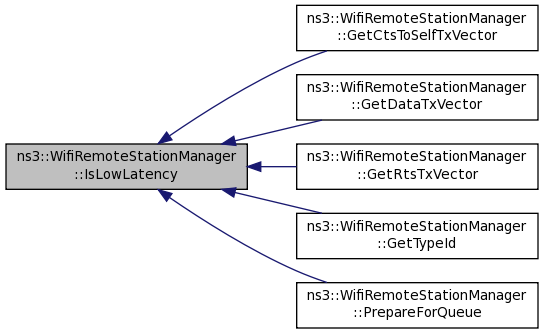

virtual bool	IsLowLatency (void) const =0

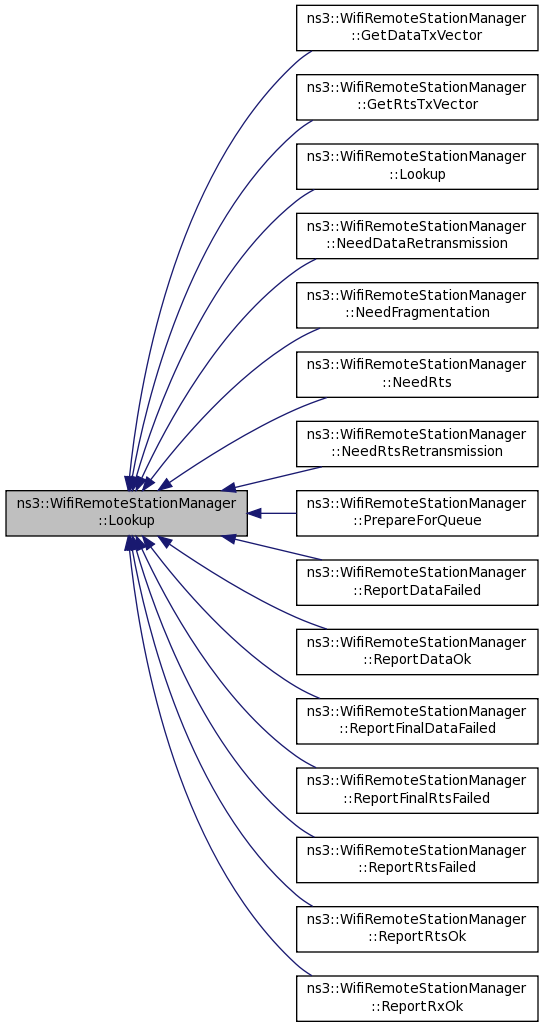

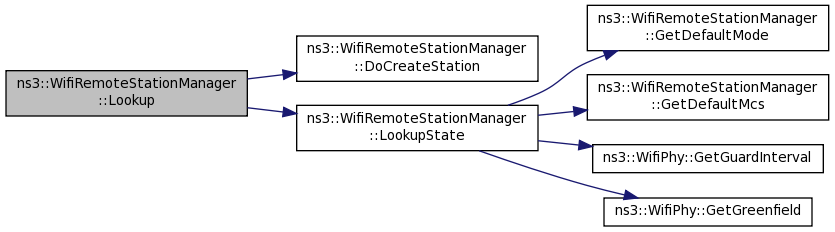

WifiRemoteStation *	Lookup (Mac48Address address, uint8_t tid) const
	Return the station associated with the given address and TID. More...

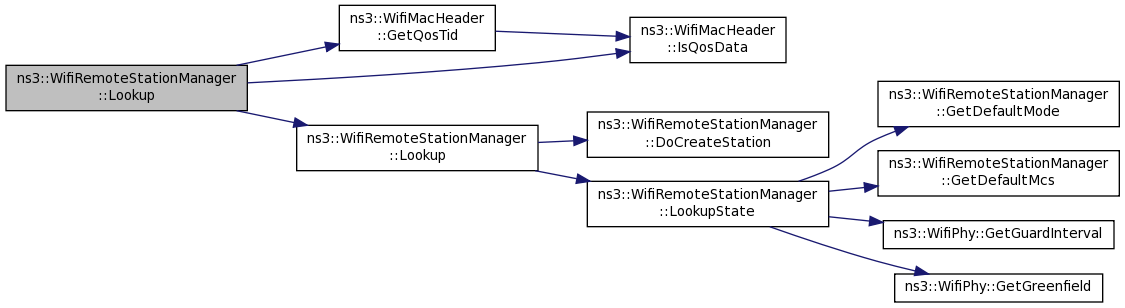

WifiRemoteStation *	Lookup (Mac48Address address, const WifiMacHeader *header) const
	Find a remote station by its remote address and TID taken from MAC header. More...

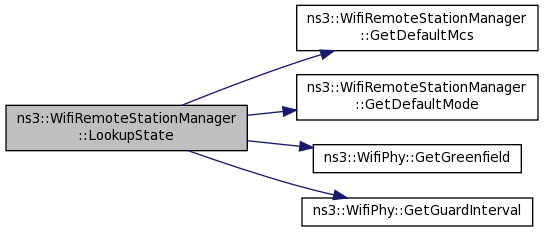

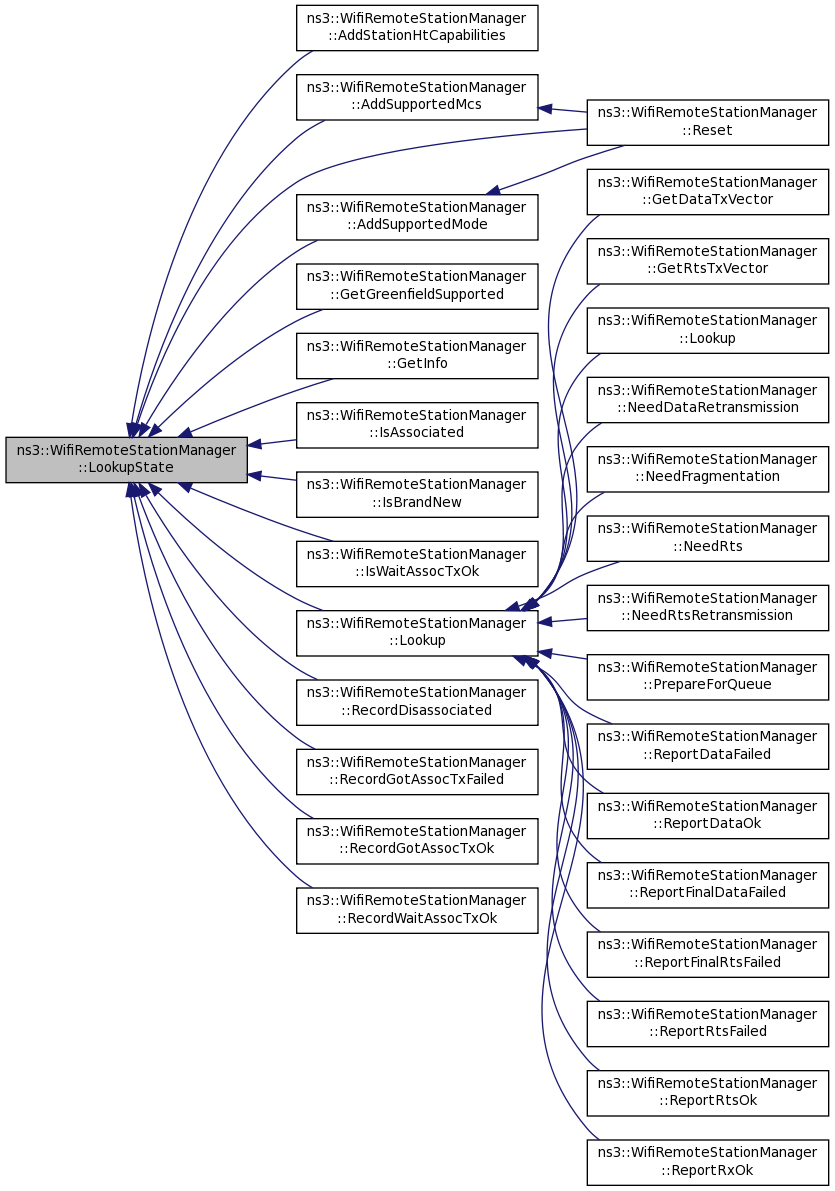

WifiRemoteStationState *	LookupState (Mac48Address address) const
	Return the state of the station associated with the given address. More...

Private Attributes
WifiMcsList	m_bssBasicMcsSet
WifiModeList	m_bssBasicRateSet
	This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter. More...
uint8_t	m_defaultTxMcs
	The default transmission modulation-coding scheme (MCS) More...
WifiMode	m_defaultTxMode
	The default transmission mode. More...
uint8_t	m_defaultTxPowerLevel
	Default tranmission power level. More...
uint32_t	m_fragmentationThreshold
	Threshold for fragmentation. More...
bool	m_htSupported
	Flag if HT capability is supported. More...
TracedCallback< Mac48Address >	m_macTxDataFailed
	The trace source fired when the transmission of a single data packet has failed. More...
TracedCallback< Mac48Address >	m_macTxFinalDataFailed
	The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts. More...
TracedCallback< Mac48Address >	m_macTxFinalRtsFailed
	The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts. More...
TracedCallback< Mac48Address >	m_macTxRtsFailed
	The trace source fired when the transmission of a single RTS has failed. More...
uint32_t	m_maxSlrc
	Maximum STA long retry count (SLRC) More...
uint32_t	m_maxSsrc
	Maximum STA short retry count (SSRC) More...
WifiMode	m_nonUnicastMode
	Transmission mode for non-unicast DATA frames. More...
uint32_t	m_rtsCtsThreshold
	Threshold for RTS/CTS. More...
StationStates	m_states
	States of known stations. More...
Stations	m_stations
	Information for each known stations. More...
Ptr< WifiPhy >	m_wifiPhy
	This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy(). More...

Detailed Description

hold a list of per-remote-station state.

See also

ns3::WifiRemoteStation.

Config Paths

ns3::WifiRemoteStationManager is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager

Attributes

• IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Flags: read
• MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2346
  • Flags: construct write read
• FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2346
  • Flags: construct write read
• NonUnicastMode: Wifi mode used for non-unicast transmissions.
  • Set with class: WifiModeValue
  • Underlying type: WifiMode
  • Initial value: Invalid-WifiMode
  • Flags: construct write read
• DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Initial value: 0
  • Flags: construct write read

TraceSources

• MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
• MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
• MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
• MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 85 of file wifi-remote-station-manager.h.

Member Typedef Documentation

typedef std::vector<WifiRemoteStation *> ns3::WifiRemoteStationManager::Stations

private

A vector of WifiRemoteStations.

Definition at line 880 of file wifi-remote-station-manager.h.

typedef std::vector<WifiRemoteStationState *> ns3::WifiRemoteStationManager::StationStates

private

A vector of WifiRemoteStationStates.

Definition at line 884 of file wifi-remote-station-manager.h.

Constructor & Destructor Documentation

ns3::WifiRemoteStationManager::WifiRemoteStationManager

(

)

Definition at line 318 of file wifi-remote-station-manager.cc.

ns3::WifiRemoteStationManager::~WifiRemoteStationManager ( )

virtual

Definition at line 322 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::WifiRemoteStationManager::AddBasicMcs

(

uint8_t

mcs

)

Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS.

Parameters

mcs	the MCS index

Definition at line 1261 of file wifi-remote-station-manager.cc.

References GetBasicMcs(), GetNBasicMcs(), and m_bssBasicMcsSet.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddBasicMode

(

WifiMode

mode

)

Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally.

Invoked in an AP to configure the BSSBasicRateSet.

Parameters

mode	the WifiMode to be added to the basic mode set

Definition at line 1237 of file wifi-remote-station-manager.cc.

References GetBasicMode(), GetNBasicModes(), and m_bssBasicRateSet.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddStationHtCapabilities	(	Mac48Address	from,
		HtCapabilities	htcapabilities
	)

Records HT capabilities of the remote station.

Parameters

from	the address of the station being recorded
htcapabilities	the HT capabilities of the station

Definition at line 1198 of file wifi-remote-station-manager.cc.

References ns3::HtCapabilities::GetGreenfield(), ns3::HtCapabilities::GetShortGuardInterval20(), LookupState(), ns3::WifiRemoteStationState::m_greenfield, and ns3::WifiRemoteStationState::m_shortGuardInterval.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMcs	(	Mac48Address	address,
		uint8_t	mcs
	)

Record the MCS index supported by the station.

Parameters

address	the address of the station
mcs	the MCS index

Definition at line 458 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Referenced by Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMode	(	Mac48Address	address,
		WifiMode	mode
	)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally.

The set of supported modes includes the BSSBasicRateSet.

Parameters

address	the address of the station being recorded
mode	the WifiMode supports by the station

Definition at line 422 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Referenced by Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual WifiRemoteStation* ns3::WifiRemoteStationManager::DoCreateStation ( void  ) const

privatepure virtual

Returns

a new station data structure

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by Lookup().

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoDispose ( void  )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 326 of file wifi-remote-station-manager.cc.

References m_states, and m_stations.

bool ns3::WifiRemoteStationManager::DoGetAckTxGuardInterval ( Mac48Address  address, WifiMode  ackMode  )

privatevirtual

Definition at line 1072 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetAckTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNess ( Mac48Address  address, WifiMode  ackMode  )

privatevirtual

Definition at line 1083 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNss ( Mac48Address  address, WifiMode  ackMode  )

privatevirtual

Definition at line 1078 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxPowerLevel ( Mac48Address  address, WifiMode  ackMode  )

privatevirtual

Parameters

address	the address of the recipient of the ACK
ackMode	the mode to be used for the ACK

Returns

the power level to be used to send the ACK

Definition at line 1066 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetAckTxVector().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetAckTxStbc ( Mac48Address  address, WifiMode  ackMode  )

privatevirtual

Definition at line 1088 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetAckTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetBlockAckTxGuardInterval ( Mac48Address  address, WifiMode  blockAckMode  )

privatevirtual

Definition at line 1100 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNess ( Mac48Address  address, WifiMode  blockAckMode  )

privatevirtual

Definition at line 1111 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNss ( Mac48Address  address, WifiMode  blockAckMode  )

privatevirtual

Definition at line 1106 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxPowerLevel ( Mac48Address  address, WifiMode  blockAckMode  )

privatevirtual

Parameters

address	the address of the recipient of the Block ACK
blockAckMode	the mode to be used for the Block ACK

Returns

the power level to be used to send the Block ACK

Definition at line 1094 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetBlockAckTxVector().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetBlockAckTxStbc ( Mac48Address  address, WifiMode  blockAckMode  )

privatevirtual

Definition at line 1116 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector

(

void

)

Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager.

Returns

the transmission mode to use to send the CTS-to-self prior to the transmission of the data packet itself.

Definition at line 598 of file wifi-remote-station-manager.cc.

References GetDefaultMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), GetNumberOfTransmitAntennas(), and m_wifiPhy.

Referenced by GetCtsToSelfTxVector(), and PrepareForQueue().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetCtsTxGuardInterval ( Mac48Address  address, WifiMode  ctsMode  )

privatevirtual

Definition at line 1044 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetCtsTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNess ( Mac48Address  address, WifiMode  ctsMode  )

privatevirtual

Definition at line 1055 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNss ( Mac48Address  address, WifiMode  ctsMode  )

privatevirtual

Definition at line 1050 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxPowerLevel ( Mac48Address  address, WifiMode  ctsMode  )

privatevirtual

Parameters

address	the address of the recipient of the CTS
ctsMode	the mode to be used for the CTS

Returns

the power level to be used to send the CTS

Definition at line 1038 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetCtsTxVector().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetCtsTxStbc ( Mac48Address  address, WifiMode  ctsMode  )

privatevirtual

Definition at line 1060 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetCtsTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetDataTxVector ( WifiRemoteStation *  station, uint32_t  size  )

privatepure virtual

Parameters

station	the station that we need to communicate
size	size of the packet or fragment we want to send

Returns

the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetDataTxVector(), and PrepareForQueue().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::DoGetFragmentationThreshold ( void  ) const

private

Return the current fragmentation threshold.

Returns

the fragmentation threshold

Definition at line 790 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold.

Referenced by GetFragmentationThreshold(), and GetTypeId().

Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetRtsTxVector ( WifiRemoteStation *  station )

privatepure virtual

Parameters

station

the station that we need to communicate

Returns

the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetRtsTxVector(), and PrepareForQueue().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedDataRetransmission ( WifiRemoteStation *  station, Ptr< const Packet >  packet, bool  normally  )

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.

Returns

true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after a unicast packet transmission has been attempted and has failed.

Definition at line 1311 of file wifi-remote-station-manager.cc.

Referenced by NeedDataRetransmission().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedFragmentation ( WifiRemoteStation *  station, Ptr< const Packet >  packet, bool  normally  )

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not.

Returns

true if this packet should be fragmented, false otherwise.

Note: This method is called before sending a unicast packet.

Definition at line 1317 of file wifi-remote-station-manager.cc.

Referenced by NeedFragmentation().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRts ( WifiRemoteStation *  station, Ptr< const Packet >  packet, bool  normally  )

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.

Returns

true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented in ns3::AarfcdWifiManager, ns3::RraaWifiManager, and ns3::CaraWifiManager.

Definition at line 1299 of file wifi-remote-station-manager.cc.

Referenced by NeedRts().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRtsRetransmission ( WifiRemoteStation *  station, Ptr< const Packet >  packet, bool  normally  )

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is retransmitted or not.

Returns

true if we want to restart a failed RTS/CTS handshake, false otherwise.

Note: This method is called after an rts/cts handshake has been attempted and has failed.

Definition at line 1305 of file wifi-remote-station-manager.cc.

Referenced by NeedRtsRetransmission().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataFailed ( WifiRemoteStation *  station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station

the station that we failed to send DATA

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportDataFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataOk ( WifiRemoteStation *  station, double  ackSnr, WifiMode  ackMode, double  dataSnr  )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportDataOk().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalDataFailed ( WifiRemoteStation *  station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station

the station that we failed to send DATA

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportFinalDataFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalRtsFailed ( WifiRemoteStation *  station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station

the station that we failed to send RTS

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportFinalRtsFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsFailed ( WifiRemoteStation *  station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station

the station that we failed to send RTS

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRtsFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsOk ( WifiRemoteStation *  station, double  ctsSnr, WifiMode  ctsMode, double  rtsSnr  )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRtsOk().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRxOk ( WifiRemoteStation *  station, double  rxSnr, WifiMode  txMode  )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that sent the DATA to us
rxSnr	the SNR of the DATA we received
txMode	the WifiMode the sender used to send the DATA

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRxOk().

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoSetFragmentationThreshold ( uint32_t  threshold )

private

Actually sets the fragmentation threshold, it also checks the validity of the given threshold.

Parameters

threshold

the fragmentation threshold

Definition at line 761 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold, and NS_LOG_WARN.

Referenced by GetTypeId(), and SetFragmentationThreshold().

Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetAckTxVector	(	Mac48Address	address,
		WifiMode	dataMode
	)

Parameters

address
dataMode	the transmission mode used to send an ACK we just received

Returns

the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 1011 of file wifi-remote-station-manager.cc.

References DoGetAckTxGuardInterval(), DoGetAckTxNess(), DoGetAckTxNss(), DoGetAckTxPowerLevel(), DoGetAckTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

Here is the call graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetBasicMcs

(

uint32_t

i

)

const

Return the MCS at the given list index.

Parameters

i	the position in the list

Returns

the MCS at the given list index

Definition at line 1279 of file wifi-remote-station-manager.cc.

References m_bssBasicMcsSet, and NS_ASSERT.

Referenced by AddBasicMcs().

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetBasicMode

(

uint32_t

i

)

const

Return a basic mode from the set of basic modes.

Parameters

i	index of the basic mode in the basic mode set

Returns

the basic mode at the given index

Definition at line 1254 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet, and NS_ASSERT.

Referenced by AddBasicMode(), ns3::IdealWifiManager::DoGetRtsTxVector(), and GetNonUnicastMode().

Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetBlockAckTxVector	(	Mac48Address	address,
		WifiMode	dataMode
	)

Parameters

address
dataMode	the transmission mode used to send an ACK we just received

Returns

the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 1024 of file wifi-remote-station-manager.cc.

References DoGetBlockAckTxGuardInterval(), DoGetBlockAckTxNess(), DoGetBlockAckTxNss(), DoGetBlockAckTxPowerLevel(), DoGetBlockAckTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

Here is the call graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetControlAnswerMode ( Mac48Address  address, WifiMode  reqMode  )

private

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2007, Section 9.6):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or ACK), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in 9.12) and that is of the same modulation class (see 9.6.1) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

Todo:

Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation config. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested in a WifiRemoteStationManager (or descendant) configuration.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 849 of file wifi-remote-station-manager.cc.

References GetDefaultMcs(), GetDefaultMode(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetNModes(), ns3::WifiMode::GetPhyRate(), HasHtSupported(), ns3::WifiMode::IsMandatory(), m_bssBasicMcsSet, m_bssBasicRateSet, m_wifiPhy, ns3::WifiPhy::McsToWifiMode(), and NS_FATAL_ERROR.

Referenced by GetAckTxVector(), GetBlockAckTxVector(), and GetCtsTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsToSelfTxVector	(	const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

header	MAC header
packet	the packet to send

Returns

the transmission mode to use to send the CTS-to-self prior to the transmission of the data packet itself.

Definition at line 579 of file wifi-remote-station-manager.cc.

References DoGetCtsToSelfTxVector(), ns3::HighLatencyCtsToSelfTxVectorTag::GetCtsToSelfTxVector(), IsLowLatency(), and NS_ASSERT.

Here is the call graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsTxVector	(	Mac48Address	address,
		WifiMode	rtsMode
	)

Parameters

address	remote address
rtsMode	the transmission mode used to send an RTS we just received

Returns

the transmission mode to use for the CTS to complete the RTS/CTS handshake.

Definition at line 998 of file wifi-remote-station-manager.cc.

References DoGetCtsTxGuardInterval(), DoGetCtsTxNess(), DoGetCtsTxNss(), DoGetCtsTxPowerLevel(), DoGetCtsTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

Here is the call graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetDataTxVector	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

Returns

the transmission mode to use to send this packet

Definition at line 551 of file wifi-remote-station-manager.cc.

References DoGetDataTxVector(), ns3::HighLatencyDataTxVectorTag::GetDataTxVector(), GetNonUnicastMode(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), m_defaultTxPowerLevel, NS_ASSERT, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetShortGuardInterval(), ns3::WifiTxVector::SetStbc(), and ns3::WifiTxVector::SetTxPowerLevel().

Here is the call graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetDefaultMcs

(

void

)

const

Return the default Modulation and Coding Scheme (MCS) index.

Returns

the default MCS index

Definition at line 1218 of file wifi-remote-station-manager.cc.

References m_defaultTxMcs.

Referenced by GetControlAnswerMode(), LookupState(), and Reset().

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDefaultMode

(

void

)

const

Return the default transmission mode.

Returns

WifiMode the default transmission mode

Definition at line 1213 of file wifi-remote-station-manager.cc.

References m_defaultTxMode.

Referenced by DoGetCtsToSelfTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), LookupState(), and Reset().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel

(

void

)

const

Returns

the default transmission power

Definition at line 1123 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by DoGetCtsToSelfTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold

(

void

)

const

Return the fragmentation threshold.

Returns

the fragmentation threshold

Definition at line 386 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold().

Referenced by GetFragmentOffset(), GetFragmentSize(), GetNFragments(), and NeedFragmentation().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns

the offset within the original packet where this fragment starts.

Definition at line 832 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WIFI_MAC_FCS_LENGTH.

Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentSize	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns

the size of the corresponding fragment.

Definition at line 810 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WIFI_MAC_FCS_LENGTH.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::GetGreenfield ( const WifiRemoteStation *  station ) const

protected

Return whether the station supports Greenfield or not.

Parameters

station

the station being queried

Returns

true if Greenfield is supported by the station, false otherwise

Definition at line 1341 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_greenfield, and ns3::WifiRemoteStation::m_state.

bool ns3::WifiRemoteStationManager::GetGreenfieldSupported

(

Mac48Address

address

)

const

Return whether the station supports Greenfield or not.

Parameters

address

the address of the station

Returns

true if Greenfield is supported by the station, false otherwise

Definition at line 1208 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_greenfield.

Here is the call graph for this function:

WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo

(

Mac48Address

address

)

Parameters

address

of the remote station

Returns

information regarding the remote station associated with the given address

Definition at line 1130 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_info.

Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetLongRetryCount ( const WifiRemoteStation *  station ) const

protected

Return the long retry limit of the given station.

Parameters

station

the station being queried

Returns

the long retry limit of the the station

Definition at line 1366 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_slrc.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), and ns3::ArfWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSlrc

(

void

)

const

Return the maximum STA long retry count (SLRC).

Returns

the maximum SLRC

Definition at line 376 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

Referenced by NeedDataRetransmission().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSsrc

(

void

)

const

Return the maximum STA short retry count (SSRC).

Returns

the maximum SSRC

Definition at line 371 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

Referenced by NeedRtsRetransmission().

Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetMcsSupported ( const WifiRemoteStation *  station, uint32_t  i  ) const

protected

Return the MCS index supported by the specified station at the specified index.

Parameters

station	the station being queried
i	the index

Returns

the MCS index at the given index of the specified station

Definition at line 1330 of file wifi-remote-station-manager.cc.

References GetNMcsSupported(), ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicMcs

(

void

)

const

Return the number of basic MCS index.

Returns

the number of basic MCS index

Definition at line 1274 of file wifi-remote-station-manager.cc.

References m_bssBasicMcsSet.

Referenced by AddBasicMcs().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicModes

(

void

)

const

Return the number of basic modes we support.

Returns

the number of basic modes we support

Definition at line 1249 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet.

Referenced by AddBasicMode(), and ns3::IdealWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNFragments ( const WifiMacHeader *  header, Ptr< const Packet >  packet  )

private

Return the number of fragments needed for the given packet.

Parameters

header	MAC header
packet	the packet to be fragmented

Returns

the number of fragments needed

Definition at line 796 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by GetFragmentOffset(), GetFragmentSize(), and IsLastFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNMcsSupported ( const WifiRemoteStation *  station ) const

protected

Return the number of MCS supported by the given station.

Parameters

station

the station being queried

Returns

the number of MCS supported by the given station

Definition at line 1376 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalMcsSet, and ns3::WifiRemoteStation::m_state.

Referenced by GetMcsSupported().

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode

(

void

)

const

Return a mode for non-unicast packets.

Returns

WifiMode for non-unicast packets

Definition at line 1286 of file wifi-remote-station-manager.cc.

References GetBasicMode(), and m_nonUnicastMode.

Referenced by GetDataTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNSupported ( const WifiRemoteStation *  station ) const

protected

Return the number of modes supported by the given station.

Parameters

station

the station being queried

Returns

the number of modes supported by the given station

Definition at line 1371 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoReportDataOk(), ns3::CaraWifiManager::DoReportDataOk(), ns3::AarfcdWifiManager::DoReportDataOk(), ns3::RraaWifiManager::GetMaxRate(), GetSupported(), ns3::AmrrWifiManager::IncreaseRate(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateMode().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas ( const WifiRemoteStation *  station ) const

protected

Return the number of receive antenna the station has.

Parameters

station

the station being queried

Returns

the number of receive antenna the station has

Definition at line 1351 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_rx, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas

(

void

)

Returns

the number of transmit antennas supported by the phy layer

Definition at line 1388 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetNumberOfTransmitAntennas(), and m_wifiPhy.

Referenced by DoGetCtsToSelfTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas ( const WifiRemoteStation *  station ) const

protected

Return the number of transmit antenna the station has.

Parameters

station

the station being queried

Returns

the number of transmit antenna the station has

Definition at line 1356 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_tx.

uint32_t ns3::WifiRemoteStationManager::GetRtsCtsThreshold

(

void

)

const

Return the RTS threshold.

Returns

the RTS threshold

Definition at line 381 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

Referenced by NeedRts().

Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetRtsTxVector	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns

the transmission mode to use to send the RTS prior to the transmission of the data packet itself.

Definition at line 604 of file wifi-remote-station-manager.cc.

References DoGetRtsTxVector(), ns3::HighLatencyRtsTxVectorTag::GetRtsTxVector(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), and NS_ASSERT.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::GetShortGuardInterval ( const WifiRemoteStation *  station ) const

protected

Return whether the given station supports short guard interval.

Parameters

station

the station being queried

Returns

true if the station supports short guard interval, false otherwise

Definition at line 1336 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_shortGuardInterval, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetShortRetryCount ( const WifiRemoteStation *  station ) const

protected

Return the short retry limit of the given station.

Parameters

station

the station being queried

Returns

the short retry limit of the the station

Definition at line 1361 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_ssrc.

Referenced by ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetStbc ( const WifiRemoteStation *  station ) const

protected

Return whether the given station supports space-time block coding (STBC).

Parameters

station

the station being queried

Returns

true if the station supports STBC, false otherwise

Definition at line 1346 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_stbc.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetSupported ( const WifiRemoteStation *  station, uint32_t  i  ) const

protected

Return whether mode associated with the specified station at the specified index.

Parameters

station	the station being queried
i	the index

Returns

WifiMode at the given index of the specified station

Definition at line 1324 of file wifi-remote-station-manager.cc.

References GetNSupported(), ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::GetThresholds(), and ns3::MinstrelWifiManager::RateInit().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::WifiRemoteStationManager::GetTypeId ( void  )

static

Definition at line 256 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold(), DoSetFragmentationThreshold(), IsLowLatency(), m_defaultTxPowerLevel, m_macTxDataFailed, m_macTxFinalDataFailed, m_macTxFinalRtsFailed, m_macTxRtsFailed, m_maxSlrc, m_maxSsrc, m_nonUnicastMode, m_rtsCtsThreshold, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::HasHtSupported

(

void

)

const

Return whether the device has HT capability support enabled.

Returns

true if HT capability support is enabled, false otherwise

Definition at line 366 of file wifi-remote-station-manager.cc.

References m_htSupported.

Referenced by GetControlAnswerMode(), NeedCtsToSelf(), and SetupPhy().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsAssociated

(

Mac48Address

address

)

const

Return whether the station associated.

Parameters

address

the address of the station

Returns

true if the station is associated, false otherwise

Definition at line 482 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::IsBrandNew

(

Mac48Address

address

)

const

Return whether the station state is brand new.

Parameters

address

the address of the station

Returns

true if the state of the station is brand new, false otherwise

Definition at line 473 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::BRAND_NEW, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::IsLastFragment	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns

true if this is the last fragment, false otherwise.

Definition at line 841 of file wifi-remote-station-manager.cc.

References GetNFragments(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Here is the call graph for this function:

virtual bool ns3::WifiRemoteStationManager::IsLowLatency ( void  ) const

privatepure virtual

Returns

whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implemented in ns3::MinstrelWifiManager, ns3::AarfcdWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::CaraWifiManager, ns3::AmrrWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetCtsToSelfTxVector(), GetDataTxVector(), GetRtsTxVector(), GetTypeId(), and PrepareForQueue().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsWaitAssocTxOk

(

Mac48Address

address

)

const

Return whether we are waiting for an ACK for the association response we sent.

Parameters

address

the address of the station

Returns

true if the station is associated, false otherwise

Definition at line 491 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Here is the call graph for this function:

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup ( Mac48Address  address, uint8_t  tid  ) const

private

Return the station associated with the given address and TID.

Parameters

address	the address of the station
tid	the TID

Returns

WifiRemoteStation corresponding to the address

Definition at line 1174 of file wifi-remote-station-manager.cc.

References DoCreateStation(), LookupState(), ns3::WifiRemoteStation::m_slrc, ns3::WifiRemoteStation::m_ssrc, ns3::WifiRemoteStation::m_state, m_stations, and ns3::WifiRemoteStation::m_tid.

Referenced by GetDataTxVector(), GetRtsTxVector(), Lookup(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PrepareForQueue(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), ReportFinalRtsFailed(), ReportRtsFailed(), ReportRtsOk(), and ReportRxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup ( Mac48Address  address, const WifiMacHeader *  header  ) const

private

Find a remote station by its remote address and TID taken from MAC header.

Return the station associated with the given address and MAC header. It simply gets TID from the MAC header and calls Lookup with tid.

Parameters

address	the address of the station
header	MAC header

Returns

WifiRemoteStation corresponding to the address

Definition at line 1160 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), and Lookup().

Here is the call graph for this function:

WifiRemoteStationState * ns3::WifiRemoteStationManager::LookupState ( Mac48Address  address ) const

private

Return the state of the station associated with the given address.

Parameters

address

the address of the station

Returns

WifiRemoteStationState corresponding to the address

Definition at line 1137 of file wifi-remote-station-manager.cc.

References first::address, ns3::WifiRemoteStationState::BRAND_NEW, GetDefaultMcs(), GetDefaultMode(), ns3::WifiPhy::GetGreenfield(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiRemoteStationState::m_address, ns3::WifiRemoteStationState::m_greenfield, ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStationState::m_rx, ns3::WifiRemoteStationState::m_shortGuardInterval, ns3::WifiRemoteStationState::m_state, m_states, ns3::WifiRemoteStationState::m_stbc, ns3::WifiRemoteStationState::m_tx, and m_wifiPhy.

Referenced by AddStationHtCapabilities(), AddSupportedMcs(), AddSupportedMode(), GetGreenfieldSupported(), GetInfo(), IsAssociated(), IsBrandNew(), IsWaitAssocTxOk(), Lookup(), RecordDisassociated(), RecordGotAssocTxFailed(), RecordGotAssocTxOk(), RecordWaitAssocTxOk(), and Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::NeedCtsToSelf

(

WifiTxVector

txVector

)

Return if we need to do Cts-to-self before sending a DATA.

Parameters

txVector

the TXVECTOR of the packet to be sent

Returns

true if Cts-to-self is needed, false otherwise

Definition at line 702 of file wifi-remote-station-manager.cc.

References ns3::WifiTxVector::GetMode(), HasHtSupported(), m_bssBasicMcsSet, m_bssBasicRateSet, m_wifiPhy, and ns3::WifiPhy::WifiModeToMcs().

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedDataRetransmission	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns

true if we want to resend a packet after a failed transmission attempt, false otherwise.

Definition at line 739 of file wifi-remote-station-manager.cc.

References DoNeedDataRetransmission(), GetMaxSlrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedFragmentation	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns

true if this packet should be fragmented, false otherwise.

Definition at line 748 of file wifi-remote-station-manager.cc.

References DoNeedFragmentation(), GetFragmentationThreshold(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedRts	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns

true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Definition at line 691 of file wifi-remote-station-manager.cc.

References DoNeedRts(), GetRtsCtsThreshold(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedRtsRetransmission	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns

true if we want to restart a failed RTS/CTS handshake, false otherwise.

Definition at line 730 of file wifi-remote-station-manager.cc.

References DoNeedRtsRetransmission(), GetMaxSsrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::PrepareForQueue	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters

address	remote address
header	MAC header
packet	the packet to queue
fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

This method is typically invoked just before queuing a packet for transmission. It is a no-op unless the IsLowLatency attribute of the attached ns3::WifiRemoteStationManager is set to false, in which case, the tx parameters of the packet are calculated and stored in the packet as a tag. These tx parameters are later retrieved from GetDadaMode and GetRtsMode.

Definition at line 524 of file wifi-remote-station-manager.cc.

References ns3::Packet::AddPacketTag(), data, DoGetCtsToSelfTxVector(), DoGetDataTxVector(), DoGetRtsTxVector(), ns3::Mac48Address::IsGroup(), IsLowLatency(), and Lookup().

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordDisassociated

(

Mac48Address

address

)

Records that the STA was disassociated.

Parameters

address

the address of the station

Definition at line 518 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxFailed

(

Mac48Address

address

)

Records that we missed an ACK for the association response we sent.

Parameters

address

the address of the station

Definition at line 512 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxOk

(

Mac48Address

address

)

Records that we got an ACK for the association response we sent.

Parameters

address

the address of the station

Definition at line 506 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordWaitAssocTxOk

(

Mac48Address

address

)

Records that we are waiting for an ACK for the association response we sent.

Parameters

address

the address of the station

Definition at line 500 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, NS_ASSERT, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportDataFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet

Definition at line 631 of file wifi-remote-station-manager.cc.

References DoReportDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxDataFailed, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportDataOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

Should be invoked whenever we receive the Ack associated to a data packet we just sent.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent

Definition at line 650 of file wifi-remote-station-manager.cc.

References DoReportDataOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalDataFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet

Definition at line 670 of file wifi-remote-station-manager.cc.

References DoReportFinalDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalDataFailed, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalRtsFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet

Definition at line 660 of file wifi-remote-station-manager.cc.

References DoReportFinalRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalRtsFailed, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet

Definition at line 622 of file wifi-remote-station-manager.cc.

References DoReportRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxRtsFailed, and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

Should be invoked whenever we receive the Cts associated to an RTS we just sent.

Note that we also get the SNR of the RTS we sent since the receiver put a SnrTag in the CTS.

Parameters

address	the address of the receiver
header	MAC header of the DATA packet
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Definition at line 640 of file wifi-remote-station-manager.cc.

References DoReportRtsOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRxOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	rxSnr,
		WifiMode	txMode
	)

Parameters

address	remote address
header	MAC header
rxSnr	the snr of the packet received
txMode	the transmission mode used for the packet received.

Should be invoked whenever a packet is successfully received.

Definition at line 680 of file wifi-remote-station-manager.cc.

References DoReportRxOk(), ns3::Mac48Address::IsGroup(), and Lookup().

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::Reset

(

void

)

Reset the station, invoked in a STA upon dis-association or in an AP upon reboot.

Definition at line 1223 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::IsMandatory(), m_bssBasicMcsSet, m_bssBasicRateSet, m_defaultTxMcs, m_defaultTxMode, m_stations, and NS_ASSERT.

Referenced by SetupPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::Reset

(

Mac48Address

address

)

Invoked in an AP upon disassociation of a specific STA.

Parameters

address

the address of the STA

Definition at line 412 of file wifi-remote-station-manager.cc.

References AddSupportedMcs(), AddSupportedMode(), GetDefaultMcs(), GetDefaultMode(), ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::SetDefaultTxPowerLevel

(

uint8_t

txPower

)

Set the default transmission power level.

Parameters

txPower

the default transmission power level

Definition at line 1381 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

void ns3::WifiRemoteStationManager::SetFragmentationThreshold

(

uint32_t

threshold

)

Sets a fragmentation threshold.

The method calls a private method DoSetFragmentationThreshold that checks the validity of the value given.

Parameters

threshold

the fragmentation threshold

Definition at line 406 of file wifi-remote-station-manager.cc.

References DoSetFragmentationThreshold().

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::SetHtSupported

(

bool

enable

)

Enable or disable HT capability support.

Parameters

enable

enable or disable HT capability support

Definition at line 360 of file wifi-remote-station-manager.cc.

References m_htSupported.

void ns3::WifiRemoteStationManager::SetMaxSlrc

(

uint32_t

maxSlrc

)

Sets the maximum STA long retry count (SLRC).

Parameters

maxSlrc

the maximum SLRC

Definition at line 396 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

void ns3::WifiRemoteStationManager::SetMaxSsrc

(

uint32_t

maxSsrc

)

Sets the maximum STA short retry count (SSRC).

Parameters

maxSsrc

the maximum SSRC

Definition at line 391 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

void ns3::WifiRemoteStationManager::SetRtsCtsThreshold

(

uint32_t

threshold

)

Sets the RTS threshold.

Parameters

threshold

the RTS threshold

Definition at line 401 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

void ns3::WifiRemoteStationManager::SetupPhy ( Ptr< WifiPhy >  phy )

virtual

Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.

Parameters

phy	the PHY of this device

Reimplemented in ns3::MinstrelWifiManager, and ns3::IdealWifiManager.

Definition at line 340 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), HasHtSupported(), m_defaultTxMcs, m_defaultTxMode, m_wifiPhy, and Reset().

Referenced by ns3::IdealWifiManager::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

WifiMcsList ns3::WifiRemoteStationManager::m_bssBasicMcsSet

private

Definition at line 909 of file wifi-remote-station-manager.h.

Referenced by AddBasicMcs(), GetBasicMcs(), GetControlAnswerMode(), GetNBasicMcs(), NeedCtsToSelf(), and Reset().

WifiModeList ns3::WifiRemoteStationManager::m_bssBasicRateSet

private

This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter.

This list is constructed through calls to WifiRemoteStationManager::AddBasicMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNBasicModes() and WifiRemoteStationManager::GetBasicMode().

Definition at line 908 of file wifi-remote-station-manager.h.

Referenced by AddBasicMode(), GetBasicMode(), GetControlAnswerMode(), GetNBasicModes(), NeedCtsToSelf(), and Reset().

uint8_t ns3::WifiRemoteStationManager::m_defaultTxMcs

private

The default transmission modulation-coding scheme (MCS)

Definition at line 898 of file wifi-remote-station-manager.h.

Referenced by GetDefaultMcs(), Reset(), and SetupPhy().

WifiMode ns3::WifiRemoteStationManager::m_defaultTxMode

private

The default transmission mode.

Definition at line 897 of file wifi-remote-station-manager.h.

Referenced by GetDefaultMode(), Reset(), and SetupPhy().

uint8_t ns3::WifiRemoteStationManager::m_defaultTxPowerLevel

private

Default tranmission power level.

Definition at line 916 of file wifi-remote-station-manager.h.

Referenced by DoGetAckTxPowerLevel(), DoGetBlockAckTxPowerLevel(), DoGetCtsTxPowerLevel(), GetDataTxVector(), GetDefaultTxPowerLevel(), GetTypeId(), and SetDefaultTxPowerLevel().

uint32_t ns3::WifiRemoteStationManager::m_fragmentationThreshold

private

Threshold for fragmentation.

Definition at line 915 of file wifi-remote-station-manager.h.

Referenced by DoGetFragmentationThreshold(), and DoSetFragmentationThreshold().

bool ns3::WifiRemoteStationManager::m_htSupported

private

Flag if HT capability is supported.

Definition at line 911 of file wifi-remote-station-manager.h.

Referenced by HasHtSupported(), and SetHtSupported().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxDataFailed

private

The trace source fired when the transmission of a single data packet has failed.

Definition at line 926 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalDataFailed

private

The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts.

Definition at line 936 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalRtsFailed

private

The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts.

Definition at line 931 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalRtsFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxRtsFailed

private

The trace source fired when the transmission of a single RTS has failed.

Definition at line 922 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportRtsFailed().

uint32_t ns3::WifiRemoteStationManager::m_maxSlrc

private

Maximum STA long retry count (SLRC)

Definition at line 913 of file wifi-remote-station-manager.h.

Referenced by GetMaxSlrc(), GetTypeId(), and SetMaxSlrc().

uint32_t ns3::WifiRemoteStationManager::m_maxSsrc

private

Maximum STA short retry count (SSRC)

Definition at line 912 of file wifi-remote-station-manager.h.

Referenced by GetMaxSsrc(), GetTypeId(), and SetMaxSsrc().

WifiMode ns3::WifiRemoteStationManager::m_nonUnicastMode

private

Transmission mode for non-unicast DATA frames.

Definition at line 917 of file wifi-remote-station-manager.h.

Referenced by GetNonUnicastMode(), and GetTypeId().

uint32_t ns3::WifiRemoteStationManager::m_rtsCtsThreshold

private

Threshold for RTS/CTS.

Definition at line 914 of file wifi-remote-station-manager.h.

Referenced by GetRtsCtsThreshold(), GetTypeId(), and SetRtsCtsThreshold().

StationStates ns3::WifiRemoteStationManager::m_states

private

States of known stations.

Definition at line 886 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), and LookupState().

Stations ns3::WifiRemoteStationManager::m_stations

private

Information for each known stations.

Definition at line 887 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), Lookup(), and Reset().

Ptr<WifiPhy> ns3::WifiRemoteStationManager::m_wifiPhy

private

This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy().

Through this pointer the station manager can determine PHY characteristics, such as the set of all transmission rates that may be supported (the "DeviceRateSet").

Definition at line 896 of file wifi-remote-station-manager.h.

Referenced by DoGetAckTxGuardInterval(), DoGetAckTxStbc(), DoGetBlockAckTxGuardInterval(), DoGetBlockAckTxStbc(), DoGetCtsToSelfTxVector(), DoGetCtsTxGuardInterval(), DoGetCtsTxStbc(), GetControlAnswerMode(), GetNumberOfTransmitAntennas(), LookupState(), NeedCtsToSelf(), and SetupPhy().

---

The documentation for this class was generated from the following files:

• src/wifi/model/wifi-remote-station-manager.h
• src/wifi/model/wifi-remote-station-manager.cc
