ns3::RraaWifiManager Class Reference

Robust Rate Adaptation AlgorithmThis is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06. More...

#include <rraa-wifi-manager.h>

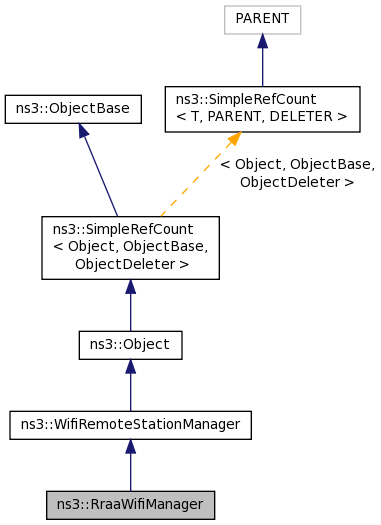

+ Inheritance diagram for ns3::RraaWifiManager:

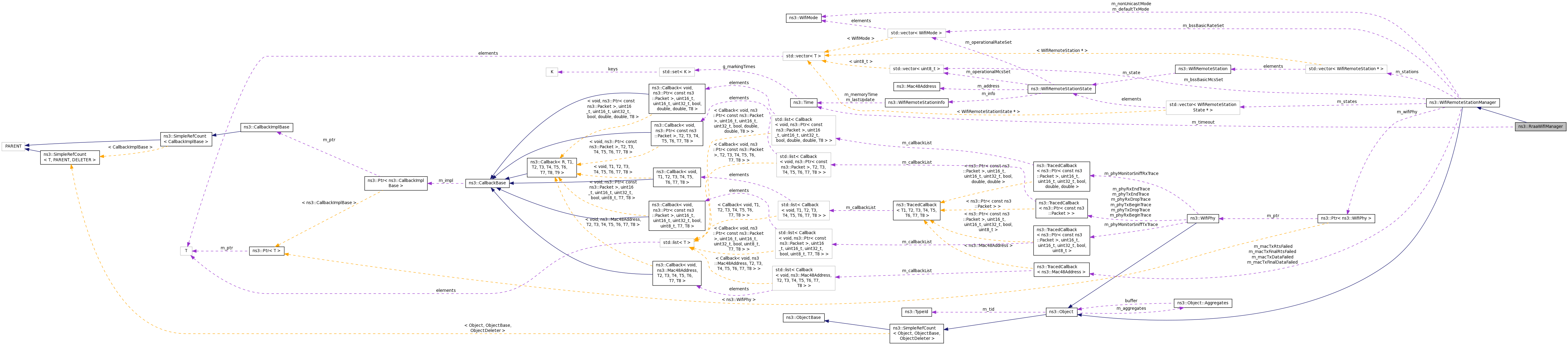

+ Collaboration diagram for ns3::RraaWifiManager:

Classes

struct  ThresholdsItem


Public Member Functions

 RraaWifiManager ()

virtual ~RraaWifiManager ()

- Public Member Functions inherited from ns3::WifiRemoteStationManager
 WifiRemoteStationManager ()

virtual ~WifiRemoteStationManager ()

void AddBasicMcs (uint8_t mcs)
 Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

void AddBasicMode (WifiMode mode)
 Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

void AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
 Records HT capabilities of the remote station. More...

void AddSupportedMcs (Mac48Address address, uint8_t mcs)
 Record the MCS index supported by the station. More...

void AddSupportedMode (Mac48Address address, WifiMode mode)
 Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

WifiTxVector DoGetCtsToSelfTxVector (void)
 Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager. More...

WifiTxVector GetAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t GetBasicMcs (uint32_t i) const
 Return the MCS at the given list index. More...

WifiMode GetBasicMode (uint32_t i) const
 Return a basic mode from the set of basic modes. More...

WifiTxVector GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

WifiTxVector GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

WifiTxVector GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

WifiTxVector GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

uint8_t GetDefaultMcs (void) const
 Return the default Modulation and Coding Scheme (MCS) index. More...

WifiMode GetDefaultMode (void) const
 Return the default transmission mode. More...

uint8_t GetDefaultTxPowerLevel (void) const

uint32_t GetFragmentationThreshold (void) const
 Return the fragmentation threshold. More...

uint32_t GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

uint32_t GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool GetGreenfieldSupported (Mac48Address address) const
 Return whether the station supports Greenfield or not. More...

WifiRemoteStationInfo GetInfo (Mac48Address address)

uint32_t GetMaxSlrc (void) const
 Return the maximum STA long retry count (SLRC). More...

uint32_t GetMaxSsrc (void) const
 Return the maximum STA short retry count (SSRC). More...

uint32_t GetNBasicMcs (void) const
 Return the number of basic MCS index. More...

uint32_t GetNBasicModes (void) const
 Return the number of basic modes we support. More...

WifiMode GetNonUnicastMode (void) const
 Return a mode for non-unicast packets. More...

uint32_t GetNumberOfTransmitAntennas (void)

uint32_t GetRtsCtsThreshold (void) const
 Return the RTS threshold. More...

WifiTxVector GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool HasHtSupported (void) const
 Return whether the device has HT capability support enabled. More...

bool IsAssociated (Mac48Address address) const
 Return whether the station associated. More...

bool IsBrandNew (Mac48Address address) const
 Return whether the station state is brand new. More...

bool IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool IsWaitAssocTxOk (Mac48Address address) const
 Return whether we are waiting for an ACK for the association response we sent. More...

bool NeedCtsToSelf (WifiTxVector txVector)
 Return if we need to do Cts-to-self before sending a DATA. More...

bool NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

void RecordDisassociated (Mac48Address address)
 Records that the STA was disassociated. More...

void RecordGotAssocTxFailed (Mac48Address address)
 Records that we missed an ACK for the association response we sent. More...

void RecordGotAssocTxOk (Mac48Address address)
 Records that we got an ACK for the association response we sent. More...

void RecordWaitAssocTxOk (Mac48Address address)
 Records that we are waiting for an ACK for the association response we sent. More...

void ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
 Should be invoked whenever we receive the Ack associated to a data packet we just sent. More...

void ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false. More...

void ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false. More...

void ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

void ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
 Should be invoked whenever we receive the Cts associated to an RTS we just sent. More...

void ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

void Reset (void)
 Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void Reset (Mac48Address address)
 Invoked in an AP upon disassociation of a specific STA. More...

void SetDefaultTxPowerLevel (uint8_t txPower)
 Set the default transmission power level. More...

void SetFragmentationThreshold (uint32_t threshold)
 Sets a fragmentation threshold. More...

void SetHtSupported (bool enable)
 Enable or disable HT capability support. More...

void SetMaxSlrc (uint32_t maxSlrc)
 Sets the maximum STA long retry count (SLRC). More...

void SetMaxSsrc (uint32_t maxSsrc)
 Sets the maximum STA short retry count (SSRC). More...

void SetRtsCtsThreshold (uint32_t threshold)
 Sets the RTS threshold. More...

virtual void SetupPhy (Ptr< WifiPhy > phy)
 Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

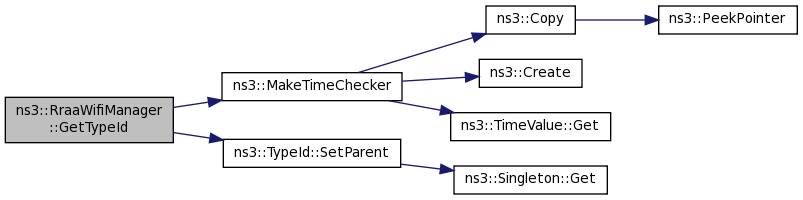

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void ARts (RraaWifiRemoteStation *station)
 Activate the use of RTS for the given station if the conditions are met. More...

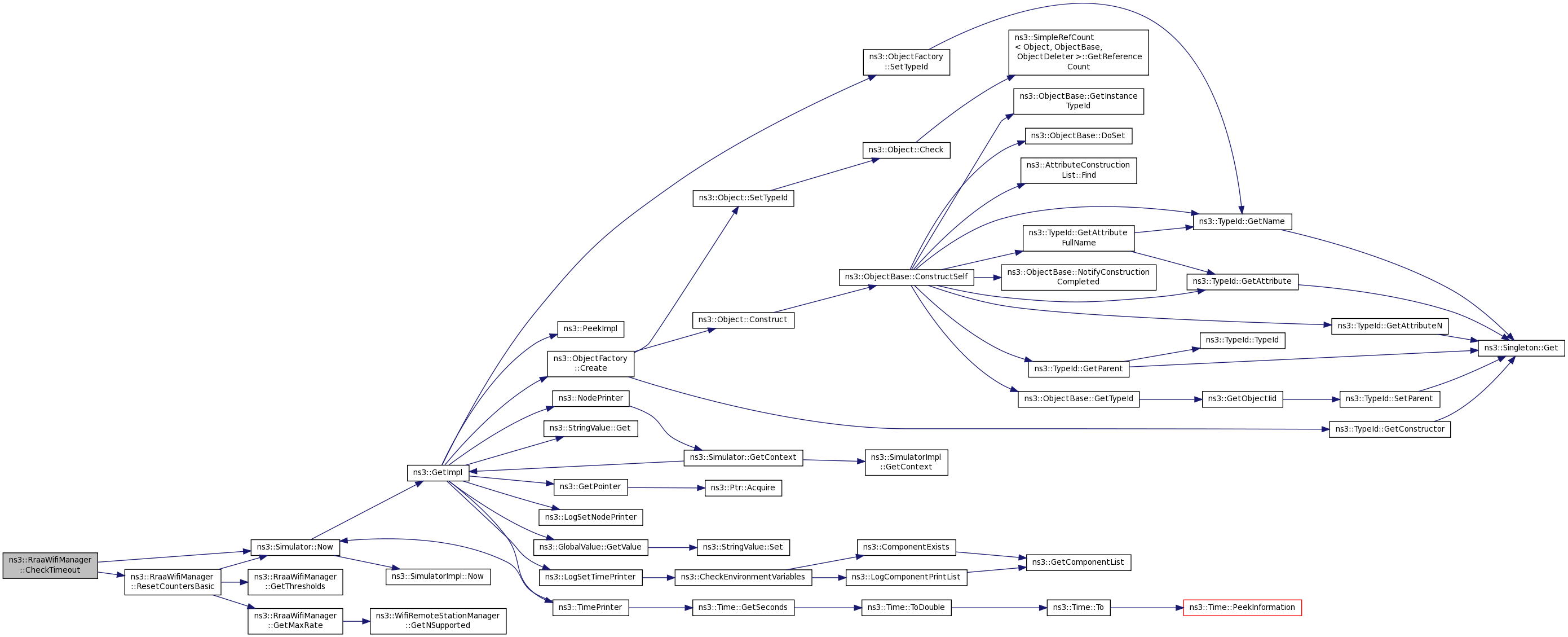

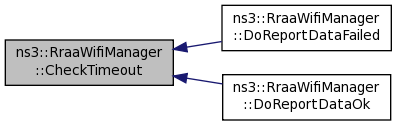

void CheckTimeout (RraaWifiRemoteStation *station)
 Check if the counter should be resetted. More...

virtual WifiRemoteStationDoCreateStation (void) const

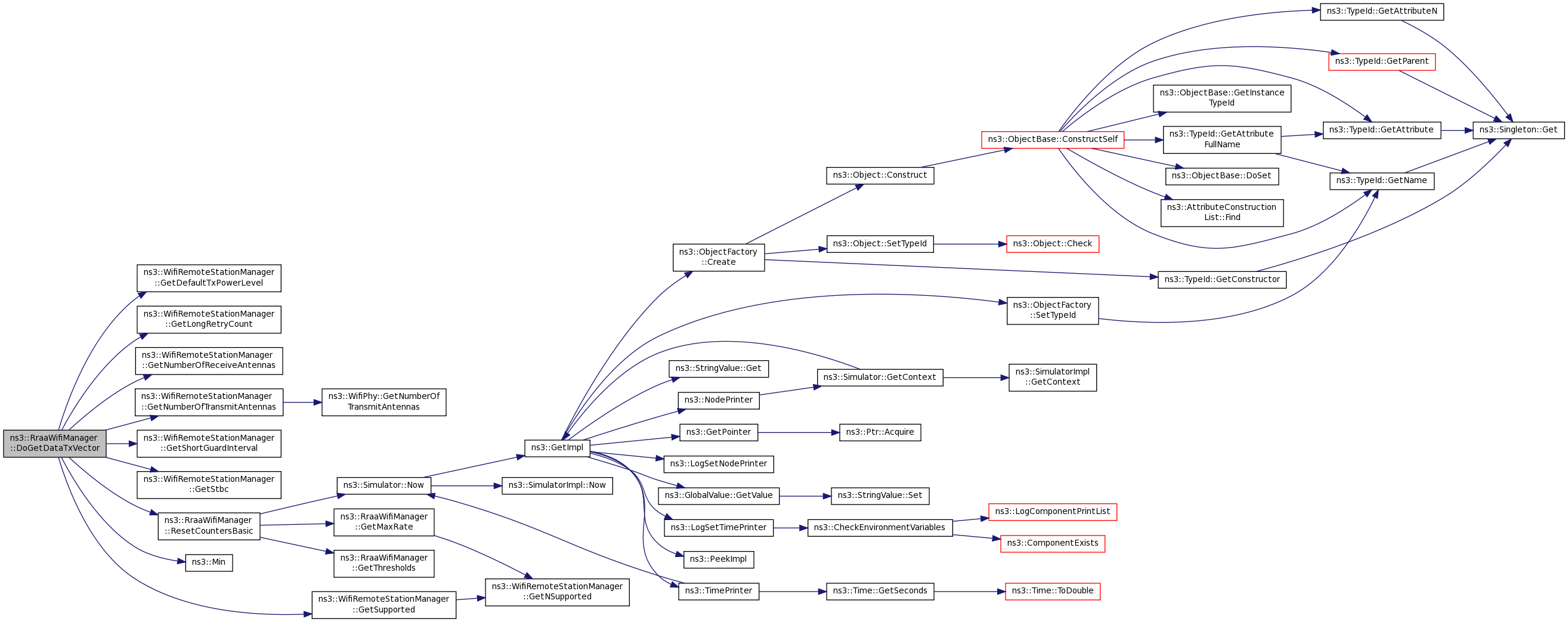

virtual WifiTxVector DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)

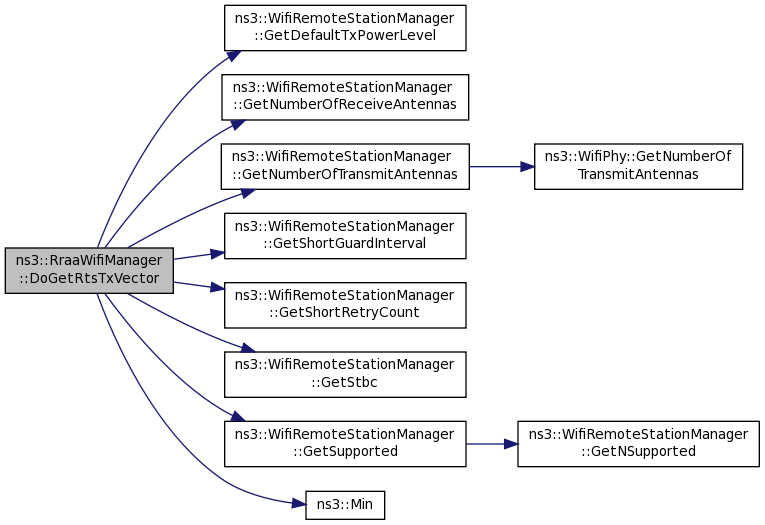

virtual WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station)

virtual bool DoNeedRts (WifiRemoteStation *st, Ptr< const Packet > packet, bool normally)

virtual void DoReportDataFailed (WifiRemoteStation *station)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportFinalDataFailed (WifiRemoteStation *station)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportFinalRtsFailed (WifiRemoteStation *station)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportRtsFailed (WifiRemoteStation *station)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
 This method is a pure virtual method that must be implemented by the sub-class. More...

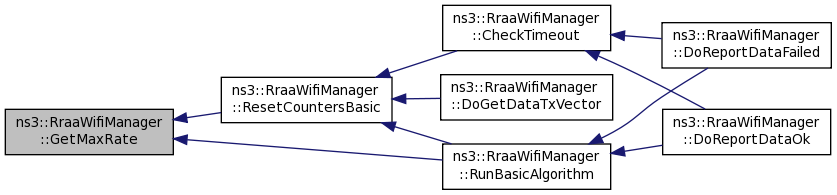

uint32_t GetMaxRate (RraaWifiRemoteStation *station)
 Return the index for the maximum transmission rate for the given station. More...

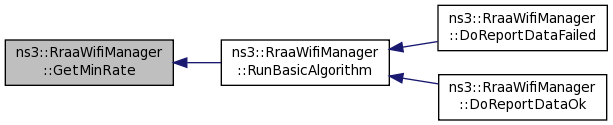

uint32_t GetMinRate (RraaWifiRemoteStation *station)
 Return the index for the minimum transmission rate for the given station. More...

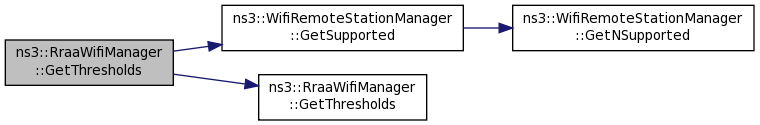

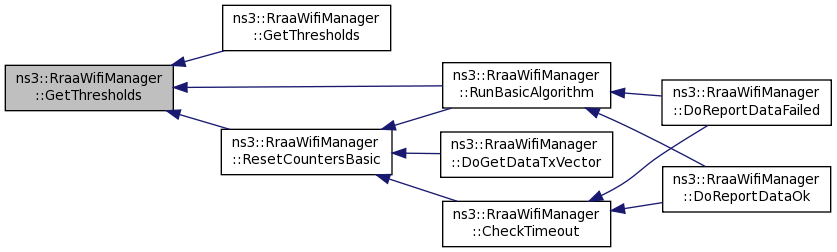

struct ThresholdsItem GetThresholds (WifiMode mode) const
 Get a threshold for the given mode. More...

struct ThresholdsItem GetThresholds (RraaWifiRemoteStation *station, uint32_t rate) const
 Get a threshold for the given station and mode index. More...

virtual bool IsLowLatency (void) const

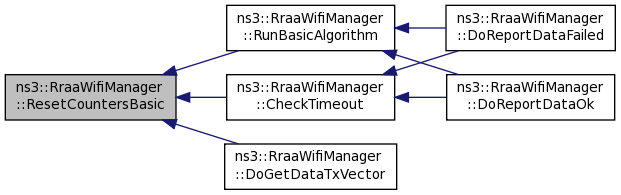

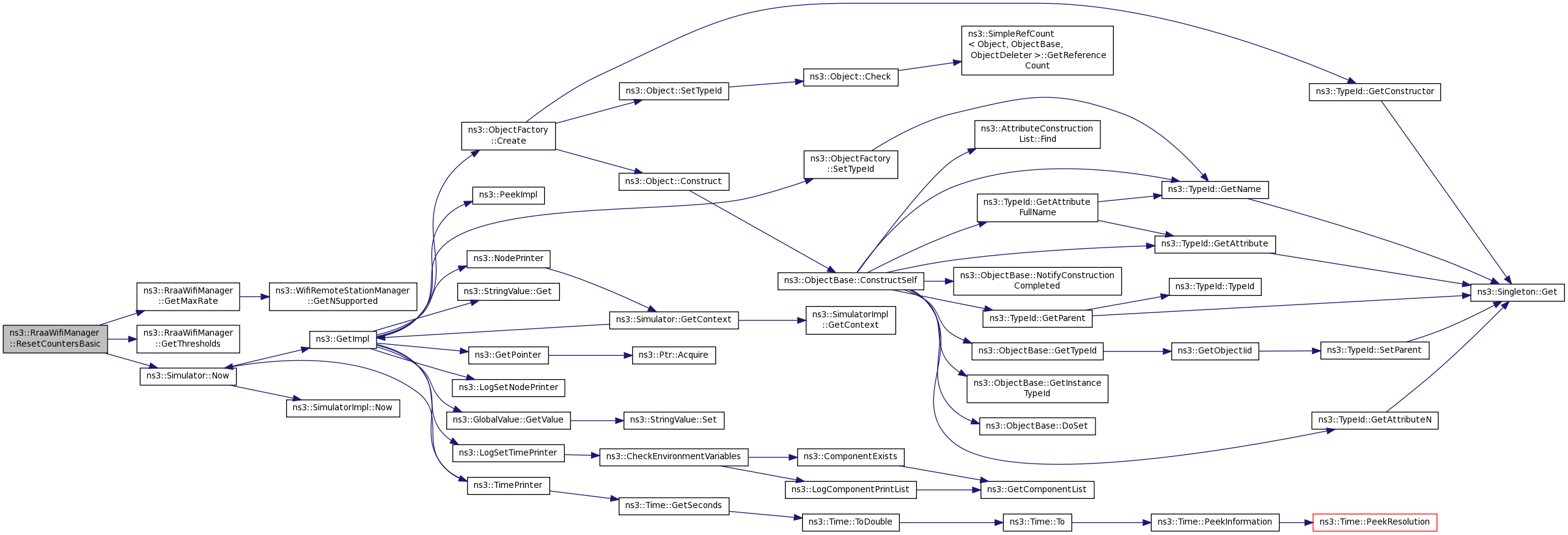

void ResetCountersBasic (RraaWifiRemoteStation *station)
 Reset the counters of the given station. More...

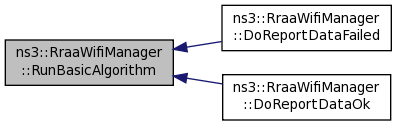

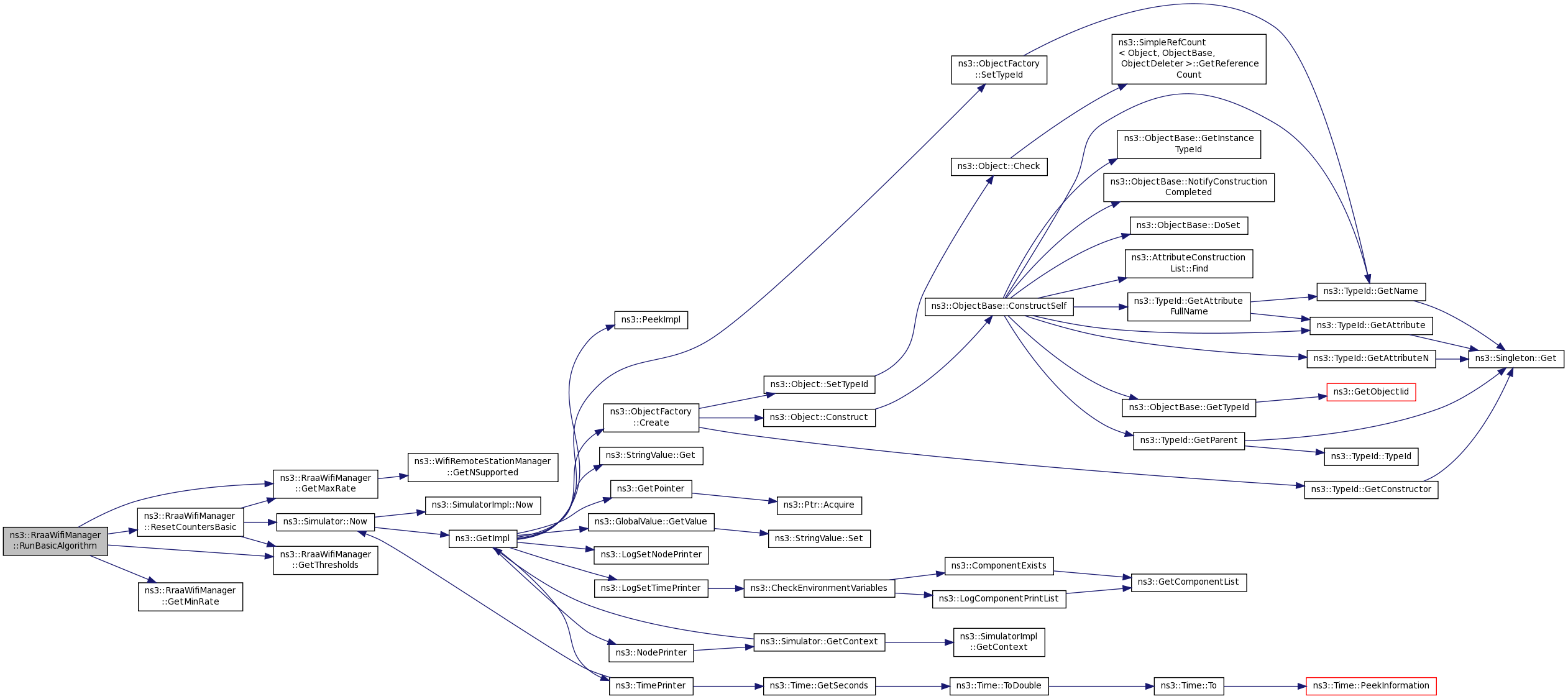

void RunBasicAlgorithm (RraaWifiRemoteStation *station)
 Find an appropriate rate for the given station, using a basic algorithm. More...


Private Attributes

bool m_basic

uint32_t m_ewndfor12

uint32_t m_ewndfor18

uint32_t m_ewndfor24

uint32_t m_ewndfor36

uint32_t m_ewndfor48

uint32_t m_ewndfor54

uint32_t m_ewndfor6

uint32_t m_ewndfor9

double m_pmtlfor12

double m_pmtlfor18

double m_pmtlfor24

double m_pmtlfor36

double m_pmtlfor48

double m_pmtlfor54

double m_pmtlfor9

double m_porifor12

double m_porifor18

double m_porifor24

double m_porifor36

double m_porifor48

double m_porifor6

double m_porifor9

Time m_timeout


Additional Inherited Members

- Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

bool GetGreenfield (const WifiRemoteStation *station) const
 Return whether the station supports Greenfield or not. More...

uint32_t GetLongRetryCount (const WifiRemoteStation *station) const
 Return the long retry limit of the given station. More...

uint8_t GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
 Return the MCS index supported by the specified station at the specified index. More...

uint32_t GetNMcsSupported (const WifiRemoteStation *station) const
 Return the number of MCS supported by the given station. More...

uint32_t GetNSupported (const WifiRemoteStation *station) const
 Return the number of modes supported by the given station. More...

uint32_t GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const
 Return the number of receive antenna the station has. More...

uint32_t GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const
 Return the number of transmit antenna the station has. More...

bool GetShortGuardInterval (const WifiRemoteStation *station) const
 Return whether the given station supports short guard interval. More...

uint32_t GetShortRetryCount (const WifiRemoteStation *station) const
 Return the short retry limit of the given station. More...

bool GetStbc (const WifiRemoteStation *station) const
 Return whether the given station supports space-time block coding (STBC). More...

WifiMode GetSupported (const WifiRemoteStation *station, uint32_t i) const
 Return whether mode associated with the specified station at the specified index. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Robust Rate Adaptation Algorithm

This is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06.

Config Paths

ns3::RraaWifiManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager

Attributes

  • Basic: If true the RRAA-BASIC algorithm will be used, otherwise the RRAA wil be used
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • Timeout: Timeout for the RRAA BASIC loss estimaton block (s)
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +50000000.0ns
    • Flags: construct write read
  • ewndFor54mbps: ewnd parameter for 54 Mbs data mode
  • ewndFor48mbps: ewnd parameter for 48 Mbs data mode
  • ewndFor36mbps: ewnd parameter for 36 Mbs data mode
  • ewndFor24mbps: ewnd parameter for 24 Mbs data mode
  • ewndFor18mbps: ewnd parameter for 18 Mbs data mode
  • ewndFor12mbps: ewnd parameter for 12 Mbs data mode
  • ewndFor9mbps: ewnd parameter for 9 Mbs data mode
  • ewndFor6mbps: ewnd parameter for 6 Mbs data mode
  • poriFor48mbps: Pori parameter for 48 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.047
    • Flags: construct write read
  • poriFor36mbps: Pori parameter for 36 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.115
    • Flags: construct write read
  • poriFor24mbps: Pori parameter for 24 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1681
    • Flags: construct write read
  • poriFor18mbps: Pori parameter for 18 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1325
    • Flags: construct write read
  • poriFor12mbps: Pori parameter for 12 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1861
    • Flags: construct write read
  • poriFor9mbps: Pori parameter for 9 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1434
    • Flags: construct write read
  • poriFor6mbps: Pori parameter for 6 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read
  • pmtlFor54mbps: Pmtl parameter for 54 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.094
    • Flags: construct write read
  • pmtlFor48mbps: Pmtl parameter for 48 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.23
    • Flags: construct write read
  • pmtlFor36mbps: Pmtl parameter for 36 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3363
    • Flags: construct write read
  • pmtlFor24mbps: Pmtl parameter for 24 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.265
    • Flags: construct write read
  • pmtlFor18mbps: Pmtl parameter for 18 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3722
    • Flags: construct write read
  • pmtlFor12mbps: Pmtl parameter for 12 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.2868
    • Flags: construct write read
  • pmtlFor9mbps: Pmtl parameter for 9 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3932
    • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read
  • DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 39 of file rraa-wifi-manager.h.

Constructor & Destructor Documentation

ns3::RraaWifiManager::RraaWifiManager ( )

Definition at line 189 of file rraa-wifi-manager.cc.

ns3::RraaWifiManager::~RraaWifiManager ( )
virtual

Definition at line 192 of file rraa-wifi-manager.cc.

Member Function Documentation

void ns3::RraaWifiManager::ARts ( RraaWifiRemoteStation station)
private

Activate the use of RTS for the given station if the conditions are met.

Parameters
station

Definition at line 342 of file rraa-wifi-manager.cc.

References ns3::RraaWifiRemoteStation::m_lastFrameFail, ns3::RraaWifiRemoteStation::m_rtsCounter, ns3::RraaWifiRemoteStation::m_rtsOn, and ns3::RraaWifiRemoteStation::m_rtsWnd.

Referenced by DoNeedRts().

+ Here is the caller graph for this function:

void ns3::RraaWifiManager::CheckTimeout ( RraaWifiRemoteStation station)
private

Check if the counter should be resetted.

Parameters
station

Definition at line 310 of file rraa-wifi-manager.cc.

References ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_lastReset, m_timeout, ns3::Simulator::Now(), and ResetCountersBasic().

Referenced by DoReportDataFailed(), and DoReportDataOk().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiRemoteStation * ns3::RraaWifiManager::DoCreateStation ( void  ) const
privatevirtual
WifiTxVector ns3::RraaWifiManager::DoGetDataTxVector ( WifiRemoteStation station,
uint32_t  size
)
privatevirtual
Parameters
stationthe station that we need to communicate
sizesize of the packet or fragment we want to send
Returns
the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implements ns3::WifiRemoteStationManager.

Definition at line 280 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetLongRetryCount(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::RraaWifiRemoteStation::m_initialized, ns3::RraaWifiRemoteStation::m_rate, ns3::Min(), and ResetCountersBasic().

+ Here is the call graph for this function:

WifiTxVector ns3::RraaWifiManager::DoGetRtsTxVector ( WifiRemoteStation station)
privatevirtual
Parameters
stationthe station that we need to communicate
Returns
the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implements ns3::WifiRemoteStationManager.

Definition at line 291 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortRetryCount(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), and ns3::Min().

+ Here is the call graph for this function:

bool ns3::RraaWifiManager::DoNeedRts ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.
Returns
true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 297 of file rraa-wifi-manager.cc.

References ARts(), m_basic, and ns3::RraaWifiRemoteStation::m_rtsOn.

+ Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportDataFailed ( WifiRemoteStation station)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 240 of file rraa-wifi-manager.cc.

References CheckTimeout(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_failed, ns3::RraaWifiRemoteStation::m_lastFrameFail, and RunBasicAlgorithm().

+ Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportDataOk ( WifiRemoteStation station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr
)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ackSnrthe SNR of the ACK we received
ackModethe WifiMode the receiver used to send the ACK
dataSnrthe SNR of the DATA we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 261 of file rraa-wifi-manager.cc.

References CheckTimeout(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_lastFrameFail, and RunBasicAlgorithm().

+ Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportFinalDataFailed ( WifiRemoteStation station)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 275 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation station)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 271 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportRtsFailed ( WifiRemoteStation station)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 235 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportRtsOk ( WifiRemoteStation station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ctsSnrthe SNR of the CTS we received
ctsModethe WifiMode the receiver used to send the CTS
rtsSnrthe SNR of the RTS we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 255 of file rraa-wifi-manager.cc.

References NS_LOG_DEBUG.

void ns3::RraaWifiManager::DoReportRxOk ( WifiRemoteStation station,
double  rxSnr,
WifiMode  txMode
)
privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that sent the DATA to us
rxSnrthe SNR of the DATA we received
txModethe WifiMode the sender used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 250 of file rraa-wifi-manager.cc.

uint32_t ns3::RraaWifiManager::GetMaxRate ( RraaWifiRemoteStation station)
private

Return the index for the maximum transmission rate for the given station.

Parameters
station
Returns
the index for the maximum transmission rate

Definition at line 223 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported().

Referenced by ResetCountersBasic(), and RunBasicAlgorithm().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::RraaWifiManager::GetMinRate ( RraaWifiRemoteStation station)
private

Return the index for the minimum transmission rate for the given station.

Parameters
station
Returns
the index for the minimum transmission rate

Definition at line 228 of file rraa-wifi-manager.cc.

Referenced by RunBasicAlgorithm().

+ Here is the caller graph for this function:

struct RraaWifiManager::ThresholdsItem ns3::RraaWifiManager::GetThresholds ( WifiMode  mode) const
private

Get a threshold for the given mode.

Parameters
mode
Returns
threshold

Definition at line 376 of file rraa-wifi-manager.cc.

References m_ewndfor12, m_ewndfor18, m_ewndfor24, m_ewndfor36, m_ewndfor48, m_ewndfor54, m_ewndfor6, m_ewndfor9, m_pmtlfor12, m_pmtlfor18, m_pmtlfor24, m_pmtlfor36, m_pmtlfor48, m_pmtlfor54, m_pmtlfor9, m_porifor12, m_porifor18, m_porifor24, m_porifor36, m_porifor48, m_porifor6, m_porifor9, and NS_ASSERT_MSG.

Referenced by GetThresholds(), ResetCountersBasic(), and RunBasicAlgorithm().

+ Here is the caller graph for this function:

struct RraaWifiManager::ThresholdsItem ns3::RraaWifiManager::GetThresholds ( RraaWifiRemoteStation station,
uint32_t  rate
) const
private

Get a threshold for the given station and mode index.

Parameters
station
rate
Returns
threshold

Definition at line 368 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetSupported(), and GetThresholds().

+ Here is the call graph for this function:

bool ns3::RraaWifiManager::IsLowLatency ( void  ) const
privatevirtual
Returns
whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implements ns3::WifiRemoteStationManager.

Definition at line 466 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::ResetCountersBasic ( RraaWifiRemoteStation station)
private
void ns3::RraaWifiManager::RunBasicAlgorithm ( RraaWifiRemoteStation station)
private

Find an appropriate rate for the given station, using a basic algorithm.

Parameters
station

Definition at line 320 of file rraa-wifi-manager.cc.

References ns3::RraaWifiManager::ThresholdsItem::ewnd, GetMaxRate(), GetMinRate(), GetThresholds(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_failed, ns3::RraaWifiRemoteStation::m_rate, ns3::RraaWifiManager::ThresholdsItem::pmtl, ns3::RraaWifiManager::ThresholdsItem::pori, and ResetCountersBasic().

Referenced by DoReportDataFailed(), and DoReportDataOk().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

bool ns3::RraaWifiManager::m_basic
private

Definition at line 131 of file rraa-wifi-manager.h.

Referenced by DoNeedRts(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor12
private

Definition at line 138 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor18
private

Definition at line 137 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor24
private

Definition at line 136 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor36
private

Definition at line 135 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor48
private

Definition at line 134 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor54
private

Definition at line 133 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor6
private

Definition at line 140 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

uint32_t ns3::RraaWifiManager::m_ewndfor9
private

Definition at line 139 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor12
private

Definition at line 153 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor18
private

Definition at line 152 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor24
private

Definition at line 151 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor36
private

Definition at line 150 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor48
private

Definition at line 149 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor54
private

Definition at line 148 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_pmtlfor9
private

Definition at line 154 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor12
private

Definition at line 145 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor18
private

Definition at line 144 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor24
private

Definition at line 143 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor36
private

Definition at line 142 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor48
private

Definition at line 141 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor6
private

Definition at line 147 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

double ns3::RraaWifiManager::m_porifor9
private

Definition at line 146 of file rraa-wifi-manager.h.

Referenced by GetThresholds(), and GetTypeId().

Time ns3::RraaWifiManager::m_timeout
private

Definition at line 132 of file rraa-wifi-manager.h.

Referenced by CheckTimeout(), and GetTypeId().


The documentation for this class was generated from the following files:
