ns3::UintegerValue Class Reference

Hold an unsigned integer type. More...

#include <uinteger.h>

Inheritance diagram for ns3::UintegerValue:

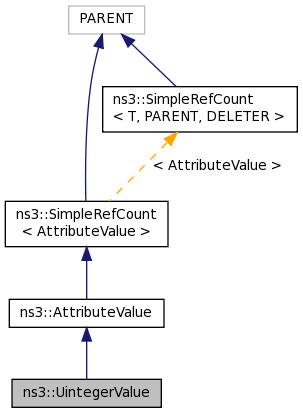

Collaboration diagram for ns3::UintegerValue:

Public Member Functions
	UintegerValue ()
	UintegerValue (const uint64_t &value)
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
uint64_t	Get (void) const
template<typename T >
bool	GetAccessor (T &value) const
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (const uint64_t &value)
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint64_t	m_value

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Hold an unsigned integer type.

This class can be used to hold variables of unsigned integer type such as uint8_t, uint16_t, uint32_t, uint64_t, or, unsigned int, etc.

Definition at line 46 of file uinteger.h.

Constructor & Destructor Documentation

ns3::UintegerValue::UintegerValue

(

)

ns3::UintegerValue::UintegerValue

(

const uint64_t &

value

)

Member Function Documentation

virtual Ptr<AttributeValue> ns3::UintegerValue::Copy ( void  ) const

virtual

Returns

a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

virtual bool ns3::UintegerValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Parameters

value	a string representation of the value
checker	a pointer to the checker associated to the attribute.

Returns

true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

uint64_t ns3::UintegerValue::Get

(

void

)

const

Referenced by ns3::GlobalValueTestCase::DoRun(), main(), and ns3::internal::MakeUintegerChecker().

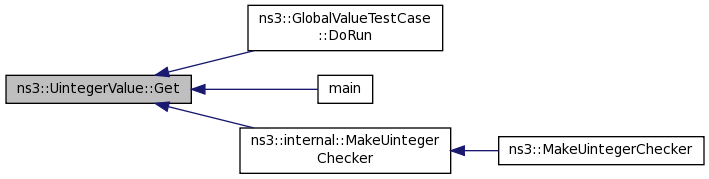

Here is the caller graph for this function:

template<typename T >

bool ns3::UintegerValue::GetAccessor ( T &  value ) const

inline

Definition at line 46 of file uinteger.h.

virtual std::string ns3::UintegerValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Parameters

checker

the checker associated to the attribute

Returns

a string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

void ns3::UintegerValue::Set

(

const uint64_t &

value

)

Member Data Documentation

uint64_t ns3::UintegerValue::m_value

private

Definition at line 46 of file uinteger.h.

---

The documentation for this class was generated from the following file:

• src/core/model/uinteger.h
