ns3::WifiMode Class Reference

represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...

#include <wifi-mode.h>

Public Member Functions
	WifiMode ()
	Create an invalid WifiMode. More...
	WifiMode (std::string name)
	Create a WifiMode if the given string represents a valid WifiMode name. More...
uint32_t	GetBandwidth (void) const
enum WifiCodeRate	GetCodeRate (void) const
uint8_t	GetConstellationSize (void) const
uint64_t	GetDataRate (void) const
enum WifiModulationClass	GetModulationClass () const
uint64_t	GetPhyRate (void) const
uint32_t	GetUid (void) const
std::string	GetUniqueName (void) const
bool	IsMandatory (void) const

Private Member Functions
	WifiMode (uint32_t uid)
	Create a WifiMode from a given unique ID. More...

Private Attributes
uint32_t	m_uid

Friends
class	WifiModeFactory

Detailed Description

represent a single transmission mode

A WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode.

It is thus extremely cheap to keep a WifiMode variable around.

Definition at line 91 of file wifi-mode.h.

Constructor & Destructor Documentation

ns3::WifiMode::WifiMode

(

)

Create an invalid WifiMode.

Calling any method on the instance created will trigger an assert. This is useful to separate the declaration of a WifiMode variable from its initialization.

Definition at line 120 of file wifi-mode.cc.

ns3::WifiMode::WifiMode

(

std::string

name

)

Create a WifiMode if the given string represents a valid WifiMode name.

Parameters

name	std::string of a valid WifiMode name

Definition at line 128 of file wifi-mode.cc.

References ns3::WifiModeFactory::GetFactory(), and ns3::WifiModeFactory::Search().

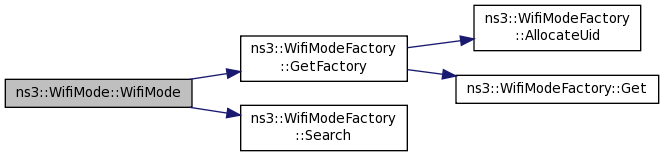

Here is the call graph for this function:

ns3::WifiMode::WifiMode ( uint32_t  uid )

private

Create a WifiMode from a given unique ID.

Parameters

uid

unique ID

Definition at line 124 of file wifi-mode.cc.

Member Function Documentation

uint32_t ns3::WifiMode::GetBandwidth

(

void

)

const

Returns

the number of Hz used by this signal

Definition at line 67 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::bandwidth, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), and m_uid.

Referenced by ns3::InterferenceHelper::CalculateSnr(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WifiPhy::GetMFPlcpHeaderMode(), ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderMode(), and ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds().

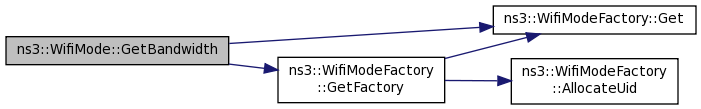

Here is the call graph for this function:

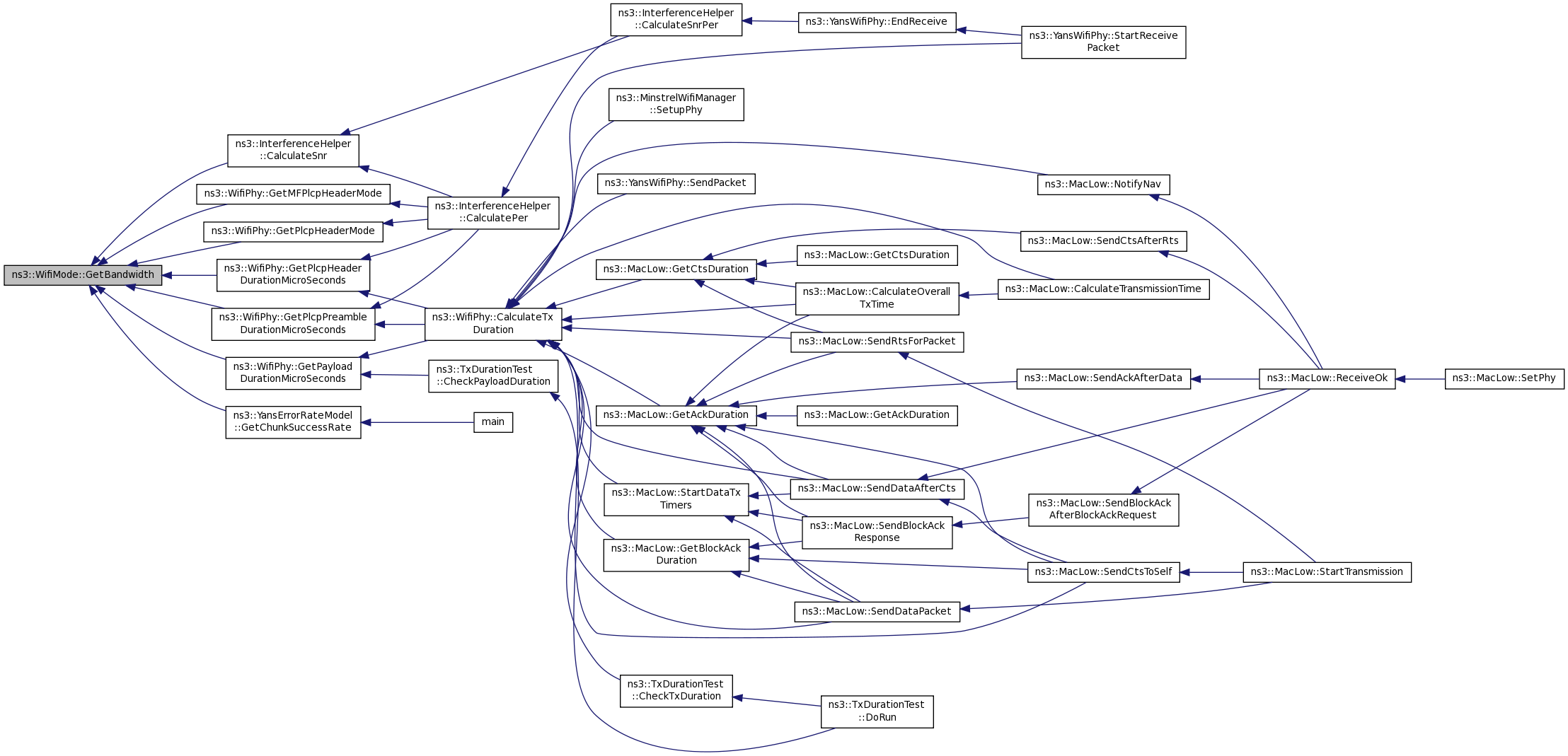

Here is the caller graph for this function:

enum WifiCodeRate ns3::WifiMode::GetCodeRate

(

void

)

const

Returns

the coding rate of this transmission mode

Definition at line 85 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), and m_uid.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

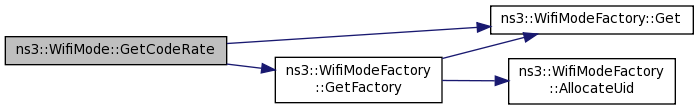

Here is the call graph for this function:

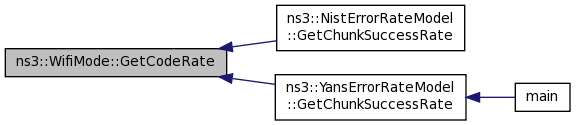

Here is the caller graph for this function:

uint8_t ns3::WifiMode::GetConstellationSize

(

void

)

const

Returns

the size of the modulation constellation.

Definition at line 91 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::constellationSize, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), and m_uid.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

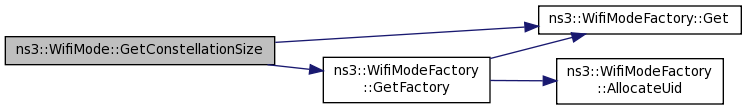

Here is the call graph for this function:

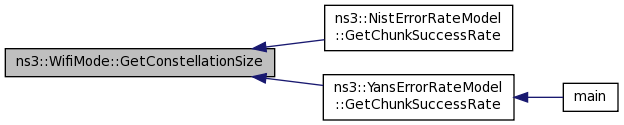

Here is the caller graph for this function:

uint64_t ns3::WifiMode::GetDataRate

(

void

)

const

Returns

the data bit rate of this signal.

Definition at line 79 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::dataRate, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), and m_uid.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::YansWifiPhy::SendPacket(), and ns3::YansWifiPhy::WifiModeToMcs().

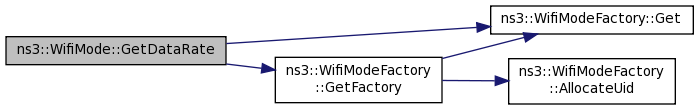

Here is the call graph for this function:

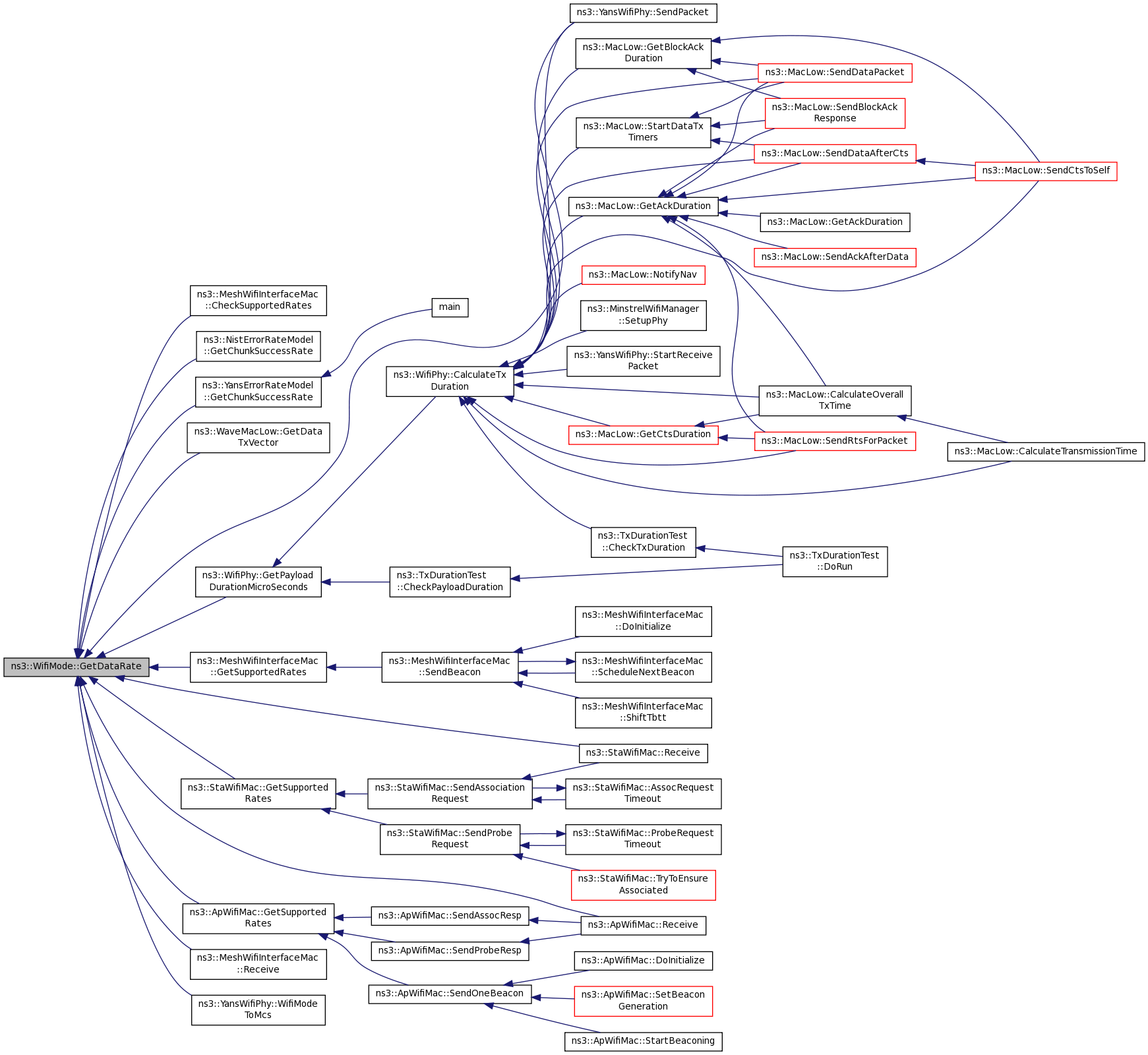

Here is the caller graph for this function:

enum WifiModulationClass ns3::WifiMode::GetModulationClass

(

)

const

Returns

the Modulation Class (see IEEE 802.11-2007 Section 9.6.1) to which this WifiMode belongs.

Definition at line 115 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, and ns3::WifiModeFactory::WifiModeItem::modClass.

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MacLow::GetCtsDuration(), ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds(), ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::MacLow::SendRtsForPacket(), and ns3::MacLow::StartDataTxTimers().

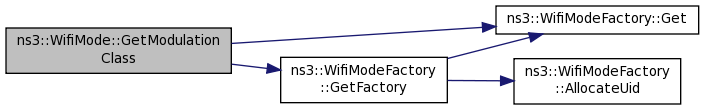

Here is the call graph for this function:

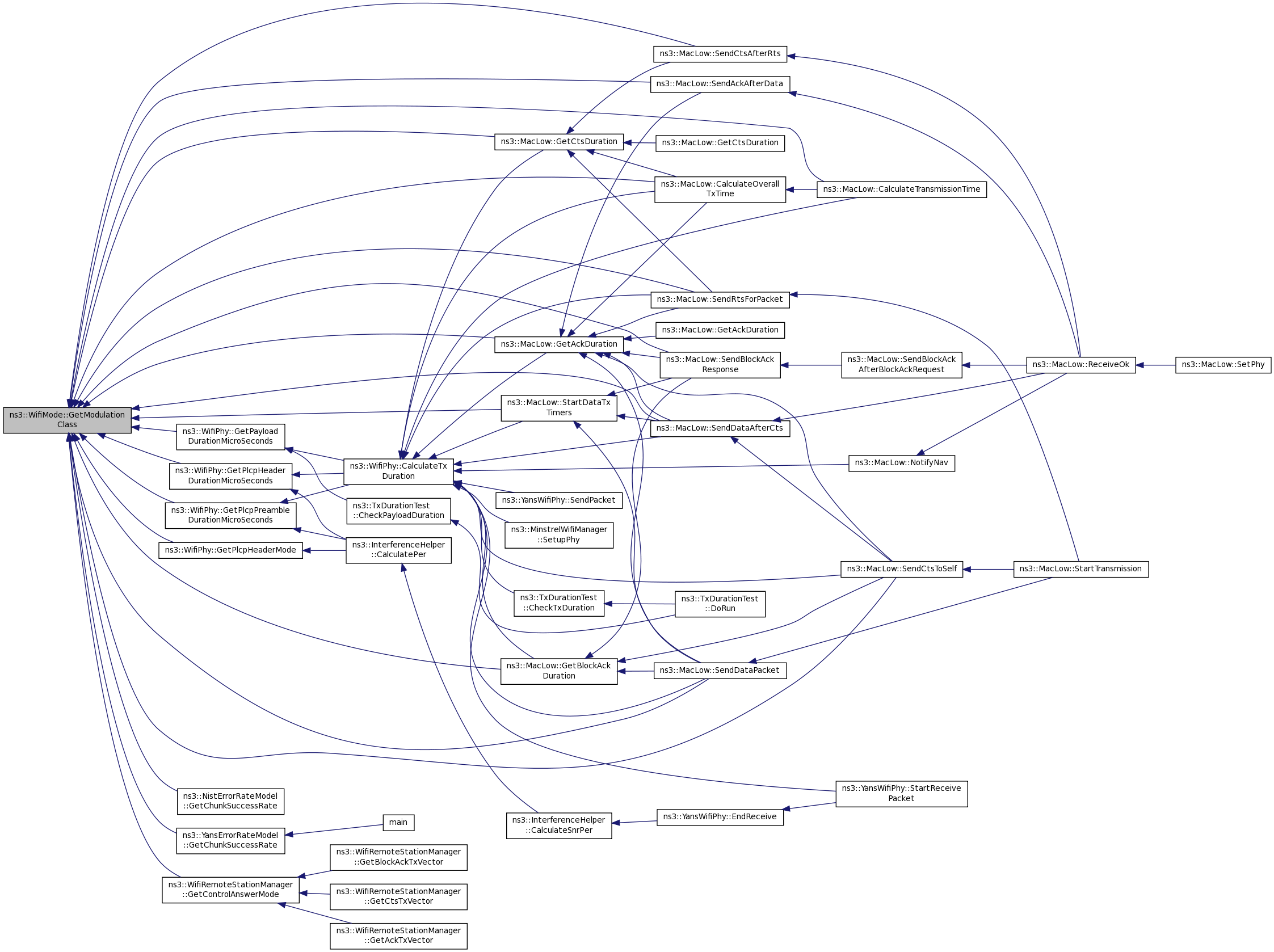

Here is the caller graph for this function:

uint64_t ns3::WifiMode::GetPhyRate

(

void

)

const

Returns

the physical bit rate of this signal.

If a transmission mode uses 1/2 FEC, and if its data rate is 3Mbs, the phy rate is 6Mbs

Definition at line 73 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, and ns3::WifiModeFactory::WifiModeItem::phyRate.

Referenced by ns3::InterferenceHelper::CalculateChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), and ns3::WifiRemoteStationManager::GetControlAnswerMode().

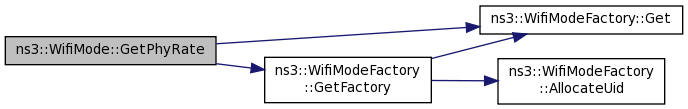

Here is the call graph for this function:

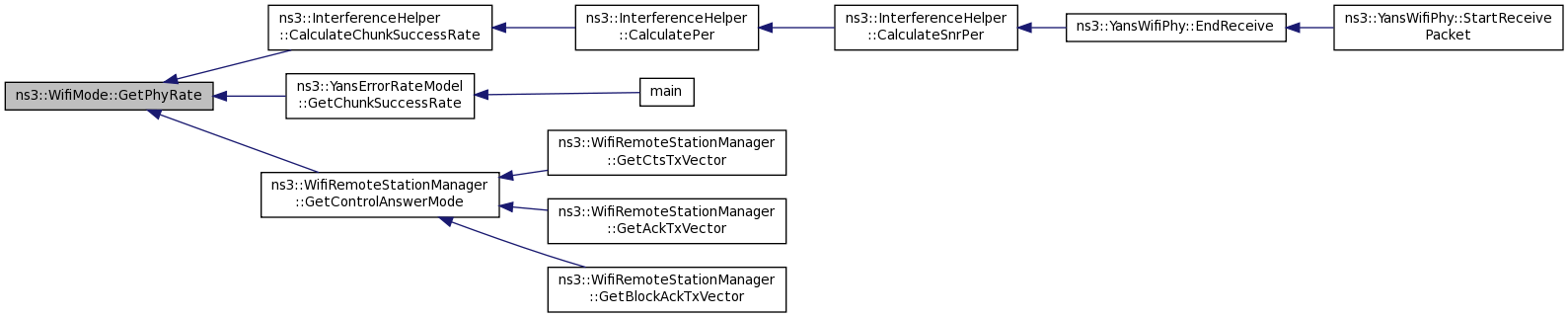

Here is the caller graph for this function:

uint32_t ns3::WifiMode::GetUid

(

void

)

const

Returns

the uid associated to this wireless mode.

Each specific wireless mode should have a different uid. For example, the 802.11b 1Mbs and the 802.11b 2Mbs modes should have different uids.

Definition at line 110 of file wifi-mode.cc.

References m_uid.

Referenced by ns3::operator==().

Here is the caller graph for this function:

std::string ns3::WifiMode::GetUniqueName

(

void

)

const

Returns

a human-readable representation of this WifiMode instance.

Definition at line 97 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, and ns3::WifiModeFactory::WifiModeItem::uniqueUid.

Referenced by ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::operator<<(), and ns3::YansWifiPhy::WifiModeToMcs().

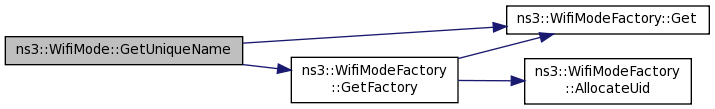

Here is the call graph for this function:

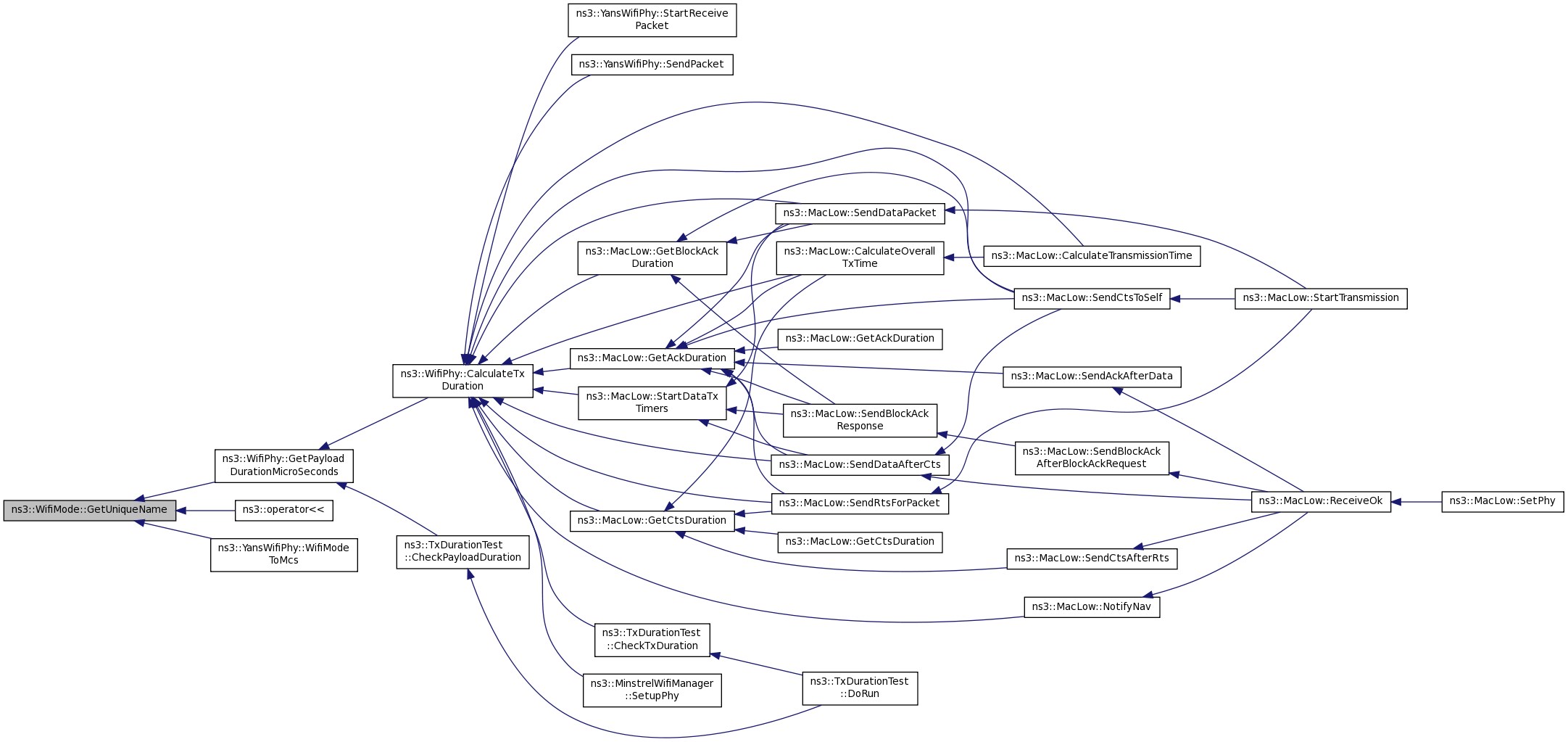

Here is the caller graph for this function:

bool ns3::WifiMode::IsMandatory

(

void

)

const

Returns

true if this mode is a mandatory mode, false otherwise.

Definition at line 104 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, and m_uid.

Referenced by ns3::WifiRemoteStationManager::GetControlAnswerMode(), and ns3::WifiRemoteStationManager::Reset().

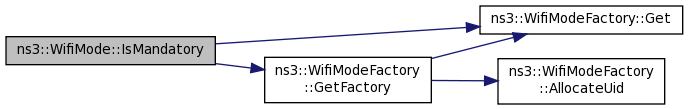

Here is the call graph for this function:

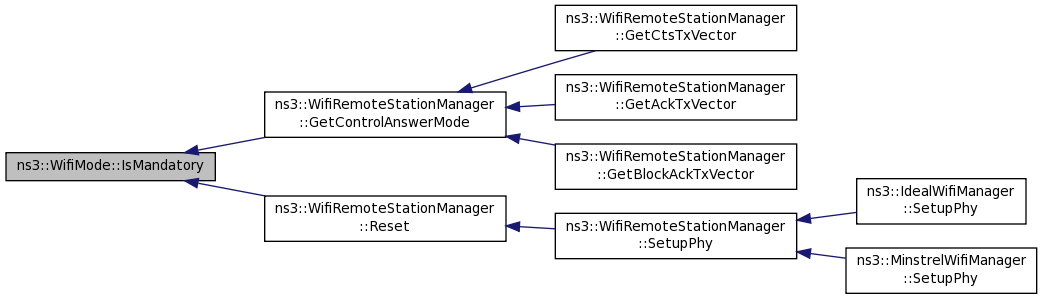

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class WifiModeFactory

friend

Definition at line 161 of file wifi-mode.h.

Member Data Documentation

uint32_t ns3::WifiMode::m_uid

private

Definition at line 168 of file wifi-mode.h.

Referenced by GetBandwidth(), GetCodeRate(), GetConstellationSize(), GetDataRate(), GetModulationClass(), GetPhyRate(), GetUid(), GetUniqueName(), and IsMandatory().

---

The documentation for this class was generated from the following files:

• src/wifi/model/wifi-mode.h
• src/wifi/model/wifi-mode.cc
