ns3::WifiModeFactory Class Reference

create WifiMode class instances and keep track of them. More...

#include <wifi-mode.h>

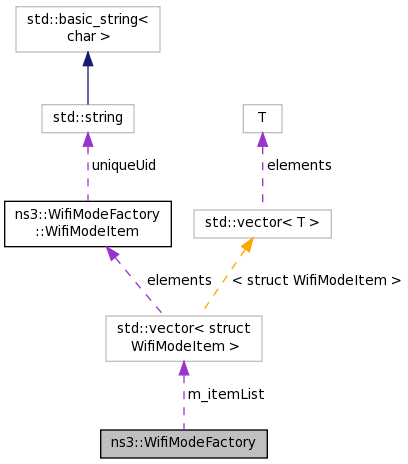

Collaboration diagram for ns3::WifiModeFactory:

Classes
struct	WifiModeItem
	This is the data associated to a unique WifiMode. More...

Static Public Member Functions
static WifiMode	CreateWifiMode (std::string uniqueName, enum WifiModulationClass modClass, bool isMandatory, uint32_t bandwidth, uint32_t dataRate, enum WifiCodeRate codingRate, uint8_t constellationSize)

Private Types
typedef std::vector< struct WifiModeItem >	WifiModeItemList
	typedef for a vector of WifiModeItem. More...

Private Member Functions
	WifiModeFactory ()
uint32_t	AllocateUid (std::string uniqueUid)
	Allocate a WifiModeItem from a given uniqueUid. More...
WifiModeItem *	Get (uint32_t uid)
	Return a WifiModeItem at the given uid index. More...
WifiMode	Search (std::string name)
	Search and return WifiMode from a given name. More...

Static Private Member Functions
static WifiModeFactory *	GetFactory ()
	Return a WifiModeFactory. More...

Private Attributes
WifiModeItemList	m_itemList

Friends
std::istream &	operator>> (std::istream &is, WifiMode &mode)
	Serialize WifiMode from istream (human-readable). More...
class	WifiMode

Detailed Description

create WifiMode class instances and keep track of them.

This factory ensures that each WifiMode created has a unique name and assigns to each of them a unique integer.

Definition at line 209 of file wifi-mode.h.

Member Typedef Documentation

typedef std::vector<struct WifiModeItem> ns3::WifiModeFactory::WifiModeItemList

private

typedef for a vector of WifiModeItem.

Definition at line 292 of file wifi-mode.h.

Constructor & Destructor Documentation

ns3::WifiModeFactory::WifiModeFactory ( )

private

Definition at line 135 of file wifi-mode.cc.

Member Function Documentation

uint32_t ns3::WifiModeFactory::AllocateUid ( std::string  uniqueUid )

private

Allocate a WifiModeItem from a given uniqueUid.

Parameters

uniqueUid

Returns

uid

Definition at line 236 of file wifi-mode.cc.

References m_itemList.

Referenced by CreateWifiMode(), and GetFactory().

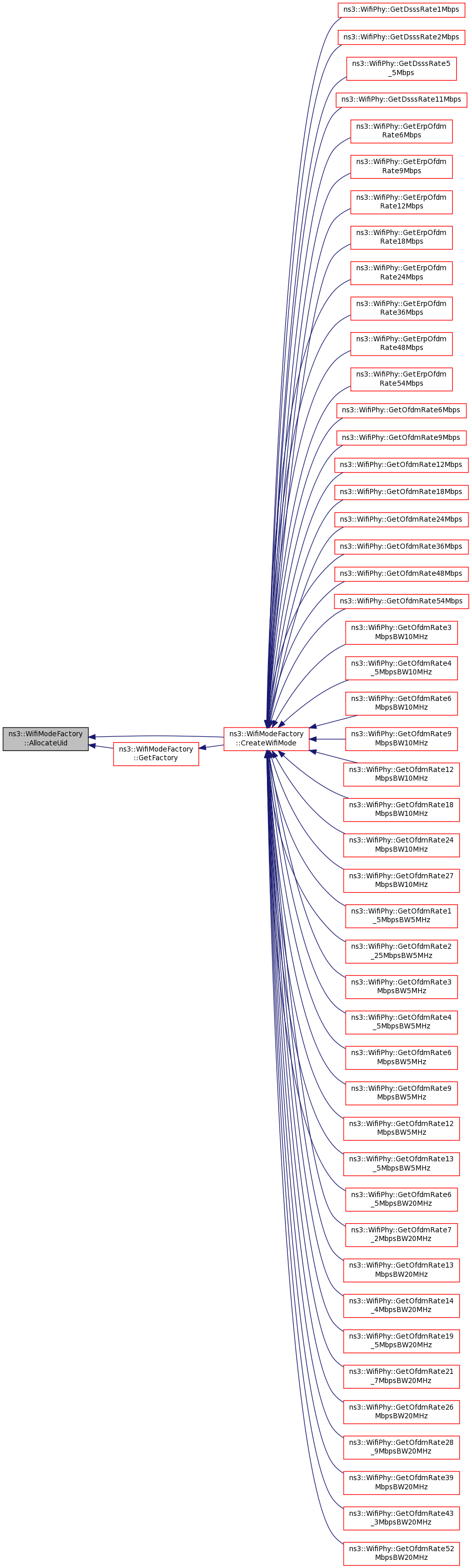

Here is the caller graph for this function:

WifiMode ns3::WifiModeFactory::CreateWifiMode ( std::string  uniqueName, enum WifiModulationClass  modClass, bool  isMandatory, uint32_t  bandwidth, uint32_t  dataRate, enum WifiCodeRate  codingRate, uint8_t  constellationSize  )

static

Parameters

uniqueName	the name of the associated WifiMode. This name must be unique accross all instances.
modClass	the class of modulation
isMandatory	true if this WifiMode is mandatory, false otherwise.
bandwidth	the bandwidth (Hz) of the signal generated when the associated WifiMode is used.
dataRate	the rate (bits/second) at which the user data is transmitted
codingRate	if convolutional coding is used for this rate then this parameter specifies the convolutional coding rate used. If there is no explicit convolutional coding step (e.g., for DSSS rates) then the caller should set this parameter to WIFI_CODE_RATE_UNCODED.
constellationSize	the order of the constellation used.

Returns

WifiMode

Create a WifiMode.

Definition at line 141 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::bandwidth, ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, ns3::WifiModeFactory::WifiModeItem::dataRate, Get(), GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, NS_FATAL_ERROR, ns3::WifiModeFactory::WifiModeItem::phyRate, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_5_6, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_UNKNOWN, and WifiMode.

Referenced by ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate18Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate36Mbps(), ns3::WifiPhy::GetErpOfdmRate48Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetErpOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate108MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate120MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate121_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate135MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate135MbpsBW40MHzShGi(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate14_4MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate150MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate15MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate19_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate21_7MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate26MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate28_9MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate30MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate39MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate40_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate43_3MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate45MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate52MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate54MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate57_8MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate58_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate60MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHzShGi(), ns3::WifiPhy::GetOfdmRate6_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate72_2MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate7_2MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate81MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate90MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), and ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz().

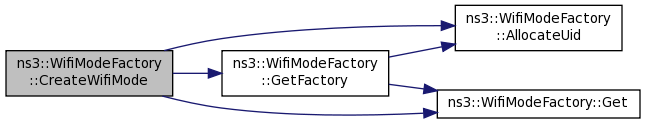

Here is the call graph for this function:

struct WifiModeFactory::WifiModeItem * ns3::WifiModeFactory::Get ( uint32_t  uid )

private

Return a WifiModeItem at the given uid index.

Parameters

uid

Returns

WifiModeItem at the given uid

Definition at line 254 of file wifi-mode.cc.

References m_itemList, and NS_ASSERT.

Referenced by CreateWifiMode(), ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), GetFactory(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetPhyRate(), ns3::WifiMode::GetUniqueName(), and ns3::WifiMode::IsMandatory().

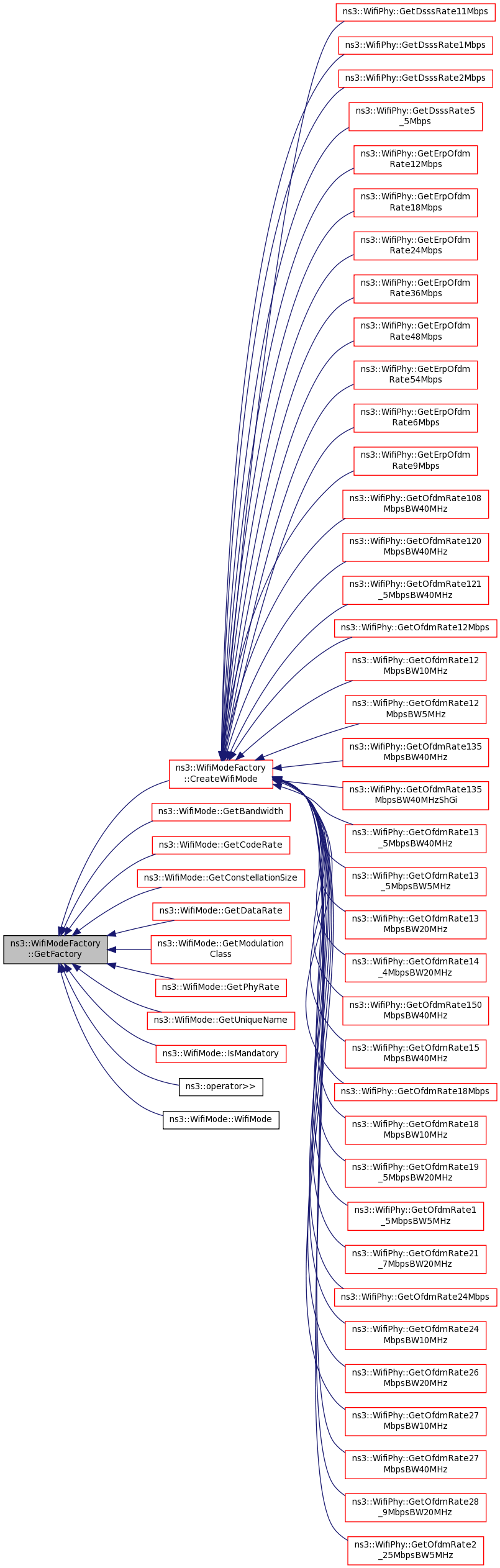

Here is the caller graph for this function:

WifiModeFactory * ns3::WifiModeFactory::GetFactory ( void  )

staticprivate

Return a WifiModeFactory.

Returns

a WifiModeFactory

Definition at line 261 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::bandwidth, ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, ns3::WifiModeFactory::WifiModeItem::dataRate, Get(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::modClass, ns3::WifiModeFactory::WifiModeItem::phyRate, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_UNKNOWN.

Referenced by CreateWifiMode(), ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetPhyRate(), ns3::WifiMode::GetUniqueName(), ns3::WifiMode::IsMandatory(), ns3::operator>>(), and ns3::WifiMode::WifiMode().

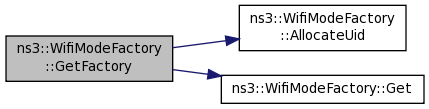

Here is the call graph for this function:

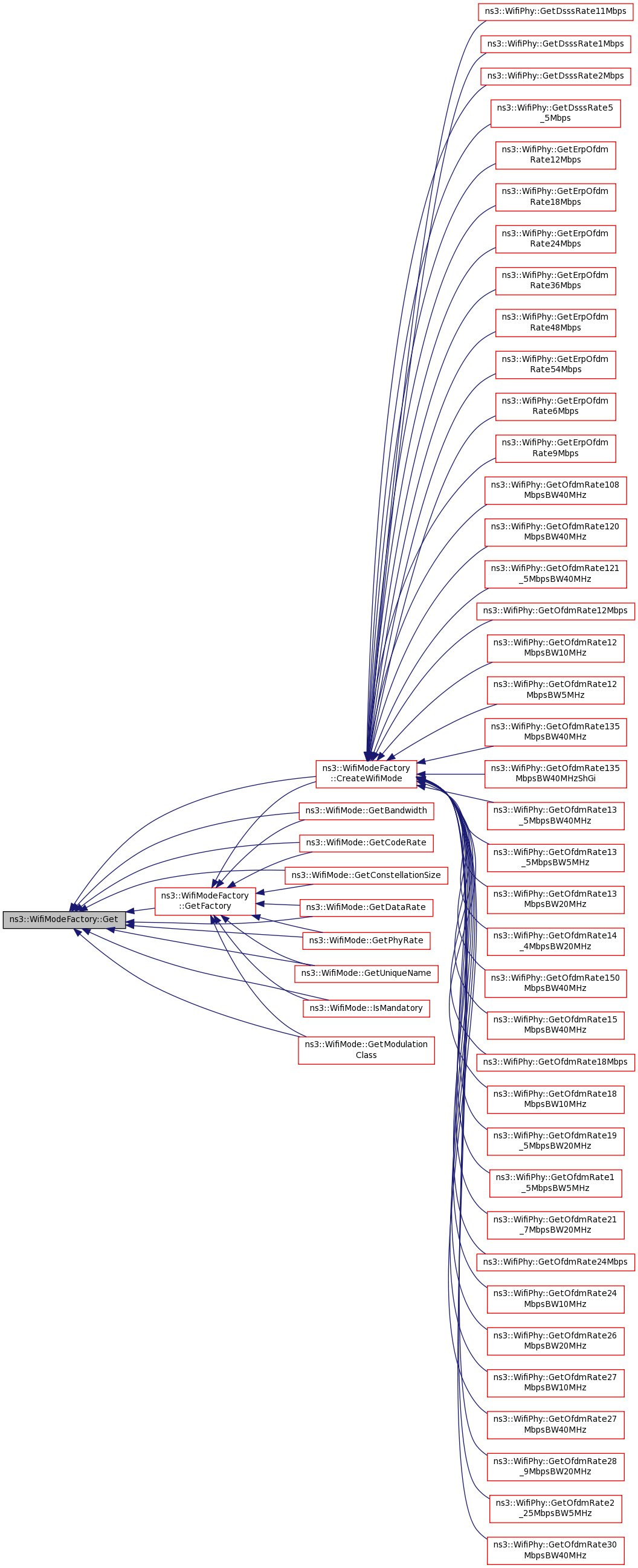

Here is the caller graph for this function:

WifiMode ns3::WifiModeFactory::Search ( std::string  name )

private

Search and return WifiMode from a given name.

Parameters

name	human-readable WifiMode

Returns

WifiMode

Definition at line 201 of file wifi-mode.cc.

References m_itemList, NS_FATAL_ERROR, NS_LOG_UNCOND, and WifiMode.

Referenced by ns3::operator>>(), and ns3::WifiMode::WifiMode().

Here is the caller graph for this function:

Friends And Related Function Documentation

std::istream& operator>> ( std::istream &  is, WifiMode &  mode  )

friend

Serialize WifiMode from istream (human-readable).

Parameters

is	std::istream
mode

Returns

std::istream

Definition at line 58 of file wifi-mode.cc.

friend class WifiMode

friend

Definition at line 239 of file wifi-mode.h.

Referenced by CreateWifiMode(), and Search().

Member Data Documentation

WifiModeItemList ns3::WifiModeFactory::m_itemList

private

Definition at line 293 of file wifi-mode.h.

Referenced by AllocateUid(), Get(), and Search().

---

The documentation for this class was generated from the following files:

• src/wifi/model/wifi-mode.h
• src/wifi/model/wifi-mode.cc
