a base class which provides memory management and object aggregation More...

#include <object.h>

Inherits ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >.

Inherited by AlternateTestObject, anonymous_namespace{object-test-suite.cc}::BaseA, anonymous_namespace{object-test-suite.cc}::BaseB, AttributeObjectTest, ConfigExample, ConfigTestObject, Derived, Emitter, Emitter, Emitter, MyObject, ns3::AntennaModel, ns3::Application, ns3::ArpCache, ns3::ArpL3Protocol, ns3::AthstatsWifiTraceSink, ns3::BandwidthManager, ns3::BSLinkManager, ns3::BSScheduler, ns3::Building, ns3::BuildingListPriv, ns3::BurstProfileManager, ns3::Channel, ns3::ChannelListPriv, ns3::ConnectionManager, ns3::DataCalculator, ns3::DataCollectionObject, ns3::DataCollector, ns3::DataOutputInterface, ns3::Dcf, ns3::DeviceEnergyModel, ns3::dot11s::AirtimeLinkMetricCalculator, ns3::dot11s::HwmpRtable, ns3::dot11s::PeerLink, ns3::dot11s::PeerManagementProtocol, ns3::dsr::DsrNetworkQueue, ns3::dsr::DsrOptions, ns3::dsr::GraReply, ns3::dsr::PassiveBuffer, ns3::dsr::RouteCache, ns3::dsr::RreqTable, ns3::EnergySource, ns3::EnergySourceContainer, ns3::EpcHelper, ns3::EpcMme, ns3::EpcTestRrc, ns3::EpcUeNas, ns3::EpcX2, ns3::ErrorModel, ns3::ErrorRateModel, ns3::FfMacScheduler, ns3::flame::FlameRtable, ns3::FlowMonitor, ns3::FlowProbe, ns3::GlobalRouter, ns3::GrantedTimeWindowMpiInterface [private], ns3::GridBuildingAllocator, ns3::IpcsClassifier, ns3::IpL4Protocol, ns3::Ipv4, ns3::Ipv4Interface, ns3::Ipv4RoutingProtocol, ns3::Ipv6, ns3::Ipv6AutoconfiguredPrefix, ns3::Ipv6Extension, ns3::Ipv6ExtensionDemux, ns3::Ipv6ExtensionRoutingDemux, ns3::Ipv6Interface, ns3::Ipv6Option, ns3::Ipv6OptionDemux, ns3::Ipv6PmtuCache, ns3::Ipv6RoutingProtocol, ns3::JakesProcess, ns3::LteAmc, ns3::LteAnr, ns3::LteEnbMac, ns3::LteEnbRrc, ns3::LteEnbRrcProtocolIdeal, ns3::LteEnbRrcProtocolReal, ns3::LteHandoverAlgorithm, ns3::LteHelper, ns3::LteHexGridEnbTopologyHelper, ns3::LteInterference, ns3::LtePdcp, ns3::LtePhy, ns3::LteRadioBearerInfo, ns3::LteRlc, ns3::LteSimpleHelper, ns3::LteStatsCalculator, ns3::LteTestMac, ns3::LteTestPdcp, ns3::LteTestRrc, ns3::LteUeMac, ns3::LteUeRrc, ns3::LteUeRrcProtocolIdeal, ns3::LteUeRrcProtocolReal, ns3::MacLow, ns3::MeshL2RoutingProtocol, ns3::MeshStack, ns3::MobilityBuildingInfo, ns3::MobilityModel, ns3::MpiReceiver, ns3::MsduAggregator, ns3::NdiscCache, ns3::NetDevice, ns3::Node, ns3::NodeListPriv, ns3::Ns3NscStack, ns3::ofi::Controller, ns3::PacketBurst, ns3::PcapFileWrapper, ns3::PositionAllocator, ns3::PriorityUlJob, ns3::PropagationDelayModel, ns3::PropagationLossModel, ns3::Queue, ns3::RadioEnvironmentMapHelper, ns3::RandomVariableStream, ns3::RemoteChannelBundle, ns3::RttEstimator, ns3::Scheduler, ns3::ServiceFlowManager, ns3::SimulatorImpl, ns3::Socket, ns3::SocketFactory, ns3::SpectrumErrorModel, ns3::SpectrumInterference, ns3::SpectrumPhy, ns3::SpectrumPropagationLossModel, ns3::SSLinkManager, ns3::SSManager, ns3::SSScheduler, ns3::Synchronizer, ns3::TcpRxBuffer, ns3::TcpTxBuffer, ns3::TopologyReader, ns3::UanMac, ns3::UanNoiseModel, ns3::UanPhy, ns3::UanPhyCalcSinr, ns3::UanPhyPer, ns3::UanPropModel, ns3::UanTransducer, ns3::UeManager, ns3::UlJob, ns3::UplinkScheduler, ns3::WifiMac, ns3::WifiMacQueue, ns3::WifiPhy, ns3::WifiPhyStateHelper, ns3::WifiRemoteStationManager, ns3::WimaxConnection, ns3::WimaxMacQueue, ns3::WimaxPhy, PtrExample, SampleEmitter, SequenceNumberTestObj, and TestObject.

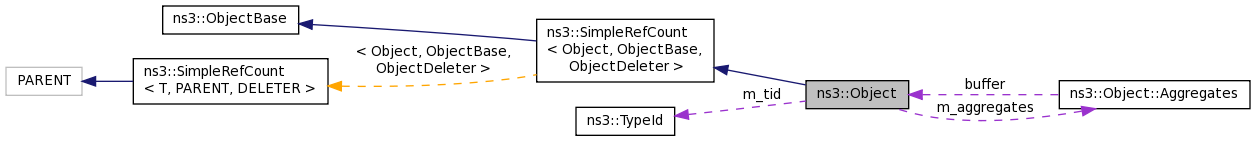

Collaboration diagram for ns3::Object:

Classes
class	AggregateIterator
	Iterate over the objects aggregated to an ns3::Object. More...

struct	Aggregates
	This data structure uses a classic C-style trick to hold an array of variable size without performing two memory allocations: the declaration of the structure declares a one-element array but when we allocate memory for this struct, we effectively allocate a larger chunk of memory than the struct to allow space for a larger variable sized buffer whose size is indicated by the element 'n'. More...

Public Member Functions
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
bool	Check (void) const

bool	CheckLoose (void) const

void	Construct (const AttributeConstructionList &attributes)

void	DoDelete (void)
	Attempt to delete this object. More...

Ptr< Object >	DoGetObject (TypeId tid) const
	Find an object of TypeId tid in the aggregates of this Object. More...

void	SetTypeId (TypeId tid)

void	UpdateSortedArray (struct Aggregates *aggregates, uint32_t i) const
	Keep the list of aggregates in most-recently-used order. More...

Private Attributes
struct Aggregates *	m_aggregates
	a pointer to an array of 'aggregates'. More...

bool	m_disposed
	Set to true when the DoDispose method of the object has run, false otherwise. More...

uint32_t	m_getObjectCount
	Indicates the number of times the object was accessed with a call to GetObject. More...

bool	m_initialized
	Set to true once the DoInitialize method has run, false otherwise. More...

TypeId	m_tid
	Identifies the type of this object instance. More...

Friends
class	AggregateIterator

template<typename T >
Ptr< T >	CompleteConstruct (T *object)

template<typename T >
Ptr< T >	CopyObject (Ptr< T > object)

template<typename T >
Ptr< T >	CopyObject (Ptr< const T > object)

struct	ObjectDeleter

class	ObjectFactory

Detailed Description

a base class which provides memory management and object aggregation

Doxygen introspection did not find any typical Config paths.

The memory management scheme is based on reference-counting with dispose-like functionality to break the reference cycles. The reference count is increamented and decremented with the methods Object::Ref and Object::Unref. If a reference cycle is present, the user is responsible for breaking it by calling Object::Dispose in a single location. This will eventually trigger the invocation of Object::DoDispose on itself and all its aggregates. The Object::DoDispose method is always automatically invoked from the Object::Unref method before destroying the object, even if the user did not call Object::Dispose directly.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 63 of file object.h.

Constructor & Destructor Documentation

ns3::Object::Object ( )

Definition at line 93 of file object.cc.

References ns3::Object::Aggregates::buffer, m_aggregates, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

ns3::Object::~Object ( )

virtual

Definition at line 104 of file object.cc.

References ns3::Object::Aggregates::buffer, current, m_aggregates, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

ns3::Object::Object ( const Object & o )

protected

Parameters

o	the object to copy.

Allow subclasses to implement a copy constructor. While it is technically possible to implement a copy constructor in a subclass, we strongly discourage you to do so. If you really want to do it anyway, you have to understand that this copy constructor will not copy aggregated objects. i.e., if your object instance is already aggregated to another object and if you invoke this copy constructor, the new object instance will be a pristine standalone object instance not aggregated to any other object. It is thus your responsability as a caller of this method to do what needs to be done (if it is needed) to ensure that the object stays in a valid state.

Definition at line 128 of file object.cc.

References ns3::Object::Aggregates::buffer, m_aggregates, and ns3::Object::Aggregates::n.

Member Function Documentation

void ns3::Object::AggregateObject ( Ptr< Object > other )

Parameters

other another object pointer

This method aggregates the two objects together: after this method returns, it becomes possible to call GetObject on one to get the other, and vice-versa.

This method calls the virtual method NotifyNewAggregates to notify all aggregated objects that they have been aggregated together.

See also: NotifyNewAggregate

Definition at line 243 of file object.cc.

References ns3::Object::Aggregates::buffer, CheckLoose(), current, DoGetObject(), GetInstanceTypeId(), ns3::TypeId::GetName(), m_aggregates, m_disposed, ns3::Object::Aggregates::n, NotifyNewAggregate(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::PeekPointer(), and UpdateSortedArray().

Referenced by ns3::PointToPointEpcHelper::AddEnb(), AddInternetStack(), anonymous_namespace{ipv4-packet-info-tag-test-suite.cc}::AddInternetStack(), AddInternetStack6(), ns3::PointToPointStarHelper::BoundingBox(), ns3::PointToPointGridHelper::BoundingBox(), ns3::PointToPointDumbbellHelper::BoundingBox(), ns3::AodvHelper::Create(), ns3::Ipv4GlobalRoutingHelper::Create(), ns3::Ipv4NixVectorHelper::Create(), ns3::DsdvHelper::Create(), ns3::DsrHelper::Create(), ns3::OlsrHelper::Create(), ns3::InternetStackHelper::CreateAndAggregateObjectFromTypeId(), CreateDualStackNode(), TcpTestCase::CreateInternetNode(), TcpTestCase::CreateInternetNode6(), ns3::BuildingsPathlossTestCase::CreateMobilityModel(), ns3::BuildingsShadowingTestCase::CreateMobilityModel(), ns3::WifiTest::CreateOne(), ns3::InterferenceHelperSequenceTest::CreateOne(), ns3::RadioEnvironmentMapHelper::DelayedInstall(), ns3::aodv::LoopbackTestCase::DoRun(), ns3::LiIonEnergyTestCase::DoRun(), WaypointLazyNotifyFalse::DoRun(), ns3::AcousticModemEnergyTestCase::DoRun(), ns3::Ipv6L3ProtocolTestCase::DoRun(), WaypointLazyNotifyTrue::DoRun(), ns3::AcousticModemEnergyDepletionTestCase::DoRun(), ns3::Bug555TestCase::DoRun(), experiment(), ns3::PacketSocketHelper::Install(), ns3::BuildingsHelper::Install(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), main(), ns3::NscTcpL4Protocol::NotifyNewAggregate(), ns3::TcpL4Protocol::NotifyNewAggregate(), ns3::UdpL4Protocol::NotifyNewAggregate(), ns3::AnimationRemainingEnergyTestCase::PrepareNetwork(), ns3::Ipv6L3Protocol::RegisterExtensions(), ns3::Ipv6L3Protocol::RegisterOptions(), NetAnimExperiment::Run(), Experiment::Run(), ns3::AnimationInterface::SetConstantPosition(), ns3::NscTcpL4Protocol::SetNode(), and BasicEnergyUpdateTest::StateSwitchTest().

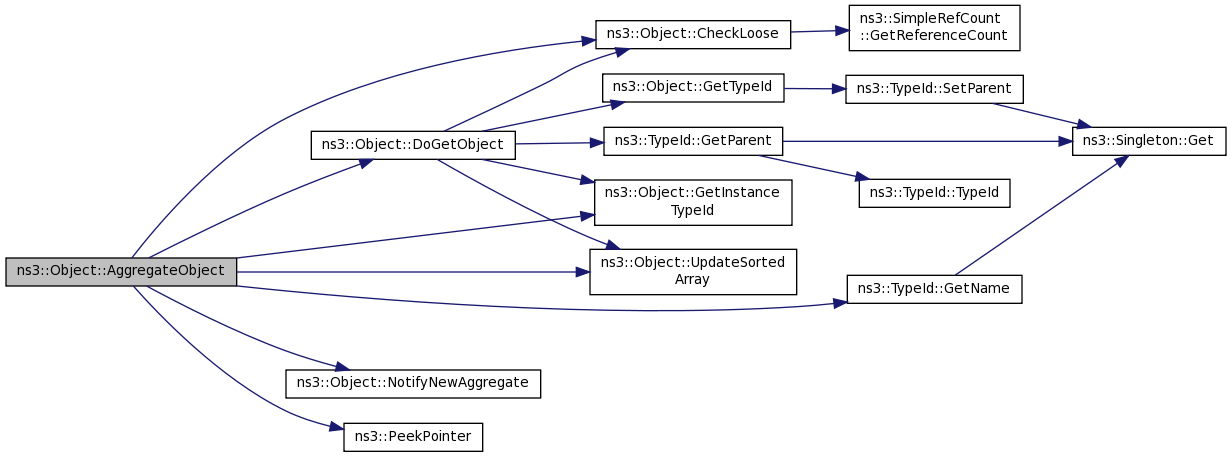

Here is the call graph for this function:

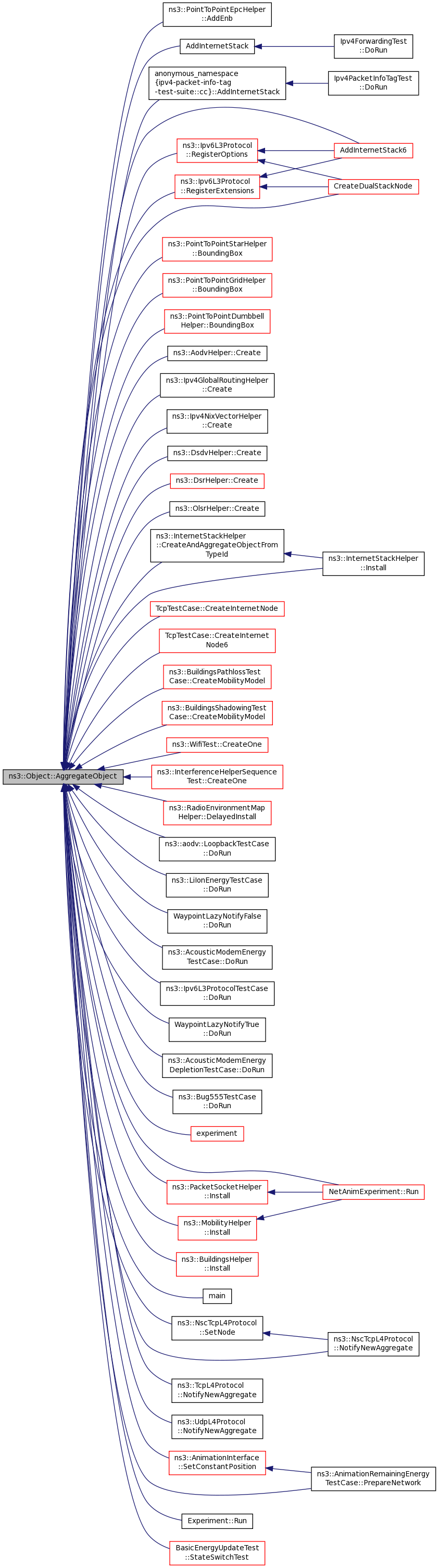

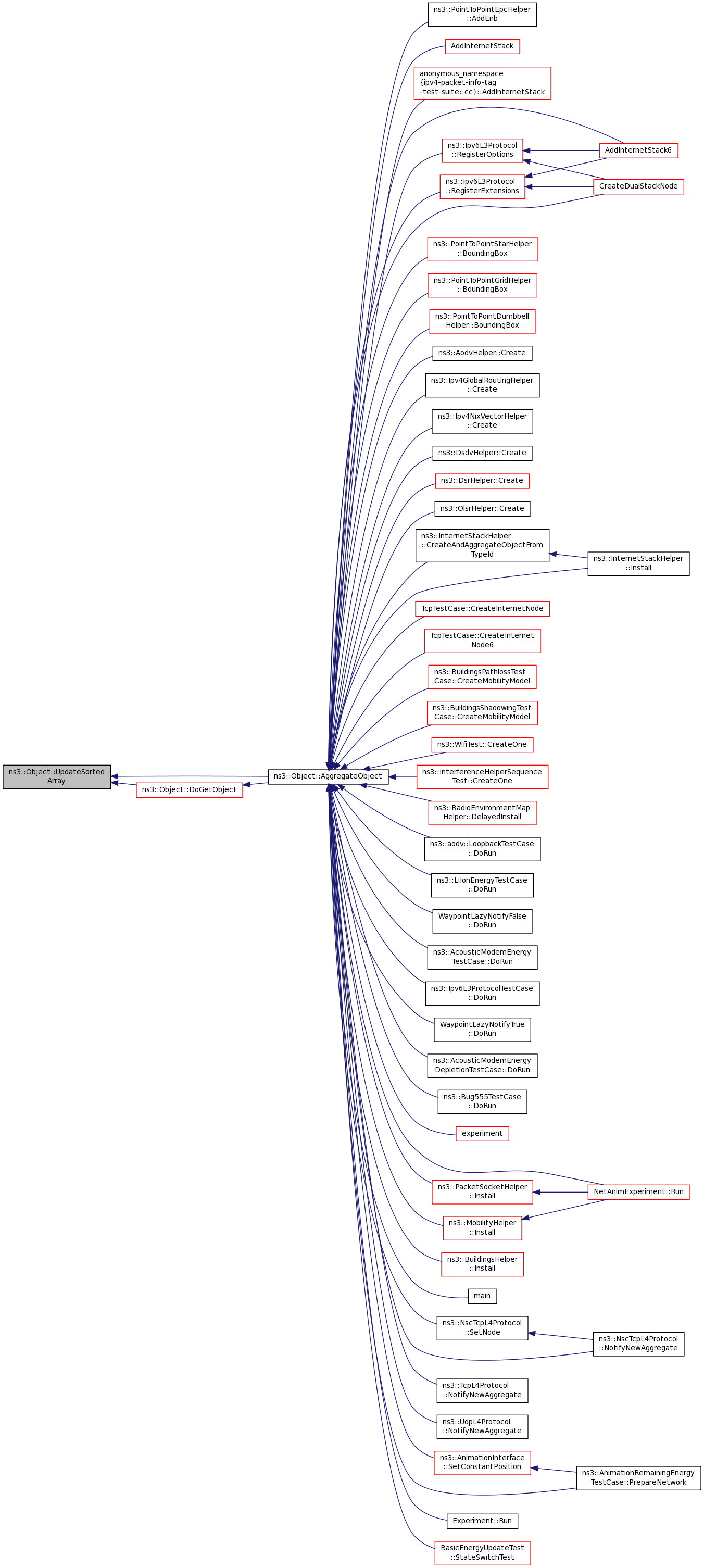

Here is the caller graph for this function:

bool ns3::Object::Check ( void ) const

private

Returns: is reference count non zero

Definition at line 350 of file object.cc.

References ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >::GetReferenceCount(), and NS_LOG_FUNCTION.

Referenced by SetTypeId().

Here is the call graph for this function:

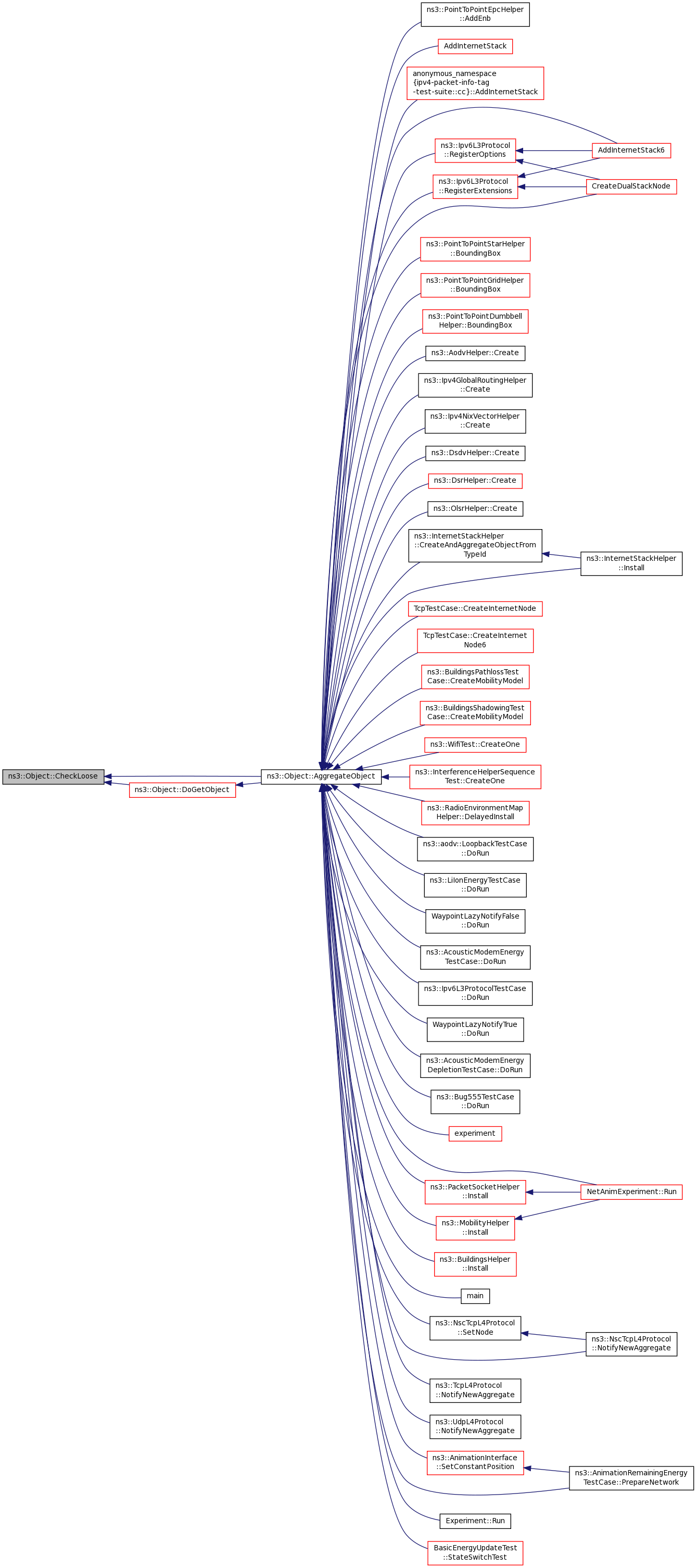

Here is the caller graph for this function:

bool ns3::Object::CheckLoose ( void ) const

private

Returns: Do any of our aggregates have non zero reference count?

In some cases, when an event is scheduled against a subclass of Object, and if no one owns a reference directly to this object, the object is alive, has a refcount of zero and the method ran when the event expires runs against the raw pointer which means that we are manipulating an object with a refcount of zero. So, instead we check the aggregate reference count.

Definition at line 364 of file object.cc.

References ns3::Object::Aggregates::buffer, current, ns3::SimpleRefCount< T, PARENT, DELETER >::GetReferenceCount(), m_aggregates, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

Referenced by AggregateObject(), and DoGetObject().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Object::Construct ( const AttributeConstructionList & attributes )

private

Parameters

attributes the attribute values used to initialize the member variables of this object's instance.

Invoked from ns3::ObjectFactory::Create and ns3::CreateObject only. Initialize all the member variables which were registered with the associated TypeId.

Definition at line 139 of file object.cc.

References ns3::ObjectBase::ConstructSelf(), and NS_LOG_FUNCTION.

Referenced by ns3::ObjectFactory::Create().

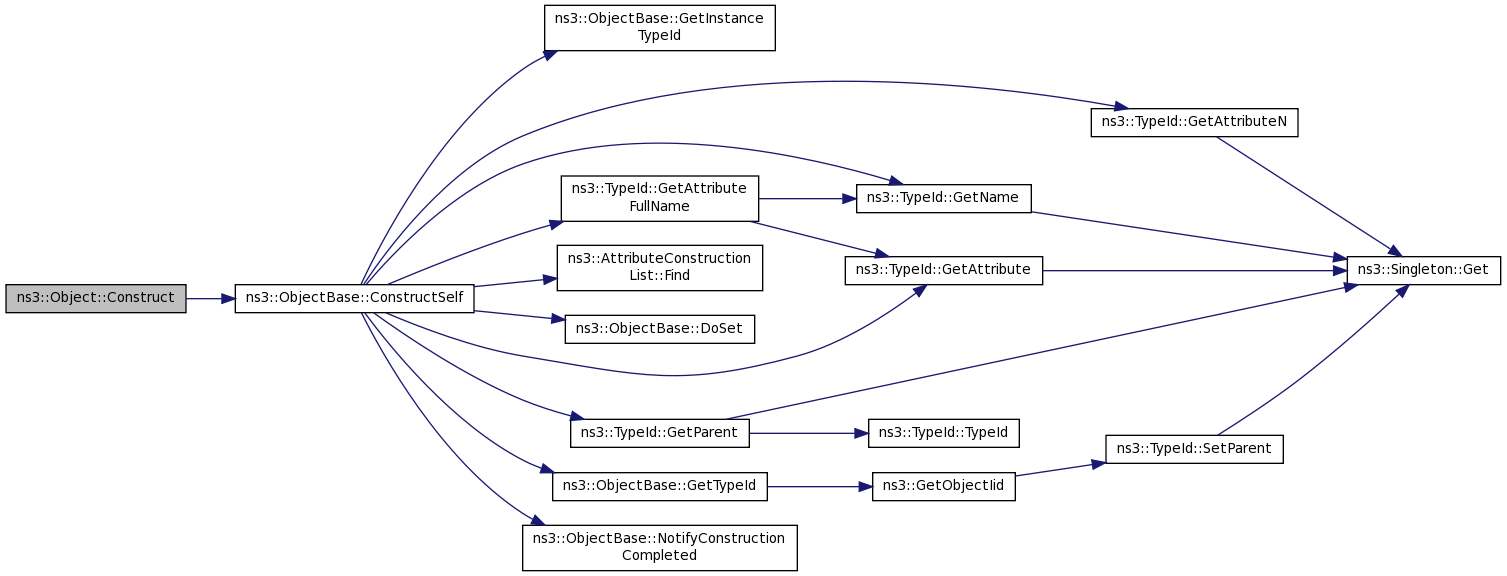

Here is the call graph for this function:

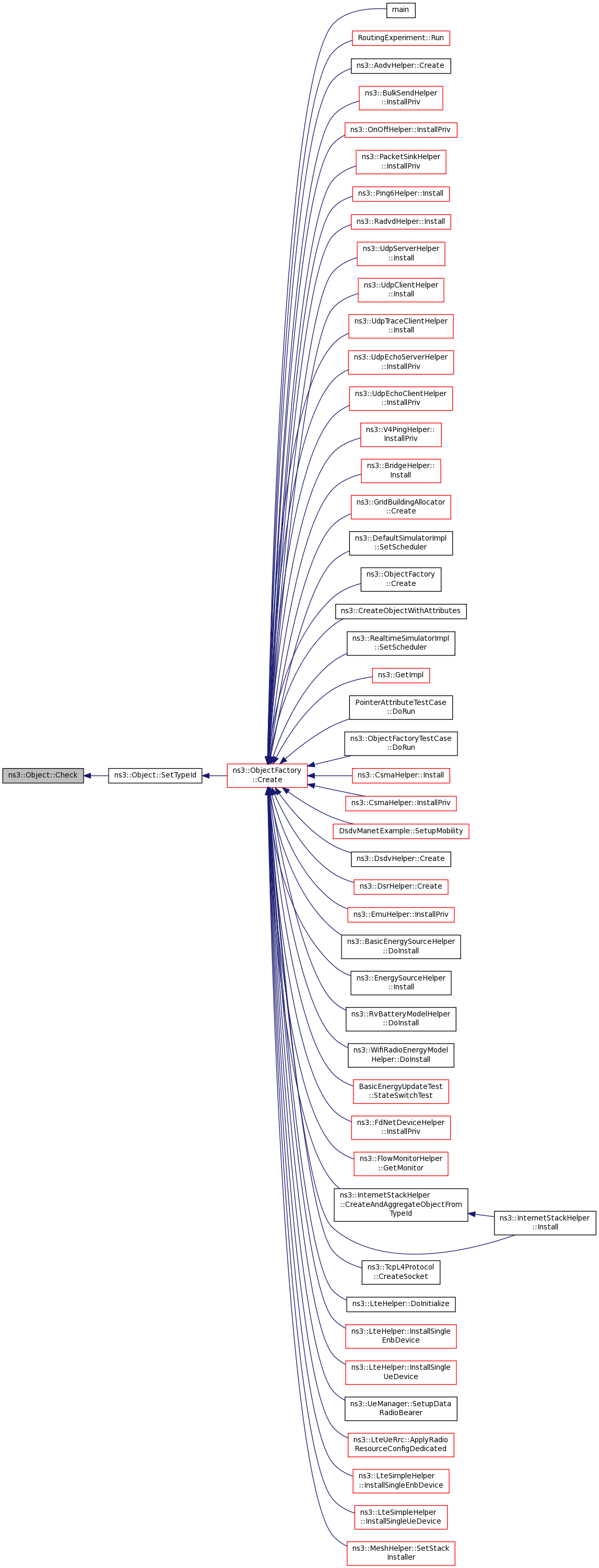

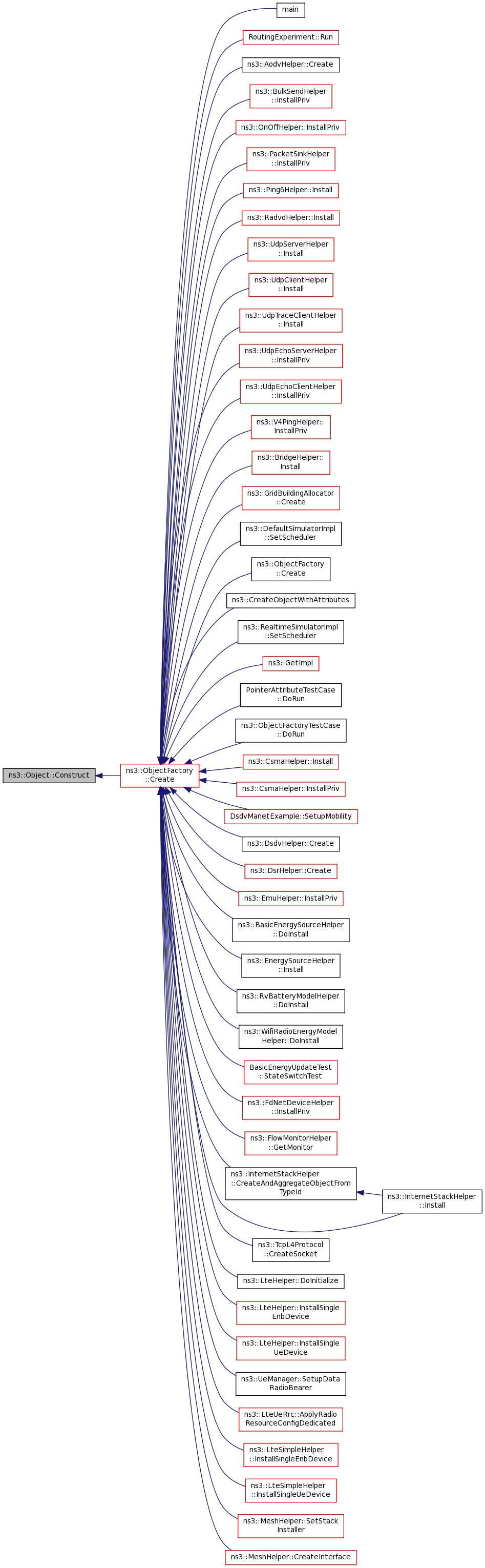

Here is the caller graph for this function:

void ns3::Object::Dispose ( void )

Run the DoDispose methods of this object and all the objects aggregated to it.

After calling this method, the object is expected to be totally unusable except for the Ref and Unref methods.

Note that you can call Dispose many times on the same object or different objects aggregated together, and DoDispose will be called only once for each aggregated object.

This method is typically used to break reference cycles.

Note: the code here is a bit tricky because we need to protect ourselves from modifications in the aggregate array while DoDispose is called. The user's DoDispose implementation could call GetObject (which could reorder the array) and it could call AggregateObject which would add an object at the end of the array. So, to be safe, we restart the iteration over the array whenever we call some user code.

Definition at line 205 of file object.cc.

References ns3::Object::Aggregates::buffer, current, DoDispose(), m_aggregates, m_disposed, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

Referenced by ns3::NodeListPriv::DoDispose(), ns3::PointToPointEpcHelper::DoDispose(), ns3::ArpL3Protocol::DoDispose(), ns3::WifiNetDevice::DoDispose(), ns3::Icmpv6L4Protocol::DoDispose(), SequenceNumberTestCase::DoRun(), Ipv6RawSocketImplTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), UdpSocketImplTest::DoRun(), and Udp6SocketImplTest::DoRun().

Here is the call graph for this function:

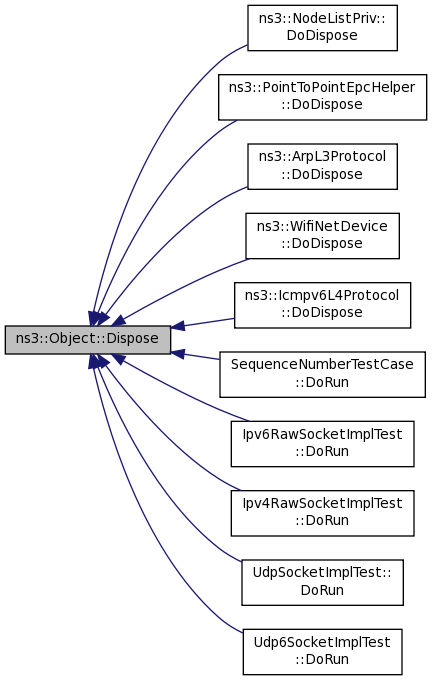

Here is the caller graph for this function:

void ns3::Object::DoDelete ( void )

private

Attempt to delete this object.

This method iterates over all aggregated objects to check if they all have a zero refcount. If yes, the object and all its aggregates are deleted. If not, nothing is done.

Definition at line 377 of file object.cc.

References ns3::Object::Aggregates::buffer, current, DoDispose(), ns3::SimpleRefCount< T, PARENT, DELETER >::GetReferenceCount(), m_aggregates, m_disposed, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

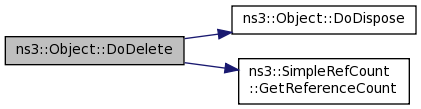

Here is the call graph for this function:

void ns3::Object::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented in ns3::MacLow, ns3::Socket, ns3::GlobalRouter, ns3::dsr::DsrRouting, ns3::WifiRemoteStationManager, ns3::Ipv6ExtensionRoutingDemux, ns3::LteEnbRrc, ns3::NdiscCache, ns3::Icmpv6L4Protocol, ns3::UanPhyGen, ns3::Ipv4StaticRouting, ns3::Ipv6L3Protocol, ns3::YansWifiPhy, ns3::CsmaNetDevice, ns3::UanPropModel, ns3::UanMacRc, ns3::DcaTxop, ns3::WimaxPhy, ns3::Ipv6ExtensionFragment, ns3::SubscriberStationNetDevice, ns3::UanPhyDual, ns3::ArpCache, ns3::CounterCalculator< T >, ns3::CounterCalculator< uint32_t >, ns3::CounterCalculator<>, ns3::EpcTestRrc, ns3::UanMacRcGw, ns3::Ipv6Interface, ns3::Ipv6StaticRouting, ns3::FlowMonitor, ns3::OpenFlowSwitchNetDevice, ns3::RegularWifiMac, ns3::Ipv4GlobalRouting, ns3::BaseStationNetDevice, ns3::Ipv4L3Protocol, ns3::UdpL4Protocol, ns3::WimaxNetDevice, ns3::EmuNetDevice, ns3::TcpL4Protocol, ns3::WifiRadioEnergyModel, ns3::TapBridge, ns3::Node, ns3::ApWifiMac, ns3::olsr::RoutingProtocol, ns3::SimpleOfdmWimaxPhy, ns3::PointToPointNetDevice, ns3::HalfDuplexIdealPhy, ns3::UanNetDevice, ns3::AlohaNoackNetDevice, ns3::RvBatteryModel, ns3::Ipv4Interface, ns3::Ipv6RawSocketImpl, ns3::Icmpv4L4Protocol, ns3::FdNetDevice, ns3::UanMacCw, ns3::DataCalculator, ns3::AcousticModemEnergyModel, ns3::EnergySource, ns3::LteSpectrumPhy, ns3::EnergySourceContainer, ns3::LteTestMac, ns3::MeshWifiInterfaceMac, ns3::LiIonEnergySource, ns3::LteRlcSm, ns3::VirtualNetDevice, ns3::SixLowPanNetDevice, ns3::NscTcpL4Protocol, ns3::Ipv4NixVectorRouting, ns3::UdpEchoClient, ns3::LteAnr, ns3::DataCollector, ns3::UanChannel, ns3::UanPhyPer, ns3::DistributedSimulatorImpl, ns3::WaypointMobilityModel, ns3::WaveformGenerator, ns3::OnOffApplication, ns3::NonCommunicatingNetDevice, ns3::Application, ns3::LtePhy, ns3::LteUeRrc, ns3::UdpTraceClient, ns3::LteTestPdcp, ns3::BridgeNetDevice, ns3::Ipv6ListRouting, ns3::LteEnbRrcProtocolReal, ns3::MeshPointDevice, ns3::PacketSocket, ns3::SimpleNetDevice, ns3::WifiNetDevice, ns3::WimaxConnection, ns3::ArpL3Protocol, ns3::BasicEnergySource, ns3::MultiModelSpectrumChannel, ns3::SpectrumInterference, ns3::SimpleDeviceEnergyModel, ns3::UeManager, ns3::BulkSendApplication, ns3::A2A4RsrqHandoverAlgorithm, ns3::LteEnbRrcProtocolIdeal, ns3::EdcaTxopN, ns3::PacketSizeMinMaxAvgTotalCalculator, ns3::MinMaxAvgTotalCalculator< T >, ns3::UanPhyCalcSinr, ns3::MinMaxAvgTotalCalculator< uint32_t >, ns3::MinMaxAvgTotalCalculator< double >, ns3::MinMaxAvgTotalCalculator< uint64_t >, ns3::NullMessageSimulatorImpl, ns3::PacketSink, ns3::Ipv4ListRouting, ns3::PssFfMacScheduler, ns3::SpectrumAnalyzer, ns3::FdTbfqFfMacScheduler, ns3::TdTbfqFfMacScheduler, ns3::Ping6, ns3::RealtimeSimulatorImpl, ns3::UanMacAloha, ns3::LteHandoverAlgorithm, ns3::Radvd, ns3::Ipv4RawSocketImpl, ns3::A3RsrpHandoverAlgorithm, ns3::FdBetFfMacScheduler, ns3::TdBetFfMacScheduler, ns3::GaussMarkovMobilityModel, ns3::PfFfMacScheduler, ns3::Ipv6ExtensionDemux, ns3::Ipv6OptionDemux, ns3::EpcX2, ns3::EpsBearerTagUdpClient, ns3::flame::FlameProtocol, ns3::RadioBearerStatsCalculator, ns3::LteUePhy, Receiver, ns3::UdpServer, ns3::UanTransducerHd, ns3::FdMtFfMacScheduler, ns3::TdMtFfMacScheduler, ns3::TtaFfMacScheduler, ns3::V4Ping, ns3::SpectrumPropagationLossModel, ns3::Ipv4FlowProbe, ns3::LoopbackNetDevice, ns3::FfMacScheduler, ns3::UdpClient, ns3::UdpSocketFactoryImpl, ns3::VisualSimulatorImpl, ns3::RrFfMacScheduler, ns3::Ipv6PmtuCache, ns3::LteEnbPhy, ns3::flame::FlameRtable, ns3::dot11s::HwmpRtable, ns3::DefaultSimulatorImpl, ns3::SingleModelSpectrumChannel, ns3::PointToPointEpcHelper, ns3::PacketBurst, ns3::dsdv::RoutingProtocol, ns3::EpcHelper, ns3::NoOpHandoverAlgorithm, ns3::LteEnbMac, ns3::aodv::RoutingProtocol, ns3::LteHelper, ns3::LteUeRrcProtocolReal, ns3::PacketCounterCalculator, ns3::ShannonSpectrumErrorModel, ns3::DataOutputInterface, ns3::SSScheduler, ns3::EpcMme, ns3::JakesProcess, ns3::EpcEnbApplication, ns3::LteEnbNetDevice, ns3::RandomWalk2dMobilityModel, ns3::TimeMinMaxAvgTotalCalculator, ns3::BandwidthManager, ns3::NscTcpSocketFactoryImpl, ns3::LteUeNetDevice, ns3::RemSpectrumPhy, ns3::MpiReceiver, ns3::TcpSocketFactoryImpl, ns3::LteRlc, ns3::FlameStack, ns3::EpcSgwPgwApplication, ns3::LteNetDevice, ns3::LteUeRrcProtocolIdeal, ns3::RandomDirection2dMobilityModel, ns3::SsServiceFlowManager, ns3::UdpEchoServer, ns3::BuildingListPriv, ns3::dot11s::PeerManagementProtocol, ns3::ChannelListPriv, ns3::LteInterference, ns3::LteUeMac, ns3::NodeListPriv, ns3::ServiceFlowManager, ns3::LteTestRrc, ns3::Dot11sStack, ns3::dot11s::HwmpProtocol, ns3::UanNoiseModel, ns3::BsServiceFlowManager, ns3::FlowProbe, ns3::dot11s::PeerLink, ns3::RadioEnvironmentMapHelper, ns3::EpcUeNas, ns3::LteSimpleHelper, ns3::ConnectionManager, ns3::SqliteDataOutput, ns3::LteSimpleNetDevice, ns3::OmnetDataOutput, ns3::SSLinkManager, ns3::LteTestUePhy, Sender, ns3::LtePdcp, ns3::Building, ns3::LteHexGridEnbTopologyHelper, ns3::BurstProfileManager, ns3::LteRlcAm, ns3::LteRlcTm, and ns3::LteRlcUm.

Definition at line 336 of file object.cc.

References m_disposed, NS_ASSERT, and NS_LOG_FUNCTION.

Ptr< Object > ns3::Object::DoGetObject ( TypeId tid ) const

private

Find an object of TypeId tid in the aggregates of this Object.

Parameters

tid	the TypeId we're looking for

Returns: the matching Object, if it is found

Definition at line 146 of file object.cc.

References ns3::Object::Aggregates::buffer, CheckLoose(), current, GetInstanceTypeId(), ns3::TypeId::GetParent(), GetTypeId(), m_aggregates, m_getObjectCount, ns3::Object::Aggregates::n, NS_ASSERT, NS_LOG_FUNCTION, and UpdateSortedArray().

Referenced by AggregateObject(), and GetObject().

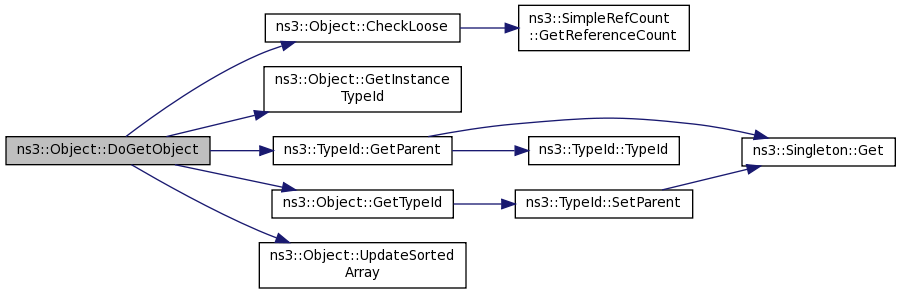

Here is the call graph for this function:

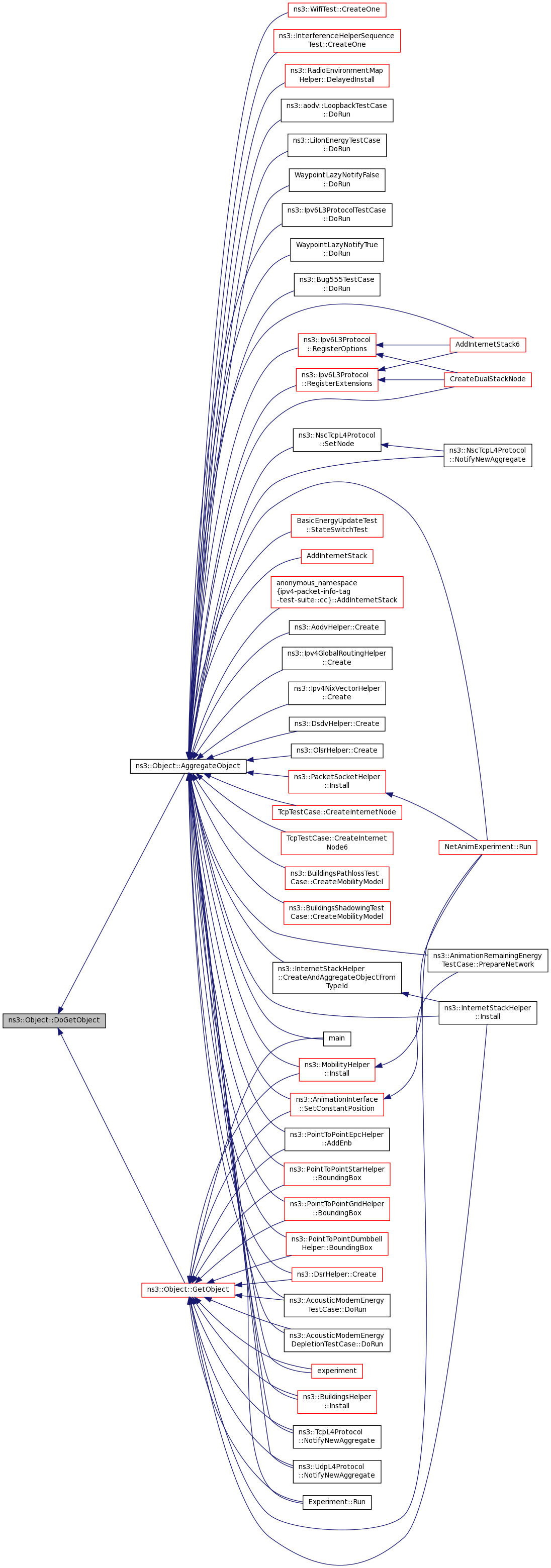

Here is the caller graph for this function:

void ns3::Object::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented in ns3::LteHelper, ns3::EdcaTxopN, ns3::RegularWifiMac, ns3::Node, ns3::ApWifiMac, ns3::RvBatteryModel, ns3::EnergySourceContainer, ns3::LteEnbNetDevice, ns3::MeshWifiInterfaceMac, ns3::DcaTxop, ns3::dot11s::PeerManagementProtocol, ns3::LiIonEnergySource, ns3::LteRlcSm, ns3::LteAnr, ns3::olsr::RoutingProtocol, ns3::LteUeNetDevice, ns3::Application, ns3::LteUeRrc, ns3::LteSimpleHelper, ns3::WifiNetDevice, ns3::BasicEnergySource, ns3::UeManager, ns3::A2A4RsrqHandoverAlgorithm, ns3::dot11s::HwmpProtocol, ns3::Ipv4ListRouting, ns3::A3RsrpHandoverAlgorithm, ns3::LteUePhy, ns3::LteEnbPhy, ns3::NoOpHandoverAlgorithm, ns3::RandomWalk2dMobilityModel, ns3::SteadyStateRandomWaypointMobilityModel, ns3::LteSimpleNetDevice, ns3::RandomDirection2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::TraceFadingLossModel, Emitter, Emitter, and Emitter.

Definition at line 343 of file object.cc.

References m_initialized, NS_ASSERT, and NS_LOG_FUNCTION.

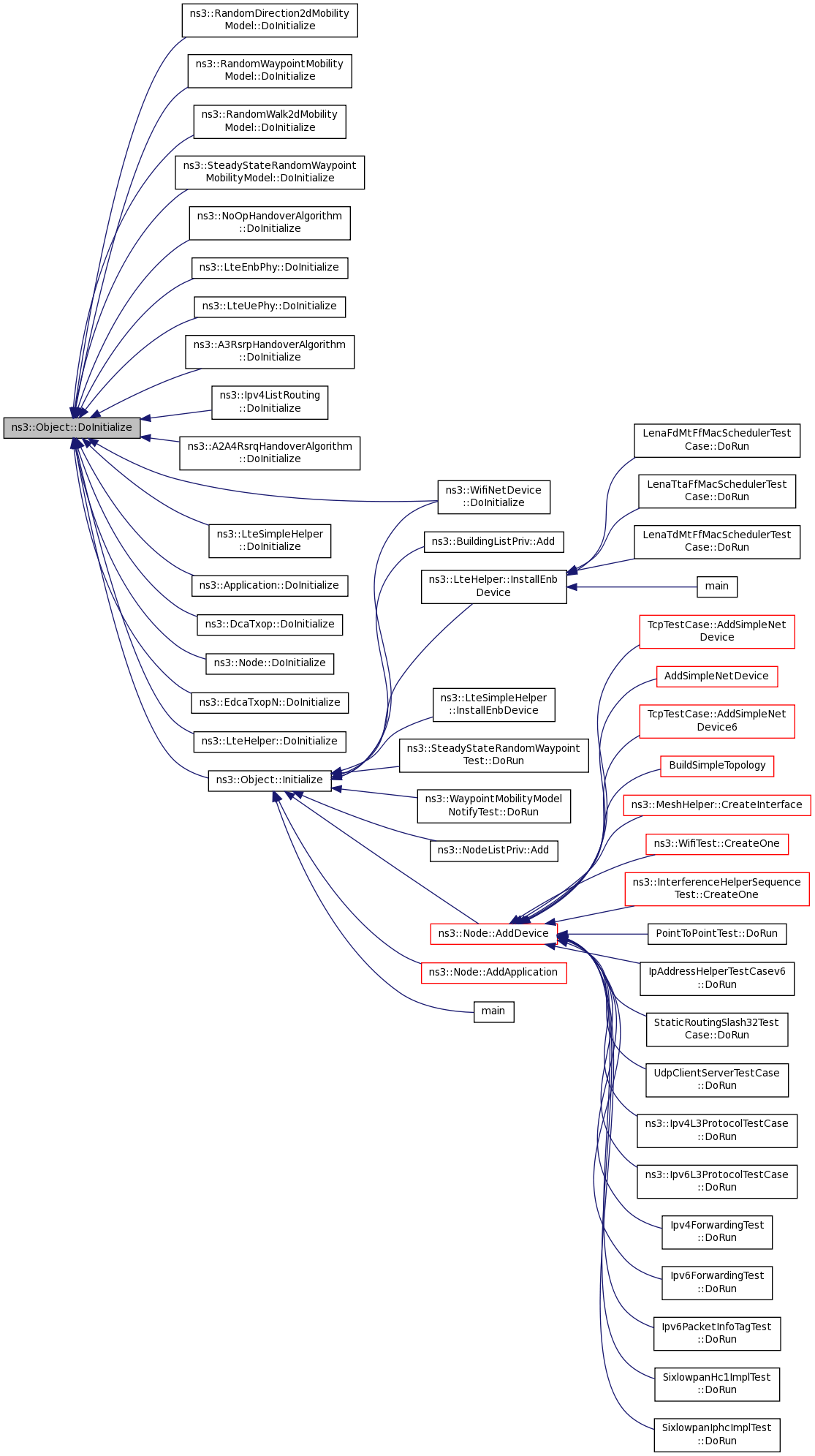

Here is the caller graph for this function:

Object::AggregateIterator ns3::Object::GetAggregateIterator ( void ) const

Returns: an iterator to the first object aggregated to this object.

If no objects are aggregated to this object, then, the returned iterator will be empty and AggregateIterator::HasNext will always return false.

Definition at line 321 of file object.cc.

References AggregateIterator, and NS_LOG_FUNCTION.

TypeId ns3::Object::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Reimplemented in ns3::dsr::DsrOptionAck, ns3::dsr::DsrOptionAckReq, ns3::dsr::DsrOptionRerr, ns3::dsr::DsrOptionSR, ns3::dsr::DsrOptionRrep, ns3::dsr::DsrOptionRreq, ns3::RttMeanDeviation, ns3::FlowMonitor, ns3::RttEstimator, SequenceNumberTestObj, and ns3::Ns3NscStack.

Definition at line 77 of file object.cc.

References m_tid, and NS_LOG_FUNCTION.

Referenced by AggregateObject(), ns3::cell_data_function_col_0(), ns3::cell_tooltip_callback(), DoGetObject(), ns3::AttributeIterator::DoIterate(), main(), ns3::AttributeIterator::StartVisitArrayItem(), ns3::AttributeIterator::StartVisitObject(), and ns3::AttributeIterator::StartVisitPointerAttribute().

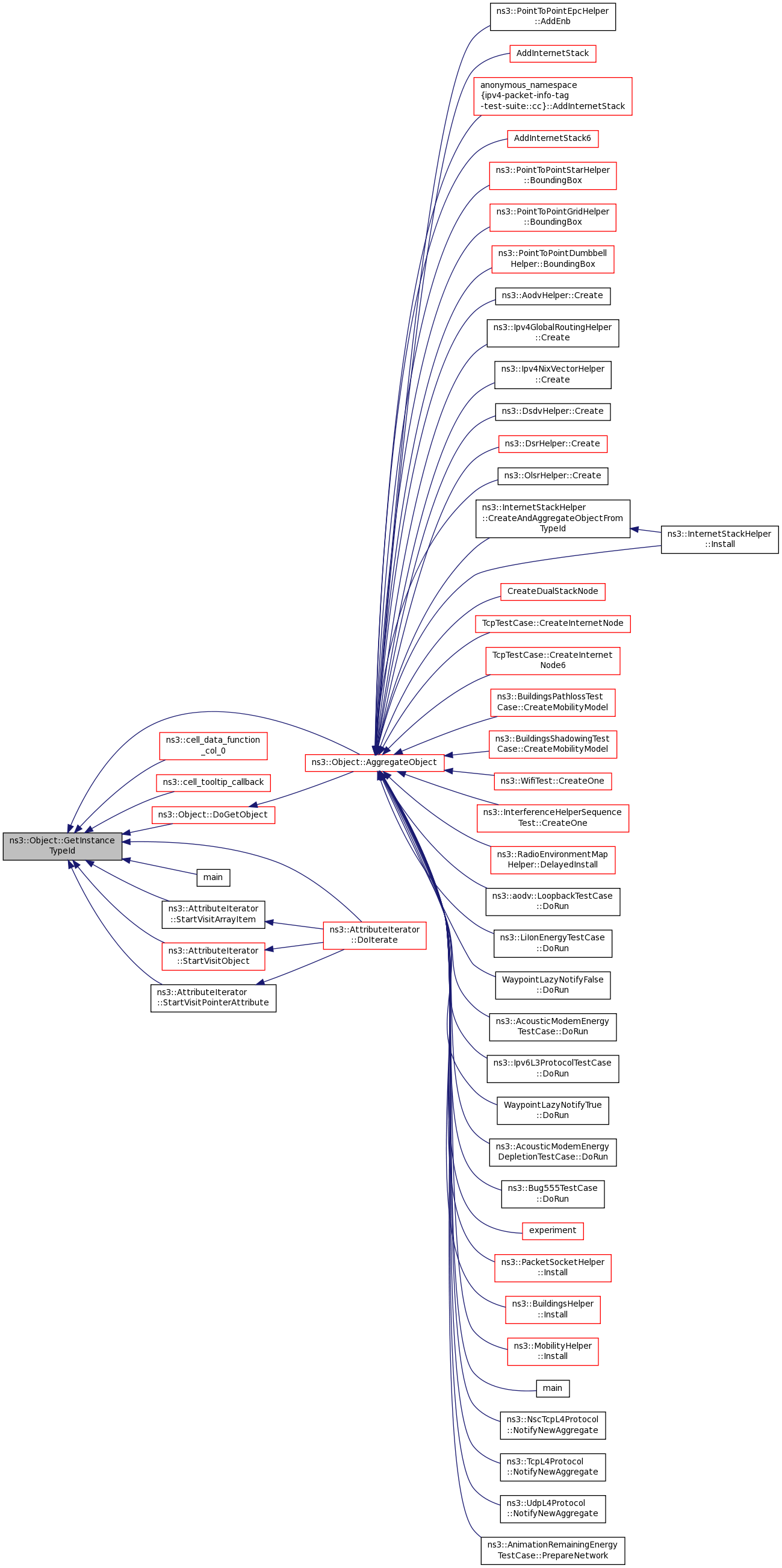

Here is the caller graph for this function:

template<typename T >

Ptr< T > ns3::Object::GetObject ( void ) const

inline

Returns: a pointer to the requested interface or zero if it could not be found.

Definition at line 361 of file object.h.

References ns3::Object::Aggregates::buffer, DoGetObject(), m_aggregates, and ns3::PeekPointer().

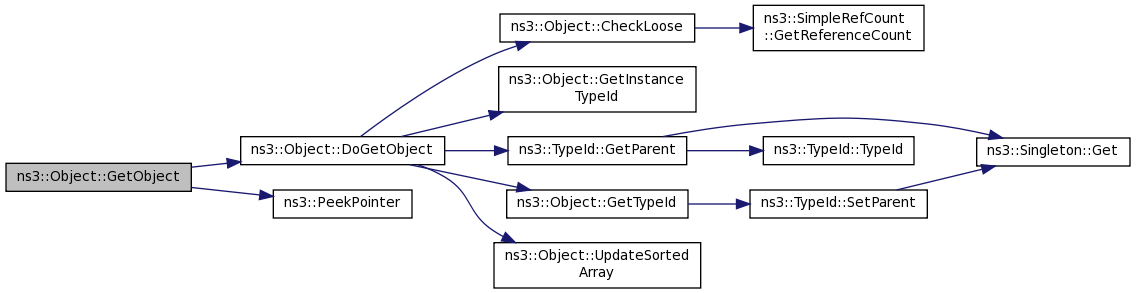

Here is the call graph for this function:

template<typename T >

Ptr< T > ns3::Object::GetObject ( TypeId tid ) const

Parameters

tid	the interface id of the requested interface

Returns: a pointer to the requested interface or zero if it could not be found.

Definition at line 381 of file object.h.

References DoGetObject(), and ns3::PeekPointer().

Here is the call graph for this function:

TypeId ns3::Object::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 84 of file object.cc.

References ns3::TypeId::SetParent().

Referenced by DoGetObject(), MyObject::GetTypeId(), TestObject::GetTypeId(), and AlternateTestObject::GetTypeId().

Here is the call graph for this function:

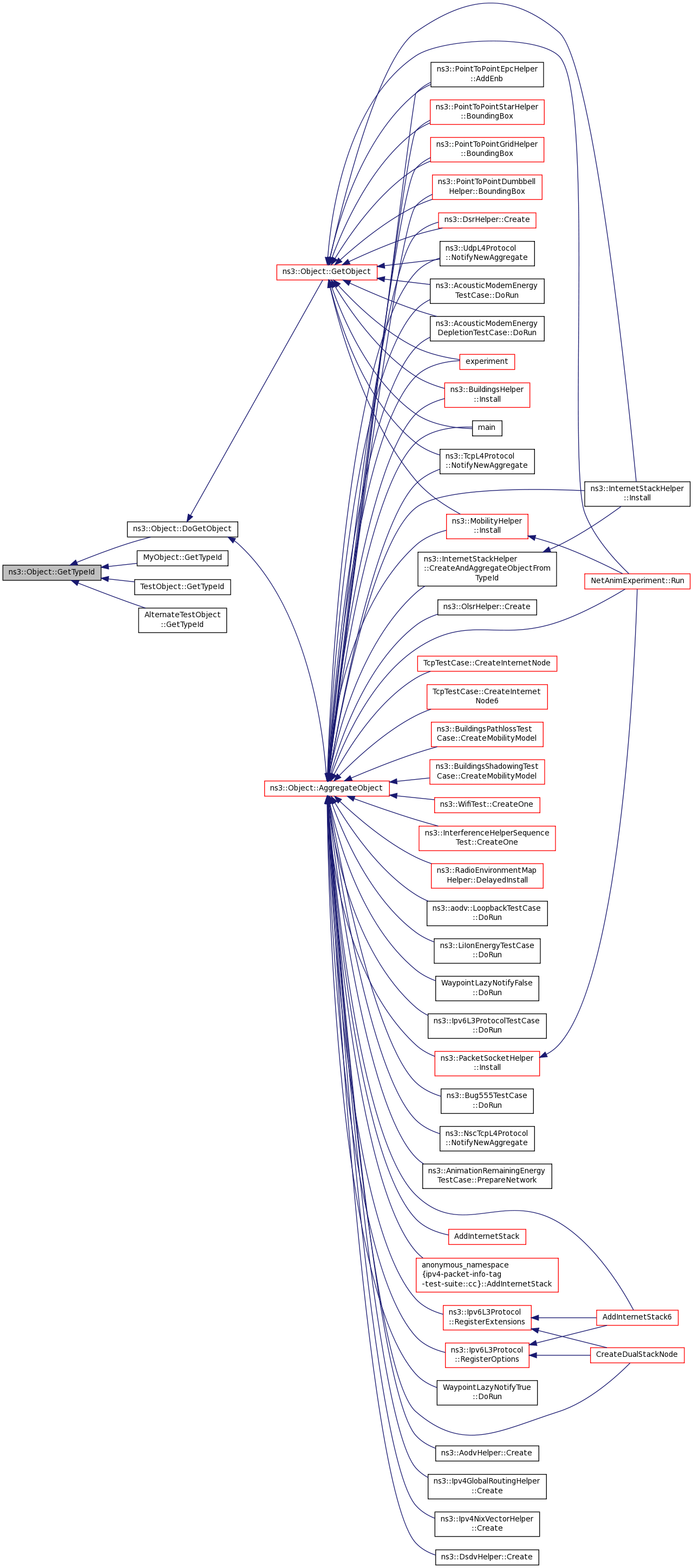

Here is the caller graph for this function:

void ns3::Object::Initialize ( void )

This method calls the virtual DoInitialize method on all the objects aggregated to this object.

DoInitialize will be called only once over the lifetime of an object, just like DoDispose is called only once.

See also: DoInitialize

Note: the code here is a bit tricky because we need to protect ourselves from modifications in the aggregate array while DoInitialize is called. The user's implementation of the DoInitialize method could call GetObject (which could reorder the array) and it could call AggregateObject which would add an object at the end of the array. To be safe, we restart iteration over the array whenever we call some user code, just in case.

Definition at line 180 of file object.cc.

References ns3::Object::Aggregates::buffer, current, DoInitialize(), m_aggregates, m_initialized, ns3::Object::Aggregates::n, and NS_LOG_FUNCTION.

Referenced by ns3::NodeListPriv::Add(), ns3::BuildingListPriv::Add(), ns3::Node::AddApplication(), ns3::Node::AddDevice(), ns3::WifiNetDevice::DoInitialize(), ns3::SteadyStateRandomWaypointTest::DoRun(), ns3::WaypointMobilityModelNotifyTest::DoRun(), ns3::LteSimpleHelper::InstallEnbDevice(), ns3::LteHelper::InstallEnbDevice(), and main().

Here is the call graph for this function:

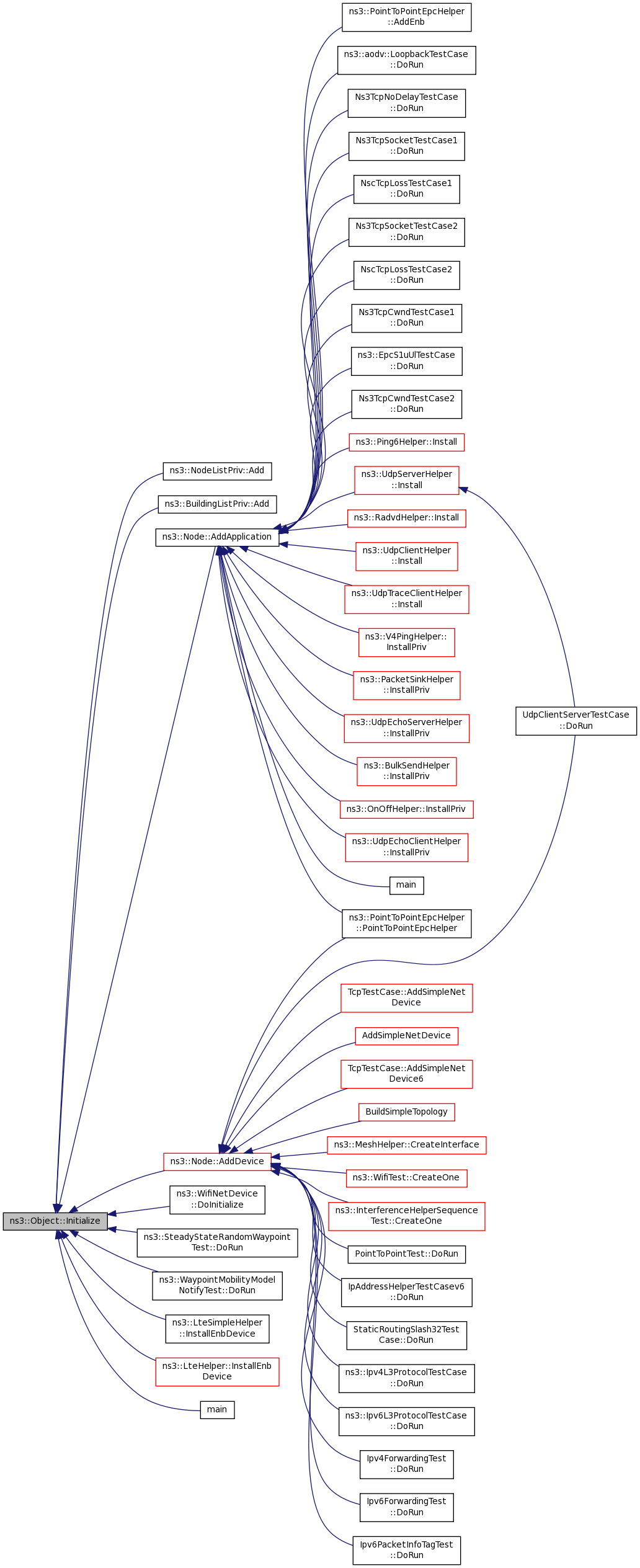

Here is the caller graph for this function:

void ns3::Object::NotifyNewAggregate ( void )

protectedvirtual

This method is invoked whenever two sets of objects are aggregated together.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented in ns3::dsr::DsrRouting, ns3::Ipv6L3Protocol, ns3::Ipv4L3Protocol, ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv6L4Protocol, ns3::NscTcpL4Protocol, ns3::ArpL3Protocol, and ns3::Icmpv4L4Protocol.

Definition at line 315 of file object.cc.

References NS_LOG_FUNCTION.

Referenced by AggregateObject(), ns3::Icmpv4L4Protocol::NotifyNewAggregate(), ns3::ArpL3Protocol::NotifyNewAggregate(), ns3::NscTcpL4Protocol::NotifyNewAggregate(), ns3::Icmpv6L4Protocol::NotifyNewAggregate(), ns3::TcpL4Protocol::NotifyNewAggregate(), ns3::Ipv4L3Protocol::NotifyNewAggregate(), ns3::UdpL4Protocol::NotifyNewAggregate(), ns3::Ipv6L3Protocol::NotifyNewAggregate(), and ns3::dsr::DsrRouting::NotifyNewAggregate().

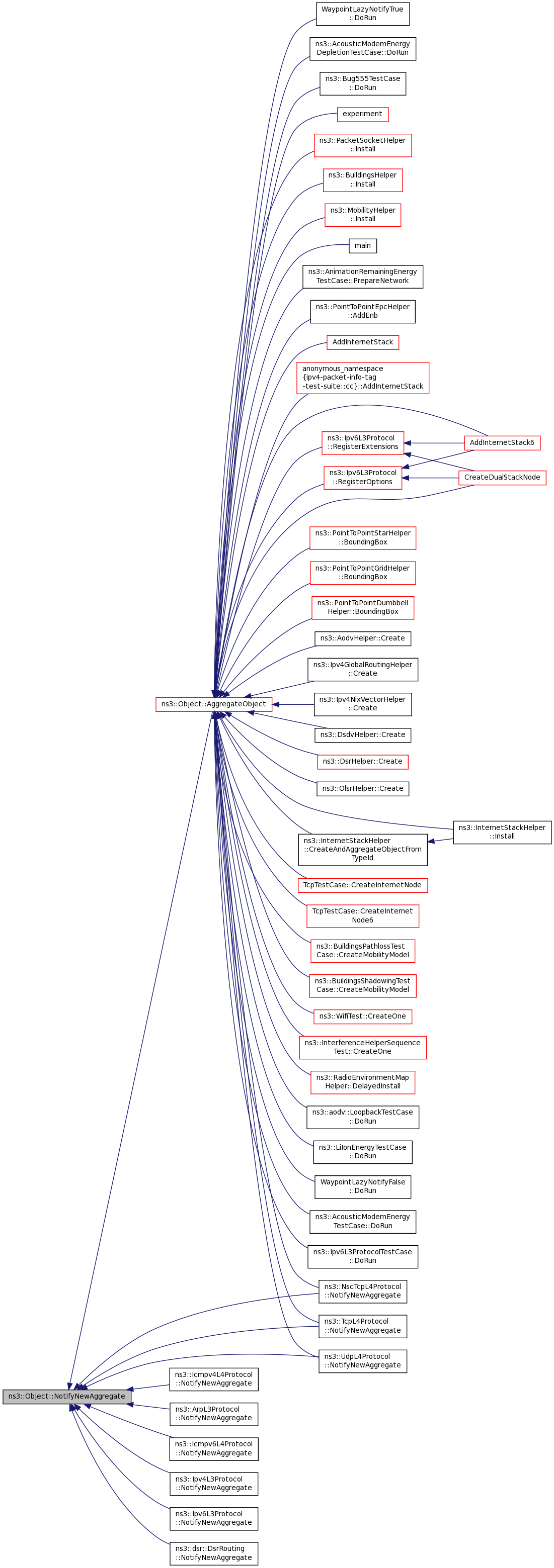

Here is the caller graph for this function:

void ns3::Object::SetTypeId ( TypeId tid )

private

Parameters

tid an TypeId

Invoked from ns3::CreateObject only. Initialize the m_tid member variable to keep track of the type of this object instance.

Definition at line 328 of file object.cc.

References Check(), m_tid, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ObjectFactory::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Object::UpdateSortedArray	(	struct Aggregates *	aggregates,
		uint32_t	i
	)		const

private

Keep the list of aggregates in most-recently-used order.

Parameters

aggregates	the list of aggregated objects
i	the most recently used entry in the list

Definition at line 230 of file object.cc.

References ns3::Object::Aggregates::buffer, m_getObjectCount, and NS_LOG_FUNCTION.

Referenced by AggregateObject(), and DoGetObject().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class AggregateIterator

friend

Definition at line 230 of file object.h.

Referenced by GetAggregateIterator().

template<typename T >

Ptr<T> CompleteConstruct ( T * object )

friend

Definition at line 412 of file object.h.

template<typename T >

Ptr<T> CopyObject ( Ptr< T > object )

friend

Parameters

object a pointer to the object to copy.

Returns: a copy of the input object.

This method invoke the copy constructor of the input object and returns the new instance.

Definition at line 396 of file object.h.

template<typename T >

Ptr<T> CopyObject ( Ptr< const T > object )

friend

Parameters

object a pointer to the object to copy.

Returns: a copy of the input object.

This method invoke the copy constructor of the input object and returns the new instance.

Definition at line 396 of file object.h.

friend struct ObjectDeleter

friend

Definition at line 231 of file object.h.

friend class ObjectFactory

friend

Definition at line 229 of file object.h.

Referenced by ns3::LteHelper::SetFadingModel(), ns3::LteHelper::SetHandoverAlgorithmType(), ns3::LteHelper::SetPathlossModelType(), and ns3::LteHelper::SetSchedulerType().

Member Data Documentation

struct Aggregates* ns3::Object::m_aggregates

private

a pointer to an array of 'aggregates'.

i.e., a pointer to each object aggregated to this object is stored in this array. The array is shared by all aggregated objects so the size of the array is indirectly a reference count.

Definition at line 323 of file object.h.

Referenced by AggregateObject(), CheckLoose(), Dispose(), DoDelete(), DoGetObject(), GetObject(), Initialize(), ns3::Object::AggregateIterator::Next(), Object(), and ~Object().

bool ns3::Object::m_disposed

private

Set to true when the DoDispose method of the object has run, false otherwise.

Definition at line 311 of file object.h.

Referenced by AggregateObject(), Dispose(), DoDelete(), and DoDispose().

uint32_t ns3::Object::m_getObjectCount

private

Indicates the number of times the object was accessed with a call to GetObject.

This integer is used to implement a heuristic to sort the array of aggregates to put at the start of the array the most-frequently accessed elements.

Definition at line 330 of file object.h.

Referenced by DoGetObject(), and UpdateSortedArray().

bool ns3::Object::m_initialized

private

Set to true once the DoInitialize method has run, false otherwise.

Definition at line 316 of file object.h.

Referenced by DoInitialize(), and Initialize().

TypeId ns3::Object::m_tid

private

Identifies the type of this object instance.

Definition at line 306 of file object.h.

Referenced by GetInstanceTypeId(), and SetTypeId().

The documentation for this class was generated from the following files:

src/core/model/object.h
src/core/model/object.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
