IPv6 layer implementation. More...

#include <ipv6-l3-protocol.h>

Inheritance diagram for ns3::Ipv6L3Protocol:

Collaboration diagram for ns3::Ipv6L3Protocol:

Public Types
enum	DropReason { DROP_TTL_EXPIRED = 1, DROP_NO_ROUTE, DROP_INTERFACE_DOWN, DROP_ROUTE_ERROR, DROP_UNKNOWN_PROTOCOL }
	Reason why a packet has been dropped. More...

Public Member Functions
	Ipv6L3Protocol ()
	Constructor. More...

virtual	~Ipv6L3Protocol ()
	Destructor. More...

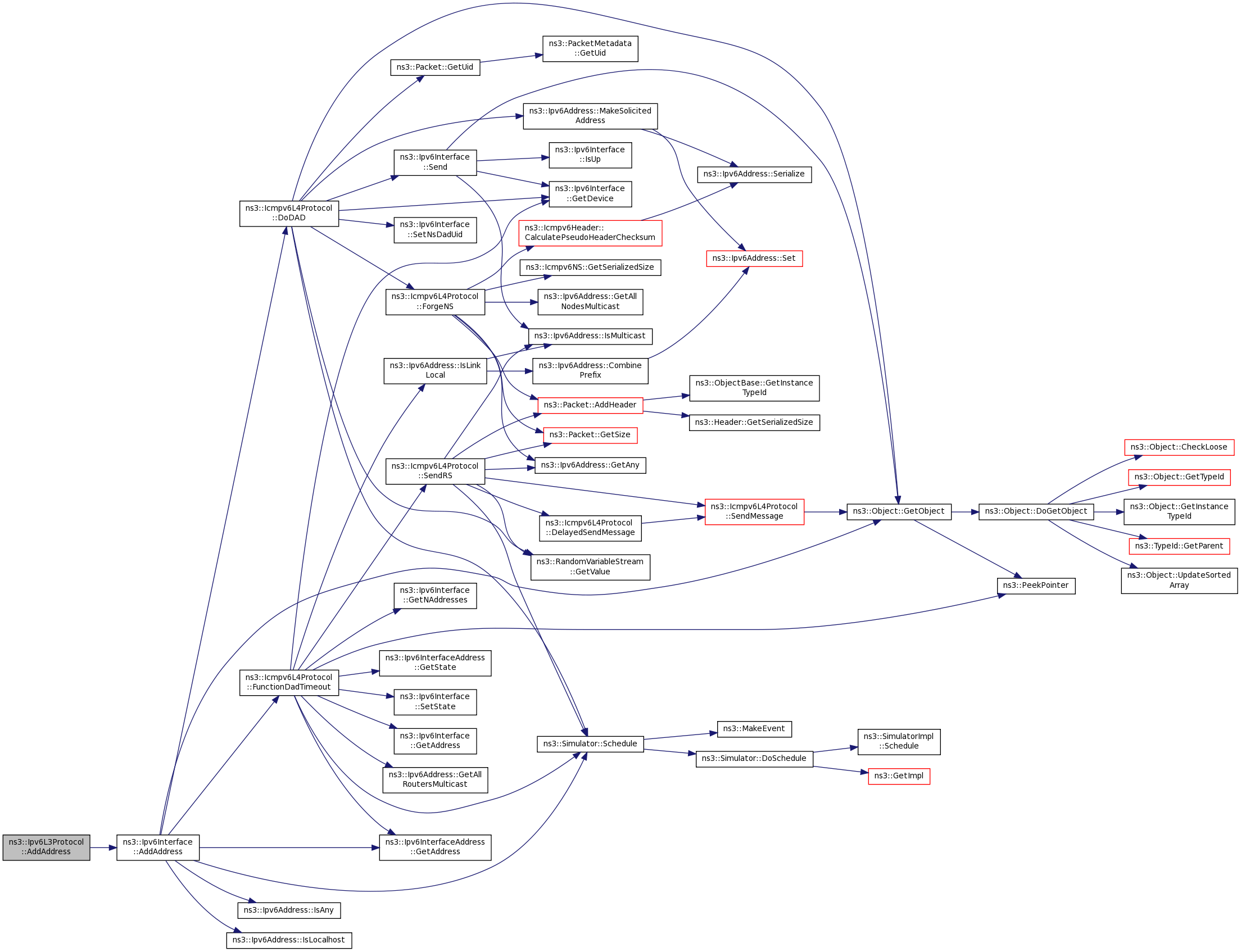

bool	AddAddress (uint32_t i, Ipv6InterfaceAddress address)
	Add an address on interface. More...

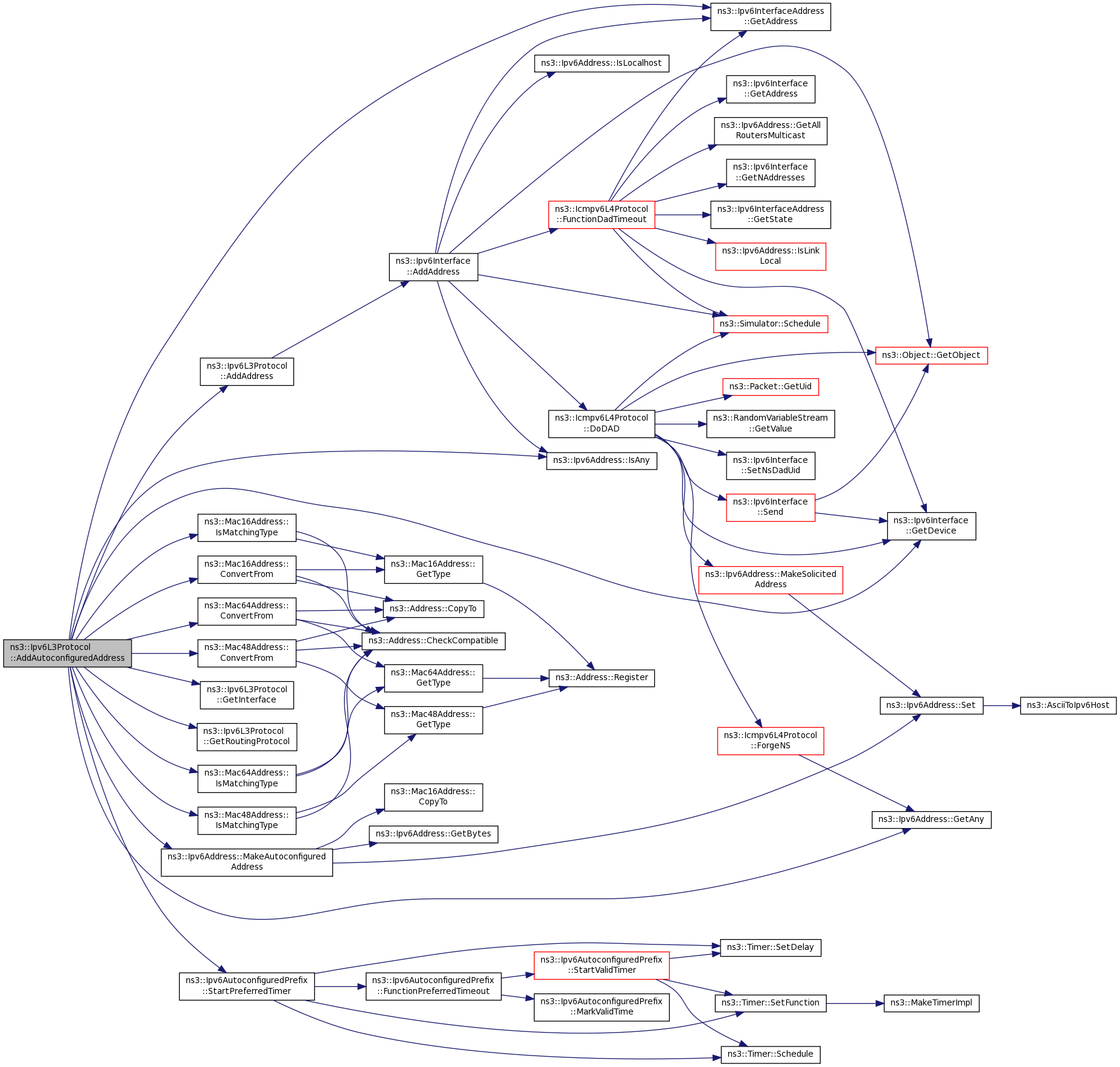

void	AddAutoconfiguredAddress (uint32_t interface, Ipv6Address network, Ipv6Prefix mask, uint8_t flags, uint32_t validTime, uint32_t preferredTime, Ipv6Address defaultRouter=Ipv6Address::GetZero())
	Add an autoconfigured address with RA information. More...

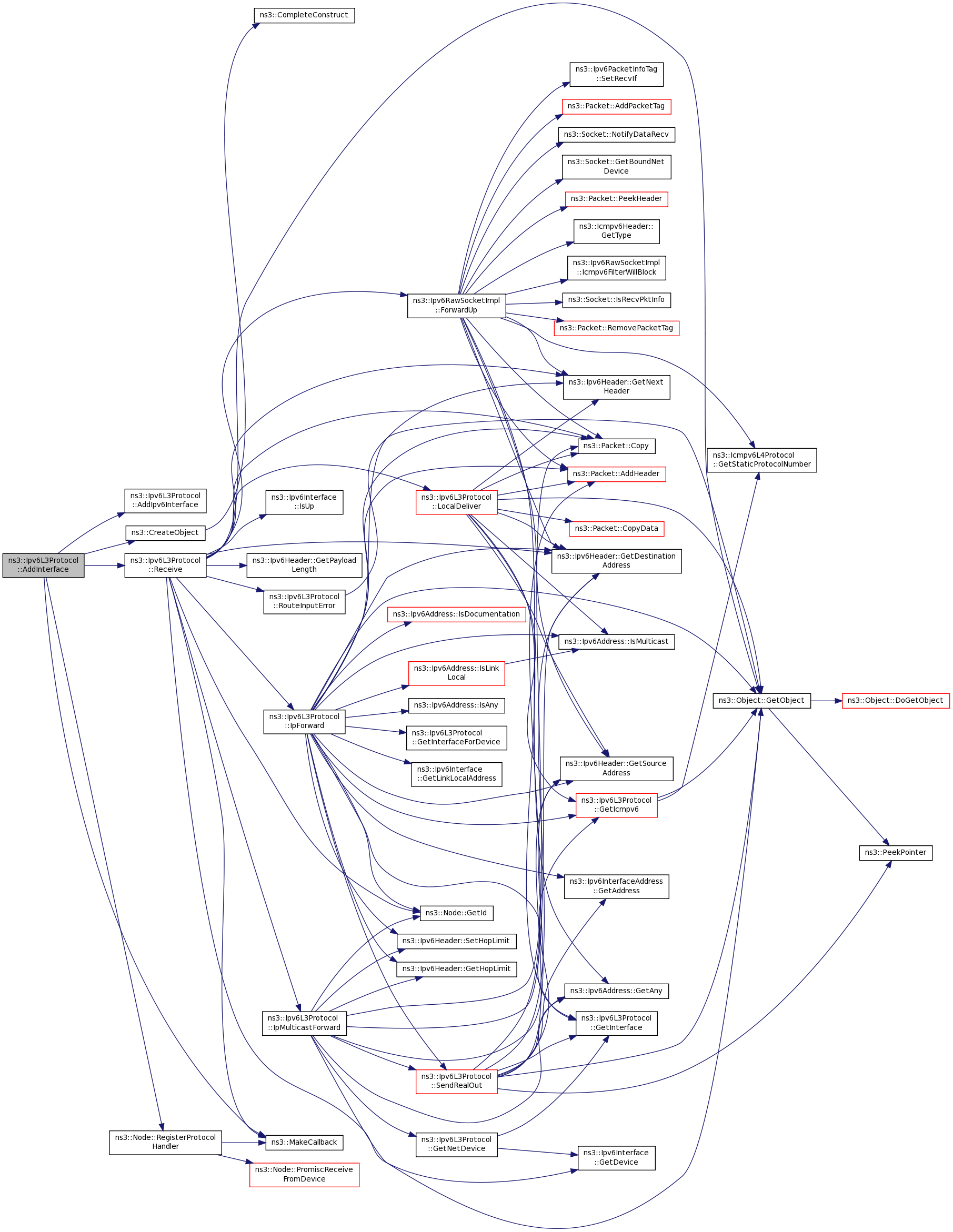

uint32_t	AddInterface (Ptr< NetDevice > device)
	Add IPv6 interface for a device. More...

Ptr< Socket >	CreateRawSocket ()
	Create raw IPv6 socket. More...

void	DeleteRawSocket (Ptr< Socket > socket)
	Remove raw IPv6 socket. More...

Ipv6InterfaceAddress	GetAddress (uint32_t interfaceIndex, uint32_t addressIndex) const
	Get an address. More...

Ptr< Icmpv6L4Protocol >	GetIcmpv6 () const
	Get ICMPv6 protocol. More...

Ptr< Ipv6Interface >	GetInterface (uint32_t i) const
	Get an interface. More...

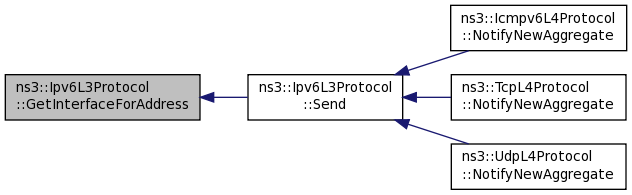

int32_t	GetInterfaceForAddress (Ipv6Address addr) const
	Get interface index which has specified IPv6 address. More...

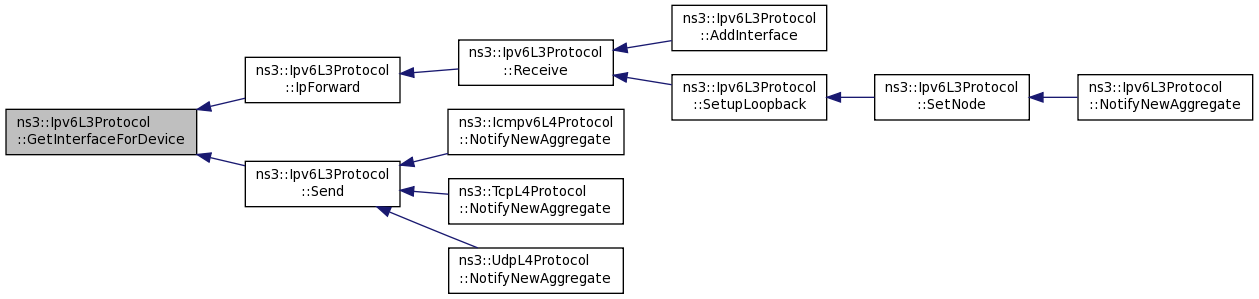

int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const
	Get interface index which is on a specified net device. More...

int32_t	GetInterfaceForPrefix (Ipv6Address addr, Ipv6Prefix mask) const
	Get interface index which match specified address/prefix. More...

uint16_t	GetMetric (uint32_t i) const
	Get metric for an interface. More...

uint16_t	GetMtu (uint32_t i) const
	Get MTU for an interface. More...

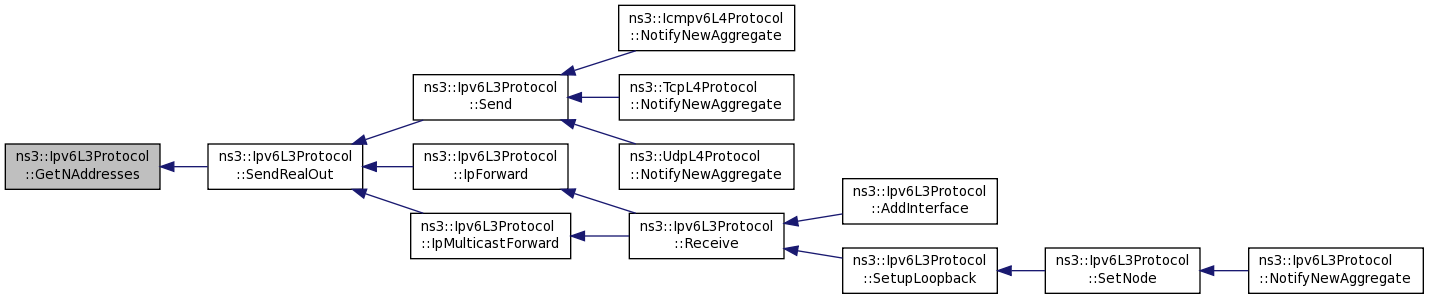

uint32_t	GetNAddresses (uint32_t interface) const
	Get number of address for an interface. More...

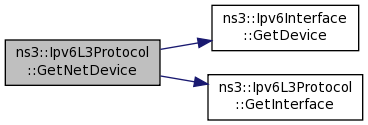

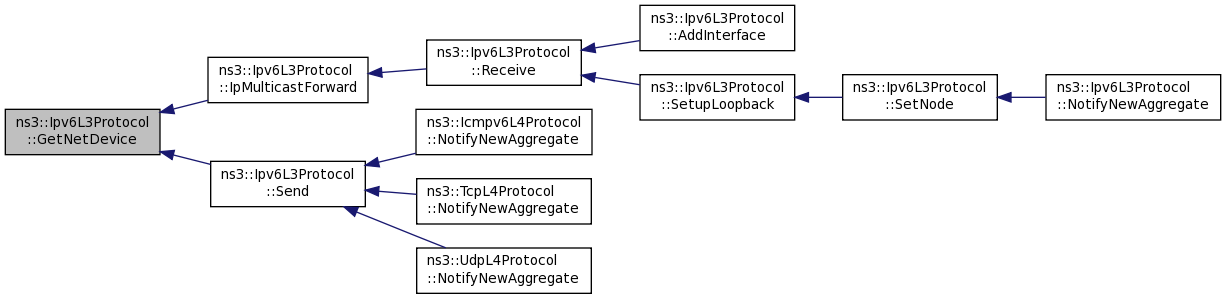

Ptr< NetDevice >	GetNetDevice (uint32_t i)
	Get device by index. More...

uint32_t	GetNInterfaces () const
	Get current number of interface on this stack. More...

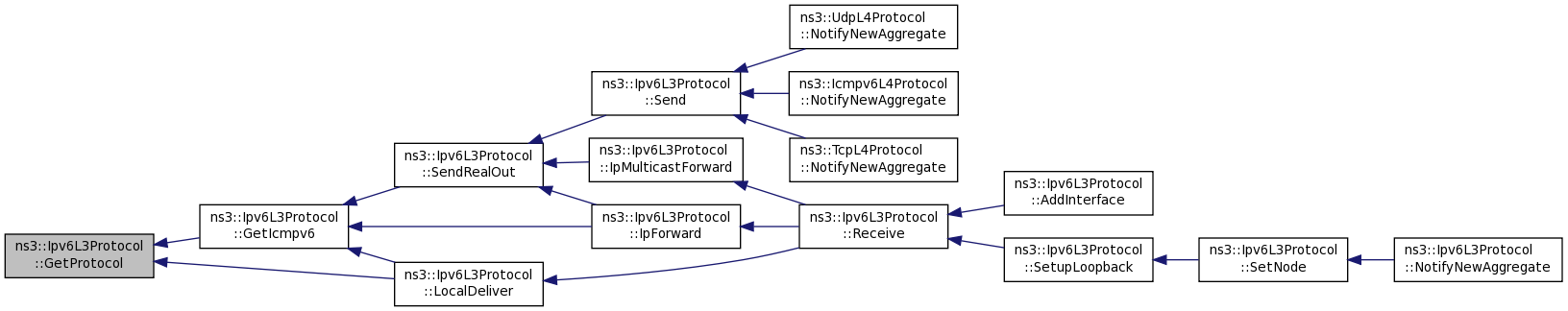

Ptr< IpL4Protocol >	GetProtocol (int protocolNumber) const
	Get L4 protocol by protocol number. More...

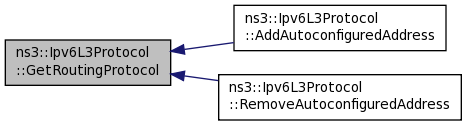

Ptr< Ipv6RoutingProtocol >	GetRoutingProtocol () const
	Get current routing protocol used. More...

void	Insert (Ptr< IpL4Protocol > protocol)
	Add an L4 protocol. More...

bool	IsForwarding (uint32_t i) const
	Is interface allows forwarding ? More...

bool	IsUp (uint32_t i) const
	Is specified interface up ? More...

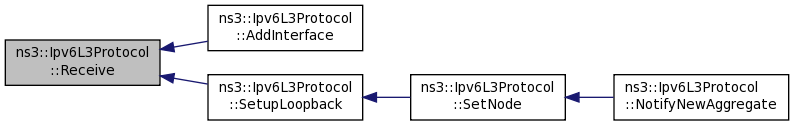

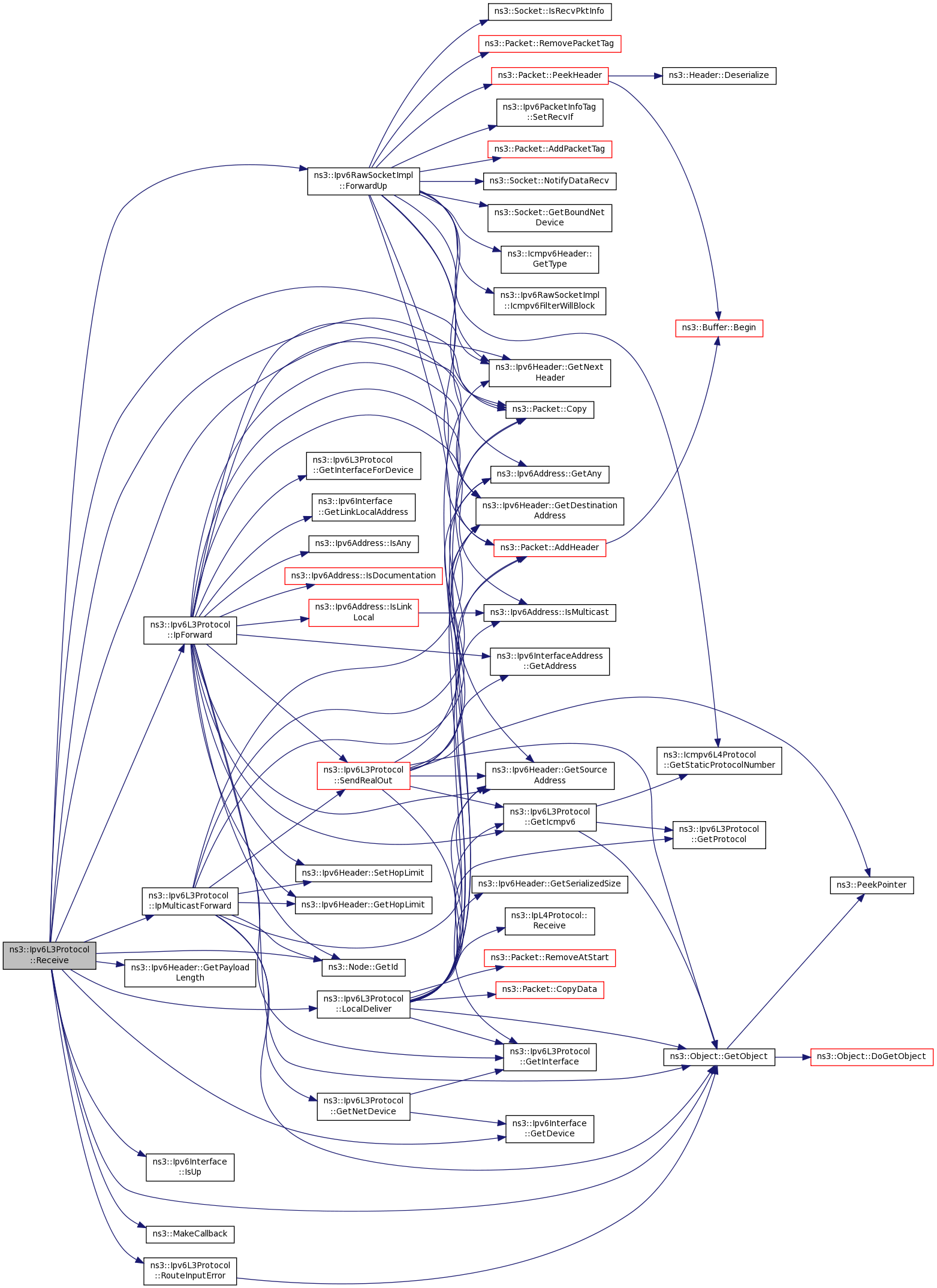

void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Receive method when a packet arrive in the stack. More...

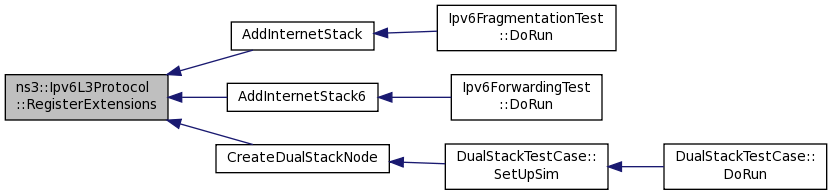

virtual void	RegisterExtensions ()
	Register the IPv6 Extensions. More...

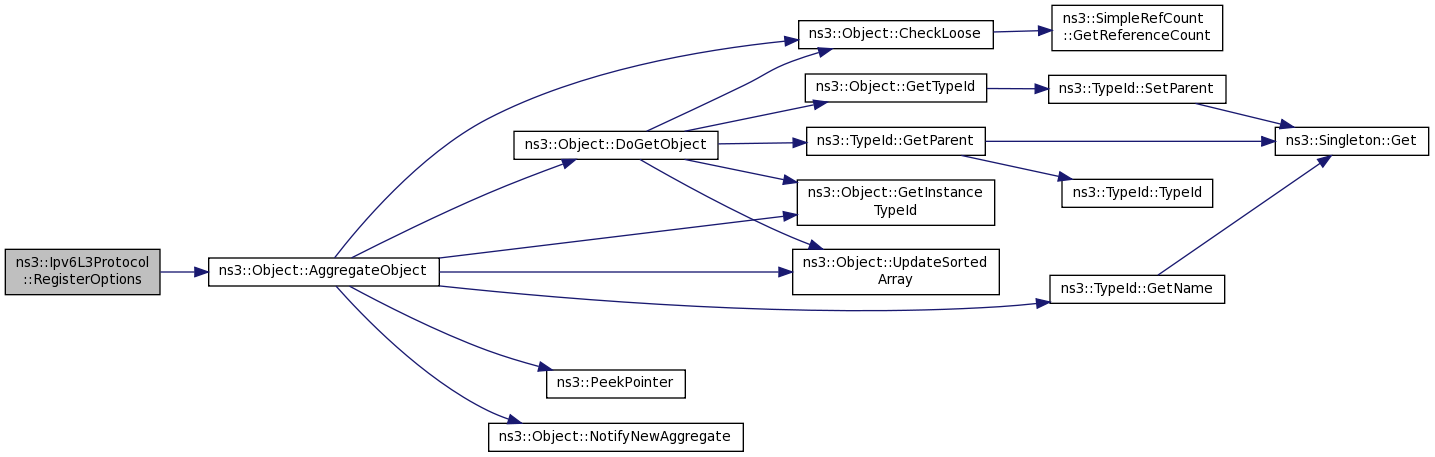

virtual void	RegisterOptions ()
	Register the IPv6 Options. More...

void	Remove (Ptr< IpL4Protocol > protocol)
	Remove an L4 protocol. More...

bool	RemoveAddress (uint32_t interfaceIndex, uint32_t addressIndex)
	Remove an address from an interface. More...

bool	RemoveAddress (uint32_t interfaceIndex, Ipv6Address address)
	Remove a specified Ipv6 address from an interface. More...

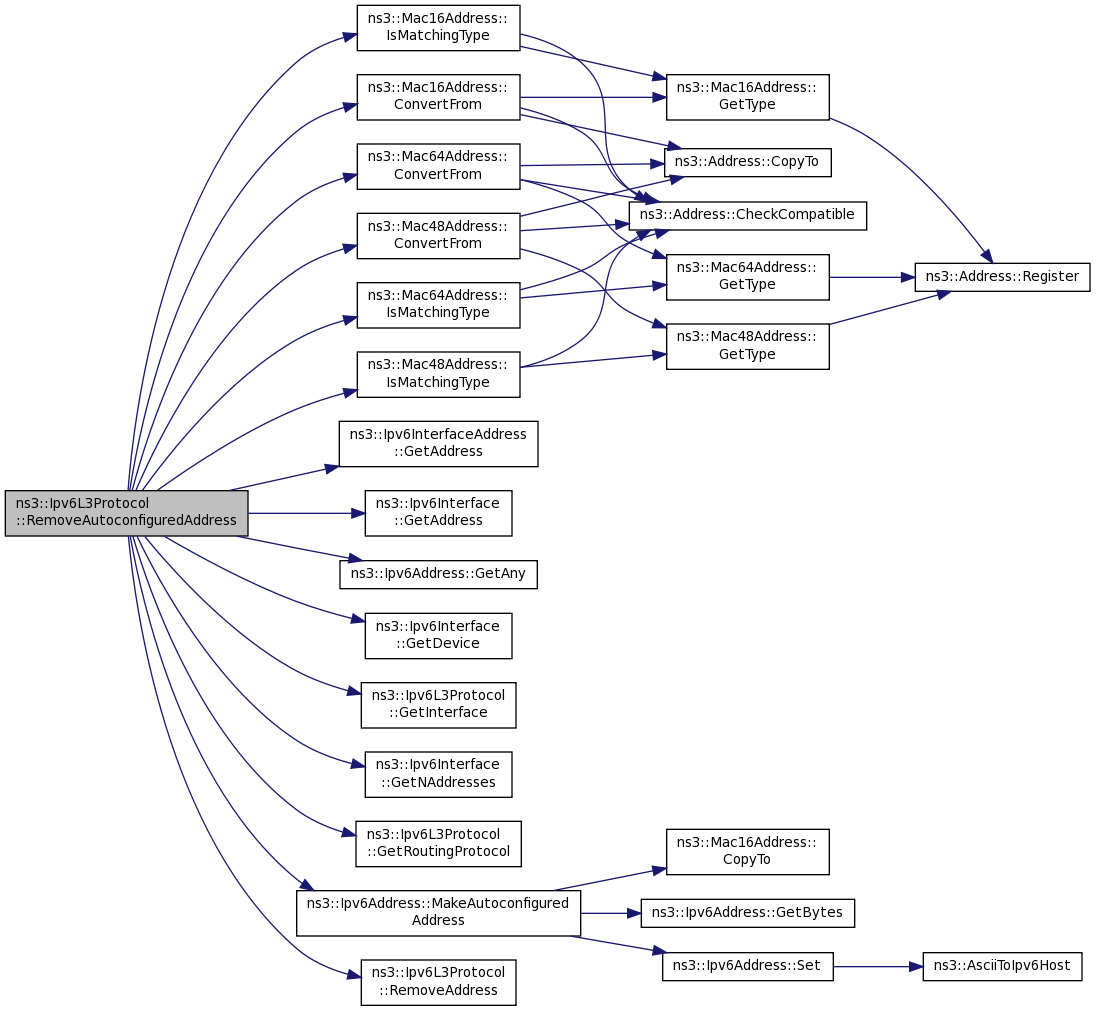

void	RemoveAutoconfiguredAddress (uint32_t interface, Ipv6Address network, Ipv6Prefix mask, Ipv6Address defaultRouter)
	Remove an autoconfigured address. More...

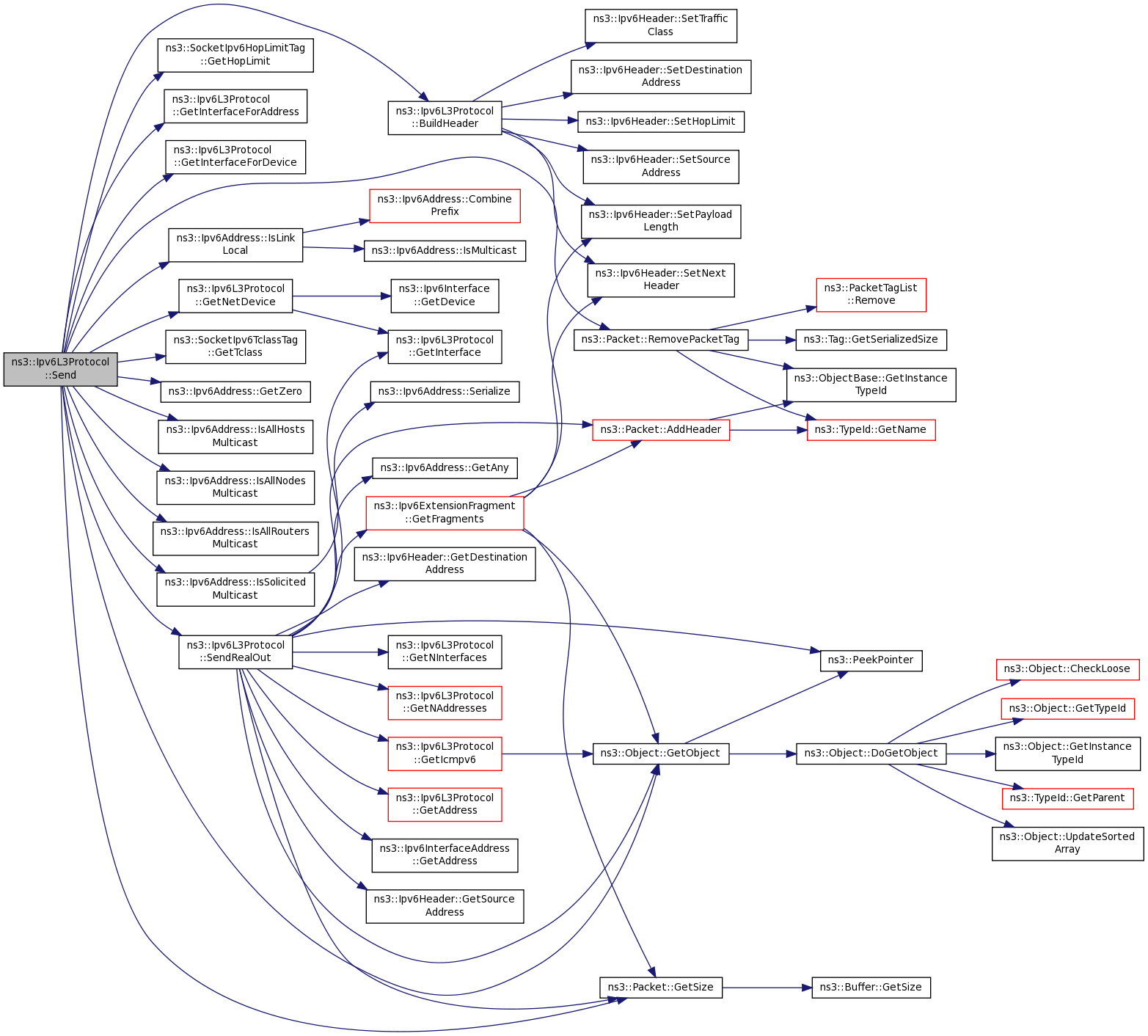

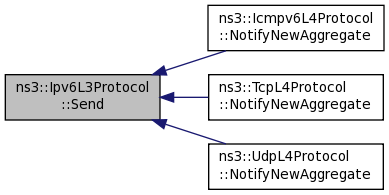

void	Send (Ptr< Packet > packet, Ipv6Address source, Ipv6Address destination, uint8_t protocol, Ptr< Ipv6Route > route)
	Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers. More...

void	SetDefaultTclass (uint8_t tclass)
	Set the default TCLASS. More...

void	SetDefaultTtl (uint8_t ttl)
	Set the default TTL. More...

void	SetDown (uint32_t i)
	set an interface down. More...

void	SetForwarding (uint32_t i, bool val)
	Enable or disable forwarding on interface. More...

void	SetMetric (uint32_t i, uint16_t metric)
	Set metric for an interface. More...

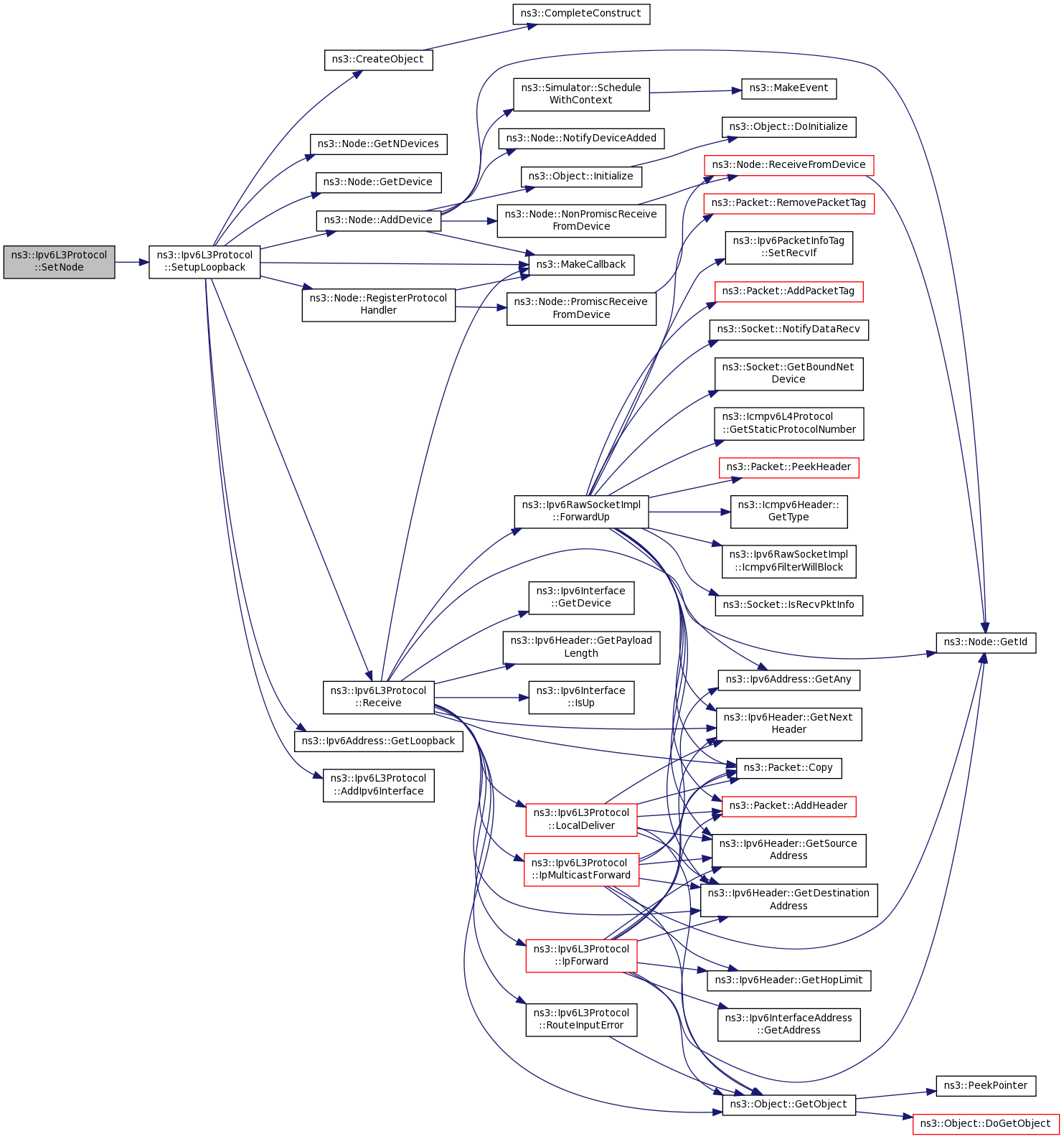

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

virtual void	SetPmtu (Ipv6Address dst, uint32_t pmtu)
	Set the Path MTU for the specified IPv6 destination address. More...

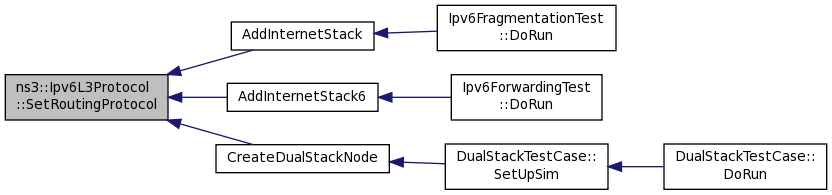

void	SetRoutingProtocol (Ptr< Ipv6RoutingProtocol > routingProtocol)
	Set routing protocol for this stack. More...

void	SetUp (uint32_t i)
	Set an interface up. More...

Public Member Functions inherited from ns3::Ipv6
	Ipv6 ()
	Constructor. More...

virtual	~Ipv6 ()
	Destructor. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID of this class. More...

Static Public Member Functions inherited from ns3::Ipv6
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint16_t	PROT_NUMBER = 0x86DD
	The protocol number for IPv6 (0x86DD). More...

Static Public Attributes inherited from ns3::Ipv6
static const uint32_t	IF_ANY = 0xffffffff
	Any interface magic number. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose object. More...

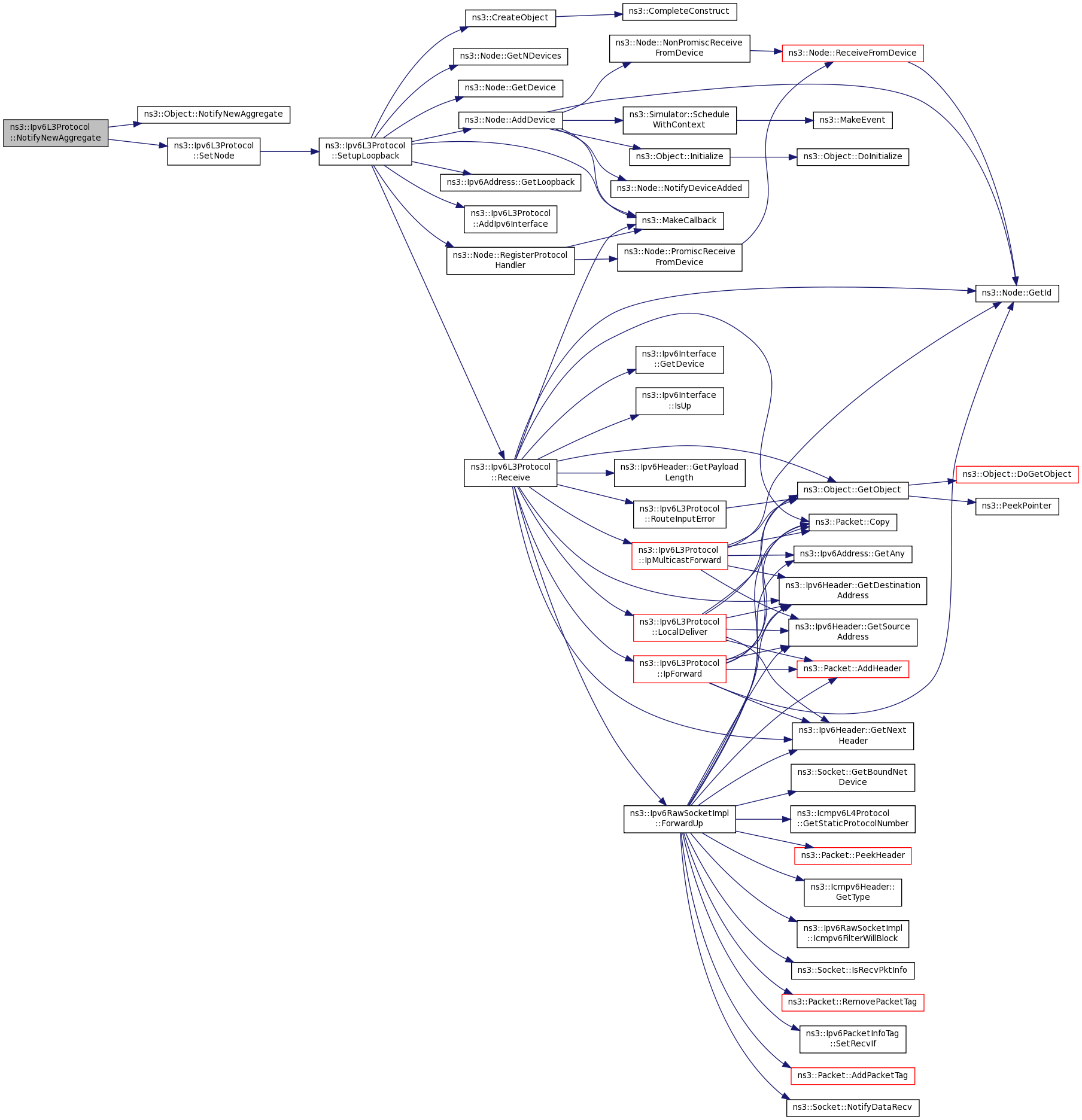

virtual void	NotifyNewAggregate ()
	Notify other components connected to the node that a new stack member is now connected. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::list< Ptr < Ipv6AutoconfiguredPrefix > >	Ipv6AutoconfiguredPrefixList
	Container of the IPv6 Autoconfigured addresses. More...

typedef std::list< Ptr < Ipv6AutoconfiguredPrefix > >::iterator	Ipv6AutoconfiguredPrefixListI
	Iterator of the container of the IPv6 Autoconfigured addresses. More...

typedef std::list< Ptr < Ipv6Interface > >	Ipv6InterfaceList
	Container of the IPv6 Interfaces. More...

typedef std::list< Ptr < IpL4Protocol > >	L4List_t
	Container of the IPv6 L4 instances. More...

typedef std::list< Ptr < Ipv6RawSocketImpl > >	SocketList
	Container of the IPv6 Raw Sockets. More...

Private Member Functions
	Ipv6L3Protocol (const Ipv6L3Protocol &)
	Copy constructor. More...

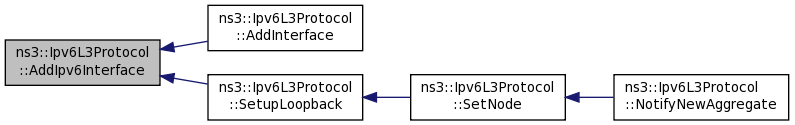

uint32_t	AddIpv6Interface (Ptr< Ipv6Interface > interface)
	Add an IPv6 interface to the stack. More...

Ipv6Header	BuildHeader (Ipv6Address src, Ipv6Address dst, uint8_t protocol, uint16_t payloadSize, uint8_t hopLimit, uint8_t tclass)
	Construct an IPv6 header. More...

virtual bool	GetIpForward () const
	Get IPv6 forwarding state. More...

virtual bool	GetMtuDiscover (void) const
	Get IPv6 MTU discover state. More...

virtual bool	GetSendIcmpv6Redirect () const
	Get the ICMPv6 Redirect sending state. More...

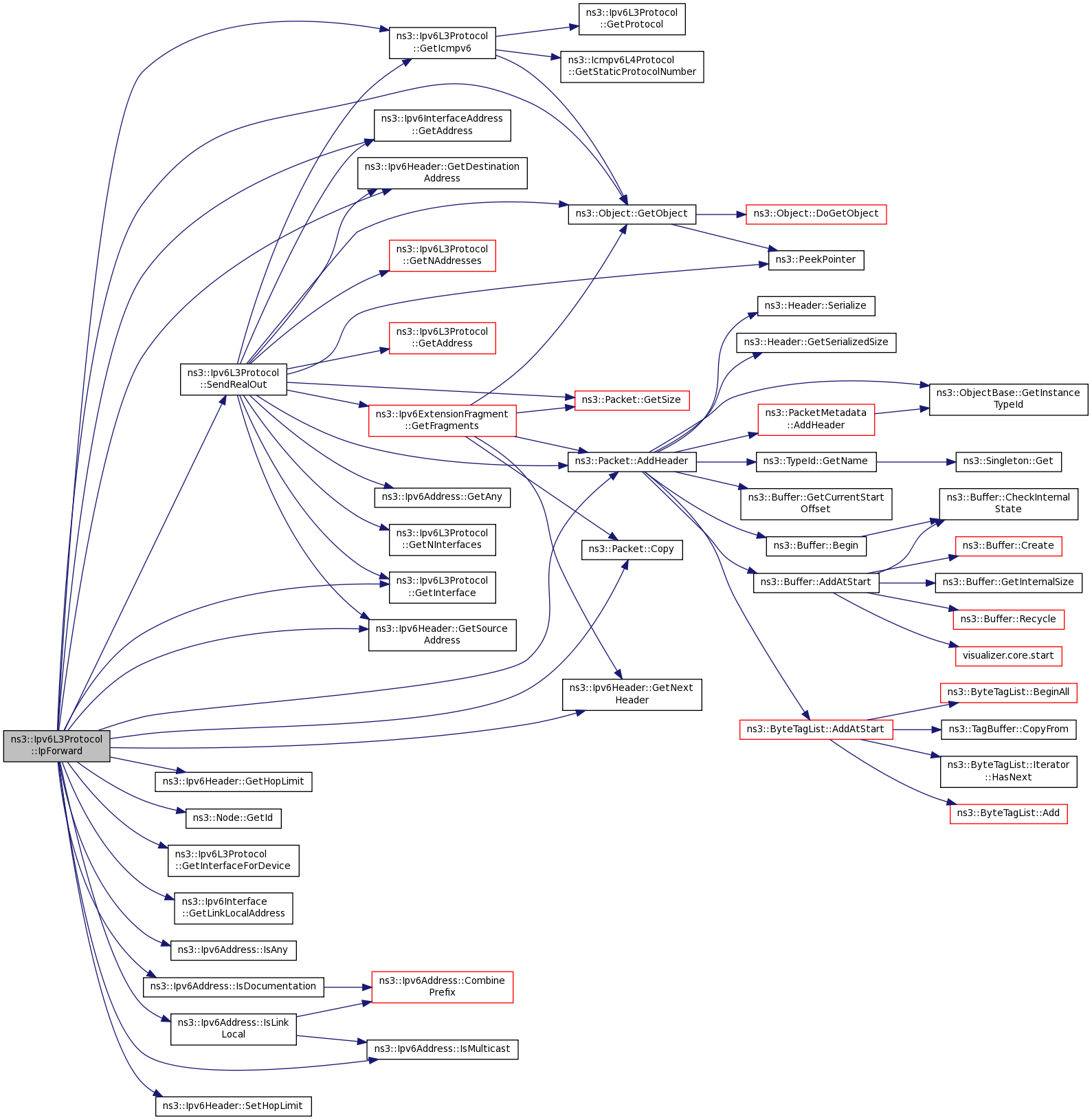

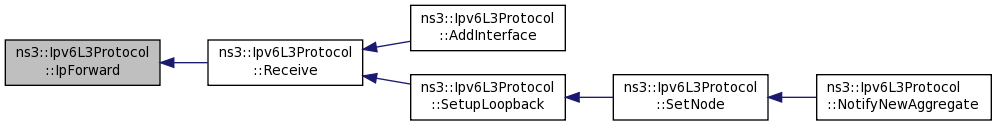

void	IpForward (Ptr< const NetDevice > idev, Ptr< Ipv6Route > rtentry, Ptr< const Packet > p, const Ipv6Header &header)
	Forward a packet. More...

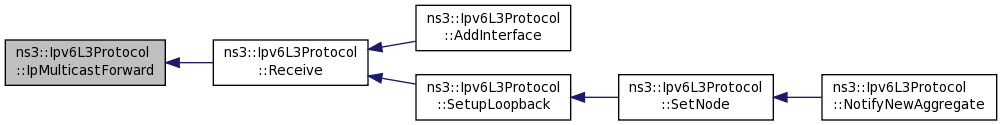

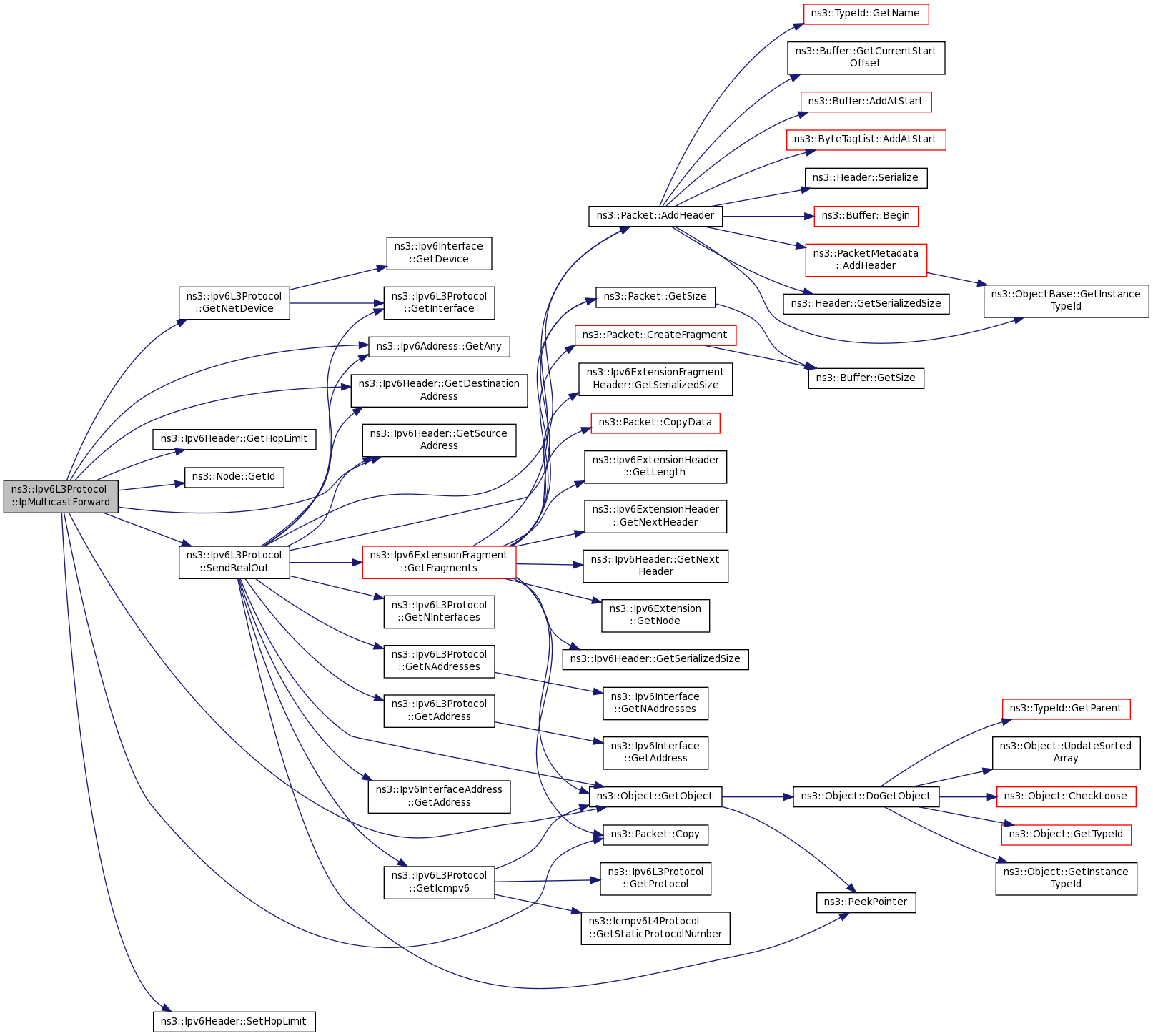

void	IpMulticastForward (Ptr< const NetDevice > idev, Ptr< Ipv6MulticastRoute > mrtentry, Ptr< const Packet > p, const Ipv6Header &header)
	Forward a multicast packet. More...

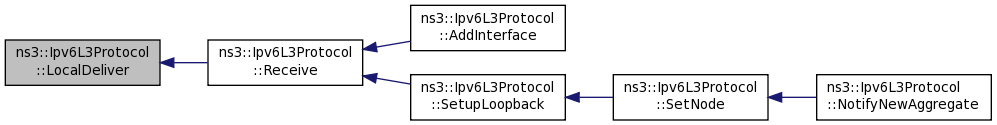

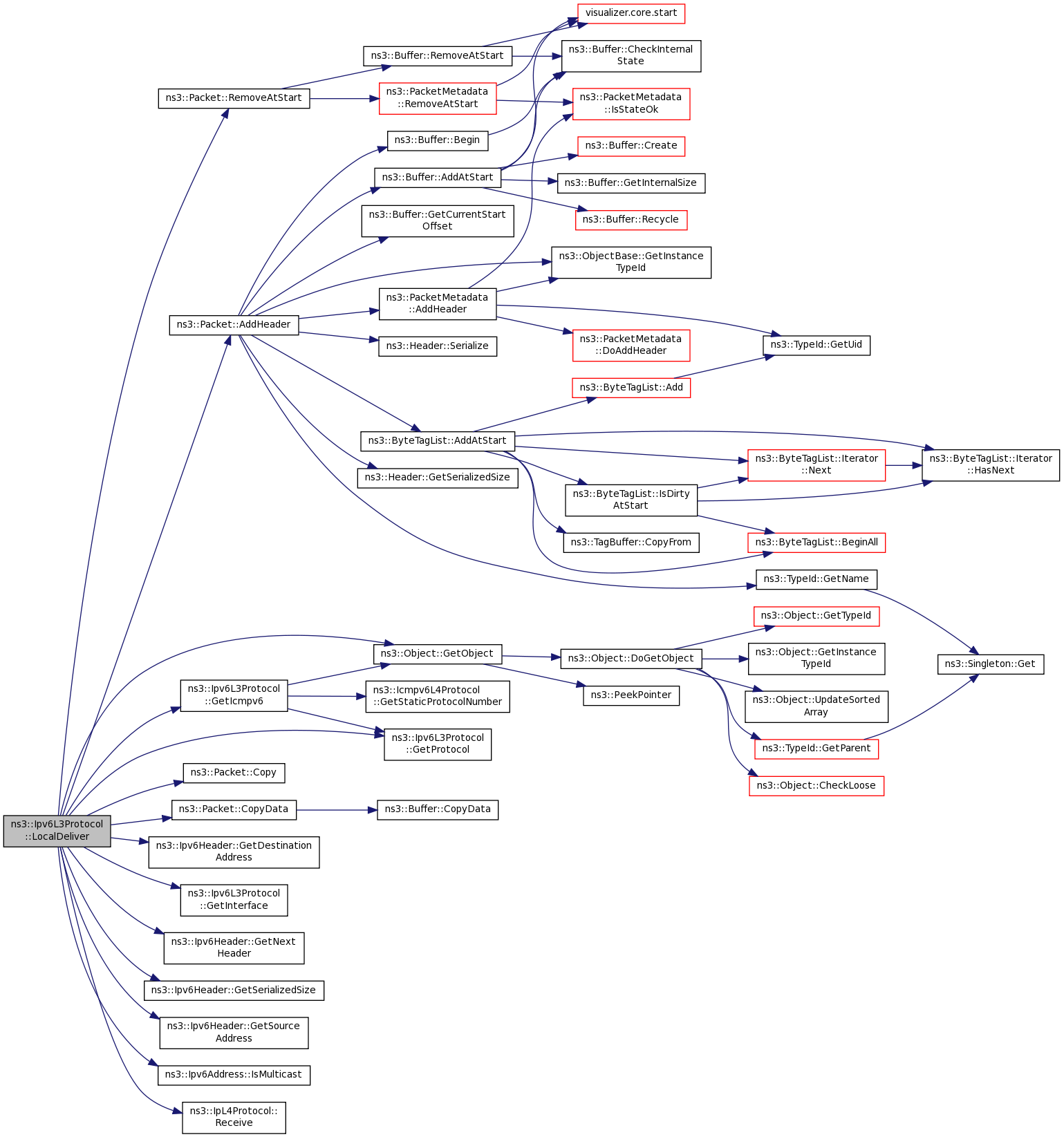

void	LocalDeliver (Ptr< const Packet > p, Ipv6Header const &ip, uint32_t iif)
	Deliver a packet. More...

Ipv6L3Protocol &	operator= (const Ipv6L3Protocol &)
	Copy constructor. More...

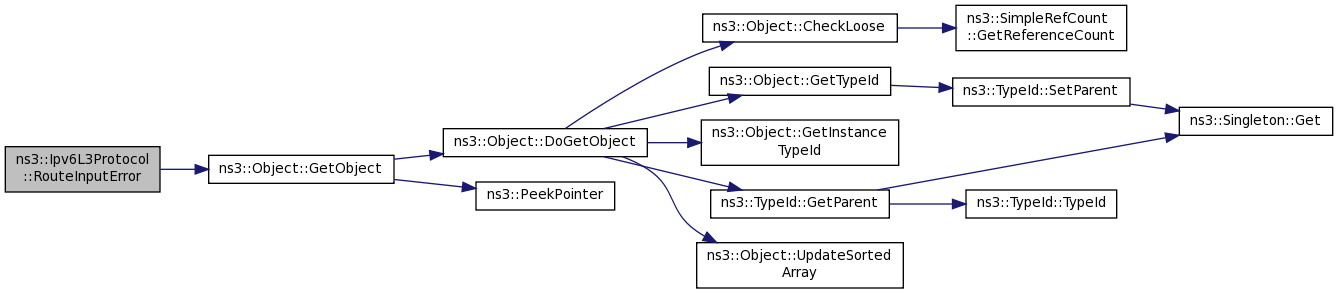

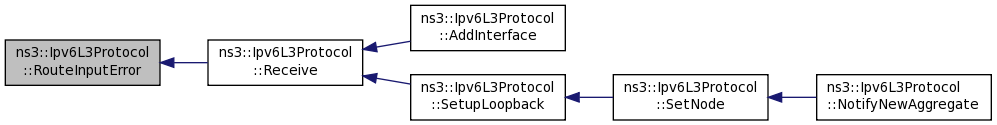

void	RouteInputError (Ptr< const Packet > p, const Ipv6Header &ipHeader, Socket::SocketErrno sockErrno)
	Fallback when no route is found. More...

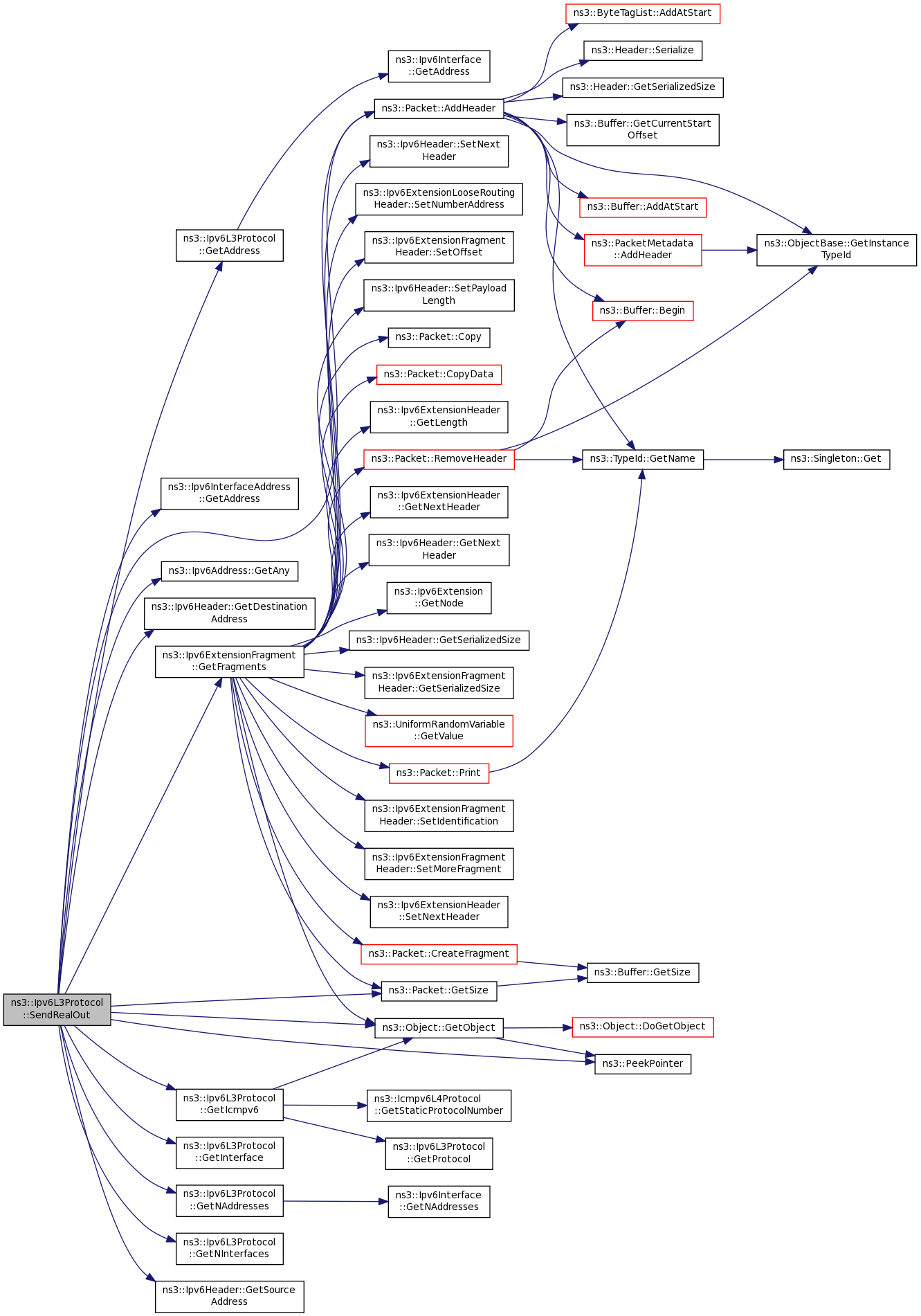

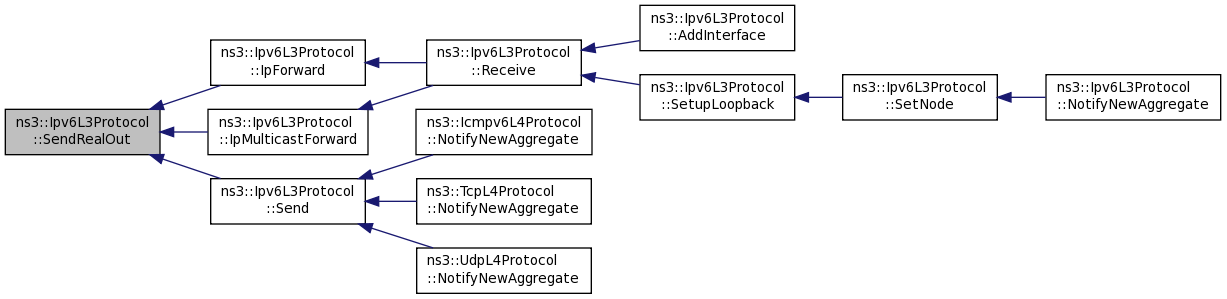

void	SendRealOut (Ptr< Ipv6Route > route, Ptr< Packet > packet, Ipv6Header const &ipHeader)
	Send packet with route. More...

virtual void	SetIpForward (bool forward)
	Set IPv6 forwarding state. More...

virtual void	SetMtuDiscover (bool mtuDiscover)
	Set IPv6 MTU discover state. More...

virtual void	SetSendIcmpv6Redirect (bool sendIcmpv6Redirect)
	Set the ICMPv6 Redirect sending state. More...

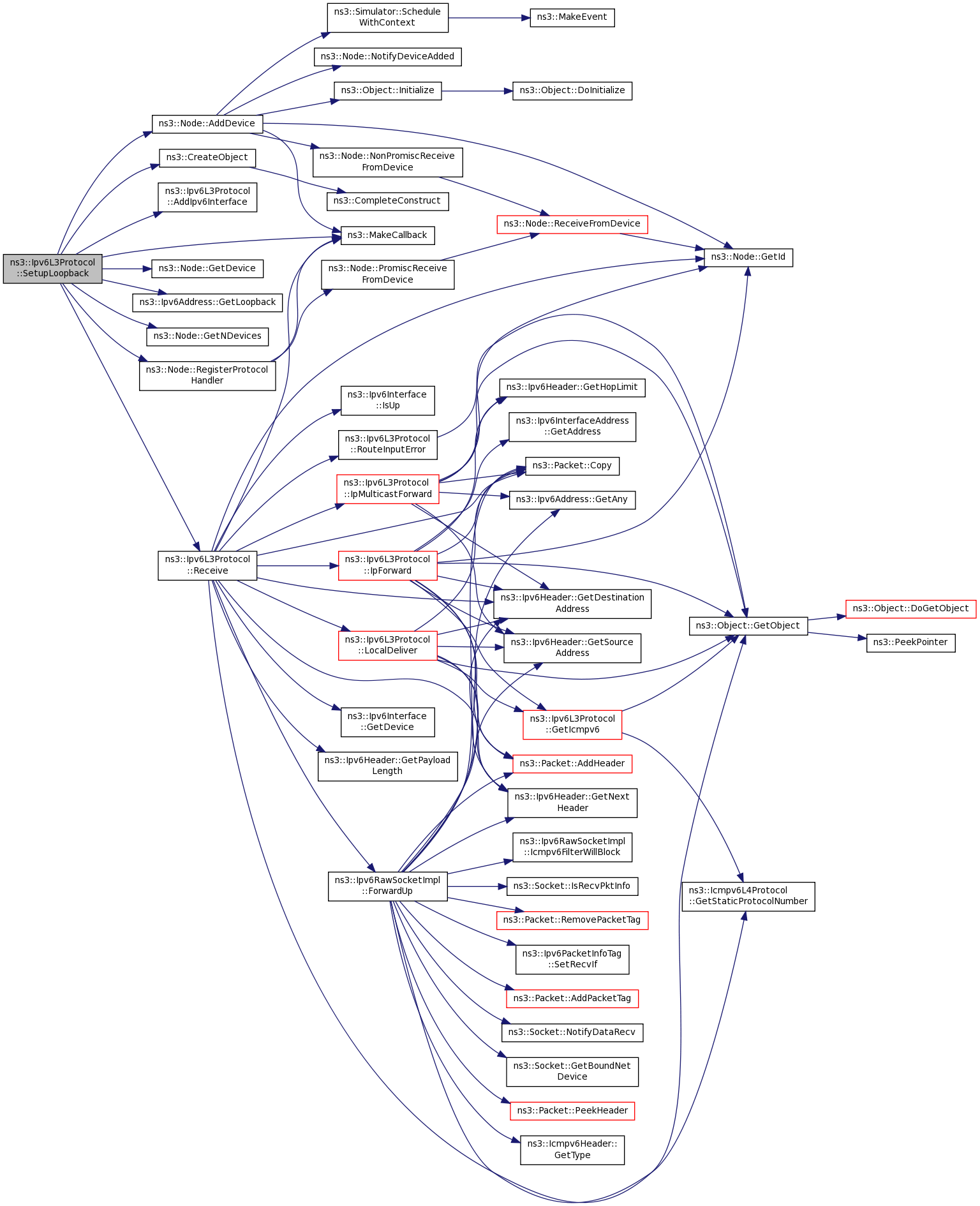

void	SetupLoopback ()
	Setup loopback interface. More...

Private Attributes
uint8_t	m_defaultTclass
	Default TCLASS for outgoing packets. More...

uint8_t	m_defaultTtl
	Default TTL for outgoing packets. More...

TracedCallback< const Ipv6Header &, Ptr< const Packet >, DropReason, Ptr < Ipv6 >, uint32_t >	m_dropTrace
	Callback to trace drop packets. More...

Ipv6InterfaceList	m_interfaces
	List of IPv6 interfaces. More...

bool	m_ipForward
	Forwarding packets (i.e. More...

bool	m_mtuDiscover
	MTU Discover (i.e. More...

uint32_t	m_nInterfaces
	Number of IPv6 interfaces managed by the stack. More...

Ptr< Node >	m_node
	Node attached to stack. More...

Ptr< Ipv6PmtuCache >	m_pmtuCache
	Path MTU Cache. More...

Ipv6AutoconfiguredPrefixList	m_prefixes
	List of IPv6 prefix received from RA. More...

L4List_t	m_protocols
	List of transport protocol. More...

Ptr< Ipv6RoutingProtocol >	m_routingProtocol
	Routing protocol. More...

TracedCallback< Ptr< const Packet >, Ptr< Ipv6 > , uint32_t >	m_rxTrace
	Callback to trace RX (reception) packets. More...

bool	m_sendIcmpv6Redirect
	Allow ICMPv6 Redirect sending state. More...

SocketList	m_sockets
	List of IPv6 raw sockets. More...

TracedCallback< Ptr< const Packet >, Ptr< Ipv6 > , uint32_t >	m_txTrace
	Callback to trace TX (transmission) packets. More...

Friends
class	Ipv6ExtensionLooseRouting

class	Ipv6L3ProtocolTestCase

Detailed Description

IPv6 layer implementation.

Config Paths

ns3::Ipv6L3Protocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::Ipv6L3Protocol

Attributes

DefaultTtl: The TTL value set by default on all outgoing packets generated on this node.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 64
- Flags: construct write read
DefaultTclass: The TCLASS value set by default on all outgoing packets generated on this node.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
InterfaceList: The set of IPv6 interfaces associated to this IPv6 stack.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Ipv6Interface >
- Flags: read
SendIcmpv6Redirect: Send the ICMPv6 Redirect when appropriate.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::Ipv6

IpForward: Globally enable or disable IP forwarding for all current and future IPv6 devices.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
MtuDiscover: If disabled, every interface will have its MTU set to 1280 bytes.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

Tx: Send IPv6 packet to outgoing interface.
Rx: Receive IPv6 packet from incoming interface.
Drop: Drop IPv6 packet

This class contains two distinct groups of trace sources. The trace sources 'Rx' and 'Tx' are called, respectively, immediately after receiving from the NetDevice and immediately before sending to a NetDevice for transmitting a packet. These are low level trace sources that include the Ipv6Header already serialized into the packet. In contrast, the Drop, SendOutgoing, UnicastForward, and LocalDeliver trace sources are slightly higher-level and pass around the Ipv6Header as an explicit parameter and not as part of the packet.

Definition at line 59 of file ipv6-l3-protocol.h.

Member Typedef Documentation

typedef std::list< Ptr<Ipv6AutoconfiguredPrefix> > ns3::Ipv6L3Protocol::Ipv6AutoconfiguredPrefixList

private

Container of the IPv6 Autoconfigured addresses.

Definition at line 406 of file ipv6-l3-protocol.h.

typedef std::list< Ptr<Ipv6AutoconfiguredPrefix> >::iterator ns3::Ipv6L3Protocol::Ipv6AutoconfiguredPrefixListI

private

Iterator of the container of the IPv6 Autoconfigured addresses.

Definition at line 411 of file ipv6-l3-protocol.h.

typedef std::list<Ptr<Ipv6Interface> > ns3::Ipv6L3Protocol::Ipv6InterfaceList

private

Container of the IPv6 Interfaces.

Definition at line 391 of file ipv6-l3-protocol.h.

typedef std::list<Ptr<IpL4Protocol> > ns3::Ipv6L3Protocol::L4List_t

private

Container of the IPv6 L4 instances.

Definition at line 401 of file ipv6-l3-protocol.h.

typedef std::list<Ptr<Ipv6RawSocketImpl> > ns3::Ipv6L3Protocol::SocketList

private

Container of the IPv6 Raw Sockets.

Definition at line 396 of file ipv6-l3-protocol.h.

Member Enumeration Documentation

enum ns3::Ipv6L3Protocol::DropReason

Reason why a packet has been dropped.

Enumerator
DROP_TTL_EXPIRED	Packet TTL has expired.
DROP_NO_ROUTE	No route to host.
DROP_INTERFACE_DOWN	Interface is down so can not send packet.
DROP_ROUTE_ERROR	Route error.
DROP_UNKNOWN_PROTOCOL	Unknown L4 protocol.

Definition at line 77 of file ipv6-l3-protocol.h.

Constructor & Destructor Documentation

ns3::Ipv6L3Protocol::Ipv6L3Protocol ( )

Constructor.

Definition at line 92 of file ipv6-l3-protocol.cc.

References m_pmtuCache, and NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6L3Protocol::~Ipv6L3Protocol ( )

virtual

Destructor.

Definition at line 99 of file ipv6-l3-protocol.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6L3Protocol::Ipv6L3Protocol ( const Ipv6L3Protocol & )

private

Copy constructor.

Defined but not implemented to avoid misuse

Member Function Documentation

bool ns3::Ipv6L3Protocol::AddAddress	(	uint32_t	i,
		Ipv6InterfaceAddress	address
	)

virtual

Add an address on interface.

Parameters

i	interface index
address	to add

Returns: true if the operation succeeded

Implements ns3::Ipv6.

Definition at line 375 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::AddAddress(), m_routingProtocol, and NS_LOG_FUNCTION.

Referenced by AddAutoconfiguredAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::AddAutoconfiguredAddress	(	uint32_t	interface,
		Ipv6Address	network,
		Ipv6Prefix	mask,
		uint8_t	flags,
		uint32_t	validTime,
		uint32_t	preferredTime,
		Ipv6Address	defaultRouter = `Ipv6Address::GetZero ()`
	)

Add an autoconfigured address with RA information.

Parameters

interface	interface index
network	network prefix
mask	network mask
flags	flags of the prefix information option (home agent, ...)
validTime	valid time of the prefix
preferredTime	preferred time of the prefix
defaultRouter	default router address

Definition at line 266 of file ipv6-l3-protocol.cc.

References AddAddress(), first::address, ns3::Mac16Address::ConvertFrom(), ns3::Mac64Address::ConvertFrom(), ns3::Mac48Address::ConvertFrom(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Interface::GetDevice(), GetInterface(), GetRoutingProtocol(), ns3::Ipv6Address::IsAny(), ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), ns3::Mac48Address::IsMatchingType(), m_node, m_prefixes, ns3::Ipv6Address::MakeAutoconfiguredAddress(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer().

Here is the call graph for this function:

uint32_t ns3::Ipv6L3Protocol::AddInterface ( Ptr< NetDevice > device )

virtual

Add IPv6 interface for a device.

Parameters

device net device

Returns: interface index

Implements ns3::Ipv6.

Definition at line 157 of file ipv6-l3-protocol.cc.

References AddIpv6Interface(), ns3::CreateObject(), m_ipForward, m_node, ns3::MakeCallback(), NS_LOG_FUNCTION, PROT_NUMBER, Receive(), and ns3::Node::RegisterProtocolHandler().

Here is the call graph for this function:

uint32_t ns3::Ipv6L3Protocol::AddIpv6Interface ( Ptr< Ipv6Interface > interface )

private

Add an IPv6 interface to the stack.

Parameters

interface interface to add

Returns: index of newly added interface

Definition at line 170 of file ipv6-l3-protocol.cc.

References m_interfaces, m_nInterfaces, and NS_LOG_FUNCTION.

Referenced by AddInterface(), and SetupLoopback().

Here is the caller graph for this function:

Ipv6Header ns3::Ipv6L3Protocol::BuildHeader	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint8_t	protocol,
		uint16_t	payloadSize,
		uint8_t	hopLimit,
		uint8_t	tclass
	)

private

Construct an IPv6 header.

Parameters

src	source IPv6 address
dst	destination IPv6 address
protocol	L4 protocol
payloadSize	payload size
hopLimit	Hop limit
tclass	Tclass

Returns: newly created IPv6 header

Definition at line 1223 of file ipv6-l3-protocol.cc.

References NS_LOG_FUNCTION, ns3::Ipv6Header::SetDestinationAddress(), ns3::Ipv6Header::SetHopLimit(), ns3::Ipv6Header::SetNextHeader(), ns3::Ipv6Header::SetPayloadLength(), ns3::Ipv6Header::SetSourceAddress(), and ns3::Ipv6Header::SetTrafficClass().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Socket > ns3::Ipv6L3Protocol::CreateRawSocket ( void )

Create raw IPv6 socket.

Returns: newly raw socket

Definition at line 667 of file ipv6-l3-protocol.cc.

References m_node, m_sockets, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv6RawSocketImpl::SetNode().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::DeleteRawSocket ( Ptr< Socket > socket )

Remove raw IPv6 socket.

Parameters

socket socket to remove

Definition at line 676 of file ipv6-l3-protocol.cc.

References m_sockets, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::DoDispose ( void )

protectedvirtual

Dispose object.

Reimplemented from ns3::Object.

Definition at line 104 of file ipv6-l3-protocol.cc.

References ns3::Object::DoDispose(), m_interfaces, m_node, m_pmtuCache, m_prefixes, m_protocols, m_routingProtocol, m_sockets, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

Ipv6InterfaceAddress ns3::Ipv6L3Protocol::GetAddress	(	uint32_t	interfaceIndex,
		uint32_t	addressIndex
	)		const

virtual

Get an address.

Parameters

interfaceIndex	interface index
addressIndex	address index on the interface

Returns: Ipv6InterfaceAddress or assert if not found

Implements ns3::Ipv6.

Definition at line 395 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::GetAddress(), and NS_LOG_FUNCTION.

Referenced by SendRealOut().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Icmpv6L4Protocol > ns3::Ipv6L3Protocol::GetIcmpv6 ( ) const

Get ICMPv6 protocol.

Returns: Icmpv6L4Protocol pointer

Definition at line 690 of file ipv6-l3-protocol.cc.

References ns3::Object::GetObject(), GetProtocol(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), and NS_LOG_FUNCTION_NOARGS.

Referenced by IpForward(), LocalDeliver(), and SendRealOut().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv6Interface > ns3::Ipv6L3Protocol::GetInterface ( uint32_t i ) const

Get an interface.

Parameters

i	interface index

Returns: IPv6 interface pointer

Definition at line 180 of file ipv6-l3-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION.

Referenced by AddAutoconfiguredAddress(), GetNetDevice(), IpForward(), LocalDeliver(), RemoveAutoconfiguredAddress(), and SendRealOut().

Here is the caller graph for this function:

int32_t ns3::Ipv6L3Protocol::GetInterfaceForAddress ( Ipv6Address addr ) const

virtual

Get interface index which has specified IPv6 address.

Parameters

addr	IPv6 address

Returns: interface index or -1 if not found

Implements ns3::Ipv6.

Definition at line 202 of file ipv6-l3-protocol.cc.

References first::address, m_interfaces, and NS_LOG_FUNCTION.

Referenced by Send().

Here is the caller graph for this function:

int32_t ns3::Ipv6L3Protocol::GetInterfaceForDevice ( Ptr< const NetDevice > device ) const

virtual

Get interface index which is on a specified net device.

Parameters

device net device

Returns: the interface index

Implements ns3::Ipv6.

Definition at line 250 of file ipv6-l3-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION.

Referenced by IpForward(), and Send().

Here is the caller graph for this function:

int32_t ns3::Ipv6L3Protocol::GetInterfaceForPrefix	(	Ipv6Address	addr,
		Ipv6Prefix	mask
	)		const

virtual

Get interface index which match specified address/prefix.

Parameters

addr	IPv6 address
mask	IPv6 prefix (mask)

Returns: interface index or -1 if not found

Implements ns3::Ipv6.

Definition at line 224 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Address::CombinePrefix(), m_interfaces, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::Ipv6L3Protocol::GetIpForward ( void ) const

privatevirtual

Get IPv6 forwarding state.

Returns: forwarding state (enabled or not)

Implements ns3::Ipv6.

Definition at line 586 of file ipv6-l3-protocol.cc.

References m_ipForward, and NS_LOG_FUNCTION_NOARGS.

uint16_t ns3::Ipv6L3Protocol::GetMetric ( uint32_t i ) const

virtual

Get metric for an interface.

Parameters

i index

Returns: metric

Implements ns3::Ipv6.

Definition at line 449 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::GetMetric(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::Ipv6L3Protocol::GetMtu ( uint32_t i ) const

virtual

Get MTU for an interface.

Parameters

i index

Returns: MTU

Implements ns3::Ipv6.

Definition at line 456 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::GetDevice(), IPV6_MIN_MTU, m_mtuDiscover, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::Ipv6L3Protocol::GetMtuDiscover ( void ) const

privatevirtual

Get IPv6 MTU discover state.

Returns: MTU discover state (enabled or not)

Implements ns3::Ipv6.

Definition at line 598 of file ipv6-l3-protocol.cc.

References m_mtuDiscover, and NS_LOG_FUNCTION.

uint32_t ns3::Ipv6L3Protocol::GetNAddresses ( uint32_t interface ) const

virtual

Get number of address for an interface.

Parameters

interface interface index

Returns: number of address

Implements ns3::Ipv6.

Definition at line 388 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::GetNAddresses(), and NS_LOG_FUNCTION.

Referenced by SendRealOut().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Ipv6L3Protocol::GetNetDevice ( uint32_t i )

virtual

Get device by index.

Parameters

i	device index on this stack

Returns: NetDevice pointer

Implements ns3::Ipv6.

Definition at line 244 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::GetDevice(), GetInterface(), and NS_LOG_FUNCTION.

Referenced by IpMulticastForward(), and Send().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Ipv6L3Protocol::GetNInterfaces ( void ) const

virtual

Get current number of interface on this stack.

Returns: number of interface registered

Implements ns3::Ipv6.

Definition at line 196 of file ipv6-l3-protocol.cc.

References m_nInterfaces, and NS_LOG_FUNCTION_NOARGS.

Referenced by SendRealOut().

Here is the caller graph for this function:

Ptr< IpL4Protocol > ns3::Ipv6L3Protocol::GetProtocol ( int protocolNumber ) const

Get L4 protocol by protocol number.

Parameters

protocolNumber protocol number

Returns: corresponding Ipv6L4Protocol or 0 if not found

Definition at line 653 of file ipv6-l3-protocol.cc.

References m_protocols, and NS_LOG_FUNCTION.

Referenced by GetIcmpv6(), and LocalDeliver().

Here is the caller graph for this function:

Ptr< Ipv6RoutingProtocol > ns3::Ipv6L3Protocol::GetRoutingProtocol ( void ) const

virtual

Get current routing protocol used.

Returns: routing protocol

Implements ns3::Ipv6.

Definition at line 151 of file ipv6-l3-protocol.cc.

References m_routingProtocol, and NS_LOG_FUNCTION_NOARGS.

Referenced by AddAutoconfiguredAddress(), and RemoveAutoconfiguredAddress().

Here is the caller graph for this function:

bool ns3::Ipv6L3Protocol::GetSendIcmpv6Redirect ( ) const

privatevirtual

Get the ICMPv6 Redirect sending state.

Returns: ICMPv6 Redirect sending state (enabled or not)

Definition at line 610 of file ipv6-l3-protocol.cc.

References m_sendIcmpv6Redirect, and NS_LOG_FUNCTION_NOARGS.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::Ipv6L3Protocol::GetTypeId ( void )

static

Get the type ID of this class.

Returns: type ID

Definition at line 60 of file ipv6-l3-protocol.cc.

References GetSendIcmpv6Redirect(), m_defaultTclass, m_defaultTtl, m_dropTrace, m_interfaces, m_rxTrace, m_txTrace, ns3::MakeObjectVectorAccessor(), ns3::MakeTraceSourceAccessor(), ns3::TypeId::SetParent(), and SetSendIcmpv6Redirect().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::Insert ( Ptr< IpL4Protocol > protocol )

Add an L4 protocol.

Parameters

protocol L4 protocol

Definition at line 641 of file ipv6-l3-protocol.cc.

References m_protocols, and NS_LOG_FUNCTION.

Referenced by AddInternetStack().

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::IpForward	(	Ptr< const NetDevice >	idev,
		Ptr< Ipv6Route >	rtentry,
		Ptr< const Packet >	p,
		const Ipv6Header &	header
	)

private

Forward a packet.

Parameters

idev	Pointer to ingress network device
rtentry	route
p	packet to forward
header	IPv6 header to add to the packet

Definition at line 1002 of file ipv6-l3-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), DROP_ROUTE_ERROR, DROP_TTL_EXPIRED, ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetHopLimit(), GetIcmpv6(), ns3::Node::GetId(), GetInterface(), GetInterfaceForDevice(), ns3::Ipv6Interface::GetLinkLocalAddress(), ns3::Ipv6Header::GetNextHeader(), ns3::Object::GetObject(), ns3::Ipv6Header::GetSourceAddress(), ns3::Icmpv6Header::ICMPV6_HOPLIMIT, ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsDocumentation(), ns3::Ipv6Address::IsLinkLocal(), ns3::Ipv6Address::IsMulticast(), m_dropTrace, m_node, m_sendIcmpv6Redirect, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Icmpv6L4Protocol::PROT_NUMBER, SendRealOut(), and ns3::Ipv6Header::SetHopLimit().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::IpMulticastForward	(	Ptr< const NetDevice >	idev,
		Ptr< Ipv6MulticastRoute >	mrtentry,
		Ptr< const Packet >	p,
		const Ipv6Header &	header
	)

private

Forward a multicast packet.

Parameters

idev	Pointer to ingress network device
mrtentry	route
p	packet to forward
header	IPv6 header to add to the packet

Definition at line 1083 of file ipv6-l3-protocol.cc.

References ns3::Packet::Copy(), DROP_TTL_EXPIRED, ns3::Ipv6Address::GetAny(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetHopLimit(), ns3::Node::GetId(), GetNetDevice(), ns3::Object::GetObject(), ns3::Ipv6Header::GetSourceAddress(), m_dropTrace, m_node, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, SendRealOut(), and ns3::Ipv6Header::SetHopLimit().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6L3Protocol::IsForwarding ( uint32_t i ) const

virtual

Is interface allows forwarding ?

Parameters

i	interface index

Returns: true if the interface is forwarding

Implements ns3::Ipv6.

Definition at line 559 of file ipv6-l3-protocol.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

bool ns3::Ipv6L3Protocol::IsUp ( uint32_t i ) const

virtual

Is specified interface up ?

Parameters

i	interface index

Returns: true if the interface is up

Implements ns3::Ipv6.

Definition at line 477 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Interface::IsUp(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::LocalDeliver	(	Ptr< const Packet >	p,
		Ipv6Header const &	ip,
		uint32_t	iif
	)

private

Deliver a packet.

Parameters

p	packet delivered
ip	IPv6 header
iif	input interface packet was received

Definition at line 1115 of file ipv6-l3-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::Packet::CopyData(), DROP_UNKNOWN_PROTOCOL, ns3::Ipv6Header::GetDestinationAddress(), GetIcmpv6(), GetInterface(), ns3::Ipv6Header::GetNextHeader(), ns3::Object::GetObject(), GetProtocol(), ns3::Ipv6Header::GetSerializedSize(), ns3::Ipv6Header::GetSourceAddress(), ns3::Icmpv6Header::ICMPV6_PORT_UNREACHABLE, ns3::Icmpv6Header::ICMPV6_UNKNOWN_NEXT_HEADER, ns3::Ipv6Header::IPV6_EXT_FRAGMENTATION, ns3::Ipv6Header::IPV6_EXT_HOP_BY_HOP, ns3::Ipv6Address::IsMulticast(), m_dropTrace, m_node, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::IpL4Protocol::Receive(), ns3::Packet::RemoveAtStart(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_CLOSED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, and ns3::IpL4Protocol::RX_OK.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::NotifyNewAggregate ( void )

protectedvirtual

Notify other components connected to the node that a new stack member is now connected.

This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together.

Reimplemented from ns3::Object.

Definition at line 616 of file ipv6-l3-protocol.cc.

References m_node, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION_NOARGS, and SetNode().

Here is the call graph for this function:

Ipv6L3Protocol& ns3::Ipv6L3Protocol::operator= ( const Ipv6L3Protocol & )

private

Copy constructor.

Defined but not implemented to avoid misuse

Returns: the copied object

void ns3::Ipv6L3Protocol::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

Receive method when a packet arrive in the stack.

This method removes IPv6 header and forward up to L4 protocol.

Parameters

device	network device
p	the packet
protocol	next header value
from	address of the correspondant
to	address of the destination
packetType	type of the packet

Definition at line 798 of file ipv6-l3-protocol.cc.

References ns3::Packet::Copy(), DROP_INTERFACE_DOWN, DROP_NO_ROUTE, ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Interface::GetDevice(), ns3::Node::GetId(), ns3::Ipv6Header::GetNextHeader(), ns3::Object::GetObject(), ns3::Ipv6Header::GetPayloadLength(), IpForward(), IpMulticastForward(), ns3::Ipv6Header::IPV6_EXT_HOP_BY_HOP, ns3::Ipv6Interface::IsUp(), LocalDeliver(), m_dropTrace, m_interfaces, m_node, m_routingProtocol, m_rxTrace, m_sockets, ns3::MakeCallback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, and RouteInputError().

Referenced by AddInterface(), and SetupLoopback().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::RegisterExtensions ( )

virtual

Register the IPv6 Extensions.

Implements ns3::Ipv6.

Definition at line 1237 of file ipv6-l3-protocol.cc.

References ns3::Object::AggregateObject(), m_node, and ns3::Ipv6Extension::SetNode().

Referenced by AddInternetStack(), AddInternetStack6(), and CreateDualStackNode().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::RegisterOptions ( )

virtual

Register the IPv6 Options.

Implements ns3::Ipv6.

Definition at line 1270 of file ipv6-l3-protocol.cc.

References ns3::Object::AggregateObject(), and m_node.

Referenced by AddInternetStack(), AddInternetStack6(), and CreateDualStackNode().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::Remove ( Ptr< IpL4Protocol > protocol )

Remove an L4 protocol.

Parameters

protocol L4 protocol to remove

Definition at line 647 of file ipv6-l3-protocol.cc.

References m_protocols, and NS_LOG_FUNCTION.

bool ns3::Ipv6L3Protocol::RemoveAddress	(	uint32_t	interfaceIndex,
		uint32_t	addressIndex
	)

virtual

Remove an address from an interface.

Parameters

interfaceIndex	interface index
addressIndex	address index on the interface

Returns: true if the operation succeeded

Implements ns3::Ipv6.

Definition at line 402 of file ipv6-l3-protocol.cc.

References first::address, m_routingProtocol, and NS_LOG_FUNCTION.

Referenced by RemoveAutoconfiguredAddress().

Here is the caller graph for this function:

bool ns3::Ipv6L3Protocol::RemoveAddress	(	uint32_t	interfaceIndex,
		Ipv6Address	address
	)

virtual

Remove a specified Ipv6 address from an interface.

Parameters

interfaceIndex	interface index
address	Ipv6Address to be removed from the interface

Returns: true if the operation succeeded

Implements ns3::Ipv6.

Definition at line 420 of file ipv6-l3-protocol.cc.

References ns3::Ipv6Address::GetLoopback(), m_routingProtocol, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress	(	uint32_t	interface,
		Ipv6Address	network,
		Ipv6Prefix	mask,
		Ipv6Address	defaultRouter
	)

Remove an autoconfigured address.

Typically it is used when an autoconfigured address expires.

Parameters

interface	interface index
network	network prefix
mask	network mask
defaultRouter	gateway

Definition at line 325 of file ipv6-l3-protocol.cc.

References ns3::Mac16Address::ConvertFrom(), ns3::Mac64Address::ConvertFrom(), ns3::Mac48Address::ConvertFrom(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Interface::GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Interface::GetDevice(), GetInterface(), ns3::Ipv6Interface::GetNAddresses(), GetRoutingProtocol(), ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), ns3::Mac48Address::IsMatchingType(), m_prefixes, ns3::Ipv6Address::MakeAutoconfiguredAddress(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and RemoveAddress().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::RouteInputError	(	Ptr< const Packet >	p,
		const Ipv6Header &	ipHeader,
		Socket::SocketErrno	sockErrno
	)

private

Fallback when no route is found.

Parameters

p	packet
ipHeader	IPv6 header
sockErrno	error number

Definition at line 1216 of file ipv6-l3-protocol.cc.

References DROP_ROUTE_ERROR, ns3::Object::GetObject(), m_dropTrace, m_node, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::Send	(	Ptr< Packet >	packet,
		Ipv6Address	source,
		Ipv6Address	destination,
		uint8_t	protocol,
		Ptr< Ipv6Route >	route
	)

Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.

Parameters

packet	packet to send
source	source address of packet
destination	address of packet
protocol	number of packet
route	route to take

Definition at line 717 of file ipv6-l3-protocol.cc.

References BuildHeader(), DROP_NO_ROUTE, ns3::SocketIpv6HopLimitTag::GetHopLimit(), GetInterfaceForAddress(), GetInterfaceForDevice(), GetNetDevice(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::SocketIpv6TclassTag::GetTclass(), ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsAllHostsMulticast(), ns3::Ipv6Address::IsAllNodesMulticast(), ns3::Ipv6Address::IsAllRoutersMulticast(), ns3::Ipv6Address::IsLinkLocal(), ns3::Ipv6Address::IsSolicitedMulticast(), m_defaultTclass, m_defaultTtl, m_dropTrace, m_node, m_routingProtocol, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Packet::RemovePacketTag(), and SendRealOut().

Referenced by ns3::Icmpv6L4Protocol::NotifyNewAggregate(), ns3::TcpL4Protocol::NotifyNewAggregate(), and ns3::UdpL4Protocol::NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::SendRealOut	(	Ptr< Ipv6Route >	route,
		Ptr< Packet >	packet,
		Ipv6Header const &	ipHeader
	)

private

Send packet with route.

Parameters

route	route
packet	packet to send
ipHeader	IPv6 header to add to the packet

Definition at line 876 of file ipv6-l3-protocol.cc.

References ns3::Packet::AddHeader(), DROP_INTERFACE_DOWN, ns3::Ipv6InterfaceAddress::GetAddress(), GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6ExtensionFragment::GetFragments(), GetIcmpv6(), GetInterface(), GetNAddresses(), GetNInterfaces(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Header::IPV6_EXT_FRAGMENTATION, list, m_dropTrace, m_node, m_pmtuCache, m_txTrace, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::PeekPointer().

Referenced by IpForward(), IpMulticastForward(), and Send().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::SetDefaultTclass ( uint8_t tclass )

Set the default TCLASS.

Parameters

tclass TCLASS to set

Definition at line 711 of file ipv6-l3-protocol.cc.

References m_defaultTclass, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::SetDefaultTtl ( uint8_t ttl )

Set the default TTL.

Parameters

ttl	TTL to set

Definition at line 705 of file ipv6-l3-protocol.cc.

References m_defaultTtl, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::SetDown ( uint32_t i )

virtual

set an interface down.

Parameters

i	interface index

Implements ns3::Ipv6.

Definition at line 509 of file ipv6-l3-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, and ns3::Ipv6Interface::SetDown().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::SetForwarding	(	uint32_t	i,
		bool	val
	)

virtual

Enable or disable forwarding on interface.

Parameters

i	interface index
val	true = enable forwarding, false = disable

Implements ns3::Ipv6.

Definition at line 568 of file ipv6-l3-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv6Interface::SetForwarding().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::SetIpForward ( bool forward )

privatevirtual

Set IPv6 forwarding state.

Parameters

forward IPv6 forwarding enabled or not

Implements ns3::Ipv6.

Definition at line 575 of file ipv6-l3-protocol.cc.

References m_interfaces, m_ipForward, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::SetMetric	(	uint32_t	i,
		uint16_t	metric
	)

virtual

Set metric for an interface.

Parameters

i	index
metric

Implements ns3::Ipv6.

Definition at line 442 of file ipv6-l3-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv6Interface::SetMetric().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::SetMtuDiscover ( bool mtuDiscover )

privatevirtual

Set IPv6 MTU discover state.

Parameters

mtuDiscover IPv6 MTU discover enabled or not

Implements ns3::Ipv6.

Definition at line 592 of file ipv6-l3-protocol.cc.

References m_mtuDiscover, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::SetNode ( Ptr< Node > node )

Set node associated with this stack.

Parameters

node	node to set

Definition at line 633 of file ipv6-l3-protocol.cc.

References m_node, NS_LOG_FUNCTION, and SetupLoopback().

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::SetPmtu	(	Ipv6Address	dst,
		uint32_t	pmtu
	)

virtual

Set the Path MTU for the specified IPv6 destination address.

Parameters

dst	Ipv6 destination address
pmtu	the Path MTU

Implements ns3::Ipv6.

Definition at line 470 of file ipv6-l3-protocol.cc.

References m_pmtuCache, and NS_LOG_FUNCTION.

void ns3::Ipv6L3Protocol::SetRoutingProtocol ( Ptr< Ipv6RoutingProtocol > routingProtocol )

virtual

Set routing protocol for this stack.

Parameters

routingProtocol IPv6 routing protocol to set

Implements ns3::Ipv6.

Definition at line 144 of file ipv6-l3-protocol.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

Referenced by AddInternetStack(), AddInternetStack6(), and CreateDualStackNode().

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::SetSendIcmpv6Redirect ( bool sendIcmpv6Redirect )

privatevirtual

Set the ICMPv6 Redirect sending state.

Parameters

sendIcmpv6Redirect ICMPv6 Redirect sending enabled or not

Definition at line 604 of file ipv6-l3-protocol.cc.

References m_sendIcmpv6Redirect, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::Ipv6L3Protocol::SetUp ( uint32_t i )

virtual

Set an interface up.

Parameters

i	interface index

Implements ns3::Ipv6.

Definition at line 484 of file ipv6-l3-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Ipv6Interface::SetUp().

Here is the call graph for this function:

void ns3::Ipv6L3Protocol::SetupLoopback ( void )

private

Setup loopback interface.

Definition at line 522 of file ipv6-l3-protocol.cc.

References ns3::Node::AddDevice(), AddIpv6Interface(), ns3::CreateObject(), ns3::Node::GetDevice(), ns3::Ipv6Address::GetLoopback(), ns3::Node::GetNDevices(), m_node, m_routingProtocol, ns3::MakeCallback(), NS_LOG_FUNCTION_NOARGS, PROT_NUMBER, Receive(), and ns3::Node::RegisterProtocolHandler().

Referenced by SetNode().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Ipv6ExtensionLooseRouting

friend

Definition at line 386 of file ipv6-l3-protocol.h.

friend class Ipv6L3ProtocolTestCase

friend

Definition at line 385 of file ipv6-l3-protocol.h.

Member Data Documentation

uint8_t ns3::Ipv6L3Protocol::m_defaultTclass

private

Default TCLASS for outgoing packets.

Definition at line 589 of file ipv6-l3-protocol.h.

Referenced by GetTypeId(), Send(), and SetDefaultTclass().

uint8_t ns3::Ipv6L3Protocol::m_defaultTtl

private

Default TTL for outgoing packets.

Definition at line 584 of file ipv6-l3-protocol.h.

Referenced by GetTypeId(), Send(), and SetDefaultTtl().

TracedCallback<const Ipv6Header &, Ptr<const Packet>, DropReason, Ptr<Ipv6>, uint32_t> ns3::Ipv6L3Protocol::m_dropTrace

private

Callback to trace drop packets.

Definition at line 426 of file ipv6-l3-protocol.h.

Referenced by GetTypeId(), IpForward(), IpMulticastForward(), LocalDeliver(), Receive(), RouteInputError(), Send(), and SendRealOut().

Ipv6InterfaceList ns3::Ipv6L3Protocol::m_interfaces

private

List of IPv6 interfaces.

Definition at line 574 of file ipv6-l3-protocol.h.

Referenced by AddIpv6Interface(), DoDispose(), GetInterface(), GetInterfaceForAddress(), GetInterfaceForDevice(), GetInterfaceForPrefix(), GetTypeId(), Receive(), and SetIpForward().

bool ns3::Ipv6L3Protocol::m_ipForward

private

Forwarding packets (i.e.

router mode) state.

Definition at line 554 of file ipv6-l3-protocol.h.

Referenced by AddInterface(), GetIpForward(), and SetIpForward().

bool ns3::Ipv6L3Protocol::m_mtuDiscover

private

MTU Discover (i.e.

Path MTU) state.

Definition at line 559 of file ipv6-l3-protocol.h.

Referenced by GetMtu(), GetMtuDiscover(), and SetMtuDiscover().

uint32_t ns3::Ipv6L3Protocol::m_nInterfaces

private

Number of IPv6 interfaces managed by the stack.

Definition at line 579 of file ipv6-l3-protocol.h.

Referenced by AddIpv6Interface(), and GetNInterfaces().

Ptr<Node> ns3::Ipv6L3Protocol::m_node

private

Node attached to stack.

Definition at line 549 of file ipv6-l3-protocol.h.

Referenced by AddAutoconfiguredAddress(), AddInterface(), CreateRawSocket(), DoDispose(), IpForward(), IpMulticastForward(), LocalDeliver(), NotifyNewAggregate(), Receive(), RegisterExtensions(), RegisterOptions(), RouteInputError(), Send(), SendRealOut(), SetNode(), and SetupLoopback().

Ptr<Ipv6PmtuCache> ns3::Ipv6L3Protocol::m_pmtuCache

private

Path MTU Cache.

Definition at line 564 of file ipv6-l3-protocol.h.

Referenced by DoDispose(), Ipv6L3Protocol(), SendRealOut(), and SetPmtu().

Ipv6AutoconfiguredPrefixList ns3::Ipv6L3Protocol::m_prefixes

private

List of IPv6 prefix received from RA.

Definition at line 604 of file ipv6-l3-protocol.h.

Referenced by AddAutoconfiguredAddress(), DoDispose(), and RemoveAutoconfiguredAddress().

L4List_t ns3::Ipv6L3Protocol::m_protocols

private

List of transport protocol.

Definition at line 569 of file ipv6-l3-protocol.h.

Referenced by DoDispose(), GetProtocol(), Insert(), and Remove().

Ptr<Ipv6RoutingProtocol> ns3::Ipv6L3Protocol::m_routingProtocol

private

Routing protocol.

Definition at line 594 of file ipv6-l3-protocol.h.

Referenced by AddAddress(), DoDispose(), GetRoutingProtocol(), Receive(), RemoveAddress(), Send(), SetDown(), SetRoutingProtocol(), SetUp(), and SetupLoopback().

TracedCallback<Ptr<const Packet>, Ptr<Ipv6>, uint32_t> ns3::Ipv6L3Protocol::m_rxTrace

private

Callback to trace RX (reception) packets.

Definition at line 421 of file ipv6-l3-protocol.h.

Referenced by GetTypeId(), and Receive().

bool ns3::Ipv6L3Protocol::m_sendIcmpv6Redirect

private

Allow ICMPv6 Redirect sending state.

Definition at line 609 of file ipv6-l3-protocol.h.

Referenced by GetSendIcmpv6Redirect(), IpForward(), and SetSendIcmpv6Redirect().

SocketList ns3::Ipv6L3Protocol::m_sockets

private

List of IPv6 raw sockets.

Definition at line 599 of file ipv6-l3-protocol.h.

Referenced by CreateRawSocket(), DeleteRawSocket(), DoDispose(), and Receive().

TracedCallback<Ptr<const Packet>, Ptr<Ipv6>, uint32_t> ns3::Ipv6L3Protocol::m_txTrace

private

Callback to trace TX (transmission) packets.

Definition at line 416 of file ipv6-l3-protocol.h.

Referenced by GetTypeId(), and SendRealOut().

const uint16_t ns3::Ipv6L3Protocol::PROT_NUMBER = 0x86DD

static

The protocol number for IPv6 (0x86DD).

Definition at line 71 of file ipv6-l3-protocol.h.

Referenced by AddInterface(), ns3::NdiscCache::Entry::FunctionDelayTimeout(), ns3::NdiscCache::Entry::FunctionProbeTimeout(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), ns3::Ipv6Interface::Send(), and SetupLoopback().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-l3-protocol.h
src/internet/model/ipv6-l3-protocol.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Ipv6

TraceSources

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
