ns3::Ipv6AutoconfiguredPrefix Class Reference

Router prefix information. More...

#include <ipv6-autoconfigured-prefix.h>

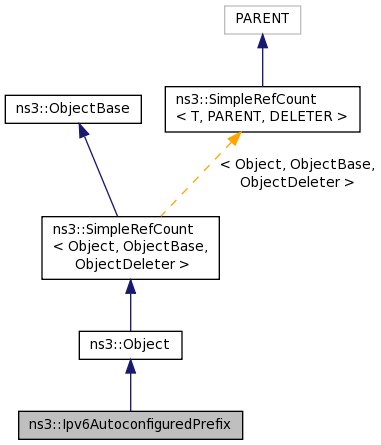

Inheritance diagram for ns3::Ipv6AutoconfiguredPrefix:

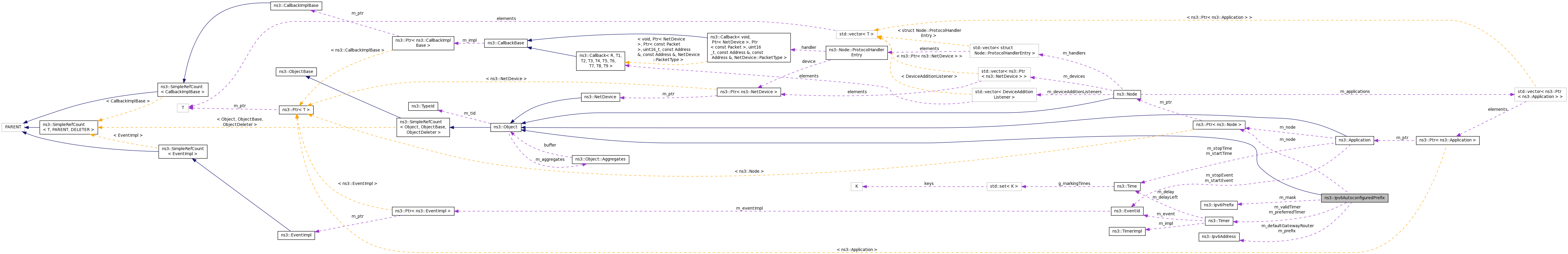

Collaboration diagram for ns3::Ipv6AutoconfiguredPrefix:

Public Member Functions
	Ipv6AutoconfiguredPrefix (Ptr< Node > node, uint32_t interface, Ipv6Address prefix, Ipv6Prefix mask, uint32_t preferredLifeTime, uint32_t validLifeTime, Ipv6Address router=Ipv6Address("::"))
	Constructor. More...
	~Ipv6AutoconfiguredPrefix ()
	Destructor. More...
void	FunctionPreferredTimeout ()
	Signal that the preferred time expired and start the valid timer. More...
void	FunctionValidTimeout ()
	Signal that the valid time expired. More...
Ipv6Address	GetDefaultGatewayRouter () const
	Get the default gateway address. More...
uint32_t	GetId () const
	Get the prefix identifier. More...
uint32_t	GetInterface () const
	Get the interface index. More...
Ipv6Prefix	GetMask () const
	Get the bitmask prefix. More...
uint32_t	GetPreferredLifeTime () const
	Get the prefix preferred life time. More...
Ipv6Address	GetPrefix () const
	Get the prefix address. More...
uint32_t	GetValidLifeTime (void) const
	Get the prefix valid life time. More...
bool	IsPreferred () const
	Test if the prefix is preferred. More...
bool	IsValid () const
	Test if the prefix is valid. More...
void	MarkPreferredTime ()
	Set the prefix as preferred. More...
void	MarkValidTime ()
	Set the prefix as valid. More...
void	RemoveMe ()
	Remove this prefix from the prefix list. More...
void	SetDefaultGatewayRouter (Ipv6Address router)
	Set the default gateway router. More...
void	SetInterface (uint32_t interface)
	Set the interface. More...
void	SetMask (Ipv6Prefix mask)
	Set the bitmask prefix. More...
void	SetPreferred ()
	Set the prefix as preferred. More...
void	SetPreferredLifeTime (uint32_t p)
	Set the prefix preferred life time. More...
void	SetPrefix (Ipv6Address prefix)
	Set the prefix address. More...
void	SetValid ()
	Set the prefix as valid. More...
void	SetValidLifeTime (uint32_t v)
	Set the prefix valid life time. More...
void	StartPreferredTimer ()
	Start the preferred timer. More...
void	StartValidTimer ()
	Start the valid timer. More...
void	StopPreferredTimer ()
	Stop the preferred timer. More...
void	StopValidTimer ()
	Stop the valid timer. More...
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Attributes
Ipv6Address	m_defaultGatewayRouter
	Default gateway router. More...
uint32_t	m_id
	the identifier of this prefix. More...
uint32_t	m_interface
	The interface index (which is stored the address corresponding of the prefix). More...
Ipv6Prefix	m_mask
	The prefix bitmask (length). More...
Ptr< Node >	m_node
	The node. More...
bool	m_preferred
	true if the prefix is preferred. More...
uint32_t	m_preferredLifeTime
	the preferred life time. More...
Timer	m_preferredTimer
	the timer for preferred life time. More...
Ipv6Address	m_prefix
	The prefix IP6 address. More...
bool	m_valid
	true if the prefix is valid. More...
uint32_t	m_validLifeTime
	the valid life time. More...
Timer	m_validTimer
	the timer for valid life time. More...

Static Private Attributes
static uint32_t	m_prefixId = 0
	a static identifier. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Router prefix information.

Definition at line 40 of file ipv6-autoconfigured-prefix.h.

Constructor & Destructor Documentation

ns3::Ipv6AutoconfiguredPrefix::Ipv6AutoconfiguredPrefix	(	Ptr< Node >	node,
		uint32_t	interface,
		Ipv6Address	prefix,
		Ipv6Prefix	mask,
		uint32_t	preferredLifeTime,
		uint32_t	validLifeTime,
		Ipv6Address	router = Ipv6Address ("::")
	)

Constructor.

Parameters

node	node
interface	interface index
prefix	IPv6 address
mask	bitmask prefix
preferredLifeTime	the preferred life time
validLifeTime	the valid life time
router	if it the prefix that configure the default gateway

Definition at line 34 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter, m_id, m_interface, m_mask, m_node, m_preferred, m_preferredLifeTime, m_prefix, m_prefixId, m_valid, and m_validLifeTime.

ns3::Ipv6AutoconfiguredPrefix::~Ipv6AutoconfiguredPrefix

(

)

Destructor.

Definition at line 49 of file ipv6-autoconfigured-prefix.cc.

Member Function Documentation

void ns3::Ipv6AutoconfiguredPrefix::FunctionPreferredTimeout

(

)

Signal that the preferred time expired and start the valid timer.

Definition at line 104 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, m_prefix, MarkValidTime(), NS_LOG_INFO, and StartValidTimer().

Referenced by StartPreferredTimer().

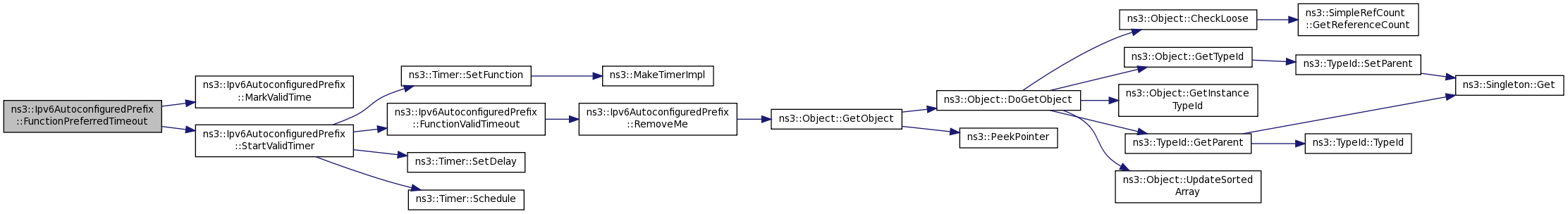

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::FunctionValidTimeout

(

)

Signal that the valid time expired.

Definition at line 112 of file ipv6-autoconfigured-prefix.cc.

References m_prefix, m_valid, NS_LOG_INFO, and RemoveMe().

Referenced by StartValidTimer().

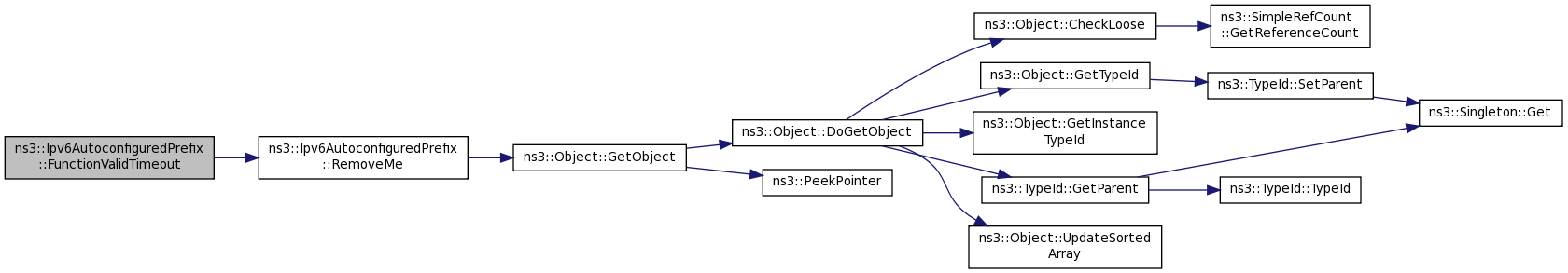

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::GetDefaultGatewayRouter

(

)

const

Get the default gateway address.

Returns

IPv6 link-local address of the default router

Definition at line 58 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter.

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetId

(

void

)

const

Get the prefix identifier.

Returns

id of the prefix.

Definition at line 177 of file ipv6-autoconfigured-prefix.cc.

References m_id.

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetInterface

(

void

)

const

Get the interface index.

Returns

interface index

Definition at line 68 of file ipv6-autoconfigured-prefix.cc.

References m_interface.

Ipv6Prefix ns3::Ipv6AutoconfiguredPrefix::GetMask

(

void

)

const

Get the bitmask prefix.

Returns

bitmask prefix

Definition at line 202 of file ipv6-autoconfigured-prefix.cc.

References m_mask.

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetPreferredLifeTime

(

)

const

Get the prefix preferred life time.

Returns

preferred life time

Definition at line 78 of file ipv6-autoconfigured-prefix.cc.

References m_preferredLifeTime.

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::GetPrefix

(

)

const

Get the prefix address.

Returns

prefix address

Definition at line 192 of file ipv6-autoconfigured-prefix.cc.

References m_prefix.

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetValidLifeTime

(

void

)

const

Get the prefix valid life time.

Returns

valid life time

Definition at line 88 of file ipv6-autoconfigured-prefix.cc.

References m_validLifeTime.

bool ns3::Ipv6AutoconfiguredPrefix::IsPreferred

(

)

const

Test if the prefix is preferred.

Returns

true if prefix is in preferred state, false otherwise

Definition at line 182 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

bool ns3::Ipv6AutoconfiguredPrefix::IsValid

(

)

const

Test if the prefix is valid.

Returns

true if prefix is in valid state, false otherwise

Definition at line 187 of file ipv6-autoconfigured-prefix.cc.

References m_valid.

void ns3::Ipv6AutoconfiguredPrefix::MarkPreferredTime

(

)

Set the prefix as preferred.

Definition at line 93 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

void ns3::Ipv6AutoconfiguredPrefix::MarkValidTime

(

)

Set the prefix as valid.

Definition at line 98 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, and m_valid.

Referenced by FunctionPreferredTimeout().

Here is the caller graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::RemoveMe

(

)

Remove this prefix from the prefix list.

Definition at line 159 of file ipv6-autoconfigured-prefix.cc.

References ns3::Object::GetObject(), m_defaultGatewayRouter, m_interface, m_mask, m_node, m_prefix, and NS_LOG_INFO.

Referenced by FunctionValidTimeout().

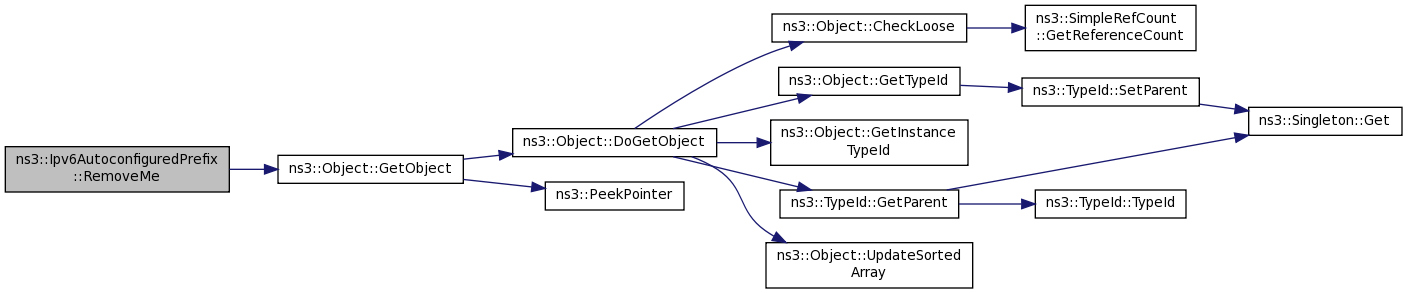

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::SetDefaultGatewayRouter

(

Ipv6Address

router

)

Set the default gateway router.

Parameters

router

IPv6 link-local address of the default router

Definition at line 53 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter.

void ns3::Ipv6AutoconfiguredPrefix::SetInterface

(

uint32_t

interface

)

Set the interface.

Parameters

interface

interface index to set

Definition at line 63 of file ipv6-autoconfigured-prefix.cc.

References m_interface.

void ns3::Ipv6AutoconfiguredPrefix::SetMask

(

Ipv6Prefix

mask

)

Set the bitmask prefix.

Parameters

mask

prefix

Definition at line 207 of file ipv6-autoconfigured-prefix.cc.

References m_mask.

void ns3::Ipv6AutoconfiguredPrefix::SetPreferred

(

)

Set the prefix as preferred.

Definition at line 166 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

void ns3::Ipv6AutoconfiguredPrefix::SetPreferredLifeTime

(

uint32_t

p

)

Set the prefix preferred life time.

Parameters

p	the prefix preferred life time

Definition at line 73 of file ipv6-autoconfigured-prefix.cc.

References m_preferredLifeTime.

void ns3::Ipv6AutoconfiguredPrefix::SetPrefix

(

Ipv6Address

prefix

)

Set the prefix address.

Parameters

prefix

prefix address to set

Definition at line 197 of file ipv6-autoconfigured-prefix.cc.

References m_prefix.

void ns3::Ipv6AutoconfiguredPrefix::SetValid

(

)

Set the prefix as valid.

Definition at line 171 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, and m_valid.

void ns3::Ipv6AutoconfiguredPrefix::SetValidLifeTime

(

uint32_t

v

)

Set the prefix valid life time.

Parameters

v	the prefix valid life time

Definition at line 83 of file ipv6-autoconfigured-prefix.cc.

References m_validLifeTime.

void ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer

(

)

Start the preferred timer.

Definition at line 119 of file ipv6-autoconfigured-prefix.cc.

References FunctionPreferredTimeout(), m_preferredLifeTime, m_preferredTimer, m_prefix, NS_LOG_INFO, ns3::Timer::Schedule(), ns3::Timer::SetDelay(), and ns3::Timer::SetFunction().

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress().

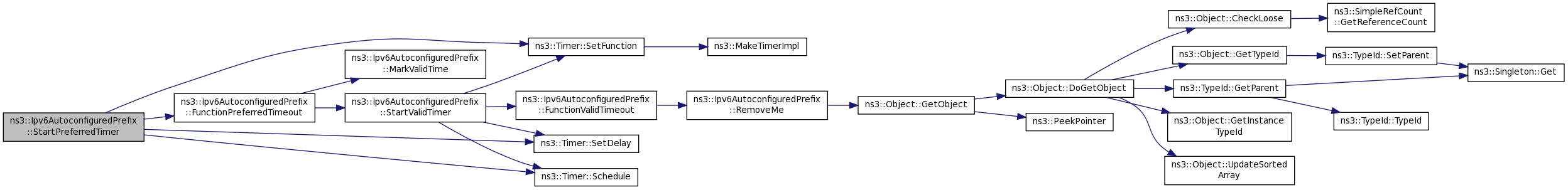

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::StartValidTimer

(

)

Start the valid timer.

Definition at line 130 of file ipv6-autoconfigured-prefix.cc.

References FunctionValidTimeout(), m_preferredLifeTime, m_prefix, m_validLifeTime, m_validTimer, NS_LOG_INFO, ns3::Timer::Schedule(), ns3::Timer::SetDelay(), and ns3::Timer::SetFunction().

Referenced by FunctionPreferredTimeout().

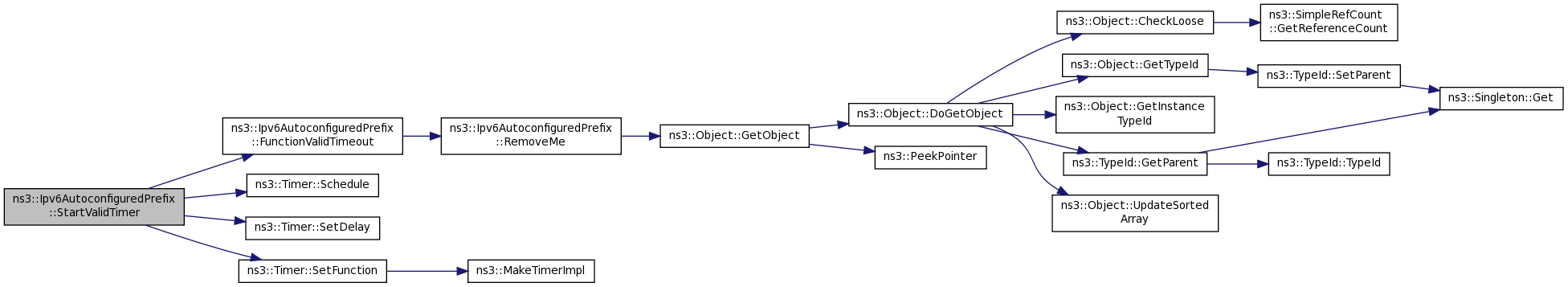

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::StopPreferredTimer

(

)

Stop the preferred timer.

Definition at line 141 of file ipv6-autoconfigured-prefix.cc.

References ns3::Timer::Cancel(), ns3::Timer::IsRunning(), m_preferredTimer, m_prefix, and NS_LOG_INFO.

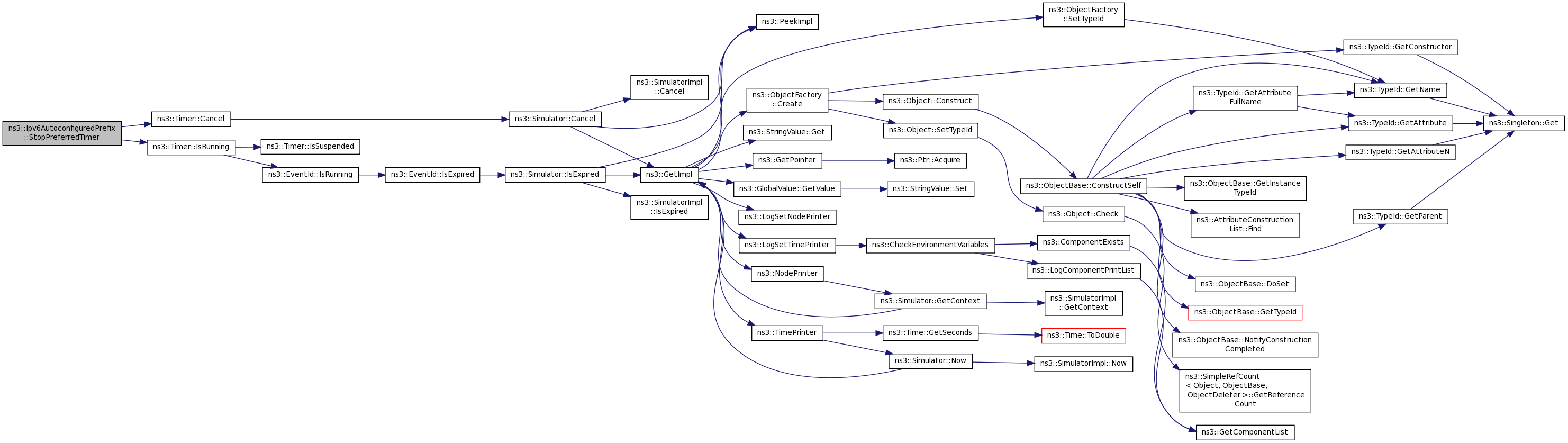

Here is the call graph for this function:

void ns3::Ipv6AutoconfiguredPrefix::StopValidTimer

(

)

Stop the valid timer.

Definition at line 150 of file ipv6-autoconfigured-prefix.cc.

References ns3::Timer::Cancel(), ns3::Timer::IsRunning(), m_prefix, m_validTimer, and NS_LOG_INFO.

Here is the call graph for this function:

Member Data Documentation

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::m_defaultGatewayRouter

private

Default gateway router.

If the RA received also configured the default gateway, this variable has the link-local address. Otherwise this is "::"

Definition at line 238 of file ipv6-autoconfigured-prefix.h.

Referenced by GetDefaultGatewayRouter(), Ipv6AutoconfiguredPrefix(), RemoveMe(), and SetDefaultGatewayRouter().

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_id

private

the identifier of this prefix.

Definition at line 214 of file ipv6-autoconfigured-prefix.h.

Referenced by GetId(), and Ipv6AutoconfiguredPrefix().

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_interface

private

The interface index (which is stored the address corresponding of the prefix).

Definition at line 244 of file ipv6-autoconfigured-prefix.h.

Referenced by GetInterface(), Ipv6AutoconfiguredPrefix(), RemoveMe(), and SetInterface().

Ipv6Prefix ns3::Ipv6AutoconfiguredPrefix::m_mask

private

The prefix bitmask (length).

Definition at line 229 of file ipv6-autoconfigured-prefix.h.

Referenced by GetMask(), Ipv6AutoconfiguredPrefix(), RemoveMe(), and SetMask().

Ptr<Node> ns3::Ipv6AutoconfiguredPrefix::m_node

private

The node.

Definition at line 219 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), and RemoveMe().

bool ns3::Ipv6AutoconfiguredPrefix::m_preferred

private

true if the prefix is preferred.

Definition at line 259 of file ipv6-autoconfigured-prefix.h.

Referenced by FunctionPreferredTimeout(), Ipv6AutoconfiguredPrefix(), IsPreferred(), MarkPreferredTime(), MarkValidTime(), SetPreferred(), and SetValid().

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_preferredLifeTime

private

the preferred life time.

Definition at line 254 of file ipv6-autoconfigured-prefix.h.

Referenced by GetPreferredLifeTime(), Ipv6AutoconfiguredPrefix(), SetPreferredLifeTime(), StartPreferredTimer(), and StartValidTimer().

Timer ns3::Ipv6AutoconfiguredPrefix::m_preferredTimer

private

the timer for preferred life time.

Definition at line 269 of file ipv6-autoconfigured-prefix.h.

Referenced by StartPreferredTimer(), and StopPreferredTimer().

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::m_prefix

private

The prefix IP6 address.

Definition at line 224 of file ipv6-autoconfigured-prefix.h.

Referenced by FunctionPreferredTimeout(), FunctionValidTimeout(), GetPrefix(), Ipv6AutoconfiguredPrefix(), RemoveMe(), SetPrefix(), StartPreferredTimer(), StartValidTimer(), StopPreferredTimer(), and StopValidTimer().

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_prefixId = 0

staticprivate

a static identifier.

Definition at line 209 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix().

bool ns3::Ipv6AutoconfiguredPrefix::m_valid

private

true if the prefix is valid.

Definition at line 264 of file ipv6-autoconfigured-prefix.h.

Referenced by FunctionValidTimeout(), Ipv6AutoconfiguredPrefix(), IsValid(), MarkValidTime(), and SetValid().

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_validLifeTime

private

the valid life time.

Definition at line 249 of file ipv6-autoconfigured-prefix.h.

Referenced by GetValidLifeTime(), Ipv6AutoconfiguredPrefix(), SetValidLifeTime(), and StartValidTimer().

Timer ns3::Ipv6AutoconfiguredPrefix::m_validTimer

private

the timer for valid life time.

Definition at line 274 of file ipv6-autoconfigured-prefix.h.

Referenced by StartValidTimer(), and StopValidTimer().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-autoconfigured-prefix.h
• src/internet/model/ipv6-autoconfigured-prefix.cc
