This entity is installed inside an eNB and provides the functionality for the X2 interface. More...

#include <epc-x2.h>

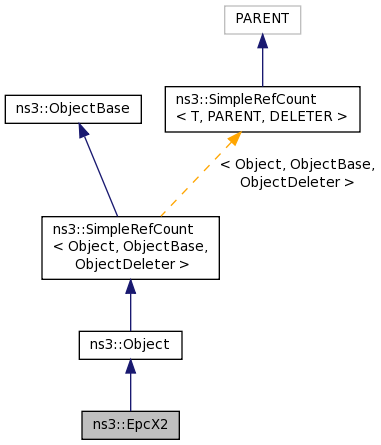

Inheritance diagram for ns3::EpcX2:

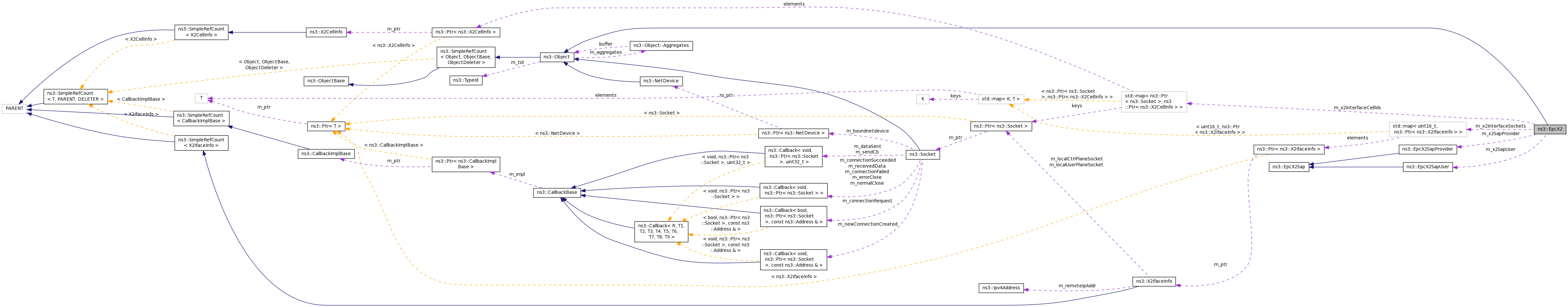

Collaboration diagram for ns3::EpcX2:

Public Member Functions
	EpcX2 ()
	Constructor. More...

virtual	~EpcX2 (void)
	Destructor. More...

void	AddX2Interface (uint16_t enb1CellId, Ipv4Address enb1X2Address, uint16_t enb2CellId, Ipv4Address enb2X2Address)
	Add an X2 interface to this EPC X2 entity. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

EpcX2SapProvider *	GetEpcX2SapProvider ()

void	RecvFromX2cSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket. More...

void	RecvFromX2uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket. More...

void	SetEpcX2SapUser (EpcX2SapUser *s)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoSendHandoverPreparationFailure (EpcX2SapProvider::HandoverPreparationFailureParams params)

virtual void	DoSendHandoverRequest (EpcX2SapProvider::HandoverRequestParams params)

virtual void	DoSendHandoverRequestAck (EpcX2SapProvider::HandoverRequestAckParams params)

virtual void	DoSendLoadInformation (EpcX2SapProvider::LoadInformationParams params)

virtual void	DoSendResourceStatusUpdate (EpcX2SapProvider::ResourceStatusUpdateParams params)

virtual void	DoSendSnStatusTransfer (EpcX2SapProvider::SnStatusTransferParams params)

virtual void	DoSendUeContextRelease (EpcX2SapProvider::UeContextReleaseParams params)

virtual void	DoSendUeData (EpcX2SapProvider::UeDataParams params)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes
EpcX2SapProvider *	m_x2SapProvider

EpcX2SapUser *	m_x2SapUser

Private Attributes
uint16_t	m_x2cUdpPort
	UDP ports to be used for the X2 interfaces: X2-C and X2-U. More...

std::map< Ptr< Socket >, Ptr < X2CellInfo > >	m_x2InterfaceCellIds
	Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface. More...

std::map< uint16_t, Ptr < X2IfaceInfo > >	m_x2InterfaceSockets
	Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message. More...

uint16_t	m_x2uUdpPort

Friends
class	EpcX2SpecificEpcX2SapProvider< EpcX2 >

Detailed Description

This entity is installed inside an eNB and provides the functionality for the X2 interface.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 70 of file epc-x2.h.

Constructor & Destructor Documentation

ns3::EpcX2::EpcX2 ( )

Constructor.

Definition at line 86 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

ns3::EpcX2::~EpcX2 ( void )

virtual

Destructor.

Definition at line 95 of file epc-x2.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

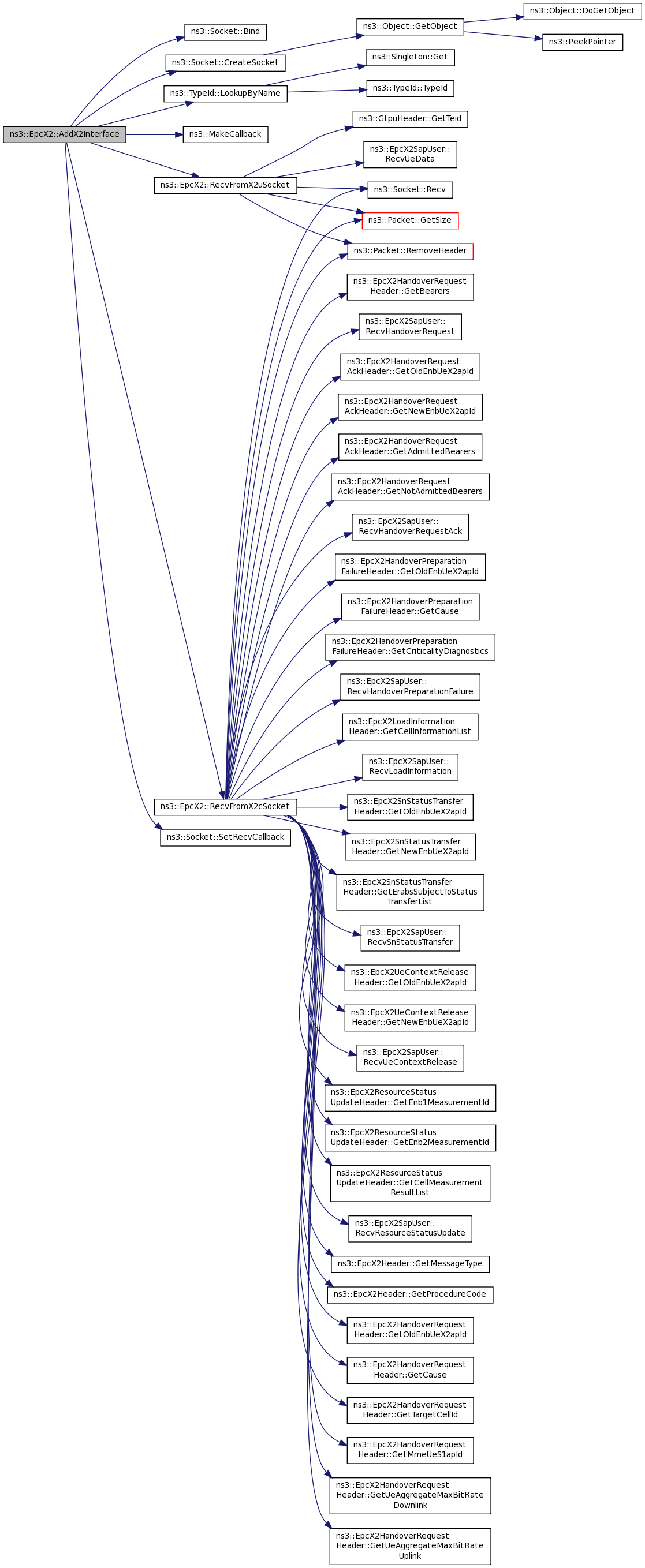

void ns3::EpcX2::AddX2Interface	(	uint16_t	enb1CellId,
		Ipv4Address	enb1X2Address,
		uint16_t	enb2CellId,
		Ipv4Address	enb2X2Address
	)

Add an X2 interface to this EPC X2 entity.

Parameters

enb1CellId	the cell ID of the current eNodeB
enb1X2Address	the address of the current eNodeB
enb2CellId	the cell ID of the neighbouring eNodeB
enb2X2Address	the address of the neighbouring eNodeB

Definition at line 134 of file epc-x2.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::TypeId::LookupByName(), m_x2cUdpPort, m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2uUdpPort, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, RecvFromX2cSocket(), RecvFromX2uSocket(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

void ns3::EpcX2::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 101 of file epc-x2.cc.

References m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2SapProvider, and NS_LOG_FUNCTION.

void ns3::EpcX2::DoSendHandoverPreparationFailure ( EpcX2SapProvider::HandoverPreparationFailureParams params )

protectedvirtual

Definition at line 502 of file epc-x2.cc.

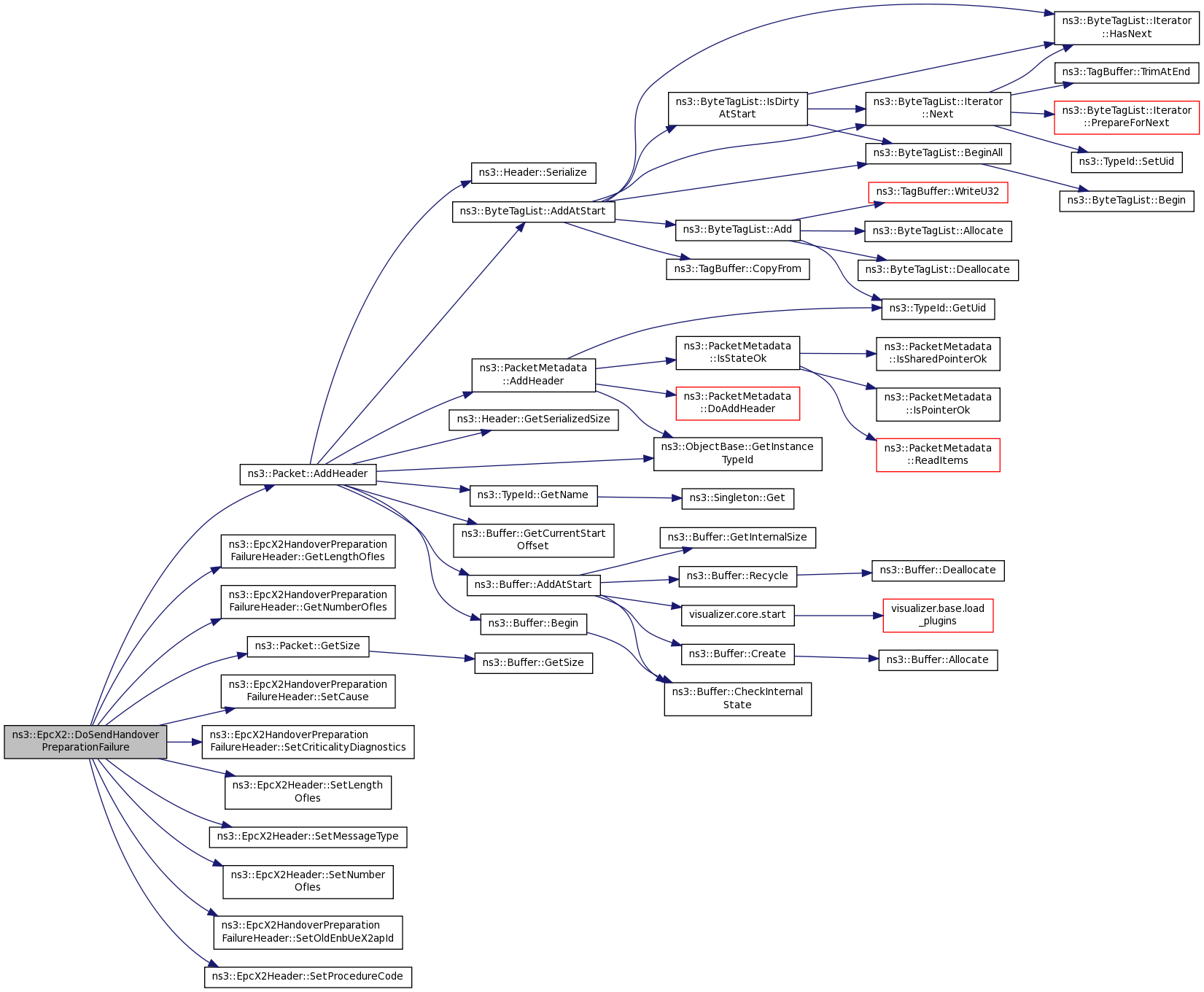

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequest ( EpcX2SapProvider::HandoverRequestParams params )

protectedvirtual

Definition at line 402 of file epc-x2.cc.

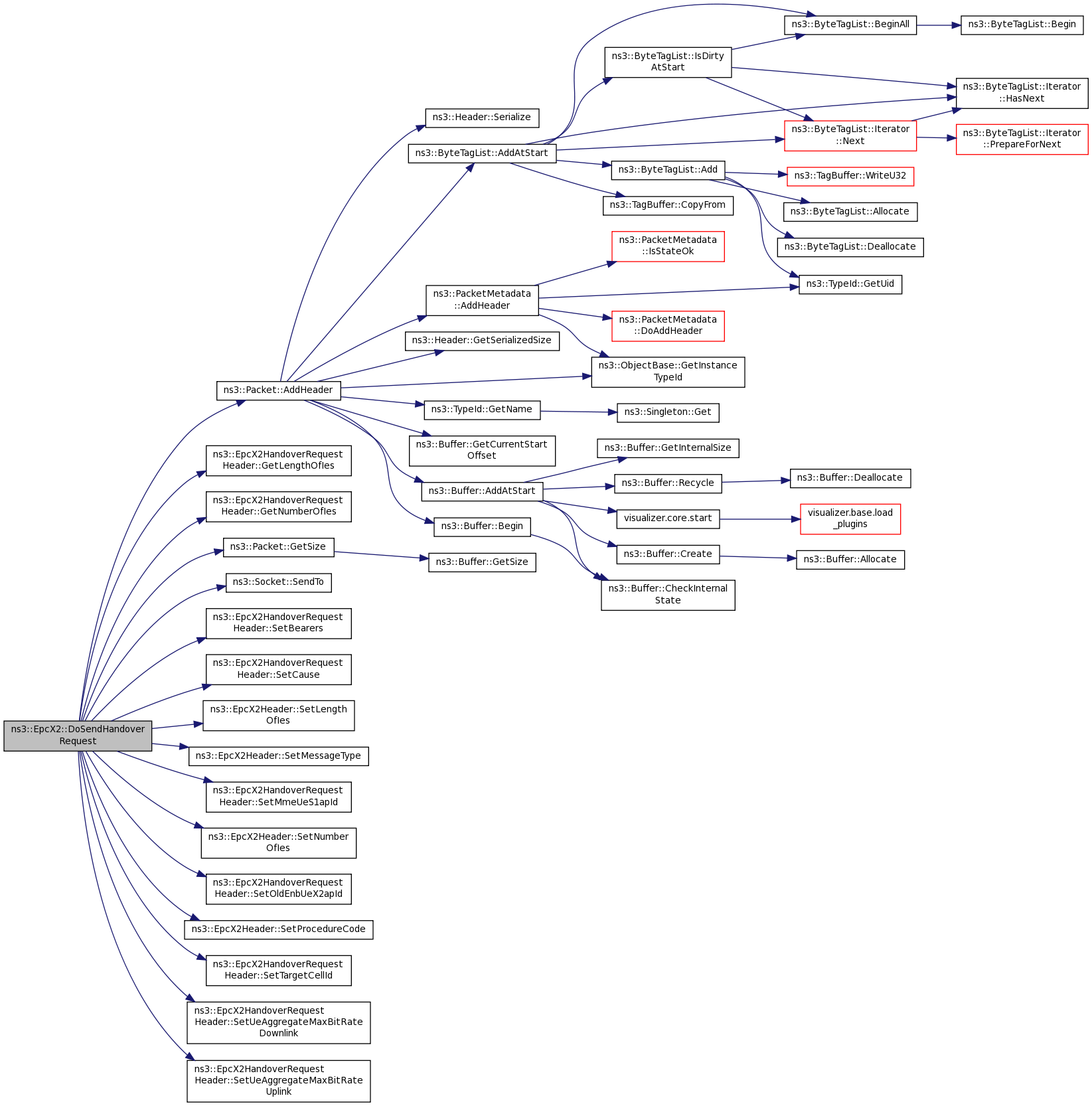

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequestAck ( EpcX2SapProvider::HandoverRequestAckParams params )

protectedvirtual

Definition at line 453 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes(), ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverPreparation, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::notAdmittedBearers, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::EpcX2HandoverRequestAckHeader::SetAdmittedBearers(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2HandoverRequestAckHeader::SetNewEnbUeX2apId(), ns3::EpcX2HandoverRequestAckHeader::SetNotAdmittedBearers(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverRequestAckHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Header::SuccessfulOutcome, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

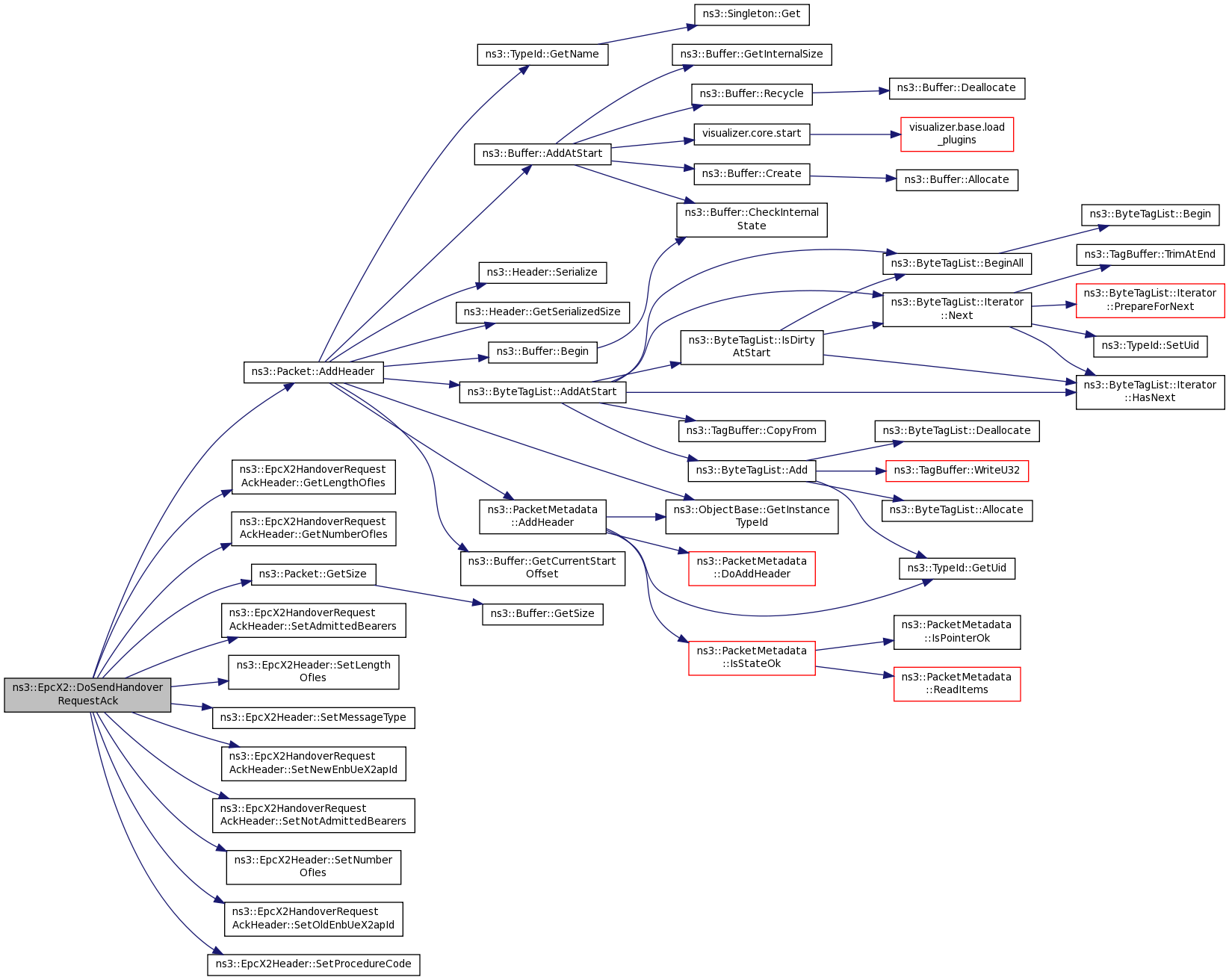

Here is the call graph for this function:

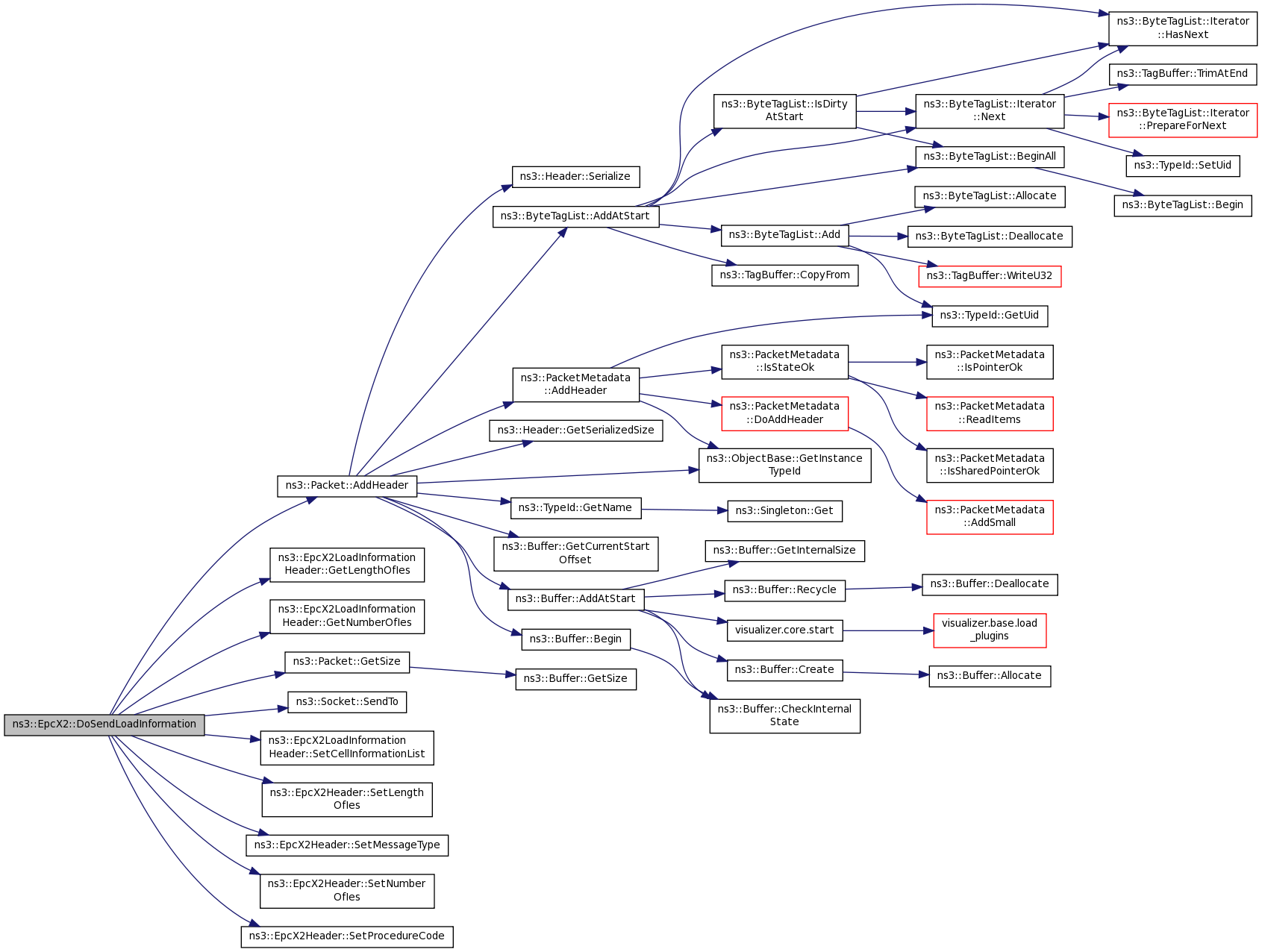

void ns3::EpcX2::DoSendLoadInformation ( EpcX2SapProvider::LoadInformationParams params )

protectedvirtual

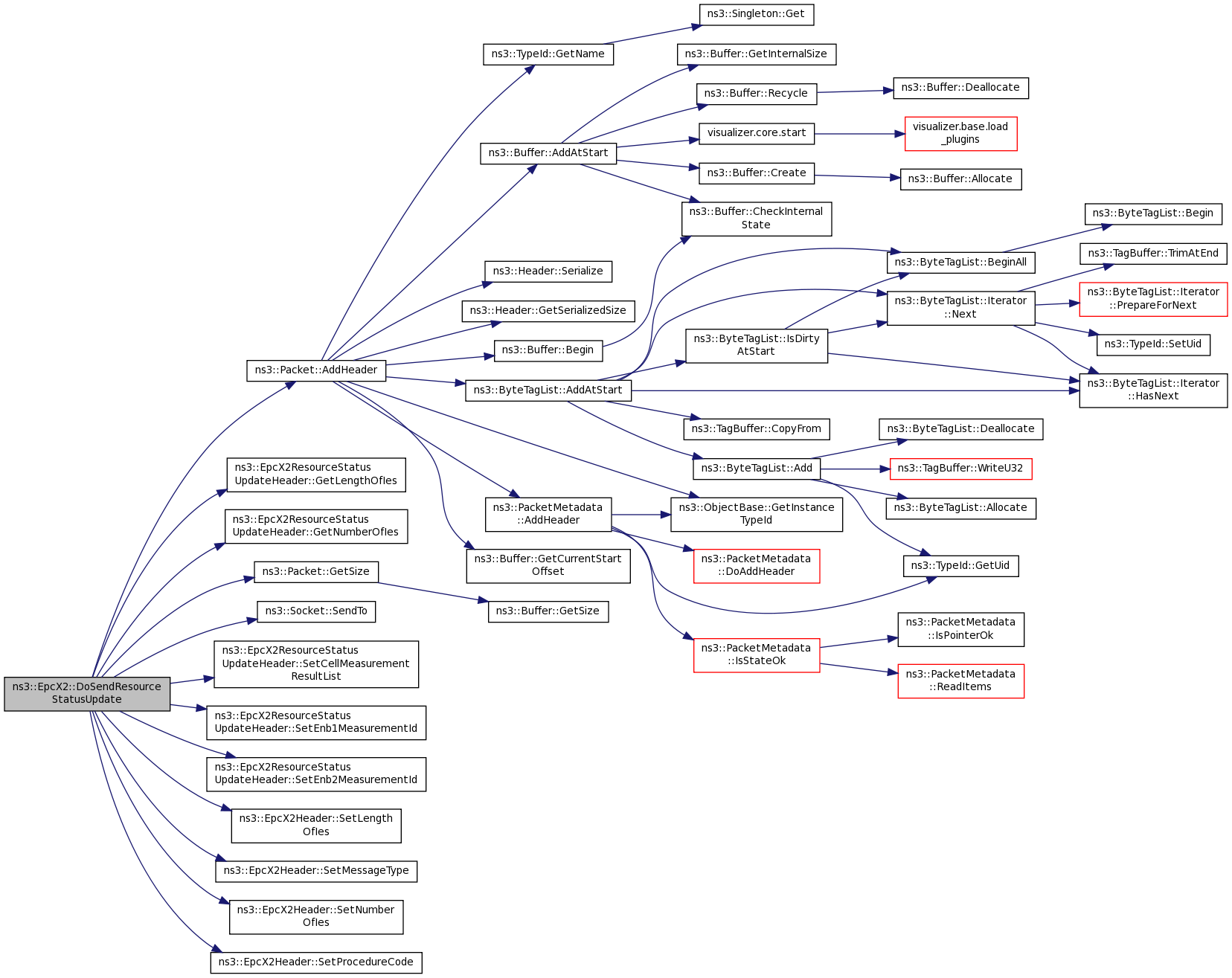

void ns3::EpcX2::DoSendResourceStatusUpdate ( EpcX2SapProvider::ResourceStatusUpdateParams params )

protectedvirtual

Definition at line 687 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb1MeasurementId, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb2MeasurementId, ns3::EpcX2ResourceStatusUpdateHeader::GetLengthOfIes(), ns3::EpcX2ResourceStatusUpdateHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Header::ResourceStatusReporting, ns3::Socket::SendTo(), ns3::EpcX2ResourceStatusUpdateHeader::SetCellMeasurementResultList(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb1MeasurementId(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb2MeasurementId(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Sap::ResourceStatusUpdateParams::targetCellId.

Here is the call graph for this function:

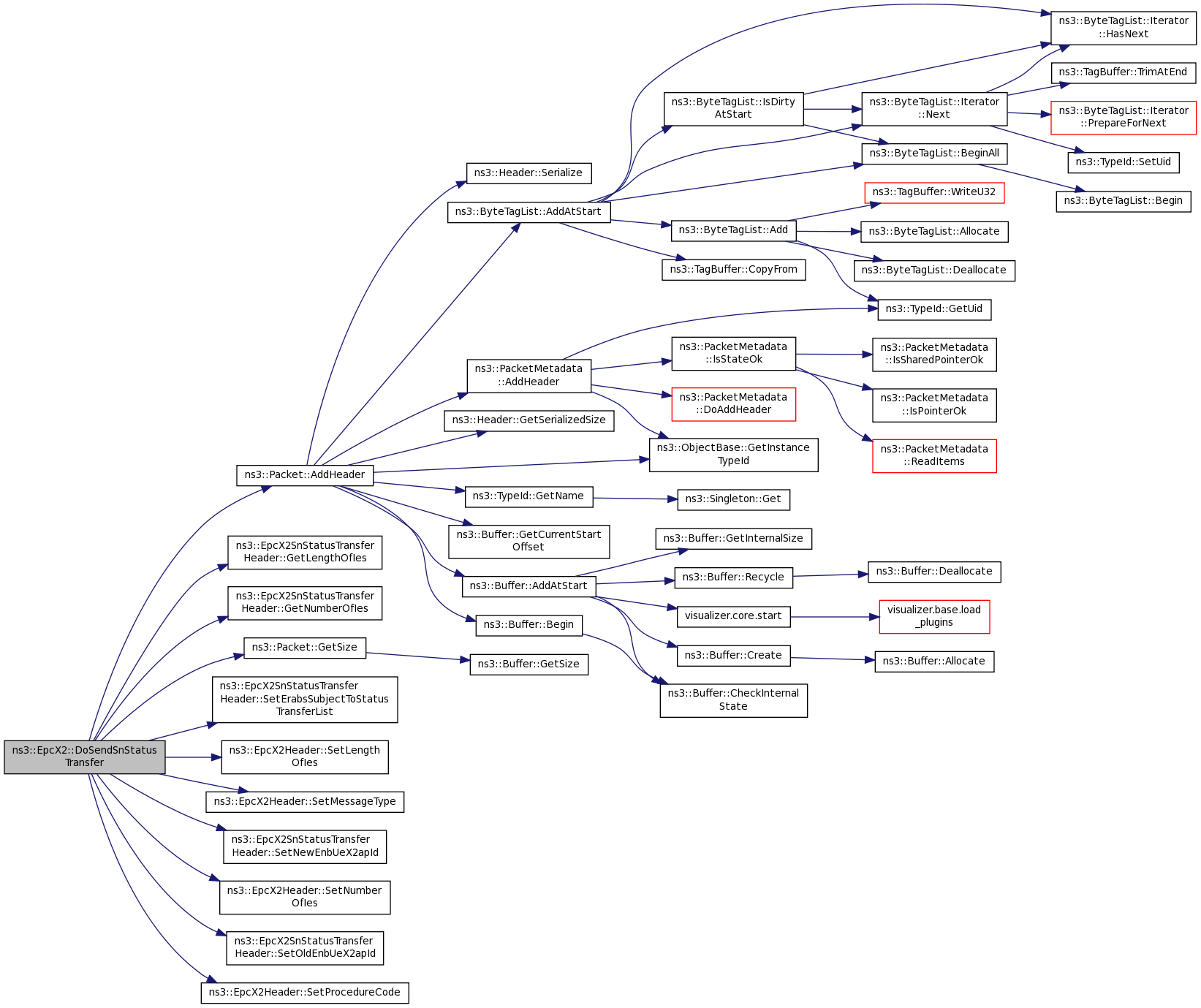

void ns3::EpcX2::DoSendSnStatusTransfer ( EpcX2SapProvider::SnStatusTransferParams params )

protectedvirtual

Definition at line 550 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes(), ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Header::SnStatusTransfer, ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, and ns3::EpcX2Sap::SnStatusTransferParams::targetCellId.

Here is the call graph for this function:

void ns3::EpcX2::DoSendUeContextRelease ( EpcX2SapProvider::UeContextReleaseParams params )

protectedvirtual

Definition at line 598 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2UeContextReleaseHeader::GetLengthOfIes(), ns3::EpcX2UeContextReleaseHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2UeContextReleaseHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2UeContextReleaseHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, and ns3::EpcX2Header::UeContextRelease.

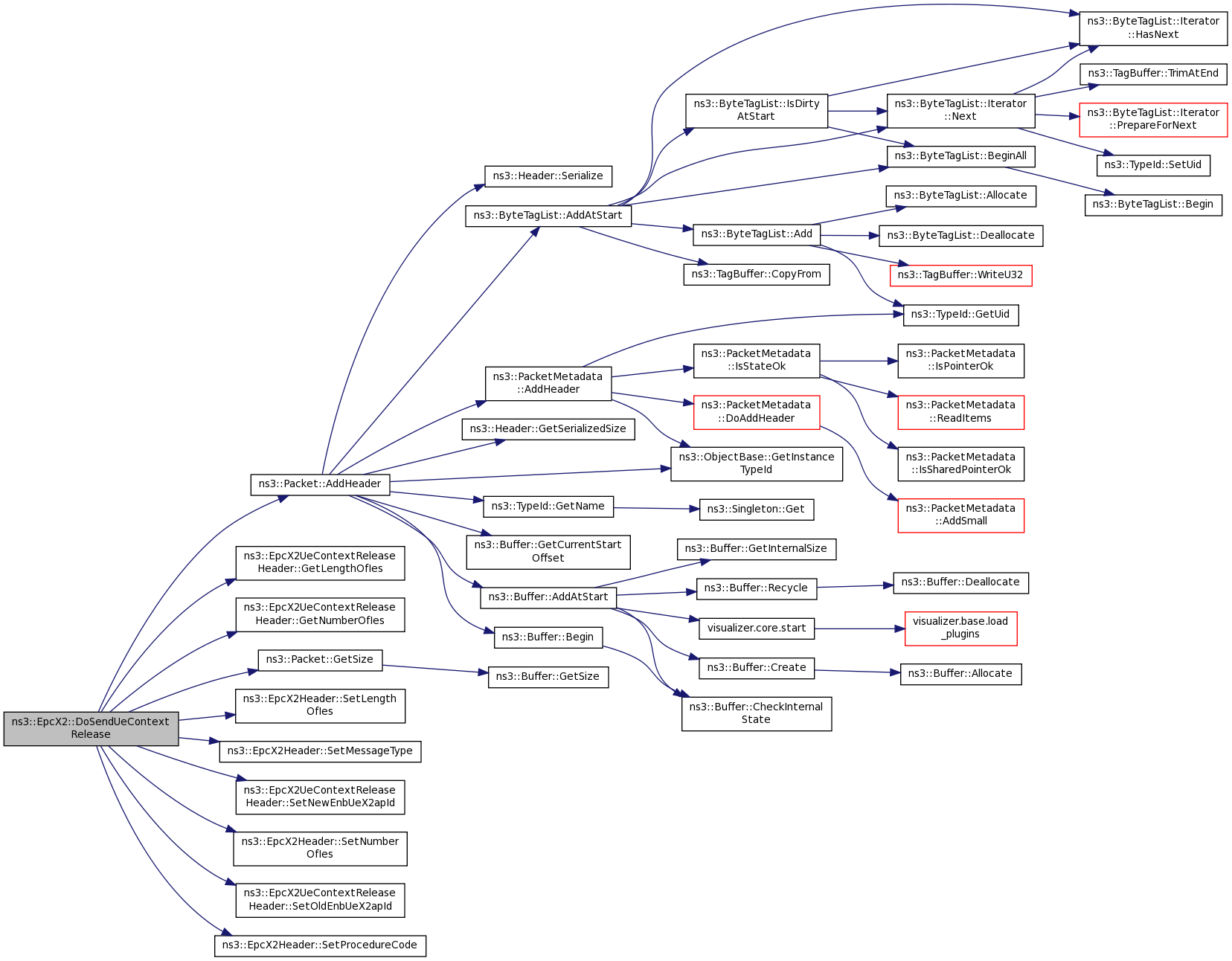

Here is the call graph for this function:

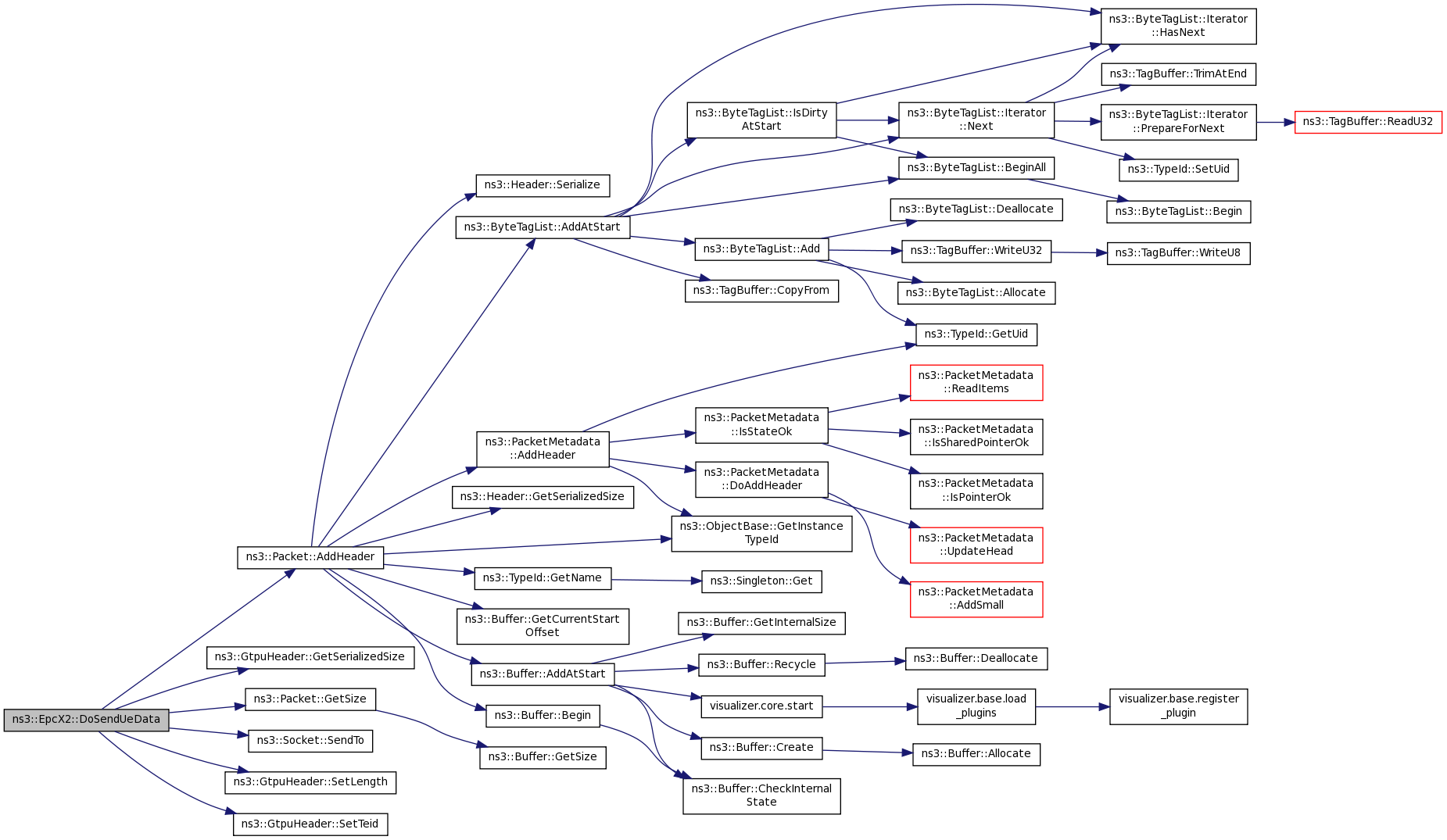

void ns3::EpcX2::DoSendUeData ( EpcX2SapProvider::UeDataParams params )

protectedvirtual

Todo:: This should be done in GtpuHeader

Definition at line 735 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceSockets, m_x2uUdpPort, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), ns3::GtpuHeader::SetTeid(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

Here is the call graph for this function:

EpcX2SapProvider * ns3::EpcX2::GetEpcX2SapProvider ( )

Returns: the X2 SAP Provider interface offered by this EPC X2 entity

Definition at line 126 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

TypeId ns3::EpcX2::GetTypeId ( void )

static

Definition at line 111 of file epc-x2.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

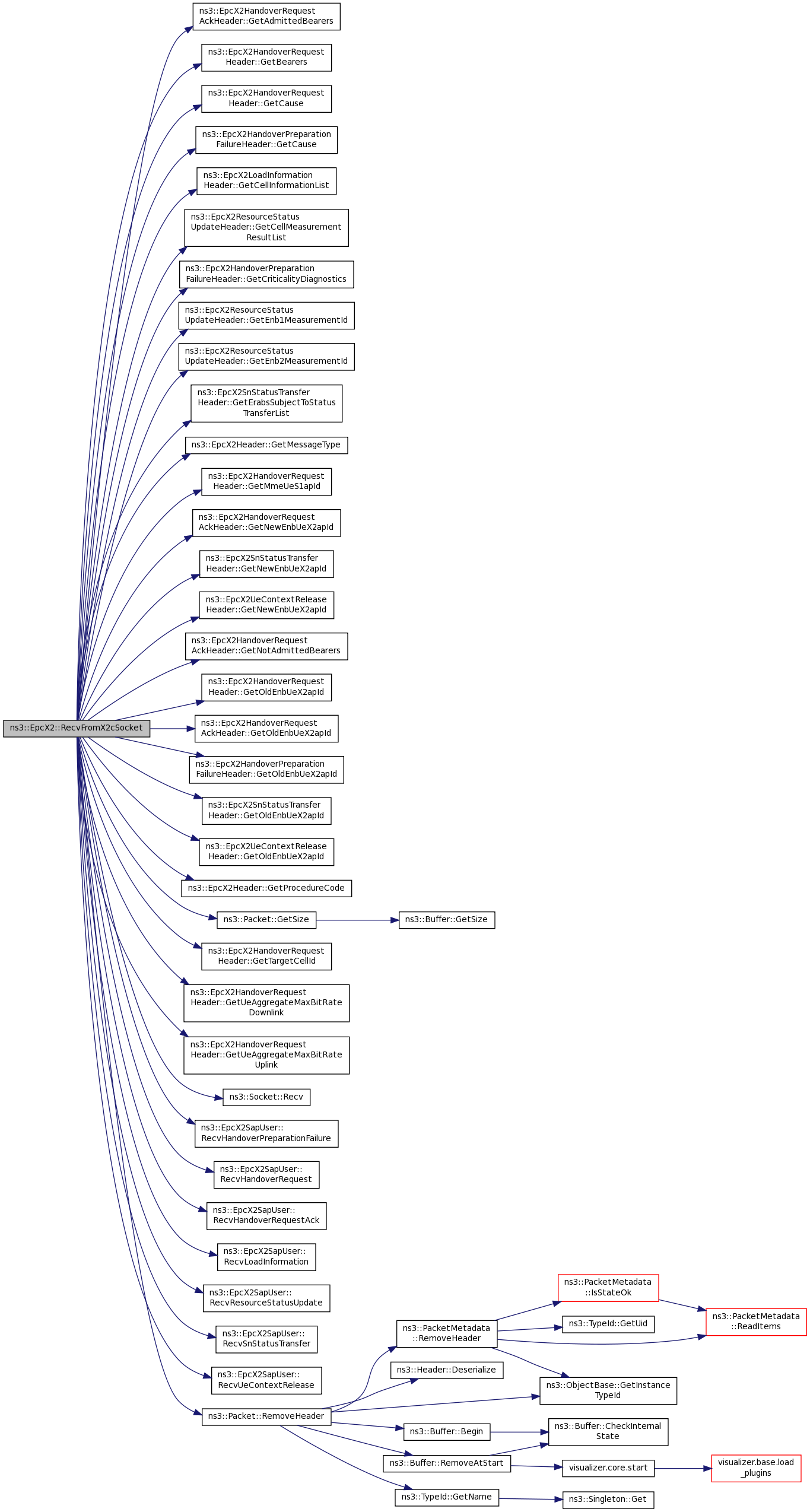

void ns3::EpcX2::RecvFromX2cSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-C interface

Parameters

socket socket of the X2-C interface

Definition at line 171 of file epc-x2.cc.

Referenced by AddX2Interface().

Here is the call graph for this function:

Here is the caller graph for this function:

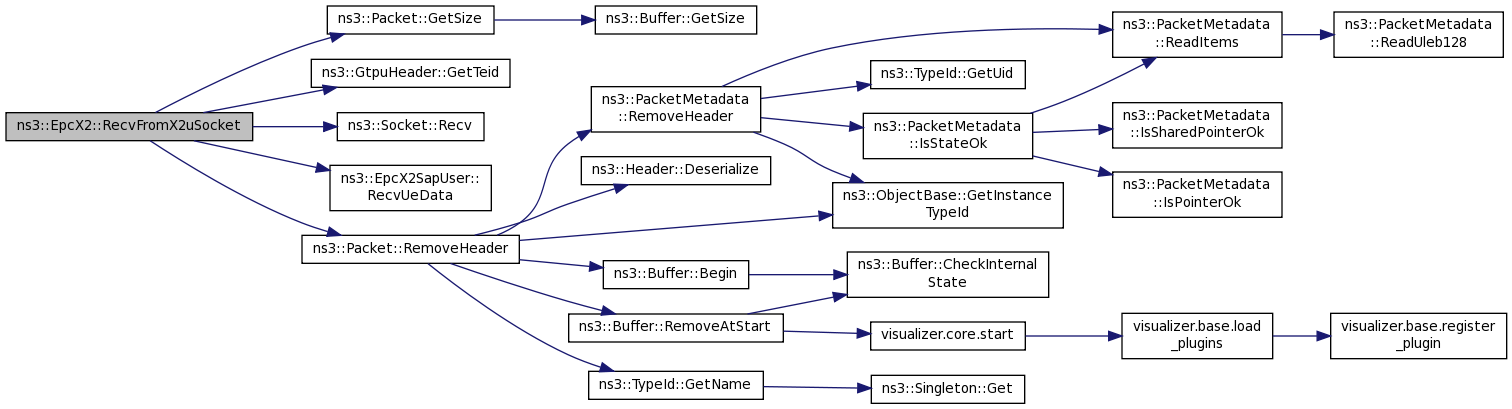

void ns3::EpcX2::RecvFromX2uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-U interface

Parameters

socket socket of the X2-U interface

Definition at line 371 of file epc-x2.cc.

References ns3::Packet::GetSize(), ns3::GtpuHeader::GetTeid(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceCellIds, m_x2SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Socket::Recv(), ns3::EpcX2SapUser::RecvUeData(), ns3::Packet::RemoveHeader(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

Referenced by AddX2Interface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcX2::SetEpcX2SapUser ( EpcX2SapUser * s )

Parameters

s	the X2 SAP User to be used by this EPC X2 entity

Definition at line 119 of file epc-x2.cc.

References m_x2SapUser, NS_LOG_FUNCTION, and s.

Friends And Related Function Documentation

friend class EpcX2SpecificEpcX2SapProvider< EpcX2 >

friend

Definition at line 72 of file epc-x2.h.

Member Data Documentation

uint16_t ns3::EpcX2::m_x2cUdpPort

private

UDP ports to be used for the X2 interfaces: X2-C and X2-U.

Definition at line 160 of file epc-x2.h.

Referenced by AddX2Interface(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), and DoSendUeContextRelease().

std::map< Ptr<Socket>, Ptr<X2CellInfo> > ns3::EpcX2::m_x2InterfaceCellIds

private

Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface.

Definition at line 155 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), RecvFromX2cSocket(), and RecvFromX2uSocket().

std::map< uint16_t, Ptr<X2IfaceInfo> > ns3::EpcX2::m_x2InterfaceSockets

private

Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message.

Definition at line 149 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), DoSendUeContextRelease(), and DoSendUeData().

EpcX2SapProvider* ns3::EpcX2::m_x2SapProvider

protected

Definition at line 140 of file epc-x2.h.

Referenced by DoDispose(), EpcX2(), and GetEpcX2SapProvider().

EpcX2SapUser* ns3::EpcX2::m_x2SapUser

protected

Definition at line 139 of file epc-x2.h.

Referenced by RecvFromX2cSocket(), RecvFromX2uSocket(), and SetEpcX2SapUser().

uint16_t ns3::EpcX2::m_x2uUdpPort

private

Definition at line 161 of file epc-x2.h.

Referenced by AddX2Interface(), and DoSendUeData().

The documentation for this class was generated from the following files:

src/lte/model/epc-x2.h
src/lte/model/epc-x2.cc
