ns3::EpcX2Sap::UeDataParams Struct Reference

Parameters of the UE DATA primitive. More...

#include <epc-x2-sap.h>

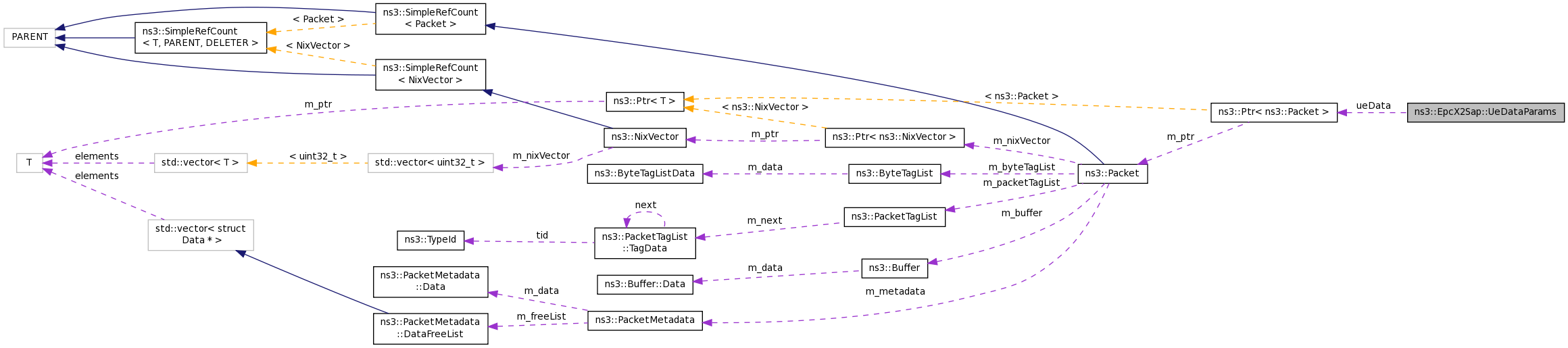

+ Collaboration diagram for ns3::EpcX2Sap::UeDataParams:

Public Attributes

uint32_t gtpTeid

uint16_t sourceCellId

uint16_t targetCellId

Ptr< Packet > ueData


Detailed Description

Parameters of the UE DATA primitive.

Forward UE data during the handover procedure from source eNB (sourceCellId) to target eNB (targetCellId) using a GTP-U tunnel (gtpTeid)

Definition at line 325 of file epc-x2-sap.h.

Member Data Documentation

uint32_t ns3::EpcX2Sap::UeDataParams::gtpTeid

Definition at line 329 of file epc-x2-sap.h.

Referenced by ns3::LteEnbRrc::DoRecvUeData(), ns3::EpcX2::DoSendUeData(), ns3::EpcX2::RecvFromX2uSocket(), and ns3::UeManager::SendData().

uint16_t ns3::EpcX2Sap::UeDataParams::sourceCellId

Definition at line 327 of file epc-x2-sap.h.

Referenced by ns3::LteEnbRrc::DoRecvUeData(), ns3::EpcX2::DoSendUeData(), ns3::EpcX2::RecvFromX2uSocket(), and ns3::UeManager::SendData().

uint16_t ns3::EpcX2Sap::UeDataParams::targetCellId

Definition at line 328 of file epc-x2-sap.h.

Referenced by ns3::LteEnbRrc::DoRecvUeData(), ns3::EpcX2::DoSendUeData(), ns3::EpcX2::RecvFromX2uSocket(), and ns3::UeManager::SendData().

Ptr<Packet> ns3::EpcX2Sap::UeDataParams::ueData

Definition at line 330 of file epc-x2-sap.h.

Referenced by ns3::LteEnbRrc::DoRecvUeData(), ns3::EpcX2::DoSendUeData(), ns3::EpcX2::RecvFromX2uSocket(), and ns3::UeManager::SendData().

The documentation for this struct was generated from the following file:
