Implementation of the UDP protocol. More...

#include <udp-l4-protocol.h>

Inheritance diagram for ns3::UdpL4Protocol:

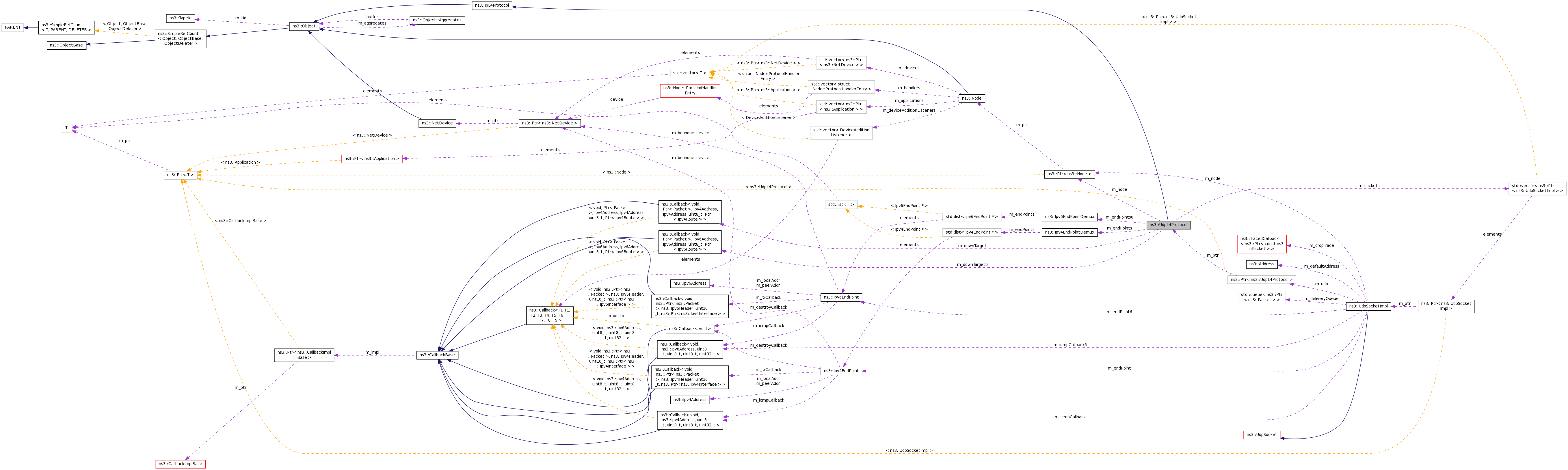

Collaboration diagram for ns3::UdpL4Protocol:

Public Member Functions
	UdpL4Protocol ()

virtual	~UdpL4Protocol ()

Ipv4EndPoint *	Allocate (void)
	Allocate an IPv4 Endpoint. More...

Ipv4EndPoint *	Allocate (Ipv4Address address)
	Allocate an IPv4 Endpoint. More...

Ipv4EndPoint *	Allocate (uint16_t port)
	Allocate an IPv4 Endpoint. More...

Ipv4EndPoint *	Allocate (Ipv4Address address, uint16_t port)
	Allocate an IPv4 Endpoint. More...

Ipv4EndPoint *	Allocate (Ipv4Address localAddress, uint16_t localPort, Ipv4Address peerAddress, uint16_t peerPort)
	Allocate an IPv4 Endpoint. More...

Ipv6EndPoint *	Allocate6 (void)
	Allocate an IPv6 Endpoint. More...

Ipv6EndPoint *	Allocate6 (Ipv6Address address)
	Allocate an IPv6 Endpoint. More...

Ipv6EndPoint *	Allocate6 (uint16_t port)
	Allocate an IPv6 Endpoint. More...

Ipv6EndPoint *	Allocate6 (Ipv6Address address, uint16_t port)
	Allocate an IPv6 Endpoint. More...

Ipv6EndPoint *	Allocate6 (Ipv6Address localAddress, uint16_t localPort, Ipv6Address peerAddress, uint16_t peerPort)
	Allocate an IPv6 Endpoint. More...

Ptr< Socket >	CreateSocket (void)

void	DeAllocate (Ipv4EndPoint *endPoint)
	Remove an IPv4 Endpoint. More...

void	DeAllocate (Ipv6EndPoint *endPoint)
	Remove an IPv6 Endpoint. More...

virtual IpL4Protocol::DownTargetCallback	GetDownTarget (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual IpL4Protocol::DownTargetCallback6	GetDownTarget6 (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

virtual int	GetProtocolNumber (void) const

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > interface)
	Called from lower-level layers to send the packet up in the stack. More...

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > interface)
	Called from lower-level layers to send the packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

void	Send (Ptr< Packet > packet, Ipv4Address saddr, Ipv4Address daddr, uint16_t sport, uint16_t dport)
	Send a packet via UDP (IPv4) More...

void	Send (Ptr< Packet > packet, Ipv4Address saddr, Ipv4Address daddr, uint16_t sport, uint16_t dport, Ptr< Ipv4Route > route)
	Send a packet via UDP (IPv4) More...

void	Send (Ptr< Packet > packet, Ipv6Address saddr, Ipv6Address daddr, uint16_t sport, uint16_t dport)
	Send a packet via UDP (IPv6) More...

void	Send (Ptr< Packet > packet, Ipv6Address saddr, Ipv6Address daddr, uint16_t sport, uint16_t dport, Ptr< Ipv6Route > route)
	Send a packet via UDP (IPv6) More...

virtual void	SetDownTarget (IpL4Protocol::DownTargetCallback cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

Public Member Functions inherited from ns3::IpL4Protocol
virtual	~IpL4Protocol ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 17
	protocol number (0x11) More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	NotifyNewAggregate ()
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
	UdpL4Protocol (const UdpL4Protocol &)
	Copy constructor. More...

UdpL4Protocol &	operator= (const UdpL4Protocol &)
	Copy constructor. More...

Private Attributes
IpL4Protocol::DownTargetCallback	m_downTarget
	Callback to send packets over IPv4. More...

IpL4Protocol::DownTargetCallback6	m_downTarget6
	Callback to send packets over IPv6. More...

Ipv4EndPointDemux *	m_endPoints
	A list of IPv4 end points. More...

Ipv6EndPointDemux *	m_endPoints6
	A list of IPv6 end points. More...

Ptr< Node >	m_node
	the node this stack is associated with More...

std::vector< Ptr< UdpSocketImpl > >	m_sockets
	list of sockets More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr < Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr < Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr < Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr < Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Detailed Description

Implementation of the UDP protocol.

Config Paths

ns3::UdpL4Protocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::UdpL4Protocol

Attributes

SocketList: The list of sockets associated to this protocol.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::UdpSocketImpl >
- Flags: read

Attributes defined in parent class ns3::IpL4Protocol

ProtocolNumber: The Ip protocol number.
- Set with class: ns3::UintegerValue
- Underlying type: int32_t 18446744071562067968:2147483647
- Flags: read

No TraceSources are defined for this type.

Definition at line 48 of file udp-l4-protocol.h.

Constructor & Destructor Documentation

ns3::UdpL4Protocol::UdpL4Protocol ( )

Definition at line 67 of file udp-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::UdpL4Protocol::~UdpL4Protocol ( )

virtual

Definition at line 73 of file udp-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::UdpL4Protocol::UdpL4Protocol ( const UdpL4Protocol & )

private

Copy constructor.

Defined and not implemented to avoid misuse

Member Function Documentation

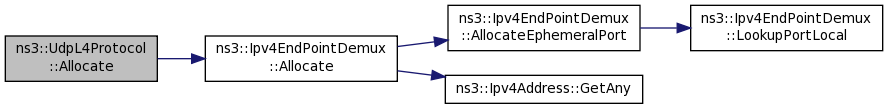

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( void )

Allocate an IPv4 Endpoint.

Returns: the Endpoint

Definition at line 174 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( Ipv4Address address )

Allocate an IPv4 Endpoint.

Parameters

address address to use

Returns: the Endpoint

Definition at line 181 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( uint16_t port )

Allocate an IPv4 Endpoint.

Parameters

port	port to use

Returns: the Endpoint

Definition at line 188 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate	(	Ipv4Address	address,
		uint16_t	port
	)

Allocate an IPv4 Endpoint.

Parameters

address	address to use
port	port to use

Returns: the Endpoint

Definition at line 195 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate	(	Ipv4Address	localAddress,
		uint16_t	localPort,
		Ipv4Address	peerAddress,
		uint16_t	peerPort
	)

Allocate an IPv4 Endpoint.

Parameters

localAddress	local address to use
localPort	local port to use
peerAddress	remote address to use
peerPort	remote port to use

Returns: the Endpoint

Definition at line 201 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

Here is the call graph for this function:

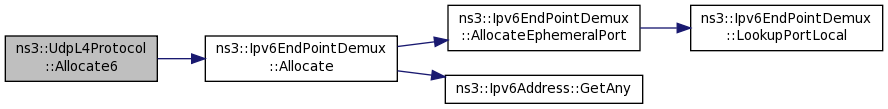

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( void )

Allocate an IPv6 Endpoint.

Returns: the Endpoint

Definition at line 217 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( Ipv6Address address )

Allocate an IPv6 Endpoint.

Parameters

address address to use

Returns: the Endpoint

Definition at line 224 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( uint16_t port )

Allocate an IPv6 Endpoint.

Parameters

port	port to use

Returns: the Endpoint

Definition at line 231 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6	(	Ipv6Address	address,
		uint16_t	port
	)

Allocate an IPv6 Endpoint.

Parameters

address	address to use
port	port to use

Returns: the Endpoint

Definition at line 238 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6	(	Ipv6Address	localAddress,
		uint16_t	localPort,
		Ipv6Address	peerAddress,
		uint16_t	peerPort
	)

Allocate an IPv6 Endpoint.

Parameters

localAddress	local address to use
localPort	local port to use
peerAddress	remote address to use
peerPort	remote port to use

Returns: the Endpoint

Definition at line 244 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< Socket > ns3::UdpL4Protocol::CreateSocket ( void )

Returns: A smart Socket pointer to a UdpSocket, allocated by this instance of the UDP protocol

Definition at line 163 of file udp-l4-protocol.cc.

References m_node, m_sockets, and NS_LOG_FUNCTION_NOARGS.

void ns3::UdpL4Protocol::DeAllocate ( Ipv4EndPoint * endPoint )

Remove an IPv4 Endpoint.

Parameters

endPoint the end point to remove

Definition at line 210 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::DeAllocate(), m_endPoints, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::UdpL4Protocol::DeAllocate ( Ipv6EndPoint * endPoint )

Remove an IPv6 Endpoint.

Parameters

endPoint the end point to remove

Definition at line 253 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::DeAllocate(), m_endPoints6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::UdpL4Protocol::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 134 of file udp-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_downTarget6, m_endPoints, m_endPoints6, m_node, m_sockets, NS_LOG_FUNCTION_NOARGS, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

IpL4Protocol::DownTargetCallback ns3::UdpL4Protocol::GetDownTarget ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 511 of file udp-l4-protocol.cc.

References m_downTarget.

IpL4Protocol::DownTargetCallback6 ns3::UdpL4Protocol::GetDownTarget6 ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 524 of file udp-l4-protocol.cc.

References m_downTarget6.

int ns3::UdpL4Protocol::GetProtocolNumber ( void ) const

virtual

Returns: the protocol number of this protocol.

Implements ns3::IpL4Protocol.

Definition at line 127 of file udp-l4-protocol.cc.

References PROT_NUMBER.

TypeId ns3::UdpL4Protocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 54 of file udp-l4-protocol.cc.

References m_sockets, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::UdpL4Protocol::NotifyNewAggregate ( void )

protectedvirtual

This method is invoked whenever two sets of objects are aggregated together.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 90 of file udp-l4-protocol.cc.

References ns3::Object::AggregateObject(), ns3::Object::GetObject(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_downTarget6, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv4::Send(), ns3::Ipv6L3Protocol::Send(), SetDownTarget(), SetDownTarget6(), and SetNode().

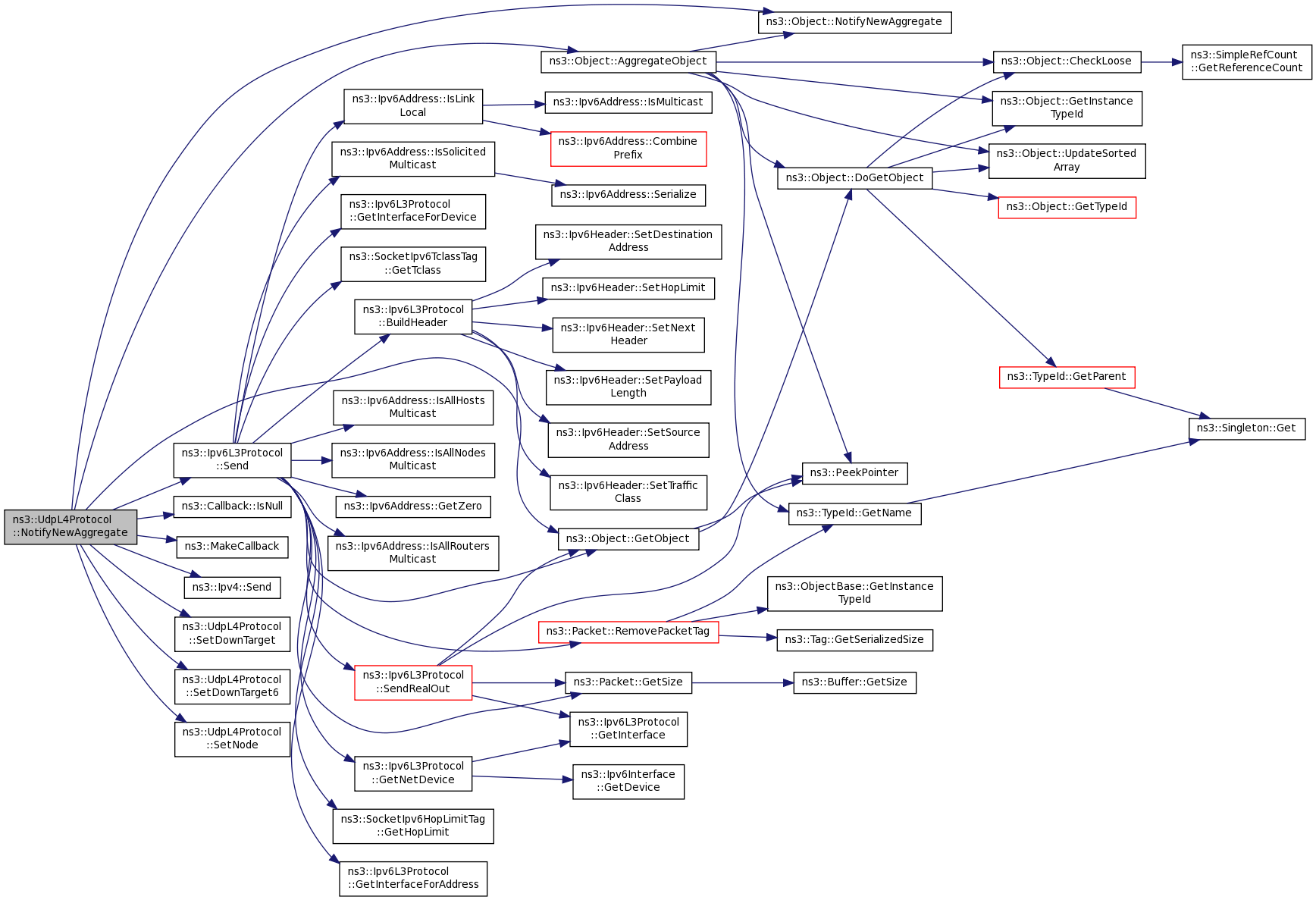

Here is the call graph for this function:

UdpL4Protocol& ns3::UdpL4Protocol::operator= ( const UdpL4Protocol & )

private

Copy constructor.

Defined and not implemented to avoid misuse

Returns

enum IpL4Protocol::RxStatus ns3::UdpL4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv6Header const &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

virtual

Called from lower-level layers to send the packet up in the stack.

Parameters

p	packet to forward up
header	IPv6 Header information
incomingInterface	the Ipv6Interface on which the packet arrived

Returns: Rx status code

Implements ns3::IpL4Protocol.

Definition at line 373 of file udp-l4-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::UdpHeader::EnableChecksums(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsIpv4MappedAddress(), ns3::Ipv6EndPointDemux::Lookup(), m_endPoints6, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PROT_NUMBER, ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, and ns3::IpL4Protocol::RX_OK.

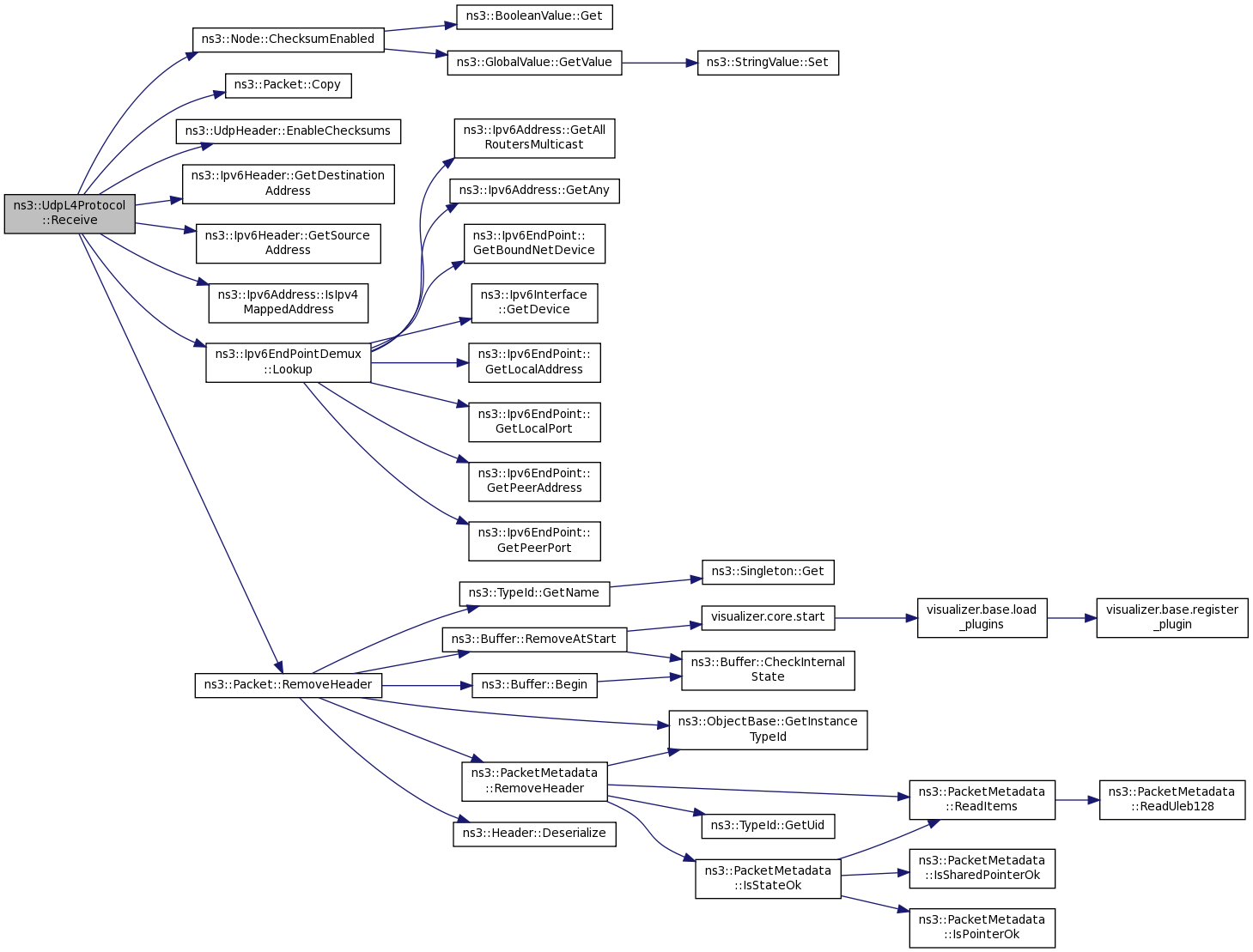

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::UdpL4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv4Header const &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

virtual

Called from lower-level layers to send the packet up in the stack.

Parameters

p	packet to forward up
header	IPv4 Header information
incomingInterface	the Ipv4Interface on which the packet arrived

Returns: Rx status code

Implements ns3::IpL4Protocol.

Definition at line 314 of file udp-l4-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::UdpHeader::EnableChecksums(), ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::Ipv4Header::GetSource(), ns3::UdpHeader::GetSourcePort(), ns3::UdpHeader::InitializeChecksum(), ns3::UdpHeader::IsChecksumOk(), ns3::Ipv4EndPointDemux::Lookup(), m_endPoints, ns3::Ipv6Address::MakeIpv4MappedAddress(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), PROT_NUMBER, ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, ns3::IpL4Protocol::RX_OK, ns3::Ipv6Header::SetDestinationAddress(), and ns3::Ipv6Header::SetSourceAddress().

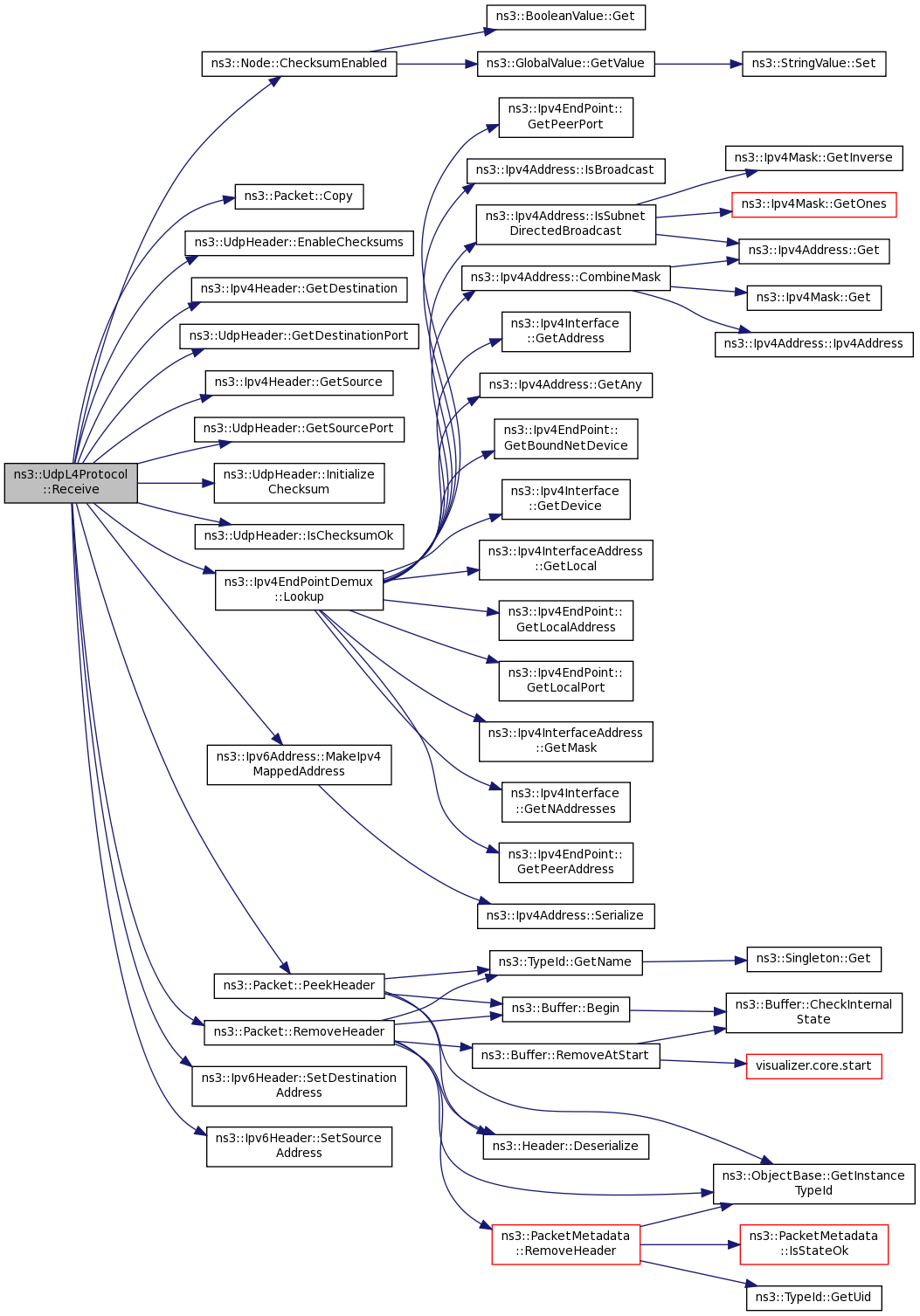

Here is the call graph for this function:

void ns3::UdpL4Protocol::ReceiveIcmp	(	Ipv4Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo,
		Ipv4Address	payloadSource,
		Ipv4Address	payloadDestination,
		const uint8_t	payload[8]
	)

virtual

Called from lower-level layers to send the ICMP packet up in the stack.

Parameters

icmpSource	the source address of the icmp message
icmpTtl	the ttl of the icmp message
icmpType	the 'type' field of the icmp message
icmpCode	the 'code' field of the icmp message
icmpInfo	extra information dependent on the icmp message generated by Icmpv4L4Protocol
payloadSource	the source address of the packet which triggered the icmp message
payloadDestination	the destination address of the packet which triggered the icmp message.
payload	the first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented from ns3::IpL4Protocol.

Definition at line 260 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPoint::ForwardIcmp(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Ipv4EndPointDemux::SimpleLookup().

Here is the call graph for this function:

void ns3::UdpL4Protocol::ReceiveIcmp	(	Ipv6Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo,
		Ipv6Address	payloadSource,
		Ipv6Address	payloadDestination,
		const uint8_t	payload[8]
	)

virtual

Called from lower-level layers to send the ICMPv6 packet up in the stack.

Parameters

icmpSource	the source address of the icmp message
icmpTtl	the ttl of the icmp message
icmpType	the 'type' field of the icmp message
icmpCode	the 'code' field of the icmp message
icmpInfo	extra information dependent on the icmp message generated by Icmpv6L4Protocol
payloadSource	the source address of the packet which triggered the icmp message
payloadDestination	the destination address of the packet which triggered the icmp message.
payload	the first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented from ns3::IpL4Protocol.

Definition at line 287 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPoint::ForwardIcmp(), m_endPoints6, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Ipv6EndPointDemux::SimpleLookup().

Here is the call graph for this function:

void ns3::UdpL4Protocol::Send	(	Ptr< Packet >	packet,
		Ipv4Address	saddr,
		Ipv4Address	daddr,
		uint16_t	sport,
		uint16_t	dport
	)

Send a packet via UDP (IPv4)

Parameters

packet	The packet to send
saddr	The source Ipv4Address
daddr	The destination Ipv4Address
sport	The source port number
dport	The destination port number

Definition at line 412 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

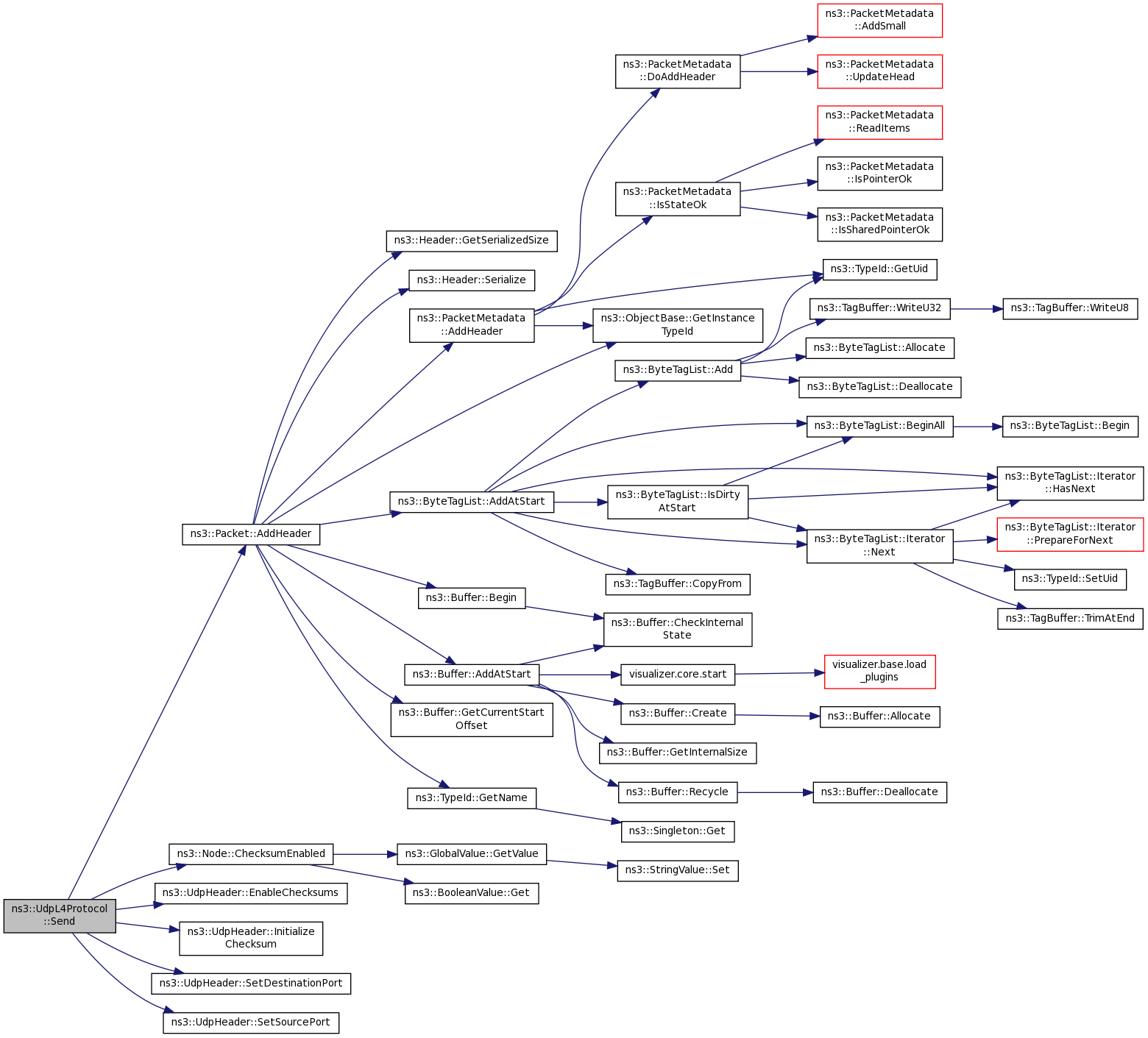

Here is the call graph for this function:

void ns3::UdpL4Protocol::Send	(	Ptr< Packet >	packet,
		Ipv4Address	saddr,
		Ipv4Address	daddr,
		uint16_t	sport,
		uint16_t	dport,
		Ptr< Ipv4Route >	route
	)

Send a packet via UDP (IPv4)

Parameters

packet	The packet to send
saddr	The source Ipv4Address
daddr	The destination Ipv4Address
sport	The source port number
dport	The destination port number
route	The route

Definition at line 435 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

Here is the call graph for this function:

void ns3::UdpL4Protocol::Send	(	Ptr< Packet >	packet,
		Ipv6Address	saddr,
		Ipv6Address	daddr,
		uint16_t	sport,
		uint16_t	dport
	)

Send a packet via UDP (IPv6)

Parameters

packet	The packet to send
saddr	The source Ipv4Address
daddr	The destination Ipv4Address
sport	The source port number
dport	The destination port number

Definition at line 458 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget6, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

Here is the call graph for this function:

void ns3::UdpL4Protocol::Send	(	Ptr< Packet >	packet,
		Ipv6Address	saddr,
		Ipv6Address	daddr,
		uint16_t	sport,
		uint16_t	dport,
		Ptr< Ipv6Route >	route
	)

Send a packet via UDP (IPv6)

Parameters

packet	The packet to send
saddr	The source Ipv4Address
daddr	The destination Ipv4Address
sport	The source port number
dport	The destination port number
route	The route
