A representation of an internet IPv6 endpoint/connection. More...

#include <ipv6-end-point.h>

Collaboration diagram for ns3::Ipv6EndPoint:

Public Member Functions
	Ipv6EndPoint (Ipv6Address addr, uint16_t port)
	Constructor. More...

	~Ipv6EndPoint ()

void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device. More...

void	ForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	Forward the ICMP packet to the upper level. More...

void	ForwardUp (Ptr< Packet > p, Ipv6Header header, uint16_t port, Ptr< Ipv6Interface > incomingInterface)
	Forward the packet to the upper level. More...

Ptr< NetDevice >	GetBoundNetDevice (void)
	Returns socket's bound netdevice, if any. More...

Ipv6Address	GetLocalAddress ()
	Get the local address. More...

uint16_t	GetLocalPort ()
	Get the local port. More...

Ipv6Address	GetPeerAddress ()
	Get the peer address. More...

uint16_t	GetPeerPort ()
	Get the peer port. More...

void	SetDestroyCallback (Callback< void > callback)
	Set the default destroy callback. More...

void	SetIcmpCallback (Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback)
	Set the ICMP callback. More...

void	SetLocalAddress (Ipv6Address addr)
	Set the local address. More...

void	SetLocalPort (uint16_t port)
	Set the local port. More...

void	SetPeer (Ipv6Address addr, uint16_t port)
	Set the peer informations (address and port). More...

void	SetRxCallback (Callback< void, Ptr< Packet >, Ipv6Header, uint16_t, Ptr< Ipv6Interface > > callback)
	Set the reception callback. More...

Private Member Functions
void	DoForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	ForwardIcmp wrapper. More...

void	DoForwardUp (Ptr< Packet > p, Ipv6Header header, uint16_t sport, Ptr< Ipv6Interface > incomingInterface)
	ForwardUp wrapper. More...

Private Attributes
Ptr< NetDevice >	m_boundnetdevice
	The NetDevice the EndPoint is bound to (if any). More...

Callback< void >	m_destroyCallback
	The destroy callback. More...

Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback
	The ICMPv6 callback. More...

Ipv6Address	m_localAddr
	The local address. More...

uint16_t	m_localPort
	The local port. More...

Ipv6Address	m_peerAddr
	The peer address. More...

uint16_t	m_peerPort
	The peer port. More...

Callback< void, Ptr< Packet > , Ipv6Header, uint16_t, Ptr < Ipv6Interface > >	m_rxCallback
	The RX callback. More...

Detailed Description

A representation of an internet IPv6 endpoint/connection.

This class provides an internet four-tuple (source and destination ports and addresses). These are used in the ns3::Ipv6EndPointDemux as targets of lookups. The class also has a callback for notification to higher layers that a packet from a lower layer was received. In the ns3 internet-stack, these notifications are automatically registered to be received by the corresponding socket.

Definition at line 48 of file ipv6-end-point.h.

Constructor & Destructor Documentation

ns3::Ipv6EndPoint::Ipv6EndPoint	(	Ipv6Address	addr,
		uint16_t	port
	)

Constructor.

Parameters

addr	the IPv6 address
port	the port

Definition at line 33 of file ipv6-end-point.cc.

ns3::Ipv6EndPoint::~Ipv6EndPoint ( )

Definition at line 41 of file ipv6-end-point.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_destroyCallback, m_icmpCallback, m_rxCallback, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

Member Function Documentation

void ns3::Ipv6EndPoint::BindToNetDevice ( Ptr< NetDevice > netdevice )

Bind a socket to specific device.

This method corresponds to using setsockopt() SO_BINDTODEVICE of real network or BSD sockets. If set on a socket, this option will force packets to leave the bound device regardless of the device that IP routing would naturally choose. In the receive direction, only packets received from the bound interface will be delivered.

This option has no particular relationship to binding sockets to an address via Socket::Bind (). It is possible to bind sockets to a specific IP address on the bound interface by calling both Socket::Bind (address) and Socket::BindToNetDevice (device), but it is also possible to bind to mismatching device and address, even if the socket can not receive any packets as a result.

Parameters

netdevice Pointer to Netdevice of desired interface

Definition at line 82 of file ipv6-end-point.cc.

References m_boundnetdevice.

void ns3::Ipv6EndPoint::DoForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)

private

ForwardIcmp wrapper.

Parameters

src	source IPv6 address
ttl	time-to-live
type	ICMPv6 type
code	ICMPv6 code
info	ICMPv6 info

Definition at line 138 of file ipv6-end-point.cc.

References m_icmpCallback.

Referenced by ForwardIcmp().

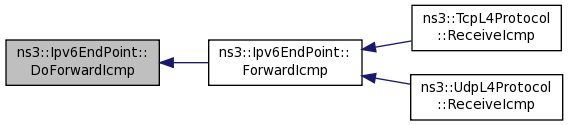

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::DoForwardUp	(	Ptr< Packet >	p,
		Ipv6Header	header,
		uint16_t	sport,
		Ptr< Ipv6Interface >	incomingInterface
	)

private

ForwardUp wrapper.

Parameters

p	packet
header	the packet header
sport	source port
incomingInterface	incoming interface

Definition at line 133 of file ipv6-end-point.cc.

References m_rxCallback.

Referenced by ForwardUp().

Here is the caller graph for this function:

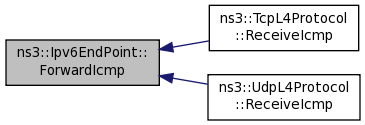

void ns3::Ipv6EndPoint::ForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)

Forward the ICMP packet to the upper level.

Called from an L4Protocol implementation to notify an endpoint of an icmp message reception.

Parameters

src	source IPv6 address
ttl	time-to-live
type	ICMPv6 type
code	ICMPv6 code
info	ICMPv6 info

Definition at line 123 of file ipv6-end-point.cc.

References DoForwardIcmp(), m_icmpCallback, and ns3::Simulator::ScheduleNow().

Referenced by ns3::TcpL4Protocol::ReceiveIcmp(), and ns3::UdpL4Protocol::ReceiveIcmp().

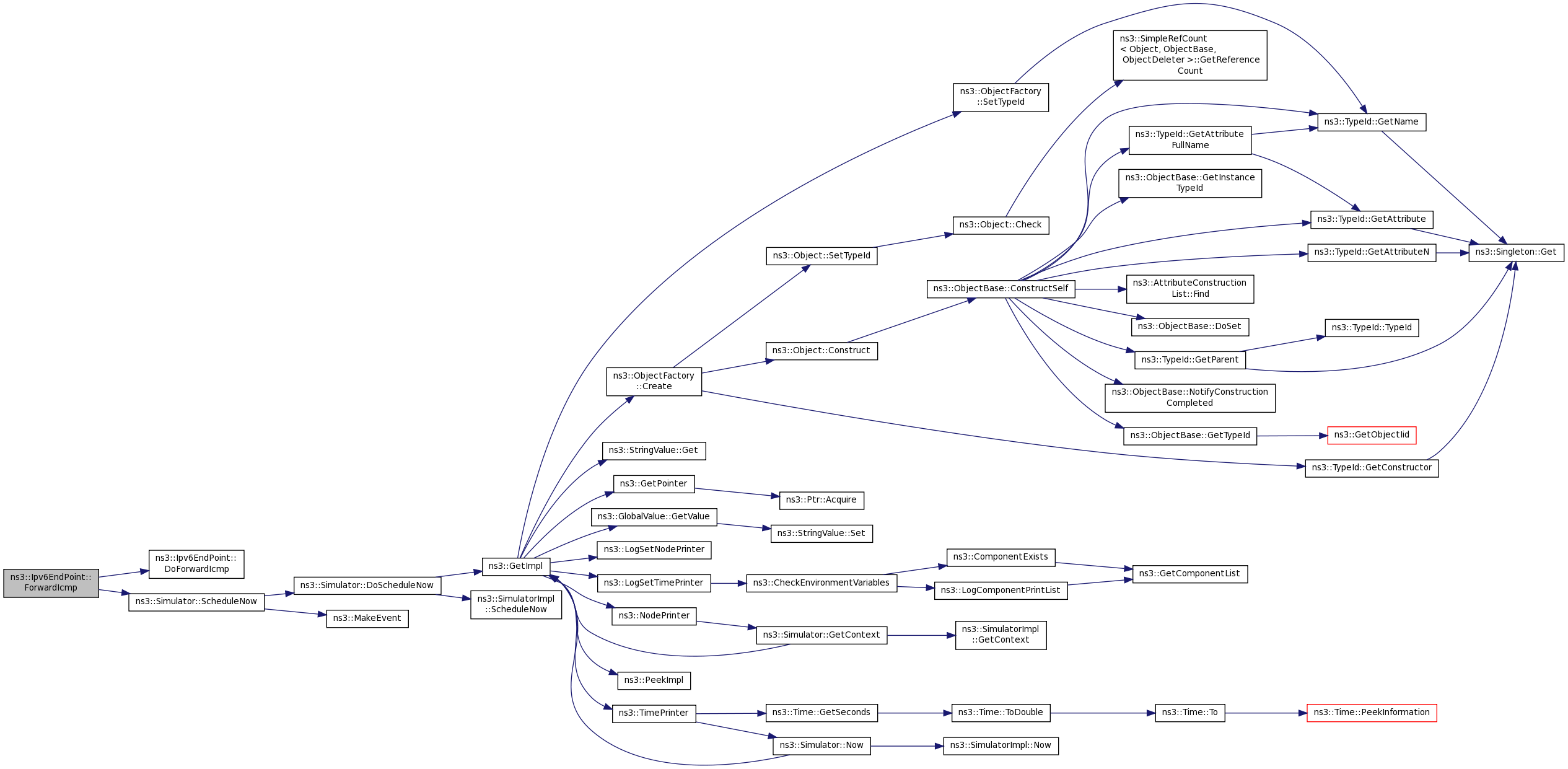

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::ForwardUp	(	Ptr< Packet >	p,
		Ipv6Header	header,
		uint16_t	port,
		Ptr< Ipv6Interface >	incomingInterface
	)

Forward the packet to the upper level.

Called from an L4Protocol implementation to notify an endpoint of a packet reception.

Parameters

p	the packet
header	the packet header
port	source port
incomingInterface	incoming interface

Definition at line 114 of file ipv6-end-point.cc.

References DoForwardUp(), m_rxCallback, and ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

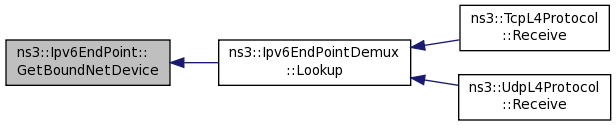

Ptr< NetDevice > ns3::Ipv6EndPoint::GetBoundNetDevice ( void )

Returns socket's bound netdevice, if any.

This method corresponds to using getsockopt() SO_BINDTODEVICE of real network or BSD sockets.

Returns: Pointer to interface.

Definition at line 88 of file ipv6-end-point.cc.

References m_boundnetdevice.

Referenced by ns3::Ipv6EndPointDemux::Lookup().

Here is the caller graph for this function:

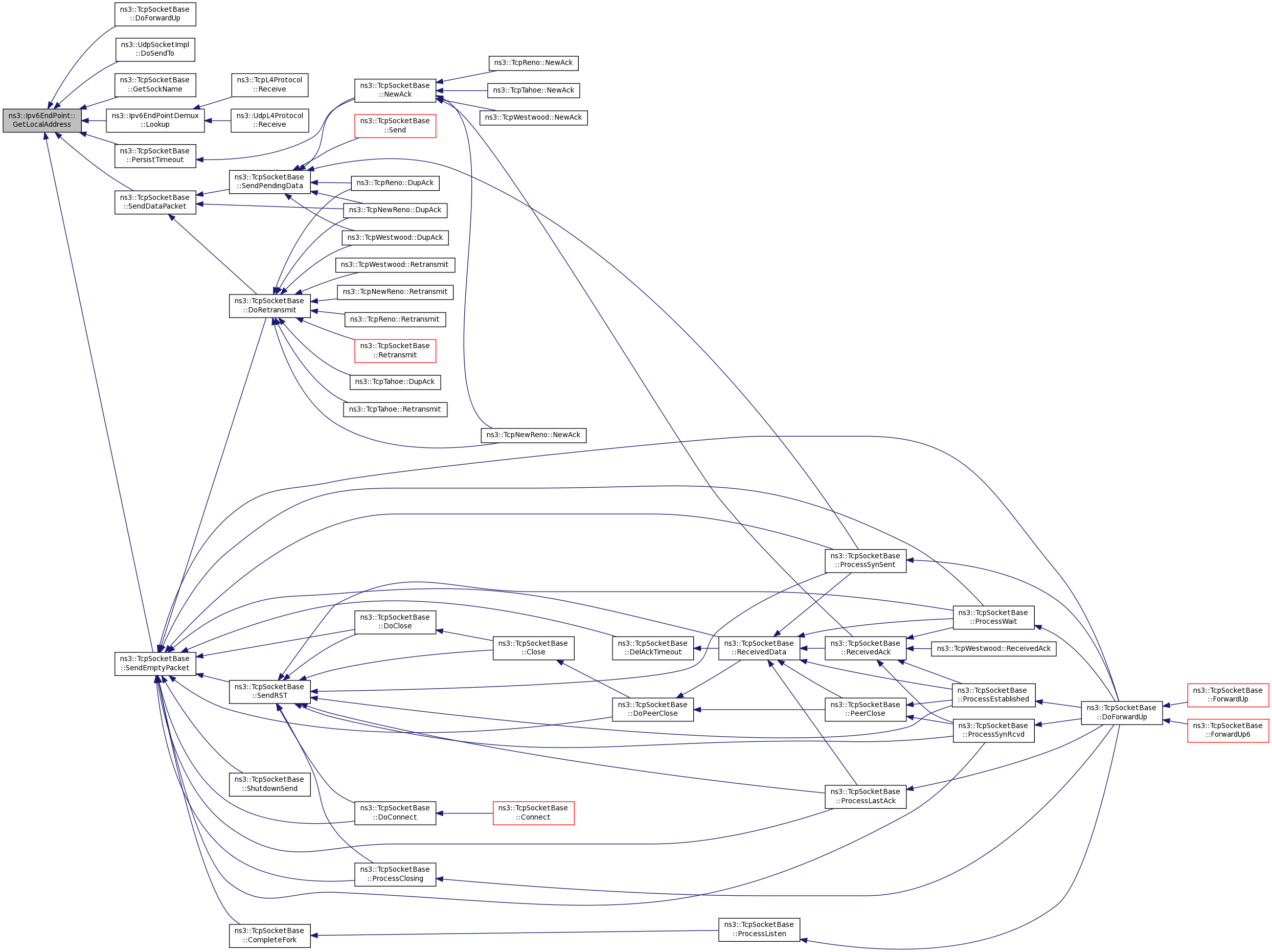

Ipv6Address ns3::Ipv6EndPoint::GetLocalAddress ( void )

Get the local address.

Returns: the local address

Definition at line 52 of file ipv6-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

uint16_t ns3::Ipv6EndPoint::GetLocalPort ( void )

Get the local port.

Returns: the local port

Definition at line 62 of file ipv6-end-point.cc.

References m_localPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6EndPoint::GetPeerAddress ( void )

Get the peer address.

Returns: the peer address

Definition at line 72 of file ipv6-end-point.cc.

References m_peerAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), and ns3::TcpSocketBase::SetupEndpoint6().

Here is the caller graph for this function:

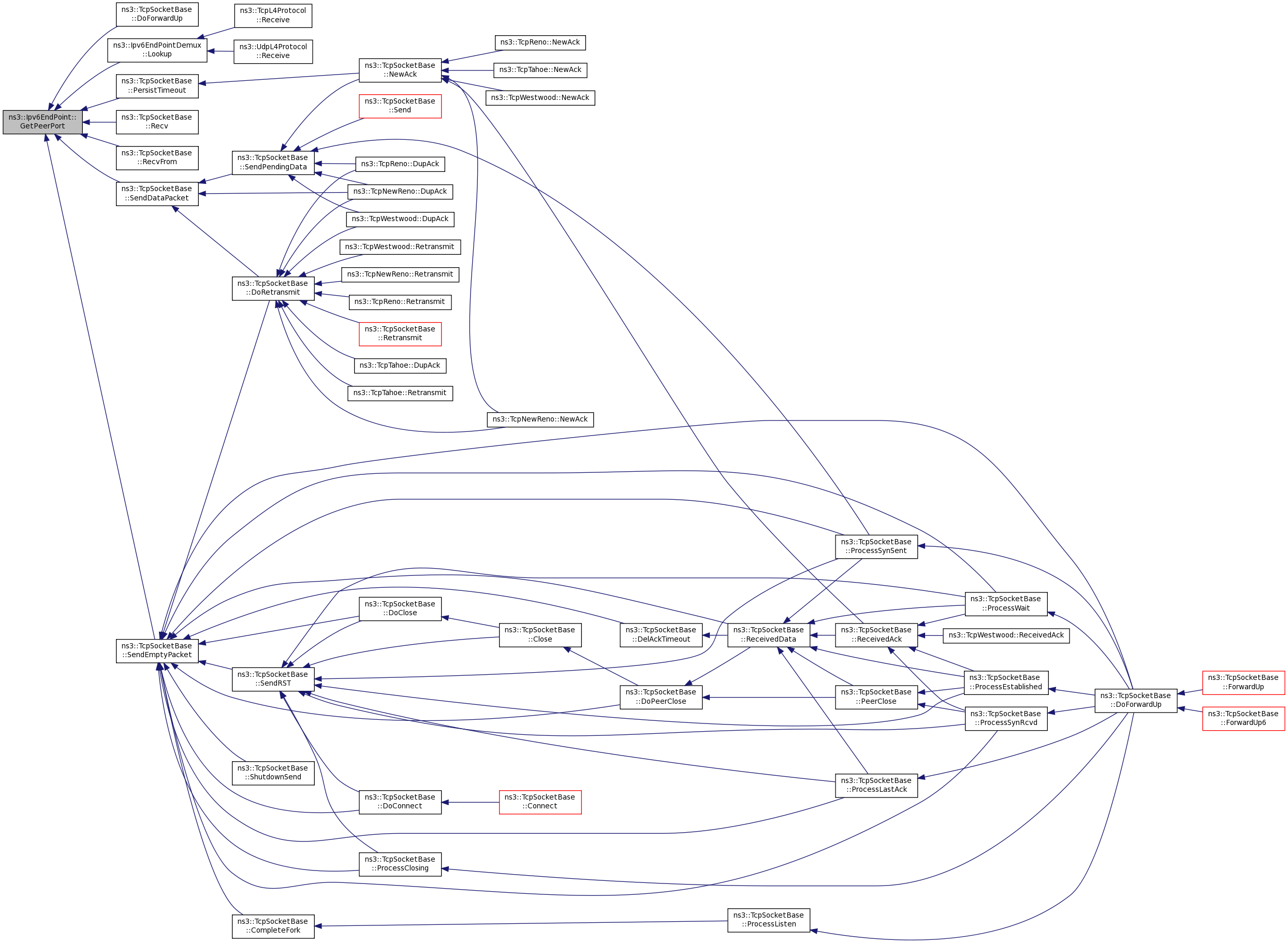

uint16_t ns3::Ipv6EndPoint::GetPeerPort ( void )

Get the peer port.

Returns: the peer port

Definition at line 77 of file ipv6-end-point.cc.

References m_peerPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetDestroyCallback ( Callback< void > callback )

Set the default destroy callback.

Parameters

callback callback function

Definition at line 109 of file ipv6-end-point.cc.

References m_destroyCallback.

Referenced by ns3::TcpSocketBase::DeallocateEndPoint(), ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetIcmpCallback ( Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback )

Set the ICMP callback.

Parameters

callback callback function

Definition at line 104 of file ipv6-end-point.cc.

References m_icmpCallback.

Referenced by ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

Here is the caller graph for this function:

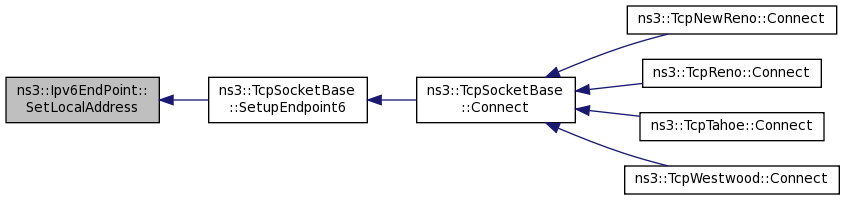

void ns3::Ipv6EndPoint::SetLocalAddress ( Ipv6Address addr )

Set the local address.

Parameters

addr	the address to set

Definition at line 57 of file ipv6-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::SetupEndpoint6().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetLocalPort ( uint16_t port )

Set the local port.

Parameters

port	the port to set

Definition at line 67 of file ipv6-end-point.cc.

References m_localPort, and port.

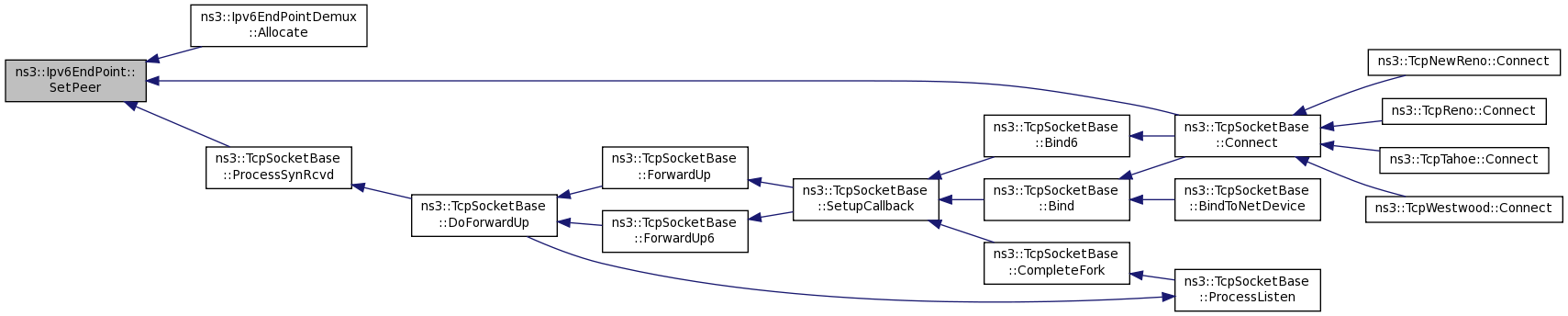

void ns3::Ipv6EndPoint::SetPeer	(	Ipv6Address	addr,
		uint16_t	port
	)

Set the peer informations (address and port).

Parameters

addr	peer address
port	peer port

Definition at line 93 of file ipv6-end-point.cc.

References m_peerAddr, m_peerPort, and port.

Referenced by ns3::Ipv6EndPointDemux::Allocate(), ns3::TcpSocketBase::Connect(), and ns3::TcpSocketBase::ProcessSynRcvd().

Here is the caller graph for this function:

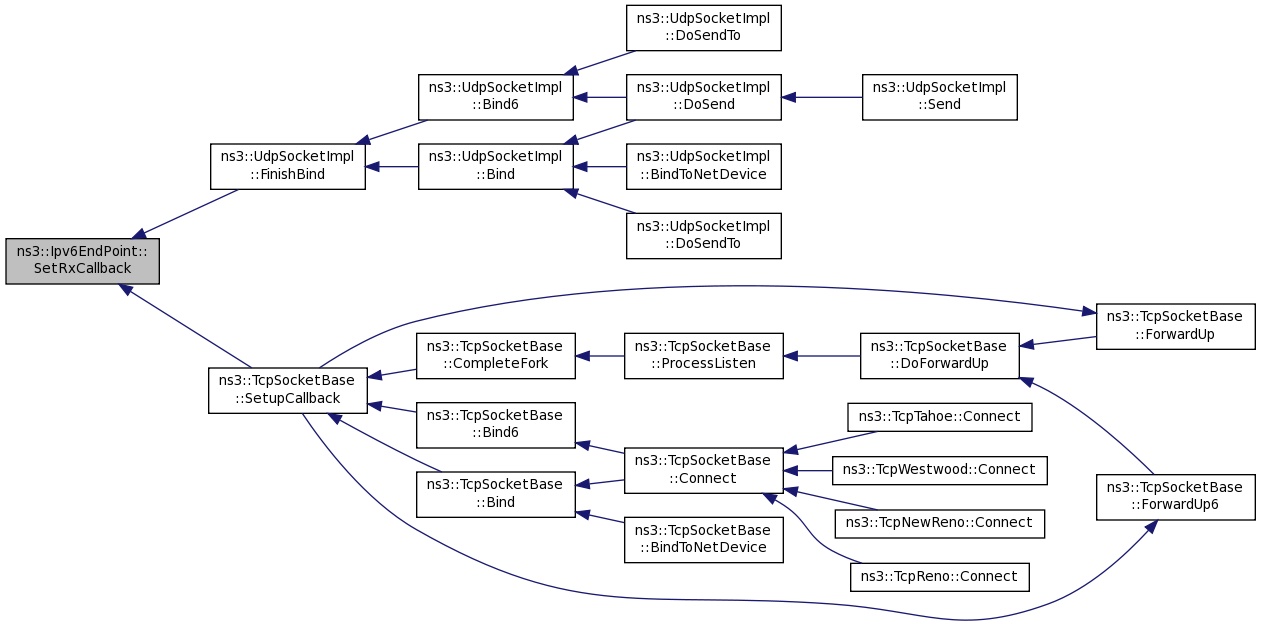

void ns3::Ipv6EndPoint::SetRxCallback ( Callback< void, Ptr< Packet >, Ipv6Header, uint16_t, Ptr< Ipv6Interface > > callback )

Set the reception callback.

Parameters

callback callback function

Definition at line 99 of file ipv6-end-point.cc.

References m_rxCallback.

Referenced by ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

Here is the caller graph for this function:

Member Data Documentation

Ptr<NetDevice> ns3::Ipv6EndPoint::m_boundnetdevice

private

The NetDevice the EndPoint is bound to (if any).

Definition at line 224 of file ipv6-end-point.h.

Referenced by BindToNetDevice(), and GetBoundNetDevice().

Callback<void> ns3::Ipv6EndPoint::m_destroyCallback

private

The destroy callback.

Definition at line 239 of file ipv6-end-point.h.

Referenced by SetDestroyCallback(), and ~Ipv6EndPoint().

Callback<void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t> ns3::Ipv6EndPoint::m_icmpCallback

private

The ICMPv6 callback.

Definition at line 234 of file ipv6-end-point.h.

Referenced by DoForwardIcmp(), ForwardIcmp(), SetIcmpCallback(), and ~Ipv6EndPoint().

Ipv6Address ns3::Ipv6EndPoint::m_localAddr

private

The local address.

Definition at line 204 of file ipv6-end-point.h.

Referenced by GetLocalAddress(), and SetLocalAddress().

uint16_t ns3::Ipv6EndPoint::m_localPort

private

The local port.

Definition at line 209 of file ipv6-end-point.h.

Referenced by GetLocalPort(), and SetLocalPort().

Ipv6Address ns3::Ipv6EndPoint::m_peerAddr

private

The peer address.

Definition at line 214 of file ipv6-end-point.h.

Referenced by GetPeerAddress(), and SetPeer().

uint16_t ns3::Ipv6EndPoint::m_peerPort

private

The peer port.

Definition at line 219 of file ipv6-end-point.h.

Referenced by GetPeerPort(), and SetPeer().

Callback<void, Ptr<Packet>, Ipv6Header, uint16_t, Ptr<Ipv6Interface> > ns3::Ipv6EndPoint::m_rxCallback

private

The RX callback.

Definition at line 229 of file ipv6-end-point.h.

Referenced by DoForwardUp(), ForwardUp(), SetRxCallback(), and ~Ipv6EndPoint().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-end-point.h
src/internet/model/ipv6-end-point.cc
