An interface aggregated to a node to provide global routing info. More...

#include <global-router-interface.h>

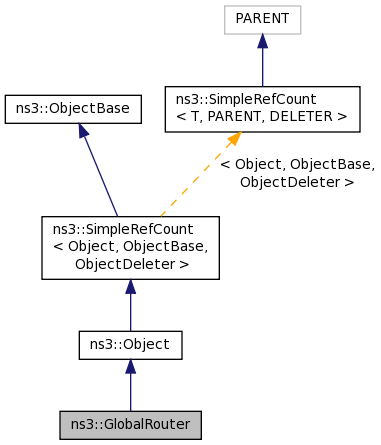

Inheritance diagram for ns3::GlobalRouter:

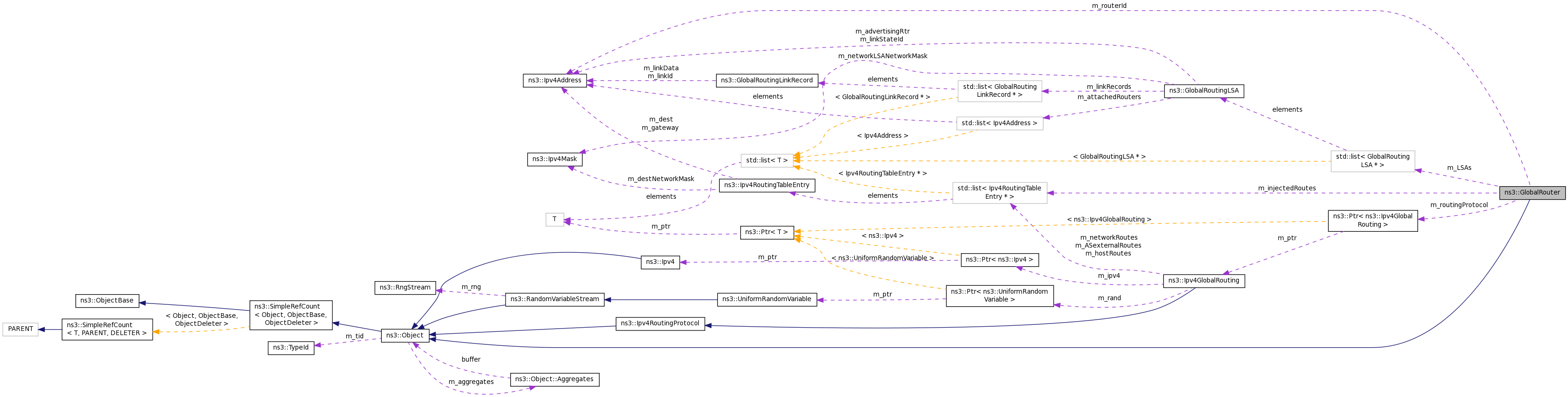

Collaboration diagram for ns3::GlobalRouter:

Public Member Functions
	GlobalRouter ()
	Create a Global Router class. More...

uint32_t	DiscoverLSAs (void)
	Walk the connected channels, discover the adjacent routers and build the associated number of Global Routing Link State Advertisements that this router can export. More...

Ipv4RoutingTableEntry *	GetInjectedRoute (uint32_t i)
	Return the injected route indexed by i. More...

bool	GetLSA (uint32_t n, GlobalRoutingLSA &lsa) const
	Get a Global Routing Link State Advertisements that this router has said that it can export. More...

uint32_t	GetNInjectedRoutes (void)
	Get the number of injected routes that have been added to the routing table. More...

uint32_t	GetNumLSAs (void) const
	Get the Number of Global Routing Link State Advertisements that this router can export. More...

Ipv4Address	GetRouterId (void) const
	Get the Router ID associated with this Global Router. More...

Ptr< Ipv4GlobalRouting >	GetRoutingProtocol (void)
	Get the specific Global Routing Protocol used. More...

void	InjectRoute (Ipv4Address network, Ipv4Mask networkMask)
	Inject a route to be circulated to other routers as an external route. More...

void	RemoveInjectedRoute (uint32_t i)
	Withdraw a route from the global unicast routing table. More...

void	SetRoutingProtocol (Ptr< Ipv4GlobalRouting > routing)
	Set the specific Global Routing Protocol to be used. More...

bool	WithdrawRoute (Ipv4Address network, Ipv4Mask networkMask)
	Withdraw a route from the global unicast routing table. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::list < Ipv4RoutingTableEntry * >	InjectedRoutes
	container of Ipv4RoutingTableEntry More...

typedef std::list < Ipv4RoutingTableEntry * > ::const_iterator	InjectedRoutesCI
	Const Iterator to container of Ipv4RoutingTableEntry. More...

typedef std::list < Ipv4RoutingTableEntry * > ::iterator	InjectedRoutesI
	Iterator to container of Ipv4RoutingTableEntry. More...

typedef std::list < GlobalRoutingLSA * >	ListOfLSAs_t
	container for the GlobalRoutingLSAs More...

Private Member Functions
	GlobalRouter (GlobalRouter &sr)
	Global Router copy construction is disallowed. More...

virtual	~GlobalRouter ()

bool	AnotherRouterOnLink (Ptr< NetDevice > nd, bool allowRecursion) const
	Checks for the presence of another router on the NetDevice. More...

void	BuildNetworkLSAs (NetDeviceContainer c)
	Build one NetworkLSA for each net device talking to a network that we are the designated router for. More...

void	ClearLSAs (void)
	Clear list of LSAs. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Ipv4Address	FindDesignatedRouterForLink (Ptr< NetDevice > ndLocal, bool allowRecursion) const
	Finds a designated router. More...

bool	FindInterfaceForDevice (Ptr< Node > node, Ptr< NetDevice > nd, uint32_t &index) const
	Given a node and a net device, find an IPV4 interface index that corresponds to that net device. More...

Ptr< NetDevice >	GetAdjacent (Ptr< NetDevice > nd, Ptr< Channel > ch) const
	Link through the given channel and find the net device that's on the other end. More...

Ptr< BridgeNetDevice >	NetDeviceIsBridged (Ptr< NetDevice > nd) const
	Decide whether or not a given net device is being bridged by a BridgeNetDevice. More...

GlobalRouter &	operator= (GlobalRouter &sr)
	Global Router assignment operator is disallowed. More...

void	ProcessBridgedBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a bridged broadcast link. More...

void	ProcessBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a generic broadcast link. More...

void	ProcessPointToPointLink (Ptr< NetDevice > ndLocal, GlobalRoutingLSA *pLSA)
	Process a point to point link. More...

void	ProcessSingleBroadcastLink (Ptr< NetDevice > nd, GlobalRoutingLSA *pLSA, NetDeviceContainer &c)
	Process a single broadcast link. More...

Private Attributes
InjectedRoutes	m_injectedRoutes
	Routes we are exporting. More...

ListOfLSAs_t	m_LSAs
	database of GlobalRoutingLSAs More...

Ipv4Address	m_routerId
	router ID (its IPv4 address) More...

Ptr< Ipv4GlobalRouting >	m_routingProtocol
	the Ipv4GlobalRouting in use More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

An interface aggregated to a node to provide global routing info.

Doxygen introspection did not find any typical Config paths.

An interface aggregated to a node that provides global routing information to a global route manager. The presence of the interface indicates that the node is a router. The interface is the mechanism by which the router advertises its connections to neighboring routers. We're basically allowing the route manager to query for link state advertisements.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 583 of file global-router-interface.h.

Member Typedef Documentation

typedef std::list<Ipv4RoutingTableEntry *> ns3::GlobalRouter::InjectedRoutes

private

container of Ipv4RoutingTableEntry

Definition at line 845 of file global-router-interface.h.

typedef std::list<Ipv4RoutingTableEntry *>::const_iterator ns3::GlobalRouter::InjectedRoutesCI

private

Const Iterator to container of Ipv4RoutingTableEntry.

Definition at line 846 of file global-router-interface.h.

typedef std::list<Ipv4RoutingTableEntry *>::iterator ns3::GlobalRouter::InjectedRoutesI

private

Iterator to container of Ipv4RoutingTableEntry.

Definition at line 847 of file global-router-interface.h.

typedef std::list<GlobalRoutingLSA*> ns3::GlobalRouter::ListOfLSAs_t

private

container for the GlobalRoutingLSAs

Definition at line 839 of file global-router-interface.h.

Constructor & Destructor Documentation

ns3::GlobalRouter::GlobalRouter ( )

Create a Global Router class.

Definition at line 518 of file global-router-interface.cc.

References ns3::GlobalRouteManager::AllocateRouterId(), m_routerId, NS_LOG_FUNCTION, and ns3::Ipv4Address::Set().

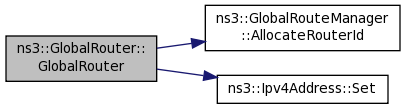

Here is the call graph for this function:

ns3::GlobalRouter::~GlobalRouter ( )

privatevirtual

Definition at line 525 of file global-router-interface.cc.

References ClearLSAs(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

ns3::GlobalRouter::GlobalRouter ( GlobalRouter & sr )

private

Global Router copy construction is disallowed.

Member Function Documentation

bool ns3::GlobalRouter::AnotherRouterOnLink	(	Ptr< NetDevice >	nd,
		bool	allowRecursion
	)		const

private

Checks for the presence of another router on the NetDevice.

Given a node and an attached net device, take a look off in the channel to which the net device is attached and look for a node on the other side that has a GlobalRouter interface aggregated. Life gets more complicated when there is a bridged net device on the other side.

Parameters

nd	NetDevice to scan
allowRecursion	Recursively look for routers down bridge port

Returns: true if a router is found

Definition at line 1383 of file global-router-interface.cc.

References ns3::Object::GetObject(), NetDeviceIsBridged(), NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

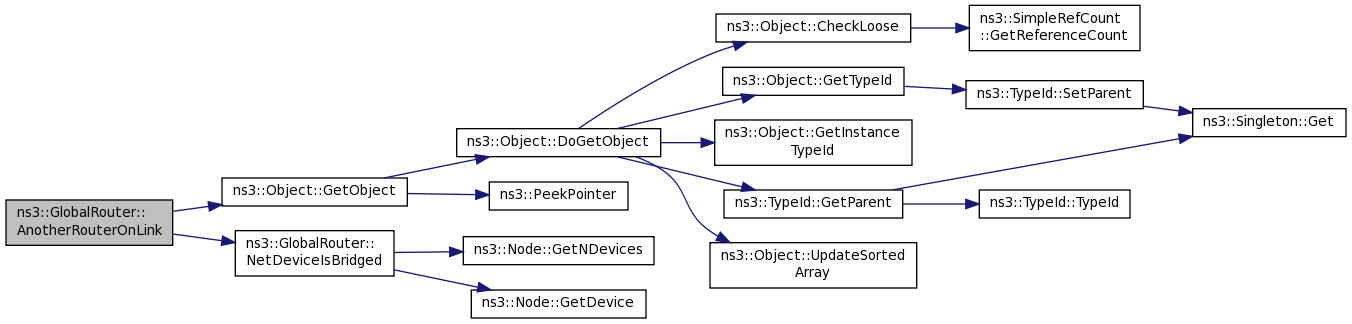

Here is the call graph for this function:

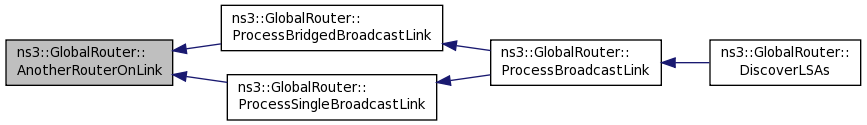

Here is the caller graph for this function:

void ns3::GlobalRouter::BuildNetworkLSAs ( NetDeviceContainer c )

private

Build one NetworkLSA for each net device talking to a network that we are the designated router for.

Parameters

c	the devices.

Definition at line 1146 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::AddAttachedRouter(), FindInterfaceForDevice(), ns3::NetDeviceContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::Object::GetObject(), ns3::GlobalRoutingLSA::LSA_SPF_NOT_EXPLORED, m_LSAs, m_routerId, ns3::GlobalRoutingLSA::NetworkLSA, NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::GlobalRoutingLSA::SetAdvertisingRouter(), ns3::GlobalRoutingLSA::SetLinkStateId(), ns3::GlobalRoutingLSA::SetLSType(), ns3::GlobalRoutingLSA::SetNetworkLSANetworkMask(), ns3::GlobalRoutingLSA::SetNode(), and ns3::GlobalRoutingLSA::SetStatus().

Referenced by DiscoverLSAs().

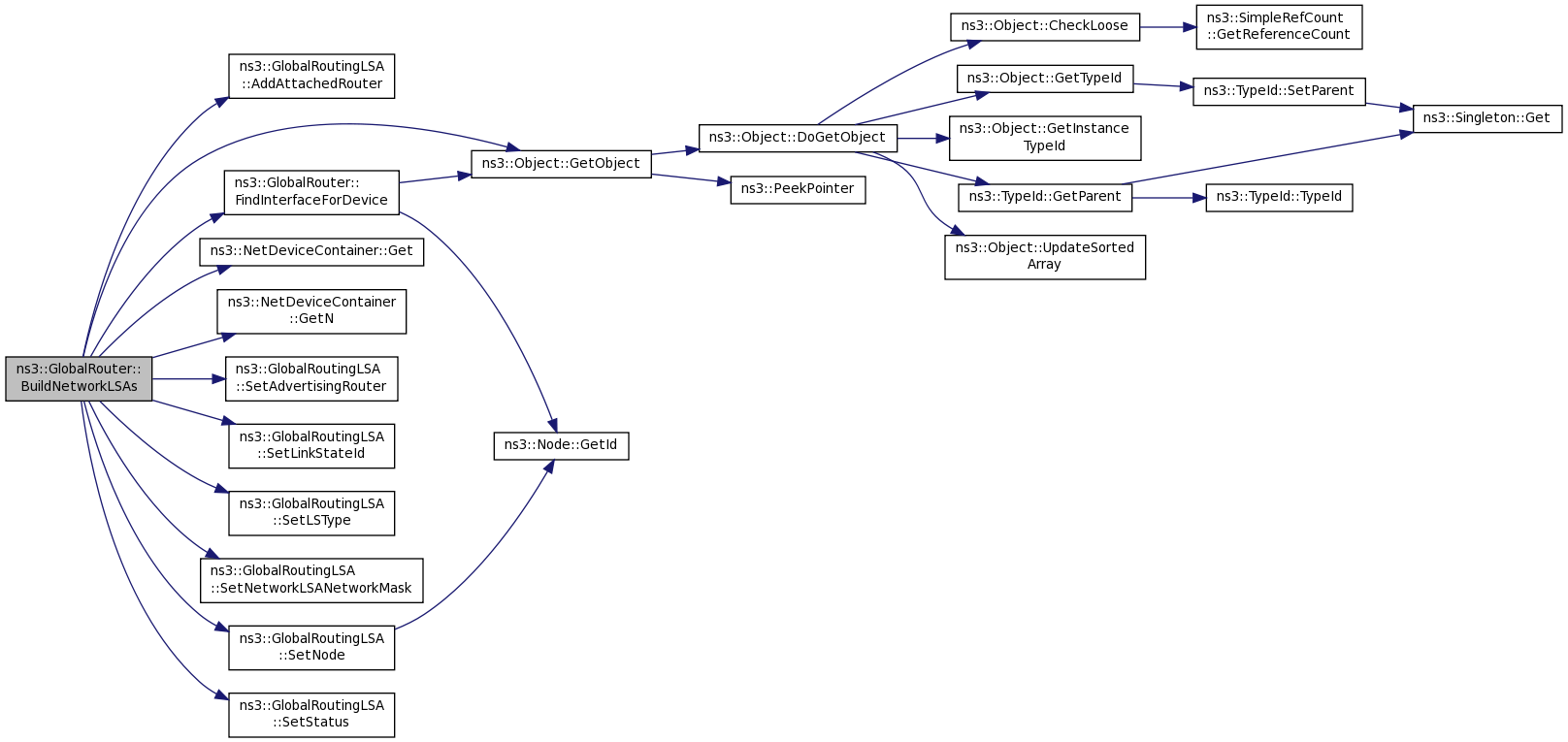

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::GlobalRouter::ClearLSAs ( void )

private

Clear list of LSAs.

Definition at line 559 of file global-router-interface.cc.

References m_LSAs, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DiscoverLSAs(), and ~GlobalRouter().

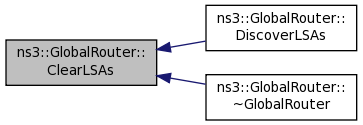

Here is the caller graph for this function:

uint32_t ns3::GlobalRouter::DiscoverLSAs ( void )

Walk the connected channels, discover the adjacent routers and build the associated number of Global Routing Link State Advertisements that this router can export.

This is a fairly expensive operation in that every time it is called the current list of LSAs is built by walking connected point-to-point channels and peeking into adjacent IPV4 stacks to get address information. This is done to allow for limited dynamics of the Global Routing environment. By that we mean that you can discover new link state advertisements after a network topology change by calling DiscoverLSAs and then by reading those advertisements.

See also: GlobalRoutingLSA; GlobalRouter::GetLSA ()

Returns: The number of Global Routing Link State Advertisements.

Definition at line 592 of file global-router-interface.cc.

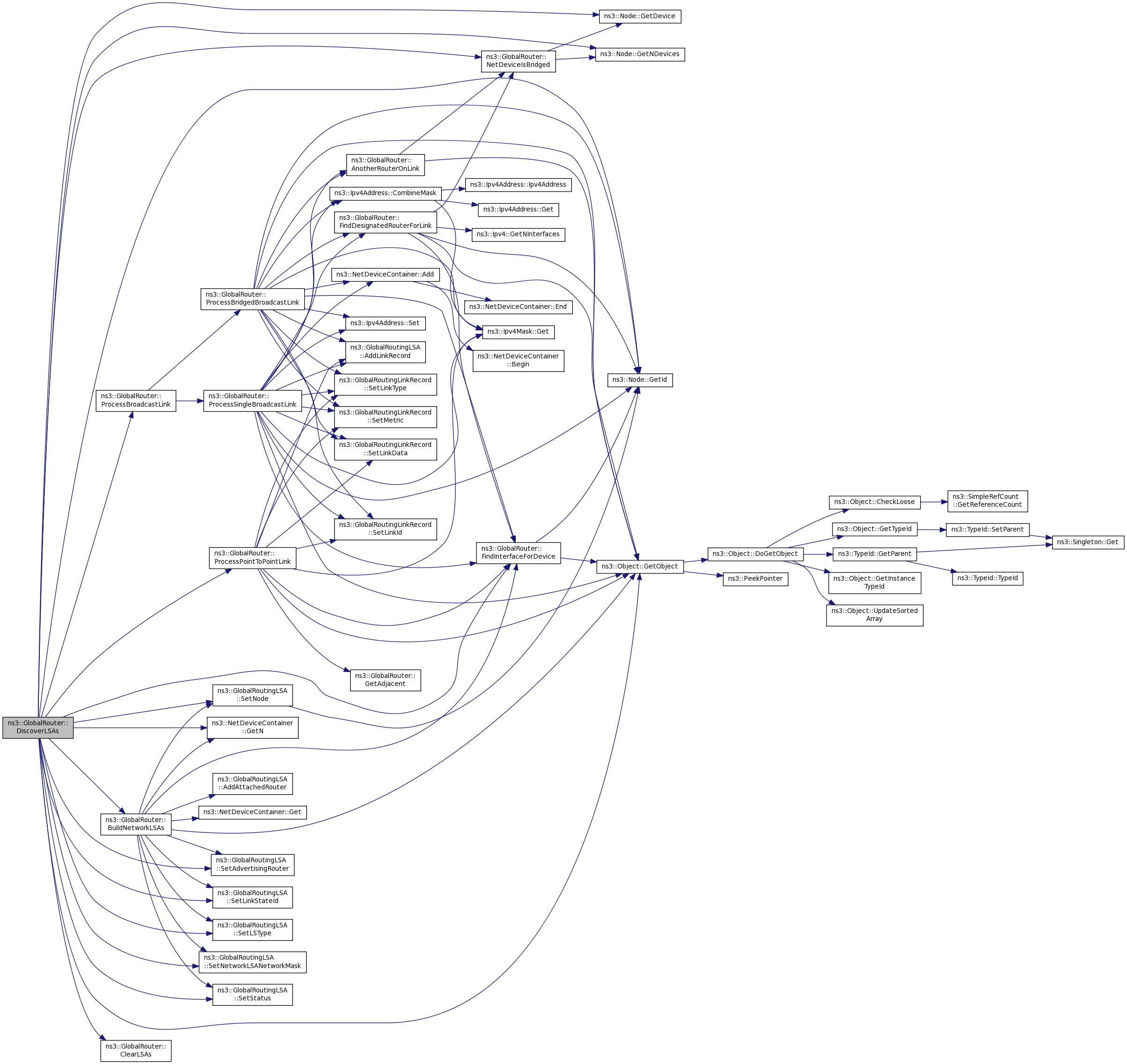

Here is the call graph for this function:

void ns3::GlobalRouter::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 545 of file global-router-interface.cc.

References ns3::Object::DoDispose(), m_injectedRoutes, m_routingProtocol, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ipv4Address ns3::GlobalRouter::FindDesignatedRouterForLink	(	Ptr< NetDevice >	ndLocal,
		bool	allowRecursion
	)		const

private

Finds a designated router.

Given a local net device, we need to walk the channel to which the net device is attached and look for nodes with GlobalRouter interfaces on them (one of them will be us). Of these, the router with the lowest IP address on the net device connecting to the channel becomes the designated router for the link.

Parameters

ndLocal	local NetDevice to scan
allowRecursion	Recursively look for routers down bridge port

Returns: the IP address of the designated router

Definition at line 1246 of file global-router-interface.cc.

References FindInterfaceForDevice(), ns3::Node::GetId(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), NetDeviceIsBridged(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

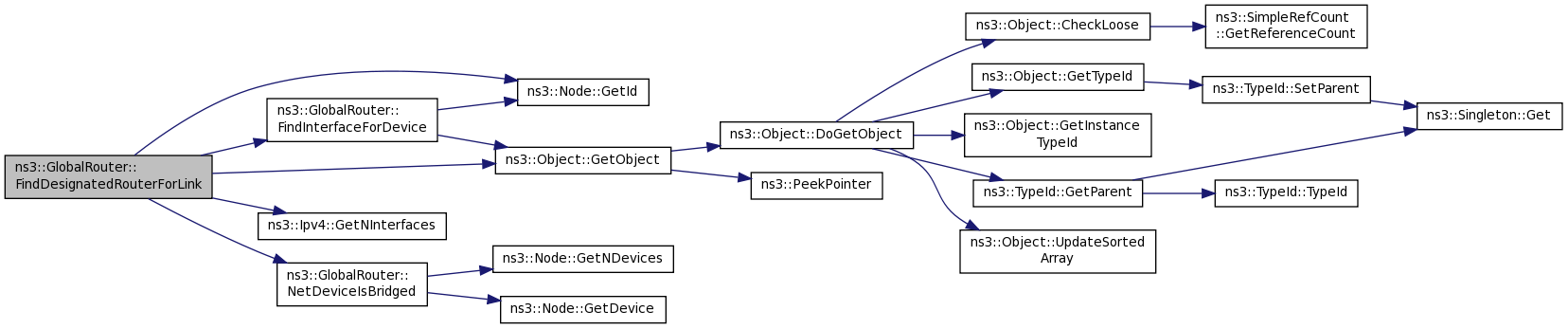

Here is the call graph for this function:

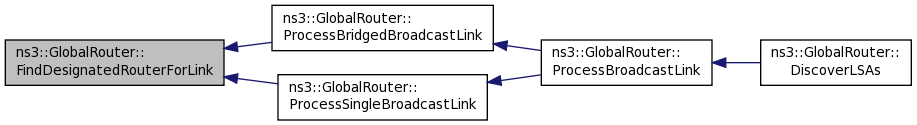

Here is the caller graph for this function:

bool ns3::GlobalRouter::FindInterfaceForDevice	(	Ptr< Node >	node,
		Ptr< NetDevice >	nd,
		uint32_t &	index
	)		const

private

Given a node and a net device, find an IPV4 interface index that corresponds to that net device.

This function may fail for various reasons. If a node does not have an internet stack (for example if it is a bridge) we won't have an IPv4 at all. If the node does have a stack, but the net device in question is bridged, there will not be an interface associated directly with the device.

Parameters

node	the node
nd	outgoing NetDevice
index	the IPV4 interface index

Returns: true on success

Definition at line 1633 of file global-router-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by BuildNetworkLSAs(), DiscoverLSAs(), FindDesignatedRouterForLink(), ProcessBridgedBroadcastLink(), ProcessPointToPointLink(), and ProcessSingleBroadcastLink().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::GlobalRouter::GetAdjacent	(	Ptr< NetDevice >	nd,
		Ptr< Channel >	ch
	)		const

private

Link through the given channel and find the net device that's on the other end.

This only makes sense with a point-to-point channel.

Parameters

nd	outgoing NetDevice
ch	channel

Returns: the NetDevice on the other end

Definition at line 1595 of file global-router-interface.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ProcessPointToPointLink().

Here is the caller graph for this function:

Ipv4RoutingTableEntry * ns3::GlobalRouter::GetInjectedRoute ( uint32_t i )

Return the injected route indexed by i.

Parameters

i	the index of the route

Returns: a pointer to that Ipv4RoutingTableEntry is returned

Definition at line 1524 of file global-router-interface.cc.

References m_injectedRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::GlobalRouter::GetLSA	(	uint32_t	n,
		GlobalRoutingLSA &	lsa
	)		const

Get a Global Routing Link State Advertisements that this router has said that it can export.

This is a fairly inexpensive expensive operation in that the hard work was done in GetNumLSAs. We just copy the indicated Global Routing Link State Advertisement into the requested GlobalRoutingLSA object.

You must call GlobalRouter::GetNumLSAs before calling this method in order to discover the adjacent routers and build the advertisements. GetNumLSAs will return the number of LSAs this router advertises. The parameter n (requested LSA number) must be in the range 0 to GetNumLSAs() - 1.

See also: GlobalRoutingLSA; GlobalRouting::GetNumLSAs ()

Parameters

n	The index number of the LSA you want to read.
lsa	The GlobalRoutingLSA class to receive the LSA information.

Returns: The number of Global Router Link State Advertisements.

Definition at line 1484 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::IsEmpty(), m_LSAs, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::GlobalRouter::GetNInjectedRoutes ( void )

Get the number of injected routes that have been added to the routing table.

Returns: number of injected routes

Definition at line 1547 of file global-router-interface.cc.

References m_injectedRoutes, and NS_LOG_FUNCTION.

uint32_t ns3::GlobalRouter::GetNumLSAs ( void ) const

Get the Number of Global Routing Link State Advertisements that this router can export.

To get meaningful information you must have previously called DiscoverLSAs. After you know how many LSAs are present in the router, you may call GetLSA () to retrieve the actual advertisement.

See also: GlobalRouterLSA; GlobalRouting::DiscoverLSAs (); GlobalRouting::GetLSA ()

Returns: The number of Global Routing Link State Advertisements.

Definition at line 1474 of file global-router-interface.cc.

References m_LSAs, and NS_LOG_FUNCTION.

Ipv4Address ns3::GlobalRouter::GetRouterId ( void ) const

Get the Router ID associated with this Global Router.

The Router IDs are allocated in the RoutingEnvironment – one per Router, starting at 0.0.0.1 and incrementing with each instantiation of a router.

See also: RoutingEnvironment::AllocateRouterId ()

Returns: The Router ID associated with the Global Router.

Definition at line 579 of file global-router-interface.cc.

References m_routerId, and NS_LOG_FUNCTION.

Ptr< Ipv4GlobalRouting > ns3::GlobalRouter::GetRoutingProtocol ( void )

Get the specific Global Routing Protocol used.

Returns: the routing protocol

Definition at line 538 of file global-router-interface.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

TypeId ns3::GlobalRouter::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 511 of file global-router-interface.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::GlobalRouter::InjectRoute	(	Ipv4Address	network,
		Ipv4Mask	networkMask
	)

Inject a route to be circulated to other routers as an external route.

Parameters

network	The Network to inject
networkMask	The Network Mask to inject

Definition at line 1510 of file global-router-interface.cc.

References ns3::Ipv4RoutingTableEntry::CreateNetworkRouteTo(), m_injectedRoutes, and NS_LOG_FUNCTION.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< BridgeNetDevice > ns3::GlobalRouter::NetDeviceIsBridged ( Ptr< NetDevice > nd ) const

private

Decide whether or not a given net device is being bridged by a BridgeNetDevice.

Parameters

nd	the NetDevice

Returns: the BridgeNetDevice smart pointer or null if not found

Definition at line 1663 of file global-router-interface.cc.

References ns3::Node::GetDevice(), ns3::Node::GetNDevices(), NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by AnotherRouterOnLink(), DiscoverLSAs(), and FindDesignatedRouterForLink().

Here is the call graph for this function:

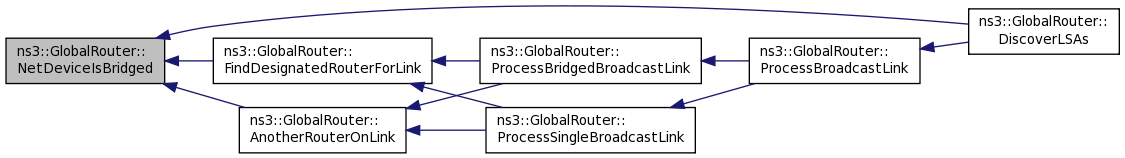

Here is the caller graph for this function:

GlobalRouter& ns3::GlobalRouter::operator= ( GlobalRouter & sr )

private

Global Router assignment operator is disallowed.

void ns3::GlobalRouter::ProcessBridgedBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a bridged broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 864 of file global-router-interface.cc.

References ns3::NetDeviceContainer::Add(), ns3::GlobalRoutingLSA::AddLinkRecord(), AnotherRouterOnLink(), ns3::Ipv4Address::CombineMask(), FindDesignatedRouterForLink(), FindInterfaceForDevice(), ns3::Ipv4Mask::Get(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Ipv4Address::Set(), ns3::GlobalRoutingLinkRecord::SetLinkData(), ns3::GlobalRoutingLinkRecord::SetLinkId(), ns3::GlobalRoutingLinkRecord::SetLinkType(), ns3::GlobalRoutingLinkRecord::SetMetric(), ns3::GlobalRoutingLinkRecord::StubNetwork, and ns3::GlobalRoutingLinkRecord::TransitNetwork.

Referenced by ProcessBroadcastLink().

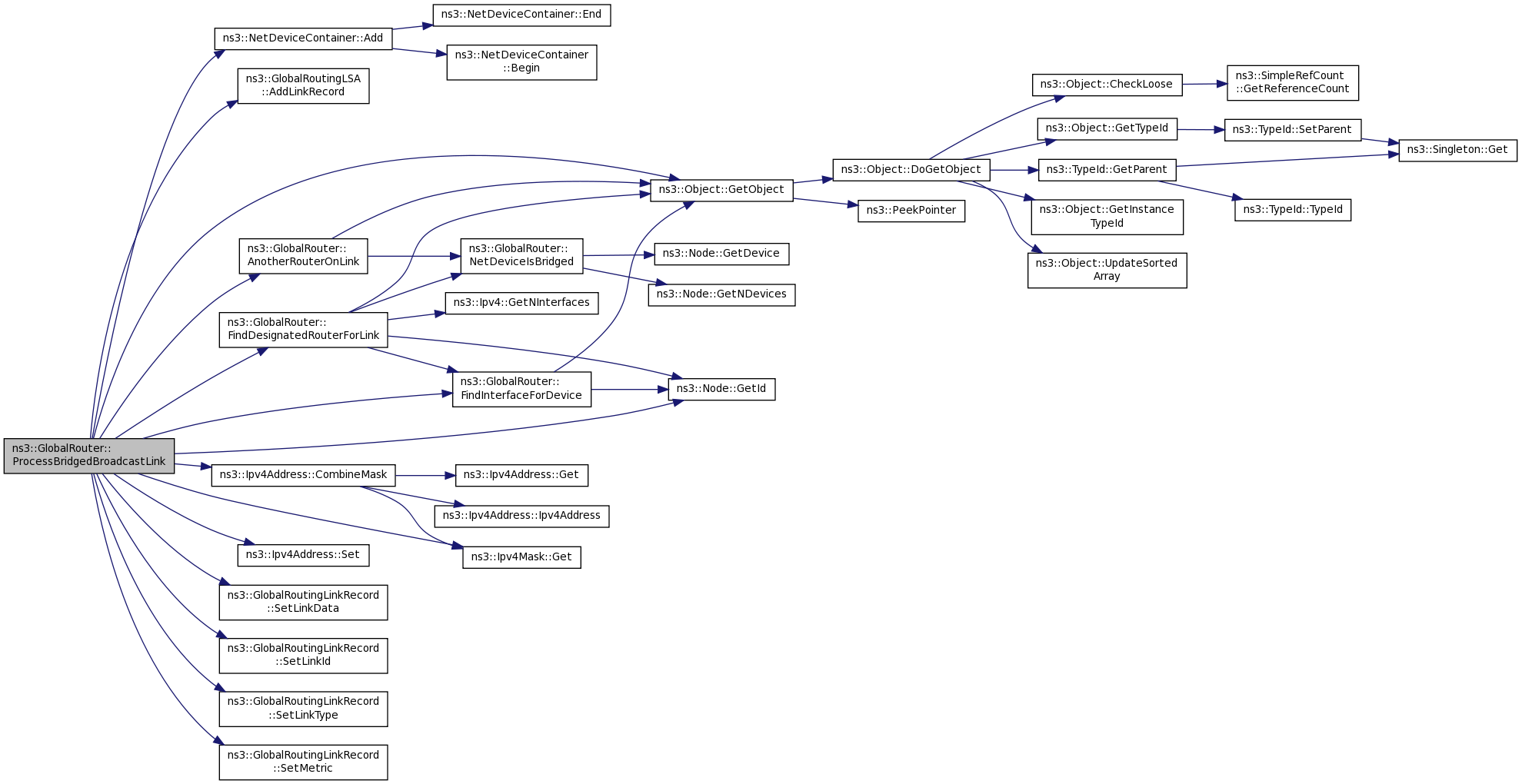

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::GlobalRouter::ProcessBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a generic broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 740 of file global-router-interface.cc.

References NS_LOG_FUNCTION, ProcessBridgedBroadcastLink(), and ProcessSingleBroadcastLink().

Referenced by DiscoverLSAs().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::GlobalRouter::ProcessPointToPointLink	(	Ptr< NetDevice >	ndLocal,
		GlobalRoutingLSA *	pLSA
	)

private

Process a point to point link.

Parameters

ndLocal	the NetDevice
pLSA	the Global LSA

Definition at line 1025 of file global-router-interface.cc.

References ns3::GlobalRoutingLSA::AddLinkRecord(), FindInterfaceForDevice(), ns3::Ipv4Mask::Get(), GetAdjacent(), ns3::Object::GetObject(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::GlobalRoutingLinkRecord::PointToPoint, ns3::GlobalRoutingLinkRecord::SetLinkData(), ns3::GlobalRoutingLinkRecord::SetLinkId(), ns3::GlobalRoutingLinkRecord::SetLinkType(), ns3::GlobalRoutingLinkRecord::SetMetric(), and ns3::GlobalRoutingLinkRecord::StubNetwork.

Referenced by DiscoverLSAs().

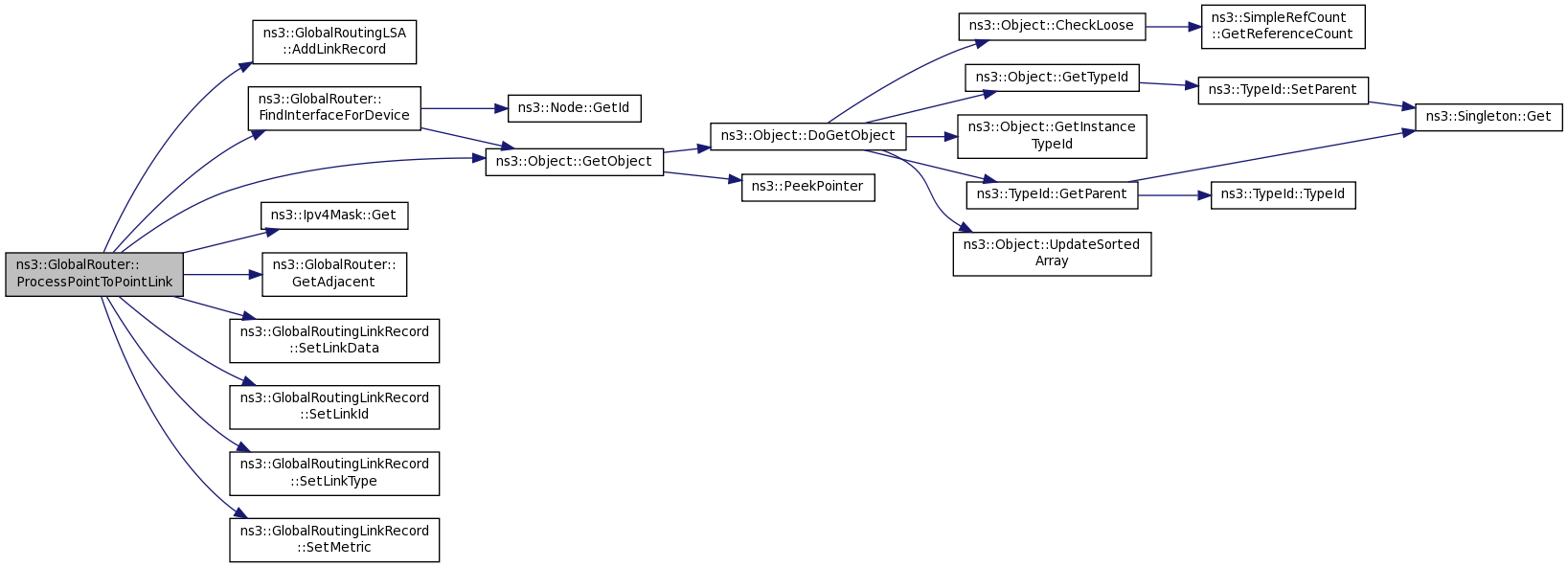

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::GlobalRouter::ProcessSingleBroadcastLink	(	Ptr< NetDevice >	nd,
		GlobalRoutingLSA *	pLSA,
		NetDeviceContainer &	c
	)

private

Process a single broadcast link.

Parameters

nd	the NetDevice
pLSA	the Global LSA
c	the returned NetDevice container

Definition at line 755 of file global-router-interface.cc.

References ns3::NetDeviceContainer::Add(), ns3::GlobalRoutingLSA::AddLinkRecord(), AnotherRouterOnLink(), ns3::Ipv4Address::CombineMask(), FindDesignatedRouterForLink(), FindInterfaceForDevice(), ns3::Ipv4Mask::Get(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Ipv4Address::Set(), ns3::GlobalRoutingLinkRecord::SetLinkData(), ns3::GlobalRoutingLinkRecord::SetLinkId(), ns3::GlobalRoutingLinkRecord::SetLinkType(), ns3::GlobalRoutingLinkRecord::SetMetric(), ns3::GlobalRoutingLinkRecord::StubNetwork, and ns3::GlobalRoutingLinkRecord::TransitNetwork.

Referenced by ProcessBroadcastLink().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::GlobalRouter::RemoveInjectedRoute ( uint32_t i )

Withdraw a route from the global unicast routing table.

Calling this function will cause all indexed routes numbered above index i to have their index decremented. For instance, it is possible to remove N injected routes by calling RemoveInjectedRoute (0) N times.

Parameters
