a virtual net device that bridges multiple LAN segments More...

#include <bridge-net-device.h>

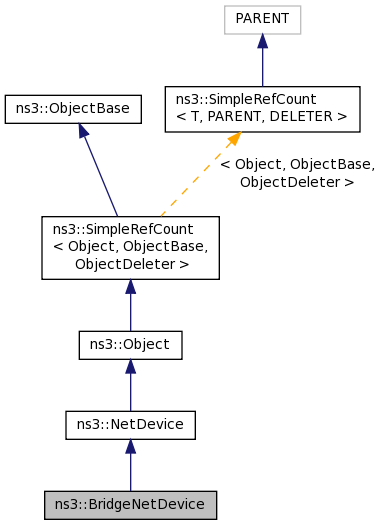

Inheritance diagram for ns3::BridgeNetDevice:

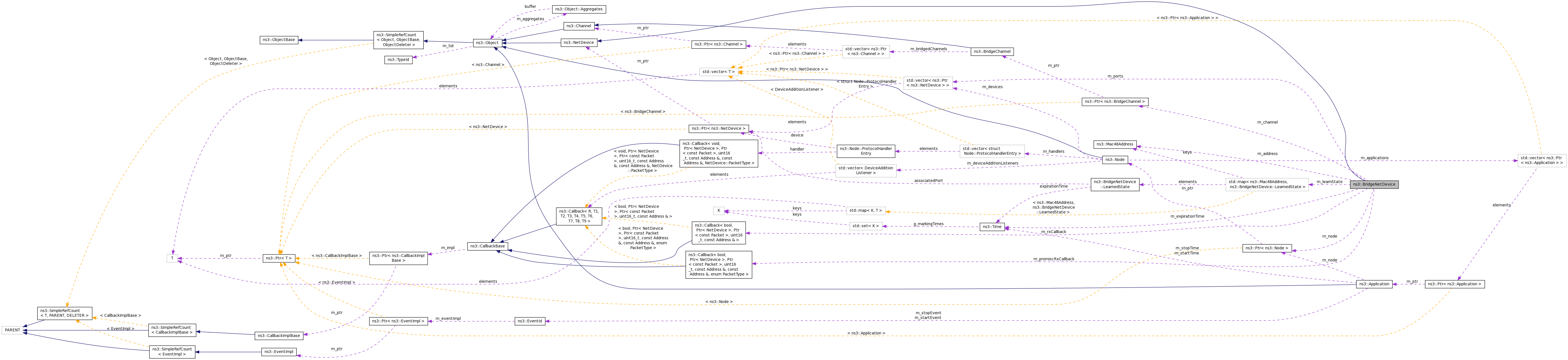

Collaboration diagram for ns3::BridgeNetDevice:

Classes
struct	LearnedState

Public Member Functions
	BridgeNetDevice ()

virtual	~BridgeNetDevice ()

void	AddBridgePort (Ptr< NetDevice > bridgePort)
	Add a 'port' to a bridge device. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

Ptr< NetDevice >	GetBridgePort (uint32_t n) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

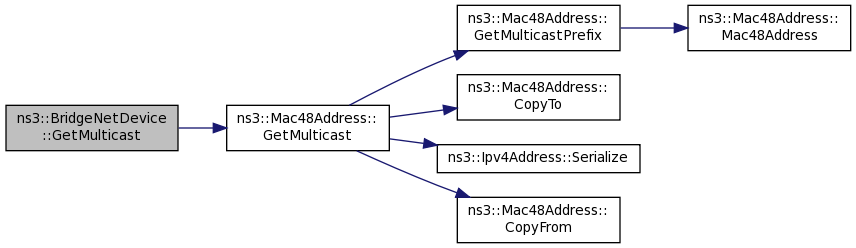

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

uint32_t	GetNBridgePorts (void) const

virtual Ptr< Node >	GetNode (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

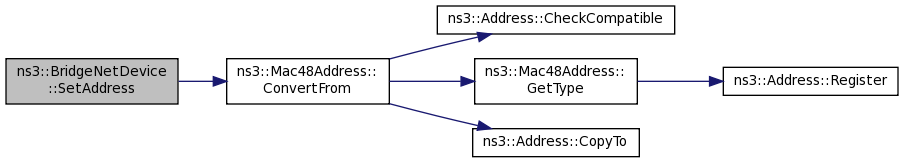

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (NetDevice::PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

virtual bool	SupportsSendFrom () const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

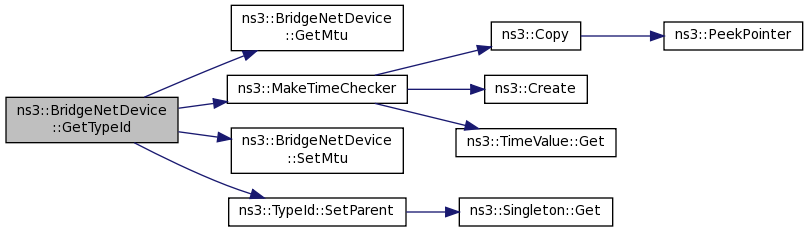

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

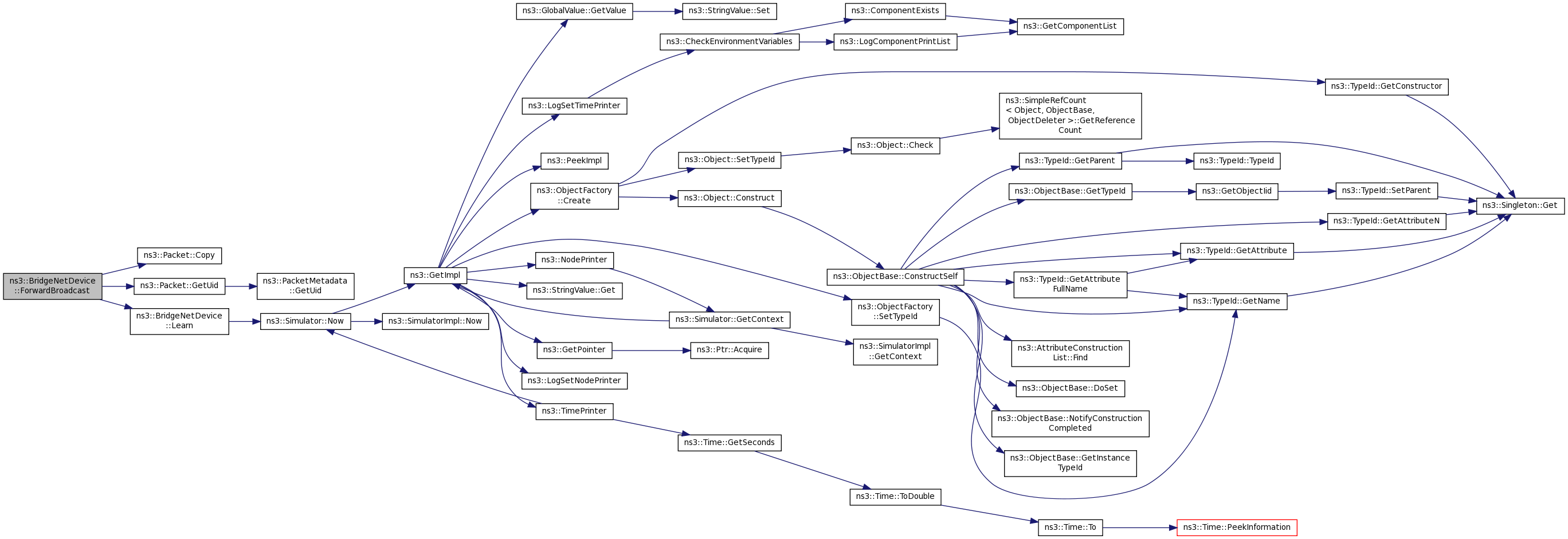

void	ForwardBroadcast (Ptr< NetDevice > incomingPort, Ptr< const Packet > packet, uint16_t protocol, Mac48Address src, Mac48Address dst)

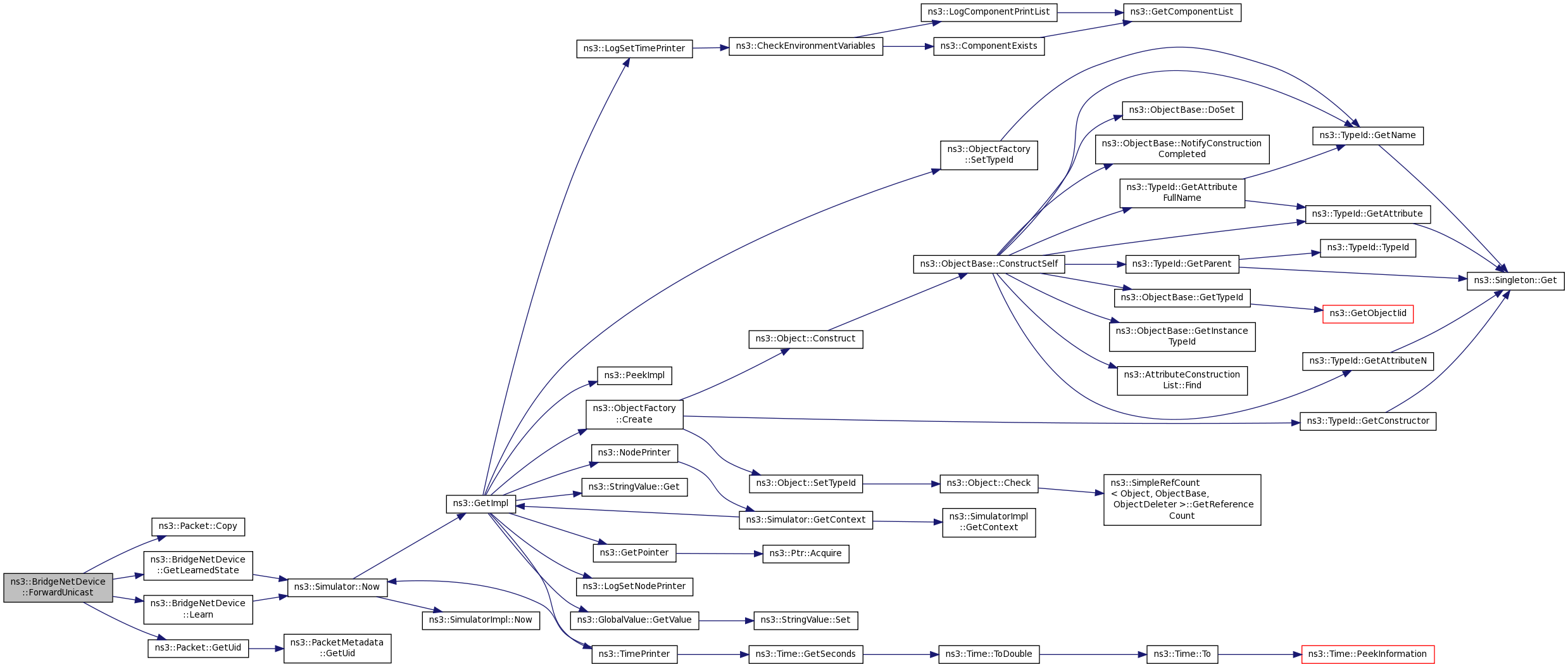

void	ForwardUnicast (Ptr< NetDevice > incomingPort, Ptr< const Packet > packet, uint16_t protocol, Mac48Address src, Mac48Address dst)

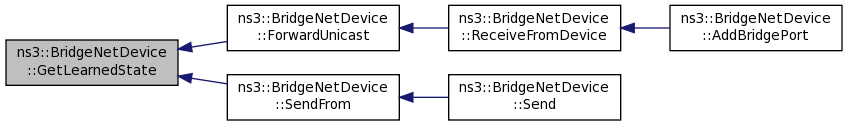

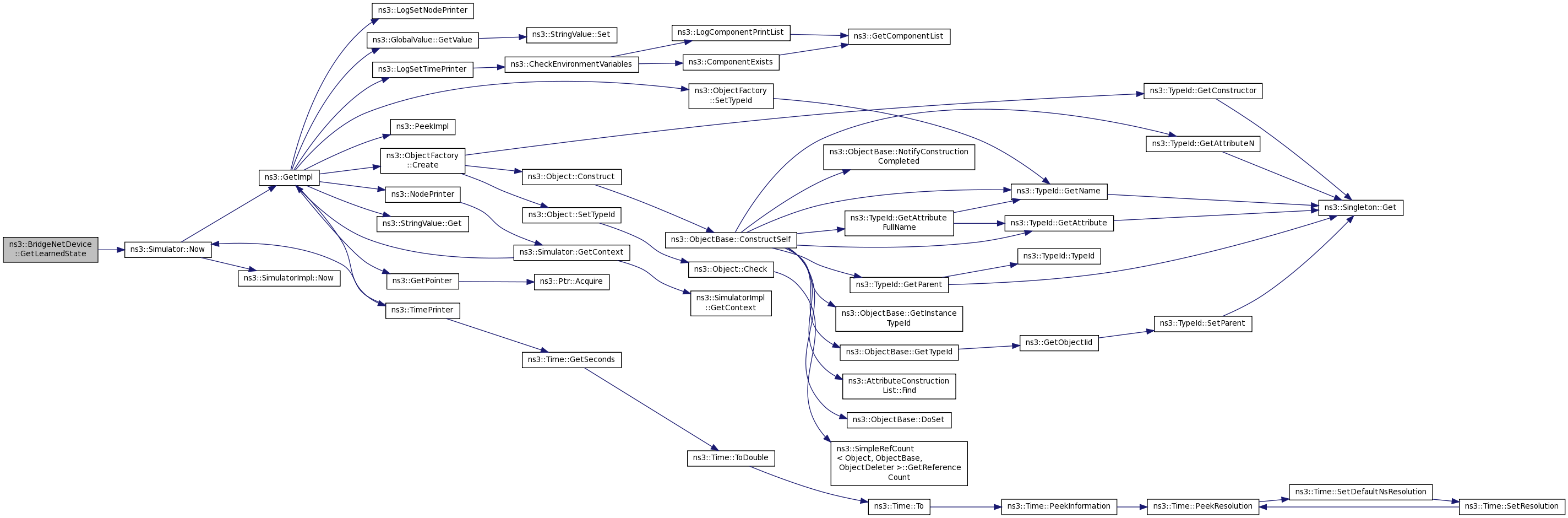

Ptr< NetDevice >	GetLearnedState (Mac48Address source)

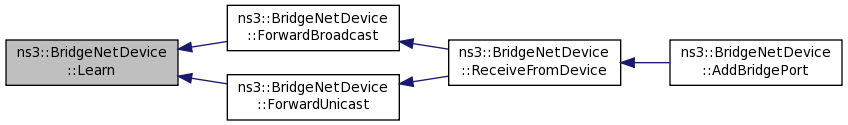

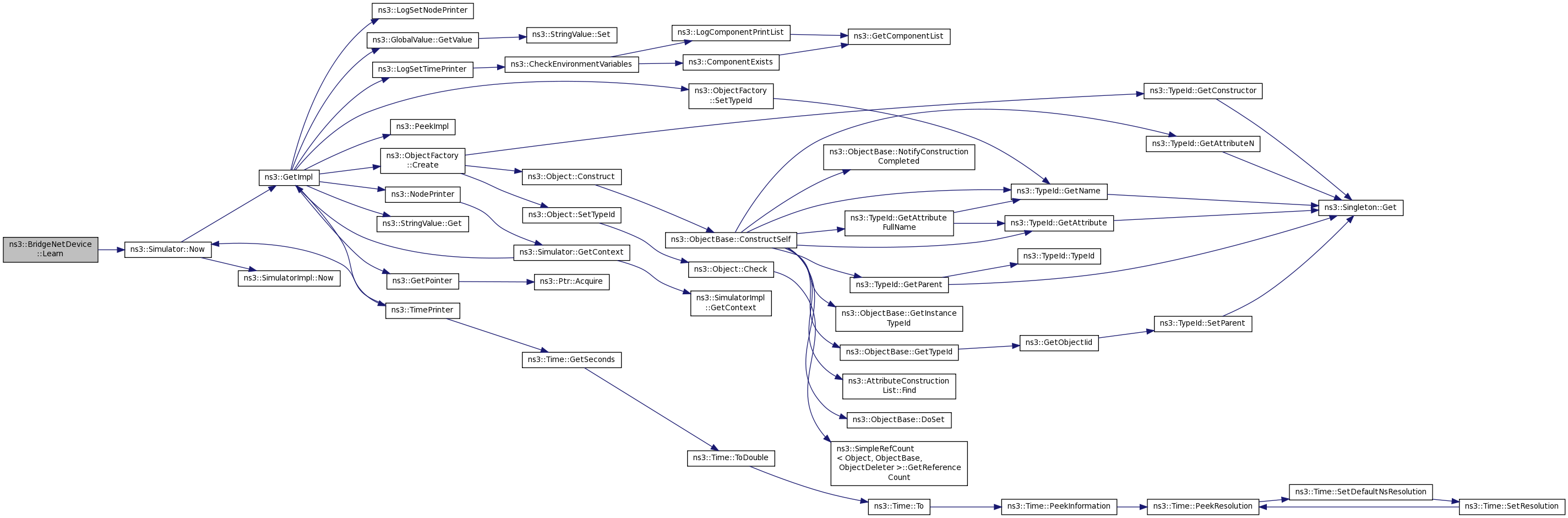

void	Learn (Mac48Address source, Ptr< NetDevice > port)

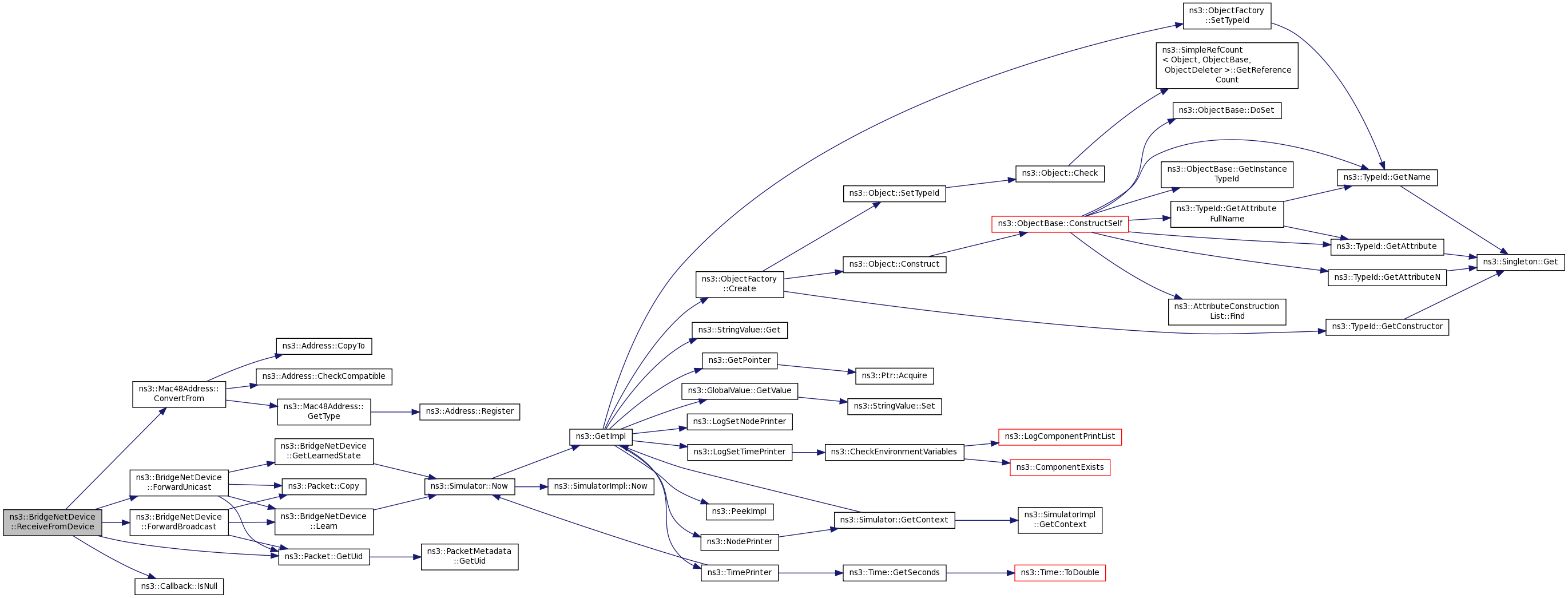

void	ReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, Address const &source, Address const &destination, PacketType packetType)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
	BridgeNetDevice (const BridgeNetDevice &)

BridgeNetDevice &	operator= (const BridgeNetDevice &)

Private Attributes
Mac48Address	m_address

Ptr< BridgeChannel >	m_channel

bool	m_enableLearning

Time	m_expirationTime

uint32_t	m_ifIndex

std::map< Mac48Address, LearnedState >	m_learnState

uint16_t	m_mtu

Ptr< Node >	m_node

std::vector< Ptr< NetDevice > >	m_ports

NetDevice::PromiscReceiveCallback	m_promiscRxCallback

NetDevice::ReceiveCallback	m_rxCallback

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

a virtual net device that bridges multiple LAN segments

Config Paths

ns3::BridgeNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BridgeNetDevice

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1500
- Flags: construct write read
EnableLearning: Enable the learning mode of the Learning Bridge
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
ExpirationTime: Time it takes for learned MAC state entry to expire.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +300000000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 65 of file bridge-net-device.h.

Constructor & Destructor Documentation

ns3::BridgeNetDevice::BridgeNetDevice ( )

Definition at line 61 of file bridge-net-device.cc.

References m_channel, and NS_LOG_FUNCTION_NOARGS.

ns3::BridgeNetDevice::~BridgeNetDevice ( )

virtual

Definition at line 69 of file bridge-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::BridgeNetDevice::BridgeNetDevice ( const BridgeNetDevice & )

private

Member Function Documentation

void ns3::BridgeNetDevice::AddBridgePort ( Ptr< NetDevice > bridgePort )

Add a 'port' to a bridge device.

This method adds a new bridge port to a BridgeNetDevice, so that the new bridge port NetDevice becomes part of the bridge and L2 frames start being forwarded to/from this NetDevice.

Parameters

bridgePort NetDevice

Attention: The netdevice that is being added as bridge port must not have an IP address. In order to add IP connectivity to a bridging node you must enable IP on the BridgeNetDevice itself, never on its port netdevices.

Definition at line 242 of file bridge-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::Mac48Address::IsMatchingType(), m_address, m_channel, m_node, m_ports, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION_NOARGS, ReceiveFromDevice(), and ns3::Node::RegisterProtocolHandler().

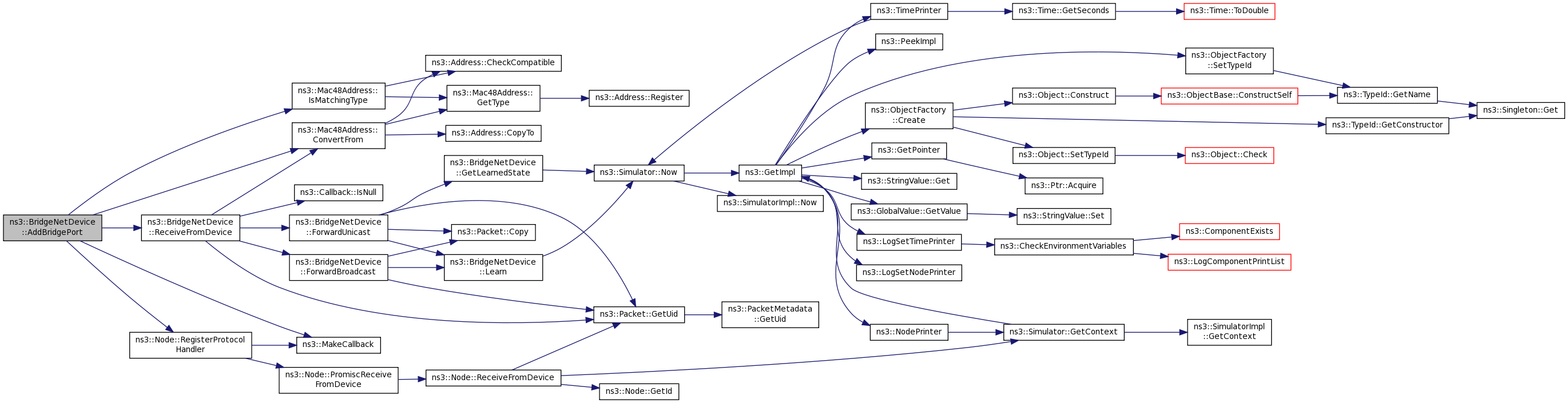

Here is the call graph for this function:

void ns3::BridgeNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

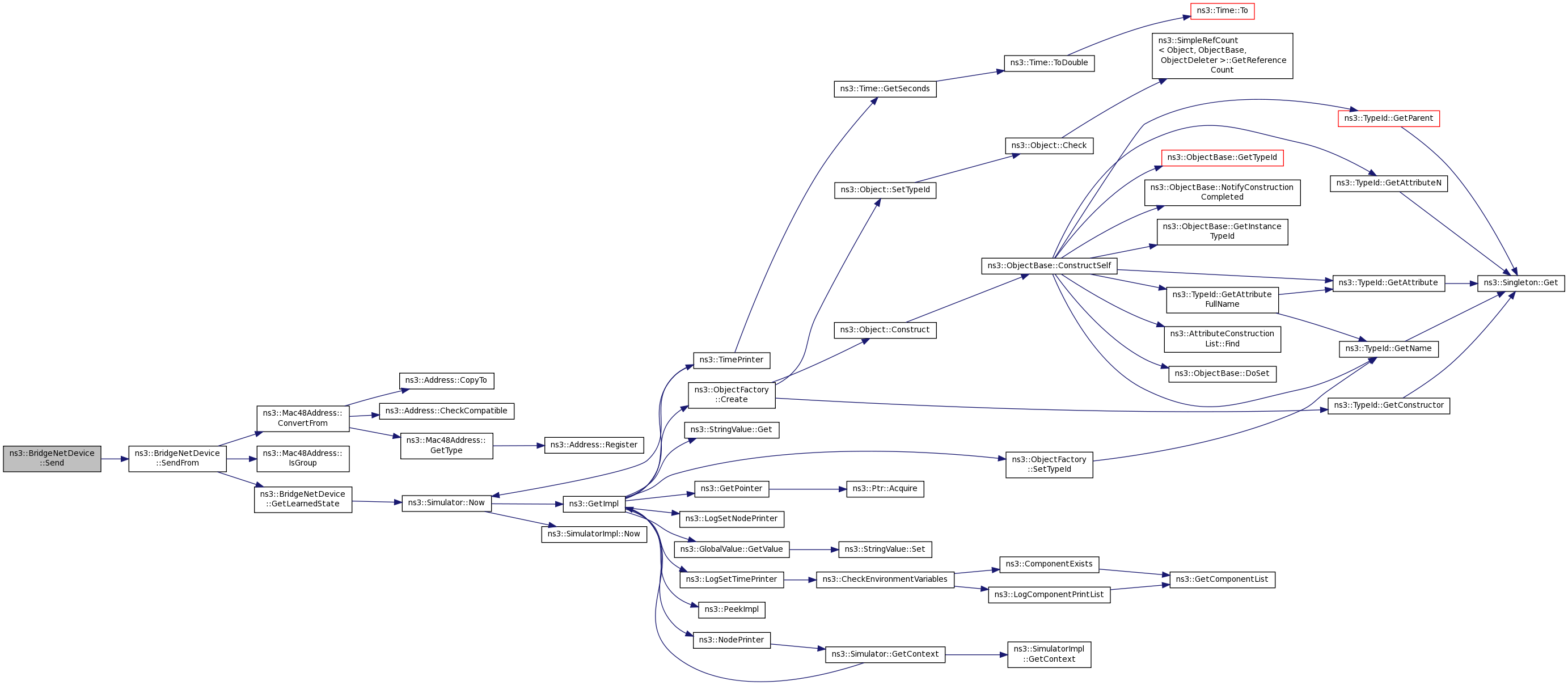

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

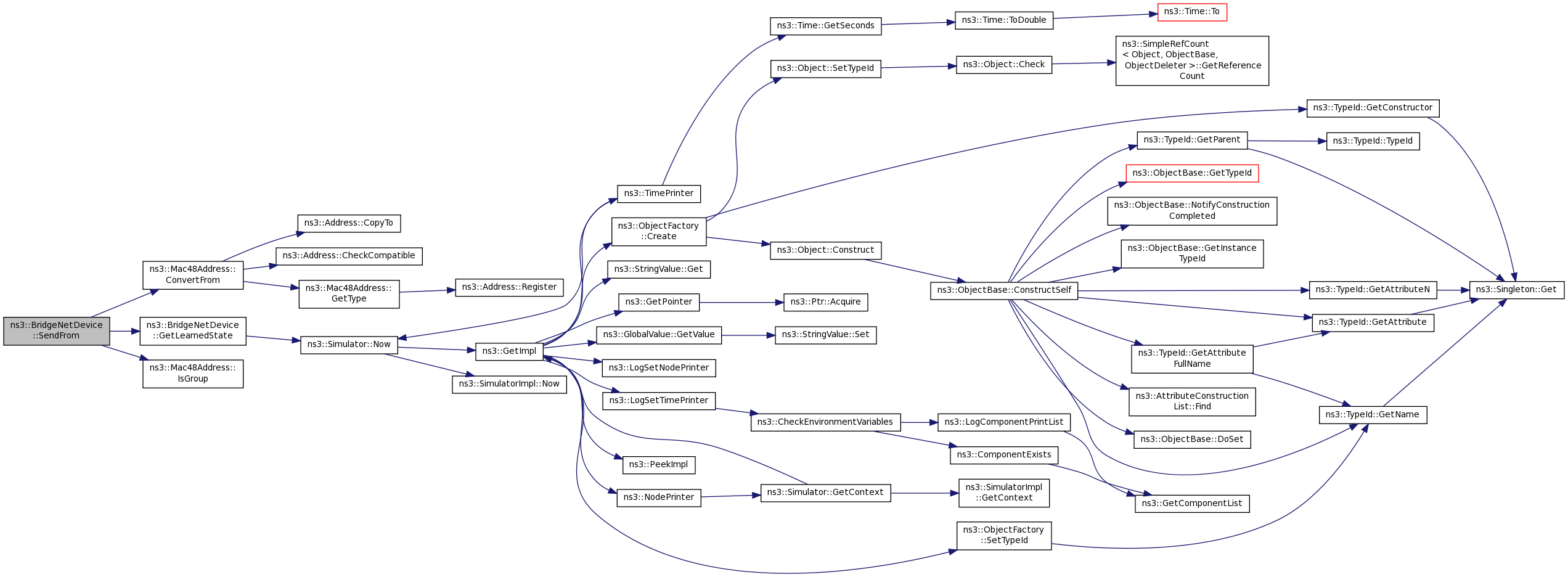

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.
