ns3::LteUeRrcProtocolReal Class Reference

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler. More...

#include <lte-rrc-protocol-real.h>

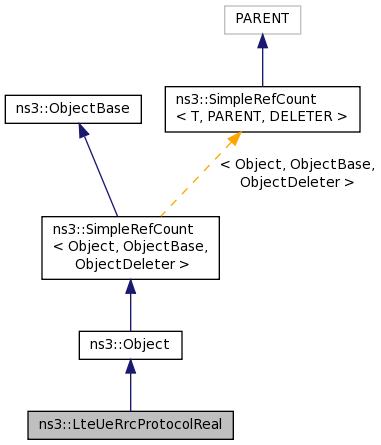

+ Inheritance diagram for ns3::LteUeRrcProtocolReal:

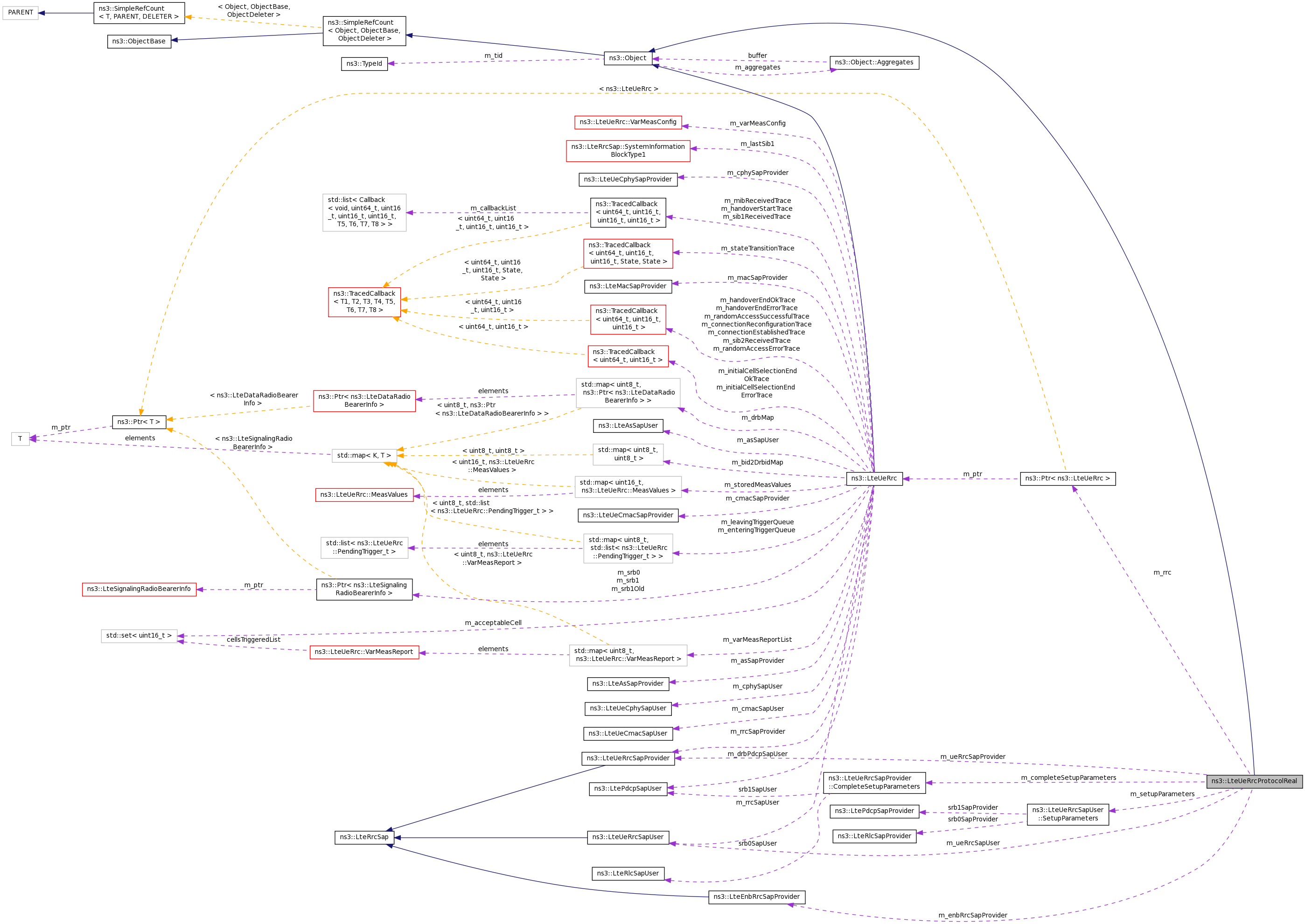

+ Collaboration diagram for ns3::LteUeRrcProtocolReal:

Public Member Functions

 LteUeRrcProtocolReal ()

virtual ~LteUeRrcProtocolReal ()

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LteUeRrcSapUser * GetLteUeRrcSapUser ()

void SetLteUeRrcSapProvider (LteUeRrcSapProvider *p)

void SetUeRrc (Ptr< LteUeRrc > rrc)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoReceivePdcpPdu (Ptr< Packet > p)

void DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void DoSendMeasurementReport (LteRrcSap::MeasurementReport msg)

void DoSendRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)

void DoSendRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)

void DoSendRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)

void DoSendRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)

void DoSendRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)

void DoSetup (LteUeRrcSapUser::SetupParameters params)

void SetEnbRrcSapProvider ()


Private Attributes

LteUeRrcSapProvider::CompleteSetupParameters m_completeSetupParameters

LteEnbRrcSapProvider * m_enbRrcSapProvider

uint16_t m_rnti

Ptr< LteUeRrc > m_rrc

LteUeRrcSapUser::SetupParameters m_setupParameters

LteUeRrcSapProvider * m_ueRrcSapProvider

LteUeRrcSapUser * m_ueRrcSapUser


Friends

class LtePdcpSpecificLtePdcpSapUser< LteUeRrcProtocolReal >

class LteRlcSpecificLteRlcSapUser< LteUeRrcProtocolReal >

class MemberLteUeRrcSapUser< LteUeRrcProtocolReal >


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 51 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::LteUeRrcProtocolReal::LteUeRrcProtocolReal ( )

Definition at line 46 of file lte-rrc-protocol-real.cc.

References m_completeSetupParameters, m_ueRrcSapUser, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

ns3::LteUeRrcProtocolReal::~LteUeRrcProtocolReal ( )
virtual

Definition at line 55 of file lte-rrc-protocol-real.cc.

Member Function Documentation

void ns3::LteUeRrcProtocolReal::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 60 of file lte-rrc-protocol-real.cc.

References m_completeSetupParameters, m_rrc, m_ueRrcSapUser, NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

void ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu ( Ptr< Packet >  p)
private

Definition at line 275 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionSetupHeader::GetMessage(), ns3::RrcConnectionReestablishmentHeader::GetMessage(), ns3::RrcConnectionReestablishmentRejectHeader::GetMessage(), ns3::RrcConnectionRejectHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_ueRrcSapProvider, ns3::Packet::PeekHeader(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReject(), ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup(), and ns3::Packet::RemoveHeader().

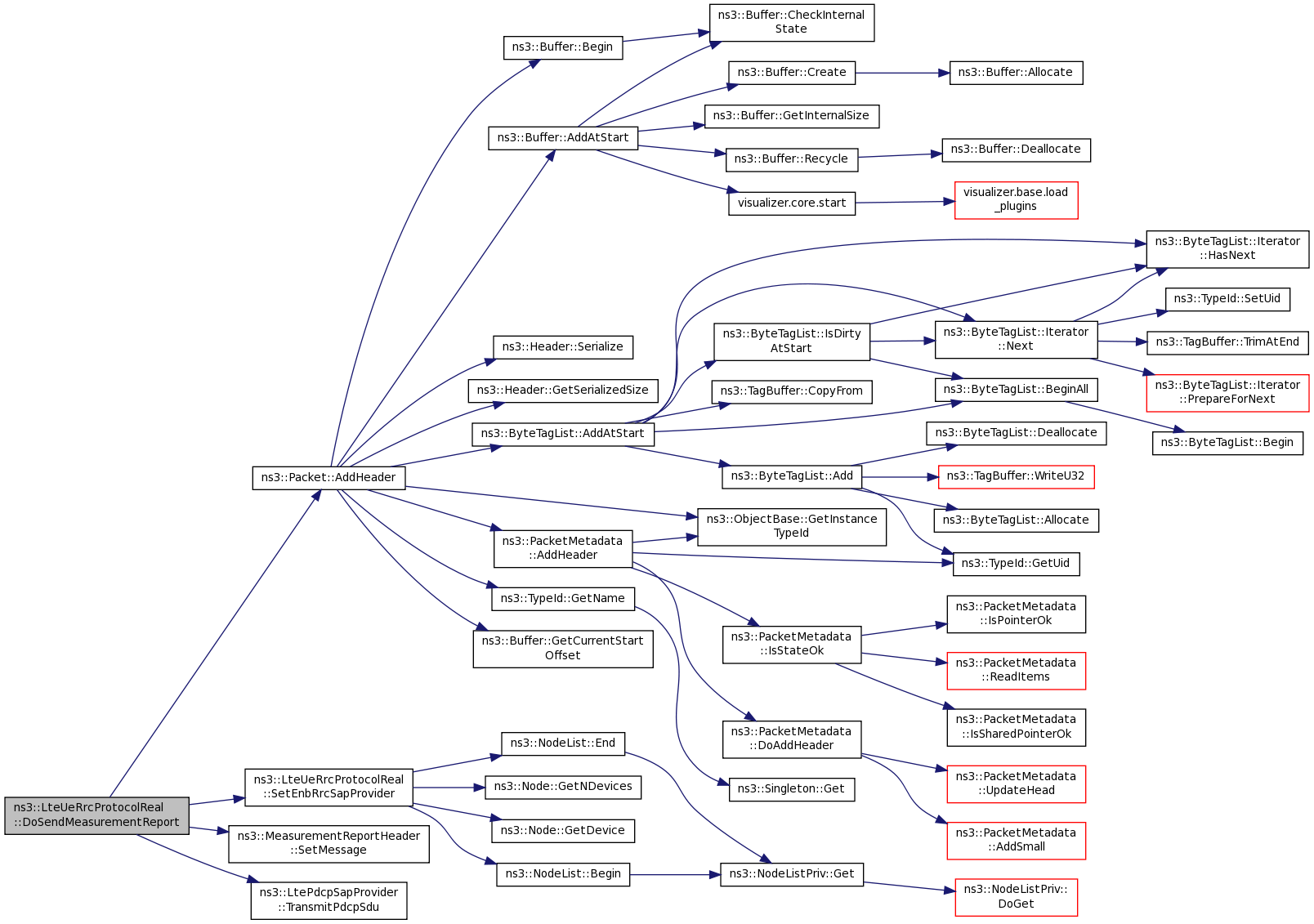

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters  params)
private

Definition at line 324 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), ns3::RrcConnectionReleaseHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_ueRrcSapProvider, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, ns3::Packet::PeekHeader(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration(), and ns3::Packet::RemoveHeader().

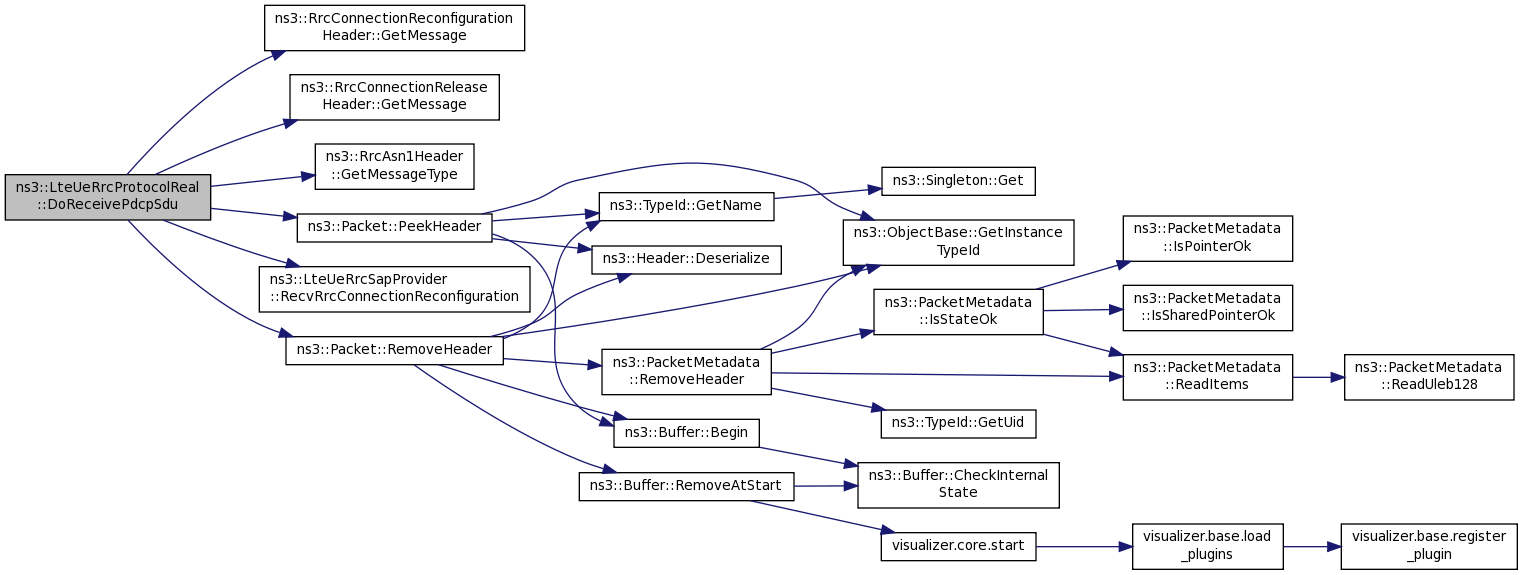

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendMeasurementReport ( LteRrcSap::MeasurementReport  msg)
private

Definition at line 175 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, SetEnbRrcSapProvider(), ns3::MeasurementReportHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted  msg)
private

Definition at line 152 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, SetEnbRrcSapProvider(), ns3::RrcConnectionReconfigurationCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

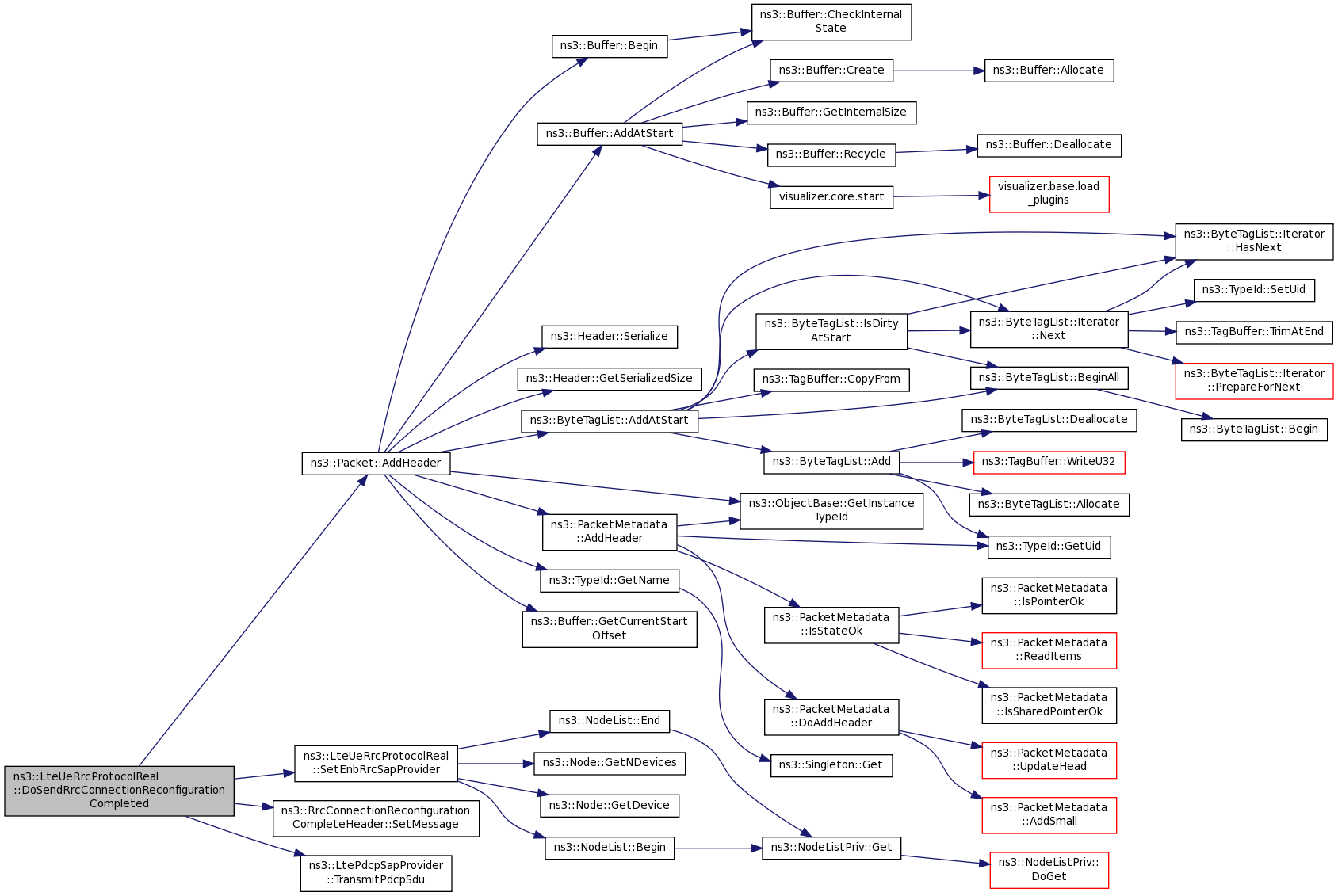

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete  msg)
private

Definition at line 216 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::RrcConnectionReestablishmentCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

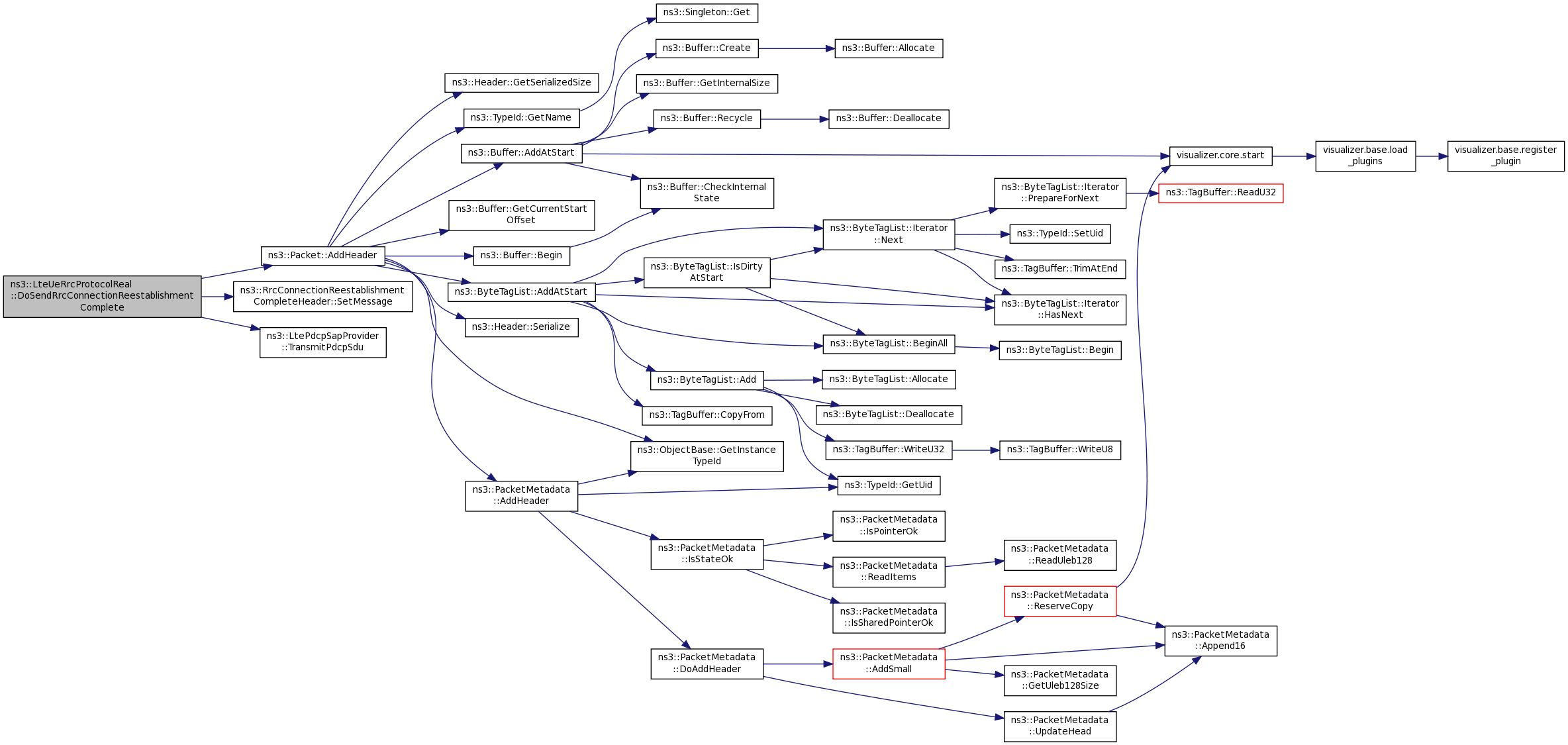

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest  msg)
private

Definition at line 198 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_rnti, m_setupParameters, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, ns3::RrcConnectionReestablishmentRequestHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteRlcSapProvider::TransmitPdcpPdu().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest  msg)
private

Definition at line 108 of file lte-rrc-protocol-real.cc.

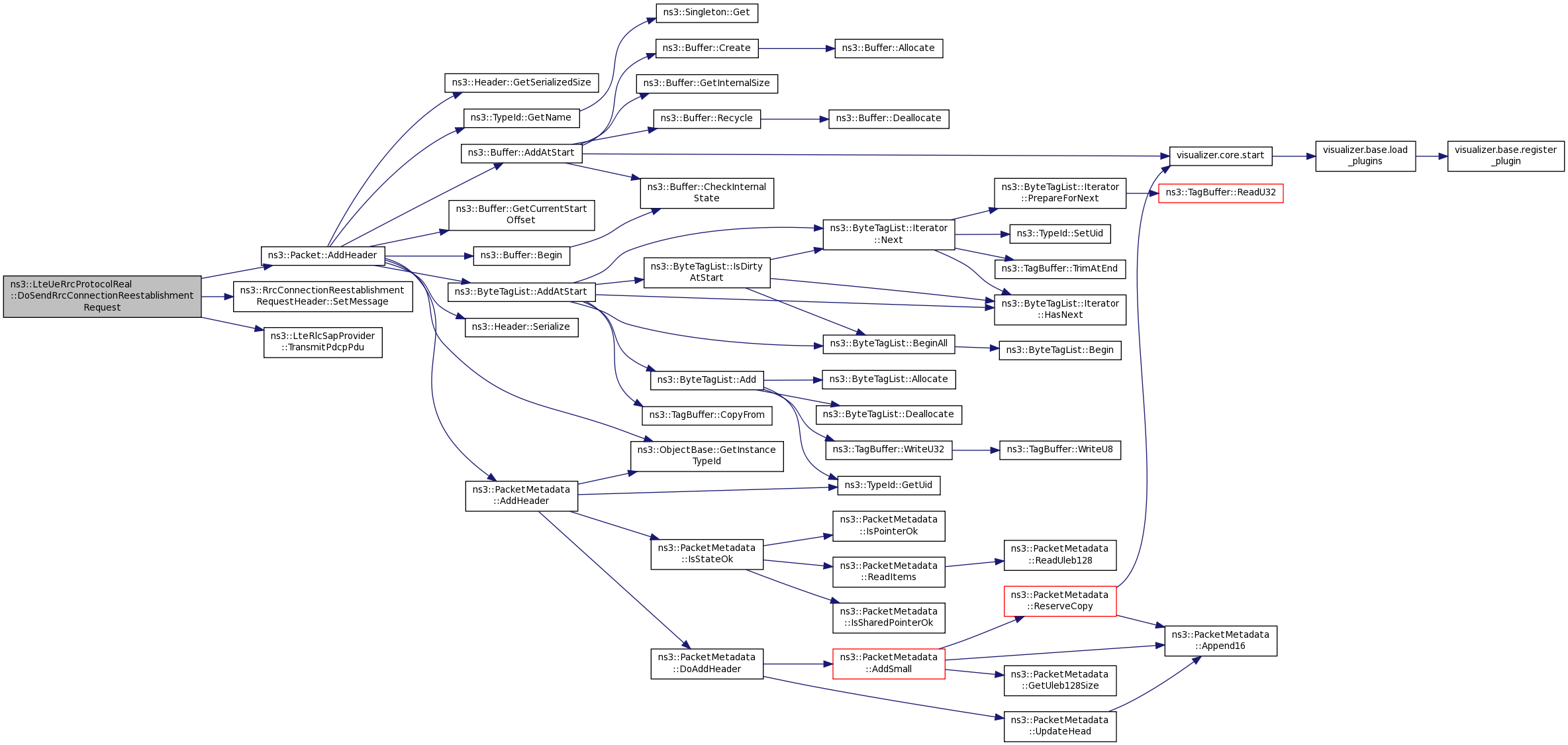

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, SetEnbRrcSapProvider(), ns3::RrcConnectionRequestHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteRlcSapProvider::TransmitPdcpPdu().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted  msg)
private

Definition at line 131 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::RrcConnectionSetupCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSetup ( LteUeRrcSapUser::SetupParameters  params)
private

Definition at line 98 of file lte-rrc-protocol-real.cc.

References ns3::LteUeRrcSapProvider::CompleteSetup(), m_completeSetupParameters, m_setupParameters, m_ueRrcSapProvider, NS_LOG_FUNCTION, ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider.

+ Here is the call graph for this function:

LteUeRrcSapUser * ns3::LteUeRrcProtocolReal::GetLteUeRrcSapUser ( )

Definition at line 86 of file lte-rrc-protocol-real.cc.

References m_ueRrcSapUser.

TypeId ns3::LteUeRrcProtocolReal::GetTypeId ( void  )
static

Definition at line 70 of file lte-rrc-protocol-real.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider ( )
private

Definition at line 235 of file lte-rrc-protocol-real.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), m_enbRrcSapProvider, m_rnti, m_rrc, m_ueRrcSapProvider, and NS_ASSERT_MSG.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), and DoSendRrcConnectionRequest().

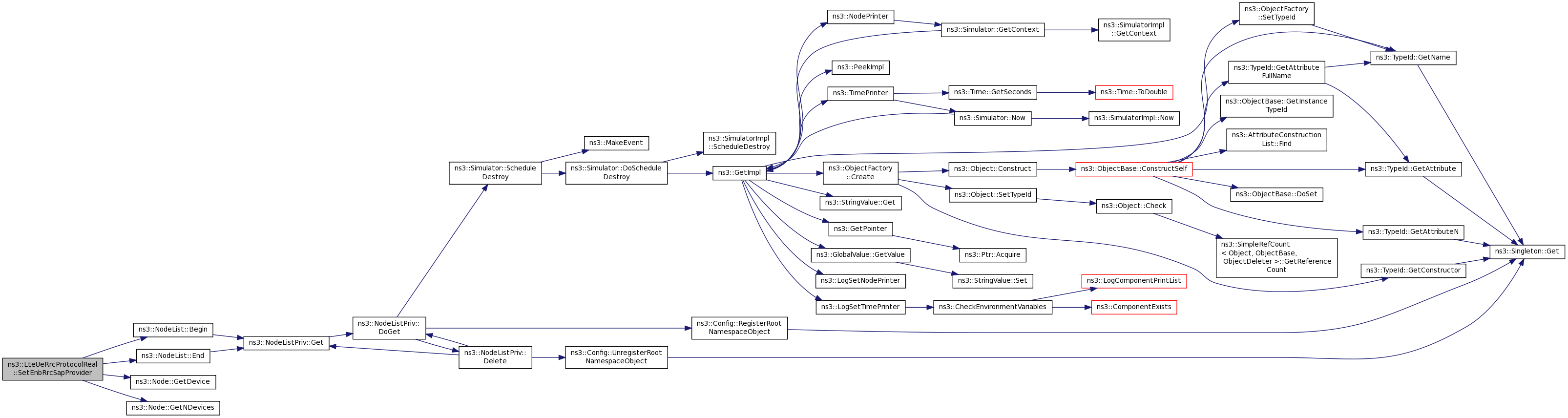

+ Here is the call graph for this function:

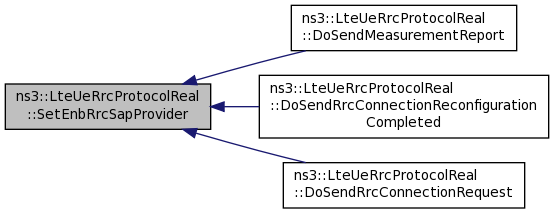

+ Here is the caller graph for this function:

void ns3::LteUeRrcProtocolReal::SetLteUeRrcSapProvider ( LteUeRrcSapProvider *  p)

Definition at line 80 of file lte-rrc-protocol-real.cc.

References m_ueRrcSapProvider.

void ns3::LteUeRrcProtocolReal::SetUeRrc ( Ptr< LteUeRrc >  rrc)

Definition at line 92 of file lte-rrc-protocol-real.cc.

References m_rrc.

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteUeRrcProtocolReal >
friend

Definition at line 55 of file lte-rrc-protocol-real.h.

friend class LteRlcSpecificLteRlcSapUser< LteUeRrcProtocolReal >
friend

Definition at line 54 of file lte-rrc-protocol-real.h.

friend class MemberLteUeRrcSapUser< LteUeRrcProtocolReal >
friend

Definition at line 53 of file lte-rrc-protocol-real.h.

Member Data Documentation

LteUeRrcSapProvider::CompleteSetupParameters ns3::LteUeRrcProtocolReal::m_completeSetupParameters
private

Definition at line 92 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoSetup(), and LteUeRrcProtocolReal().

LteEnbRrcSapProvider* ns3::LteUeRrcProtocolReal::m_enbRrcSapProvider
private

Definition at line 89 of file lte-rrc-protocol-real.h.

Referenced by SetEnbRrcSapProvider().

uint16_t ns3::LteUeRrcProtocolReal::m_rnti
private

Definition at line 86 of file lte-rrc-protocol-real.h.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and SetEnbRrcSapProvider().

Ptr<LteUeRrc> ns3::LteUeRrcProtocolReal::m_rrc
private

Definition at line 85 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionRequest(), SetEnbRrcSapProvider(), and SetUeRrc().

LteUeRrcSapUser::SetupParameters ns3::LteUeRrcProtocolReal::m_setupParameters
private

Definition at line 91 of file lte-rrc-protocol-real.h.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and DoSetup().

LteUeRrcSapProvider* ns3::LteUeRrcProtocolReal::m_ueRrcSapProvider
private

Definition at line 87 of file lte-rrc-protocol-real.h.

Referenced by DoReceivePdcpPdu(), DoReceivePdcpSdu(), DoSetup(), SetEnbRrcSapProvider(), and SetLteUeRrcSapProvider().

LteUeRrcSapUser* ns3::LteUeRrcProtocolReal::m_ueRrcSapUser
private

Definition at line 88 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), GetLteUeRrcSapUser(), and LteUeRrcProtocolReal().
