#include <lte-ue-rrc.h>

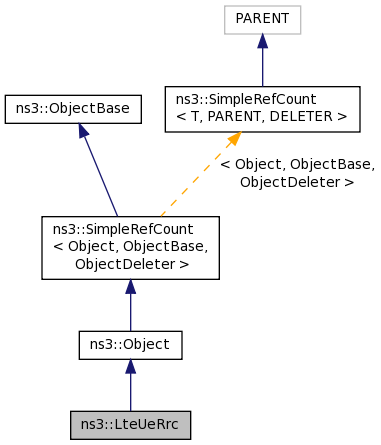

Inheritance diagram for ns3::LteUeRrc:

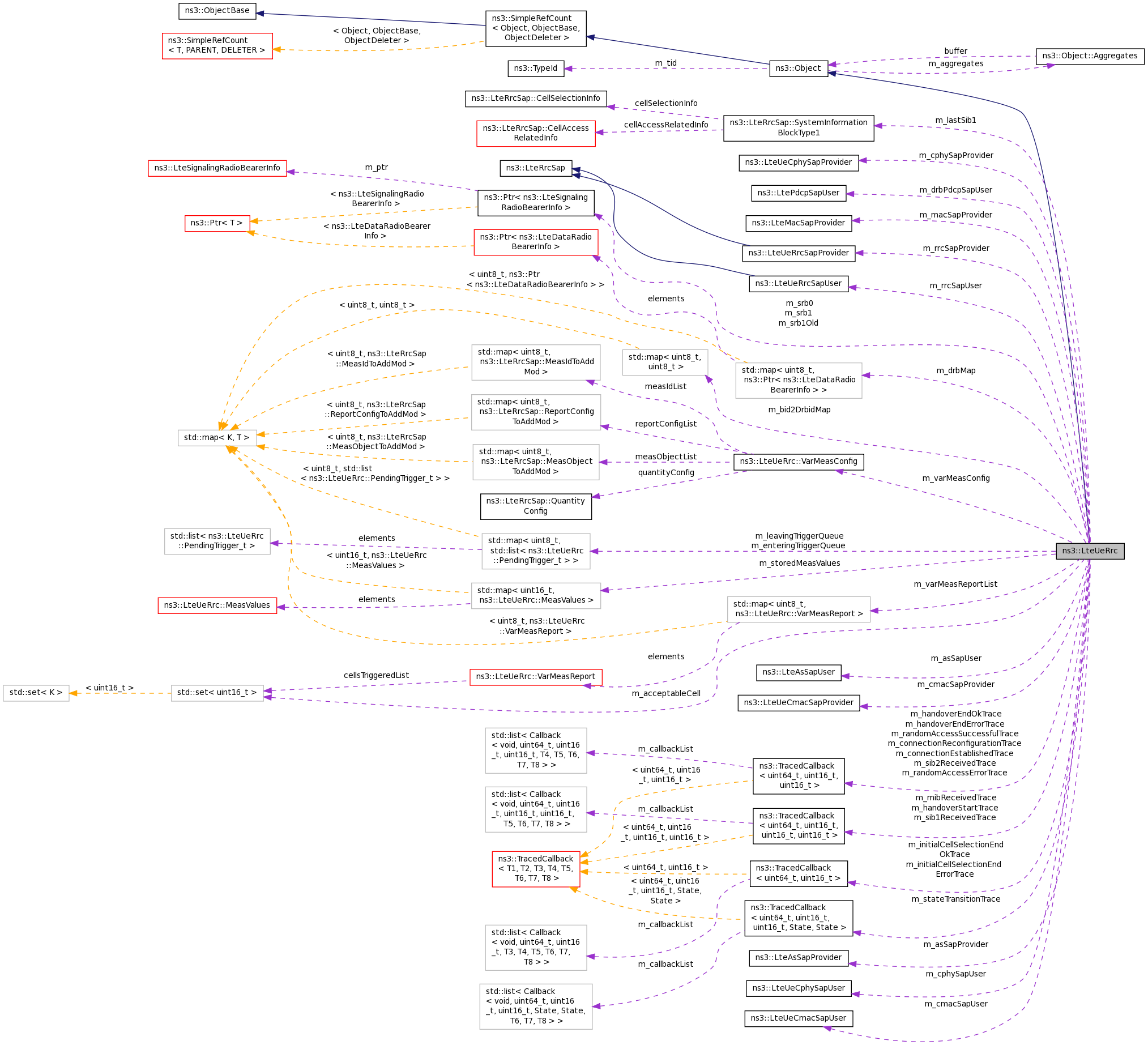

Collaboration diagram for ns3::LteUeRrc:

Classes
struct	MeasValues
	Represents a measurement result from a certain cell. More...

struct	PendingTrigger_t
	Represents a single triggered event from a measurement identity which reporting criteria have been fulfilled, but delayed by time-to-trigger. More...

struct	VarMeasConfig
	Includes the accumulated configuration of the measurements to be performed by the UE. More...

struct	VarMeasReport
	Represents a single measurement reporting entry., which includes information about a measurement for which the triggering conditions have been met. More...

Public Types
enum	State { IDLE_START = 0, IDLE_CELL_SEARCH, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_MIB, IDLE_WAIT_SIB1, IDLE_CAMPED_NORMALLY, IDLE_WAIT_SIB2, IDLE_RANDOM_ACCESS, IDLE_CONNECTING, CONNECTED_NORMALLY, CONNECTED_HANDOVER, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, NUM_STATES }
	The states of the UE RRC entity. More...

Public Member Functions
	LteUeRrc ()
	create an RRC instance for use within an ue More...

virtual	~LteUeRrc ()
	Destructor. More...

LteAsSapProvider *	GetAsSapProvider ()

uint16_t	GetCellId () const

uint8_t	GetDlBandwidth () const

uint16_t	GetDlEarfcn () const

uint64_t	GetImsi (void) const

LteUeCmacSapUser *	GetLteUeCmacSapUser ()

LteUeCphySapUser *	GetLteUeCphySapUser ()

LteUeRrcSapProvider *	GetLteUeRrcSapProvider ()

uint16_t	GetRnti () const

State	GetState () const

uint8_t	GetUlBandwidth () const

uint16_t	GetUlEarfcn () const

void	SetAsSapUser (LteAsSapUser *s)
	Set the AS SAP user to interact with the NAS entity. More...

void	SetImsi (uint64_t imsi)

void	SetLteMacSapProvider (LteMacSapProvider *s)
	set the MAC SAP provider. More...

void	SetLteUeCmacSapProvider (LteUeCmacSapProvider *s)
	set the CMAC SAP this RRC should interact with More...

void	SetLteUeCphySapProvider (LteUeCphySapProvider *s)
	set the CPHY SAP this RRC should use to interact with the PHY More...

void	SetLteUeRrcSapUser (LteUeRrcSapUser *s)
	set the RRC SAP this RRC should interact with More...

void	SetUseRlcSm (bool val)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

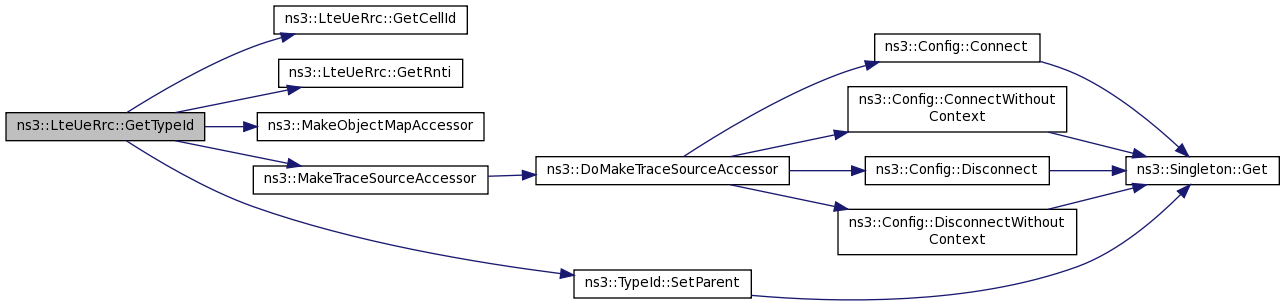

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::list< uint16_t >	ConcernedCells_t
	List of cell IDs which are responsible for a certain trigger. More...

Private Member Functions
void	ApplyMeasConfig (LteRrcSap::MeasConfig mc)
	Update the current measurement configuration m_varMeasConfig. More...

void	ApplyRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated rrcd)

uint8_t	Bid2Drbid (uint8_t bid)

void	CancelEnteringTrigger (uint8_t measId)
	Clear all the waiting triggers in m_enteringTriggerQueue which are associated with the given measurement identity. More...

void	CancelEnteringTrigger (uint8_t measId, uint16_t cellId)
	Remove a specific cell from the waiting triggers in m_enteringTriggerQueue which belong to the given measurement identity. More...

void	CancelLeavingTrigger (uint8_t measId)
	Clear all the waiting triggers in m_leavingTriggerQueue which are associated with the given measurement identity. More...

void	CancelLeavingTrigger (uint8_t measId, uint16_t cellId)
	Remove a specific cell from the waiting triggers in m_leavingTriggerQueue which belong to the given measurement identity. More...

void	DisposeOldSrb1 ()

void	DoCompleteSetup (LteUeRrcSapProvider::CompleteSetupParameters params)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::CompleteSetup interface. More...

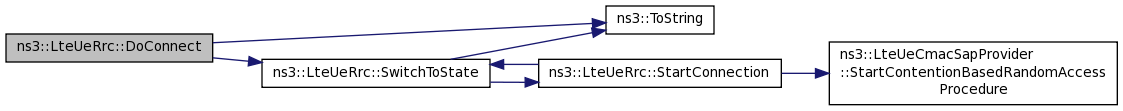

void	DoConnect ()

void	DoDisconnect ()

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void	DoForceCampedOnEnb (uint16_t cellId, uint16_t dlEarfcn)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

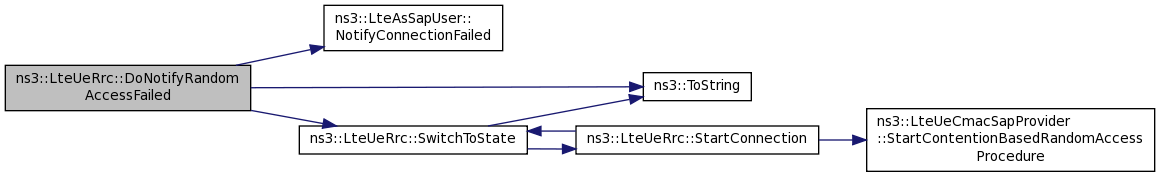

void	DoNotifyRandomAccessFailed ()

void	DoNotifyRandomAccessSuccessful ()

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void	DoRecvMasterInformationBlock (uint16_t cellId, LteRrcSap::MasterInformationBlock msg)

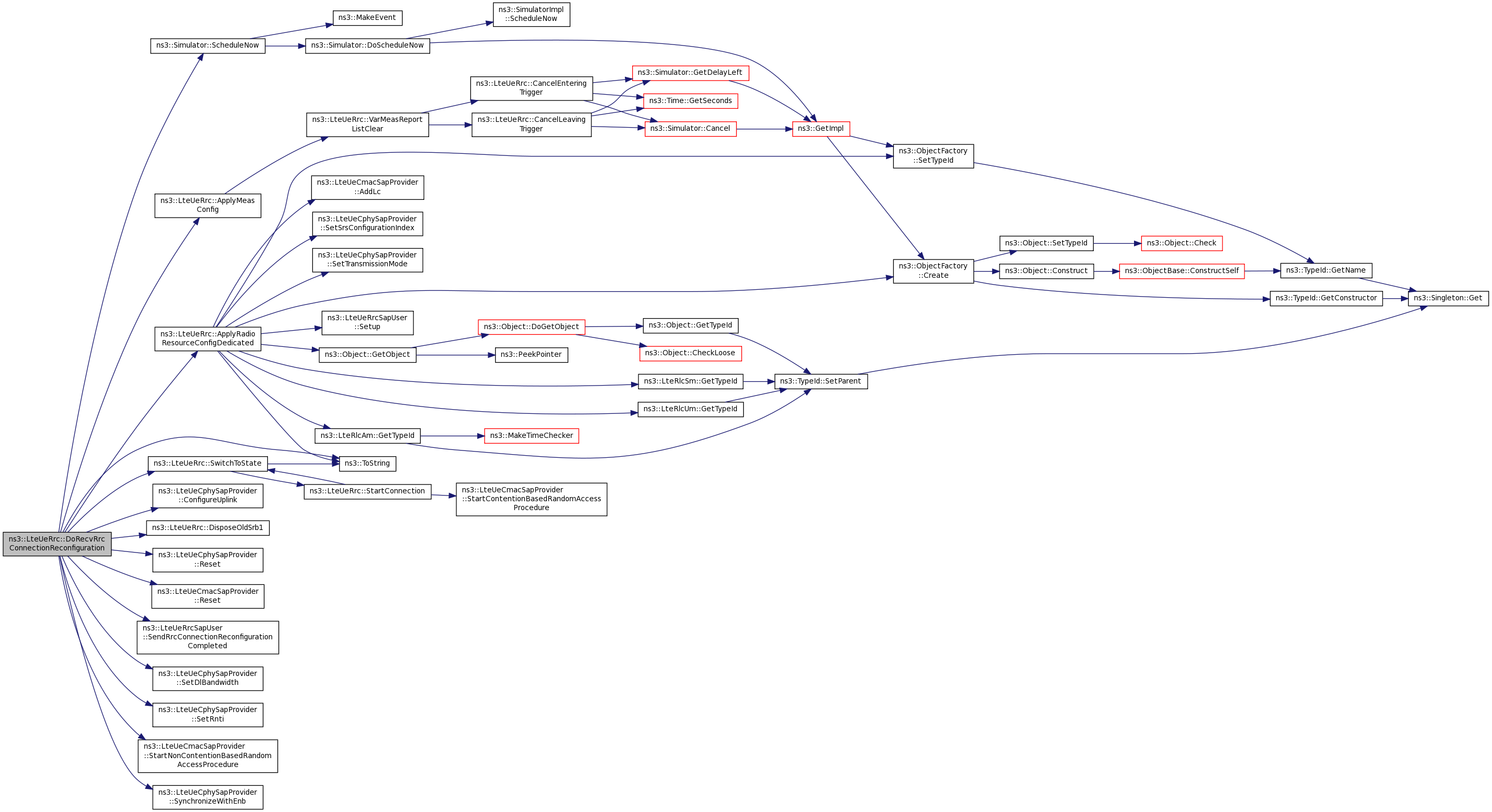

void	DoRecvRrcConnectionReconfiguration (LteRrcSap::RrcConnectionReconfiguration msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReconfiguration interface. More...

void	DoRecvRrcConnectionReestablishment (LteRrcSap::RrcConnectionReestablishment msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReestablishment interface. More...

void	DoRecvRrcConnectionReestablishmentReject (LteRrcSap::RrcConnectionReestablishmentReject msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject interface. More...

void	DoRecvRrcConnectionReject (LteRrcSap::RrcConnectionReject msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReject interface. More...

void	DoRecvRrcConnectionRelease (LteRrcSap::RrcConnectionRelease msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionRelease interface. More...

void	DoRecvRrcConnectionSetup (LteRrcSap::RrcConnectionSetup msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionSetup interface. More...

void	DoRecvSystemInformation (LteRrcSap::SystemInformation msg)
	Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvSystemInformation interface. More...

void	DoRecvSystemInformationBlockType1 (uint16_t cellId, LteRrcSap::SystemInformationBlockType1 msg)

void	DoReportUeMeasurements (LteUeCphySapUser::UeMeasurementsParameters params)

void	DoSendData (Ptr< Packet > packet, uint8_t bid)

void	DoSetCsgWhiteList (uint32_t csgId)

void	DoSetTemporaryCellRnti (uint16_t rnti)

void	DoStartCellSelection (uint16_t dlEarfcn)

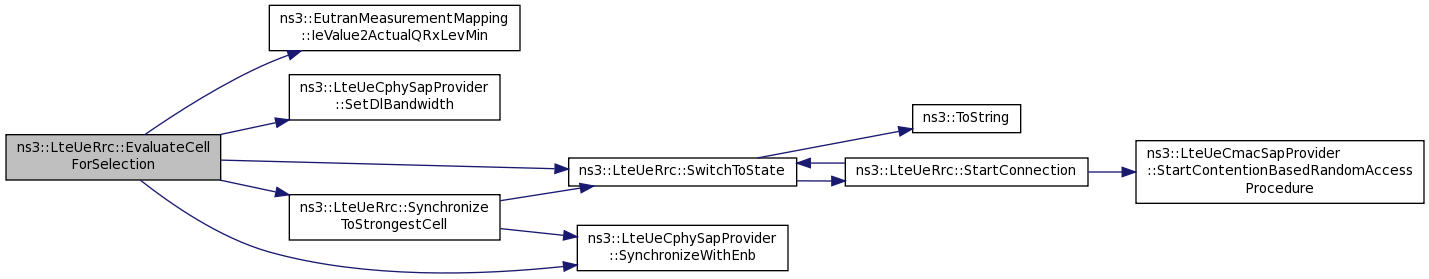

void	EvaluateCellForSelection ()
	Performs cell selection evaluation to the current serving cell. More...

void	LeaveConnectedMode ()

void	MeasurementReportTriggering (uint8_t measId)
	Evaluate the reporting criteria of a measurement identity and invoke some reporting actions based on the result. More...

void	SaveUeMeasurements (uint16_t cellId, double rsrp, double rsrq, bool useLayer3Filtering)
	Keep the given measurement result as the latest measurement figures, to be utilised by UE RRC functions. More...

void	SendMeasurementReport (uint8_t measId)
	Produce a proper measurement report from the given measurement identity's reporting entry in m_varMeasReportList and then submit it to the serving eNodeB. More...

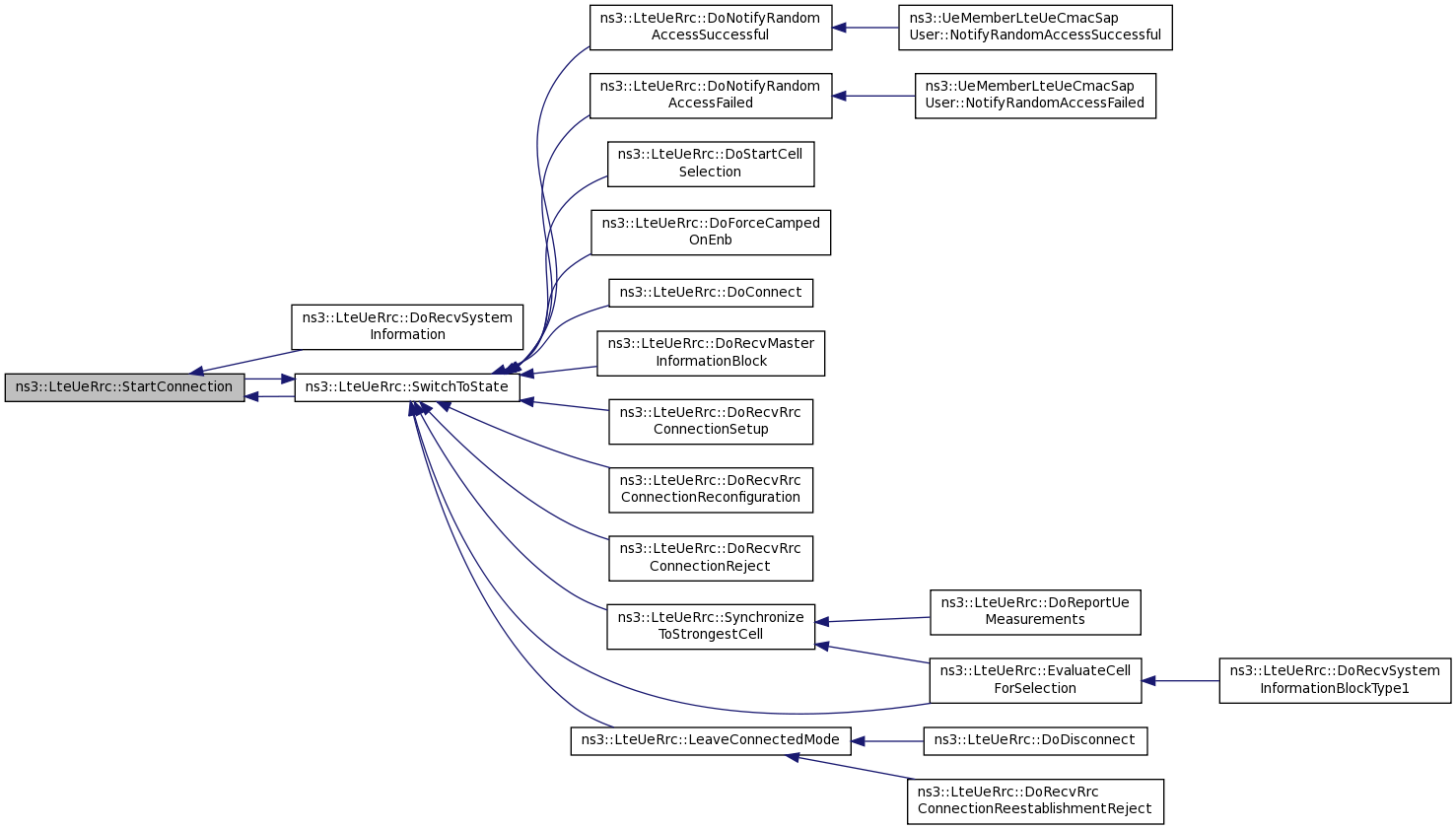

void	StartConnection ()

void	SwitchToState (State s)

void	SynchronizeToStrongestCell ()
	Go through the list of measurement results, choose the one with the strongest RSRP, and tell PHY to synchronize to it. More...

void	VarMeasReportListAdd (uint8_t measId, ConcernedCells_t enteringCells)
	Compose a new reporting entry of the given measurement identity, insert it into m_varMeasReportList, and set it up for submission to eNodeB. More...

void	VarMeasReportListClear (uint8_t measId)
	Remove the reporting entry of the given measurement identity from m_varMeasReportList. More...

void	VarMeasReportListErase (uint8_t measId, ConcernedCells_t leavingCells, bool reportOnLeave)
	Remove some cells from an existing reporting entry in m_varMeasReportList. More...

Private Attributes
std::set< uint16_t >	m_acceptableCell
	List of cell ID of acceptable cells for cell selection that have been detected. More...

LteAsSapProvider *	m_asSapProvider

LteAsSapUser *	m_asSapUser

std::map< uint8_t, uint8_t >	m_bid2DrbidMap

uint16_t	m_cellId

LteUeCmacSapProvider *	m_cmacSapProvider

LteUeCmacSapUser *	m_cmacSapUser

TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionEstablishedTrace

bool	m_connectionPending
	true if a connection request by upper layers is pending More...

TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionReconfigurationTrace

LteUeCphySapProvider *	m_cphySapProvider

LteUeCphySapUser *	m_cphySapUser

uint32_t	m_csgWhiteList
	List of CSG ID which this UE entity has access to. More...

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

uint16_t	m_dlEarfcn
	downlink carrier frequency More...

std::map< uint8_t, Ptr < LteDataRadioBearerInfo > >	m_drbMap

LtePdcpSapUser *	m_drbPdcpSapUser

std::map< uint8_t, std::list < PendingTrigger_t > >	m_enteringTriggerQueue
	List of triggers that were raised because entering condition have been true, but are still delayed from reporting it by time-to-trigger. More...

TracedCallback< uint64_t, uint16_t, uint16_t >	m_handoverEndErrorTrace

TracedCallback< uint64_t, uint16_t, uint16_t >	m_handoverEndOkTrace

TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_handoverStartTrace

bool	m_hasReceivedMib
	true if MIB was received for the current cell More...

bool	m_hasReceivedSib1
	true if SIB1 was received for the current cell More...

bool	m_hasReceivedSib2
	true if SIB2 was received for the current cell More...

uint64_t	m_imsi

TracedCallback< uint64_t, uint16_t >	m_initialCellSelectionEndErrorTrace

TracedCallback< uint64_t, uint16_t >	m_initialCellSelectionEndOkTrace

uint8_t	m_lastRrcTransactionIdentifier

LteRrcSap::SystemInformationBlockType1	m_lastSib1
	Stored content of the last SIB1 received. More...

std::map< uint8_t, std::list < PendingTrigger_t > >	m_leavingTriggerQueue
	List of triggers that were raised because leaving condition have been true, but are still delayed from stopping the reporting by time-to-trigger. More...

LteMacSapProvider *	m_macSapProvider

TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_mibReceivedTrace

TracedCallback< uint64_t, uint16_t, uint16_t >	m_randomAccessErrorTrace

TracedCallback< uint64_t, uint16_t, uint16_t >	m_randomAccessSuccessfulTrace

uint16_t	m_rnti

LteUeRrcSapProvider *	m_rrcSapProvider

LteUeRrcSapUser *	m_rrcSapUser

TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_sib1ReceivedTrace

TracedCallback< uint64_t, uint16_t, uint16_t >	m_sib2ReceivedTrace

Ptr< LteSignalingRadioBearerInfo >	m_srb0

Ptr< LteSignalingRadioBearerInfo >	m_srb1

Ptr< LteSignalingRadioBearerInfo >	m_srb1Old

State	m_state

TracedCallback< uint64_t, uint16_t, uint16_t, State, State >	m_stateTransitionTrace

std::map< uint16_t, MeasValues >	m_storedMeasValues
	Internal storage of the latest measurement results from all detected detected cells, indexed by the cell ID where the measurement was taken from. More...

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

uint16_t	m_ulEarfcn
	uplink carrier frequency More...

bool	m_useRlcSm

VarMeasConfig	m_varMeasConfig
	Includes the accumulated configuration of the measurements to be performed by the UE. More...

std::map< uint8_t, VarMeasReport >	m_varMeasReportList
	The list of active reporting entries, indexed by the measurement identity which triggered the reporting. More...

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteUeRrc >

class	MemberLteAsSapProvider< LteUeRrc >

class	MemberLteUeCphySapUser< LteUeRrc >

class	MemberLteUeRrcSapProvider< LteUeRrc >

class	UeMemberLteUeCmacSapUser

class	UeRrcMemberLteEnbCmacSapUser

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::LteUeRrc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc

Attributes

DataRadioBearerMap: List of UE RadioBearerInfo for Data Radio Bearers by LCID.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::LteDataRadioBearerInfo >
- Flags: read
Srb0: SignalingRadioBearerInfo for SRB0
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
Srb1: SignalingRadioBearerInfo for SRB1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
CellId: Serving cell identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read
C-RNTI: Cell Radio Network Temporary Identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read

TraceSources

MibReceived: trace fired upon reception of Master Information Block
Sib1Received: trace fired upon reception of System Information Block Type 1
Sib2Received: trace fired upon reception of System Information Block Type 2
StateTransition: trace fired upon every UE RRC state transition
InitialCellSelectionEndOk: trace fired upon successful initial cell selection procedure
InitialCellSelectionEndError: trace fired upon failed initial cell selection procedure
RandomAccessSuccessful: trace fired upon successful completion of the random access procedure
RandomAccessError: trace fired upon failure of the random access procedure
ConnectionEstablished: trace fired upon successful RRC connection establishment
ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
HandoverStart: trace fired upon start of a handover procedure
HandoverEndOk: trace fired upon successful termination of a handover procedure
HandoverEndError: trace fired upon failure of a handover procedure

Definition at line 70 of file lte-ue-rrc.h.

Member Typedef Documentation

typedef std::list<uint16_t> ns3::LteUeRrc::ConcernedCells_t

private

List of cell IDs which are responsible for a certain trigger.

Definition at line 604 of file lte-ue-rrc.h.

Member Enumeration Documentation

enum ns3::LteUeRrc::State

The states of the UE RRC entity.

Enumerator
IDLE_START
IDLE_CELL_SEARCH
IDLE_WAIT_MIB_SIB1
IDLE_WAIT_MIB
IDLE_WAIT_SIB1
IDLE_CAMPED_NORMALLY
IDLE_WAIT_SIB2
IDLE_RANDOM_ACCESS
IDLE_CONNECTING
CONNECTED_NORMALLY
CONNECTED_HANDOVER
CONNECTED_PHY_PROBLEM
CONNECTED_REESTABLISHING
NUM_STATES

Definition at line 86 of file lte-ue-rrc.h.

Constructor & Destructor Documentation

ns3::LteUeRrc::LteUeRrc ( )

create an RRC instance for use within an ue

Definition at line 122 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbPdcpSapUser, m_rrcSapProvider, NS_LOG_FUNCTION, and UeMemberLteUeCmacSapUser.

ns3::LteUeRrc::~LteUeRrc ( )

virtual

Destructor.

Definition at line 148 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUeRrc::ApplyMeasConfig ( LteRrcSap::MeasConfig mc )

private

Update the current measurement configuration m_varMeasConfig.

Parameters

mc	measurements to be performed by the UE

Implements Section 5.5.2 "Measurement configuration" of 3GPP TS 36.331. The supported subfunctions are:

Measurement object removal
Measurement object addition/ modification
Reporting configuration removal
Reporting configuration addition/ modification
Quantity configuration
Measurement identity removal
Measurement identity addition/ modification

The subfunctions that will be invoked are determined by the content of the given measurement configuration.

Note the existence of some chain reaction behaviours:

Removal of measurement object or reporting configuration also removes any impacted measurement identities.
Removal of measurement identity also removes any associated reporting entry from m_varMeasReportList.
Modification to measurement object or reporting configuration also removes any reporting entries of the impacted measurement identities from m_varMeasReportList.
Modification to quantity configuration also removes all existing reporting entries from m_varMeasReportList, regardless of measurement identity.

Some unsupported features:

List of neighbouring cells
List of black cells
CGI reporting
Periodical reporting configuration
Measurement gaps
s-Measure
Speed-dependent scaling

Warning: There is a possibility that the input argument (of type LteRrcSap::MeasConfig) may contain information in fields related to the unsupported features. In such case, the function will raise an error.

The measurement configuration given as an argument is typically provided by the serving eNodeB. It is transmitted through the RRC protocol when the UE joins the cell, e.g., by connection establishment or by incoming handover. The information inside the argument can be configured from the eNodeB side, which would then equally apply to all other UEs attached to the same eNodeB. See the LTE module's User Documentation for more information on configuring this.

See also: LteRrcSap::MeasConfig, LteUeRrc::m_varMeasReportList

Definition at line 1259 of file lte-ue-rrc.cc.

Referenced by DoRecvRrcConnectionReconfiguration().

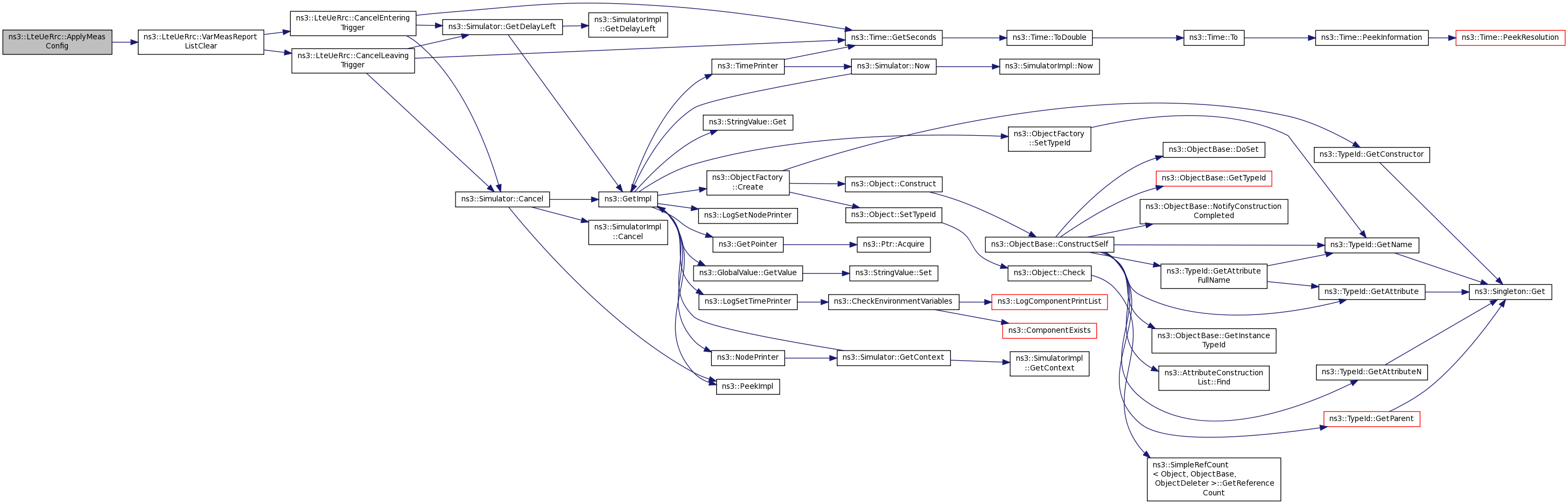

Here is the call graph for this function:

Here is the caller graph for this function:

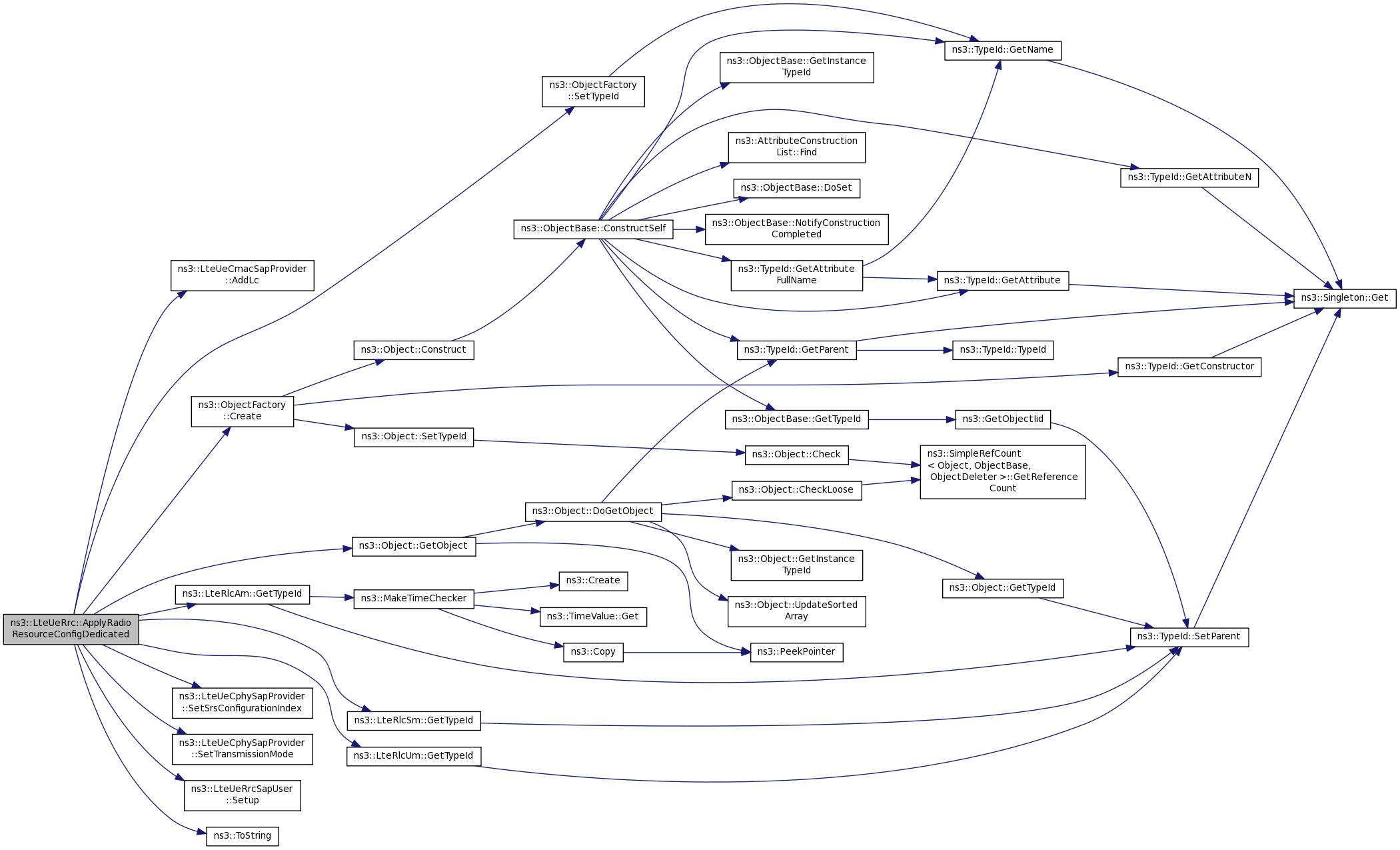

void ns3::LteUeRrc::ApplyRadioResourceConfigDedicated ( LteRrcSap::RadioResourceConfigDedicated rrcd )

private

Todo:: currently not implemented. Would need to modify drbInfo, and then propagate changes to the MAC

Definition at line 1085 of file lte-ue-rrc.cc.

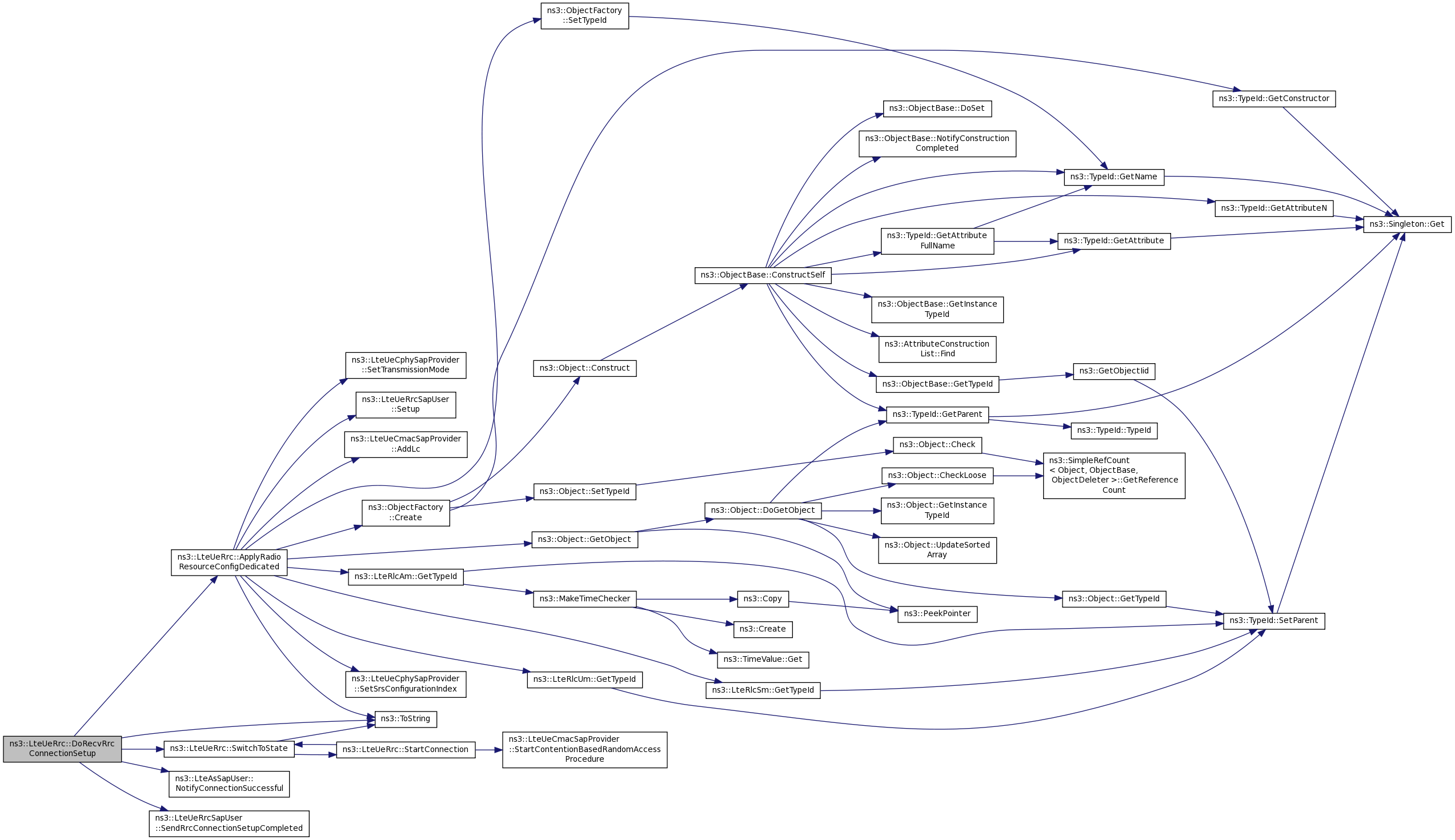

References ns3::LteUeCmacSapProvider::AddLc(), ns3::LteRrcSap::RlcConfig::AM, ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteUeCmacSapProvider::LogicalChannelConfig::bucketSizeDurationMs, CONNECTED_HANDOVER, ns3::ObjectFactory::Create(), ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::Object::GetObject(), ns3::LteRlcUm::GetTypeId(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, IDLE_CONNECTING, ns3::LteUeCmacSapProvider::LogicalChannelConfig::logicalChannelGroup, m_bid2DrbidMap, m_cmacSapProvider, m_cphySapProvider, m_drbMap, m_drbPdcpSapUser, m_imsi, m_macSapProvider, m_rnti, m_rrcSapUser, m_srb0, m_srb1, m_state, m_useRlcSm, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteUeCmacSapProvider::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteUeCmacSapProvider::LogicalChannelConfig::priority, ns3::LteUeCphySapProvider::SetSrsConfigurationIndex(), ns3::LteUeCphySapProvider::SetTransmissionMode(), ns3::ObjectFactory::SetTypeId(), ns3::LteUeRrcSapUser::Setup(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::ToString(), ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.

Referenced by DoRecvRrcConnectionReconfiguration(), and DoRecvRrcConnectionSetup().

Here is the call graph for this function:

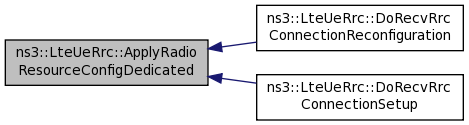

Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::Bid2Drbid ( uint8_t bid )

private

Definition at line 2739 of file lte-ue-rrc.cc.

References m_bid2DrbidMap, and NS_ASSERT_MSG.

Referenced by DoSendData().

Here is the caller graph for this function:

void ns3::LteUeRrc::CancelEnteringTrigger ( uint8_t measId )

private

Clear all the waiting triggers in m_enteringTriggerQueue which are associated with the given measurement identity.

Parameters

measId the measurement identity to be processed, must already exists in m_enteringTriggerQueue, otherwise an error would be raised

Note: The function may conclude that there is nothing to be removed. In this case, the function will simply ignore quietly.

This function is used when the entering condition of the measurement identity becomes no longer true. Therefore all the waiting triggers for this measurement identity in m_enteringTriggerQueue have become invalid and must be canceled.

See also: LteUeRrc::m_enteringTriggerQueue

Definition at line 2275 of file lte-ue-rrc.cc.

References ns3::Simulator::Cancel(), ns3::Simulator::GetDelayLeft(), ns3::Time::GetSeconds(), m_enteringTriggerQueue, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

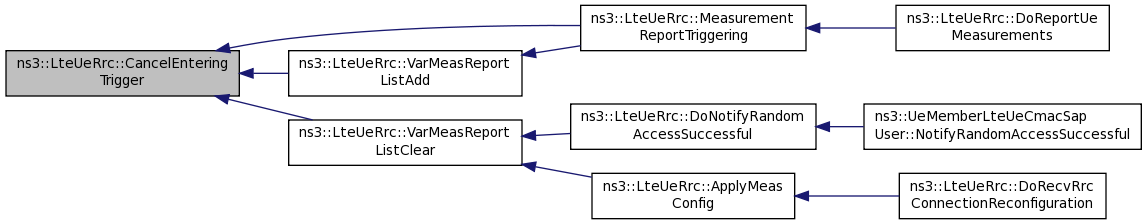

Referenced by MeasurementReportTriggering(), VarMeasReportListAdd(), and VarMeasReportListClear().

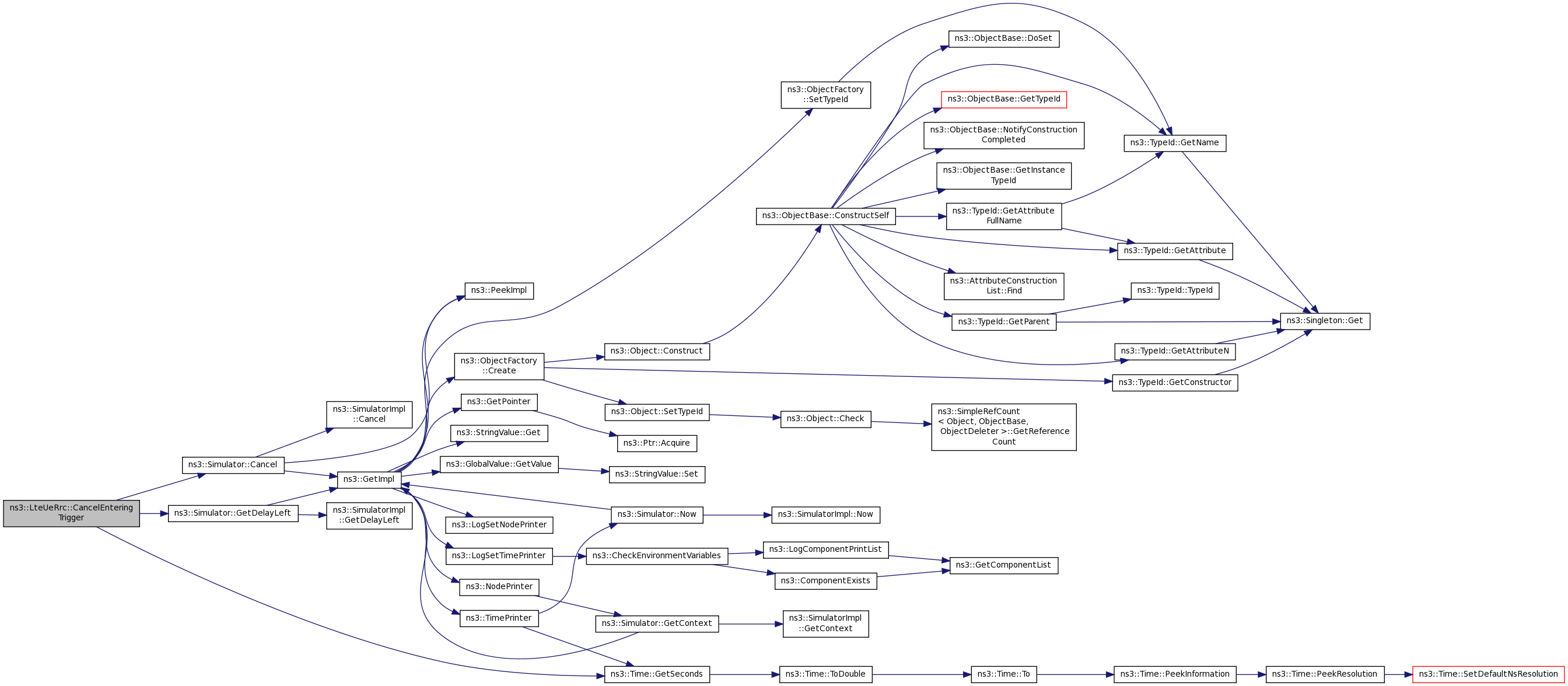

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::CancelEnteringTrigger	(	uint8_t	measId,
		uint16_t	cellId
	)

private

Remove a specific cell from the waiting triggers in m_enteringTriggerQueue which belong to the given measurement identity.

Parameters

measId	the measurement identity to be processed, must already exists in m_enteringTriggerQueue, otherwise an error would be raised
cellId	the cell ID to be removed from the waiting triggers

Note: The function may conclude that there is nothing to be removed. In this case, the function will simply ignore quietly.

This function is used when a specific neighbour cell no longer fulfills the entering condition of the measurement identity. Thus the cell must be removed from all the waiting triggers for this measurement identity in m_enteringTriggerQueue.

See also: LteUeRrc::m_enteringTriggerQueue

Definition at line 2299 of file lte-ue-rrc.cc.

References ns3::Simulator::Cancel(), ns3::Simulator::GetDelayLeft(), ns3::Time::GetSeconds(), m_enteringTriggerQueue, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::LteUeRrc::CancelLeavingTrigger ( uint8_t measId )

private

Clear all the waiting triggers in m_leavingTriggerQueue which are associated with the given measurement identity.

Parameters

measId the measurement identity to be processed, must already exists in m_leavingTriggerQueue, otherwise an error would be raised

Note: The function may conclude that there is nothing to be removed. In this case, the function will simply ignore quietly.

This function is used when the leaving condition of the measurement identity becomes no longer true. Therefore all the waiting triggers for this measurement identity in m_leavingTriggerQueue have become invalid and must be canceled.

See also: LteUeRrc::m_leavingTriggerQueue

Definition at line 2337 of file lte-ue-rrc.cc.

References ns3::Simulator::Cancel(), ns3::Simulator::GetDelayLeft(), ns3::Time::GetSeconds(), m_leavingTriggerQueue, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by MeasurementReportTriggering(), VarMeasReportListClear(), and VarMeasReportListErase().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::CancelLeavingTrigger	(	uint8_t	measId,
		uint16_t	cellId
	)

private

Remove a specific cell from the waiting triggers in m_leavingTriggerQueue which belong to the given measurement identity.

Parameters

measId	the measurement identity to be processed, must already exists in m_leavingTriggerQueue, otherwise an error would be raised
cellId	the cell ID to be removed from the waiting triggers

Note: The function may conclude that there is nothing to be removed. In this case, the function will simply ignore quietly.

This function is used when a specific neighbour cell no longer fulfills the leaving condition of the measurement identity. Thus the cell must be removed from all the waiting triggers for this measurement identity in m_leavingTriggerQueue.

See also: LteUeRrc::m_leavingTriggerQueue

Definition at line 2361 of file lte-ue-rrc.cc.

References ns3::Simulator::Cancel(), ns3::Simulator::GetDelayLeft(), ns3::Time::GetSeconds(), m_leavingTriggerQueue, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::LteUeRrc::DisposeOldSrb1 ( )

private

Definition at line 2732 of file lte-ue-rrc.cc.

References m_srb1Old, and NS_LOG_FUNCTION.

Referenced by DoRecvRrcConnectionReconfiguration().

Here is the caller graph for this function:

void ns3::LteUeRrc::DoCompleteSetup ( LteUeRrcSapProvider::CompleteSetupParameters params )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::CompleteSetup interface.

Definition at line 762 of file lte-ue-rrc.cc.

References m_rnti, m_srb0, m_srb1, NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

void ns3::LteUeRrc::DoConnect ( void )

private

Definition at line 617 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SEARCH, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_START, IDLE_WAIT_MIB, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, IDLE_WAIT_SIB2, m_connectionPending, m_imsi, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::LteUeRrc::DoDisconnect ( )

private

Definition at line 425 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SEARCH, IDLE_CONNECTING, IDLE_START, IDLE_WAIT_MIB, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, IDLE_WAIT_SIB2, LeaveConnectedMode(), m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::ToString().

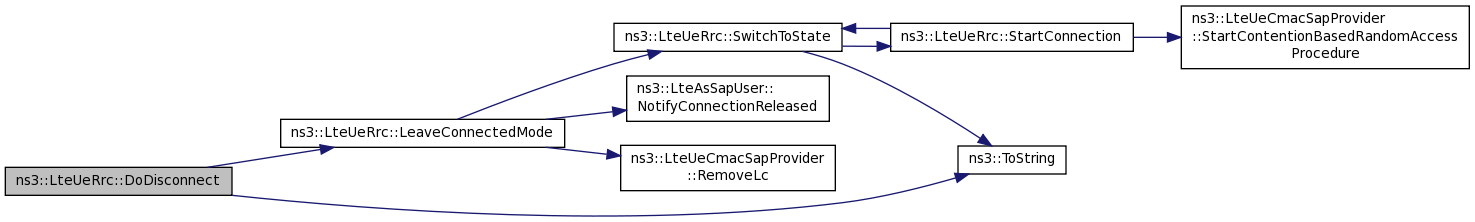

Here is the call graph for this function:

void ns3::LteUeRrc::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 154 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbMap, m_drbPdcpSapUser, m_rrcSapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoForceCampedOnEnb	(	uint16_t	cellId,
		uint16_t	dlEarfcn
	)

private

Definition at line 572 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SEARCH, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_START, IDLE_WAIT_MIB, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, IDLE_WAIT_SIB2, m_cellId, m_cphySapProvider, m_dlEarfcn, m_imsi, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), ns3::LteUeCphySapProvider::SynchronizeWithEnb(), and ns3::ToString().

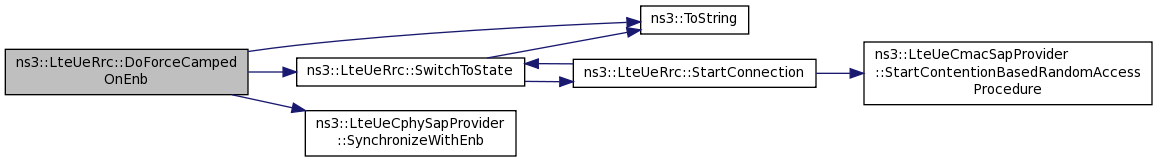

Here is the call graph for this function:

void ns3::LteUeRrc::DoInitialize ( void )

privatevirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 369 of file lte-ue-rrc.cc.

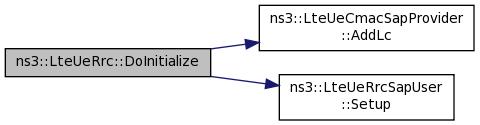

References ns3::LteUeCmacSapProvider::AddLc(), ns3::LteUeCmacSapProvider::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteUeCmacSapProvider::LogicalChannelConfig::logicalChannelGroup, m_cmacSapProvider, m_macSapProvider, m_rnti, m_rrcSapUser, m_srb0, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteUeCmacSapProvider::LogicalChannelConfig::priority, ns3::LteUeRrcSapUser::Setup(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider.

Here is the call graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessFailed ( )

private

Todo:: After a handover failure because of a random access failure, send an RRC Connection Re-establishment and switch to CONNECTED_REESTABLISHING state.

Definition at line 521 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, IDLE_CAMPED_NORMALLY, IDLE_RANDOM_ACCESS, m_asSapUser, m_cellId, m_handoverEndErrorTrace, m_imsi, m_randomAccessErrorTrace, m_rnti, m_state, ns3::LteAsSapUser::NotifyConnectionFailed(), NS_FATAL_ERROR, NS_LOG_FUNCTION, SwitchToState(), and ns3::ToString().

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessSuccessful ( )

private

Definition at line 476 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, m_cellId, m_handoverEndOkTrace, m_imsi, m_lastRrcTransactionIdentifier, m_randomAccessSuccessfulTrace, m_rnti, m_rrcSapUser, m_state, m_varMeasConfig, ns3::LteUeRrc::VarMeasConfig::measIdList, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReconfigurationCompleted::rrcTransactionIdentifier, ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted(), ns3::LteUeRrcSapUser::SendRrcConnectionRequest(), SwitchToState(), ns3::ToString(), ns3::LteRrcSap::RrcConnectionRequest::ueIdentity, and VarMeasReportListClear().

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful().

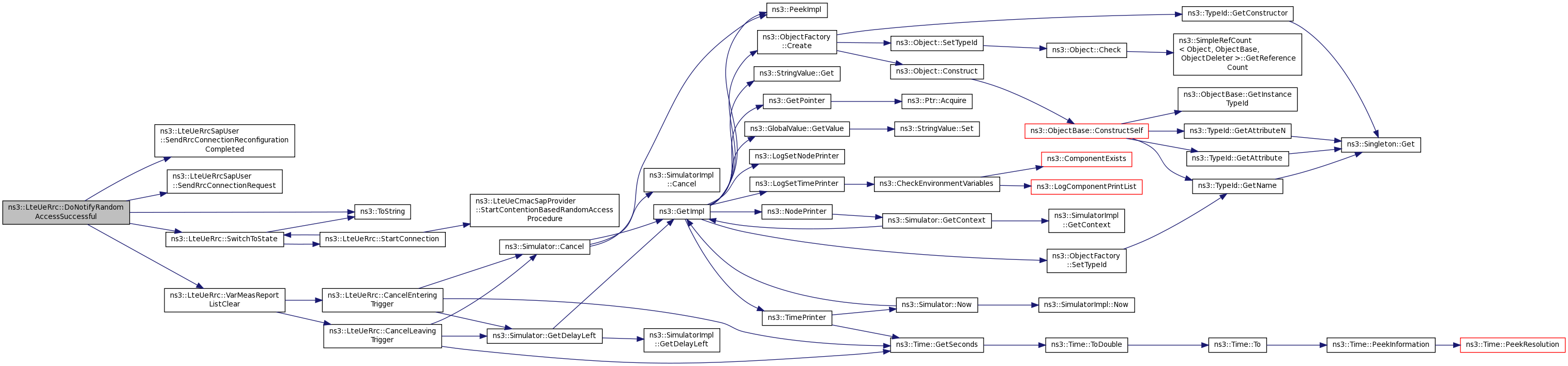

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

private

Definition at line 459 of file lte-ue-rrc.cc.

References m_asSapUser, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, and ns3::LteAsSapUser::RecvData().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvMasterInformationBlock	(	uint16_t	cellId,
		LteRrcSap::MasterInformationBlock	msg
	)

private

Definition at line 659 of file lte-ue-rrc.cc.

References ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, IDLE_CAMPED_NORMALLY, IDLE_WAIT_MIB, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, m_cellId, m_cphySapProvider, m_dlBandwidth, m_hasReceivedMib, m_imsi, m_mibReceivedTrace, m_rnti, m_state, ns3::LteUeCphySapProvider::SetDlBandwidth(), and SwitchToState().

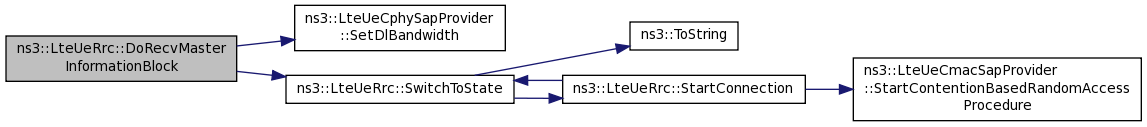

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration ( LteRrcSap::RrcConnectionReconfiguration msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReconfiguration interface.

Definition at line 841 of file lte-ue-rrc.cc.

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishment ( LteRrcSap::RrcConnectionReestablishment msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReestablishment interface.

Todo:: After receiving RRC Connection Re-establishment, stop timer T301, fire a new trace source, reply with RRC Connection Re-establishment Complete, and finally switch to CONNECTED_NORMALLY state. See Section 5.3.7.5 of 3GPP TS 36.331.

Definition at line 912 of file lte-ue-rrc.cc.

References CONNECTED_REESTABLISHING, m_rnti, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishmentReject ( LteRrcSap::RrcConnectionReestablishmentReject msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject interface.

Todo:: After receiving RRC Connection Re-establishment Reject, stop timer T301. See Section 5.3.7.8 of 3GPP TS 36.331.

Definition at line 936 of file lte-ue-rrc.cc.

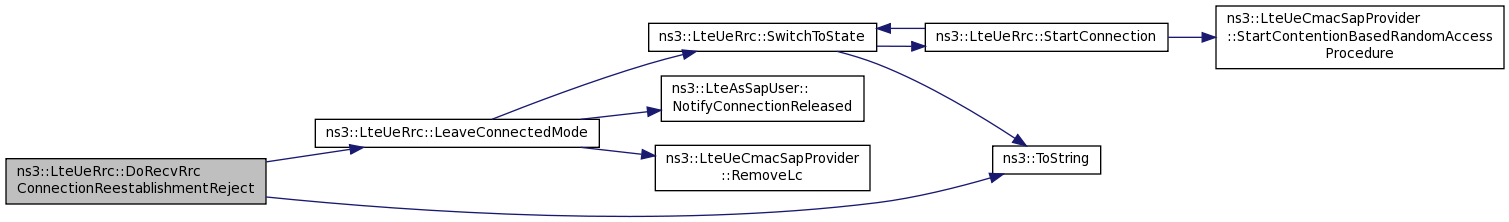

References CONNECTED_REESTABLISHING, LeaveConnectedMode(), m_rnti, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReject ( LteRrcSap::RrcConnectionReject msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionReject interface.

Definition at line 965 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_cmacSapProvider, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::Reset(), and SwitchToState().

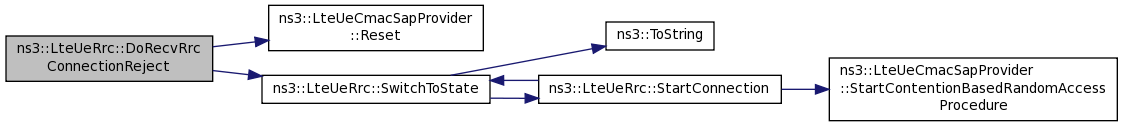

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionRelease ( LteRrcSap::RrcConnectionRelease msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionRelease interface.

Todo:: Currently not implemented, see Section 5.3.8 of 3GPP TS 36.331.

Definition at line 958 of file lte-ue-rrc.cc.

References m_rnti, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoRecvRrcConnectionSetup ( LteRrcSap::RrcConnectionSetup msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvRrcConnectionSetup interface.

Definition at line 817 of file lte-ue-rrc.cc.

References ApplyRadioResourceConfigDedicated(), CONNECTED_NORMALLY, IDLE_CONNECTING, m_asSapUser, m_cellId, m_connectionEstablishedTrace, m_imsi, m_rnti, m_rrcSapUser, m_state, ns3::LteAsSapUser::NotifyConnectionSuccessful(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier, ns3::LteRrcSap::RrcConnectionSetupCompleted::rrcTransactionIdentifier, ns3::LteUeRrcSapUser::SendRrcConnectionSetupCompleted(), SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

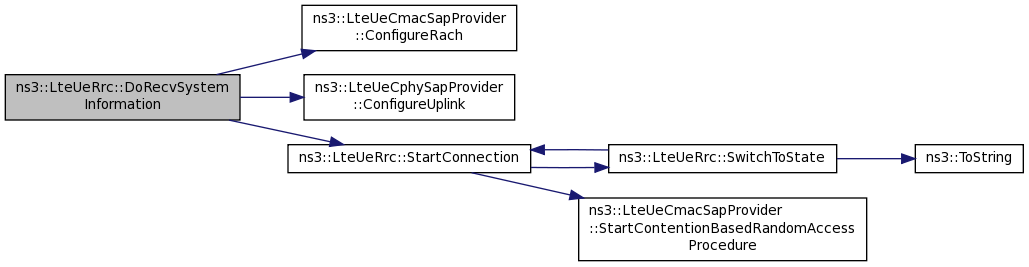

void ns3::LteUeRrc::DoRecvSystemInformation ( LteRrcSap::SystemInformation msg )

private

Part of the RRC protocol. Implement the LteUeRrcSapProvider::RecvSystemInformation interface.

Definition at line 774 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::ConfigureRach(), ns3::LteUeCphySapProvider::ConfigureUplink(), CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteRrcSap::SystemInformation::haveSib2, IDLE_CAMPED_NORMALLY, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_SIB2, m_cellId, m_cmacSapProvider, m_connectionPending, m_cphySapProvider, m_hasReceivedSib2, m_imsi, m_rnti, m_sib2ReceivedTrace, m_state, m_ulBandwidth, m_ulEarfcn, NS_ASSERT, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::LteRrcSap::SystemInformation::sib2, StartConnection(), ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvSystemInformationBlockType1	(	uint16_t	cellId,
		LteRrcSap::SystemInformationBlockType1	msg
	)

private

Definition at line 686 of file lte-ue-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::cellIdentity, CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, EvaluateCellForSelection(), IDLE_CAMPED_NORMALLY, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, m_cellId, m_hasReceivedSib1, m_imsi, m_lastSib1, m_rnti, m_sib1ReceivedTrace, m_state, and NS_ASSERT_MSG.

Here is the call graph for this function:

void ns3::LteUeRrc::DoReportUeMeasurements ( LteUeCphySapUser::UeMeasurementsParameters params )

private

Definition at line 725 of file lte-ue-rrc.cc.

References CONNECTED_NORMALLY, IDLE_CELL_SEARCH, m_state, ns3::LteUeCphySapUser::UeMeasurementsParameters::m_ueMeasurementsList, m_varMeasConfig, ns3::LteUeRrc::VarMeasConfig::measIdList, MeasurementReportTriggering(), NS_LOG_FUNCTION, SaveUeMeasurements(), and SynchronizeToStrongestCell().

Here is the call graph for this function:

void ns3::LteUeRrc::DoSendData	(	Ptr< Packet >	packet,
		uint8_t	bid
	)

private

Definition at line 402 of file lte-ue-rrc.cc.

References Bid2Drbid(), ns3::Packet::GetSize(), m_drbMap, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu.

Here is the call graph for this function:

void ns3::LteUeRrc::DoSetCsgWhiteList ( uint32_t csgId )

private

Definition at line 554 of file lte-ue-rrc.cc.

References m_csgWhiteList, m_imsi, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoSetTemporaryCellRnti ( uint16_t rnti )

private

Definition at line 467 of file lte-ue-rrc.cc.

References m_cphySapProvider, m_rnti, m_srb0, NS_LOG_FUNCTION, and ns3::LteUeCphySapProvider::SetRnti().

Referenced by ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti().

Here is the call graph for this function:

Here is the caller graph for this function:

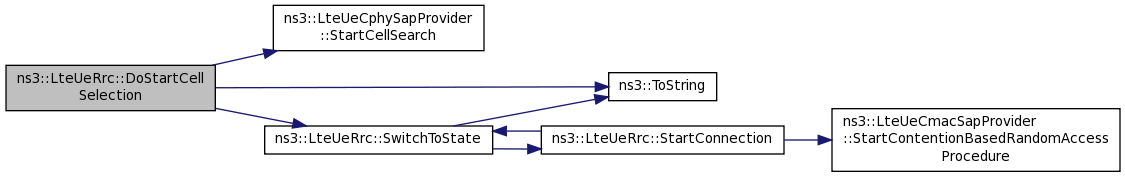

void ns3::LteUeRrc::DoStartCellSelection ( uint16_t dlEarfcn )

private

Definition at line 561 of file lte-ue-rrc.cc.

References IDLE_CELL_SEARCH, IDLE_START, m_cphySapProvider, m_dlEarfcn, m_imsi, m_state, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteUeCphySapProvider::StartCellSearch(), SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::LteUeRrc::EvaluateCellForSelection ( )

private

Performs cell selection evaluation to the current serving cell.

Warning: This function is a part of the initial cell selection procedure, hence must be only executed during IDLE mode and specifically during the state when the UE just received the first SIB1 message from the serving cell.

This function assumes that the required information for the evaluation procedure have been readily gathered, such as measurement results, MIB, and SIB1. Please refer to the LTE module's Design Documentation for more details on the evaluation process.

If the cell passes the evaluation, the UE will immediately camp to it. Otherwise, the UE will pick another cell and restart the cell selection procedure.

Definition at line 1018 of file lte-ue-rrc.cc.

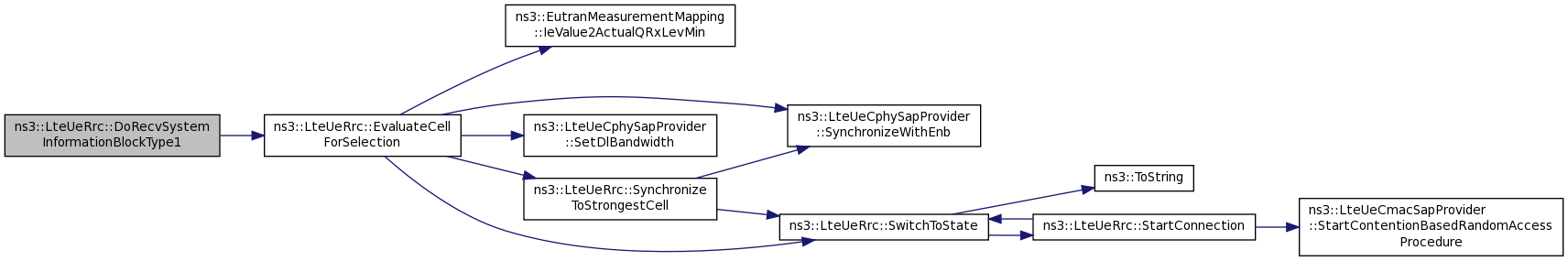

References ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::cellIdentity, ns3::LteRrcSap::SystemInformationBlockType1::cellSelectionInfo, ns3::LteRrcSap::CellAccessRelatedInfo::csgIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::csgIndication, IDLE_CAMPED_NORMALLY, IDLE_CELL_SEARCH, IDLE_WAIT_SIB1, ns3::EutranMeasurementMapping::IeValue2ActualQRxLevMin(), m_acceptableCell, m_cellId, m_cphySapProvider, m_csgWhiteList, m_dlBandwidth, m_dlEarfcn, m_hasReceivedMib, m_hasReceivedSib1, m_imsi, m_initialCellSelectionEndErrorTrace, m_initialCellSelectionEndOkTrace, m_lastSib1, m_state, m_storedMeasValues, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::CellSelectionInfo::qRxLevMin, ns3::LteUeCphySapProvider::SetDlBandwidth(), SwitchToState(), SynchronizeToStrongestCell(), and ns3::LteUeCphySapProvider::SynchronizeWithEnb().

Referenced by DoRecvSystemInformationBlockType1().

Here is the call graph for this function:

Here is the caller graph for this function:

LteAsSapProvider * ns3::LteUeRrc::GetAsSapProvider ( )

Returns: the AS SAP provider exported by this RRC

Definition at line 293 of file lte-ue-rrc.cc.

References m_asSapProvider.

uint16_t ns3::LteUeRrc::GetCellId ( ) const

Returns: the CellId of the attached Enb

Definition at line 319 of file lte-ue-rrc.cc.

References m_cellId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::GetDlBandwidth ( ) const

Returns: the downlink bandwidth in RBs

Definition at line 334 of file lte-ue-rrc.cc.

References m_dlBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetDlEarfcn ( ) const

Returns: the downlink carrier frequency (EARFCN)

Definition at line 341 of file lte-ue-rrc.cc.

References m_dlEarfcn.

uint64_t ns3::LteUeRrc::GetImsi ( void ) const

Returns: imsi the unique UE identifier

Definition at line 306 of file lte-ue-rrc.cc.

References m_imsi.

LteUeCmacSapUser * ns3::LteUeRrc::GetLteUeCmacSapUser ( )

Returns: s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 259 of file lte-ue-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteUeCphySapUser * ns3::LteUeRrc::GetLteUeCphySapUser ( )

Returns: s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 245 of file lte-ue-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

LteUeRrcSapProvider * ns3::LteUeRrc::GetLteUeRrcSapProvider ( )

Returns: s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 273 of file lte-ue-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetRnti ( void ) const

Returns: the C-RNTI of the user

Definition at line 312 of file lte-ue-rrc.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUeRrc::State ns3::LteUeRrc::GetState ( void ) const

Returns: the current state

Definition at line 354 of file lte-ue-rrc.cc.

References m_state, and NS_LOG_FUNCTION.

TypeId ns3::LteUeRrc::GetTypeId ( void )

static

Definition at line 166 of file lte-ue-rrc.cc.

References GetCellId(), GetRnti(), m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_drbMap, m_handoverEndErrorTrace, m_handoverEndOkTrace, m_handoverStartTrace, m_initialCellSelectionEndErrorTrace, m_initialCellSelectionEndOkTrace, m_mibReceivedTrace, m_randomAccessErrorTrace, m_randomAccessSuccessfulTrace, m_sib1ReceivedTrace, m_sib2ReceivedTrace, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::LteUeRrc::GetUlBandwidth ( ) const

Returns: the uplink bandwidth in RBs

Definition at line 327 of file lte-ue-rrc.cc.

References m_ulBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetUlEarfcn ( ) const

Returns: the uplink carrier frequency (EARFCN)

Definition at line 347 of file lte-ue-rrc.cc.

References m_ulEarfcn, and NS_LOG_FUNCTION.

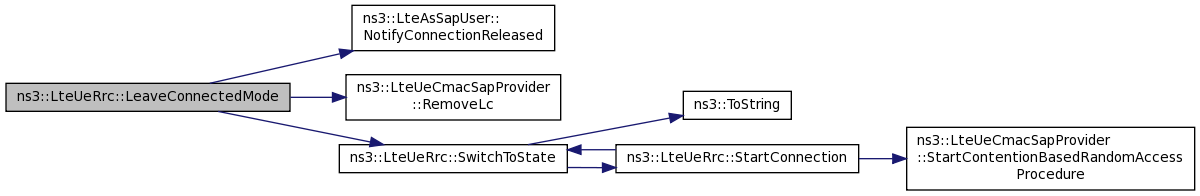

void ns3::LteUeRrc::LeaveConnectedMode ( )

private

Definition at line 2715 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_asSapUser, m_bid2DrbidMap, m_cmacSapProvider, m_drbMap, m_imsi, m_srb1, ns3::LteAsSapUser::NotifyConnectionReleased(), NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RemoveLc(), and SwitchToState().

Referenced by DoDisconnect(), and DoRecvRrcConnectionReestablishmentReject().

Here is the call graph for this function:

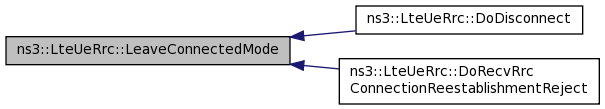

Here is the caller graph for this function:

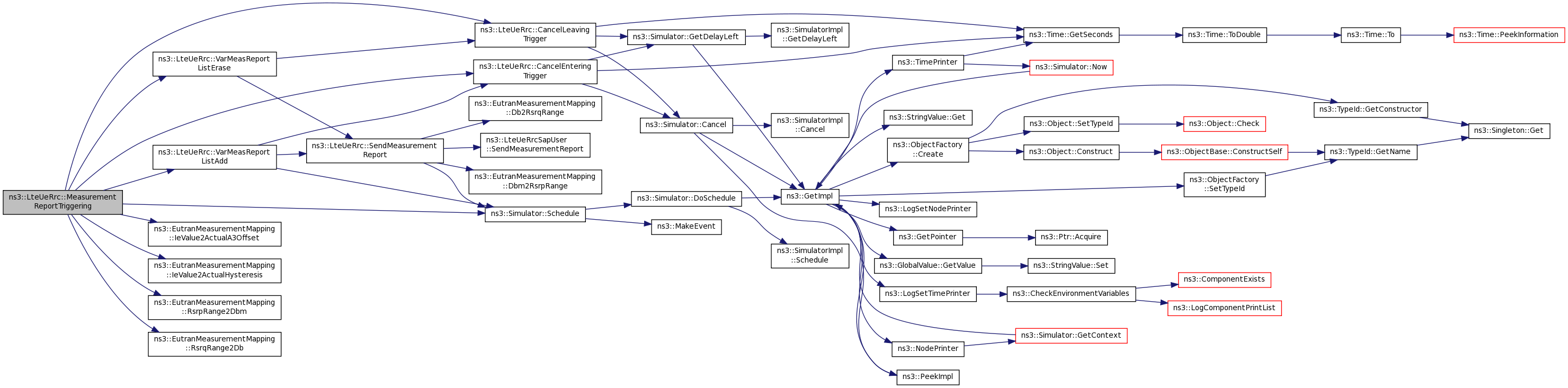

void ns3::LteUeRrc::MeasurementReportTriggering ( uint8_t measId )

private

Evaluate the reporting criteria of a measurement identity and invoke some reporting actions based on the result.

Parameters

measId the measurement identity to be evaluated

Implements Section 5.5.4.1 "Measurement report triggering - General" of 3GPP TS 36.331. This function take into use the latest measurement results and evaluate them against the entering condition and the leaving condition of the measurement identity's reporting criteria. The evaluation also take into account other defined criteria, such as hysteresis and time-to-trigger.

The entering and leaving condition to be evaluated are determined by the event type of the measurement identity's reporting criteria. As defined in LteRrcSap::ReportConfigEutra, there 5 supported events. The gore details of these events can be found in Section 5.5.4 of 3GPP TS 36.331.

An applicable entering condition (i.e., the condition evaluates to true) will insert a new reporting entry to m_varMeasReportList, so measurement reports would be produced and submitted to eNodeB. On the other hand, an applicable leaving condition will remove the related reporting entry from m_varMeasReportList, so submission of related measurement reports to eNodeB will be suspended.

Definition at line 1530 of file lte-ue-rrc.cc.

Referenced by DoReportUeMeasurements().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::SaveUeMeasurements	(	uint16_t	cellId,
		double	rsrp,
		double	rsrq,
		bool	useLayer3Filtering
	)

private

Keep the given measurement result as the latest measurement figures, to be utilised by UE RRC functions.

Parameters

cellId	the cell ID of the measured cell
rsrp	measured RSRP value to be saved (in dBm)
rsrq	measured RSRQ value to be saved (in dB)
useLayer3Filtering

Todo:: Remove the useLayer3Filtering argument

Implements Section 5.5.3.2 "Layer 3 filtering" of 3GPP TS 36.331. Layer-3 filtering is applied to the given measurement results before saved to m_storedMeasValues. The filtering is however disabled when the UE is in IDLE mode, i.e., saving unfiltered values.

Layer-3 filtering is influenced by a filter coefficient, which determines the strength of the filtering. This coefficient is provided by the active quantity configuration in m_varMeasConfig, which is configured by the LteUeRrc::ApplyMeasConfig. Details on how the coefficient works and how to modify it can be found in LTE module's Design Documentation.

See also: LteUeRrc::m_storedMeasValues

Definition at line 1476 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::VarMeasConfig::aRsrp, ns3::LteUeRrc::VarMeasConfig::aRsrq, m_cellId, m_imsi, m_state, m_storedMeasValues, m_varMeasConfig, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LteUeRrc::MeasValues::rsrp, ns3::LteUeRrc::MeasValues::rsrq, and ns3::ToString().

Referenced by DoReportUeMeasurements().

Here is the call graph for this function:

Here is the caller graph for this function:

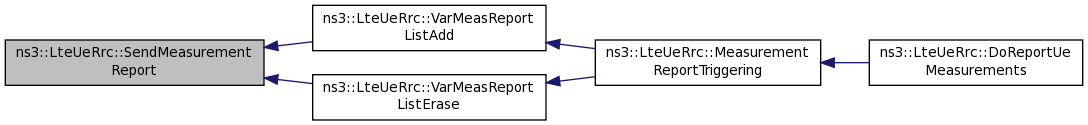

void ns3::LteUeRrc::SendMeasurementReport ( uint8_t measId )

private

Produce a proper measurement report from the given measurement identity's reporting entry in m_varMeasReportList and then submit it to the serving eNodeB.

Parameters

measId the measurement identity which report is to be submitted.

Implements Section 5.5.5 "Measurement reporting" of 3GPP TS 36.331. Producing a measurement report involves several tasks such as:

including the measurement results of the serving cell into the report;
selecting some neighbour cells which triggered the reporting (i.e., those in cellsTriggeredList) to be included in the report;
sorting the order of neighbour cells in the report by their RSRP or RSRQ measurement results (the highest comes first); and
ensuring the number of neighbour cells in the report is under the maxReportCells limit defined by the measurement identity's reporting configuration.

The RSRP and RSRQ measurement results included in the report are expressed in 3GPP-specified range format. They are converted from dBm and dB units using EutranMeasurementMapping::Dbm2RsrpRange and EutranMeasurementMapping::Db2RsrqRange functions.

Measurement report is submitted to the serving eNodeB through the RRC protocol. The LteUeRrcSapUser::SendMeasurementReport method of the UE RRC SAP facilitates this submission.

After the submission, the function will repeat itself after a certain interval. The interval length may vary from 120 ms to 60 minutes and is determined by the report interval parameter specified by the measurement identity's reporting configuration.

Definition at line 2546 of file lte-ue-rrc.cc.

Referenced by VarMeasReportListAdd(), and VarMeasReportListErase().

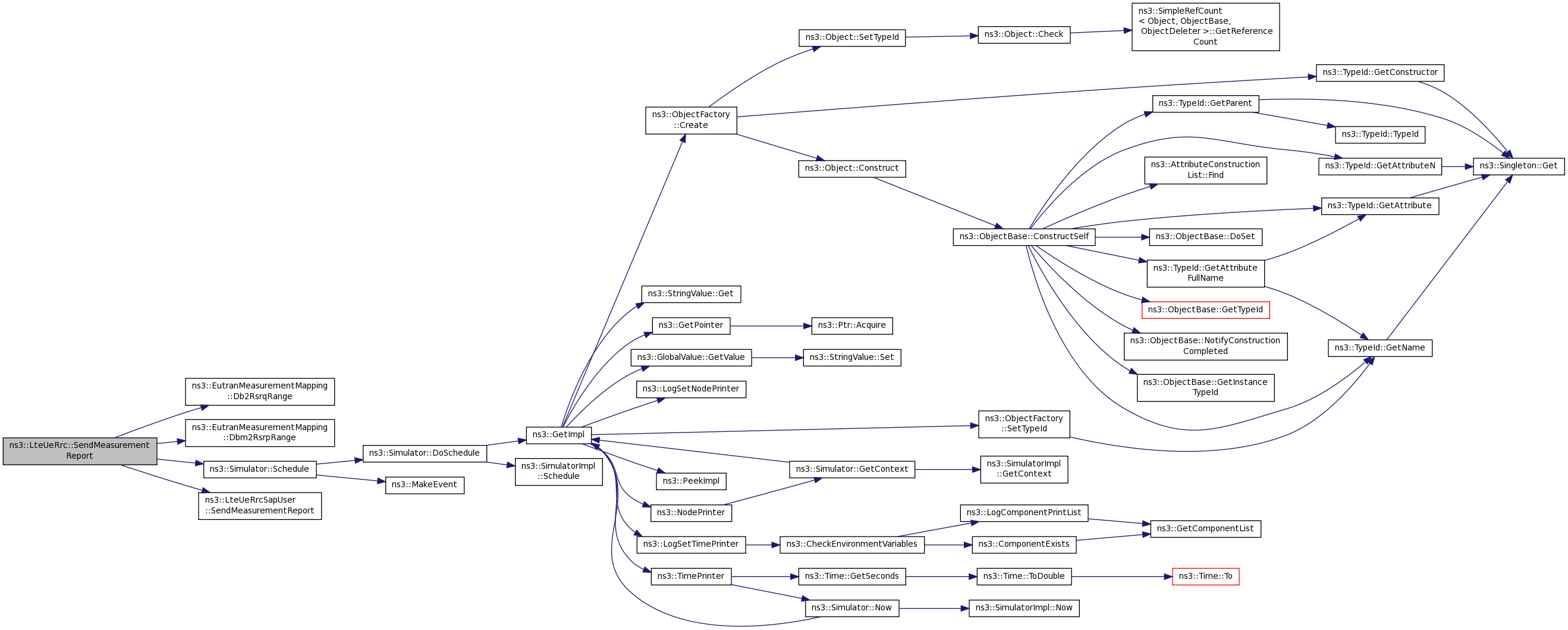

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::SetAsSapUser ( LteAsSapUser * s )

Set the AS SAP user to interact with the NAS entity.

Parameters

s	the AS SAP user

Definition at line 287 of file lte-ue-rrc.cc.

References m_asSapUser, and s.

void ns3::LteUeRrc::SetImsi ( uint64_t imsi )

Parameters

imsi	the unique UE identifier

Definition at line 299 of file lte-ue-rrc.cc.

References m_imsi, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetLteMacSapProvider ( LteMacSapProvider * s )

set the MAC SAP provider.

The ue RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the MAC SAP provider that will be used by all newly created RLC instances

Definition at line 280 of file lte-ue-rrc.cc.

References m_macSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeCmacSapProvider ( LteUeCmacSapProvider * s )

set the CMAC SAP this RRC should interact with

Parameters

s	the CMAC SAP Provider to be used by this RRC

Definition at line 252 of file lte-ue-rrc.cc.

References m_cmacSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeCphySapProvider ( LteUeCphySapProvider * s )

set the CPHY SAP this RRC should use to interact with the PHY

Parameters

s	the CPHY SAP Provider

Definition at line 238 of file lte-ue-rrc.cc.

References m_cphySapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeRrcSapUser ( LteUeRrcSapUser * s )

set the RRC SAP this RRC should interact with

Parameters

s	the RRC SAP User to be used by this RRC

Definition at line 266 of file lte-ue-rrc.cc.

References m_rrcSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetUseRlcSm ( bool val )

Parameters

val	true if RLC SM is to be used, false if RLC UM/AM are to be used

Definition at line 361 of file lte-ue-rrc.cc.

References m_useRlcSm, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::StartConnection ( )

private

Definition at line 2704 of file lte-ue-rrc.cc.

References IDLE_RANDOM_ACCESS, m_cmacSapProvider, m_connectionPending, m_hasReceivedMib, m_hasReceivedSib2, m_imsi, NS_ASSERT, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure(), and SwitchToState().

Referenced by DoRecvSystemInformation(), and SwitchToState().

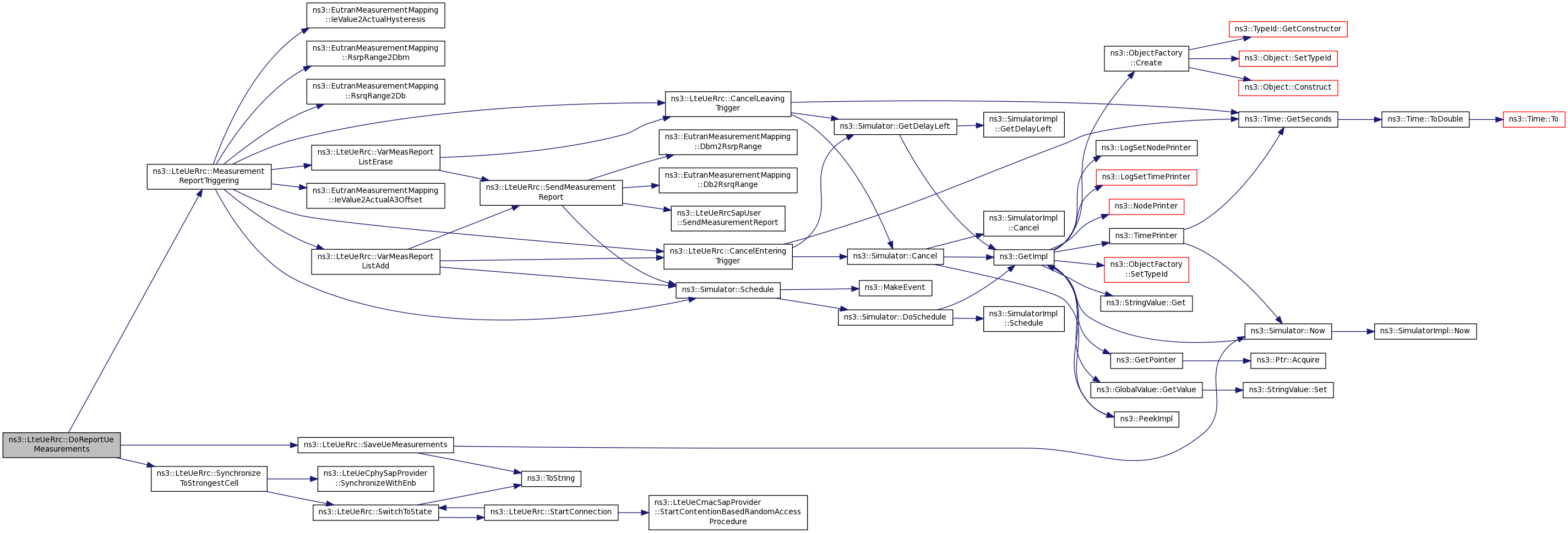

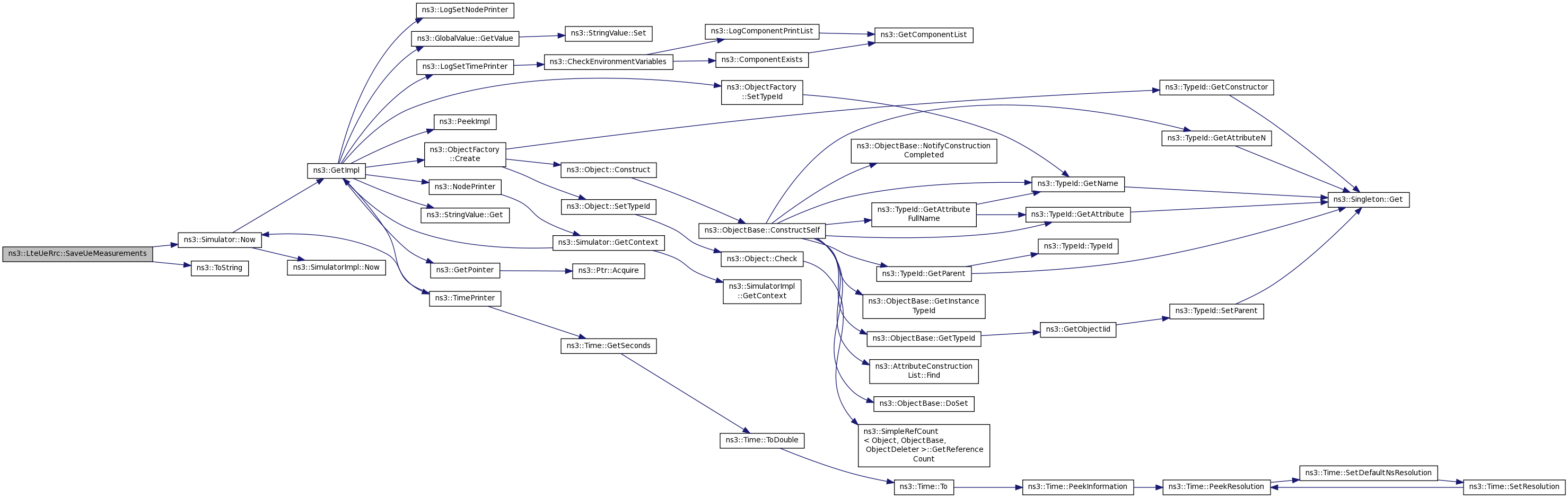

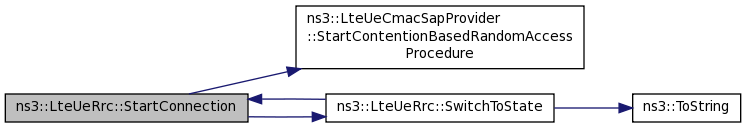

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::SwitchToState ( State s )

private

Definition at line 2748 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_PHY_PROBLEM, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SEARCH, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_START, IDLE_WAIT_MIB, IDLE_WAIT_MIB_SIB1, IDLE_WAIT_SIB1, IDLE_WAIT_SIB2, m_cellId, m_connectionPending, m_hasReceivedSib2, m_imsi, m_rnti, m_state, m_stateTransitionTrace, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, StartConnection(), and ns3::ToString().

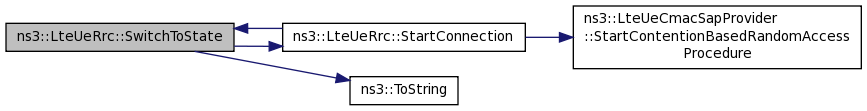

Referenced by DoConnect(), DoForceCampedOnEnb(), DoNotifyRandomAccessFailed(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvRrcConnectionSetup(), DoStartCellSelection(), EvaluateCellForSelection(), LeaveConnectedMode(), StartConnection(), and SynchronizeToStrongestCell().

Here is the call graph for this function:

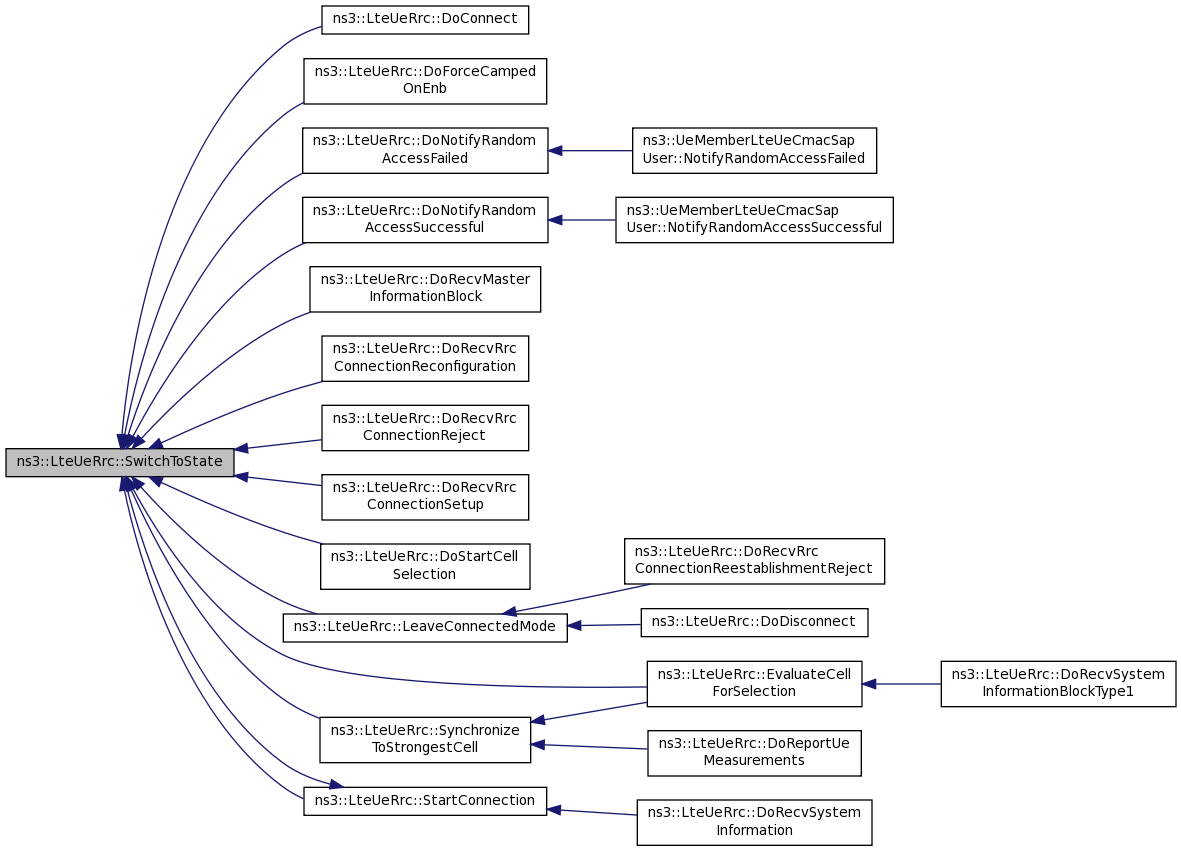

Here is the caller graph for this function:

void ns3::LteUeRrc::SynchronizeToStrongestCell ( )

private

Go through the list of measurement results, choose the one with the strongest RSRP, and tell PHY to synchronize to it.

Warning: This function is a part of the initial cell selection procedure, hence must be only executed during IDLE mode.

Definition at line 975 of file lte-ue-rrc.cc.

References IDLE_CELL_SEARCH, IDLE_WAIT_MIB_SIB1, m_acceptableCell, m_cphySapProvider, m_dlEarfcn, m_state, m_storedMeasValues, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, SwitchToState(), and ns3::LteUeCphySapProvider::SynchronizeWithEnb().

Referenced by DoReportUeMeasurements(), and EvaluateCellForSelection().

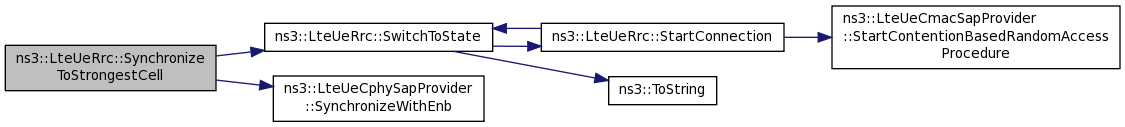

Here is the call graph for this function:

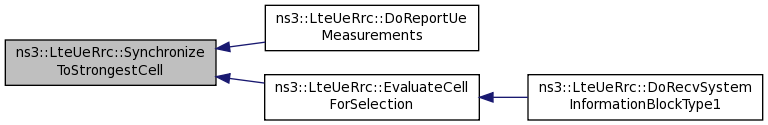

Here is the caller graph for this function:

void ns3::LteUeRrc::VarMeasReportListAdd	(	uint8_t	measId,
		ConcernedCells_t	enteringCells
	)

private

Compose a new reporting entry of the given measurement identity, insert it into m_varMeasReportList, and set it up for submission to eNodeB.

Parameters

measId	the measurement identity which the new reporting entry will be based upon
enteringCells	the cells which are responsible for triggering the reporting (i.e., successfully fulfilling the entering condition of the measurement identity) and will be included in the measurement report.

Note: If an existing reporting entry with the same measurement identity has already existed in m_varMeasReportList, the function will update it by adding the entering cells into the existing reporting entry.; When time-to-trigger is enabled for this measurement identity, the function will also remove the related trigger from the m_enteringTriggerQueue.

Definition at line 2399 of file lte-ue-rrc.cc.

References CancelEnteringTrigger(), m_enteringTriggerQueue, m_varMeasReportList, ns3::LteUeRrc::VarMeasReport::measId, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SendMeasurementReport(), and ns3::UE_MEASUREMENT_REPORT_DELAY.

Referenced by MeasurementReportTriggering().

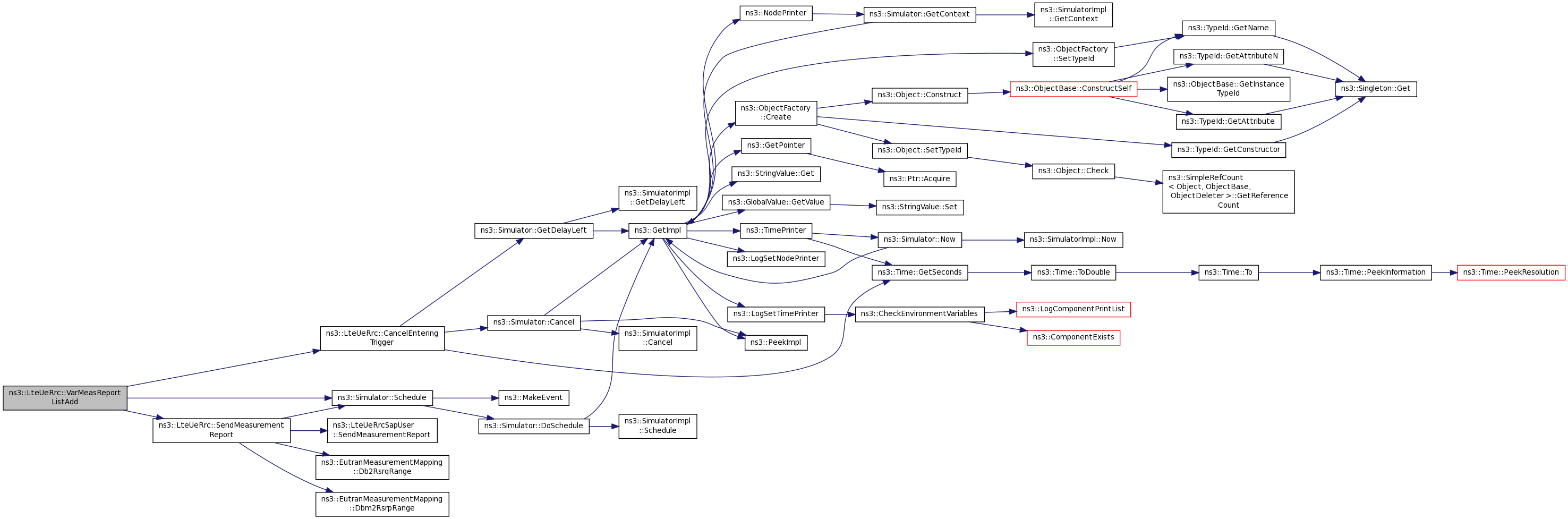

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::VarMeasReportListClear ( uint8_t measId )

private

Remove the reporting entry of the given measurement identity from m_varMeasReportList.

Parameters

measId the measurement identity to be removed from m_varMeasReportList, must already exists there, otherwise an error would be raised

Any events or triggers related with this measurement identity will be canceled as well.

Definition at line 2527 of file lte-ue-rrc.cc.

References CancelEnteringTrigger(), CancelLeavingTrigger(), m_varMeasReportList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ApplyMeasConfig(), and DoNotifyRandomAccessSuccessful().

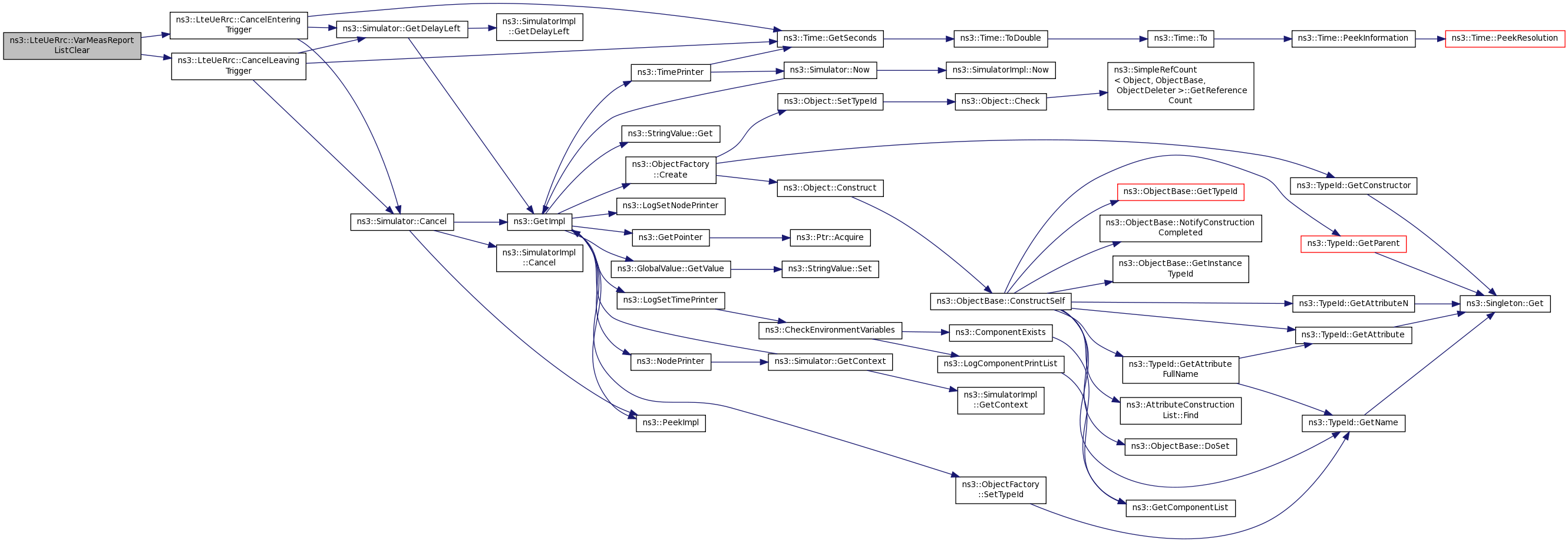

Here is the call graph for this function:

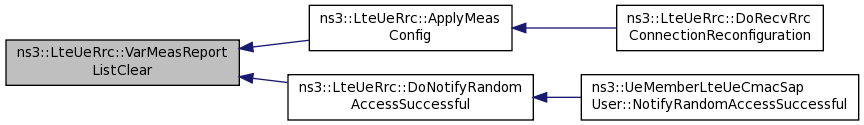

Here is the caller graph for this function:

void ns3::LteUeRrc::VarMeasReportListErase	(	uint8_t	measId,
		ConcernedCells_t	leavingCells,
		bool	reportOnLeave
	)

private

Remove some cells from an existing reporting entry in m_varMeasReportList.

Parameters

measId	the measurement identity to be removed from m_varMeasReportList, must already exists there, otherwise an error would be raised
leavingCells	the cells which are about to be removed
reportOnLeave	when true, will make the function send one last measurement report to eNodeB before removing it

Note: If a given cell is not found in the reporting entry, the function will quietly continue.; If the removal has removed all the cells in the reporting entry, the function will remove the reporting entry as well.; When time-to-trigger is enabled for this measurement identity, the function will also remove the related trigger from the m_leavingTriggerQueue.

Definition at line 2466 of file lte-ue-rrc.cc.

References CancelLeavingTrigger(), m_leavingTriggerQueue, m_varMeasReportList, NS_ASSERT, NS_LOG_FUNCTION, and SendMeasurementReport().

Referenced by MeasurementReportTriggering().

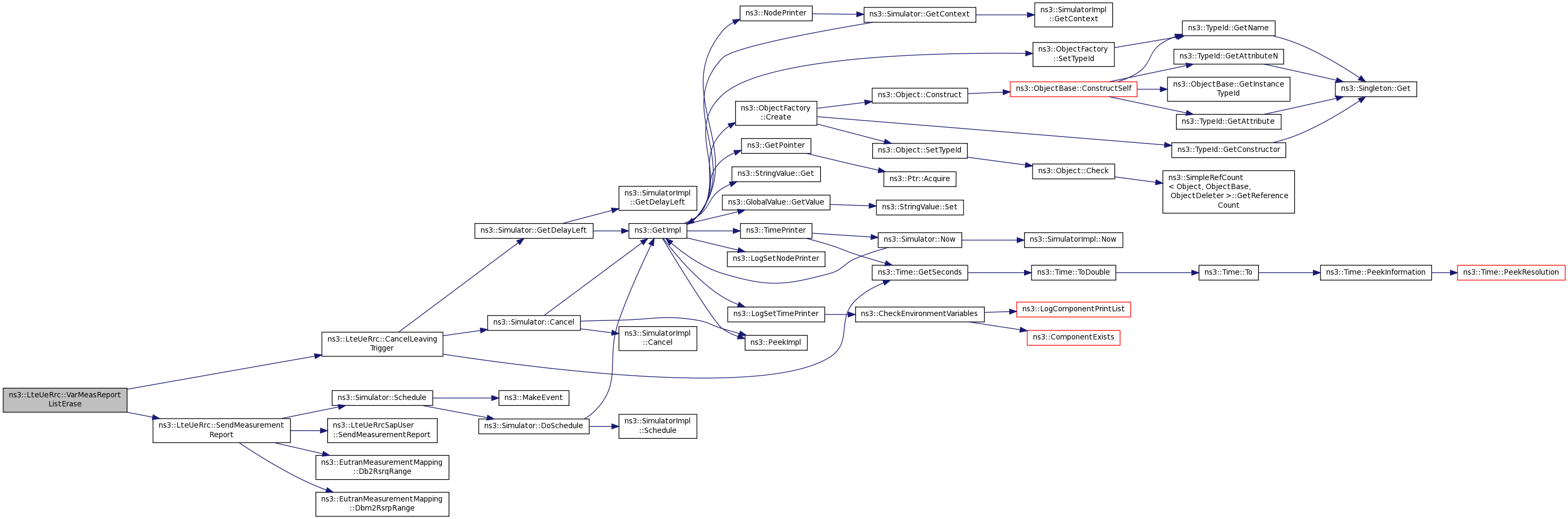

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteUeRrc >

friend

Definition at line 75 of file lte-ue-rrc.h.

friend class MemberLteAsSapProvider< LteUeRrc >

friend

Definition at line 76 of file lte-ue-rrc.h.

friend class MemberLteUeCphySapUser< LteUeRrc >

friend

Definition at line 77 of file lte-ue-rrc.h.

friend class MemberLteUeRrcSapProvider< LteUeRrc >

friend

Definition at line 78 of file lte-ue-rrc.h.

friend class UeMemberLteUeCmacSapUser

friend

Definition at line 73 of file lte-ue-rrc.h.

Referenced by LteUeRrc().

friend class UeRrcMemberLteEnbCmacSapUser

friend

Definition at line 74 of file lte-ue-rrc.h.

Member Data Documentation

std::set<uint16_t> ns3::LteUeRrc::m_acceptableCell

private

List of cell ID of acceptable cells for cell selection that have been detected.

Definition at line 546 of file lte-ue-rrc.h.

Referenced by EvaluateCellForSelection(), and SynchronizeToStrongestCell().

LteAsSapProvider* ns3::LteUeRrc::m_asSapProvider

private

Definition at line 486 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetAsSapProvider(), and LteUeRrc().

LteAsSapUser* ns3::LteUeRrc::m_asSapUser

private

Definition at line 487 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessFailed(), DoReceivePdcpSdu(), DoRecvRrcConnectionSetup(), LeaveConnectedMode(), and SetAsSapUser().

std::map<uint8_t, uint8_t> ns3::LteUeRrc::m_bid2DrbidMap

private

Definition at line 472 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), Bid2Drbid(), and LeaveConnectedMode().

uint16_t ns3::LteUeRrc::m_cellId

private

Definition at line 493 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), DoNotifyRandomAccessFailed(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), DoRecvSystemInformationBlockType1(), EvaluateCellForSelection(), GetCellId(), MeasurementReportTriggering(), SaveUeMeasurements(), SendMeasurementReport(), and SwitchToState().

LteUeCmacSapProvider* ns3::LteUeRrc::m_cmacSapProvider

private

Definition at line 478 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvSystemInformation(), LeaveConnectedMode(), SetLteUeCmacSapProvider(), and StartConnection().

LteUeCmacSapUser* ns3::LteUeRrc::m_cmacSapUser

private

Definition at line 477 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCmacSapUser(), and LteUeRrc().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionEstablishedTrace

private

Definition at line 527 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionSetup(), and GetTypeId().

bool ns3::LteUeRrc::m_connectionPending

private

true if a connection request by upper layers is pending

Definition at line 537 of file lte-ue-rrc.h.

Referenced by DoConnect(), DoRecvSystemInformation(), StartConnection(), and SwitchToState().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionReconfigurationTrace

private

Definition at line 529 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

LteUeCphySapProvider* ns3::LteUeRrc::m_cphySapProvider

private

Definition at line 475 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoForceCampedOnEnb(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvSystemInformation(), DoSetTemporaryCellRnti(), DoStartCellSelection(), EvaluateCellForSelection(), SetLteUeCphySapProvider(), and SynchronizeToStrongestCell().

LteUeCphySapUser* ns3::LteUeRrc::m_cphySapUser

private

Definition at line 474 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCphySapUser(), and LteUeRrc().

uint32_t ns3::LteUeRrc::m_csgWhiteList

private

List of CSG ID which this UE entity has access to.

Definition at line 549 of file lte-ue-rrc.h.

Referenced by DoSetCsgWhiteList(), and EvaluateCellForSelection().

uint8_t ns3::LteUeRrc::m_dlBandwidth

private

downlink bandwidth in RBs

Definition at line 504 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), EvaluateCellForSelection(), and GetDlBandwidth().

uint16_t ns3::LteUeRrc::m_dlEarfcn

private

downlink carrier frequency

Definition at line 507 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), DoStartCellSelection(), EvaluateCellForSelection(), GetDlEarfcn(), and SynchronizeToStrongestCell().

std::map<uint8_t, Ptr<LteDataRadioBearerInfo> > ns3::LteUeRrc::m_drbMap

private

Definition at line 498 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), DoRecvRrcConnectionReconfiguration(), DoSendData(), GetTypeId(), and LeaveConnectedMode().

LtePdcpSapUser* ns3::LteUeRrc::m_drbPdcpSapUser

private

Definition at line 484 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), and LteUeRrc().

std::map<uint8_t, std::list<PendingTrigger_t> > ns3::LteUeRrc::m_enteringTriggerQueue

private

List of triggers that were raised because entering condition have been true, but are still delayed from reporting it by time-to-trigger.

The list is indexed by the measurement identity where the trigger originates from. The enclosed event will run at the end of the time-to-trigger and insert a reporting entry to m_varMeasReportList.

Definition at line 705 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), CancelEnteringTrigger(), MeasurementReportTriggering(), and VarMeasReportListAdd().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverEndErrorTrace

private

Definition at line 535 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessFailed(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverEndOkTrace

private

Definition at line 533 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverStartTrace

private

Definition at line 531 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

bool ns3::LteUeRrc::m_hasReceivedMib

private

true if MIB was received for the current cell

Definition at line 538 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), EvaluateCellForSelection(), and StartConnection().

bool ns3::LteUeRrc::m_hasReceivedSib1

private

true if SIB1 was received for the current cell

Definition at line 539 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformationBlockType1(), and EvaluateCellForSelection().

bool ns3::LteUeRrc::m_hasReceivedSib2

private

true if SIB2 was received for the current cell

Definition at line 540 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), StartConnection(), and SwitchToState().

uint64_t ns3::LteUeRrc::m_imsi

private

TracedCallback<uint64_t, uint16_t> ns3::LteUeRrc::m_initialCellSelectionEndErrorTrace

private

Definition at line 521 of file lte-ue-rrc.h.

Referenced by EvaluateCellForSelection(), and GetTypeId().

TracedCallback<uint64_t, uint16_t> ns3::LteUeRrc::m_initialCellSelectionEndOkTrace

private

Definition at line 519 of file lte-ue-rrc.h.

Referenced by EvaluateCellForSelection(), and GetTypeId().

uint8_t ns3::LteUeRrc::m_lastRrcTransactionIdentifier

private

Definition at line 502 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and DoRecvRrcConnectionReconfiguration().

LteRrcSap::SystemInformationBlockType1 ns3::LteUeRrc::m_lastSib1

private

Stored content of the last SIB1 received.

Definition at line 543 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformationBlockType1(), and EvaluateCellForSelection().

std::map<uint8_t, std::list<PendingTrigger_t> > ns3::LteUeRrc::m_leavingTriggerQueue

private

List of triggers that were raised because leaving condition have been true, but are still delayed from stopping the reporting by time-to-trigger.

The list is indexed by the measurement identity where the trigger originates from. The enclosed event will run at the end of the time-to-trigger and remove the associated reporting entry from m_varMeasReportList.

Definition at line 717 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), CancelLeavingTrigger(), MeasurementReportTriggering(), and VarMeasReportListErase().

LteMacSapProvider* ns3::LteUeRrc::m_macSapProvider

private

Definition at line 483 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), and SetLteMacSapProvider().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteUeRrc::m_mibReceivedTrace

private

Definition at line 511 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_randomAccessErrorTrace

private

Definition at line 525 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessFailed(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_randomAccessSuccessfulTrace

private

Definition at line 523 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

uint16_t ns3::LteUeRrc::m_rnti

private

Definition at line 492 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoInitialize(), DoNotifyRandomAccessFailed(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReestablishment(), DoRecvRrcConnectionReestablishmentReject(), DoRecvRrcConnectionRelease(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), DoRecvSystemInformationBlockType1(), DoSendData(), DoSetTemporaryCellRnti(), GetRnti(), and SwitchToState().

LteUeRrcSapProvider* ns3::LteUeRrc::m_rrcSapProvider

private

Definition at line 481 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeRrcSapProvider(), and LteUeRrc().

LteUeRrcSapUser* ns3::LteUeRrc::m_rrcSapUser

private

Definition at line 480 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), SendMeasurementReport(), and SetLteUeRrcSapUser().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteUeRrc::m_sib1ReceivedTrace

private

Definition at line 513 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformationBlockType1(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_sib2ReceivedTrace

private

Definition at line 515 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetTypeId().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb0

private

Definition at line 495 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoSetTemporaryCellRnti(), and GetTypeId().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1

private

Definition at line 496 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoRecvRrcConnectionReconfiguration(), GetTypeId(), and LeaveConnectedMode().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1Old

private

Definition at line 497 of file lte-ue-rrc.h.

Referenced by DisposeOldSrb1(), and DoRecvRrcConnectionReconfiguration().

TracedCallback<uint64_t, uint16_t, uint16_t, State, State> ns3::LteUeRrc::m_stateTransitionTrace

private

Definition at line 517 of file lte-ue-rrc.h.

Referenced by GetTypeId(), and SwitchToState().

std::map<uint16_t, MeasValues> ns3::LteUeRrc::m_storedMeasValues

private

Internal storage of the latest measurement results from all detected detected cells, indexed by the cell ID where the measurement was taken from.

Each measurement result comprises of RSRP (in dBm) and RSRQ (in dB).

In IDLE mode, the measurement results are used by the initial cell selection procedure. While in CONNECTED mode, layer-3 filtering is applied to the measurement results and they are used by UE measurements function (LteUeRrc::MeasurementReportTriggering and LteUeRrc::SendMeasurementReport).

Definition at line 682 of file lte-ue-rrc.h.

Referenced by EvaluateCellForSelection(), MeasurementReportTriggering(), SaveUeMeasurements(), SendMeasurementReport(), and SynchronizeToStrongestCell().

uint8_t ns3::LteUeRrc::m_ulBandwidth

private

uplink bandwidth in RBs

Definition at line 505 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlBandwidth().

uint16_t ns3::LteUeRrc::m_ulEarfcn

private

uplink carrier frequency

Definition at line 508 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlEarfcn().

bool ns3::LteUeRrc::m_useRlcSm

private

Definition at line 500 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), and SetUseRlcSm().

VarMeasConfig ns3::LteUeRrc::m_varMeasConfig

private

Includes the accumulated configuration of the measurements to be performed by the UE.

Based on 3GPP TS 36.331 section 7.1.

Definition at line 577 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), DoNotifyRandomAccessSuccessful(), DoReportUeMeasurements(), MeasurementReportTriggering(), SaveUeMeasurements(), and SendMeasurementReport().

std::map<uint8_t, VarMeasReport> ns3::LteUeRrc::m_varMeasReportList

private

The list of active reporting entries, indexed by the measurement identity which triggered the reporting.

Includes information about measurements for which the triggering conditions have been met.

Definition at line 599 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), MeasurementReportTriggering(), SendMeasurementReport(), VarMeasReportListAdd(), VarMeasReportListClear(), and VarMeasReportListErase().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-rrc.h
src/lte/model/lte-ue-rrc.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
