ns3::LteDataRadioBearerInfo Class Reference

store information on active data radio bearer instance More...

#include <lte-radio-bearer-info.h>

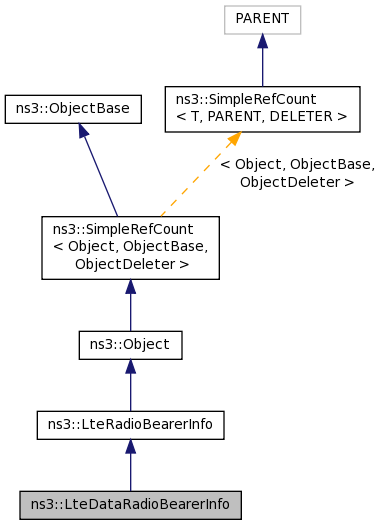

+ Inheritance diagram for ns3::LteDataRadioBearerInfo:

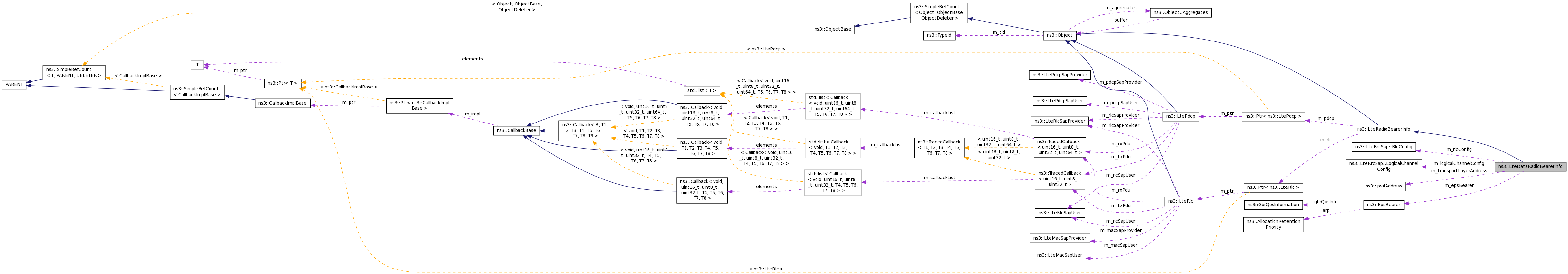

+ Collaboration diagram for ns3::LteDataRadioBearerInfo:

Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::LteRadioBearerInfo
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Public Attributes

uint8_t m_drbIdentity

EpsBearer m_epsBearer

uint8_t m_epsBearerIdentity

uint32_t m_gtpTeid
 S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1. More...

LteRrcSap::LogicalChannelConfig m_logicalChannelConfig

uint8_t m_logicalChannelIdentity

LteRrcSap::RlcConfig m_rlcConfig

Ipv4Address m_transportLayerAddress
 IP Address of the SGW, see 36.423 9.2.1. More...

- Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp > m_pdcp

Ptr< LteRlc > m_rlc


Additional Inherited Members

- Public Member Functions inherited from ns3::LteRadioBearerInfo
 LteRadioBearerInfo (void)

virtual ~LteRadioBearerInfo (void)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

store information on active data radio bearer instance

Config Paths

ns3::LteDataRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]

Attributes

  • DrbIdentity: The id of this Data Radio Bearer
  • EpsBearerIdentity: The id of the EPS bearer corresponding to this Data Radio Bearer
  • logicalChannelIdentity: The id of the Logical Channel corresponding to this Data Radio Bearer
  • LteRlc: RLC instance of the radio bearer.
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LteRlc >
    • Initial value: 0
    • Flags: construct write read
  • LtePdcp: PDCP instance of the radio bearer.
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LtePdcp >
    • Initial value: 0
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 71 of file lte-radio-bearer-info.h.

Member Function Documentation

TypeId ns3::LteDataRadioBearerInfo::GetTypeId ( void  )
static

Definition at line 57 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, m_drbIdentity, m_epsBearerIdentity, m_logicalChannelIdentity, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

uint8_t ns3::LteDataRadioBearerInfo::m_drbIdentity

Definition at line 79 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

EpsBearer ns3::LteDataRadioBearerInfo::m_epsBearer

Definition at line 77 of file lte-radio-bearer-info.h.

uint8_t ns3::LteDataRadioBearerInfo::m_epsBearerIdentity

Definition at line 78 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

uint32_t ns3::LteDataRadioBearerInfo::m_gtpTeid

S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1.

Definition at line 83 of file lte-radio-bearer-info.h.

LteRrcSap::LogicalChannelConfig ns3::LteDataRadioBearerInfo::m_logicalChannelConfig

Definition at line 82 of file lte-radio-bearer-info.h.

uint8_t ns3::LteDataRadioBearerInfo::m_logicalChannelIdentity

Definition at line 81 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

LteRrcSap::RlcConfig ns3::LteDataRadioBearerInfo::m_rlcConfig

Definition at line 80 of file lte-radio-bearer-info.h.

Ipv4Address ns3::LteDataRadioBearerInfo::m_transportLayerAddress

IP Address of the SGW, see 36.423 9.2.1.

Definition at line 84 of file lte-radio-bearer-info.h.

The documentation for this class was generated from the following files:
