ns3::LteRadioBearerInfo Class Reference

store information on active radio bearer instance More...

#include <lte-radio-bearer-info.h>

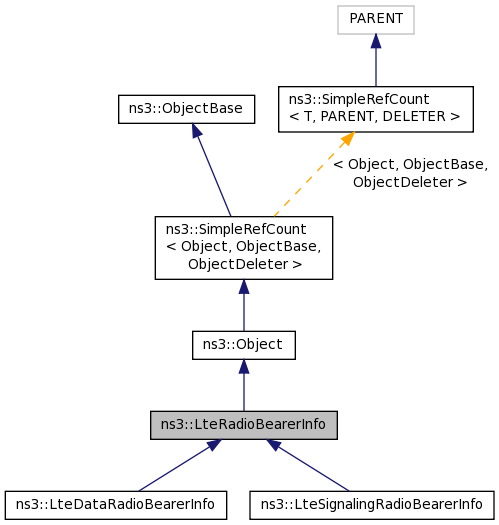

Inheritance diagram for ns3::LteRadioBearerInfo:

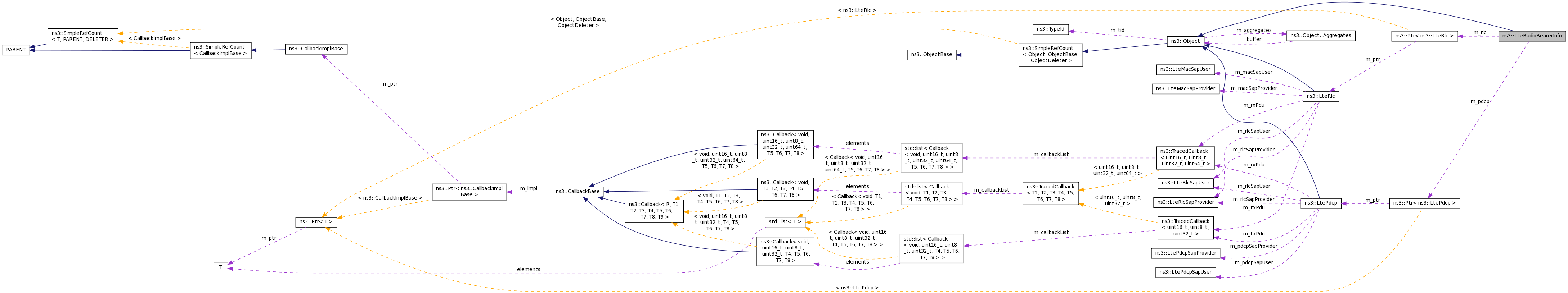

Collaboration diagram for ns3::LteRadioBearerInfo:

Public Member Functions
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
Ptr< LtePdcp >	m_pdcp
Ptr< LteRlc >	m_rlc

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

store information on active radio bearer instance

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file lte-radio-bearer-info.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerInfo::LteRadioBearerInfo

(

void

)

Definition at line 35 of file lte-radio-bearer-info.cc.

ns3::LteRadioBearerInfo::~LteRadioBearerInfo ( void  )

virtual

Definition at line 39 of file lte-radio-bearer-info.cc.

Member Function Documentation

TypeId ns3::LteRadioBearerInfo::GetTypeId ( void  )

static

Definition at line 44 of file lte-radio-bearer-info.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

Ptr<LtePdcp> ns3::LteRadioBearerInfo::m_pdcp

Definition at line 48 of file lte-radio-bearer-info.h.

Referenced by ns3::LteSignalingRadioBearerInfo::GetTypeId(), and ns3::LteDataRadioBearerInfo::GetTypeId().

Ptr<LteRlc> ns3::LteRadioBearerInfo::m_rlc

Definition at line 47 of file lte-radio-bearer-info.h.

Referenced by ns3::LteSignalingRadioBearerInfo::GetTypeId(), and ns3::LteDataRadioBearerInfo::GetTypeId().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-radio-bearer-info.h
• src/lte/model/lte-radio-bearer-info.cc
