This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference. More...

#include <lte-interference.h>

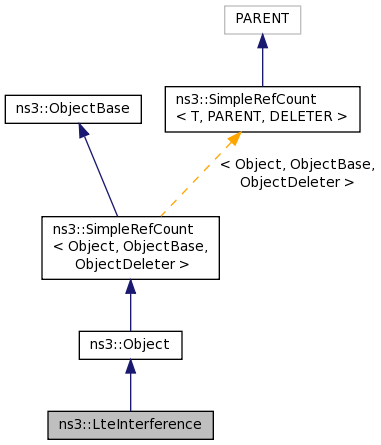

Inheritance diagram for ns3::LteInterference:

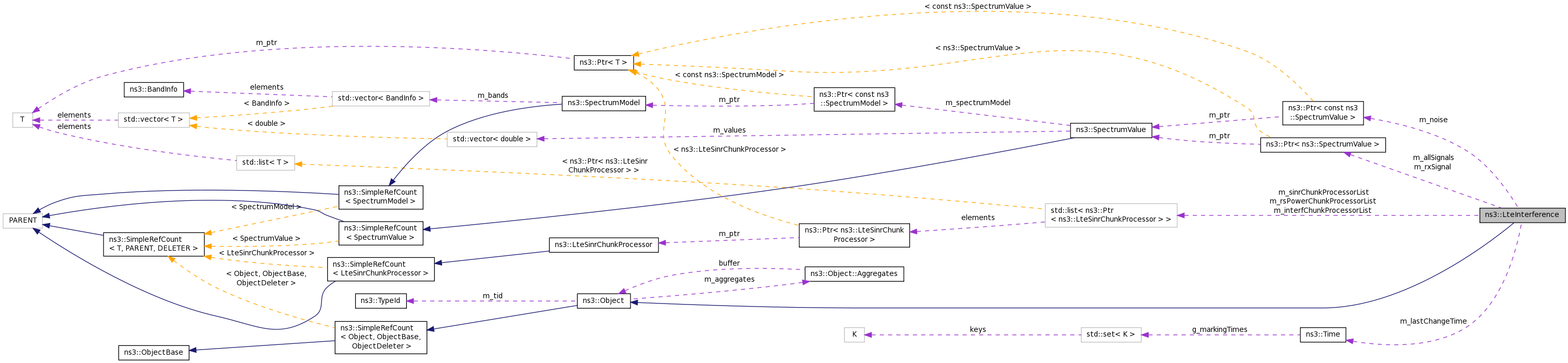

Collaboration diagram for ns3::LteInterference:

Public Member Functions
	LteInterference ()

virtual	~LteInterference ()

void	AddInterferenceChunkProcessor (Ptr< LteSinrChunkProcessor > p)
	Add a LteSinrChunkProcessor that will use the time-vs-frequency interference calculated by this LteInterference instance. More...

void	AddRsPowerChunkProcessor (Ptr< LteSinrChunkProcessor > p)
	Add a LteSinrChunkProcessor that will use the time-vs-frequency power calculated by this LteInterference instance. More...

void	AddSignal (Ptr< const SpectrumValue > spd, const Time duration)
	notify that a new signal is being perceived in the medium. More...

void	AddSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)
	Add a LteSinrChunkProcessor that will use the time-vs-frequency SINR calculated by this LteInterference instance. More...

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void	EndRx ()
	notify that the RX attempt has ended. More...

void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)

void	StartRx (Ptr< const SpectrumValue > rxPsd)
	notify that the PHY is starting a RX attempt More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	ConditionallyEvaluateChunk ()

void	DoAddSignal (Ptr< const SpectrumValue > spd)

void	DoSubtractSignal (Ptr< const SpectrumValue > spd, uint32_t signalId)

Private Attributes
Ptr< SpectrumValue >	m_allSignals
	stores the spectral power density of the sum of incoming signals; does not include noise, includes the SPD of the signal being RX More...

std::list< Ptr < LteSinrChunkProcessor > >	m_interfChunkProcessorList
	all the processor instances that need to be notified whenever a new interference chunk is calculated More...

Time	m_lastChangeTime
	the time of the last change in m_TotalPower More...

uint32_t	m_lastSignalId

uint32_t	m_lastSignalIdBeforeReset

Ptr< const SpectrumValue >	m_noise

bool	m_receiving

std::list< Ptr < LteSinrChunkProcessor > >	m_rsPowerChunkProcessorList
	all the processor instances that need to be notified whenever a new interference chunk is calculated More...

Ptr< SpectrumValue >	m_rxSignal
	stores the power spectral density of the signal whose RX is being attempted More...

std::list< Ptr < LteSinrChunkProcessor > >	m_sinrChunkProcessorList
	all the processor instances that need to be notified whenever a new SINR chunk is calculated More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference.

Definition at line 46 of file lte-interference.h.

Constructor & Destructor Documentation

ns3::LteInterference::LteInterference ( )

Definition at line 34 of file lte-interference.cc.

References NS_LOG_FUNCTION.

ns3::LteInterference::~LteInterference ( )

virtual

Definition at line 42 of file lte-interference.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteInterference::AddInterferenceChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Add a LteSinrChunkProcessor that will use the time-vs-frequency interference calculated by this LteInterference instance.

Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters

p

Definition at line 245 of file lte-interference.cc.

References m_interfChunkProcessorList, and NS_LOG_FUNCTION.

void ns3::LteInterference::AddRsPowerChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Add a LteSinrChunkProcessor that will use the time-vs-frequency power calculated by this LteInterference instance.

Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters

p

Definition at line 231 of file lte-interference.cc.

References m_rsPowerChunkProcessorList, and NS_LOG_FUNCTION.

void ns3::LteInterference::AddSignal	(	Ptr< const SpectrumValue >	spd,
		const Time	duration
	)

notify that a new signal is being perceived in the medium.

This method is to be called for all incoming signal, regardless of wether they're useful signals or interferers.

Parameters

spd	the power spectral density of the new signal
duration	the duration of the new signal

Definition at line 135 of file lte-interference.cc.

References DoAddSignal(), DoSubtractSignal(), m_lastSignalId, m_lastSignalIdBeforeReset, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteInterference::AddSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Add a LteSinrChunkProcessor that will use the time-vs-frequency SINR calculated by this LteInterference instance.

Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters

p

Definition at line 238 of file lte-interference.cc.

References m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

void ns3::LteInterference::ConditionallyEvaluateChunk ( )

private

Definition at line 179 of file lte-interference.cc.

References list, m_allSignals, m_interfChunkProcessorList, m_lastChangeTime, m_noise, m_receiving, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoAddSignal(), DoSubtractSignal(), EndRx(), and SetNoisePowerSpectralDensity().

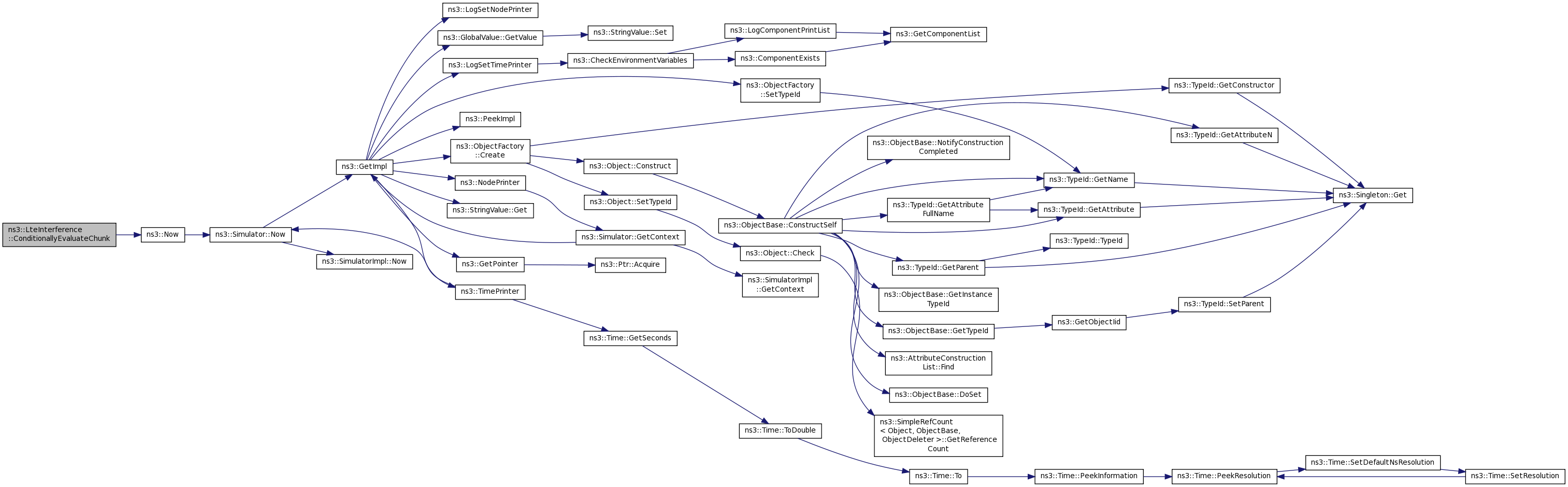

Here is the call graph for this function:

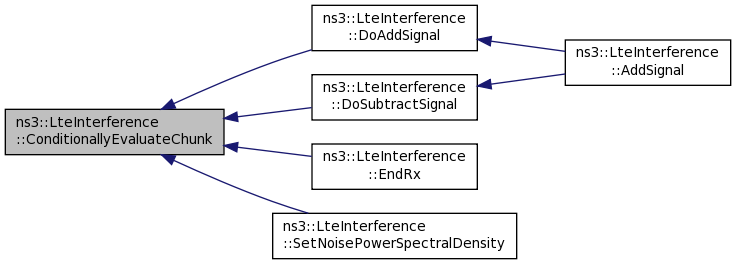

Here is the caller graph for this function:

void ns3::LteInterference::DoAddSignal ( Ptr< const SpectrumValue > spd )

private

Definition at line 154 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), and NS_LOG_FUNCTION.

Referenced by AddSignal().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteInterference::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 48 of file lte-interference.cc.

References ns3::Object::DoDispose(), m_allSignals, m_interfChunkProcessorList, m_noise, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

Here is the call graph for this function:
