ns3::DataCollector Class Reference

Collects data. More...

#include <data-collector.h>

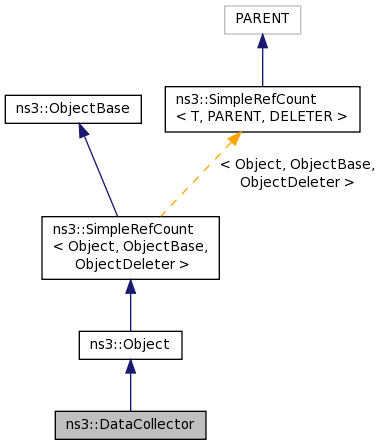

+ Inheritance diagram for ns3::DataCollector:

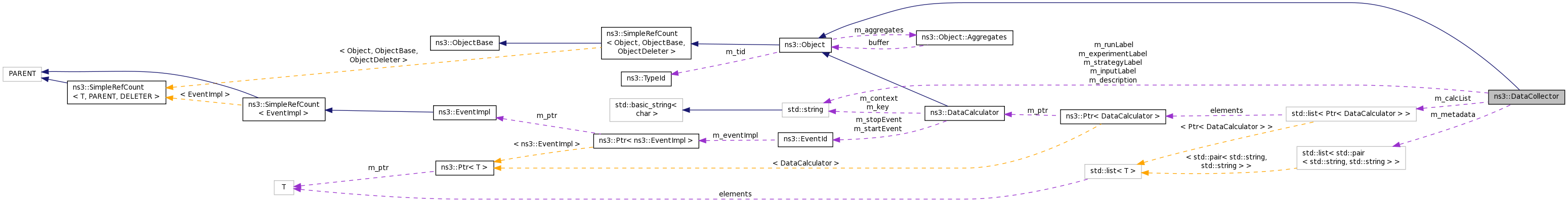

+ Collaboration diagram for ns3::DataCollector:

Public Member Functions

 DataCollector ()

virtual ~DataCollector ()

void AddDataCalculator (Ptr< DataCalculator > datac)
 Add a DataCalculator object to the DataCollector. More...

void AddMetadata (std::string key, std::string value)
 Add the key and the value as a pair of strings to the metadata list. More...

void AddMetadata (std::string key, double value)
 Add the key and the value as a pair of strings to the metadata list. More...

void AddMetadata (std::string key, uint32_t value)
 Add the key and the value as a pair of strings to the metadata list. More...

DataCalculatorList::iterator DataCalculatorBegin ()
 Returns an iterator to the beginning of the DataCalculator list. More...

DataCalculatorList::iterator DataCalculatorEnd ()
 Returns an iterator to the past-the-end of the DataCalculator list. More...

void DescribeRun (std::string experiment, std::string strategy, std::string input, std::string runID, std::string description="")
 Provide specific parameters to the DataCollector. More...

std::string GetDescription () const
 Return the description label. More...

std::string GetExperimentLabel () const
 Return the experiment label. More...

std::string GetInputLabel () const
 Return the input label. More...

std::string GetRunLabel () const
 Return the runID label. More...

std::string GetStrategyLabel () const
 Return the strategy label. More...

MetadataList::iterator MetadataBegin ()
 Returns an iterator to the beginning of the metadata list. More...

MetadataList::iterator MetadataEnd ()
 Returns an iterator to the past-the-end of the metadata list. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Protected Member Functions

virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Attributes

DataCalculatorList m_calcList
 List of data calculators. More...

std::string m_description
 Description label. More...

std::string m_experimentLabel
 Experiment label. More...

std::string m_inputLabel
 Input label. More...

MetadataList m_metadata
 List of experiment metadata. More...

std::string m_runLabel
 Run label. More...

std::string m_strategyLabel
 Strategy label. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Detailed Description

Collects data.

Definition at line 49 of file data-collector.h.

Constructor & Destructor Documentation

DataCollector::DataCollector ( )

Definition at line 33 of file data-collector.cc.

References NS_LOG_FUNCTION_NOARGS.

DataCollector::~DataCollector ( )
virtual

Definition at line 38 of file data-collector.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void DataCollector::AddDataCalculator ( Ptr< DataCalculator datac)

Add a DataCalculator object to the DataCollector.

Parameters
datacDataCalculator object to be added

Definition at line 71 of file data-collector.cc.

References m_calcList.

Referenced by main().

+ Here is the caller graph for this function:

void DataCollector::AddMetadata ( std::string  key,
std::string  value
)

Add the key and the value as a pair of strings to the metadata list.

Parameters
keyKey value to include
valueValue to include of type string

Definition at line 93 of file data-collector.cc.

References m_metadata.

Referenced by main().

+ Here is the caller graph for this function:

void DataCollector::AddMetadata ( std::string  key,
double  value
)

Add the key and the value as a pair of strings to the metadata list.

Parameters
keyKey value to include
valueValue to include of type double

Definition at line 110 of file data-collector.cc.

References m_metadata.

void DataCollector::AddMetadata ( std::string  key,
uint32_t  value
)

Add the key and the value as a pair of strings to the metadata list.

Parameters
keyKey value to include
valueValue to include of type uint32_t

Definition at line 100 of file data-collector.cc.

References m_metadata.

DataCalculatorList::iterator DataCollector::DataCalculatorBegin ( )

Returns an iterator to the beginning of the DataCalculator list.

Returns
Iterator pointing to the first value of the DataCalculator list

Definition at line 80 of file data-collector.cc.

References m_calcList.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

+ Here is the caller graph for this function:

DataCalculatorList::iterator DataCollector::DataCalculatorEnd ( )

Returns an iterator to the past-the-end of the DataCalculator list.

Returns
Iterator pointing to the past-the-end element of the DataCalculator list

Definition at line 86 of file data-collector.cc.

References m_calcList.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

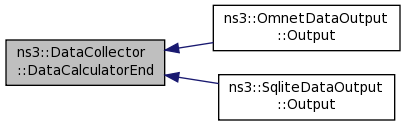

+ Here is the caller graph for this function:

void DataCollector::DescribeRun ( std::string  experiment,
std::string  strategy,
std::string  input,
std::string  runID,
std::string  description = ""
)

Provide specific parameters to the DataCollector.

Parameters
experimentLabel for the experiment
strategyLabel for the strategy
inputLabel for the input
runIDLabel for the runID
descriptionDescription

Definition at line 54 of file data-collector.cc.

References experiment(), m_description, m_experimentLabel, m_inputLabel, m_runLabel, and m_strategyLabel.

Referenced by main().

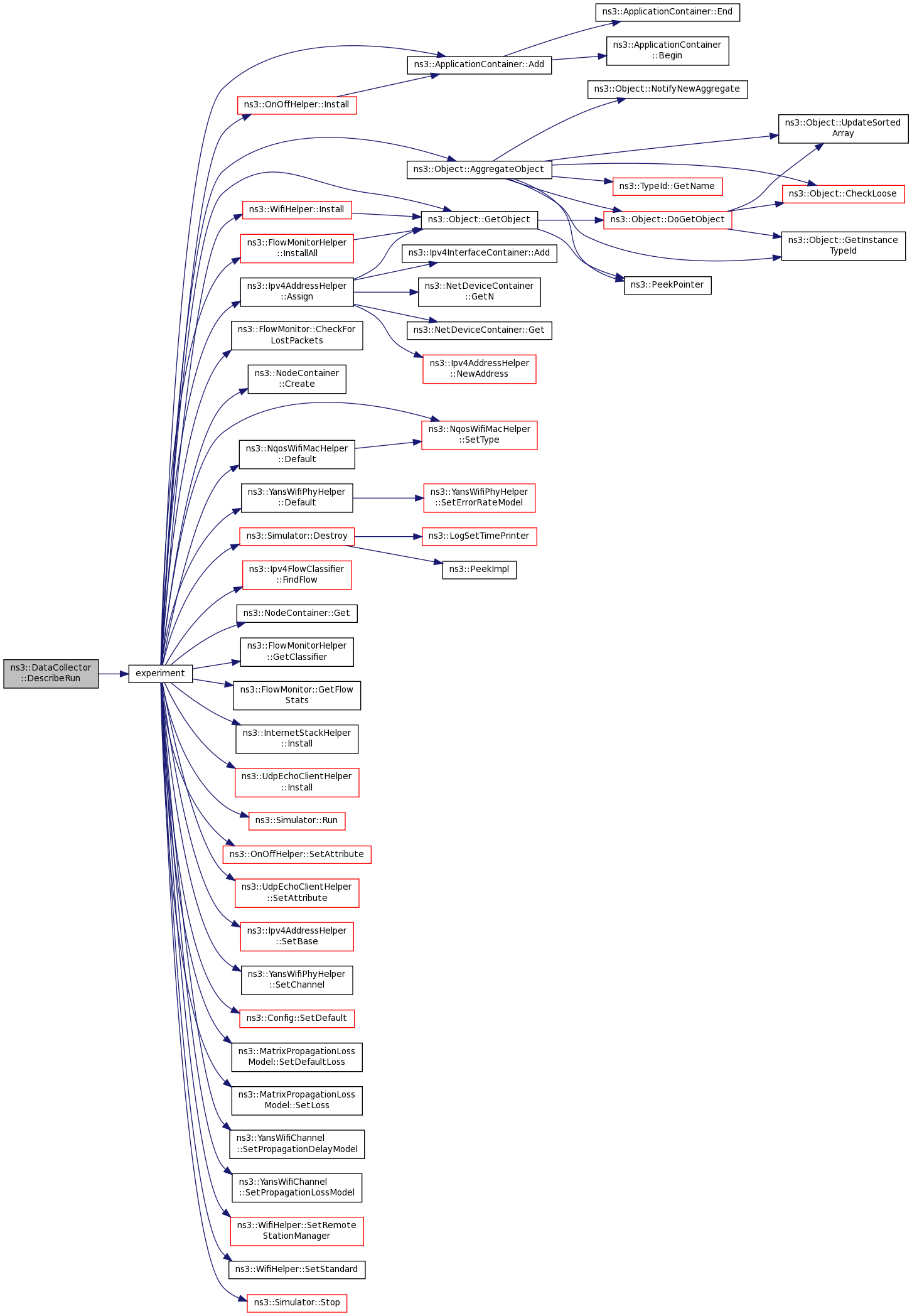

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void DataCollector::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 43 of file data-collector.cc.

References ns3::Object::DoDispose(), m_calcList, m_metadata, and NS_LOG_FUNCTION_NOARGS.

+ Here is the call graph for this function:

std::string ns3::DataCollector::GetDescription ( ) const
inline

Return the description label.

Returns
Description label

Definition at line 92 of file data-collector.h.

References m_description.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

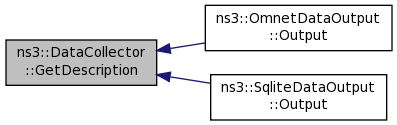

+ Here is the caller graph for this function:

std::string ns3::DataCollector::GetExperimentLabel ( ) const
inline

Return the experiment label.

Returns
Experiment label

Definition at line 72 of file data-collector.h.

References m_experimentLabel.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

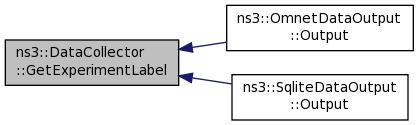

+ Here is the caller graph for this function:

std::string ns3::DataCollector::GetInputLabel ( ) const
inline

Return the input label.

Returns
Input label

Definition at line 82 of file data-collector.h.

References m_inputLabel.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

+ Here is the caller graph for this function:

std::string ns3::DataCollector::GetRunLabel ( ) const
inline

Return the runID label.

Returns
Run label

Definition at line 87 of file data-collector.h.

References m_runLabel.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

+ Here is the caller graph for this function:

std::string ns3::DataCollector::GetStrategyLabel ( ) const
inline

Return the strategy label.

Returns
Strategy label

Definition at line 77 of file data-collector.h.

References m_strategyLabel.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

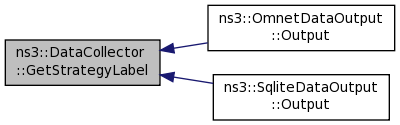

+ Here is the caller graph for this function:

MetadataList::iterator DataCollector::MetadataBegin ( )

Returns an iterator to the beginning of the metadata list.

Returns
Iterator pointing to the first value of the metadata list

Definition at line 121 of file data-collector.cc.

References m_metadata.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

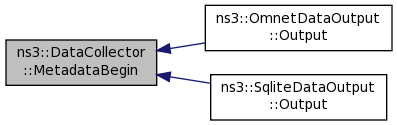

+ Here is the caller graph for this function:

MetadataList::iterator DataCollector::MetadataEnd ( )

Returns an iterator to the past-the-end of the metadata list.

Returns
Iterator pointing to the past-the-end element of the metadata list

Definition at line 127 of file data-collector.cc.

References m_metadata.

Referenced by ns3::OmnetDataOutput::Output(), and ns3::SqliteDataOutput::Output().

+ Here is the caller graph for this function:

Member Data Documentation

DataCalculatorList ns3::DataCollector::m_calcList
private

List of data calculators.

Definition at line 150 of file data-collector.h.

Referenced by AddDataCalculator(), DataCalculatorBegin(), DataCalculatorEnd(), and DoDispose().

std::string ns3::DataCollector::m_description
private

Description label.

Definition at line 147 of file data-collector.h.

Referenced by DescribeRun(), and GetDescription().

std::string ns3::DataCollector::m_experimentLabel
private

Experiment label.

Definition at line 143 of file data-collector.h.

Referenced by DescribeRun(), and GetExperimentLabel().

std::string ns3::DataCollector::m_inputLabel
private

Input label.

Definition at line 145 of file data-collector.h.

Referenced by DescribeRun(), and GetInputLabel().

MetadataList ns3::DataCollector::m_metadata
private

List of experiment metadata.

Definition at line 149 of file data-collector.h.

Referenced by AddMetadata(), DoDispose(), MetadataBegin(), and MetadataEnd().

std::string ns3::DataCollector::m_runLabel
private

Run label.

Definition at line 146 of file data-collector.h.

Referenced by DescribeRun(), and GetRunLabel().

std::string ns3::DataCollector::m_strategyLabel
private

Strategy label.

Definition at line 144 of file data-collector.h.

Referenced by DescribeRun(), and GetStrategyLabel().


The documentation for this class was generated from the following files:
