Collection of NS3 channels between local and remote nodes. More...

#include <remote-channel-bundle.h>

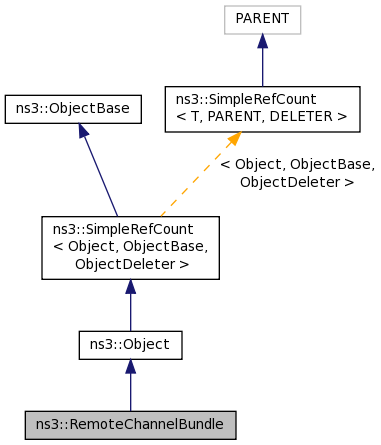

Inheritance diagram for ns3::RemoteChannelBundle:

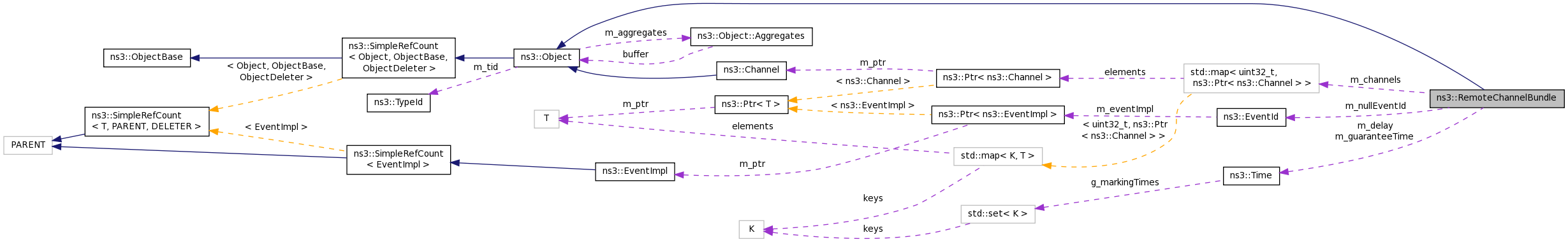

Collaboration diagram for ns3::RemoteChannelBundle:

Public Member Functions
	RemoteChannelBundle ()

	RemoteChannelBundle (const uint32_t remoteSystemId)

	~RemoteChannelBundle ()

void	AddChannel (Ptr< Channel > channel, Time delay)

Time	GetDelay (void) const

EventId	GetEventId (void) const

Time	GetGuaranteeTime (void) const

int	GetSize (void) const

uint32_t	GetSystemId () const

void	Send (Time time)

void	SetEventId (EventId id)
	Set the event ID of the Null Message send event current scheduled for this channel. More...

void	SetGuaranteeTime (Time time)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::map< uint32_t, Ptr < Channel > >	m_channels

Time	m_delay

Time	m_guaranteeTime

EventId	m_nullEventId

uint32_t	m_remoteSystemId

Friends
std::ostream &	operator<< (std::ostream &out, ns3::RemoteChannelBundle &bundle)
	Output for debugging purposes. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Collection of NS3 channels between local and remote nodes.

An instance exists for each remote system that the local system is in communication with. These are created and managed by the RemoteChannelBundleManager class. Stores time information for each bundle.

Definition at line 45 of file remote-channel-bundle.h.
