802.11s Peer Management Protocol model More...

#include <peer-management-protocol.h>

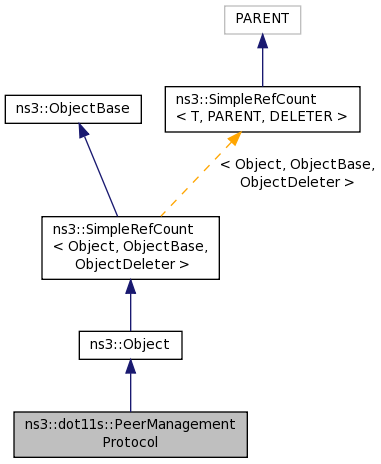

Inheritance diagram for ns3::dot11s::PeerManagementProtocol:

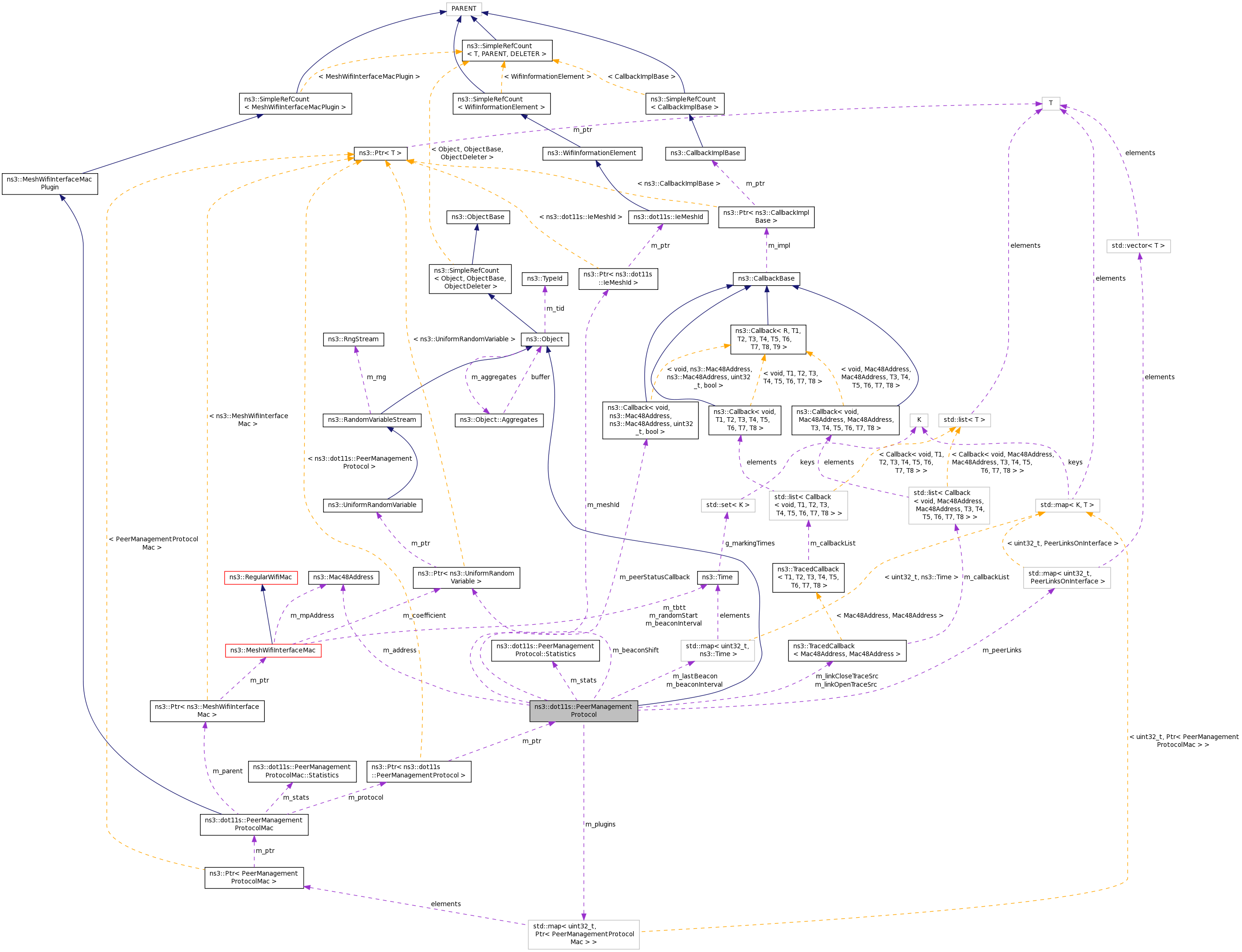

Collaboration diagram for ns3::dot11s::PeerManagementProtocol:

Classes
struct	BeaconInfo
	Keeps information about beacon of peer station: beacon interval, association ID, last time we have received a beacon. More...

struct	Statistics

Public Member Functions
	PeerManagementProtocol ()

	~PeerManagementProtocol ()

void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

bool	Install (Ptr< MeshPointDevice >)
	Install PMP on given mesh point. More...

This methods interact with MAC_layer plug-in
Methods that handle beacon sending/receiving procedure.
Ptr< IeBeaconTiming >	GetBeaconTimingElement (uint32_t interface)
	When we are sending a beacon - we fill beacon timing element. More...

void	ReceiveBeacon (uint32_t interface, Mac48Address peerAddress, Time beaconInterval, Ptr< IeBeaconTiming > beaconTiming)
	To initiate peer link we must notify about received beacon. More...


void	ReceivePeerLinkFrame (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress, uint16_t aid, IePeerManagement peerManagementElement, IeConfiguration meshConfig)
	Methods that handle Peer link management frames interaction: More...

void	ConfigurationMismatch (uint32_t interface, Mac48Address peerAddress)
	Cancels peer link due to broken configuration (Mesh ID or Supported rates) More...

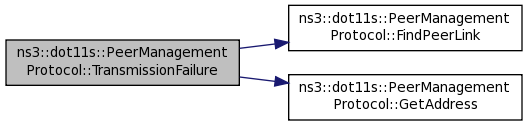

void	TransmissionFailure (uint32_t interface, const Mac48Address peerAddress)
	Cancels peer link due to successive transmission failures. More...

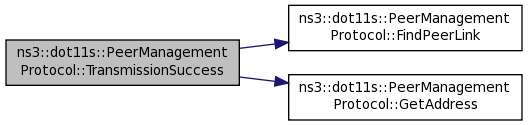

void	TransmissionSuccess (uint32_t interface, const Mac48Address peerAddress)
	resets transmission failure statistics More...

bool	IsActiveLink (uint32_t interface, Mac48Address peerAddress)
	Checks if there is established link. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef TracedCallback < Mac48Address, Mac48Address >	LinkEventCallback
	Simple link open/close trace source type. Addresses are: src interface, dst interface. More...

Private structures
typedef std::vector< Ptr < PeerLink > >	PeerLinksOnInterface
	We keep a vector of pointers to PeerLink class. More...

typedef std::map< uint32_t, PeerLinksOnInterface >	PeerLinksMap
	This map keeps all peer links. More...

typedef std::map< Mac48Address, BeaconInfo >	BeaconsOnInterface
	This map keeps relationship between peer address and its beacon information. More...

typedef std::map< uint32_t, BeaconsOnInterface >	BeaconInfoMap
	This map keeps beacon information on all interfaces. More...

typedef std::map< uint32_t, Ptr< PeerManagementProtocolMac > >	PeerManagementProtocolMacMap
	this vector keeps pointers to MAC-plugins More...

Private Member Functions
	PeerManagementProtocol (const PeerManagementProtocol &)

void	CheckBeaconCollisions (uint32_t interface)
	BCA. More...

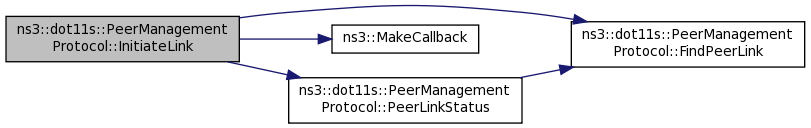

Ptr< PeerLink >	InitiateLink (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress)

void	NotifyLinkClose (Mac48Address peerMp, Mac48Address peerIface, Mac48Address myIface, uint32_t interface)
	Aux. method to register closed links. More...

void	NotifyLinkOpen (Mac48Address peerMp, Mac48Address peerIface, Mac48Address myIface, uint32_t interface)
	Aux. method to register open links. More...

PeerManagementProtocol &	operator= (const PeerManagementProtocol &)

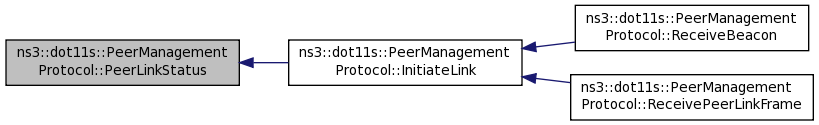

void	PeerLinkStatus (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddres, PeerLink::PeerState ostate, PeerLink::PeerState nstate)
	Indicates changes in peer links. More...

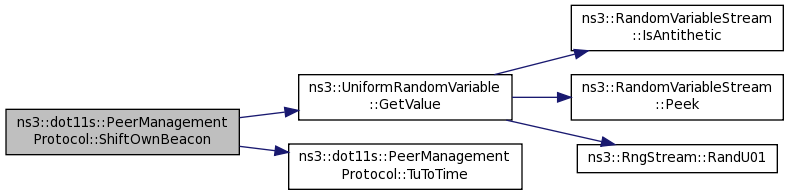

void	ShiftOwnBeacon (uint32_t interface)

External peer-chooser
bool	ShouldSendOpen (uint32_t interface, Mac48Address peerAddress)

bool	ShouldAcceptOpen (uint32_t interface, Mac48Address peerAddress, PmpReasonCode &reasonCode)

Time<-->TU converters:

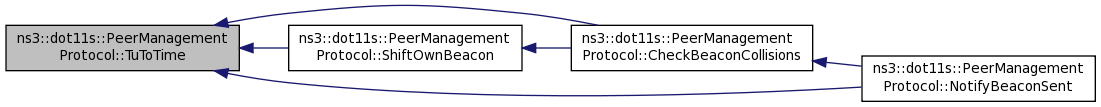

Time	TuToTime (int x)

int	TimeToTu (Time x)

Private Attributes
Mac48Address	m_address

std::map< uint32_t, Time >	m_beaconInterval
	Beacon interval at each interface. More...

Ptr< UniformRandomVariable >	m_beaconShift
	Add randomness to beacon shift. More...

bool	m_enableBca
	Flag which enables BCA. More...

uint16_t	m_lastAssocId

std::map< uint32_t, Time >	m_lastBeacon
	Last beacon at each interface. More...

uint16_t	m_lastLocalLinkId

LinkEventCallback	m_linkCloseTraceSrc
	LinkClose trace source. More...

LinkEventCallback	m_linkOpenTraceSrc
	LinkOpen trace source. More...

uint16_t	m_maxBeaconShift
	Beacon can be shifted at [-m_maxBeaconShift; +m_maxBeaconShift] TUs. More...

uint8_t	m_maxNumberOfPeerLinks

Ptr< IeMeshId >	m_meshId

Callback< void, Mac48Address, Mac48Address, uint32_t, bool >	m_peerStatusCallback
	Callback to notify about peer link changes: Mac48Address is peer address of mesh point, Mac48Address is peer address of interface, uint32_t - interface ID, bool is status - true when new link has appeared, false - when link was closed,. More...

PeerManagementProtocolMacMap	m_plugins

Peer Links
PeerLinksMap	m_peerLinks

Statistics:
struct Statistics	m_stats

Interface to other protocols (MLME)
void	SetPeerLinkStatusCallback (Callback< void, Mac48Address, Mac48Address, uint32_t, bool > cb)
	Set peer link status change callback. More...

Ptr< PeerLink >	FindPeerLink (uint32_t interface, Mac48Address peerAddress)
	Find active peer link by my interface and peer interface MAC. More...

std::vector< Ptr< PeerLink > >	GetPeerLinks () const
	Get list of all active peer links. More...

std::vector< Mac48Address >	GetPeers (uint32_t interface) const
	Get list of active peers of my given interface. More...

Mac48Address	GetAddress ()
	Get mesh point address. More...

uint8_t	GetNumberOfLinks ()
	Set peer link status change callback. More...

void	SetMeshId (std::string s)
	Set peer link status change callback. More...

Ptr< IeMeshId >	GetMeshId () const
	Set peer link status change callback. More...

void	SetBeaconCollisionAvoidance (bool enable)
	Enable or disable beacon collision avoidance. More...

bool	GetBeaconCollisionAvoidance () const
	Set peer link status change callback. More...

void	NotifyBeaconSent (uint32_t interface, Time beaconInterval)
	Notify about beacon send event, needed to schedule BCA. More...

void	Report (std::ostream &) const
	: Report statistics More...

void	ResetStats ()
	Set peer link status change callback. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

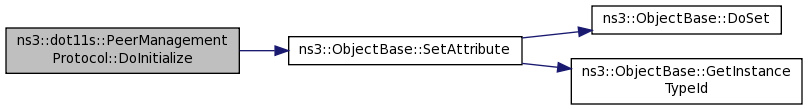

virtual void	DoInitialize ()
	Set peer link status change callback. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

802.11s Peer Management Protocol model

Doxygen introspection did not find any typical Config paths.

Attributes

MaxNumberOfPeerLinks: Maximum number of peer links
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 32
- Flags: construct write read
MaxBeaconShiftValue: Maximum number of TUs for beacon shifting
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 15
- Flags: construct write read
EnableBeaconCollisionAvoidance: Enable/Disable Beacon collision avoidance.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

LinkOpen: New peer link opened
LinkClose: New peer link closed

Definition at line 49 of file peer-management-protocol.h.

Member Typedef Documentation

typedef std::map<uint32_t, BeaconsOnInterface> ns3::dot11s::PeerManagementProtocol::BeaconInfoMap

private

This map keeps beacon information on all interfaces.

Definition at line 185 of file peer-management-protocol.h.

typedef std::map<Mac48Address, BeaconInfo> ns3::dot11s::PeerManagementProtocol::BeaconsOnInterface

private

This map keeps relationship between peer address and its beacon information.

Definition at line 183 of file peer-management-protocol.h.

typedef TracedCallback<Mac48Address, Mac48Address> ns3::dot11s::PeerManagementProtocol::LinkEventCallback

private

Simple link open/close trace source type. Addresses are: src interface, dst interface.

Definition at line 259 of file peer-management-protocol.h.

typedef std::map<uint32_t, PeerLinksOnInterface> ns3::dot11s::PeerManagementProtocol::PeerLinksMap

private

This map keeps all peer links.

Definition at line 181 of file peer-management-protocol.h.

typedef std::vector<Ptr<PeerLink> > ns3::dot11s::PeerManagementProtocol::PeerLinksOnInterface

private

We keep a vector of pointers to PeerLink class.

This vector keeps all peer links at a given interface.

Definition at line 179 of file peer-management-protocol.h.

typedef std::map<uint32_t, Ptr<PeerManagementProtocolMac> > ns3::dot11s::PeerManagementProtocol::PeerManagementProtocolMacMap

private

this vector keeps pointers to MAC-plugins

Definition at line 187 of file peer-management-protocol.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerManagementProtocol::PeerManagementProtocol ( )

Definition at line 86 of file peer-management-protocol.cc.

References m_beaconShift.

ns3::dot11s::PeerManagementProtocol::~PeerManagementProtocol ( )

Definition at line 91 of file peer-management-protocol.cc.

References m_meshId.

ns3::dot11s::PeerManagementProtocol::PeerManagementProtocol ( const PeerManagementProtocol & )

private

Member Function Documentation

int64_t ns3::dot11s::PeerManagementProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 583 of file peer-management-protocol.cc.

References m_beaconShift, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

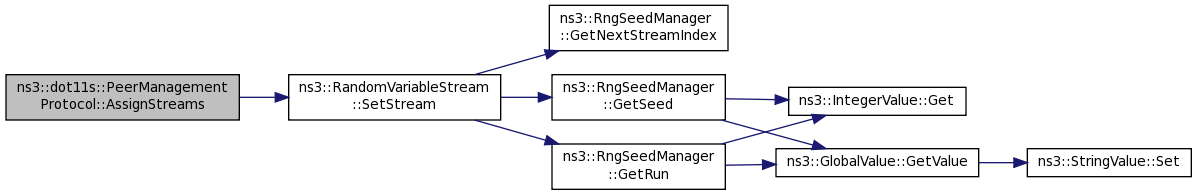

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::CheckBeaconCollisions ( uint32_t interface )

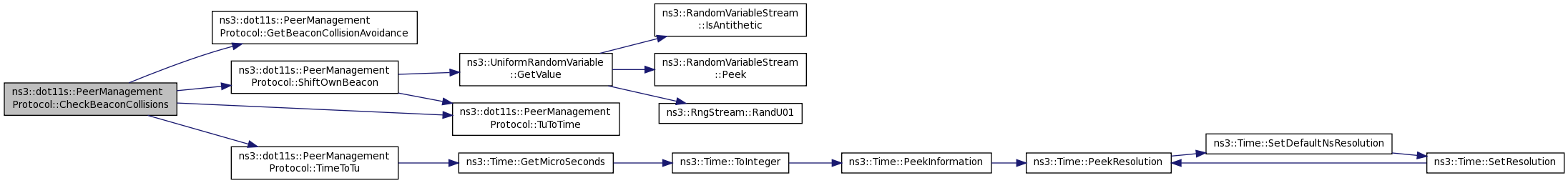

private

BCA.

Definition at line 379 of file peer-management-protocol.cc.

References GetBeaconCollisionAvoidance(), m_beaconInterval, m_lastBeacon, m_maxBeaconShift, m_peerLinks, m_plugins, NS_ASSERT, NS_ASSERT_MSG, ShiftOwnBeacon(), TimeToTu(), and TuToTime().

Referenced by NotifyBeaconSent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::PeerManagementProtocol::ConfigurationMismatch	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Cancels peer link due to broken configuration (Mesh ID or Supported rates)

Definition at line 236 of file peer-management-protocol.cc.

References FindPeerLink(), and ns3::dot11s::REASON11S_MESH_CAPABILITY_POLICY_VIOLATION.

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 96 of file peer-management-protocol.cc.

References m_peerLinks, and m_plugins.

void ns3::dot11s::PeerManagementProtocol::DoInitialize ( void )

privatevirtual

Set peer link status change callback.

Reimplemented from ns3::Object.

Definition at line 591 of file peer-management-protocol.cc.

References m_beaconShift, m_maxBeaconShift, and ns3::ObjectBase::SetAttribute().

Here is the call graph for this function:

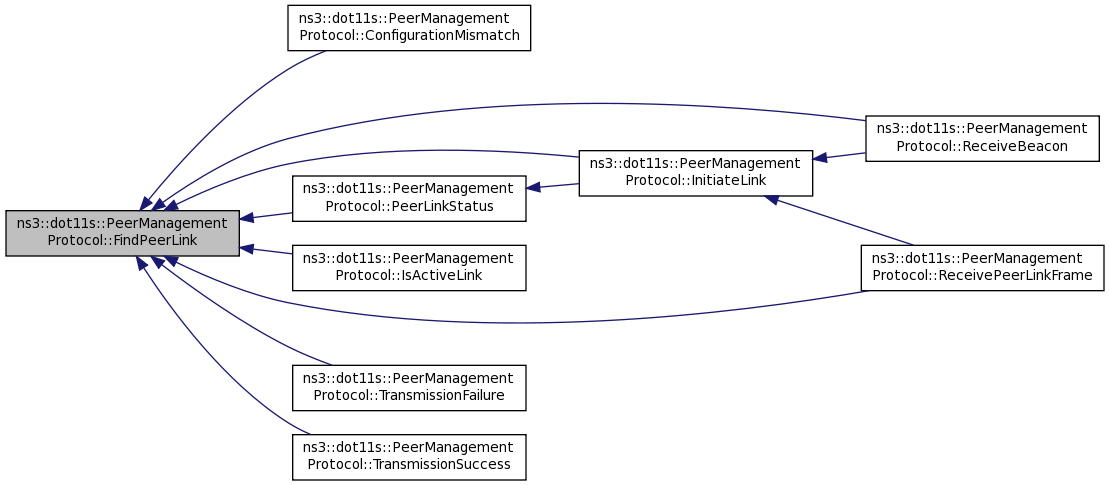

Ptr< PeerLink > ns3::dot11s::PeerManagementProtocol::FindPeerLink	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Find active peer link by my interface and peer interface MAC.

Definition at line 291 of file peer-management-protocol.cc.

References m_peerLinks, and NS_ASSERT.

Referenced by ConfigurationMismatch(), InitiateLink(), IsActiveLink(), PeerLinkStatus(), ReceiveBeacon(), ReceivePeerLinkFrame(), TransmissionFailure(), and TransmissionSuccess().

Here is the caller graph for this function:

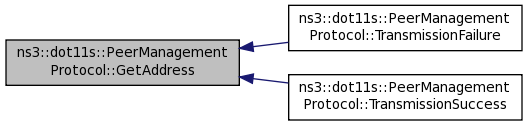

Mac48Address ns3::dot11s::PeerManagementProtocol::GetAddress ( void )

Get mesh point address.

Todo:: this used by plugins only. Now MAC plugins can ask MP addrress directly from main MAC

Definition at line 530 of file peer-management-protocol.cc.

References m_address.

Referenced by TransmissionFailure(), and TransmissionSuccess().

Here is the caller graph for this function:

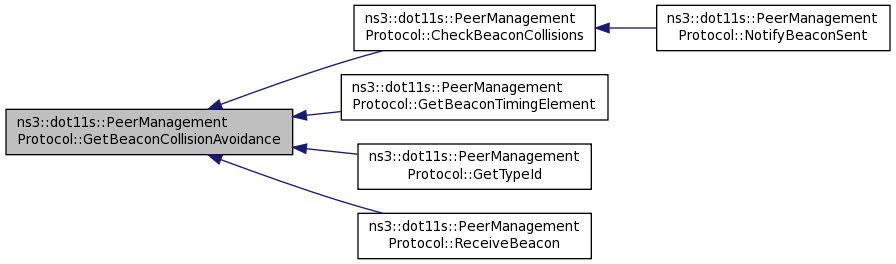

bool ns3::dot11s::PeerManagementProtocol::GetBeaconCollisionAvoidance ( ) const

Set peer link status change callback.

Definition at line 606 of file peer-management-protocol.cc.

References m_enableBca.

Referenced by CheckBeaconCollisions(), GetBeaconTimingElement(), GetTypeId(), and ReceiveBeacon().

Here is the caller graph for this function:

Ptr< IeBeaconTiming > ns3::dot11s::PeerManagementProtocol::GetBeaconTimingElement ( uint32_t interface )

When we are sending a beacon - we fill beacon timing element.

Returns: IeBeaconTiming is a beacon timing element that should be present in beacon

Parameters

interface is a interface sending a beacon

Definition at line 141 of file peer-management-protocol.cc.

References GetBeaconCollisionAvoidance(), m_peerLinks, and NS_ASSERT.

Here is the call graph for this function:

Ptr< IeMeshId > ns3::dot11s::PeerManagementProtocol::GetMeshId ( ) const

Set peer link status change callback.

Definition at line 519 of file peer-management-protocol.cc.

References m_meshId, and NS_ASSERT.

uint8_t ns3::dot11s::PeerManagementProtocol::GetNumberOfLinks ( )

Set peer link status change callback.

Definition at line 514 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, and m_stats.

std::vector< Ptr< PeerLink > > ns3::dot11s::PeerManagementProtocol::GetPeerLinks ( ) const

Get list of all active peer links.

Definition at line 337 of file peer-management-protocol.cc.

References m_peerLinks.

std::vector< Mac48Address > ns3::dot11s::PeerManagementProtocol::GetPeers ( uint32_t interface ) const

Get list of active peers of my given interface.

Definition at line 321 of file peer-management-protocol.cc.

References m_peerLinks, and NS_ASSERT.

Referenced by ns3::Dot11sStack::InstallStack().

Here is the caller graph for this function:

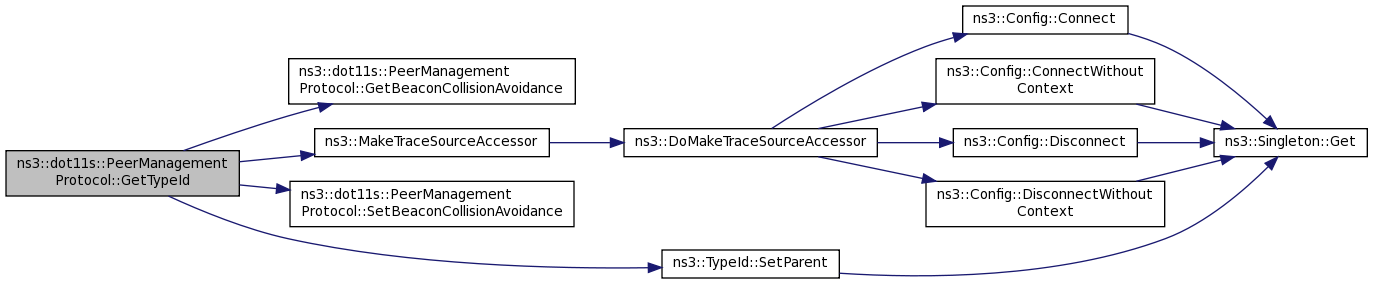

TypeId ns3::dot11s::PeerManagementProtocol::GetTypeId ( void )

static

Definition at line 46 of file peer-management-protocol.cc.

References GetBeaconCollisionAvoidance(), m_linkCloseTraceSrc, m_linkOpenTraceSrc, m_maxBeaconShift, m_maxNumberOfPeerLinks, ns3::MakeTraceSourceAccessor(), SetBeaconCollisionAvoidance(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

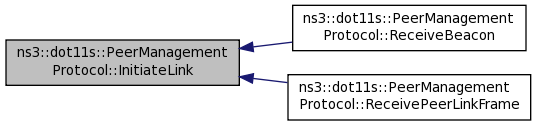

Ptr< PeerLink > ns3::dot11s::PeerManagementProtocol::InitiateLink	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddress
	)

private

Definition at line 265 of file peer-management-protocol.cc.

References FindPeerLink(), m_lastAssocId, m_lastLocalLinkId, m_peerLinks, m_plugins, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, and PeerLinkStatus().

Referenced by ReceiveBeacon(), and ReceivePeerLinkFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

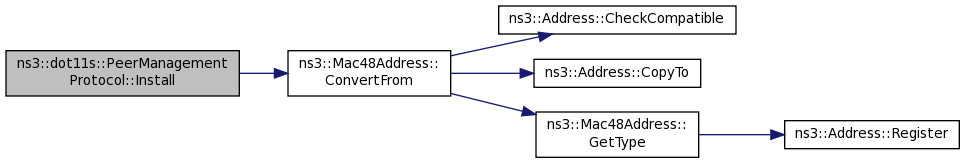

bool ns3::dot11s::PeerManagementProtocol::Install ( Ptr< MeshPointDevice > mp )

Install PMP on given mesh point.

Installing protocol cause installing its interface MAC plugins.

Also MP aggregates all installed protocols, PMP protocol can be accessed via MeshPointDevice::GetObject<PeerManagementProtocol>();

Definition at line 113 of file peer-management-protocol.cc.

References ns3::Mac48Address::ConvertFrom(), first::interfaces, m_address, m_peerLinks, and m_plugins.

Here is the call graph for this function:

bool ns3::dot11s::PeerManagementProtocol::IsActiveLink	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Checks if there is established link.

Definition at line 351 of file peer-management-protocol.cc.

References FindPeerLink().

Here is the call graph for this function:

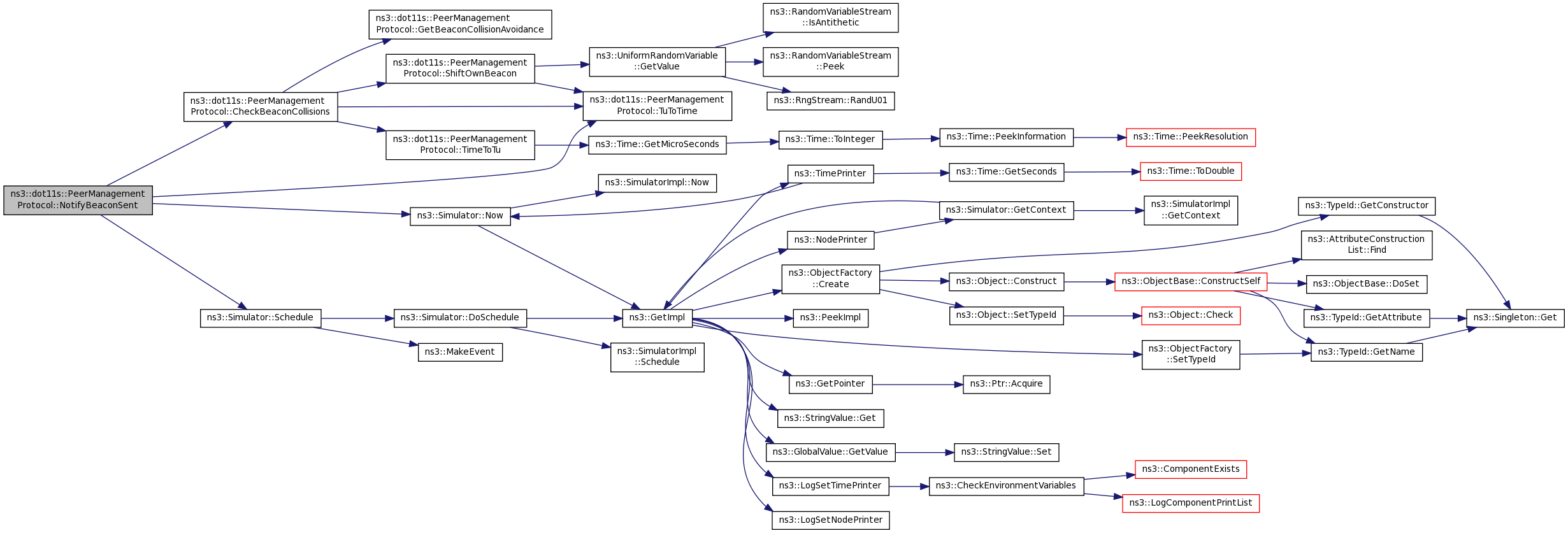

void ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent	(	uint32_t	interface,
		Time	beaconInterval
	)

Notify about beacon send event, needed to schedule BCA.

Definition at line 535 of file peer-management-protocol.cc.

References CheckBeaconCollisions(), m_beaconInterval, m_lastBeacon, m_maxBeaconShift, ns3::Simulator::Now(), ns3::Simulator::Schedule(), and TuToTime().

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::NotifyLinkClose	(	Mac48Address	peerMp,
		Mac48Address	peerIface,
		Mac48Address	myIface,
		uint32_t	interface
	)

private

Aux. method to register closed links.

Definition at line 478 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksClosed, ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_linkCloseTraceSrc, m_peerStatusCallback, m_stats, and NS_LOG_LOGIC.

void ns3::dot11s::PeerManagementProtocol::NotifyLinkOpen	(	Mac48Address	peerMp,
		Mac48Address	peerIface,
		Mac48Address	myIface,
		uint32_t	interface
	)

private

Aux. method to register open links.

Definition at line 465 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksOpened, ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_linkOpenTraceSrc, m_peerStatusCallback, m_stats, and NS_LOG_LOGIC.

PeerManagementProtocol& ns3::dot11s::PeerManagementProtocol::operator= ( const PeerManagementProtocol & )

private

void ns3::dot11s::PeerManagementProtocol::PeerLinkStatus	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddres,
		PeerLink::PeerState	ostate,
		PeerLink::PeerState	nstate
	)

private

Indicates changes in peer links.

Definition at line 491 of file peer-management-protocol.cc.

References FindPeerLink(), m_address, m_plugins, NS_ASSERT, and NS_LOG_DEBUG.

Referenced by InitiateLink().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::PeerManagementProtocol::ReceiveBeacon	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Time	beaconInterval,
		Ptr< IeBeaconTiming >	beaconTiming
	)

To initiate peer link we must notify about received beacon.

Parameters

interface	the interface where a beacon was received from
peerAddress	address of station, which sent a beacon
beaconInterval	beacon interval (needed by beacon loss counter)
beaconTiming	beacon timing element (needed by BCA)

Definition at line 165 of file peer-management-protocol.cc.

References FindPeerLink(), GetBeaconCollisionAvoidance(), ns3::Mac48Address::GetBroadcast(), InitiateLink(), m_plugins, ns3::Simulator::Now(), ns3::PeekPointer(), and ShouldSendOpen().

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddress,
		uint16_t	aid,
		IePeerManagement	peerManagementElement,
		IeConfiguration	meshConfig
	)

Methods that handle Peer link management frames interaction:

Deliver Peer link management information to the protocol-part

Parameters

interface	is a interface ID of a given MAC (interfaceID rather than MAC address, because many interfaces may have the same MAC)
peerAddress	is address of peer
peerMeshPointAddress	is address of peer mesh point device (equal to peer address when only one interface)
aid	is association ID, which peer has assigned to us
peerManagementElement	is peer link management element
meshConfig	is mesh configuration element taken from the peer management frame

Definition at line 197 of file peer-management-protocol.cc.

References FindPeerLink(), ns3::dot11s::IePeerManagement::GetLocalLinkId(), ns3::dot11s::IePeerManagement::GetPeerLinkId(), ns3::dot11s::IePeerManagement::GetReasonCode(), InitiateLink(), ns3::dot11s::REASON11S_RESERVED, ShouldAcceptOpen(), ns3::dot11s::IePeerManagement::SubtypeIsClose(), ns3::dot11s::IePeerManagement::SubtypeIsConfirm(), and ns3::dot11s::IePeerManagement::SubtypeIsOpen().

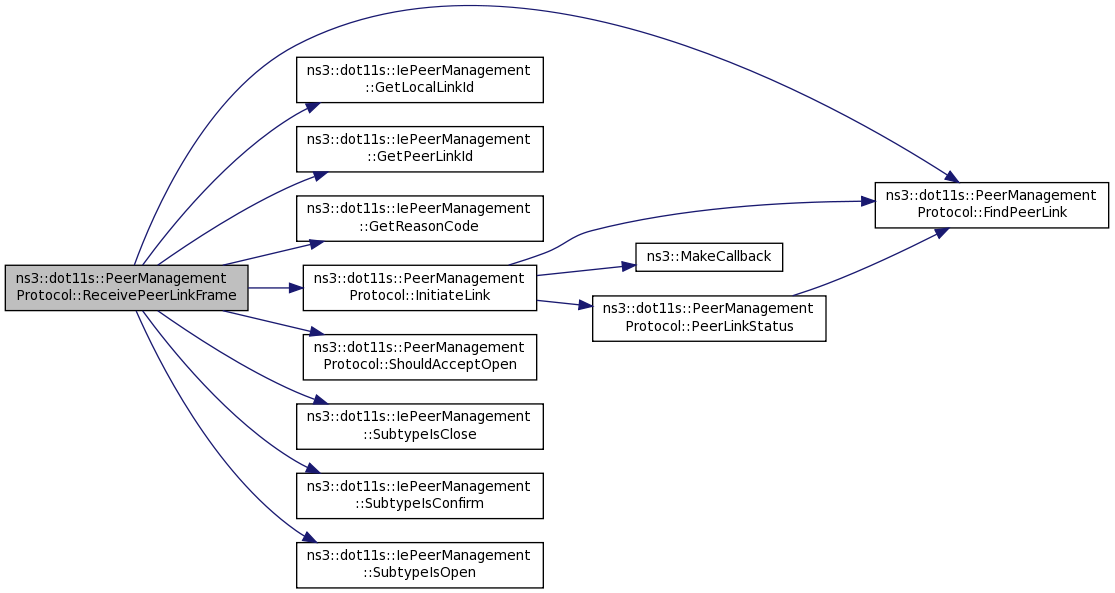

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::Report ( std::ostream & os ) const

: Report statistics

Definition at line 554 of file peer-management-protocol.cc.

References m_peerLinks, m_plugins, m_stats, NS_ASSERT, visualizer.base::plugins, and ns3::dot11s::PeerManagementProtocol::Statistics::Print().

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::ResetStats ( )

Set peer link status change callback.

Definition at line 573 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_plugins, m_stats, and visualizer.base::plugins.

void ns3::dot11s::PeerManagementProtocol::SetBeaconCollisionAvoidance ( bool enable )

Enable or disable beacon collision avoidance.

Definition at line 601 of file peer-management-protocol.cc.

References m_enableBca.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::dot11s::PeerManagementProtocol::SetMeshId ( std::string s )

Set peer link status change callback.

Definition at line 525 of file peer-management-protocol.cc.

References m_meshId, and s.

void ns3::dot11s::PeerManagementProtocol::SetPeerLinkStatusCallback ( Callback< void, Mac48Address, Mac48Address, uint32_t, bool > cb )

Set peer link status change callback.

Definition at line 314 of file peer-management-protocol.cc.

References m_peerStatusCallback.

void ns3::dot11s::PeerManagementProtocol::ShiftOwnBeacon ( uint32_t interface )

private

Definition at line 439 of file peer-management-protocol.cc.

References ns3::UniformRandomVariable::GetValue(), m_beaconShift, m_plugins, NS_ASSERT, and TuToTime().

Referenced by CheckBeaconCollisions().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dot11s::PeerManagementProtocol::ShouldAcceptOpen	(	uint32_t	interface,
		Mac48Address	peerAddress,
		PmpReasonCode &	reasonCode
	)

private

Definition at line 367 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_maxNumberOfPeerLinks, m_stats, and ns3::dot11s::REASON11S_MESH_MAX_PEERS.

Referenced by ReceivePeerLinkFrame().

Here is the caller graph for this function:

bool ns3::dot11s::PeerManagementProtocol::ShouldSendOpen	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

private

Definition at line 361 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_maxNumberOfPeerLinks, and m_stats.

Referenced by ReceiveBeacon().

Here is the caller graph for this function:

int ns3::dot11s::PeerManagementProtocol::TimeToTu ( Time x )

private

Definition at line 459 of file peer-management-protocol.cc.

References ns3::Time::GetMicroSeconds().

Referenced by CheckBeaconCollisions().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::PeerManagementProtocol::TransmissionFailure	(	uint32_t	interface,
		const Mac48Address	peerAddress
	)

Cancels peer link due to successive transmission failures.

Definition at line 245 of file peer-management-protocol.cc.

References FindPeerLink(), GetAddress(), and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocol::TransmissionSuccess	(	uint32_t	interface,
		const Mac48Address	peerAddress
	)

resets transmission failure statistics

Definition at line 255 of file peer-management-protocol.cc.

References FindPeerLink(), GetAddress(), and NS_LOG_DEBUG.

Here is the call graph for this function:

Time ns3::dot11s::PeerManagementProtocol::TuToTime ( int x )

private

Definition at line 454 of file peer-management-protocol.cc.

Referenced by CheckBeaconCollisions(), NotifyBeaconSent(), and ShiftOwnBeacon().

Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::dot11s::PeerManagementProtocol::m_address

private

Definition at line 226 of file peer-management-protocol.h.

Referenced by GetAddress(), Install(), and PeerLinkStatus().

std::map<uint32_t, Time> ns3::dot11s::PeerManagementProtocol::m_beaconInterval

private

Beacon interval at each interface.

Definition at line 239 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), and NotifyBeaconSent().

Ptr<UniformRandomVariable> ns3::dot11s::PeerManagementProtocol::m_beaconShift

private

Add randomness to beacon shift.

Definition at line 278 of file peer-management-protocol.h.

Referenced by AssignStreams(), DoInitialize(), PeerManagementProtocol(), and ShiftOwnBeacon().

bool ns3::dot11s::PeerManagementProtocol::m_enableBca

private

Flag which enables BCA.

Definition at line 233 of file peer-management-protocol.h.

Referenced by GetBeaconCollisionAvoidance(), and SetBeaconCollisionAvoidance().

uint16_t ns3::dot11s::PeerManagementProtocol::m_lastAssocId

private

Definition at line 229 of file peer-management-protocol.h.

Referenced by InitiateLink().

std::map<uint32_t, Time> ns3::dot11s::PeerManagementProtocol::m_lastBeacon

private

Last beacon at each interface.

Definition at line 237 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), and NotifyBeaconSent().

uint16_t ns3::dot11s::PeerManagementProtocol::m_lastLocalLinkId

private

Definition at line 230 of file peer-management-protocol.h.

Referenced by InitiateLink().

LinkEventCallback ns3::dot11s::PeerManagementProtocol::m_linkCloseTraceSrc

private

LinkClose trace source.

Definition at line 263 of file peer-management-protocol.h.

Referenced by GetTypeId(), and NotifyLinkClose().

LinkEventCallback ns3::dot11s::PeerManagementProtocol::m_linkOpenTraceSrc

private

LinkOpen trace source.

Definition at line 261 of file peer-management-protocol.h.

Referenced by GetTypeId(), and NotifyLinkOpen().

uint16_t ns3::dot11s::PeerManagementProtocol::m_maxBeaconShift

private

Beacon can be shifted at [-m_maxBeaconShift; +m_maxBeaconShift] TUs.

Definition at line 235 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoInitialize(), GetTypeId(), and NotifyBeaconSent().

uint8_t ns3::dot11s::PeerManagementProtocol::m_maxNumberOfPeerLinks

private

Definition at line 231 of file peer-management-protocol.h.

Referenced by GetTypeId(), ShouldAcceptOpen(), and ShouldSendOpen().

Ptr<IeMeshId> ns3::dot11s::PeerManagementProtocol::m_meshId

private

Definition at line 227 of file peer-management-protocol.h.

Referenced by GetMeshId(), SetMeshId(), and ~PeerManagementProtocol().

PeerLinksMap ns3::dot11s::PeerManagementProtocol::m_peerLinks

private

Definition at line 245 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoDispose(), FindPeerLink(), GetBeaconTimingElement(), GetPeerLinks(), GetPeers(), InitiateLink(), Install(), and Report().

Callback<void, Mac48Address, Mac48Address, uint32_t, bool> ns3::dot11s::PeerManagementProtocol::m_peerStatusCallback

private

Callback to notify about peer link changes: Mac48Address is peer address of mesh point, Mac48Address is peer address of interface, uint32_t - interface ID, bool is status - true when new link has appeared, false - when link was closed,.

Definition at line 256 of file peer-management-protocol.h.

Referenced by NotifyLinkClose(), NotifyLinkOpen(), and SetPeerLinkStatusCallback().

PeerManagementProtocolMacMap ns3::dot11s::PeerManagementProtocol::m_plugins

private

Definition at line 225 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoDispose(), InitiateLink(), Install(), PeerLinkStatus(), ReceiveBeacon(), Report(), ResetStats(), and ShiftOwnBeacon().
