Airtime link metric calculator. More...

#include <airtime-metric.h>

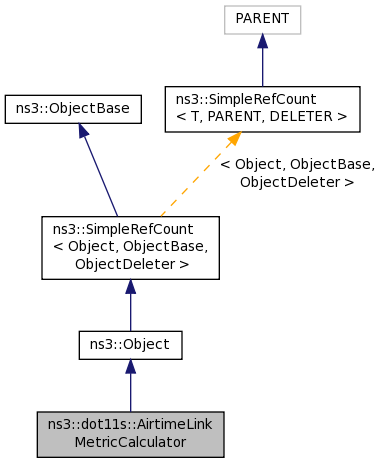

Inheritance diagram for ns3::dot11s::AirtimeLinkMetricCalculator:

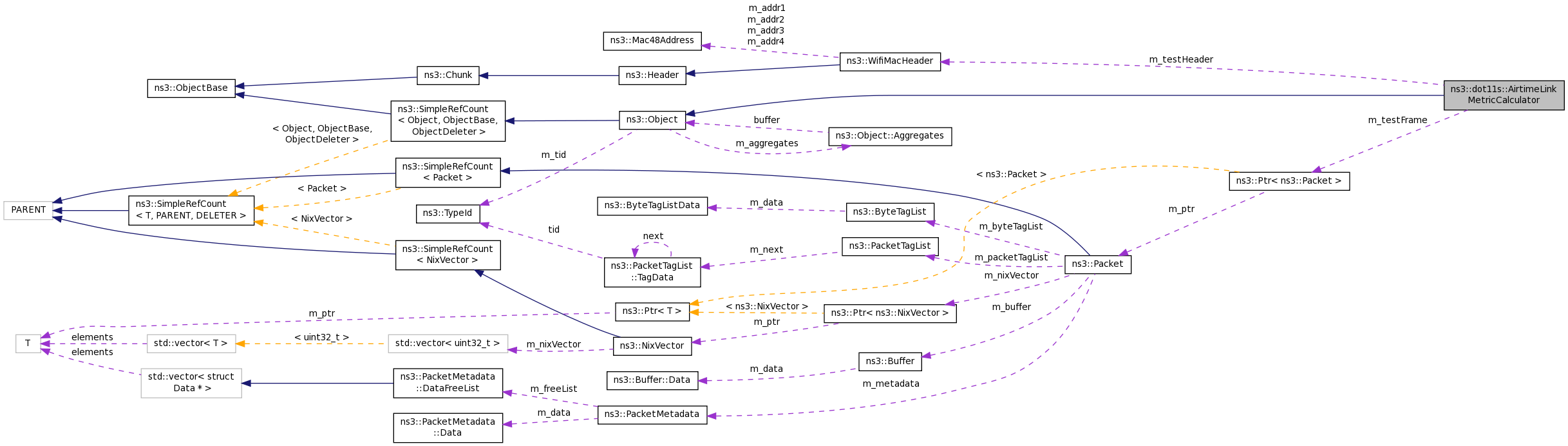

Collaboration diagram for ns3::dot11s::AirtimeLinkMetricCalculator:

Public Member Functions
	AirtimeLinkMetricCalculator ()

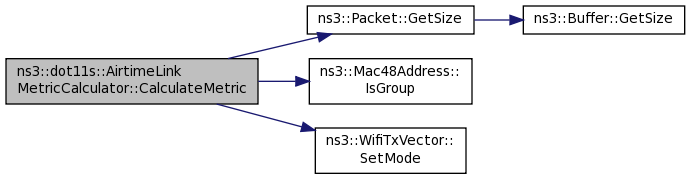

uint32_t	CalculateMetric (Mac48Address peerAddress, Ptr< MeshWifiInterfaceMac > mac)

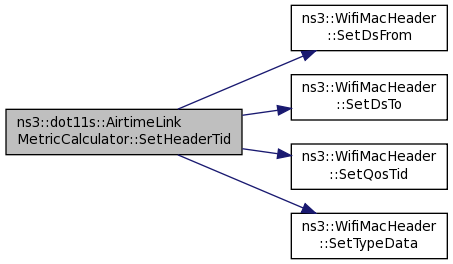

void	SetHeaderTid (uint8_t tid)

void	SetTestLength (uint16_t testLength)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

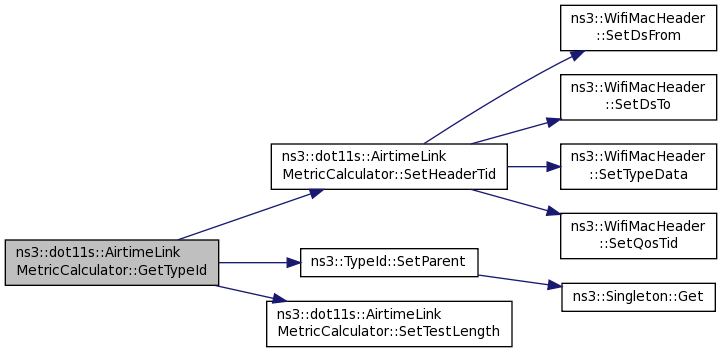

static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< Packet >	m_testFrame

WifiMacHeader	m_testHeader

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Airtime link metric calculator.

Doxygen introspection did not find any typical Config paths.

Airtime link metric is defined in 11B.10 of 802.11s Draft D3.0 as:

airtime = (O + Bt/r)* (1 + average retry counter), where:

o – the PHY dependent channel access which includes frame headers, training sequences, access protocol frames, etc.
bt – the test packet length in bits (8192 by default),
r – the current bitrate of the packet,

Final result is expressed in units of 0.01 Time Unit = 10.24 us (as required by 802.11s draft)

Attributes

TestLength: Rate should be estimated using test length.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 1024
- Flags: construct write
Dot11MetricTid: TID used to calculate metric (data rate)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write
