802.11 PHY layer model More...

#include <wifi-phy.h>

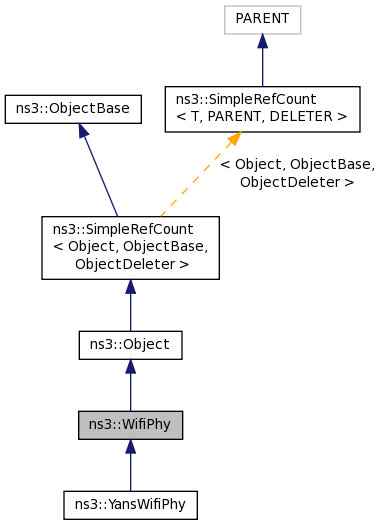

Inheritance diagram for ns3::WifiPhy:

Collaboration diagram for ns3::WifiPhy:

Public Types
typedef Callback< void, Ptr < const Packet >, double >	RxErrorCallback
	arg1: packet received unsuccessfully arg2: snr of packet More...

typedef Callback< void, Ptr < Packet >, double, WifiMode, enum WifiPreamble >	RxOkCallback
	arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet. More...

enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING }
	The state of the PHY layer. More...

Public Member Functions
	WifiPhy ()

virtual	~WifiPhy ()

virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual double	CalculateSnr (WifiMode txMode, double ber) const =0

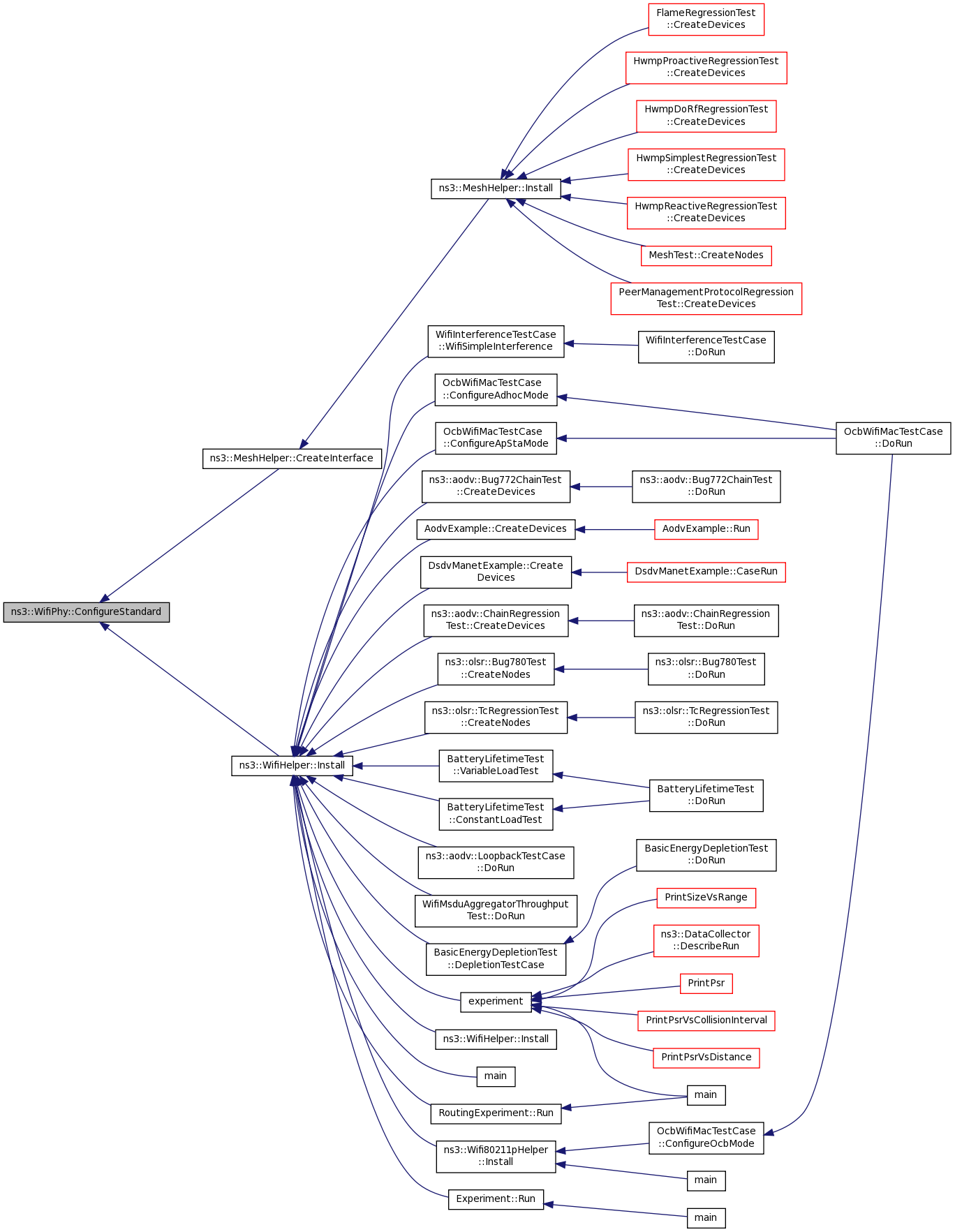

virtual void	ConfigureStandard (enum WifiPhyStandard standard)=0
	Configure the PHY-level parameters for different Wi-Fi standard. More...

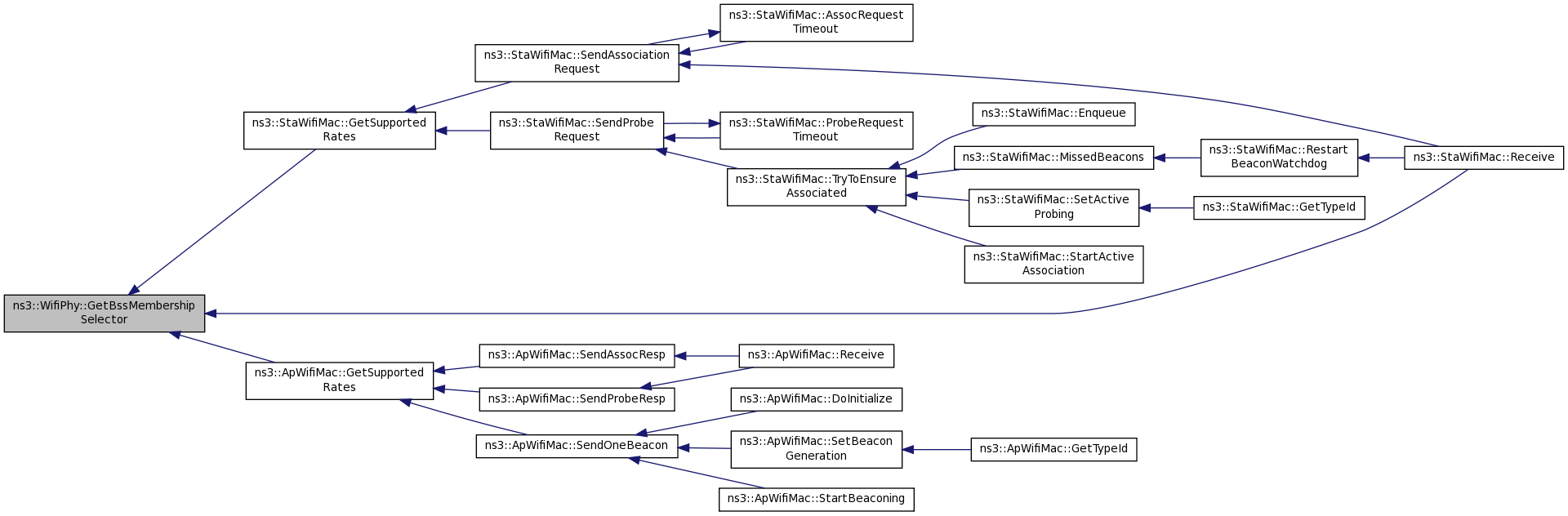

virtual uint32_t	GetBssMembershipSelector (uint32_t selector) const =0
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

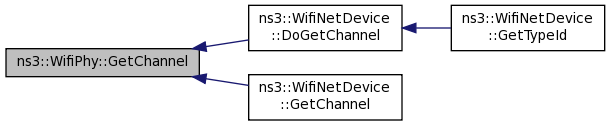

virtual Ptr< WifiChannel >	GetChannel (void) const =0
	Return the WifiChannel this WifiPhy is connected to. More...

virtual bool	GetChannelBonding (void) const =0

virtual uint16_t	GetChannelNumber () const =0
	Return current channel number. More...

virtual Time	GetDelayUntilIdle (void)=0

virtual uint32_t	GetFrequency (void) const =0

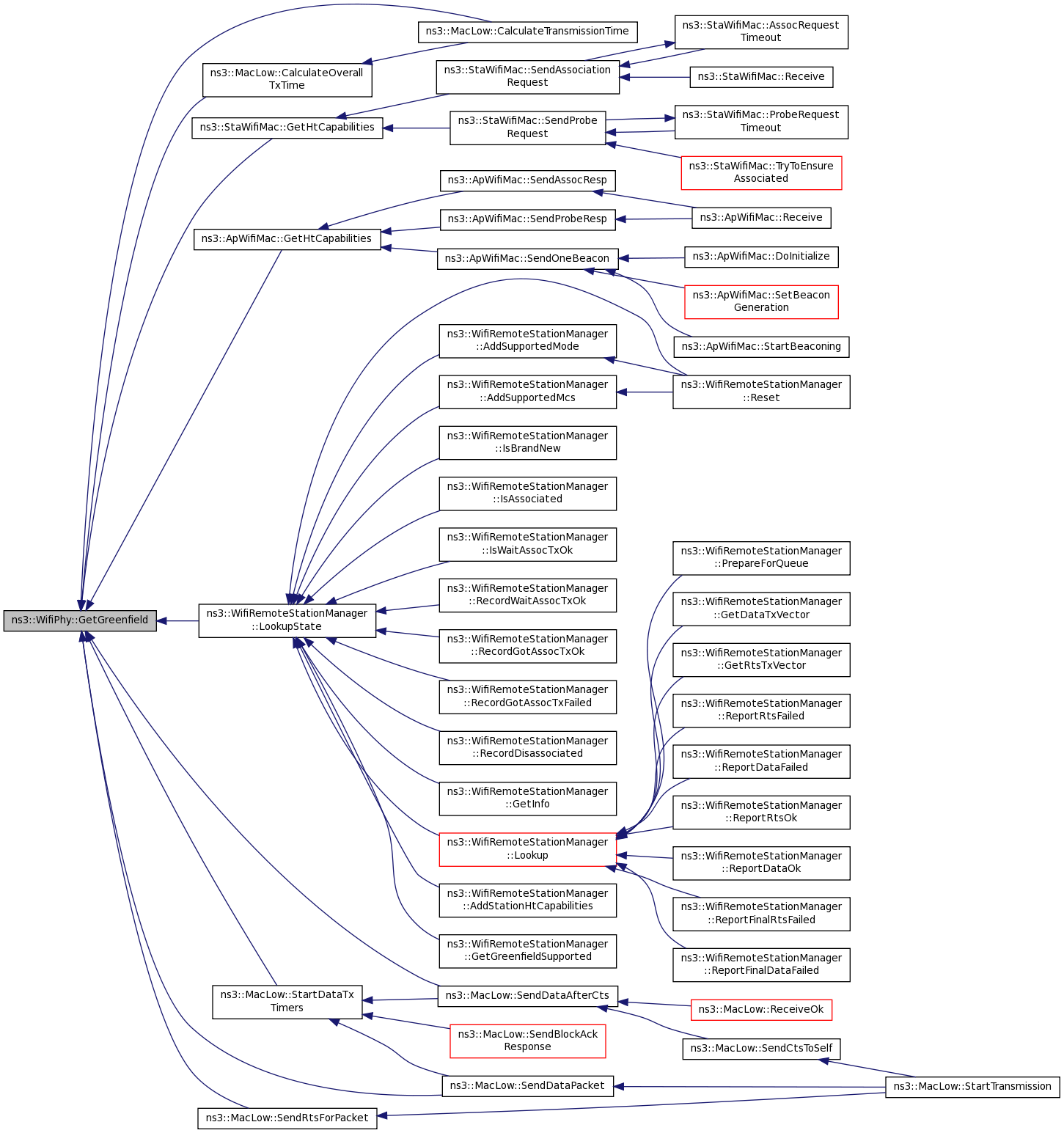

virtual bool	GetGreenfield (void) const =0

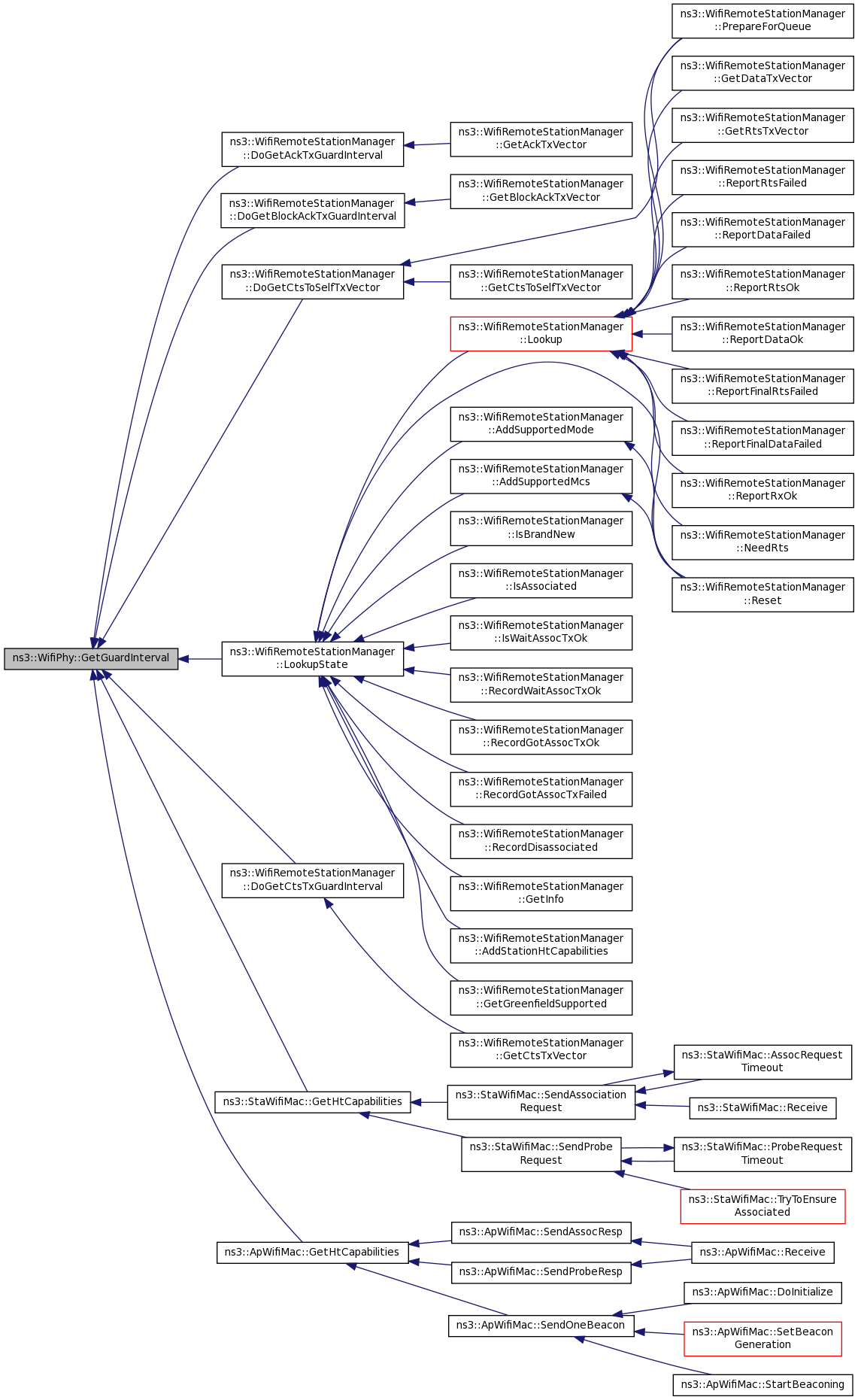

virtual bool	GetGuardInterval (void) const =0

virtual Time	GetLastRxStartTime (void) const =0
	Return the start time of the last received packet. More...

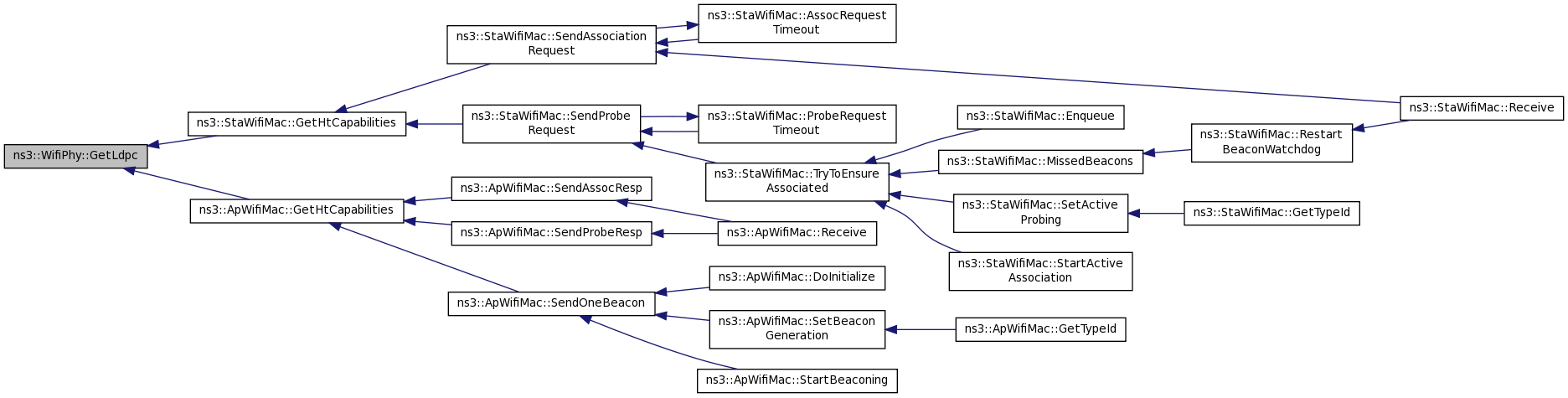

virtual bool	GetLdpc (void) const =0

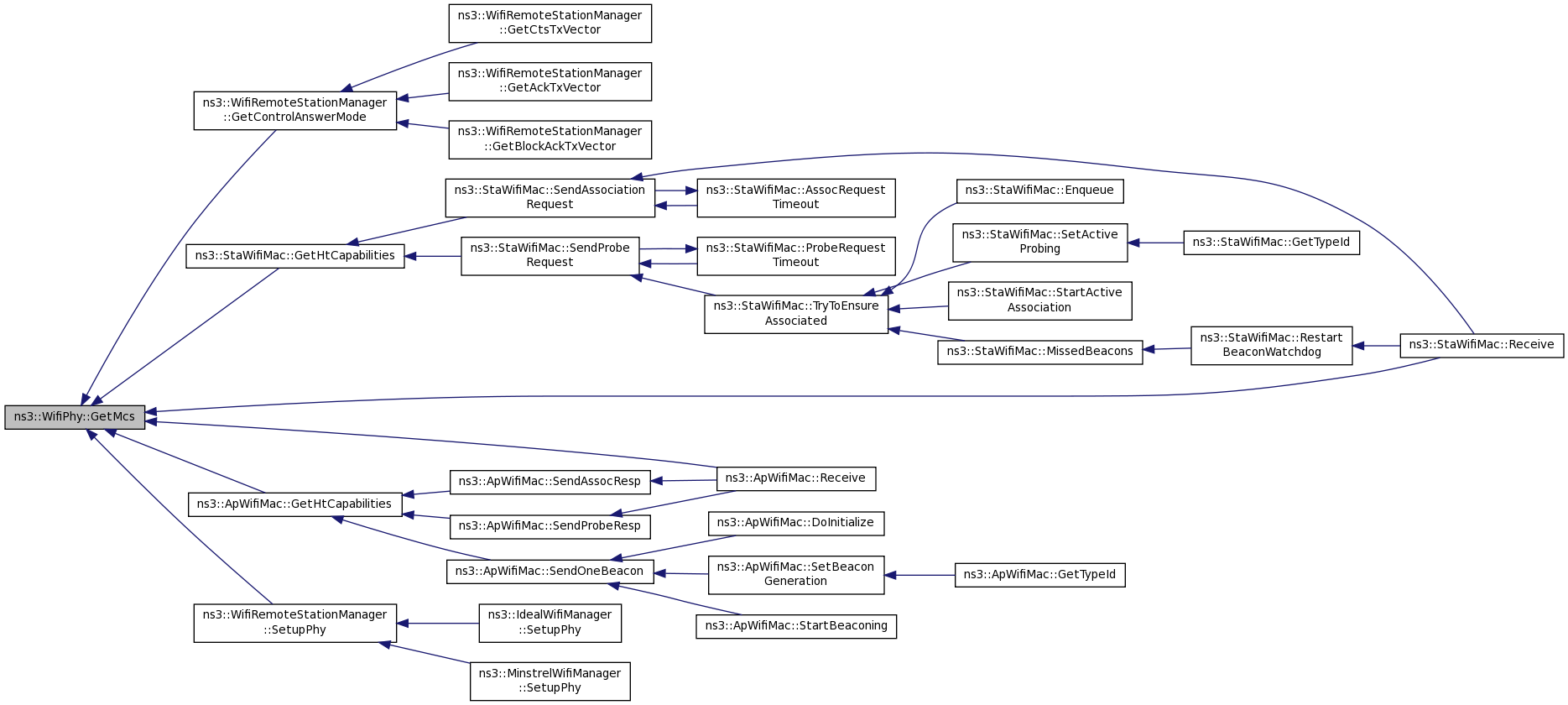

virtual uint8_t	GetMcs (uint8_t mcs) const =0
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

virtual WifiModeList	GetMembershipSelectorModes (uint32_t selector)=0
	The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

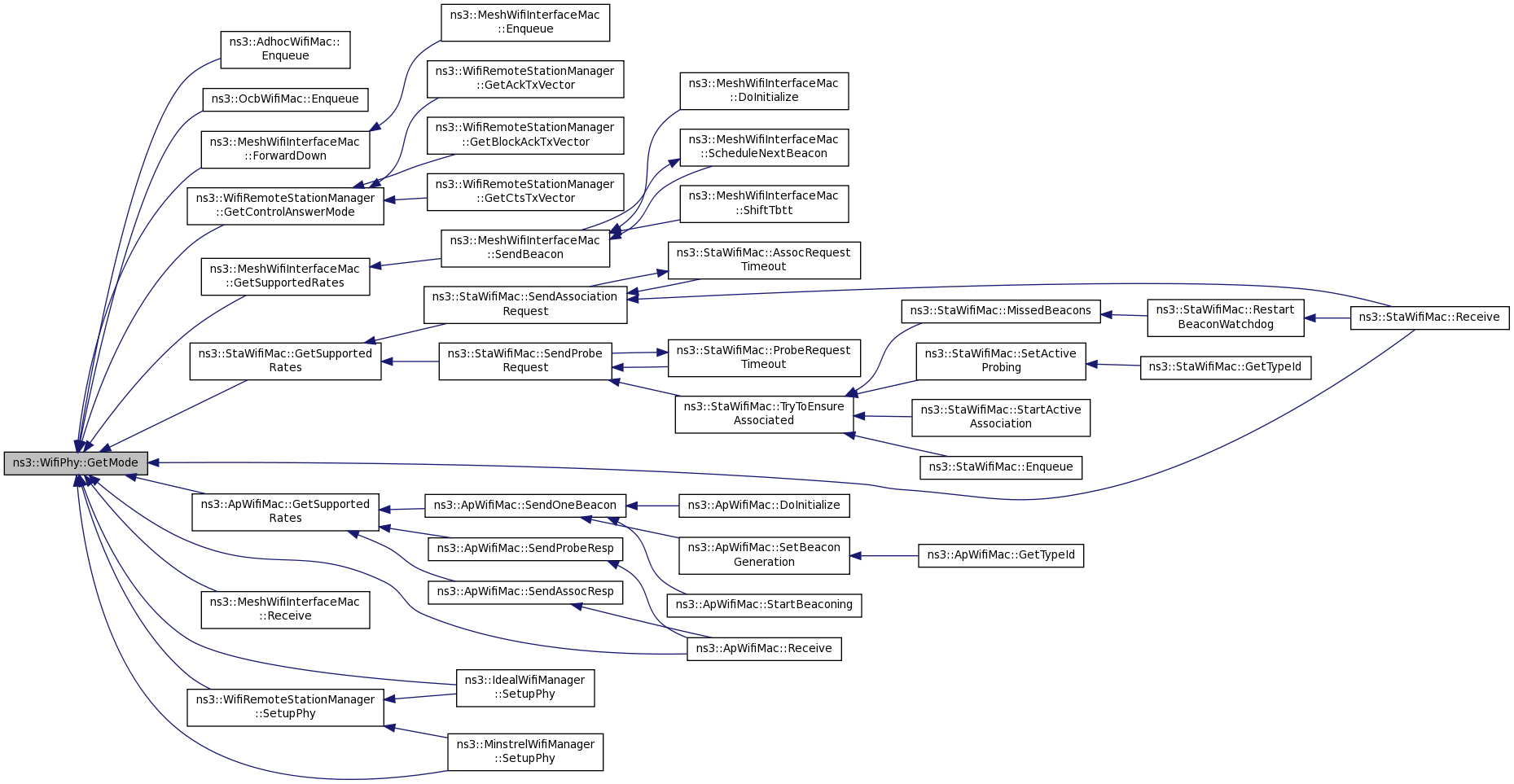

virtual WifiMode	GetMode (uint32_t mode) const =0
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

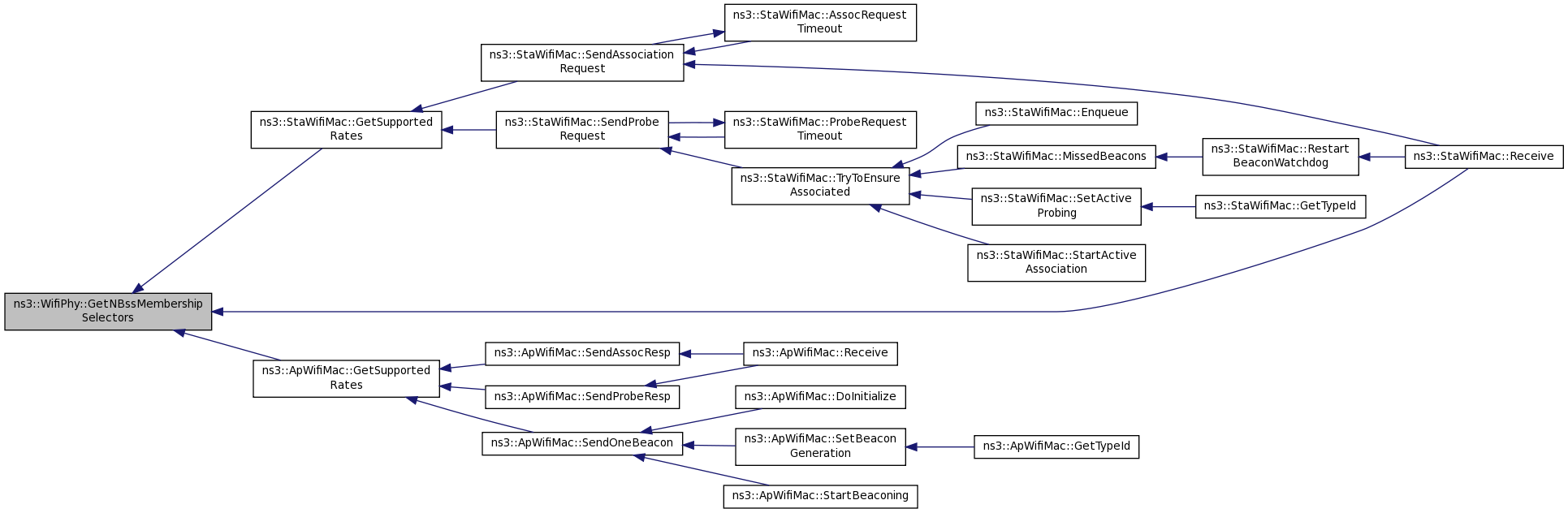

virtual uint32_t	GetNBssMembershipSelectors (void) const =0
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

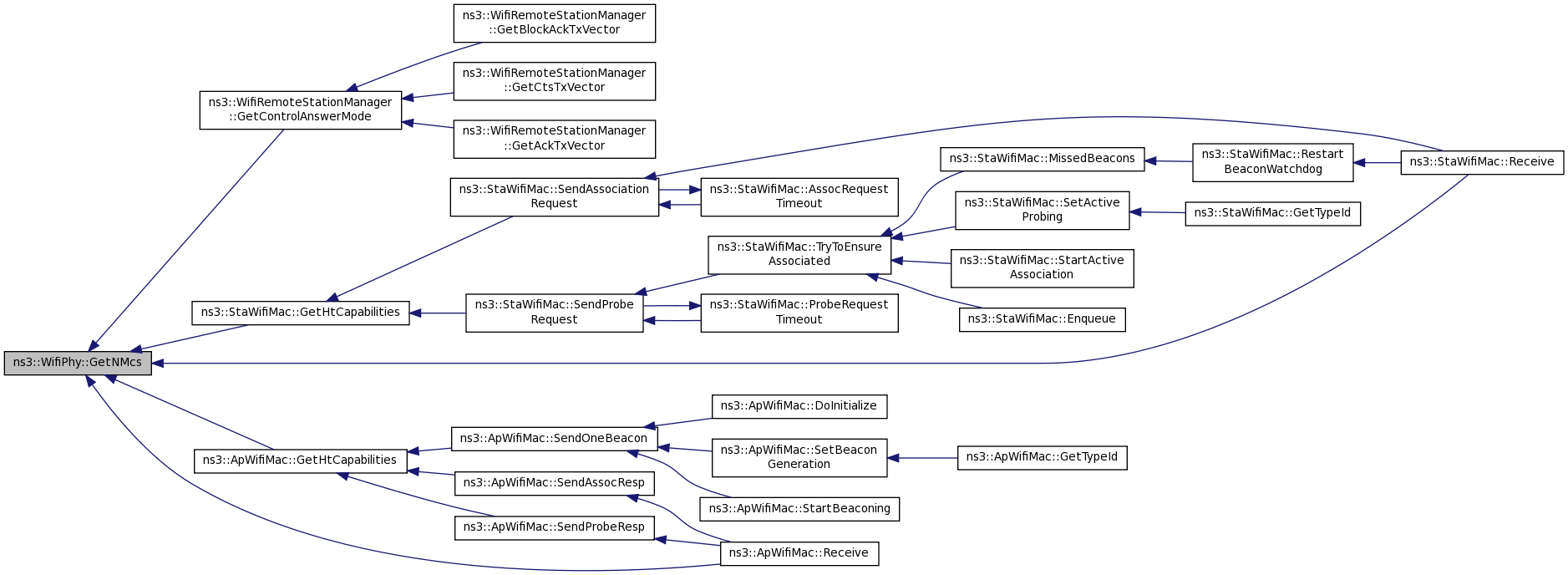

virtual uint8_t	GetNMcs (void) const =0
	The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

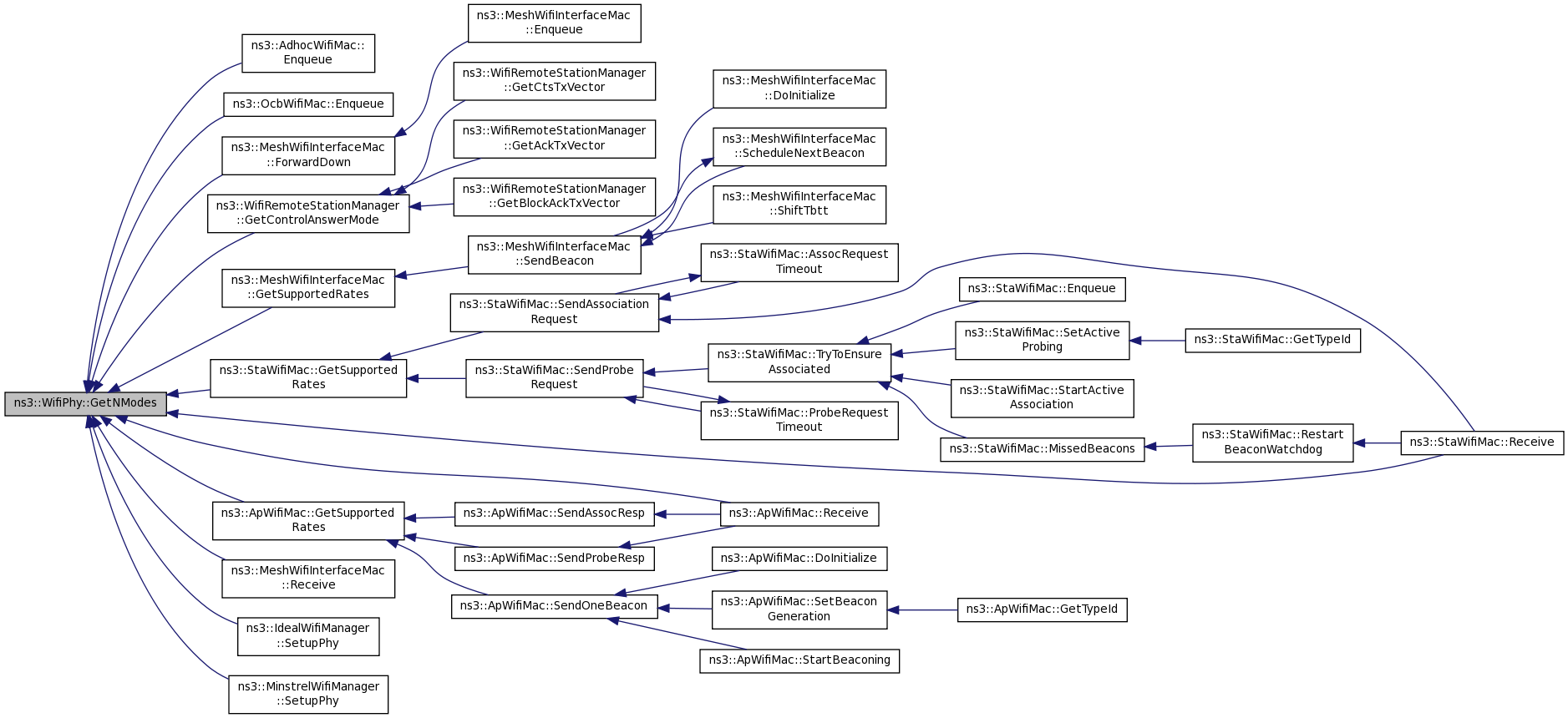

virtual uint32_t	GetNModes (void) const =0
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNTxPower (void) const =0

virtual uint32_t	GetNumberOfReceiveAntennas (void) const =0

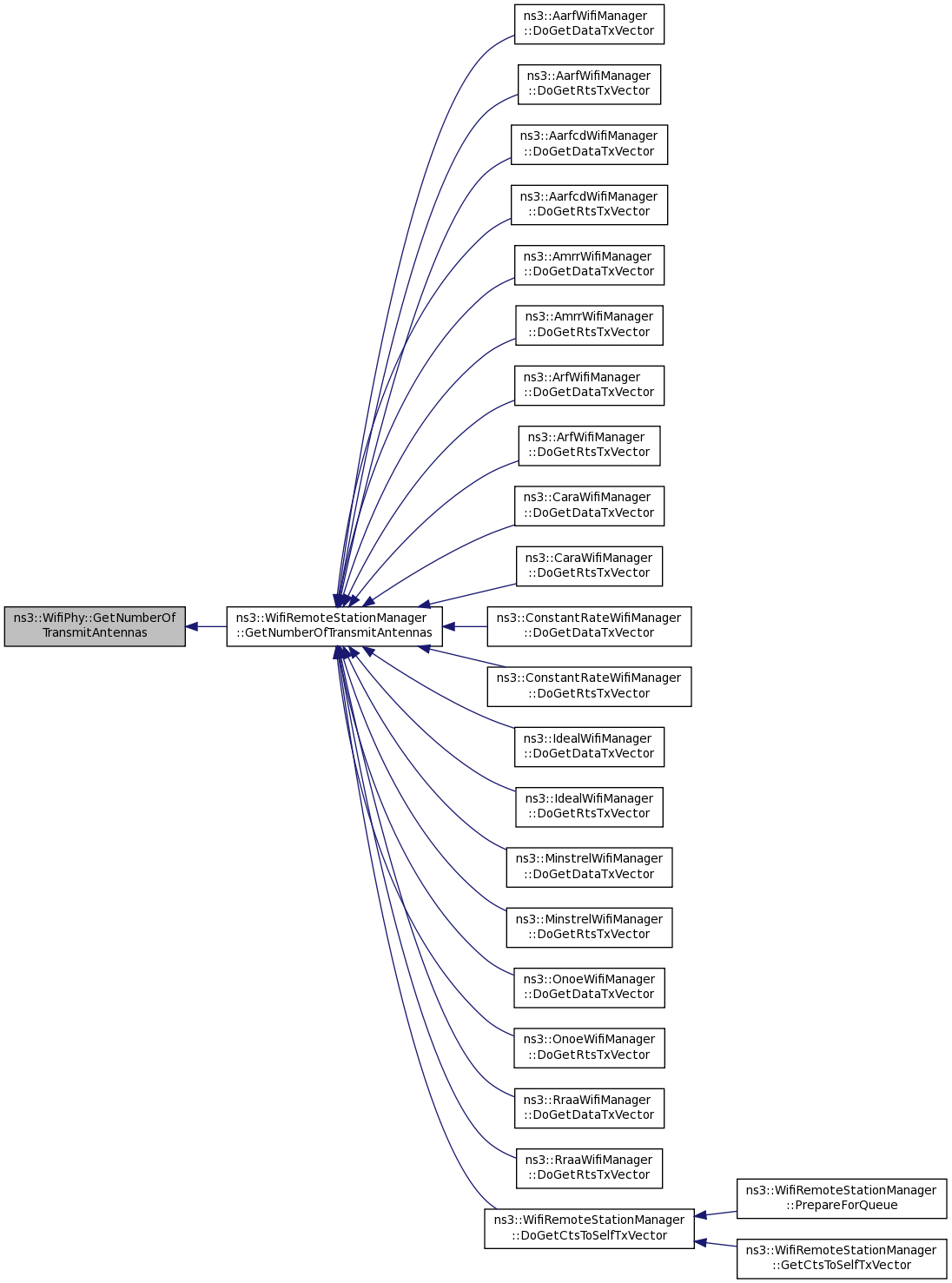

virtual uint32_t	GetNumberOfTransmitAntennas (void) const =0

virtual Time	GetStateDuration (void)=0

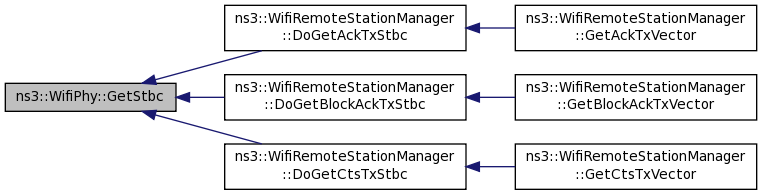

virtual bool	GetStbc (void) const =0

virtual double	GetTxPowerEnd (void) const =0
	Return the maximum available transmission power level (dBm). More...

virtual double	GetTxPowerStart (void) const =0
	Return the minimum available transmission power level (dBm). More...

virtual bool	IsStateBusy (void)=0

virtual bool	IsStateCcaBusy (void)=0

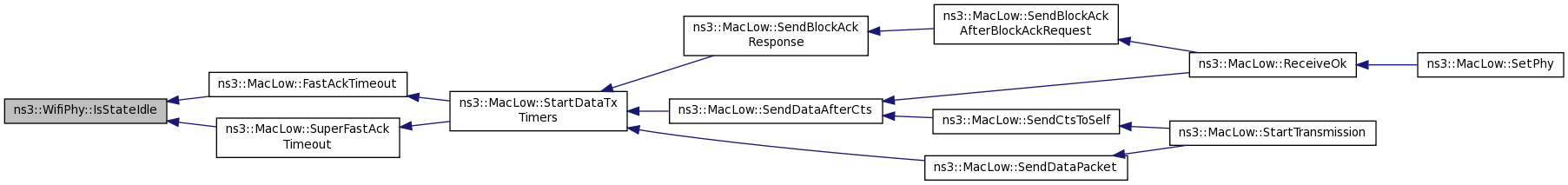

virtual bool	IsStateIdle (void)=0

virtual bool	IsStateRx (void)=0

virtual bool	IsStateSwitching (void)=0

virtual bool	IsStateTx (void)=0

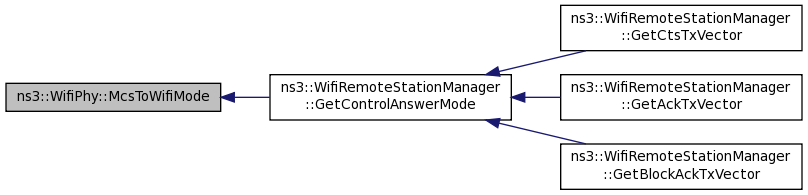

virtual WifiMode	McsToWifiMode (uint8_t mcs)=0
	For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard. More...

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, uint8_t txPower)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

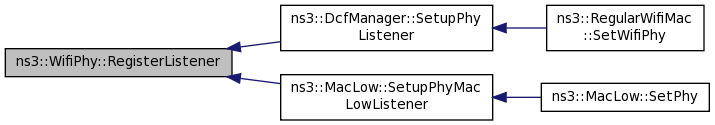

virtual void	RegisterListener (WifiPhyListener *listener)=0

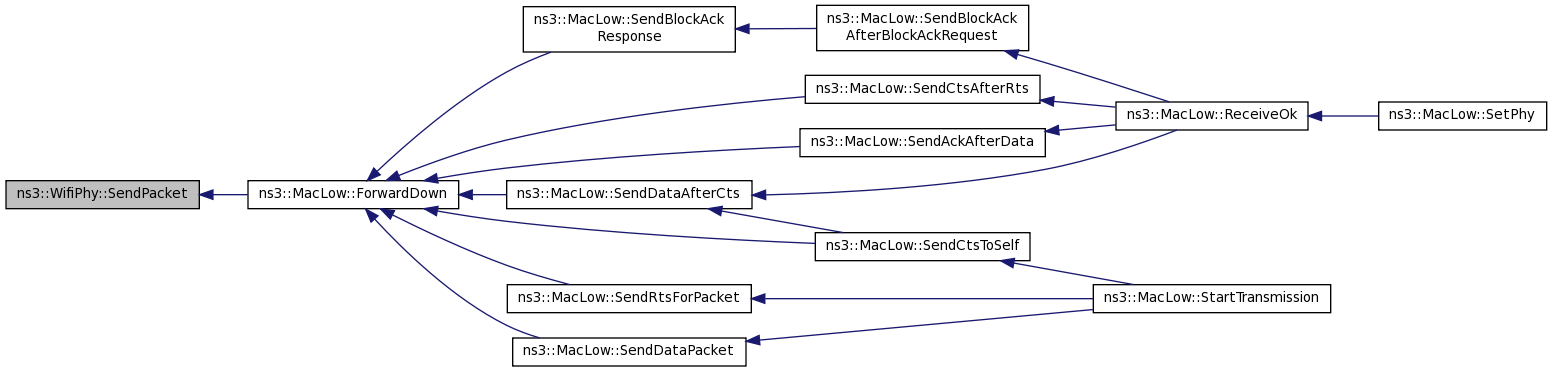

virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, WifiTxVector txvector)=0

virtual void	SetChannelBonding (bool channelbonding)=0

virtual void	SetChannelNumber (uint16_t id)=0
	Set channel number. More...

virtual void	SetFrequency (uint32_t freq)=0

virtual void	SetGreenfield (bool greenfield)=0

virtual void	SetGuardInterval (bool guardInterval)=0

virtual void	SetLdpc (bool ldpc)=0

virtual void	SetNumberOfReceiveAntennas (uint32_t rx)=0

virtual void	SetNumberOfTransmitAntennas (uint32_t tx)=0

virtual void	SetReceiveErrorCallback (RxErrorCallback callback)=0

virtual void	SetReceiveOkCallback (RxOkCallback callback)=0

virtual void	SetStbc (bool stbc)=0

virtual uint32_t	WifiModeToMcs (WifiMode mode)=0
	For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

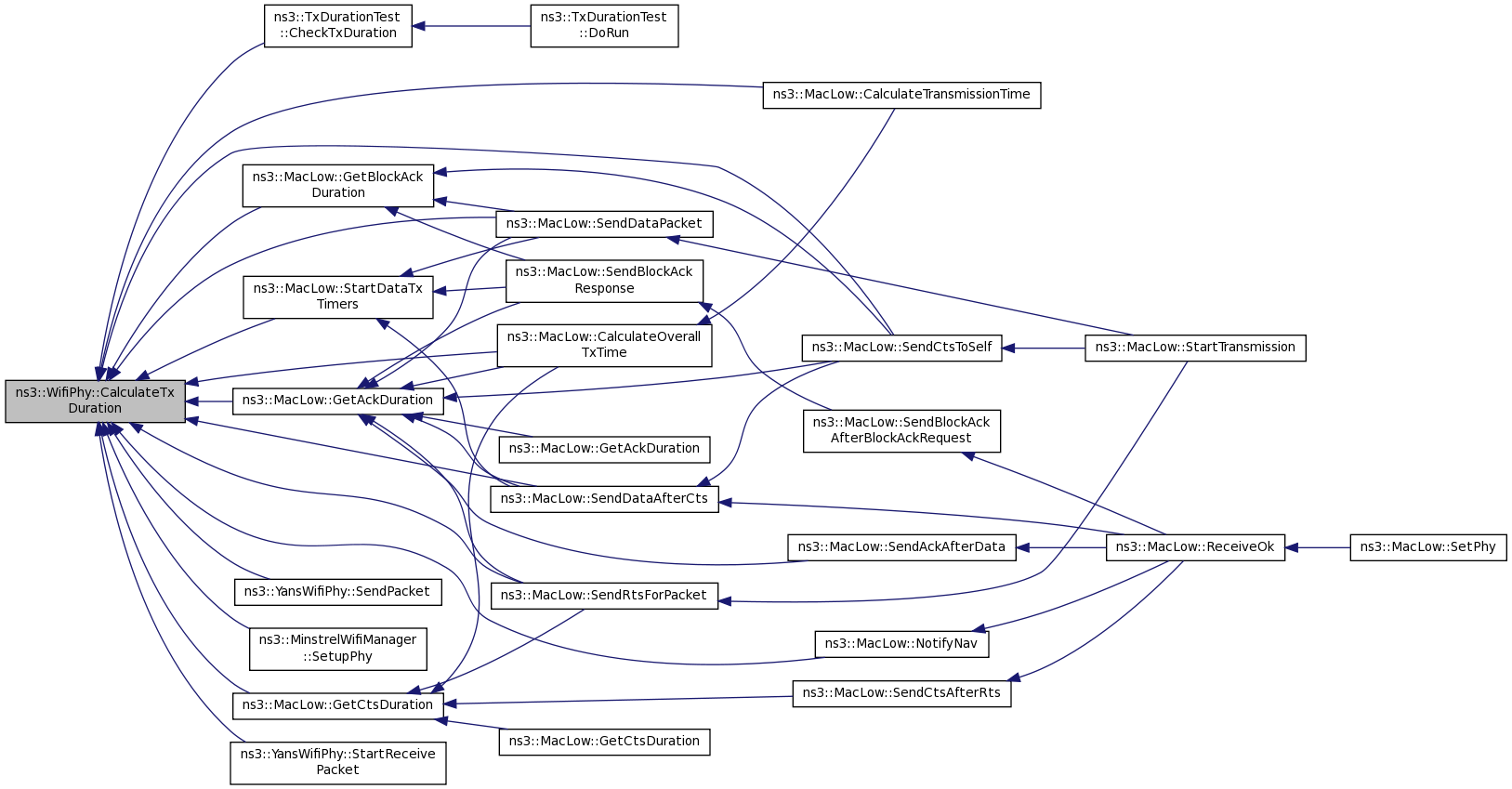

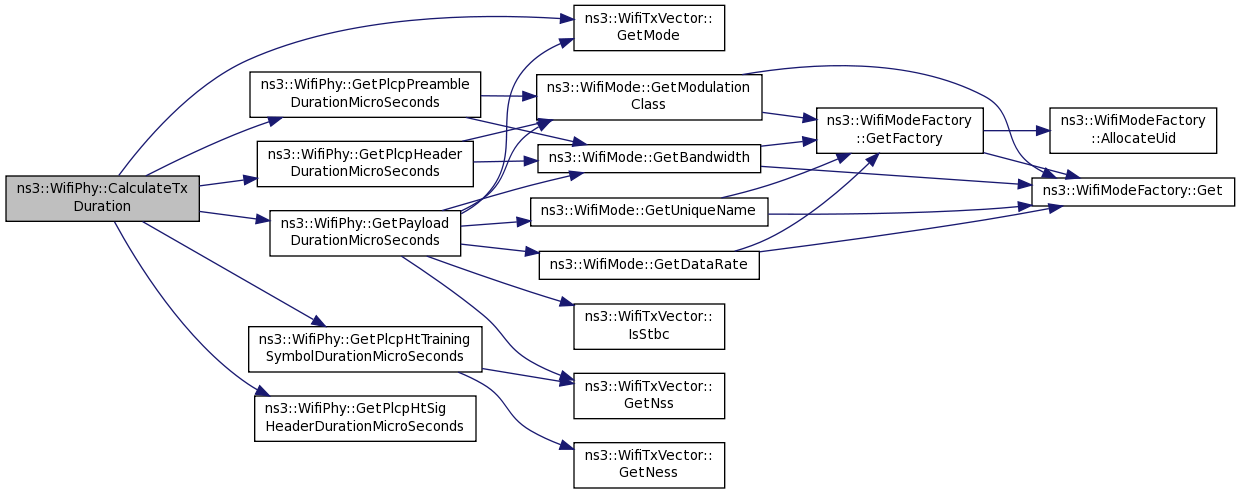

static Time	CalculateTxDuration (uint32_t size, WifiTxVector txvector, enum WifiPreamble preamble)

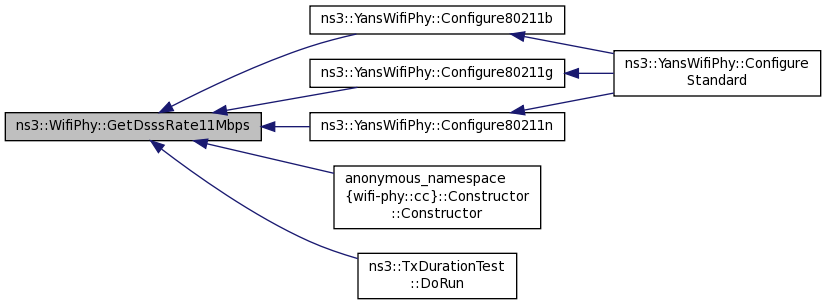

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

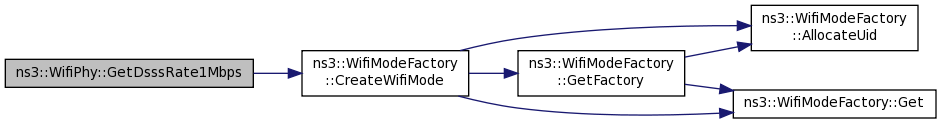

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

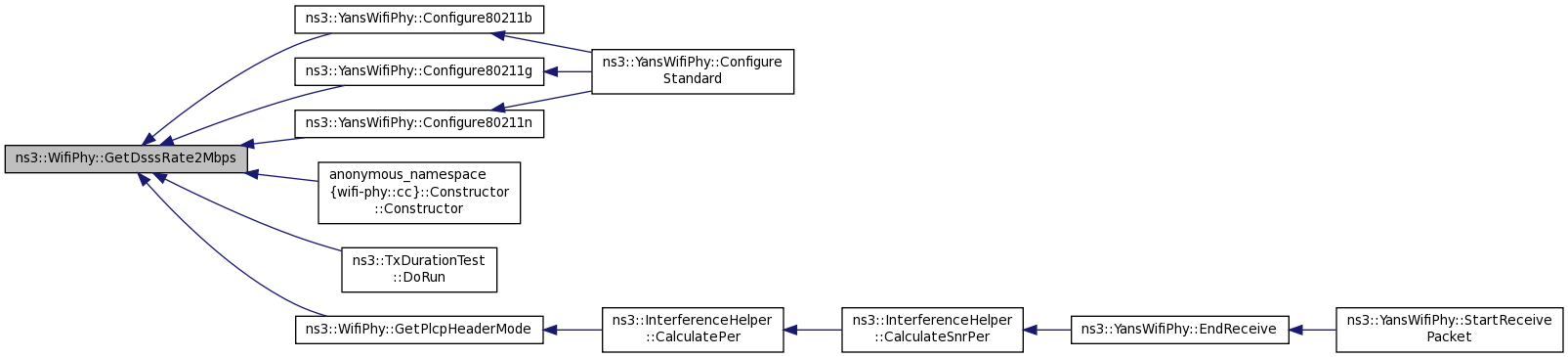

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

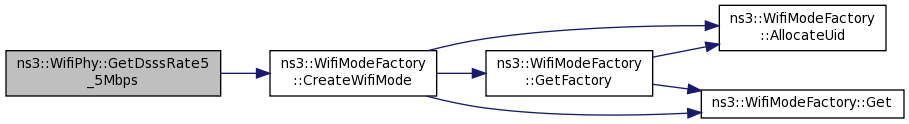

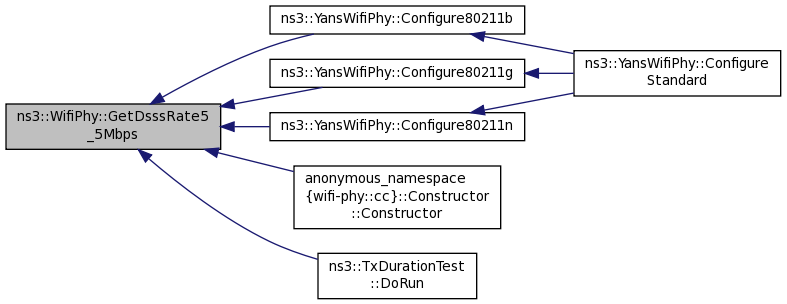

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

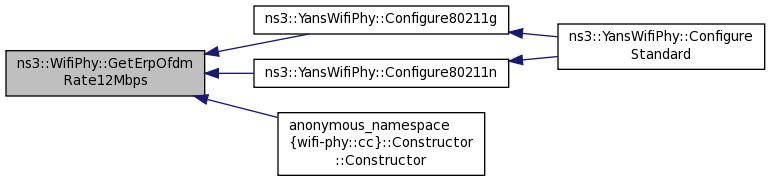

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-ODFM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-ODFM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-ODFM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-ODFM at 36Mbps. More...

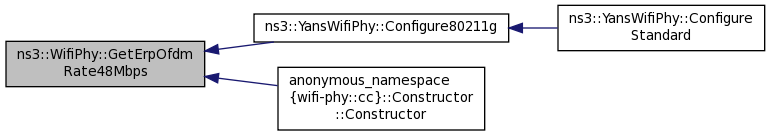

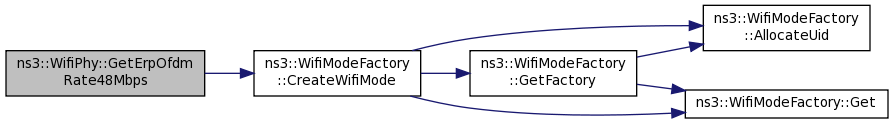

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-ODFM at 48Mbps. More...

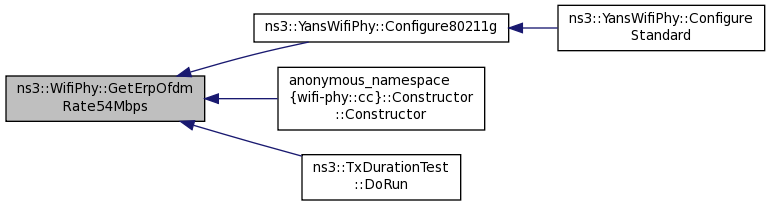

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-ODFM at 54Mbps. More...

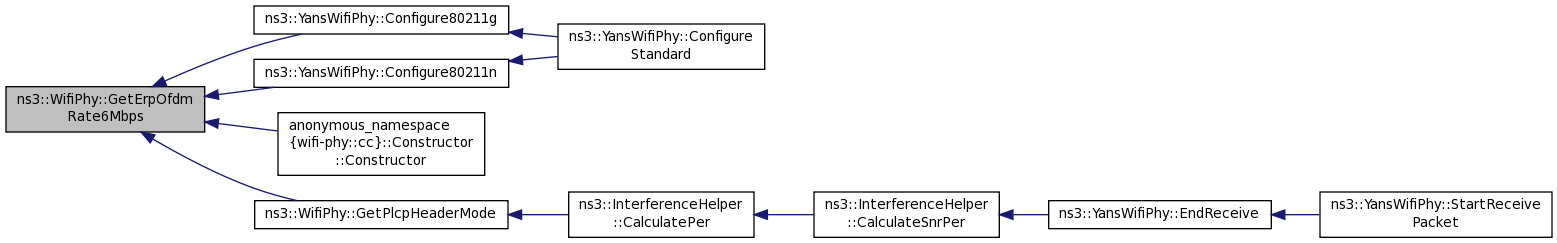

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-ODFM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-ODFM at 9Mbps. More...

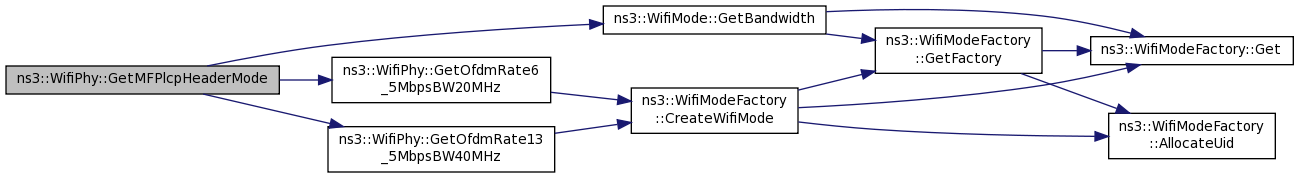

static WifiMode	GetMFPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)

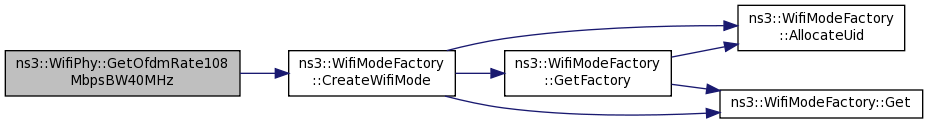

static WifiMode	GetOfdmRate108MbpsBW40MHz ()
	Return a WifiMode for ODFM at 108Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate120MbpsBW40MHz ()
	Return a WifiMode for ODFM at 120Mbps with 40MHz channel spacing. More...

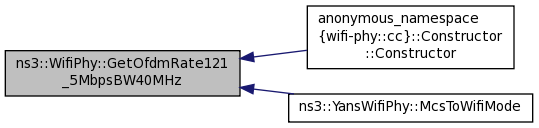

static WifiMode	GetOfdmRate121_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 121.5Mbps with 40MHz channel spacing. More...

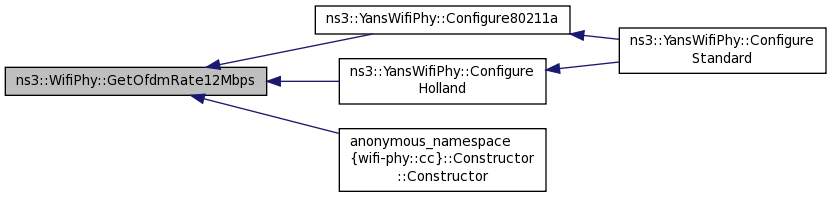

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for ODFM at 12Mbps. More...

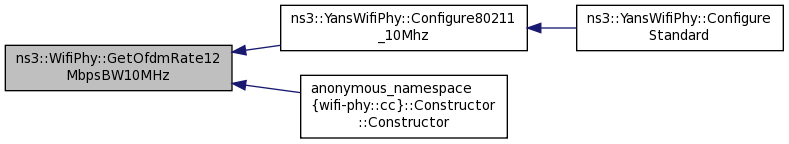

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for ODFM at 12Mbps with 10MHz channel spacing. More...

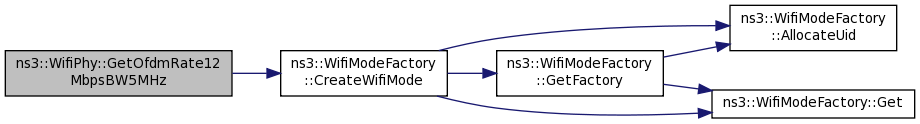

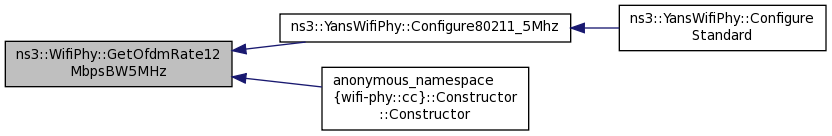

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for ODFM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate135MbpsBW40MHz ()
	Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate135MbpsBW40MHzShGi ()
	Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing. More...

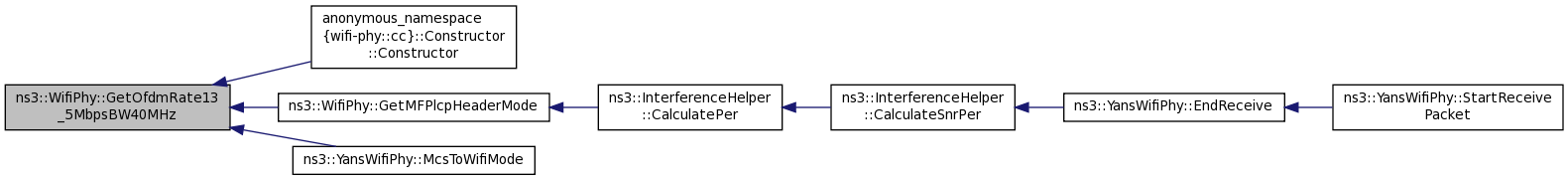

static WifiMode	GetOfdmRate13_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 13.5Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 13.5Mbps with 5MHz channel spacing. More...

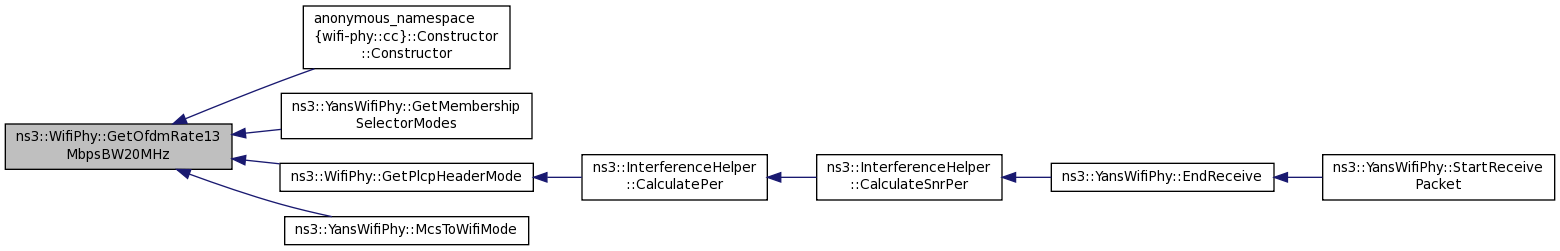

static WifiMode	GetOfdmRate13MbpsBW20MHz ()
	Return a WifiMode for ODFM at 13Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate14_4MbpsBW20MHz ()
	Return a WifiMode for ODFM at 14.4Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate150MbpsBW40MHz ()
	Return a WifiMode for ODFM at 150Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate15MbpsBW40MHz ()
	Return a WifiMode for ODFM at 15Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for ODFM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for ODFM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate19_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 19.5Mbps with 20MHz channel spacing. More...

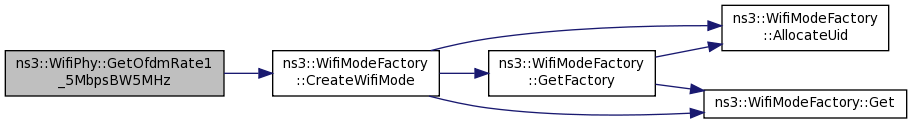

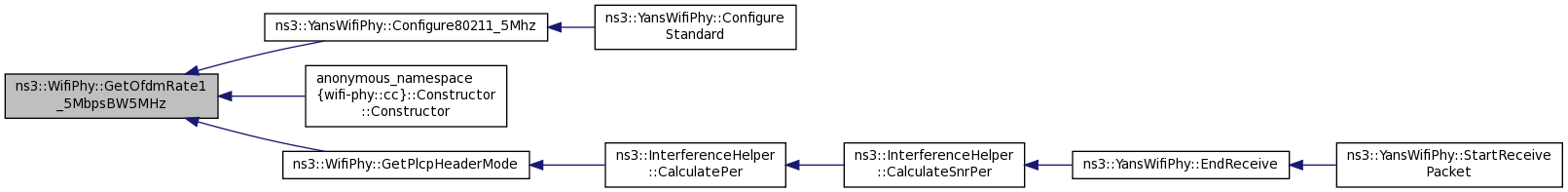

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate21_7MbpsBW20MHz ()
	Return a WifiMode for ODFM at 21.7Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for ODFM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for ODFM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate26MbpsBW20MHz ()
	Return a WifiMode for ODFM at 26Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for ODFM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW40MHz ()
	Return a WifiMode for ODFM at 27Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate28_9MbpsBW20MHz ()
	Return a WifiMode for ODFM at 28.9Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for ODFM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate30MbpsBW40MHz ()
	Return a WifiMode for ODFM at 30Mbps with 40MHz channel spacing. More...

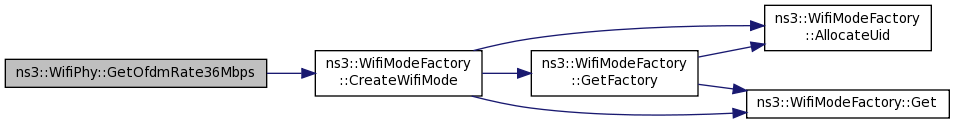

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for ODFM at 36Mbps. More...

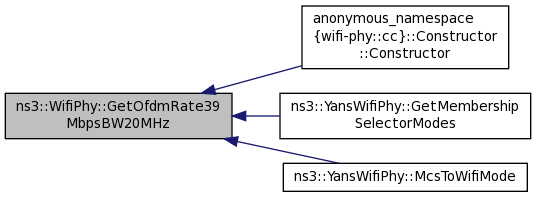

static WifiMode	GetOfdmRate39MbpsBW20MHz ()
	Return a WifiMode for ODFM at 39Mbps with 20MHz channel spacing. More...

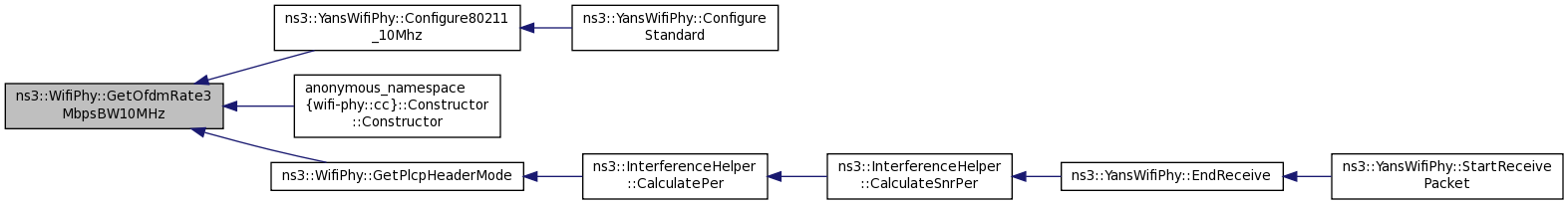

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for ODFM at 3Mbps with 10MHz channel spacing. More...

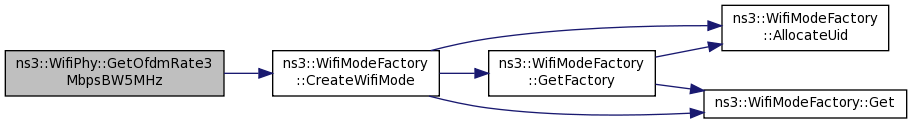

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for ODFM at 3Mbps with 5MHz channel spacing. More...

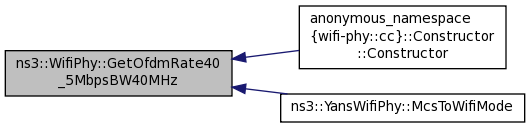

static WifiMode	GetOfdmRate40_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 40.5Mbps with 40MHz channel spacing. More...

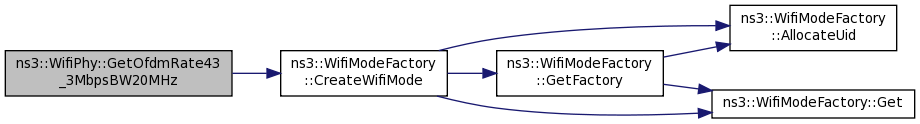

static WifiMode	GetOfdmRate43_3MbpsBW20MHz ()
	Return a WifiMode for ODFM at 43.3Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate45MbpsBW40MHz ()
	Return a WifiMode for ODFM at 45Mbps with 40MHz channel spacing. More...

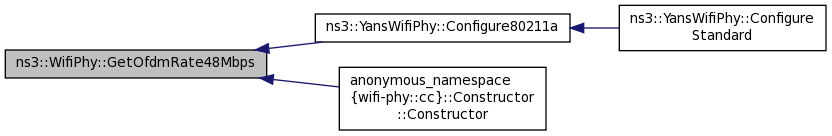

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for ODFM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for ODFM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 4.5Mbps with 5MHz channel spacing. More...

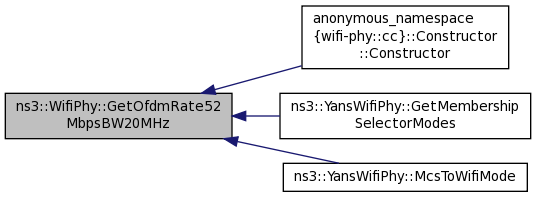

static WifiMode	GetOfdmRate52MbpsBW20MHz ()
	Return a WifiMode for ODFM at 52Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for ODFM at 54Mbps. More...

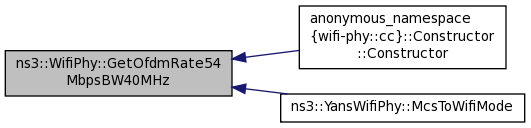

static WifiMode	GetOfdmRate54MbpsBW40MHz ()
	Return a WifiMode for ODFM at 54Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate57_8MbpsBW20MHz ()
	Return a WifiMode for ODFM at 57.8Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate58_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 58.5Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate60MbpsBW40MHz ()
	Return a WifiMode for ODFM at 60Mbps with 40MHz channel spacing. More...

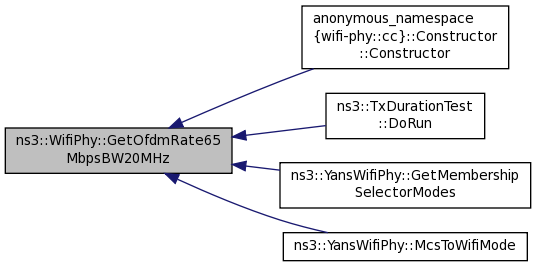

static WifiMode	GetOfdmRate65MbpsBW20MHz ()
	Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing. More...

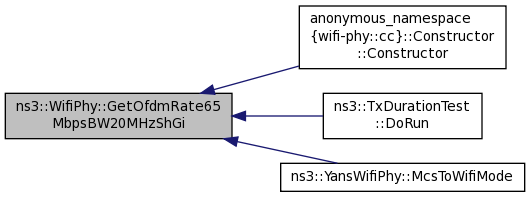

static WifiMode	GetOfdmRate65MbpsBW20MHzShGi ()
	Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate6_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 6.5Mbps with 20MHz channel spacing. More...

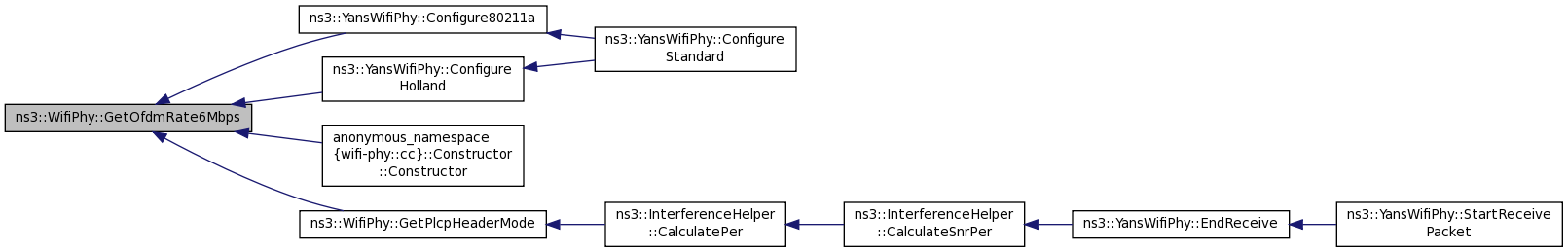

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for ODFM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for ODFM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for ODFM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate72_2MbpsBW20MHz ()
	Return a WifiMode for ODFM at 72.2Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate7_2MbpsBW20MHz ()
	Return a WifiMode for ODFM at 7.2Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate81MbpsBW40MHz ()
	Return a WifiMode for ODFM at 81Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate90MbpsBW40MHz ()
	Return a WifiMode for ODFM at 90Mbps with 40MHz channel spacing. More...

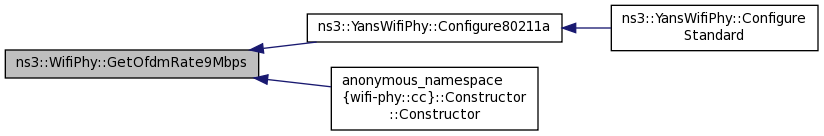

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for ODFM at 9Mbps. More...

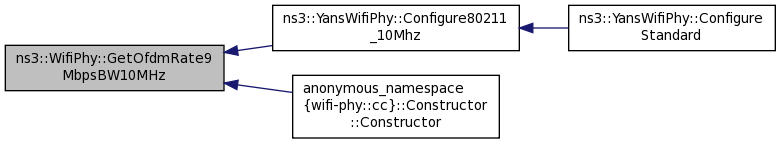

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for ODFM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for ODFM at 9Mbps with 5MHz channel spacing. More...

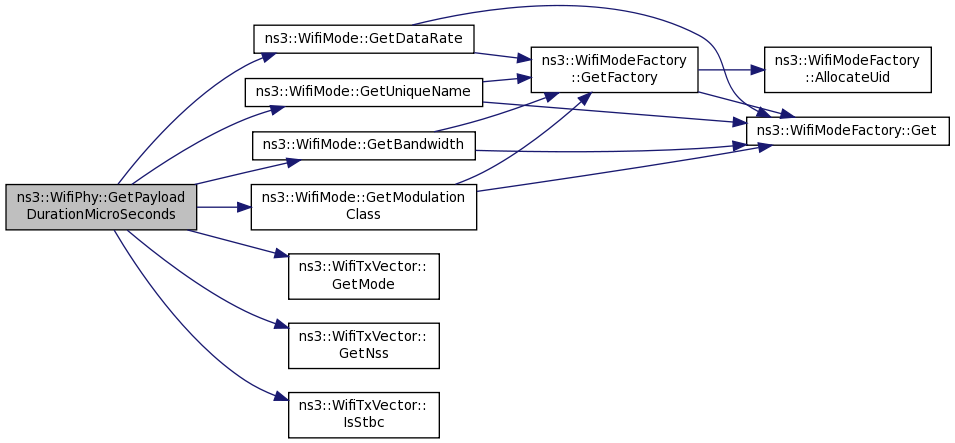

static double	GetPayloadDurationMicroSeconds (uint32_t size, WifiTxVector txvector)

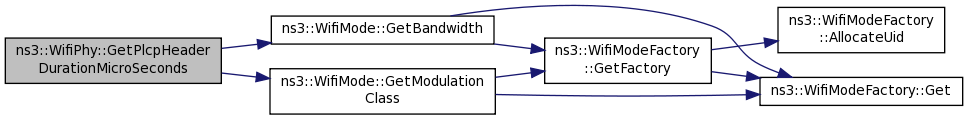

static uint32_t	GetPlcpHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

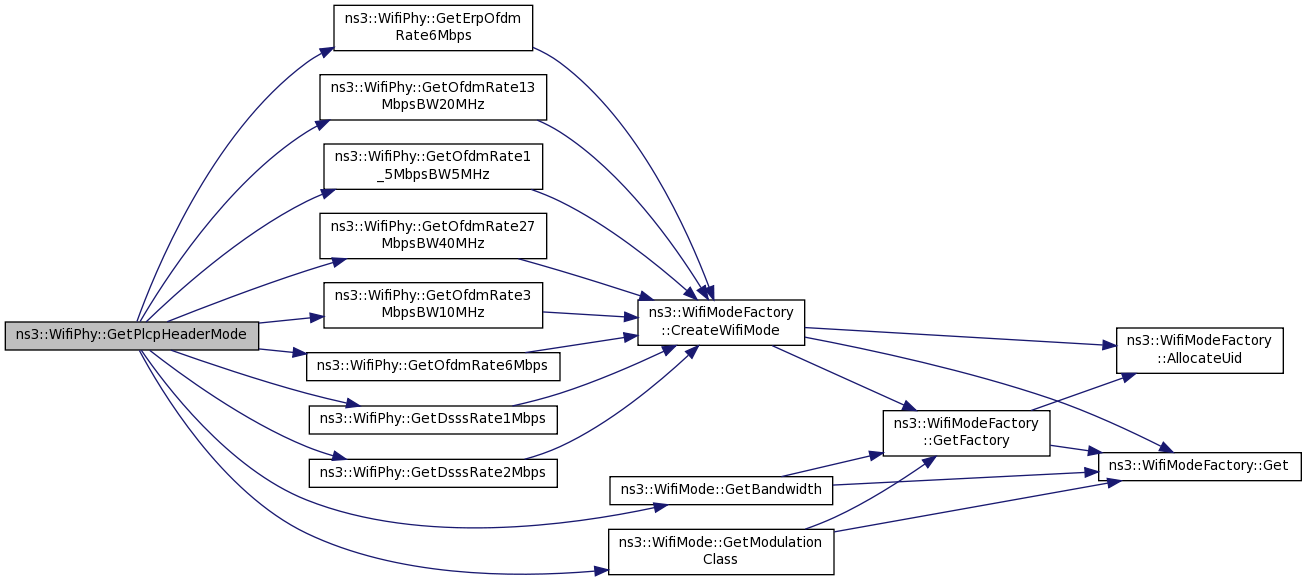

static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)

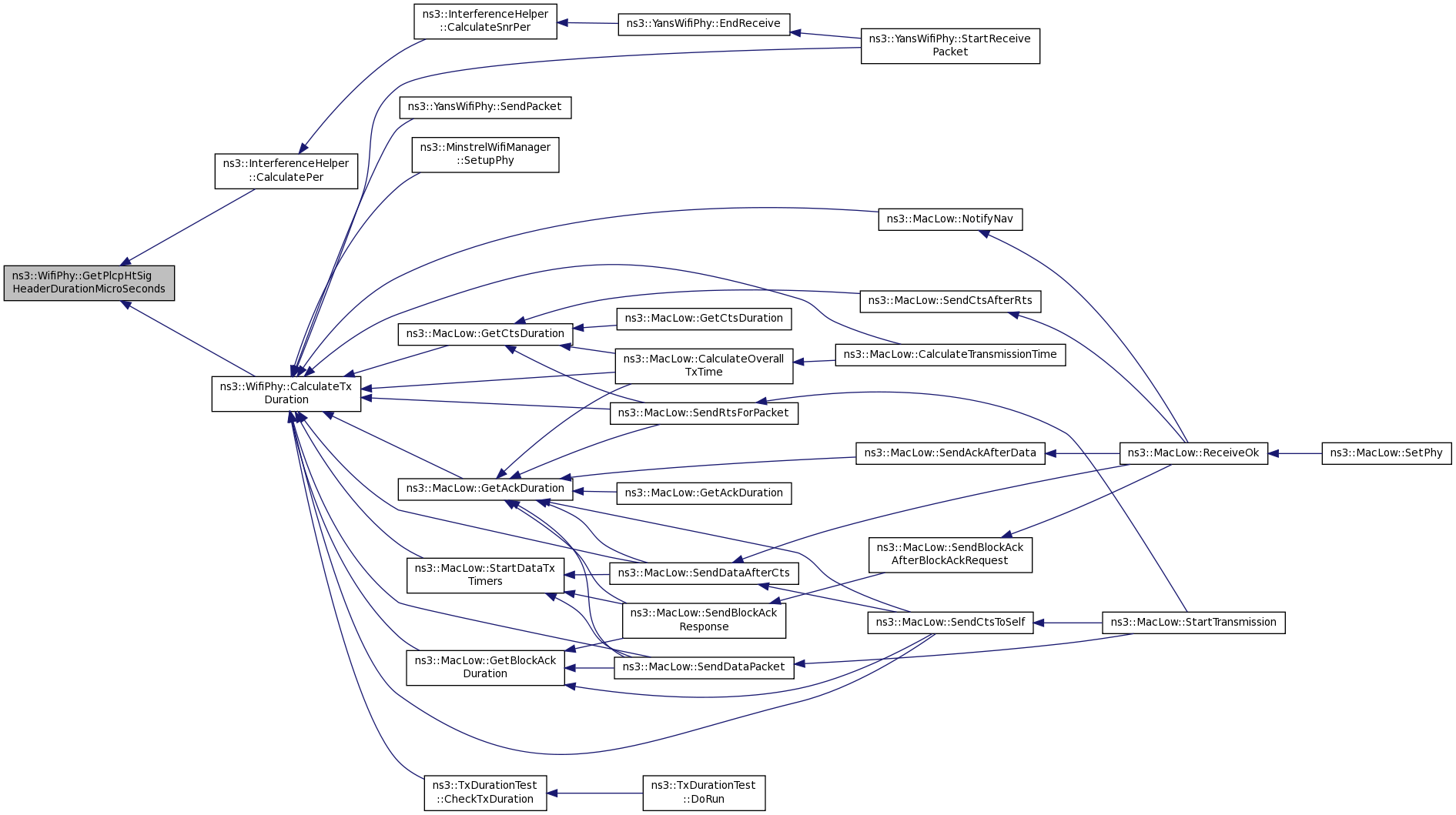

static uint32_t	GetPlcpHtSigHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

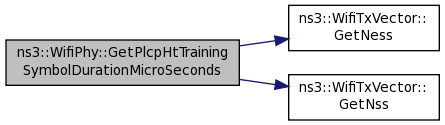

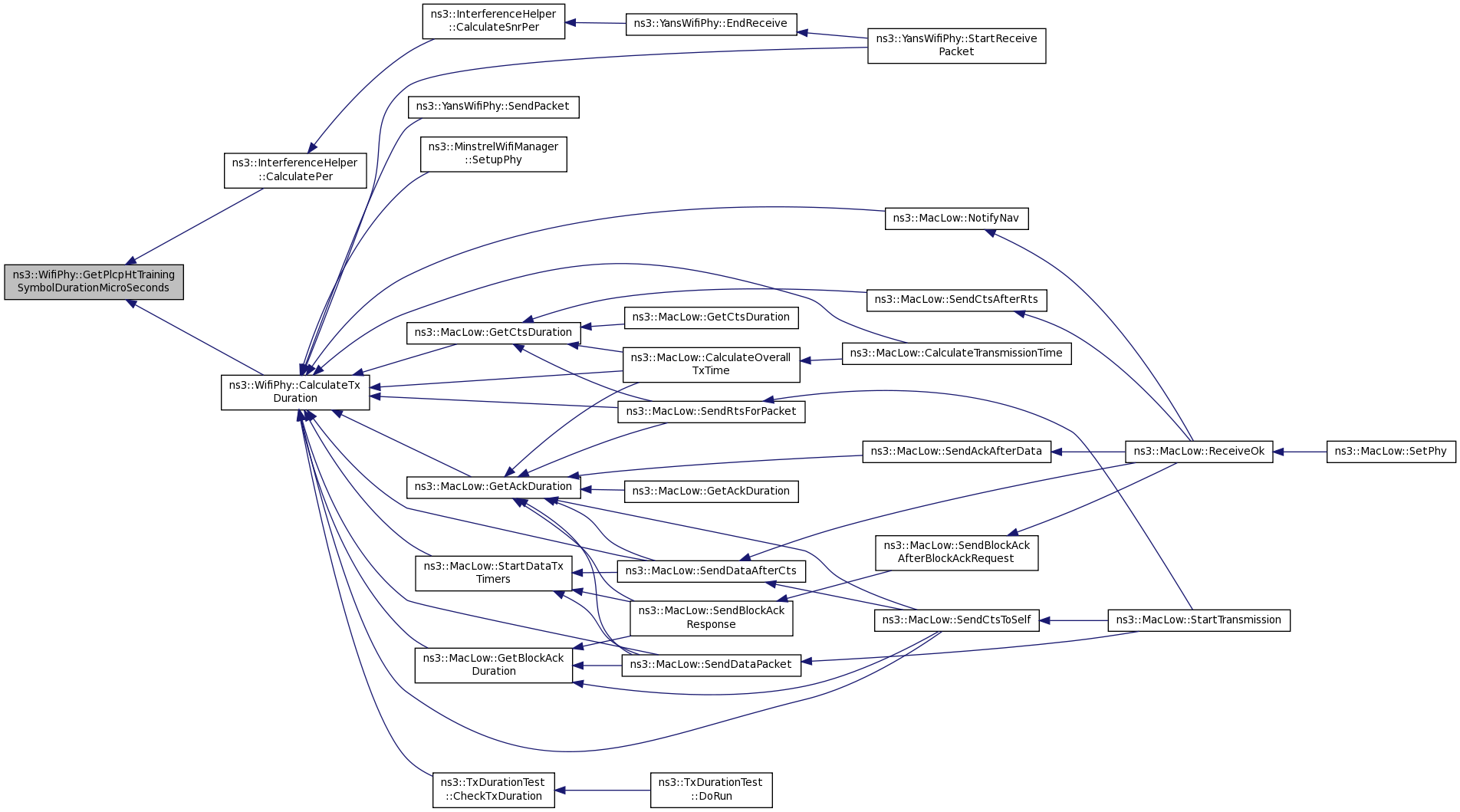

static uint32_t	GetPlcpHtTrainingSymbolDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble, WifiTxVector txvector)

static uint32_t	GetPlcpPreambleDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

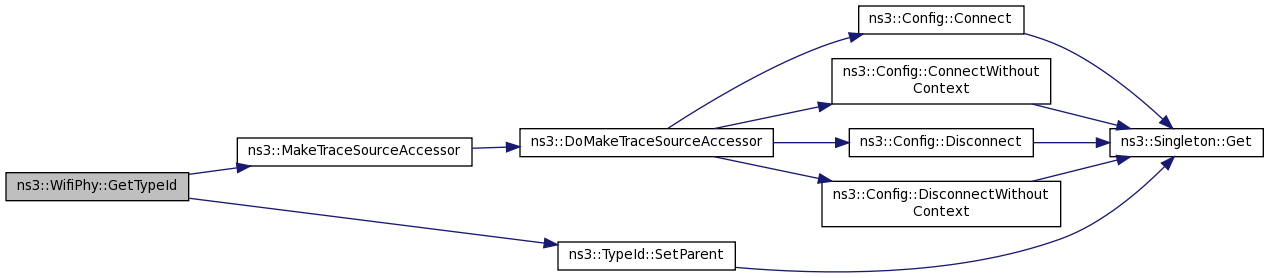

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, bool, double, double >	m_phyMonitorSniffRxTrace
	A trace source that emulates a wifi device in monitor mode sniffing a packet being received. More...

TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, bool, uint8_t >	m_phyMonitorSniffTxTrace
	A trace source that emulates a wifi device in monitor mode sniffing a packet being transmitted. More...

TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet as it tries to transmit it. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

802.11 PHY layer model

Config Paths

ns3::WifiPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy

No Attributes are defined for this type.

TraceSources

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Definition at line 117 of file wifi-phy.h.

Member Typedef Documentation

typedef Callback<void,Ptr<const Packet>, double> ns3::WifiPhy::RxErrorCallback

arg1: packet received unsuccessfully arg2: snr of packet

Definition at line 158 of file wifi-phy.h.

typedef Callback<void,Ptr<Packet>, double, WifiMode, enum WifiPreamble> ns3::WifiPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet.

Definition at line 153 of file wifi-phy.h.

Member Enumeration Documentation

enum ns3::WifiPhy::State

The state of the PHY layer.

Enumerator
IDLE	The PHY layer is IDLE.
CCA_BUSY	The PHY layer has sense the medium busy through the CCA mechanism.
TX	The PHY layer is sending a packet.
RX	The PHY layer is receiving a packet.
SWITCHING	The PHY layer is switching to other channel.

Definition at line 123 of file wifi-phy.h.

Constructor & Destructor Documentation

ns3::WifiPhy::WifiPhy ( )

Definition at line 87 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

ns3::WifiPhy::~WifiPhy ( )

virtual

Definition at line 92 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual int64_t ns3::WifiPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::YansWifiPhy.

virtual double ns3::WifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

pure virtual

Parameters

txMode	the transmission mode
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implemented in ns3::YansWifiPhy.

Referenced by ns3::IdealWifiManager::SetupPhy().

Here is the caller graph for this function:

Time ns3::WifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiTxVector	txvector,
		enum WifiPreamble	preamble
	)

static

Parameters

size	the number of bytes in the packet to send
txvector	the transmission parameters used for this packet
preamble	the type of preamble to use for this packet.

Returns: the total amount of time this PHY will stay busy for the transmission of these bytes.

Definition at line 440 of file wifi-phy.cc.

References ns3::WifiTxVector::GetMode(), GetPayloadDurationMicroSeconds(), GetPlcpHeaderDurationMicroSeconds(), GetPlcpHtSigHeaderDurationMicroSeconds(), GetPlcpHtTrainingSymbolDurationMicroSeconds(), and GetPlcpPreambleDurationMicroSeconds().

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::TxDurationTest::CheckTxDuration(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::MacLow::GetCtsDuration(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), ns3::MinstrelWifiManager::SetupPhy(), ns3::MacLow::StartDataTxTimers(), and ns3::YansWifiPhy::StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void ns3::WifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

pure virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Parameters

standard the Wi-Fi standard

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MeshHelper::CreateInterface(), and ns3::WifiHelper::Install().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetBssMembershipSelector ( uint32_t selector ) const

pure virtual

The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Parameters

selector index in array of supported memeberships

Returns: the memebership selector whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

virtual Ptr<WifiChannel> ns3::WifiPhy::GetChannel ( void ) const

pure virtual

Return the WifiChannel this WifiPhy is connected to.

Returns: the WifiChannel this WifiPhy is connected to

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiNetDevice::DoGetChannel(), and ns3::WifiNetDevice::GetChannel().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetChannelBonding ( void ) const

pure virtual

Returns: true if channel bonding 40 MHz is supported, false otherwise

Implemented in ns3::YansWifiPhy.

virtual uint16_t ns3::WifiPhy::GetChannelNumber ( ) const

pure virtual

Return current channel number.

Returns: the current channel number

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetDelayUntilIdle ( void )

pure virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implemented in ns3::YansWifiPhy.

WifiMode ns3::WifiPhy::GetDsssRate11Mbps ( )

static

Return a WifiMode for DSSS at 11Mbps.

Returns: a WifiMode for DSSS at 11Mbps

Definition at line 547 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate1Mbps ( )

static

Return a WifiMode for DSSS at 1Mbps.

Returns: a WifiMode for DSSS at 1Mbps

Definition at line 505 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate2Mbps ( )

static

Return a WifiMode for DSSS at 2Mbps.

Returns: a WifiMode for DSSS at 2Mbps

Definition at line 518 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate5_5Mbps ( )

static

Return a WifiMode for DSSS at 5.5Mbps.

Returns: a WifiMode for DSSS at 5.5Mbps

Definition at line 534 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate12Mbps ( )

static

Return a WifiMode for ERP-ODFM at 12Mbps.

Returns: a WifiMode for ERP-OFDM at 12Mbps

Definition at line 589 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate18Mbps ( )

static

Return a WifiMode for ERP-ODFM at 18Mbps.

Returns: a WifiMode for ERP-OFDM at 18Mbps

Definition at line 602 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate24Mbps ( )

static

Return a WifiMode for ERP-ODFM at 24Mbps.

Returns: a WifiMode for ERP-OFDM at 24Mbps

Definition at line 615 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate36Mbps ( )

static

Return a WifiMode for ERP-ODFM at 36Mbps.

Returns: a WifiMode for ERP-OFDM at 36Mbps

Definition at line 628 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate48Mbps ( )

static

Return a WifiMode for ERP-ODFM at 48Mbps.

Returns: a WifiMode for ERP-OFDM at 48Mbps

Definition at line 641 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate54Mbps ( )

static

Return a WifiMode for ERP-ODFM at 54Mbps.

Returns: a WifiMode for ERP-OFDM at 54Mbps

Definition at line 654 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate6Mbps ( )

static

Return a WifiMode for ERP-ODFM at 6Mbps.

Returns: a WifiMode for ERP-OFDM at 6Mbps

Definition at line 563 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), ns3::YansWifiPhy::Configure80211n(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate9Mbps ( )

static

Return a WifiMode for ERP-ODFM at 9Mbps.

Returns: a WifiMode for ERP-OFDM at 9Mbps

Definition at line 576 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetFrequency ( void ) const

pure virtual

Returns: the operating frequency on this node

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::GetGreenfield ( void ) const

pure virtual

Returns: true if Greenfield is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::WifiRemoteStationManager::LookupState(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::MacLow::SendRtsForPacket(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetGuardInterval ( void ) const

pure virtual

Returns: true if short guard interval is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::DoGetAckTxGuardInterval(), ns3::WifiRemoteStationManager::DoGetBlockAckTxGuardInterval(), ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector(), ns3::WifiRemoteStationManager::DoGetCtsTxGuardInterval(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), and ns3::WifiRemoteStationManager::LookupState().

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetLastRxStartTime ( void ) const

pure virtual

Return the start time of the last received packet.

Returns: the start time of the last received packet

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::NavCounterResetCtsMissed().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetLdpc ( void ) const

pure virtual

Returns: true if LDPC is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetHtCapabilities(), and ns3::ApWifiMac::GetHtCapabilities().

Here is the caller graph for this function:

virtual uint8_t ns3::WifiPhy::GetMcs ( uint8_t mcs ) const

pure virtual

The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

This was introduced with 11n

Parameters

mcs	index in array of supported Mcs

Returns: the Mcs index whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::WifiRemoteStationManager::SetupPhy().

Here is the caller graph for this function:

virtual WifiModeList ns3::WifiPhy::GetMembershipSelectorModes ( uint32_t selector )

pure virtual

The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Parameters

selector index in array of supported memeberships

Returns: a WifiModeList that contains the WifiModes associrated with the selected index.

See also: WifiPhy::GetMembershipSelectorModes()

Implemented in ns3::YansWifiPhy.

WifiMode ns3::WifiPhy::GetMFPlcpHeaderMode	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the WifiMode used for the transmission of the HT-SIG in Mixed Format and greenfield format PLCP header

Definition at line 101 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), GetOfdmRate13_5MbpsBW40MHz(), and GetOfdmRate6_5MbpsBW20MHz().

Referenced by ns3::InterferenceHelper::CalculatePer().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual WifiMode ns3::WifiPhy::GetMode ( uint32_t mode ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See also: WifiPhy::GetNModes()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::IdealWifiManager::SetupPhy(), ns3::MinstrelWifiManager::SetupPhy(), and ns3::WifiRemoteStationManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNBssMembershipSelectors ( void ) const

pure virtual

The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Returns: the memebership selector whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

virtual uint8_t ns3::WifiPhy::GetNMcs ( void ) const

pure virtual

The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

This was introduced with 11n

Returns: the Mcs index whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::ApWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNModes ( void ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See also: WifiPhy::GetMode()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::IdealWifiManager::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNTxPower ( void ) const

pure virtual

Returns: the number of tx power levels available for this PHY.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNumberOfReceiveAntennas ( void ) const

pure virtual

Returns: the number of recievers on this node.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNumberOfTransmitAntennas ( void ) const

pure virtual

Returns: the number of transmit antenna on this device

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas().

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate108MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 108Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 108Mbps with 40MHz channel spacing

Definition at line 1323 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate120MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 120Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 120Mbps with 40MHz channel spacing

Definition at line 1335 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate121_5MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 121.5Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 121.5Mbps with 40MHz channel spacing

Definition at line 1347 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12Mbps ( )

static

Return a WifiMode for ODFM at 12Mbps.

Returns: a WifiMode for OFDM at 12Mbps

Definition at line 696 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 12Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 12Mbps with 10MHz channel spacing

Definition at line 828 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 12Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 12Mbps with 5MHz channel spacing

Definition at line 960 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate135MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 135Mbps with 40MHz channel spacing

Definition at line 1371 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate135MbpsBW40MHzShGi ( )

static

Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing.

The rate supports short guard interval.

Returns: a WifiMode for OFDM at 135Mbps with 40MHz channel spacing

Definition at line 1359 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate13_5MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 13.5Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 13.5Mbps with 40MHz channel spacing

Definition at line 1196 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), GetMFPlcpHeaderMode(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 13.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing

Definition at line 973 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate13MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 13Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 13Mbps with 20MHz channel spacing

Definition at line 1013 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), GetPlcpHeaderMode(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate14_4MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 14.4Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 14.4Mbps with 20MHz channel spacing

Definition at line 1026 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate150MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 150Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 150Mbps with 40MHz channel spacing

Definition at line 1384 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate15MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 15Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 15Mbps with 40MHz channel spacing

Definition at line 1209 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18Mbps ( )

static

Return a WifiMode for ODFM at 18Mbps.

Returns: a WifiMode for OFDM at 18Mbps

Definition at line 709 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 18Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 18Mbps with 10MHz channel spacing

Definition at line 841 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate19_5MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 19.5Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 19.5Mbps with 20MHz channel spacing

Definition at line 1038 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 1.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing

Definition at line 882 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate21_7MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 21.7Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 21.7Mbps with 20MHz channel spacing

Definition at line 1051 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate24Mbps ( )

static

Return a WifiMode for ODFM at 24Mbps.

Returns: a WifiMode for OFDM at 24Mbps

Definition at line 722 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 24Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 24Mbps with 10MHz channel spacing

Definition at line 854 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate26MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 26Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 26Mbps with 20MHz channel spacing

Definition at line 1065 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 27Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 27Mbps with 10MHz channel spacing

Definition at line 867 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate27MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 27Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 27Mbps with 40MHz channel spacing

Definition at line 1222 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), GetPlcpHeaderMode(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate28_9MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 28.9Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 28.9Mbps with 20MHz channel spacing

Definition at line 1078 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 2.25Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing

Definition at line 895 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate30MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 30Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 30Mbps with 40MHz channel spacing

Definition at line 1234 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate36Mbps ( )

static

Return a WifiMode for ODFM at 36Mbps.

Returns: a WifiMode for OFDM at 36Mbps

Definition at line 735 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate39MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 39Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 39Mbps with 20MHz channel spacing

Definition at line 1091 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 3Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 3Mbps with 10MHz channel spacing

Definition at line 776 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 3Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 3Mbps with 5MHz channel spacing

Definition at line 908 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate40_5MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 40.5Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 40.5Mbps with 40MHz channel spacing

Definition at line 1247 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate43_3MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 43.3Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 43.3Mbps with 20MHz channel spacing

Definition at line 1104 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate45MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 45Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 45Mbps with 40MHz channel spacing

Definition at line 1259 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate48Mbps ( )

static

Return a WifiMode for ODFM at 48Mbps.

Returns: a WifiMode for OFDM at 48Mbps

Definition at line 748 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 4.5Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing

Definition at line 789 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 4.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing

Definition at line 921 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate52MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 52Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 52Mbps with 20MHz channel spacing

Definition at line 1117 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate54Mbps ( )

static

Return a WifiMode for ODFM at 54Mbps.

Returns: a WifiMode for OFDM at 54Mbps

Definition at line 761 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate54MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 54Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 54Mbps with 40MHz channel spacing

Definition at line 1272 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate57_8MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 57.8Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 57.8Mbps with 20MHz channel spacing

Definition at line 1130 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate58_5MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 58.5Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 58.5Mbps with 20MHz channel spacing

Definition at line 1144 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate60MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 60Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 60Mbps with 40MHz channel spacing

Definition at line 1285 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate65MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 65Mbps with 20MHz channel spacing

Definition at line 1170 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate65MbpsBW20MHzShGi ( )

static

Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing.

The rate supports short guard interval.

Returns: a WifiMode for OFDM at 65Mbps with 20MHz channel spacing

Definition at line 1157 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6_5MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 6.5Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 6.5Mbps with 20MHz channel spacing

Definition at line 988 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), GetMFPlcpHeaderMode(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6Mbps ( )

static

Return a WifiMode for ODFM at 6Mbps.

Returns: a WifiMode for OFDM at 6Mbps

Definition at line 670 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 6Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 6Mbps with 10MHz channel spacing

Definition at line 802 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 6Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 6Mbps with 5MHz channel spacing

Definition at line 934 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate72_2MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 72.2Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 72.2Mbps with 20MHz channel spacing

Definition at line 1183 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate7_2MbpsBW20MHz ( )

static

Return a WifiMode for ODFM at 7.2Mbps with 20MHz channel spacing.

Returns: a WifiMode for OFDM at 7.2Mbps with 20MHz channel spacing

Definition at line 1000 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate81MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 81Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 81Mbps with 40MHz channel spacing

Definition at line 1298 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate90MbpsBW40MHz ( )

static

Return a WifiMode for ODFM at 90Mbps with 40MHz channel spacing.

Returns: a WifiMode for OFDM at 90Mbps with 40MHz channel spacing

Definition at line 1310 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::McsToWifiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9Mbps ( )

static

Return a WifiMode for ODFM at 9Mbps.

Returns: a WifiMode for OFDM at 9Mbps

Definition at line 683 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz ( )

static

Return a WifiMode for ODFM at 9Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 9Mbps with 10MHz channel spacing

Definition at line 815 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz ( )

static

Return a WifiMode for ODFM at 9Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 9Mbps with 5MHz channel spacing

Definition at line 947 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::WifiPhy::GetPayloadDurationMicroSeconds	(	uint32_t	size,
		WifiTxVector	txvector
	)

static

Parameters

size	the number of bytes in the packet to send
txvector	the transmission parameters used for this packet

Returns: the duration of the payload in microseconds

Definition at line 333 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNss(), ns3::WifiMode::GetUniqueName(), ns3::WifiTxVector::IsStbc(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by CalculateTxDuration(), and ns3::TxDurationTest::CheckPayloadDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the duration of the PLCP header in microseconds

Definition at line 222 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetPlcpHeaderMode	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the WifiMode used for the transmission of the PLCP header

Definition at line 149 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), GetDsssRate1Mbps(), GetDsssRate2Mbps(), GetErpOfdmRate6Mbps(), ns3::WifiMode::GetModulationClass(), GetOfdmRate13MbpsBW20MHz(), GetOfdmRate1_5MbpsBW5MHz(), GetOfdmRate27MbpsBW40MHz(), GetOfdmRate3MbpsBW10MHz(), GetOfdmRate6Mbps(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, and ns3::WIFI_PREAMBLE_LONG.

Referenced by ns3::InterferenceHelper::CalculatePer().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpHtSigHeaderDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the duration of the GT-SIG in Mixed Format and greenfield format PLCP header

Definition at line 130 of file wifi-phy.cc.

References ns3::WIFI_PREAMBLE_HT_GF, and ns3::WIFI_PREAMBLE_HT_MF.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpHtTrainingSymbolDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble,
		WifiTxVector	txvector
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble
txvector	the transmission parameters used for this packet

Returns: the training symbol duration

Definition at line 114 of file wifi-phy.cc.

References ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::WIFI_PREAMBLE_HT_GF, and ns3::WIFI_PREAMBLE_HT_MF.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the duration of the PLCP preamble in microseconds

Definition at line 285 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetStateDuration ( void )

pure virtual

Returns: the amount of time since the current state has started.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::GetStbc ( void ) const

pure virtual

Returns: true if STBC is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::DoGetAckTxStbc(), ns3::WifiRemoteStationManager::DoGetBlockAckTxStbc(), and ns3::WifiRemoteStationManager::DoGetCtsTxStbc().

Here is the caller graph for this function:

virtual double ns3::WifiPhy::GetTxPowerEnd ( void ) const

pure virtual

Return the maximum available transmission power level (dBm).

Returns: the maximum available transmission power level in dBm

Implemented in ns3::YansWifiPhy.

virtual double ns3::WifiPhy::GetTxPowerStart ( void ) const

pure virtual

Return the minimum available transmission power level (dBm).

Returns: the minimum available transmission power level in dBm

Implemented in ns3::YansWifiPhy.

TypeId ns3::WifiPhy::GetTypeId ( void )

static

Definition at line 55 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace, m_phyMonitorSniffTxTrace, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual bool ns3::WifiPhy::IsStateBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateCcaBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateIdle ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::FastAckTimeout(), and ns3::MacLow::SuperFastAckTimeout().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::IsStateRx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSwitching ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateTx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::StartTransmission().

Here is the caller graph for this function:

virtual WifiMode ns3::WifiPhy::McsToWifiMode ( uint8_t mcs )

pure virtual

For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard.

Parameters

mcs	the MCS number

Returns: the WifiMode that corresponds to the given mcs number

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::GetControlAnswerMode().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffRx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble,
		double	signalDbm,
		double	noiseDbm
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being received.

Implemented for encapsulation purposes.

Parameters

packet	the packet being received
channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
channelNumber	the channel on which the packet is received
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
isShortPreamble	true if short preamble is used, false otherwise
signalDbm	signal power in dBm
noiseDbm	noise power in dBm

Definition at line 490 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffTx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble,
		uint8_t	txPower
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted.

Implemented for encapsulation purposes.

Parameters

packet	the packet being transmitted
channelFreqMhz	the frequency in MHz at which the packet is transmitted.
channelNumber	the channel on which the packet is transmitted
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
isShortPreamble	true if short preamble is used, false otherwise
txPower	the transmission power in dBm

Definition at line 496 of file wifi-phy.cc.

References m_phyMonitorSniffTxTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyRxBegin trace.

Implemented for encapsulation purposes.

Parameters

packet the packet being received

Definition at line 472 of file wifi-phy.cc.

References m_phyRxBeginTrace.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyRxDrop trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was not successfully received

Definition at line 484 of file wifi-phy.cc.

References m_phyRxDropTrace.

Referenced by ns3::YansWifiPhy::EndReceive(), and ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyRxEnd trace.

Implemented for encapsulation purposes.

Parameters

packet the packet received

Definition at line 478 of file wifi-phy.cc.

References m_phyRxEndTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyTxBegin trace.

Implemented for encapsulation purposes.

Parameters

packet the packet being transmitted

Definition at line 454 of file wifi-phy.cc.

References m_phyTxBeginTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyTxDrop trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was failed to transmitted

Definition at line 466 of file wifi-phy.cc.

References m_phyTxDropTrace.

void ns3::WifiPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyTxEnd trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was transmitted

Definition at line 460 of file wifi-phy.cc.

References m_phyTxEndTrace.

virtual void ns3::WifiPhy::RegisterListener ( WifiPhyListener * listener )

pure virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DcfManager::SetupPhyListener(), and ns3::MacLow::SetupPhyMacLowListener().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		WifiTxVector	txvector
	)

pure virtual

Parameters

packet	the packet to send
mode	the transmission mode to use to send this packet
preamble	the type of preamble to use to send this packet.
txvector	the txvector that has tx parameters as txPowerLevel a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::ForwardDown().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetChannelBonding ( bool channelbonding )

pure virtual

Parameters

channelbonding Enable or disable channel bonding

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetChannelNumber ( uint16_t id )

pure virtual

Set channel number.

Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)

where Starting channel frequency is standard-dependent, see SetStandard() as defined in IEEE 802.11-2007 17.3.8.3.2.

Parameters

id	the channel number

Implemented in ns3::YansWifiPhy.

Referenced by ns3::InterferenceHelperSequenceTest::SwitchCh().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetFrequency ( uint32_t freq )

pure virtual

Parameters

freq	the operating frequency on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetGreenfield ( bool greenfield )

pure virtual

Parameters

greenfield Enable or disable GreenField

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetGuardInterval ( bool guardInterval )

pure virtual

Parameters

guardInterval Enable or disable short guard interval

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetLdpc ( bool ldpc )

pure virtual

Parameters

ldpc	Enable or disable LDPC

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetNumberOfReceiveAntennas ( uint32_t rx )

pure virtual

Parameters

rx	the number of recievers on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetNumberOfTransmitAntennas ( uint32_t tx )

pure virtual

Parameters

tx	the number of transmitters on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetReceiveErrorCallback ( RxErrorCallback callback )

pure virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::SetPhy().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetReceiveOkCallback ( RxOkCallback callback )

pure virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::SetPhy().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetStbc ( bool stbc )

pure virtual

Parameters

stbc	Enable or disable STBC is supported

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::WifiModeToMcs ( WifiMode mode )

pure virtual

For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard.

Parameters

mode	the WifiMode

Returns: the MCS number that corresponds to the given WifiMode

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::NeedCtsToSelf().

Here is the caller graph for this function:

Member Data Documentation

TracedCallback<Ptr<const Packet>, uint16_t, uint16_t, uint32_t, bool, double, double> ns3::WifiPhy::m_phyMonitorSniffRxTrace

private

A trace source that emulates a wifi device in monitor mode sniffing a packet being received.

As a reference with the real world, firing this trace corresponds in the madwifi driver to calling the function ieee80211_input_monitor()

See also: class CallBackTraceSource

Definition at line 1114 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyMonitorSniffRx().

TracedCallback<Ptr<const Packet>, uint16_t, uint16_t, uint32_t, bool,uint8_t> ns3::WifiPhy::m_phyMonitorSniffTxTrace

private

A trace source that emulates a wifi device in monitor mode sniffing a packet being transmitted.

As a reference with the real world, firing this trace corresponds in the madwifi driver to calling the function ieee80211_input_monitor()

See also: class CallBackTraceSource

Definition at line 1126 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyMonitorSniffTx().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 1087 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See also: class CallBackTraceSource

Definition at line 1102 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 1095 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 1063 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See also: class CallBackTraceSource

Definition at line 1079 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 1071 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-phy.h
src/wifi/model/wifi-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
