802.11 PHY layer modelThis PHY implements a model of 802.11a. More...

#include <yans-wifi-phy.h>

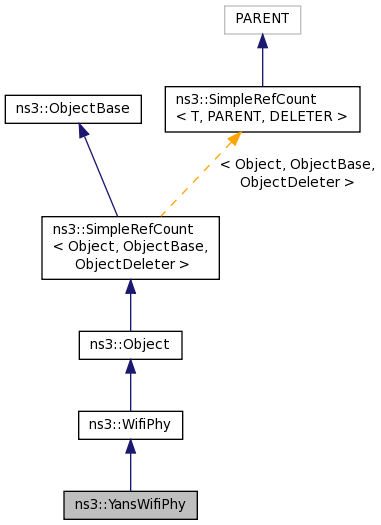

Inheritance diagram for ns3::YansWifiPhy:

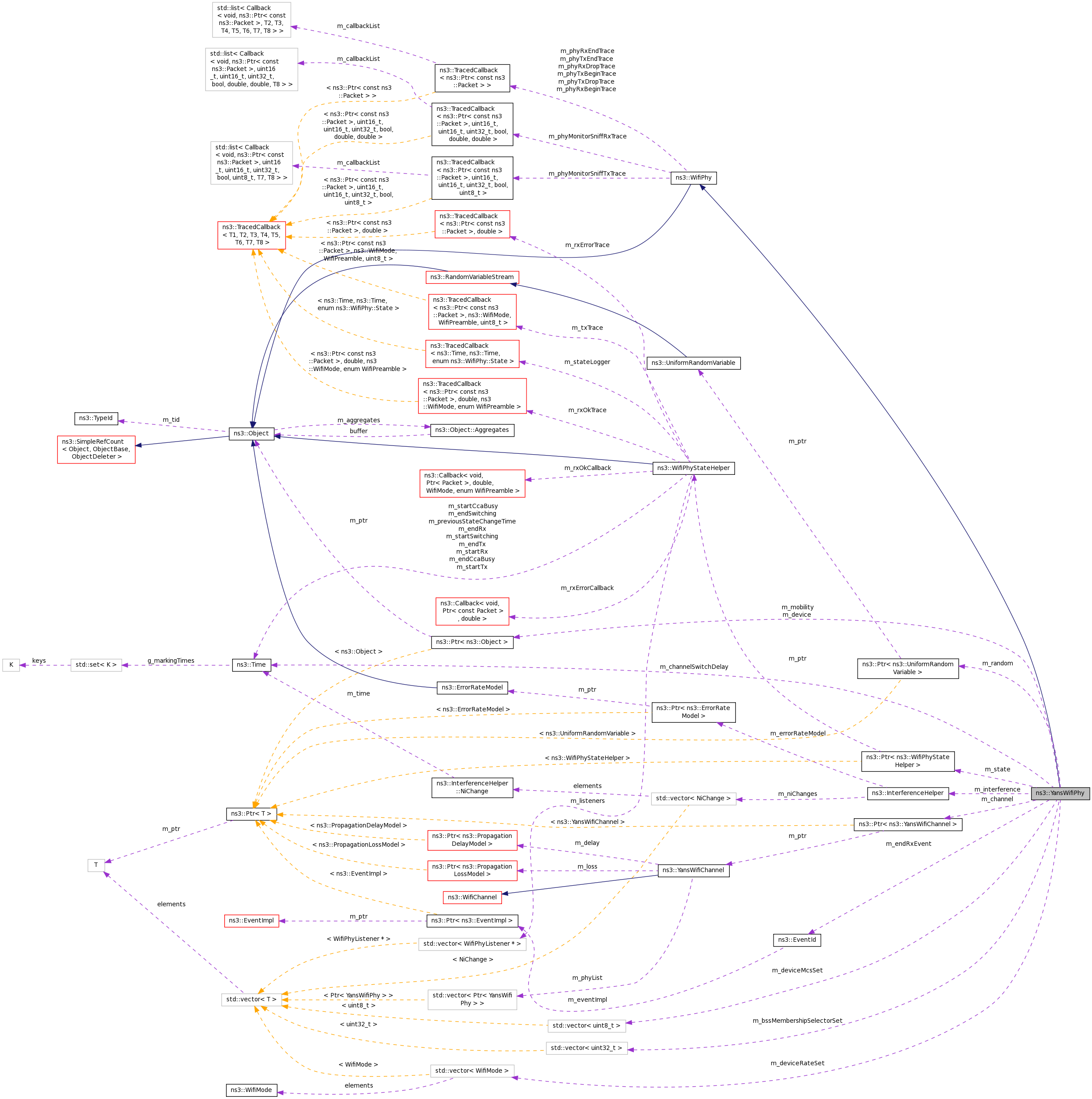

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()

virtual	~YansWifiPhy ()

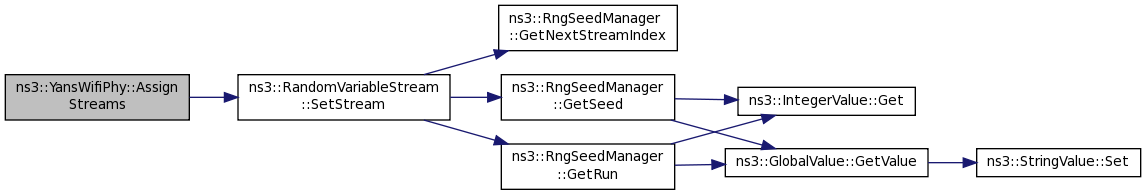

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual double	CalculateSnr (WifiMode txMode, double ber) const

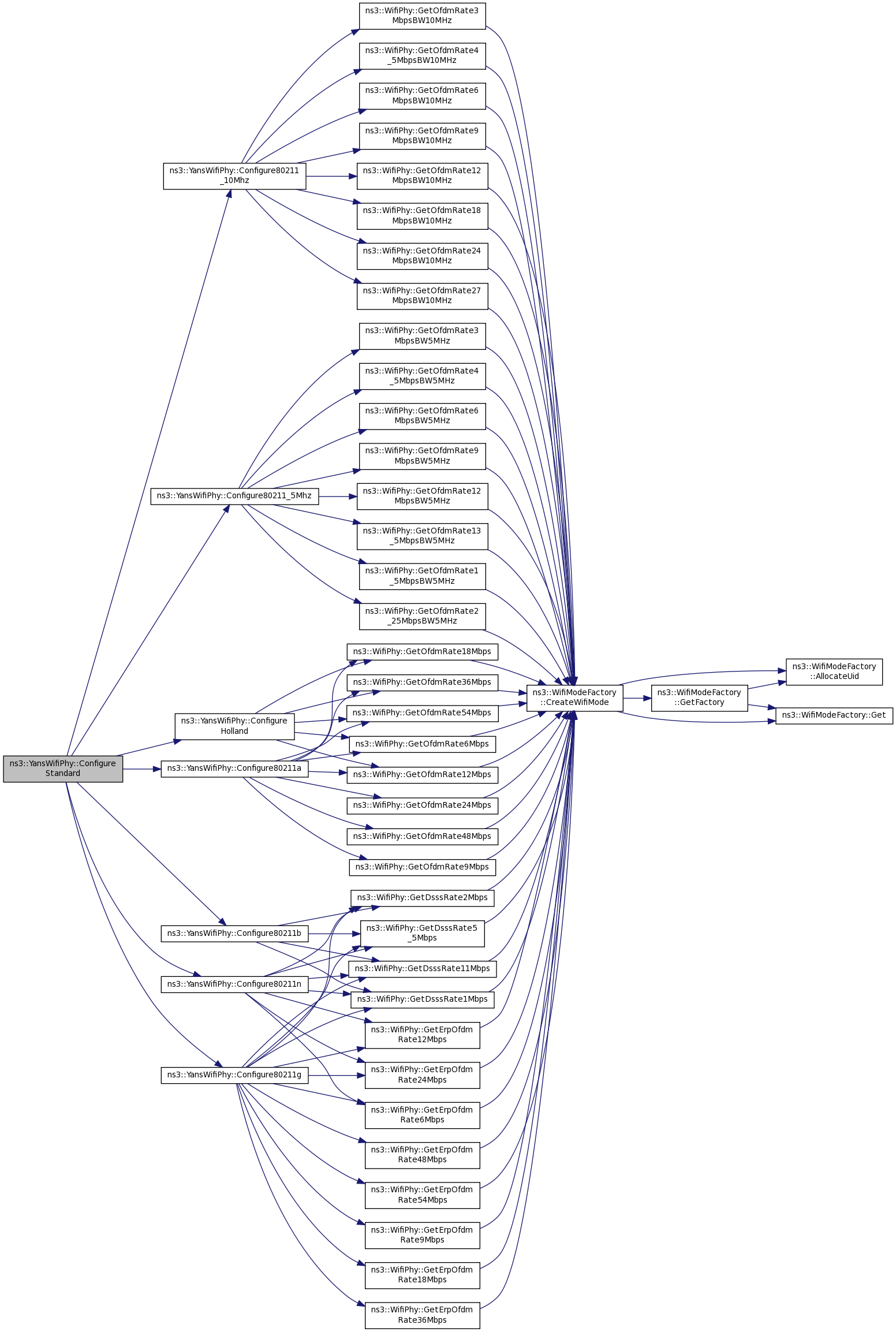

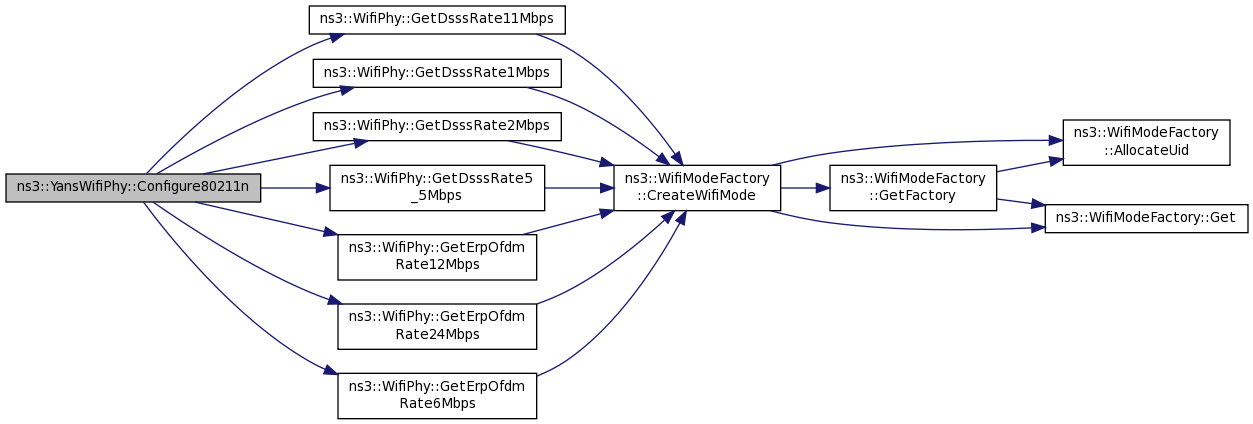

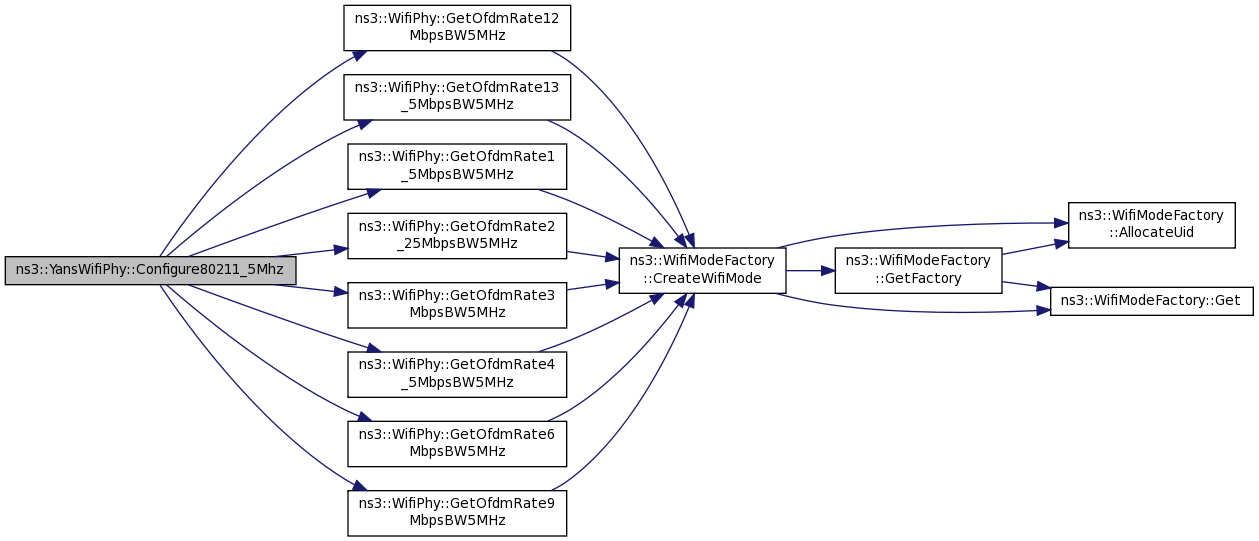

virtual void	ConfigureStandard (enum WifiPhyStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

virtual uint32_t	GetBssMembershipSelector (uint32_t selector) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

double	GetCcaMode1Threshold (void) const
	Return the CCA threshold (dBm). More...

virtual Ptr< WifiChannel >	GetChannel (void) const
	Return the WifiChannel this WifiPhy is connected to. More...

virtual bool	GetChannelBonding (void) const
	Return whether channel bonding is supported. More...

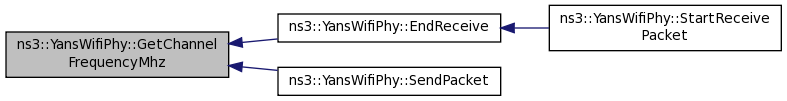

double	GetChannelFrequencyMhz () const
	Return current center channel frequency in MHz. More...

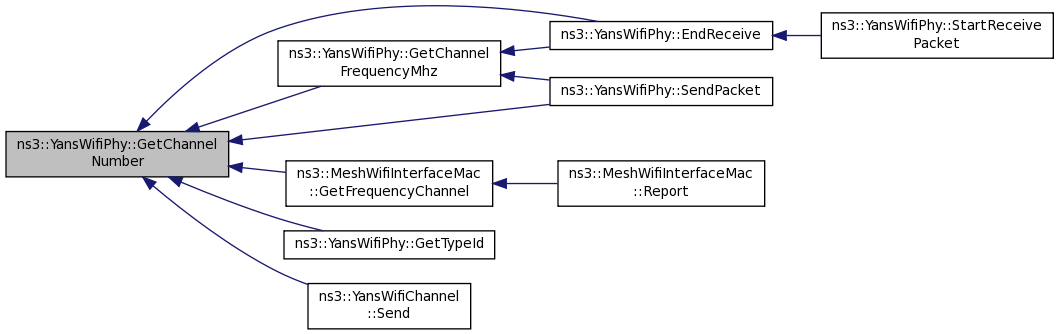

uint16_t	GetChannelNumber () const
	Return the current channel number. More...

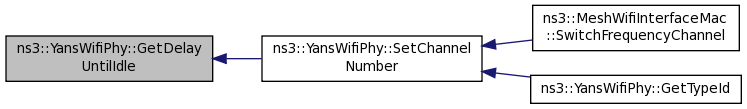

virtual Time	GetDelayUntilIdle (void)

Ptr< Object >	GetDevice (void) const
	Return the device this PHY is associated with. More...

double	GetEdThreshold (void) const
	Return the energy detection threshold (dBm). More...

Ptr< ErrorRateModel >	GetErrorRateModel (void) const
	Return the error rate model this PHY is using. More...

virtual uint32_t	GetFrequency (void) const

virtual bool	GetGreenfield (void) const
	Return whether Greenfield is supported. More...

virtual bool	GetGuardInterval (void) const
	Return whether guard interval is being used. More...

virtual Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

virtual bool	GetLdpc (void) const
	Return if LDPC is supported. More...

virtual uint8_t	GetMcs (uint8_t mcs) const
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

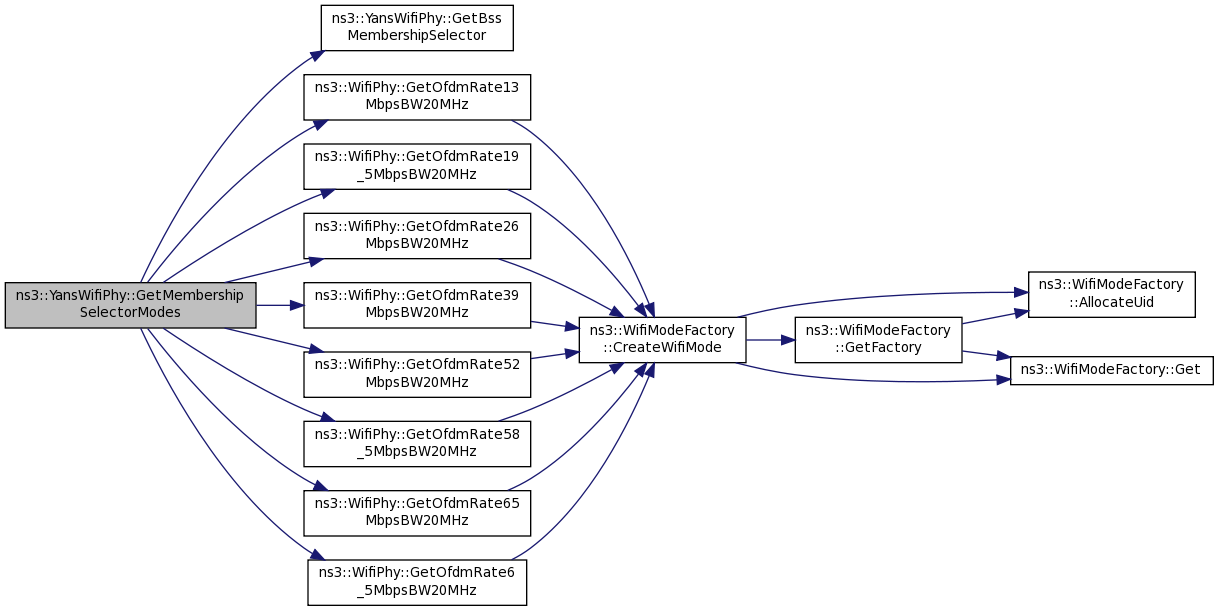

virtual WifiModeList	GetMembershipSelectorModes (uint32_t selector)
	The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

Ptr< Object >	GetMobility (void)
	Return the mobility model this PHY is associated with. More...

virtual WifiMode	GetMode (uint32_t mode) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNBssMembershipSelectors (void) const
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

virtual uint8_t	GetNMcs (void) const

virtual uint32_t	GetNModes (void) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

virtual uint32_t	GetNumberOfReceiveAntennas (void) const

virtual uint32_t	GetNumberOfTransmitAntennas (void) const

double	GetRxGain (void) const
	Return the reception gain (dB). More...

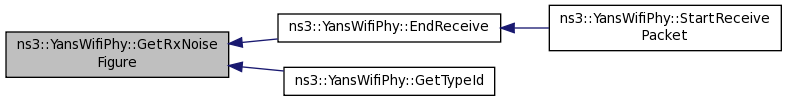

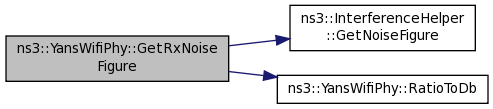

double	GetRxNoiseFigure (void) const
	Return the RX noise figure (dBm). More...

virtual Time	GetStateDuration (void)

virtual bool	GetStbc (void) const
	Return whether STBC is supported. More...

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

virtual double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

virtual double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

virtual bool	IsStateBusy (void)

virtual bool	IsStateCcaBusy (void)

virtual bool	IsStateIdle (void)

virtual bool	IsStateRx (void)

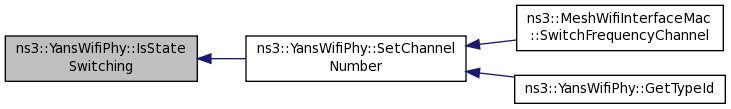

virtual bool	IsStateSwitching (void)

virtual bool	IsStateTx (void)

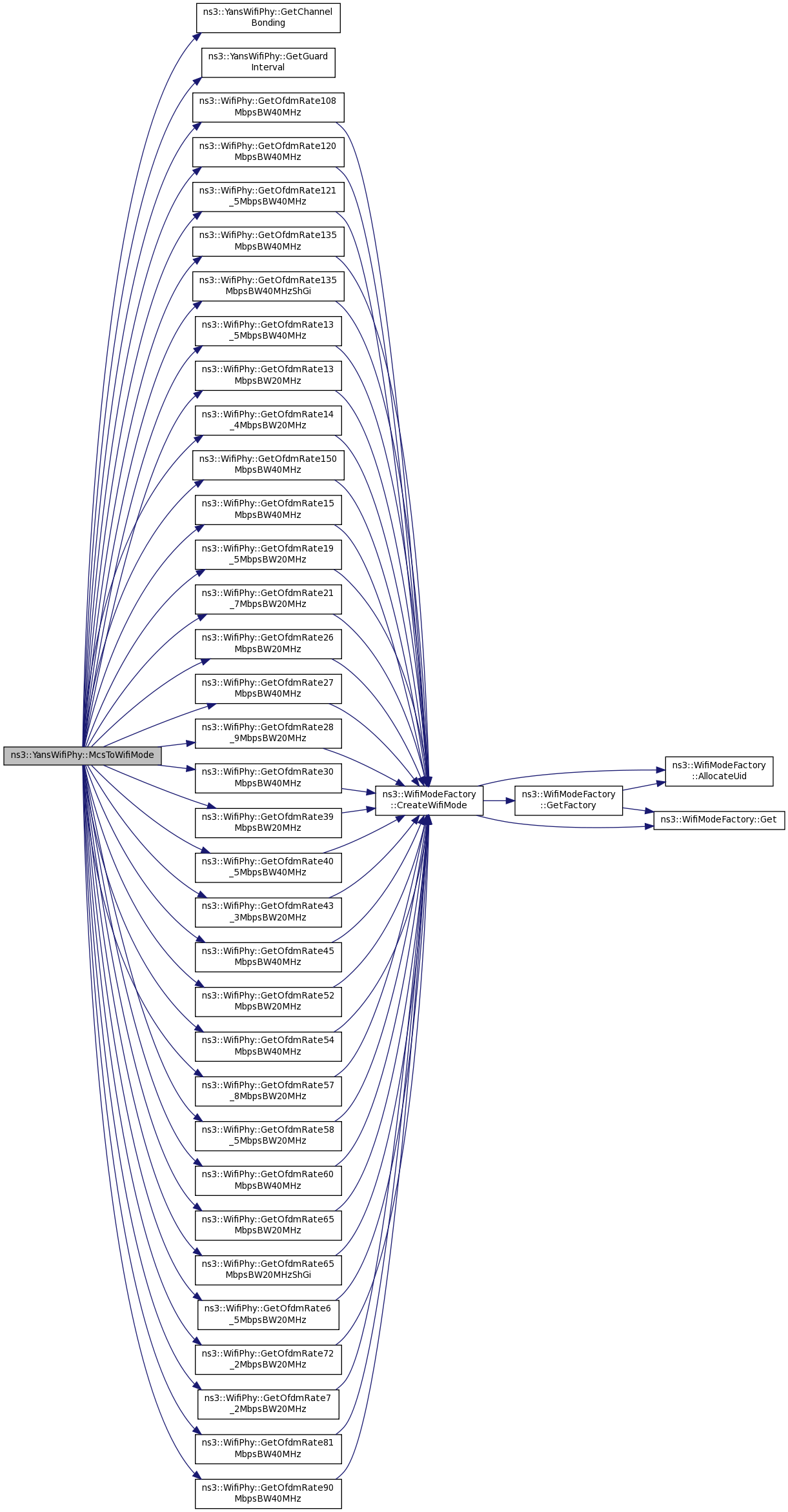

virtual WifiMode	McsToWifiMode (uint8_t mcs)
	For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard. More...

virtual void	RegisterListener (WifiPhyListener *listener)

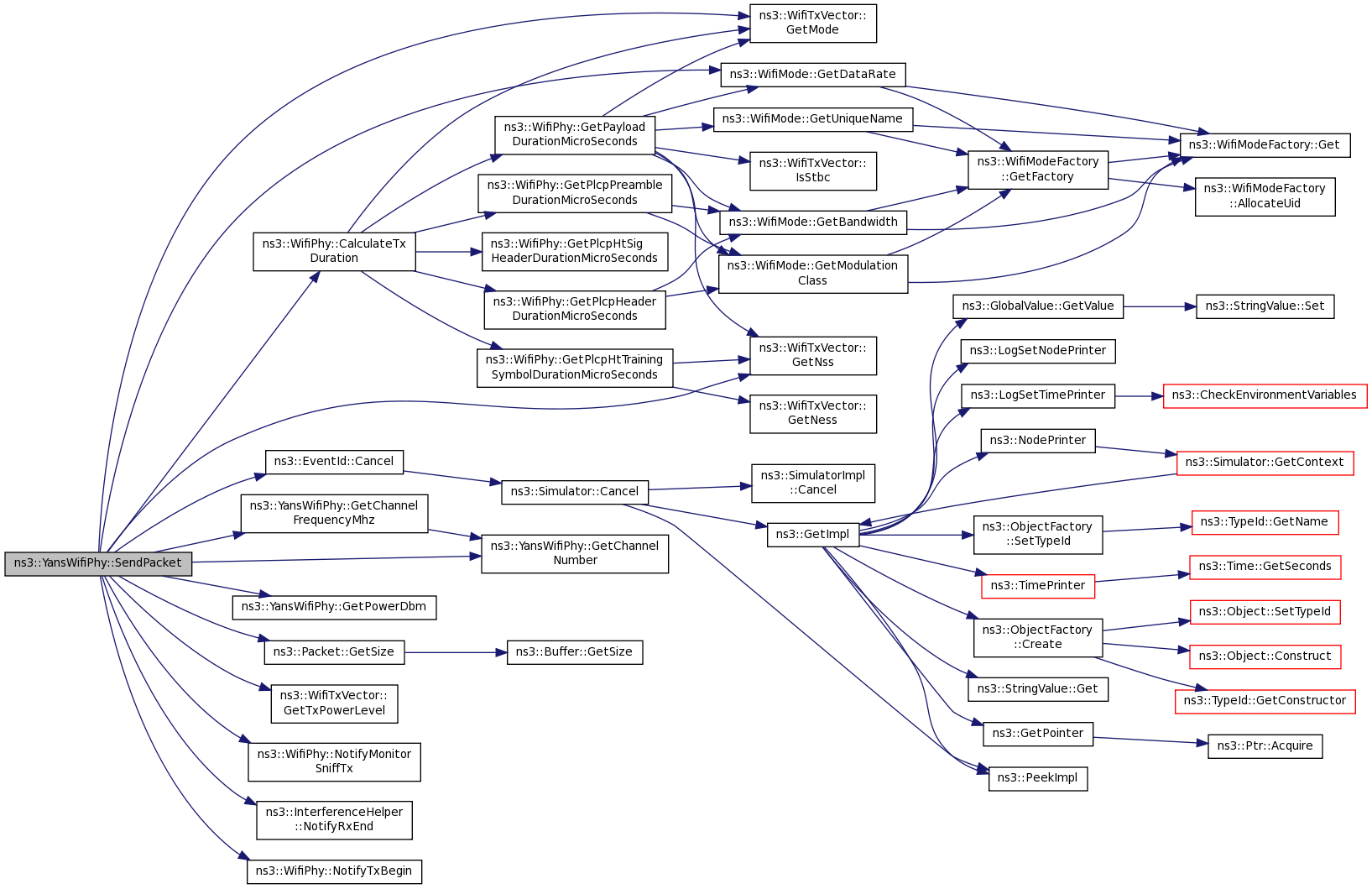

virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, WifiTxVector txvector)

void	SetCcaMode1Threshold (double threshold)
	Sets the CCA threshold (dBm). More...

void	SetChannel (Ptr< YansWifiChannel > channel)
	Set the YansWifiChannel this YansWifiPhy is to be connected to. More...

virtual void	SetChannelBonding (bool channelbonding)
	Enable or disable channel bonding support. More...

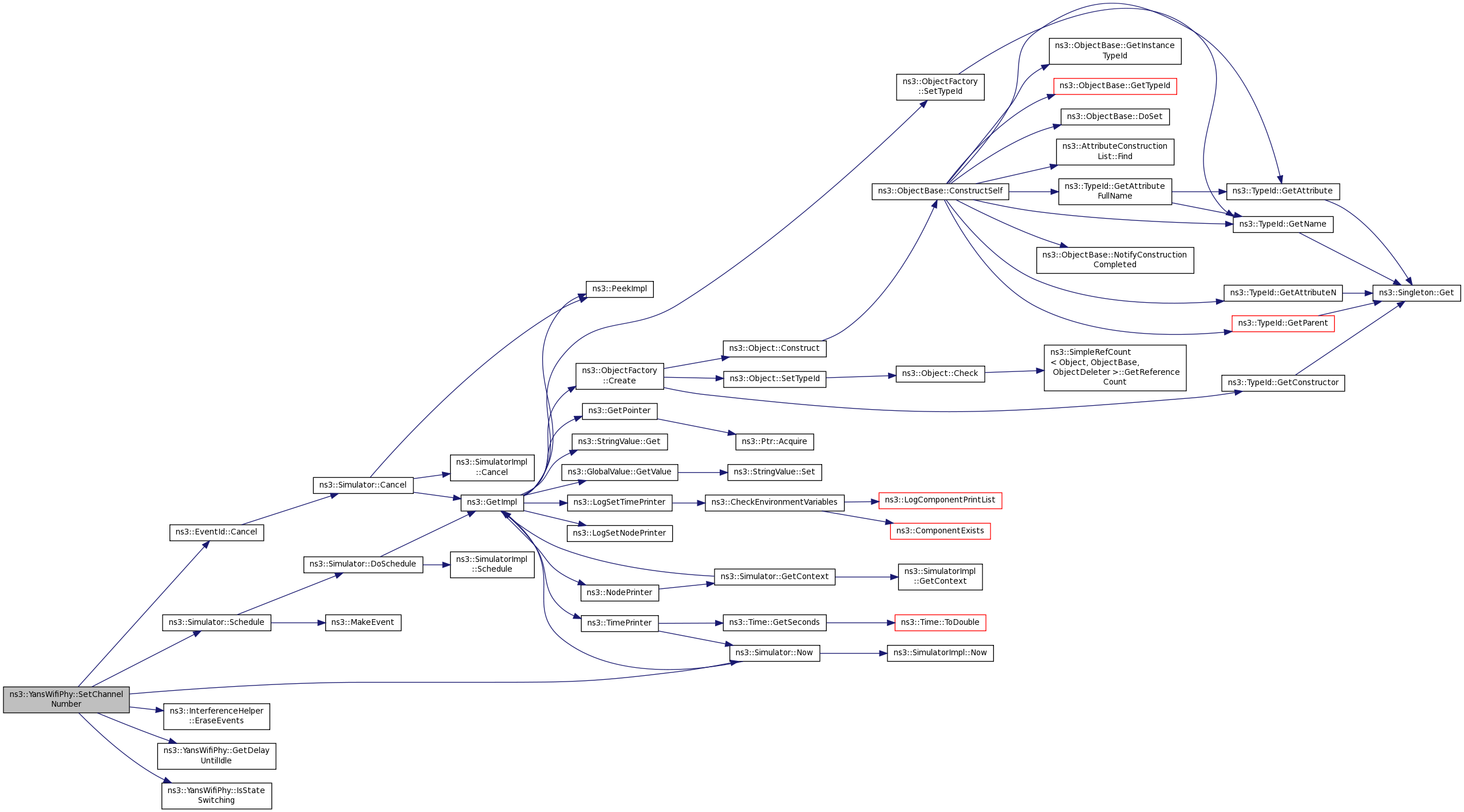

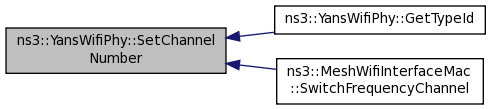

void	SetChannelNumber (uint16_t id)
	Set the current channel number. More...

void	SetDevice (Ptr< Object > device)
	Sets the device this PHY is associated with. More...

void	SetEdThreshold (double threshold)
	Sets the energy detection threshold (dBm). More...

void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

virtual void	SetFrequency (uint32_t freq)

virtual void	SetGreenfield (bool greenfield)
	Enable or disable Greenfield support. More...

virtual void	SetGuardInterval (bool guardInterval)
	Enable or disable short/long guard interval. More...

virtual void	SetLdpc (bool ldpc)
	Enable or disable LDPC. More...

void	SetMobility (Ptr< Object > mobility)
	Sets the mobility model. More...

void	SetNTxPower (uint32_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

virtual void	SetNumberOfReceiveAntennas (uint32_t rx)

virtual void	SetNumberOfTransmitAntennas (uint32_t tx)

virtual void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)

virtual void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

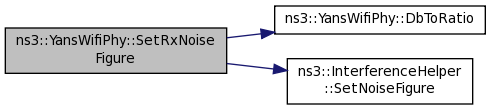

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

virtual void	SetStbc (bool stbc)
	Enable or disable STBC. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

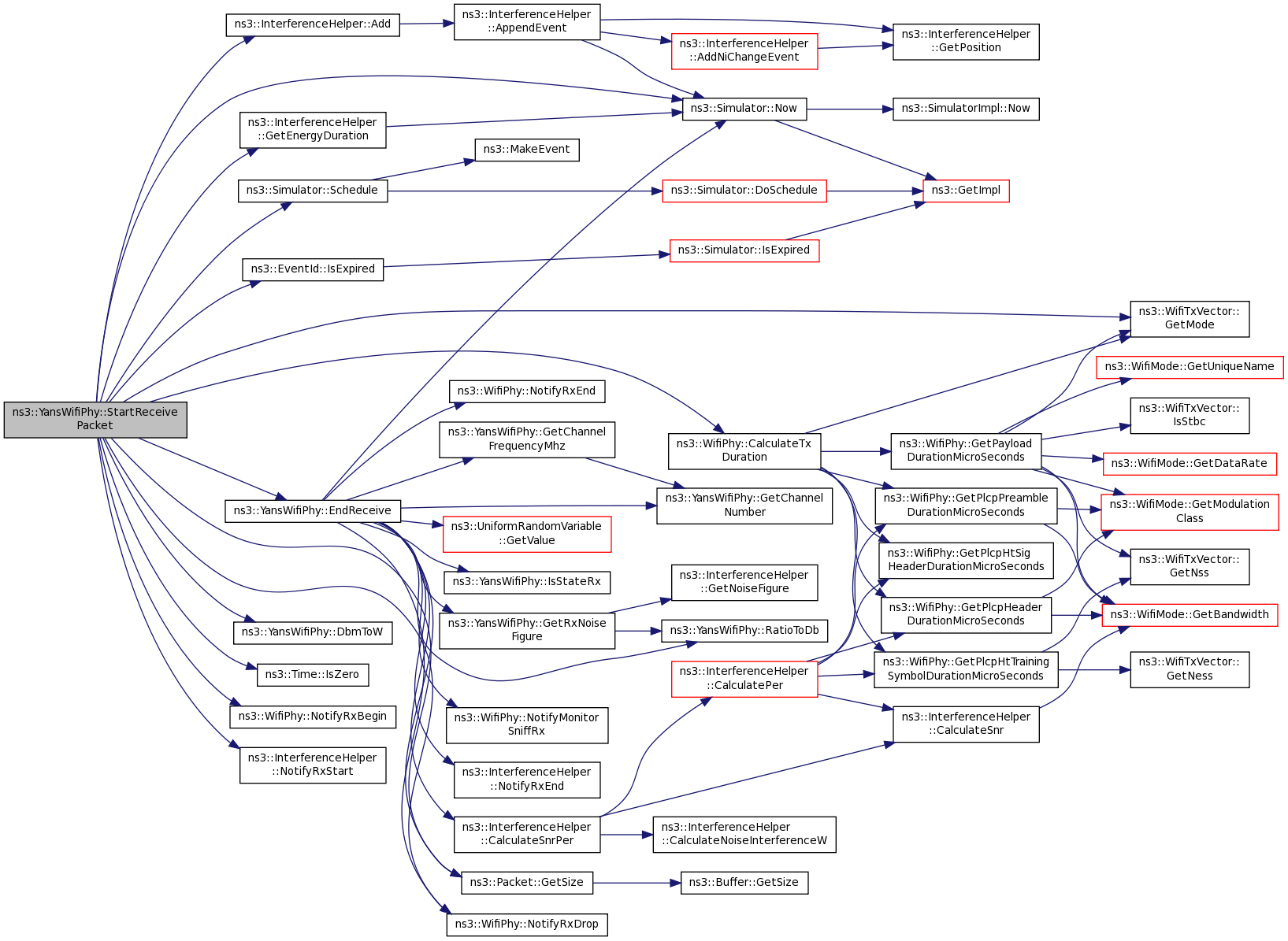

void	StartReceivePacket (Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble)
	Starting receiving the packet (i.e. More...

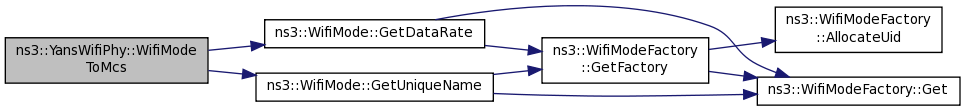

virtual uint32_t	WifiModeToMcs (WifiMode mode)
	For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard. More...

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, uint8_t txPower)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

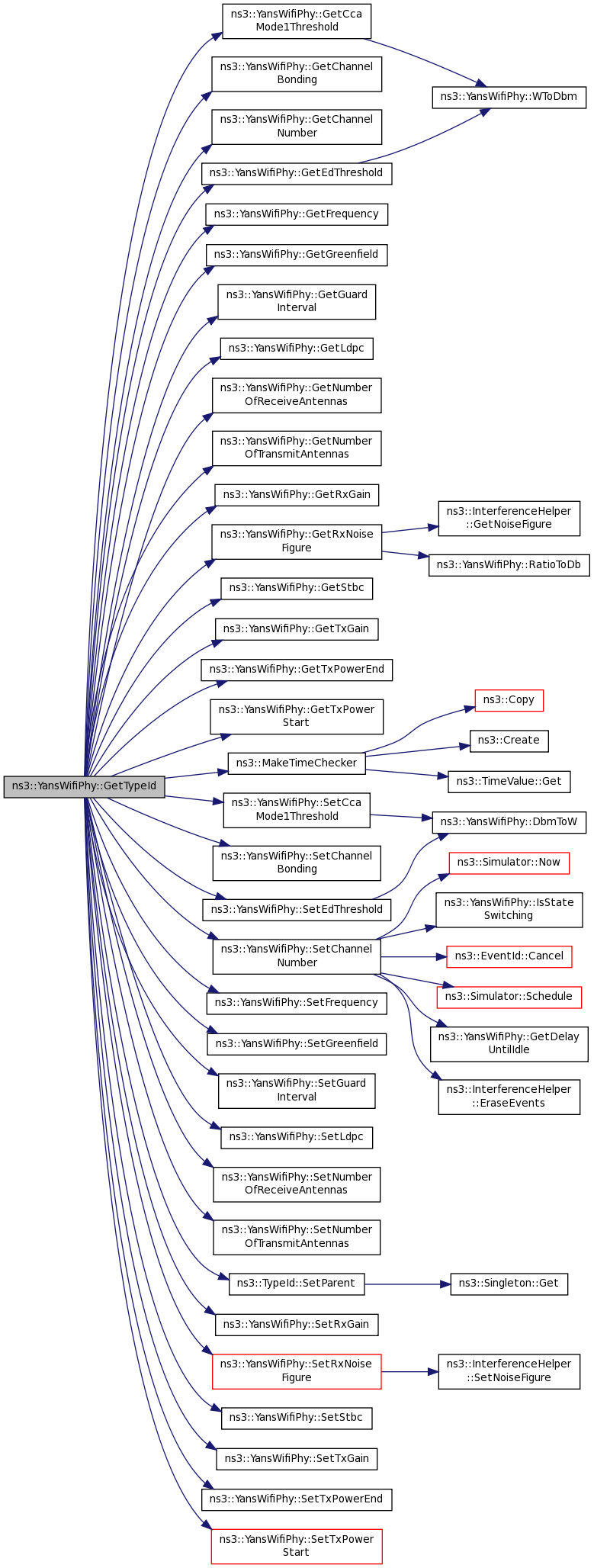

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiPhy
static Time	CalculateTxDuration (uint32_t size, WifiTxVector txvector, enum WifiPreamble preamble)

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-ODFM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-ODFM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-ODFM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-ODFM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-ODFM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-ODFM at 54Mbps. More...

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-ODFM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-ODFM at 9Mbps. More...

static WifiMode	GetMFPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)

static WifiMode	GetOfdmRate108MbpsBW40MHz ()
	Return a WifiMode for ODFM at 108Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate120MbpsBW40MHz ()
	Return a WifiMode for ODFM at 120Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate121_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 121.5Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for ODFM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for ODFM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for ODFM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate135MbpsBW40MHz ()
	Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate135MbpsBW40MHzShGi ()
	Return a WifiMode for ODFM at 135Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 13.5Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 13.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13MbpsBW20MHz ()
	Return a WifiMode for ODFM at 13Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate14_4MbpsBW20MHz ()
	Return a WifiMode for ODFM at 14.4Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate150MbpsBW40MHz ()
	Return a WifiMode for ODFM at 150Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate15MbpsBW40MHz ()
	Return a WifiMode for ODFM at 15Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for ODFM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for ODFM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate19_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 19.5Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate21_7MbpsBW20MHz ()
	Return a WifiMode for ODFM at 21.7Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for ODFM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for ODFM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate26MbpsBW20MHz ()
	Return a WifiMode for ODFM at 26Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for ODFM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW40MHz ()
	Return a WifiMode for ODFM at 27Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate28_9MbpsBW20MHz ()
	Return a WifiMode for ODFM at 28.9Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for ODFM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate30MbpsBW40MHz ()
	Return a WifiMode for ODFM at 30Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for ODFM at 36Mbps. More...

static WifiMode	GetOfdmRate39MbpsBW20MHz ()
	Return a WifiMode for ODFM at 39Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for ODFM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for ODFM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate40_5MbpsBW40MHz ()
	Return a WifiMode for ODFM at 40.5Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate43_3MbpsBW20MHz ()
	Return a WifiMode for ODFM at 43.3Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate45MbpsBW40MHz ()
	Return a WifiMode for ODFM at 45Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for ODFM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for ODFM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for ODFM at 4.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate52MbpsBW20MHz ()
	Return a WifiMode for ODFM at 52Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for ODFM at 54Mbps. More...

static WifiMode	GetOfdmRate54MbpsBW40MHz ()
	Return a WifiMode for ODFM at 54Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate57_8MbpsBW20MHz ()
	Return a WifiMode for ODFM at 57.8Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate58_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 58.5Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate60MbpsBW40MHz ()
	Return a WifiMode for ODFM at 60Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate65MbpsBW20MHz ()
	Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate65MbpsBW20MHzShGi ()
	Return a WifiMode for ODFM at 65Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate6_5MbpsBW20MHz ()
	Return a WifiMode for ODFM at 6.5Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for ODFM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for ODFM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for ODFM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate72_2MbpsBW20MHz ()
	Return a WifiMode for ODFM at 72.2Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate7_2MbpsBW20MHz ()
	Return a WifiMode for ODFM at 7.2Mbps with 20MHz channel spacing. More...

static WifiMode	GetOfdmRate81MbpsBW40MHz ()
	Return a WifiMode for ODFM at 81Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate90MbpsBW40MHz ()
	Return a WifiMode for ODFM at 90Mbps with 40MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for ODFM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for ODFM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for ODFM at 9Mbps with 5MHz channel spacing. More...

static double	GetPayloadDurationMicroSeconds (uint32_t size, WifiTxVector txvector)

static uint32_t	GetPlcpHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)

static uint32_t	GetPlcpHtSigHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

static uint32_t	GetPlcpHtTrainingSymbolDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble, WifiTxVector txvector)

static uint32_t	GetPlcpPreambleDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

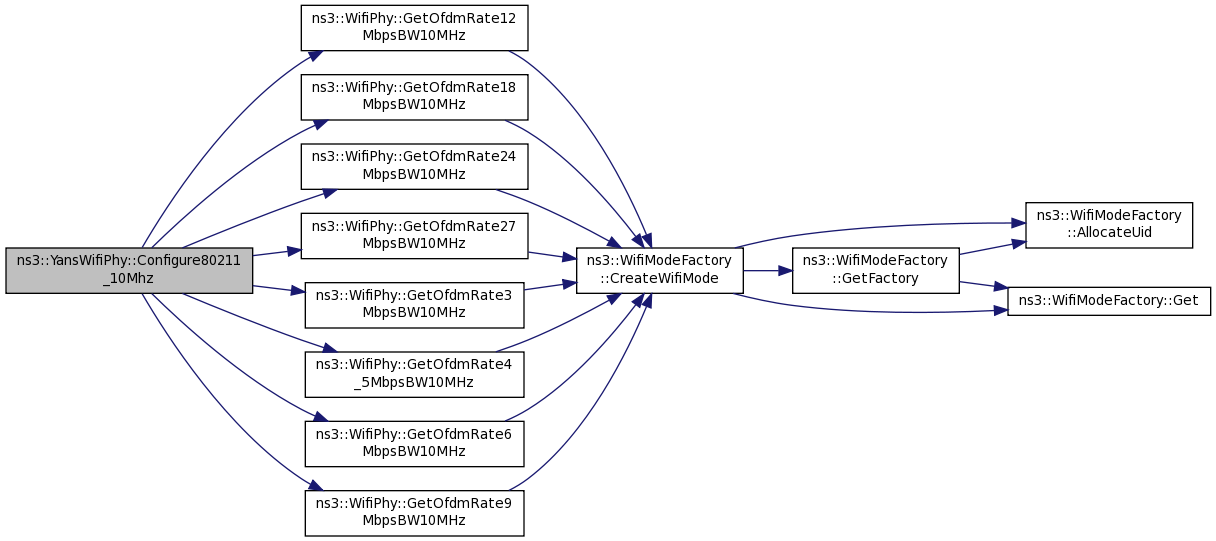

void	Configure80211_10Mhz (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing. More...

void	Configure80211_5Mhz ()
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing. More...

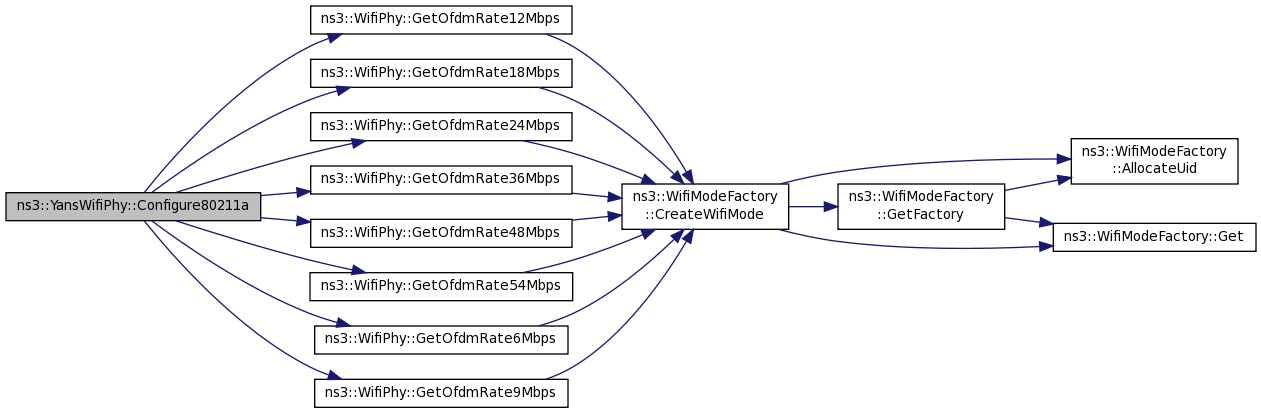

void	Configure80211a (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard. More...

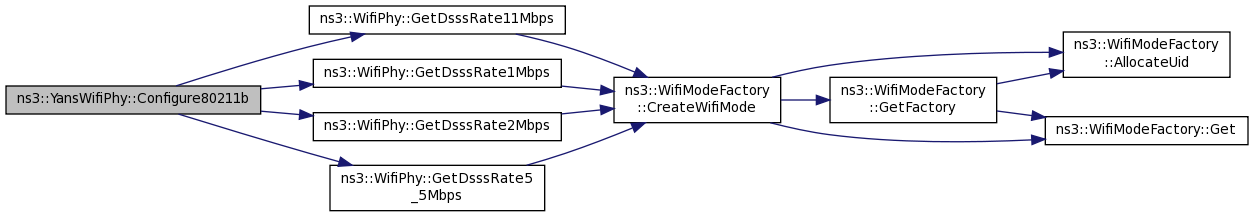

void	Configure80211b (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard. More...

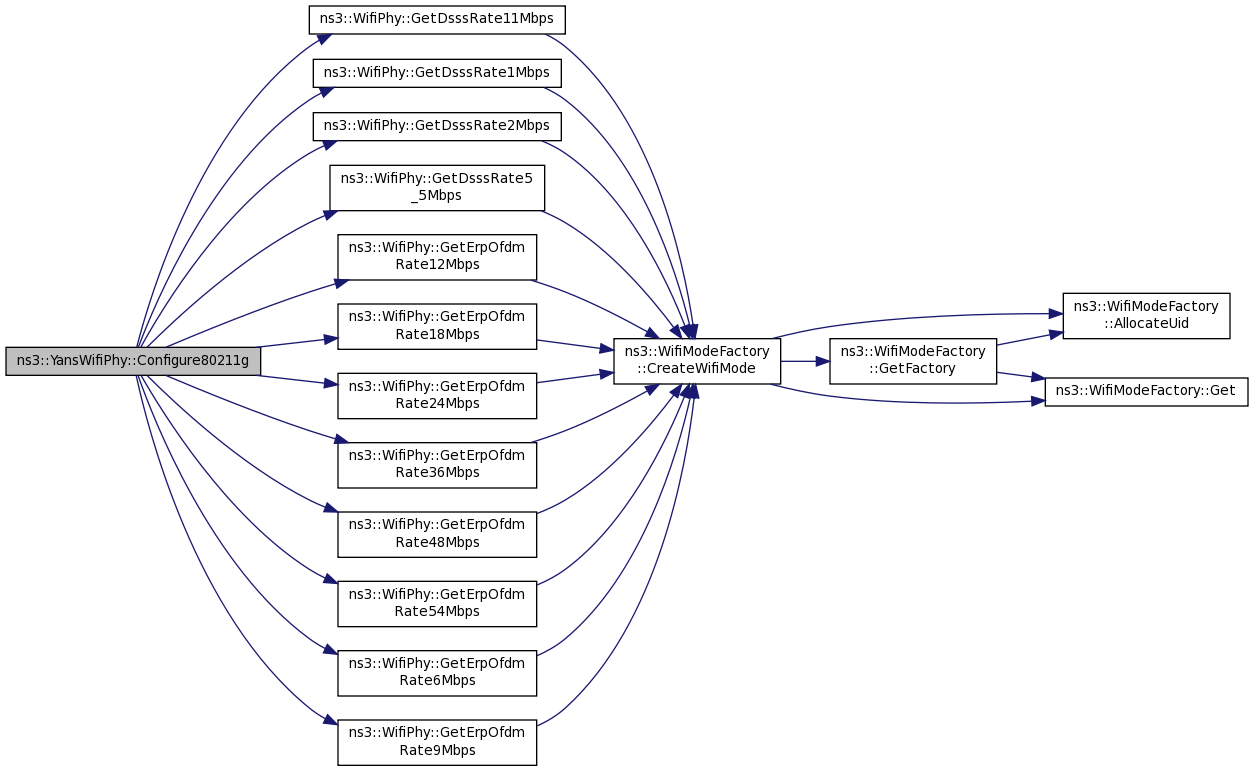

void	Configure80211g (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard. More...

void	Configure80211n (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard. More...

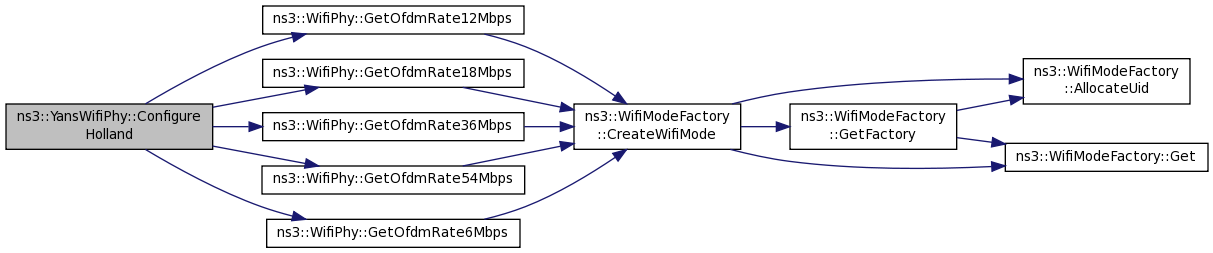

void	ConfigureHolland (void)

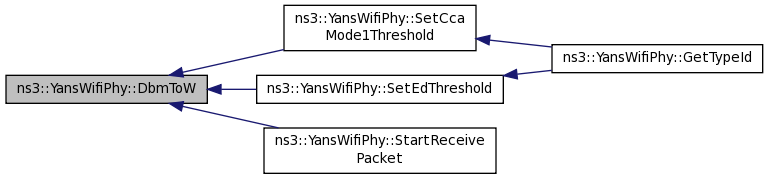

double	DbmToW (double dbm) const
	Convert from dBm to Watts. More...

double	DbToRatio (double db) const
	Convert from dB to ratio. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

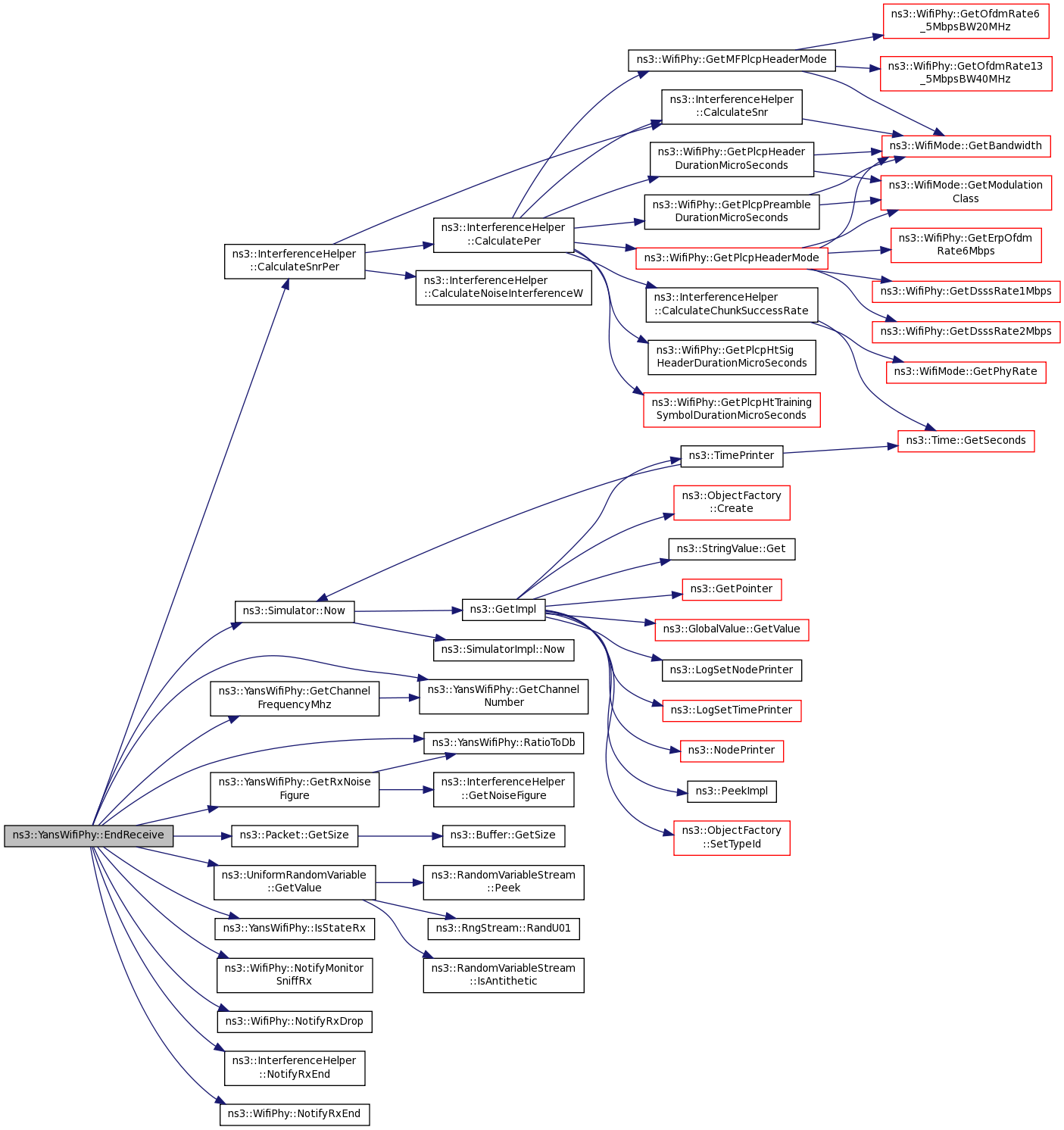

void	EndReceive (Ptr< Packet > packet, Ptr< InterferenceHelper::Event > event)
	The last bit of the packet has arrived. More...

double	GetEdThresholdW (void) const
	Return the energy detection threshold. More...

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

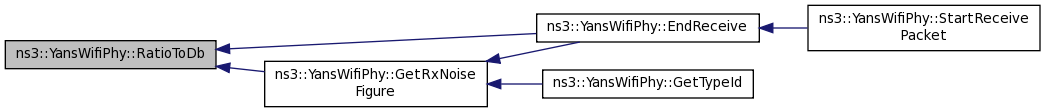

double	RatioToDb (double ratio) const
	Convert from ratio to dB. More...

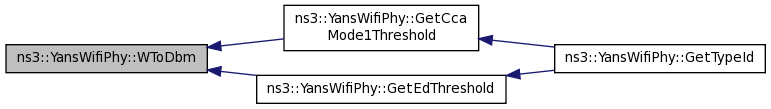

double	WToDbm (double w) const
	Convert from Watts to dBm. More...

Private Attributes
std::vector< uint32_t >	m_bssMembershipSelectorSet

double	m_ccaMode1ThresholdW
	Clear channel assessment (CCA) threshold in watts. More...

Ptr< YansWifiChannel >	m_channel
	YansWifiChannel that this YansWifiPhy is connected to. More...

bool	m_channelBonding
	Flag if channel conding is used. More...

uint16_t	m_channelNumber
	Operating channel number. More...

double	m_channelStartingFrequency
	Standard-dependent center frequency of 0-th channel in MHz. More...

Time	m_channelSwitchDelay
	Time required to switch between channel. More...

Ptr< Object >	m_device
	Pointer to the device. More...

std::vector< uint8_t >	m_deviceMcsSet

WifiModeList	m_deviceRateSet
	This vector holds the set of transmission modes that this WifiPhy(-derived class) can support. More...

double	m_edThresholdW
	Energy detection threshold in watts. More...

EventId	m_endRxEvent

bool	m_greenfield
	Flag if GreenField format is supported. More...

bool	m_guardInterval
	Flag if short guard interval is used. More...

InterferenceHelper	m_interference
	Pointer to InterferenceHelper. More...

bool	m_ldpc
	Flag if LDPC is used. More...

Ptr< Object >	m_mobility
	Pointer to the mobility model. More...

uint32_t	m_nTxPower
	Number of available transmission power levels. More...

uint32_t	m_numberOfReceivers
	Number of receivers. More...

uint32_t	m_numberOfTransmitters
	Number of transmitters. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

double	m_rxGainDb
	Reception gain (dB) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

bool	m_stbc
	Flag if STBC is used. More...

double	m_txGainDb
	Transmission gain (dB) More...

double	m_txPowerBaseDbm
	Minimum transmission power (dBm) More...

double	m_txPowerEndDbm
	Maximum transmission power (dBm) More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
typedef Callback< void, Ptr < const Packet >, double >	RxErrorCallback
	arg1: packet received unsuccessfully arg2: snr of packet More...

typedef Callback< void, Ptr < Packet >, double, WifiMode, enum WifiPreamble >	RxOkCallback
	arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet. More...

enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING }
	The state of the PHY layer. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a.

The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Config Paths

ns3::YansWifiPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy

Attributes

EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -96
- Flags: construct write read
CcaMode1Threshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -99
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)". For
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
State: The state of the PHY layer
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper >
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +250000.0ns
- Flags: construct write read
ChannelNumber: Channel center frequency = Channel starting frequency + 5 MHz * nch
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
Frequency: The operating frequency.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2407
- Flags: construct write read
Transmitters: The number of transmitters.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
Recievers: The number of recievers.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
ShortGuardEnabled: Whether or not short guard interval is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
LdpcEnabled: Whether or not LDPC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
STBCEnabled: Whether or not STBC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
GreenfieldEnabled: Whether or not STBC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
ChannelBonding: Whether 20MHz or 40MHz.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Definition at line 64 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 171 of file yans-wifi-phy.cc.

References m_random, m_state, and NS_LOG_FUNCTION.

ns3::YansWifiPhy::~YansWifiPhy ( )

virtual

Definition at line 181 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::YansWifiPhy::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WifiPhy.

Definition at line 819 of file yans-wifi-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

double ns3::YansWifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

virtual

Parameters

txMode	the transmission mode
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implements ns3::WifiPhy.

Definition at line 357 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

Here is the call graph for this function:

void ns3::YansWifiPhy::Configure80211_10Mhz ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing.

Definition at line 639 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211_5Mhz ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing.

Definition at line 655 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211a ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard.

Definition at line 590 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate9Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211b ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard.

Definition at line 607 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211g ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard.

Definition at line 619 of file yans-wifi-phy.cc.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211n ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard.

Definition at line 918 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), HT_PHY, m_bssMembershipSelectorSet, m_deviceMcsSet, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureHolland ( void )

private

Definition at line 671 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Parameters

standard the Wi-Fi standard

Implements ns3::WifiPhy.

Definition at line 199 of file yans-wifi-phy.cc.

References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), m_channelStartingFrequency, NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

Here is the call graph for this function:

double ns3::YansWifiPhy::DbmToW ( double dbm ) const

private

Convert from dBm to Watts.

Parameters

dbm	the power in dBm

Returns: the equivalent Watts for the given dBm

Definition at line 745 of file yans-wifi-phy.cc.

Referenced by SetCcaMode1Threshold(), SetEdThreshold(), and StartReceivePacket().

Here is the caller graph for this function:

double ns3::YansWifiPhy::DbToRatio ( double db ) const

private

Convert from dB to ratio.

Parameters

db

Returns: ratio

Definition at line 738 of file yans-wifi-phy.cc.

Referenced by SetRxNoiseFigure().

Here is the caller graph for this function:

void ns3::YansWifiPhy::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 187 of file yans-wifi-phy.cc.

References m_channel, m_device, m_deviceMcsSet, m_deviceRateSet, m_mobility, m_state, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::EndReceive	(	Ptr< Packet >	packet,
		Ptr< InterferenceHelper::Event >	event
	)

private

The last bit of the packet has arrived.

Parameters

packet	the packet that the last bit has arrived
event	the corresponding event of the first time the packet arrives

Definition at line 788 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculateSnrPer(), GetChannelFrequencyMhz(), GetChannelNumber(), GetRxNoiseFigure(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), IsStateRx(), m_interference, m_random, m_state, ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyRxEnd(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, RatioToDb(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetBssMembershipSelector ( uint32_t selector ) const

virtual

The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Parameters

selector index in array of supported memeberships

Returns: the memebership selector whose index is specified.

Implements ns3::WifiPhy.

Definition at line 941 of file yans-wifi-phy.cc.

References m_bssMembershipSelectorSet.

Referenced by GetMembershipSelectorModes().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetCcaMode1Threshold ( void ) const

Return the CCA threshold (dBm).

Returns: the CCA threshold in dBm

Definition at line 335 of file yans-wifi-phy.cc.

References m_ccaMode1ThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiChannel > ns3::YansWifiPhy::GetChannel ( void ) const

virtual

Return the WifiChannel this WifiPhy is connected to.

Returns: the WifiChannel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 363 of file yans-wifi-phy.cc.

References m_channel.

bool ns3::YansWifiPhy::GetChannelBonding ( void ) const

virtual

Return whether channel bonding is supported.

Returns: true if channel bonding is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 906 of file yans-wifi-phy.cc.

References m_channelBonding.

Referenced by GetTypeId(), and McsToWifiMode().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetChannelFrequencyMhz ( ) const

Return current center channel frequency in MHz.

Returns: the current center channel frequency in MHz

Definition at line 430 of file yans-wifi-phy.cc.

References GetChannelNumber(), and m_channelStartingFrequency.

Referenced by EndReceive(), and SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::YansWifiPhy::GetChannelNumber ( ) const

virtual

Return the current channel number.

Returns: the current channel number

Implements ns3::WifiPhy.

Definition at line 424 of file yans-wifi-phy.cc.

References m_channelNumber.

Referenced by EndReceive(), GetChannelFrequencyMhz(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetTypeId(), ns3::YansWifiChannel::Send(), and SendPacket().

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetDelayUntilIdle ( void )

virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implements ns3::WifiPhy.

Definition at line 726 of file yans-wifi-phy.cc.

References m_state.

Referenced by SetChannelNumber().

Here is the caller graph for this function:

Ptr< Object > ns3::YansWifiPhy::GetDevice ( void ) const

Return the device this PHY is associated with.

Returns: the device this PHY is associated with

Definition at line 346 of file yans-wifi-phy.cc.

References m_device.

double ns3::YansWifiPhy::GetEdThreshold ( void ) const

Return the energy detection threshold (dBm).

Returns: the energy detection threshold in dBm

Definition at line 329 of file yans-wifi-phy.cc.

References m_edThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetEdThresholdW ( void ) const

private

Return the energy detection threshold.

Returns: the energy detection threshold.

Definition at line 764 of file yans-wifi-phy.cc.

References m_edThresholdW.

Ptr< ErrorRateModel > ns3::YansWifiPhy::GetErrorRateModel ( void ) const

Return the error rate model this PHY is using.

Returns: the error rate model this PHY is using

Definition at line 341 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

Here is the call graph for this function:

uint32_t ns3::YansWifiPhy::GetFrequency ( void ) const

virtual

Returns: the operating frequency on this node

Implements ns3::WifiPhy.

Definition at line 872 of file yans-wifi-phy.cc.

References m_channelStartingFrequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::GetGreenfield ( void ) const

virtual

Return whether Greenfield is supported.

Returns: true if Greenfield is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 900 of file yans-wifi-phy.cc.

References m_greenfield.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::GetGuardInterval ( void ) const

virtual

Return whether guard interval is being used.

Returns: true if guard interval is being used, false otherwise

Implements ns3::WifiPhy.

Definition at line 861 of file yans-wifi-phy.cc.

References m_guardInterval.

Referenced by GetTypeId(), and McsToWifiMode().

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetLastRxStartTime ( void ) const

virtual

Return the start time of the last received packet.

Returns: the start time of the last received packet

Implements ns3::WifiPhy.

Definition at line 732 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::GetLdpc ( void ) const

virtual

Return if LDPC is supported.

Returns: true if LDPC is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 889 of file yans-wifi-phy.cc.

References m_ldpc.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::YansWifiPhy::GetMcs ( uint8_t mcs ) const

virtual

The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of Mcs indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

This was introduced with 11n

Parameters

mcs	index in array of supported Mcs

Returns: the Mcs index whose index is specified.

Implements ns3::WifiPhy.

Definition at line 970 of file yans-wifi-phy.cc.

References m_deviceMcsSet.

WifiModeList ns3::YansWifiPhy::GetMembershipSelectorModes ( uint32_t selector )

virtual

The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Parameters

selector index in array of supported memeberships

Returns: a WifiModeList that contains the WifiModes associrated with the selected index.

See also: WifiPhy::GetMembershipSelectorModes()

Implements ns3::WifiPhy.

Definition at line 946 of file yans-wifi-phy.cc.

References GetBssMembershipSelector(), ns3::WifiPhy::GetOfdmRate13MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate19_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate26MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate39MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate52MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate58_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate6_5MbpsBW20MHz(), and HT_PHY.

Here is the call graph for this function:

Ptr< Object > ns3::YansWifiPhy::GetMobility ( void )

Return the mobility model this PHY is associated with.

Returns: the mobility model this PHY is associated with

Definition at line 351 of file yans-wifi-phy.cc.

References m_mobility.

Referenced by ns3::YansWifiChannel::Send().

Here is the caller graph for this function:

WifiMode ns3::YansWifiPhy::GetMode ( uint32_t mode ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See also: WifiPhy::GetNModes()

Implements ns3::WifiPhy.

Definition at line 579 of file yans-wifi-phy.cc.

References m_deviceRateSet.

uint32_t ns3::YansWifiPhy::GetNBssMembershipSelectors ( void ) const

virtual

The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMemebershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

This was introduced with 11n

Returns: the memebership selector whose index is specified.

Implements ns3::WifiPhy.

Definition at line 936 of file yans-wifi-phy.cc.

References m_bssMembershipSelectorSet.

uint8_t ns3::YansWifiPhy::GetNMcs ( void ) const

virtual

Returns: the number of MCS supported by this phy

Implements ns3::WifiPhy.

Definition at line 965 of file yans-wifi-phy.cc.

References m_deviceMcsSet.

uint32_t ns3::YansWifiPhy::GetNModes ( void ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See also: WifiPhy::GetMode()

Implements ns3::WifiPhy.

Definition at line 574 of file yans-wifi-phy.cc.

References m_deviceRateSet.

uint32_t ns3::YansWifiPhy::GetNTxPower ( void ) const

virtual

Return the number of available transmission power levels.

Returns: the number of available transmission power levels

Implements ns3::WifiPhy.

Definition at line 584 of file yans-wifi-phy.cc.

References m_nTxPower.

uint32_t ns3::YansWifiPhy::GetNumberOfReceiveAntennas ( void ) const

virtual

Returns: the number of receivers on this node.

Implements ns3::WifiPhy.

Definition at line 883 of file yans-wifi-phy.cc.

References m_numberOfReceivers.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetNumberOfTransmitAntennas ( void ) const

virtual

Returns: the number of transmit antenna on this device

Implements ns3::WifiPhy.

Definition at line 878 of file yans-wifi-phy.cc.

References m_numberOfTransmitters.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetPowerDbm ( uint8_t power ) const

private

Get the power of the given power level in dBm.

In YansWifiPhy implementation, the power levels are equally spaced (in dBm).

Parameters

power the power level

Returns: the transmission power in dBm at the given power level

Definition at line 770 of file yans-wifi-phy.cc.

References m_nTxPower, m_txPowerBaseDbm, m_txPowerEndDbm, NS_ASSERT, and NS_ASSERT_MSG.

Referenced by SendPacket().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxGain ( void ) const

Return the reception gain (dB).

Returns: the reception gain in dB

Definition at line 323 of file yans-wifi-phy.cc.

References m_rxGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxNoiseFigure ( void ) const

Return the RX noise figure (dBm).

Returns: the RX noise figure in dBm

Definition at line 303 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetNoiseFigure(), m_interference, and RatioToDb().

Referenced by EndReceive(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetStateDuration ( void )

virtual

Returns: the amount of time since the current state has started.

Implements ns3::WifiPhy.

Definition at line 721 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::GetStbc ( void ) const

virtual

Return whether STBC is supported.

Returns: true if STBC is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 894 of file yans-wifi-phy.cc.

References m_stbc.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxGain ( void ) const

Return the transmission gain (dB).

Returns: the transmission gain in dB

Definition at line 318 of file yans-wifi-phy.cc.

References m_txGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerEnd ( void ) const

virtual

Return the maximum available transmission power level (dBm).

Returns: the maximum available transmission power level (dBm)

Implements ns3::WifiPhy.

Definition at line 313 of file yans-wifi-phy.cc.

References m_txPowerEndDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerStart ( void ) const

virtual

Return the minimum available transmission power level (dBm).

Returns: the minimum available transmission power level (dBm)

Implements ns3::WifiPhy.

Definition at line 308 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::YansWifiPhy::GetTypeId ( void )

static

Definition at line 49 of file yans-wifi-phy.cc.

References GetCcaMode1Threshold(), GetChannelBonding(), GetChannelNumber(), GetEdThreshold(), GetFrequency(), GetGreenfield(), GetGuardInterval(), GetLdpc(), GetNumberOfReceiveAntennas(), GetNumberOfTransmitAntennas(), GetRxGain(), GetRxNoiseFigure(), GetStbc(), GetTxGain(), GetTxPowerEnd(), GetTxPowerStart(), m_channelSwitchDelay, m_nTxPower, m_state, ns3::MakeTimeChecker(), SetCcaMode1Threshold(), SetChannelBonding(), SetChannelNumber(), SetEdThreshold(), SetFrequency(), SetGreenfield(), SetGuardInterval(), SetLdpc(), SetNumberOfReceiveAntennas(), SetNumberOfTransmitAntennas(), ns3::TypeId::SetParent(), SetRxGain(), SetRxNoiseFigure(), SetStbc(), SetTxGain(), SetTxPowerEnd(), and SetTxPowerStart().

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsStateBusy ( void )

virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 700 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateCcaBusy ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implements ns3::WifiPhy.

Definition at line 689 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateIdle ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 695 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateRx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 705 of file yans-wifi-phy.cc.

References m_state.

Referenced by EndReceive().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateSwitching ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implements ns3::WifiPhy.

Definition at line 715 of file yans-wifi-phy.cc.

References m_state.

Referenced by SetChannelNumber().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateTx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 710 of file yans-wifi-phy.cc.

References m_state.

WifiMode ns3::YansWifiPhy::McsToWifiMode ( uint8_t mcs )

virtual

For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard.

Parameters

mcs	the MCS number

Returns: the WifiMode that corresponds to the given mcs number

Implements ns3::WifiPhy.

Definition at line 1037 of file yans-wifi-phy.cc.

Here is the call graph for this function:

double ns3::YansWifiPhy::RatioToDb ( double ratio ) const

private

Convert from ratio to dB.

Parameters

ratio

Returns: dB

Definition at line 758 of file yans-wifi-phy.cc.

Referenced by EndReceive(), and GetRxNoiseFigure().

Here is the caller graph for this function:

void ns3::YansWifiPhy::RegisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 683 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		WifiTxVector	txvector
	)

virtual

Parameters

packet	the packet to send
mode	the transmission mode to use to send this packet
preamble	the type of preamble to use to send this packet.
txvector	the txvector that has tx parameters as txPowerLevel a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implements ns3::WifiPhy.

Definition at line 548 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::EventId::Cancel(), GetChannelFrequencyMhz(), GetChannelNumber(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), GetPowerDbm(), ns3::Packet::GetSize(), ns3::WifiTxVector::GetTxPowerLevel(), m_channel, m_endRxEvent, m_interference, m_state, m_txGainDb, ns3::WifiPhy::NotifyMonitorSniffTx(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_PREAMBLE_SHORT.

Here is the call graph for this function:

void ns3::YansWifiPhy::SetCcaMode1Threshold ( double threshold )

Sets the CCA threshold (dBm).

The energy of a received signal should be higher than this threshold to allow the PHY layer to declare CCA BUSY state.

Parameters

threshold the CCA threshold in dBm

Definition at line 281 of file yans-wifi-phy.cc.

References DbmToW(), m_ccaMode1ThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannel ( Ptr< YansWifiChannel > channel )

Set the YansWifiChannel this YansWifiPhy is to be connected to.

Parameters

channel the YansWifiChannel this YansWifiPhy is to be connected to

Definition at line 368 of file yans-wifi-phy.cc.

References m_channel.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannelBonding ( bool channelbonding )

virtual

Enable or disable channel bonding support.

Parameters

channelbonding Enable or disable channel bonding

Implements ns3::WifiPhy.

Definition at line 912 of file yans-wifi-phy.cc.

References m_channelBonding.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannelNumber ( uint16_t id )

virtual

Set the current channel number.

Parameters

id	the channel number

Implements ns3::WifiPhy.

Definition at line 375 of file yans-wifi-phy.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), GetDelayUntilIdle(), ns3::WifiPhy::IDLE, IsStateSwitching(), m_channelNumber, m_channelSwitchDelay, m_endRxEvent, m_interference, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), and ns3::WifiPhy::TX.

Referenced by GetTypeId(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetDevice ( Ptr< Object > device )

Sets the device this PHY is associated with.

Parameters

device the device this PHY is associated with

Definition at line 292 of file yans-wifi-phy.cc.

References m_device.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetEdThreshold ( double threshold )

Sets the energy detection threshold (dBm).

The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.

Parameters

threshold the energy detction threshold in dBm

Definition at line 275 of file yans-wifi-phy.cc.

References DbmToW(), m_edThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetErrorRateModel ( Ptr< ErrorRateModel > rate )

Sets the error rate model.

Parameters

rate	the error rate model

Definition at line 287 of file yans-wifi-phy.cc.

References m_interference, and ns3::InterferenceHelper::SetErrorRateModel().

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetFrequency ( uint32_t freq )

virtual

Parameters

freq	the operating frequency on this node (2.4 GHz or 5GHz).

Implements ns3::WifiPhy.

Definition at line 827 of file yans-wifi-phy.cc.

References m_channelStartingFrequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetGreenfield ( bool greenfield )

virtual

Enable or disable Greenfield support.

Parameters

greenfield Enable or disable Greenfield

Implements ns3::WifiPhy.

Definition at line 856 of file yans-wifi-phy.cc.

References m_greenfield.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetGuardInterval ( bool guardInterval )

virtual

Enable or disable short/long guard interval.

Parameters

guardInterval Enable or disable guard interval

Implements ns3::WifiPhy.

Definition at line 866 of file yans-wifi-phy.cc.

References m_guardInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetLdpc ( bool ldpc )

virtual

Enable or disable LDPC.

Parameters

ldpc	Enable or disable LDPC

Implements ns3::WifiPhy.

Definition at line 844 of file yans-wifi-phy.cc.

References m_ldpc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetMobility ( Ptr< Object > mobility )

Sets the mobility model.

Parameters

mobility the mobility model this PHY is associated with

Definition at line 297 of file yans-wifi-phy.cc.

References m_mobility.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetNTxPower ( uint32_t n )

Sets the number of transmission power levels available between the minimum level and the maximum level.

Transmission power levels are equally separated (in dBm) with the minimum and the maximum included.

Parameters

n	the number of available levels

Definition at line 257 of file yans-wifi-phy.cc.

References m_nTxPower, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::SetNumberOfReceiveAntennas ( uint32_t rx )

virtual

Parameters

rx	the number of receivers on this node.

Implements ns3::WifiPhy.

Definition at line 838 of file yans-wifi-phy.cc.

References m_numberOfReceivers.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetNumberOfTransmitAntennas ( uint32_t tx )

virtual

Parameters

tx	the number of transmitters on this node.

Implements ns3::WifiPhy.

Definition at line 833 of file yans-wifi-phy.cc.

References m_numberOfTransmitters.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetReceiveErrorCallback ( WifiPhy::RxErrorCallback callback )

virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implements ns3::WifiPhy.

Definition at line 441 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::SetReceiveOkCallback ( WifiPhy::RxOkCallback callback )

virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implements ns3::WifiPhy.

Definition at line 436 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::SetRxGain ( double gain )

Sets the reception gain (dB).

Parameters

gain	the reception gain in dB

Definition at line 269 of file yans-wifi-phy.cc.

References m_rxGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetRxNoiseFigure ( double noiseFigureDb )

Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver.

Parameters

noiseFigureDb noise figure in dB

Definition at line 239 of file yans-wifi-phy.cc.

References DbToRatio(), m_interference, NS_LOG_FUNCTION, and ns3::InterferenceHelper::SetNoiseFigure().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetStbc ( bool stbc )

virtual

Enable or disable STBC.

Parameters

stbc	Enable or disable STBC

Implements ns3::WifiPhy.

Definition at line 850 of file yans-wifi-phy.cc.

References m_stbc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxGain ( double gain )

Sets the transmission gain (dB).

Parameters

gain	the transmission gain in dB

Definition at line 263 of file yans-wifi-phy.cc.

References m_txGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerEnd ( double end )

Sets the maximum available transmission power level (dBm).

Parameters

end	the maximum transmission power level (dBm)

Definition at line 251 of file yans-wifi-phy.cc.

References m_txPowerEndDbm, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerStart ( double start )

Sets the minimum available transmission power level (dBm).

Parameters

start the minimum transmission power level (dBm)

Definition at line 245 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::StartReceivePacket	(	Ptr< Packet >	packet,
		double	rxPowerDbm,
		WifiTxVector	txVector,
		WifiPreamble	preamble
	)

Starting receiving the packet (i.e.

the first bit of the preamble has arrived).

Parameters

packet	the arriving packet
rxPowerDbm	the receive power in dBm
txVector	the TXVECTOR of the arriving packet
preamble	the preamble of the arriving packet

Definition at line 446 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::Add(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::CCA_BUSY, DbmToW(), EndReceive(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiTxVector::GetMode(), ns3::Packet::GetSize(), ns3::WifiPhy::IDLE, ns3::EventId::IsExpired(), ns3::Time::IsZero(), m_ccaMode1ThresholdW, m_edThresholdW, m_endRxEvent, m_interference, m_rxGainDb, m_state, ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxStart(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Here is the call graph for this function:

uint32_t ns3::YansWifiPhy::WifiModeToMcs ( WifiMode mode )

virtual

For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard.

Parameters

mode	the WifiMode

Returns: the MCS number that corresponds to the given WifiMode

Implements ns3::WifiPhy.

Definition at line 975 of file yans-wifi-phy.cc.

References ns3::WifiMode::GetDataRate(), and ns3::WifiMode::GetUniqueName().

Here is the call graph for this function:

double ns3::YansWifiPhy::WToDbm ( double w ) const

private

Convert from Watts to dBm.

Parameters

w	the power in Watts

Returns: the equivalent dBm for the given Watts

Definition at line 752 of file yans-wifi-phy.cc.

Referenced by GetCcaMode1Threshold(), and GetEdThreshold().

Here is the caller graph for this function:

Member Data Documentation

std::vector<uint32_t> ns3::YansWifiPhy::m_bssMembershipSelectorSet

private

Definition at line 516 of file yans-wifi-phy.h.

Referenced by Configure80211n(), GetBssMembershipSelector(), and GetNBssMembershipSelectors().

double ns3::YansWifiPhy::m_ccaMode1ThresholdW

private

Clear channel assessment (CCA) threshold in watts.

Definition at line 457 of file yans-wifi-phy.h.

Referenced by GetCcaMode1Threshold(), SetCcaMode1Threshold(), and StartReceivePacket().

Ptr<YansWifiChannel> ns3::YansWifiPhy::m_channel

private

YansWifiChannel that this YansWifiPhy is connected to.

Definition at line 464 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetChannel(), SendPacket(), and SetChannel().

bool ns3::YansWifiPhy::m_channelBonding

private

Flag if channel conding is used.

Definition at line 475 of file yans-wifi-phy.h.

Referenced by GetChannelBonding(), and SetChannelBonding().

uint16_t ns3::YansWifiPhy::m_channelNumber

private

Operating channel number.

Definition at line 465 of file yans-wifi-phy.h.

Referenced by GetChannelNumber(), and SetChannelNumber().

double ns3::YansWifiPhy::m_channelStartingFrequency

private

Standard-dependent center frequency of 0-th channel in MHz.

Definition at line 521 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), ConfigureHolland(), ConfigureStandard(), GetChannelFrequencyMhz(), GetFrequency(), and SetFrequency().

Time ns3::YansWifiPhy::m_channelSwitchDelay

private

Time required to switch between channel.

Definition at line 524 of file yans-wifi-phy.h.

Referenced by GetTypeId(), and SetChannelNumber().

Ptr<Object> ns3::YansWifiPhy::m_device

private

Pointer to the device.

Definition at line 466 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

std::vector<uint8_t> ns3::YansWifiPhy::m_deviceMcsSet

private

Definition at line 517 of file yans-wifi-phy.h.

Referenced by Configure80211n(), DoDispose(), GetMcs(), and GetNMcs().

WifiModeList ns3::YansWifiPhy::m_deviceRateSet

private

This vector holds the set of transmission modes that this WifiPhy(-derived class) can support.

In conversation we call this the DeviceRateSet (not a term you'll find in the standard), and it is a superset of standard-defined parameters such as the OperationalRateSet, and the BSSBasicRateSet (which, themselves, have a superset/subset relationship).

Mandatory rates relevant to this WifiPhy can be found by iterating over this vector looking for WifiMode objects for which WifiMode::IsMandatory() is true.

A quick note is appropriate here (well, here is as good a place as any I can find)...

In the standard there is no text that explicitly precludes production of a device that does not support some rates that are mandatory (according to the standard) for PHYs that the device happens to fully or partially support.

This approach is taken by some devices which choose to only support, for example, 6 and 9 Mbps ERP-OFDM rates for cost and power consumption reasons (i.e., these devices don't need to be designed for and waste current on the increased linearity requirement of higher-order constellations when 6 and 9 Mbps more than meet their data requirements). The wording of the standard allows such devices to have an OperationalRateSet which includes 6 and 9 Mbps ERP-OFDM rates, despite 12 and 24 Mbps being "mandatory" rates for the ERP-OFDM PHY.

Now this doesn't actually have any impact on code, yet. It is, however, something that we need to keep in mind for the future. Basically, the key point is that we can't be making assumptions like "the Operational Rate Set will contain all the mandatory rates".

Definition at line 514 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), DoDispose(), GetMode(), and GetNModes().
