the interface for Wifi's error models More...

#include <error-rate-model.h>

Inheritance diagram for ns3::ErrorRateModel:

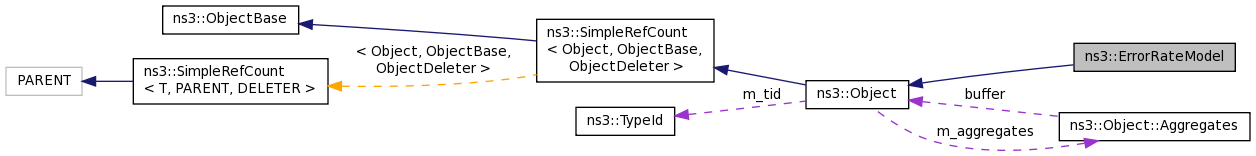

Collaboration diagram for ns3::ErrorRateModel:

Public Member Functions
double	CalculateSnr (WifiMode txMode, double ber) const

virtual double	GetChunkSuccessRate (WifiMode mode, double snr, uint32_t nbits) const =0
	A pure virtual method that must be implemented in the subclass. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

the interface for Wifi's error models

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 33 of file error-rate-model.h.

Member Function Documentation

double ns3::ErrorRateModel::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

Parameters

txMode	a specific transmission mode
ber	a target ber

Returns: the snr which corresponds to the requested ber.

Definition at line 36 of file error-rate-model.cc.

References GetChunkSuccessRate(), and NS_ASSERT.

Here is the call graph for this function:

virtual double ns3::ErrorRateModel::GetChunkSuccessRate	(	WifiMode	mode,
		double	snr,
		uint32_t	nbits
	)		const

pure virtual

A pure virtual method that must be implemented in the subclass.

This method returns the probability that the given 'chuck' of the packet will be successfully received by the PHY.

A chuck can be viewed as a part of a packet with equal SNR. The probability of successfully receiving the chunk depends on the mode, the SNR, and the size of the chunk.

Parameters
