handles interference calculations More...

#include <interference-helper.h>

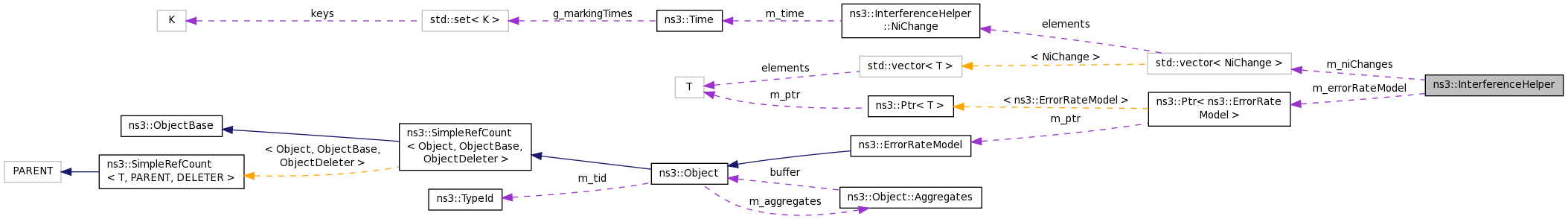

Collaboration diagram for ns3::InterferenceHelper:

Classes
class	Event
	Signal event for a packet. More...

class	NiChange
	Noise and Interference (thus Ni) event. More...

struct	SnrPer
	A struct for both SNR and PER. More...

Public Member Functions
	InterferenceHelper ()

	~InterferenceHelper ()

Ptr< InterferenceHelper::Event >	Add (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble, Time duration, double rxPower, WifiTxVector txvector)
	Add the packet-related signal to interference helper. More...

struct InterferenceHelper::SnrPer	CalculateSnrPer (Ptr< InterferenceHelper::Event > event)
	Calculate the SNIR at the start of the packet and accumulate all SNIR changes in the snir vector. More...

void	EraseEvents (void)
	Erase all events. More...

Time	GetEnergyDuration (double energyW)

Ptr< ErrorRateModel >	GetErrorRateModel (void) const
	Return the error rate model. More...

double	GetNoiseFigure (void) const
	Return the noise figure. More...

void	NotifyRxEnd ()
	Notify that RX has ended. More...

void	NotifyRxStart ()
	Notify that RX has started. More...

void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
	Set the error rate model for this interference helper. More...

void	SetNoiseFigure (double value)
	Set the noise figure. More...

Private Types
typedef std::list< Ptr< Event > >	Events
	typedef for a list of Events More...

typedef std::vector< NiChange >	NiChanges
	typedef for a vector of NiChanges More...

Private Member Functions
void	AddNiChangeEvent (NiChange change)
	Add NiChange to the list at the appropriate position. More...

void	AppendEvent (Ptr< Event > event)
	Append the given Event. More...

double	CalculateChunkSuccessRate (double snir, Time duration, WifiMode mode) const
	Calculate the success rate of the chunk given the SINR, duration, and Wi-Fi mode. More...

double	CalculateNoiseInterferenceW (Ptr< Event > event, NiChanges *ni) const
	Calculate noise and interference power in W. More...

double	CalculatePer (Ptr< const Event > event, NiChanges *ni) const
	Calculate the error rate of the given packet. More...

double	CalculateSnr (double signal, double noiseInterference, WifiMode mode) const
	Calculate SNR (linear ratio) from the given signal power and noise+interference power. More...

NiChanges::iterator	GetPosition (Time moment)
	Returns an iterator to the first nichange, which is later than moment. More...

Private Attributes
Ptr< ErrorRateModel >	m_errorRateModel

double	m_firstPower

NiChanges	m_niChanges
	Experimental: needed for energy duration calculation. More...

double	m_noiseFigure
	noise figure (linear) More...

bool	m_rxing

Detailed Description

handles interference calculations

Definition at line 41 of file interference-helper.h.

Member Typedef Documentation

typedef std::list<Ptr<Event> > ns3::InterferenceHelper::Events

private

typedef for a list of Events

Definition at line 248 of file interference-helper.h.

typedef std::vector<NiChange> ns3::InterferenceHelper::NiChanges

private

typedef for a vector of NiChanges

Definition at line 244 of file interference-helper.h.

Constructor & Destructor Documentation

ns3::InterferenceHelper::InterferenceHelper ( )

Definition at line 124 of file interference-helper.cc.

ns3::InterferenceHelper::~InterferenceHelper ( )

Definition at line 130 of file interference-helper.cc.

References EraseEvents(), and m_errorRateModel.

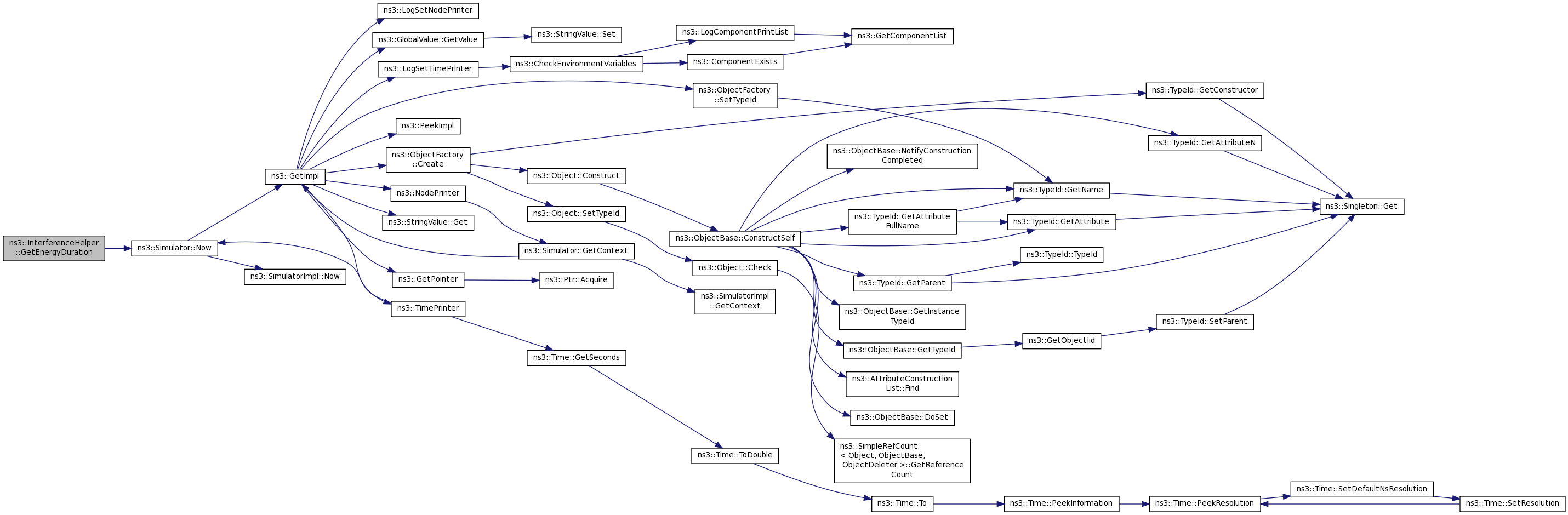

Here is the call graph for this function:

Member Function Documentation

Ptr< InterferenceHelper::Event > ns3::InterferenceHelper::Add	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble,
		Time	duration,
		double	rxPower,
		WifiTxVector	txvector
	)

Add the packet-related signal to interference helper.

Parameters

size	packet size
payloadMode	Wi-Fi mode for the payload
preamble	Wi-Fi preamble for the packet
duration	the duration of the signal
rxPower	receive power (w)
txvector	TXVECTOR of the packet

Returns: InterferenceHelper::Event

Definition at line 137 of file interference-helper.cc.

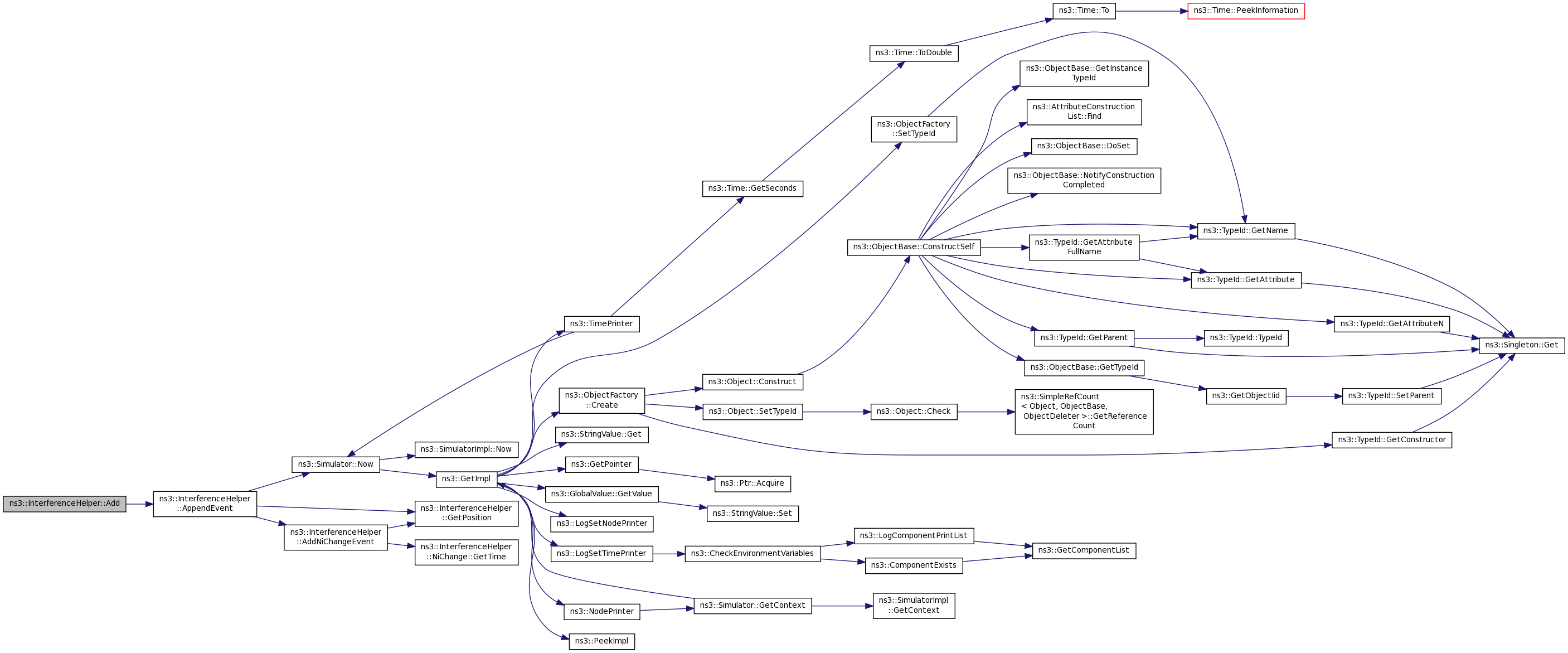

References AppendEvent().

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelper::AddNiChangeEvent ( NiChange change )

private

Add NiChange to the list at the appropriate position.

Parameters

change

Definition at line 575 of file interference-helper.cc.

References GetPosition(), ns3::InterferenceHelper::NiChange::GetTime(), and m_niChanges.

Referenced by AppendEvent().

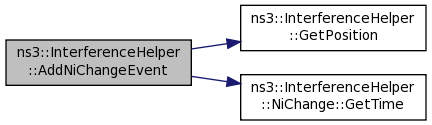

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelper::AppendEvent ( Ptr< Event > event )

private

Append the given Event.

Parameters

event

Definition at line 202 of file interference-helper.cc.

References AddNiChangeEvent(), GetPosition(), m_firstPower, m_niChanges, m_rxing, and ns3::Simulator::Now().

Referenced by Add().

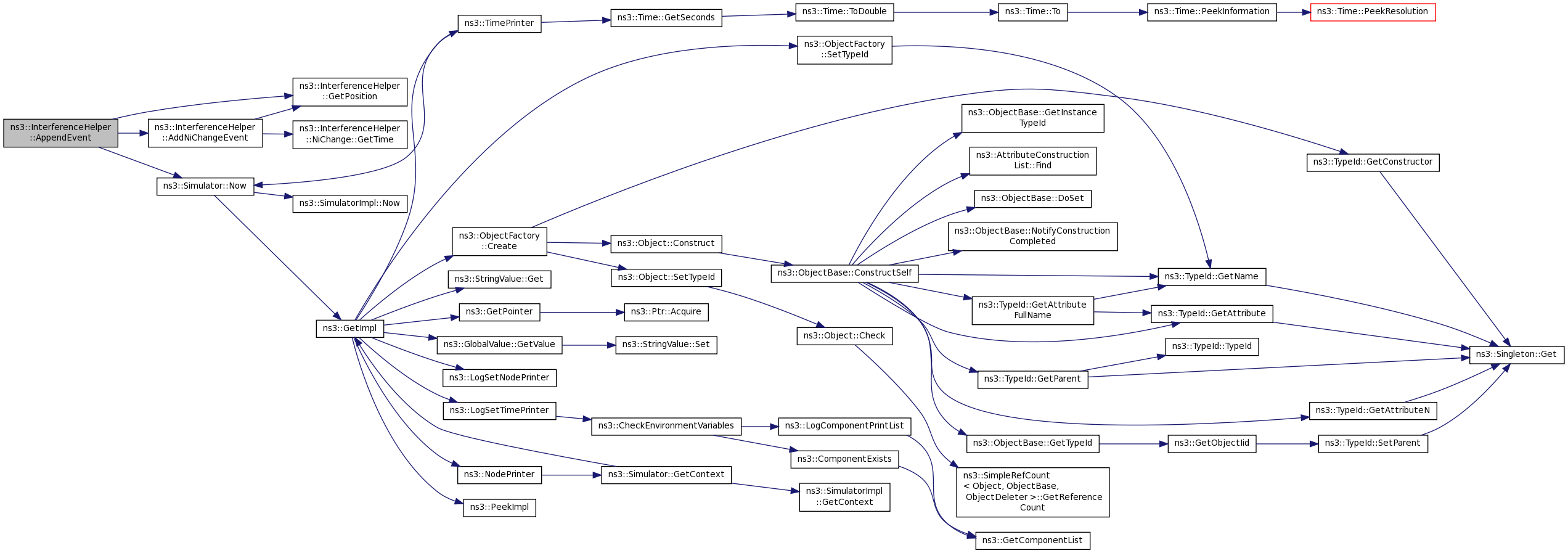

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateChunkSuccessRate	(	double	snir,
		Time	duration,
		WifiMode	mode
	)		const

private

Calculate the success rate of the chunk given the SINR, duration, and Wi-Fi mode.

The duration and mode are used to calculate how many bits are present in the chunk.

Parameters

snir	SINR
duration
mode

Returns: the success rate

Definition at line 257 of file interference-helper.cc.

References ns3::WifiMode::GetPhyRate(), ns3::Time::GetSeconds(), and m_errorRateModel.

Referenced by CalculatePer().

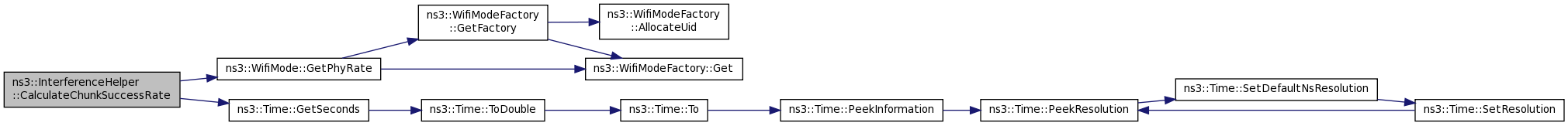

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateNoiseInterferenceW	(	Ptr< Event >	event,
		NiChanges *	ni
	)		const

private

Calculate noise and interference power in W.

Parameters

event
ni

Returns: noise and interference power

Definition at line 239 of file interference-helper.cc.

References m_firstPower, m_niChanges, m_rxing, and NS_ASSERT.

Referenced by CalculateSnrPer().

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculatePer	(	Ptr< const Event >	event,
		NiChanges *	ni
	)		const

private

Calculate the error rate of the given packet.

The packet can be divided into multiple chunks (e.g. due to interference from other transmissions).

Parameters

event
ni

Returns: the error rate of the packet

Definition at line 270 of file interference-helper.cc.

References CalculateChunkSuccessRate(), CalculateSnr(), current, ns3::WifiPhy::GetMFPlcpHeaderMode(), ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpHtSigHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHtTrainingSymbolDurationMicroSeconds(), ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds(), NS_ASSERT, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by CalculateSnrPer().

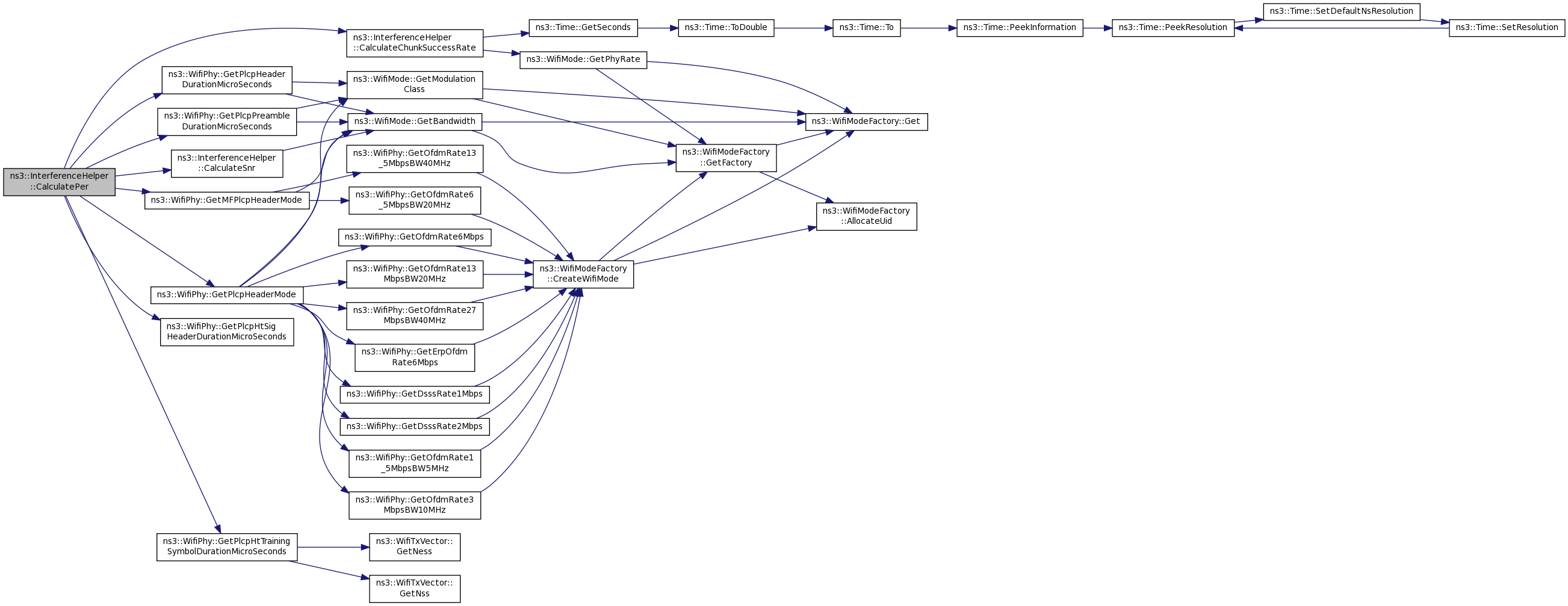

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateSnr	(	double	signal,
		double	noiseInterference,
		WifiMode	mode
	)		const

private

Calculate SNR (linear ratio) from the given signal power and noise+interference power.

(Mode is not currently used)

Parameters

signal
noiseInterference
mode

Returns: SNR in liear ratio

Definition at line 225 of file interference-helper.cc.

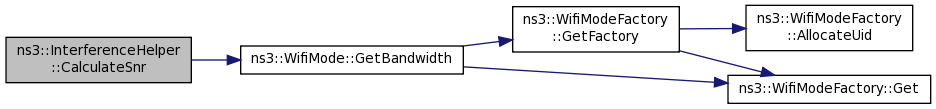

References ns3::WifiMode::GetBandwidth(), and m_noiseFigure.

Referenced by CalculatePer(), and CalculateSnrPer().

Here is the call graph for this function:

Here is the caller graph for this function:

struct InterferenceHelper::SnrPer ns3::InterferenceHelper::CalculateSnrPer ( Ptr< InterferenceHelper::Event > event )

Calculate the SNIR at the start of the packet and accumulate all SNIR changes in the snir vector.

Parameters

event the event corresponding to the first time the packet arrives

Returns: struct of SNR and PER

Definition at line 542 of file interference-helper.cc.

References CalculateNoiseInterferenceW(), CalculatePer(), CalculateSnr(), ns3::InterferenceHelper::SnrPer::per, and ns3::InterferenceHelper::SnrPer::snr.

Referenced by ns3::YansWifiPhy::EndReceive().

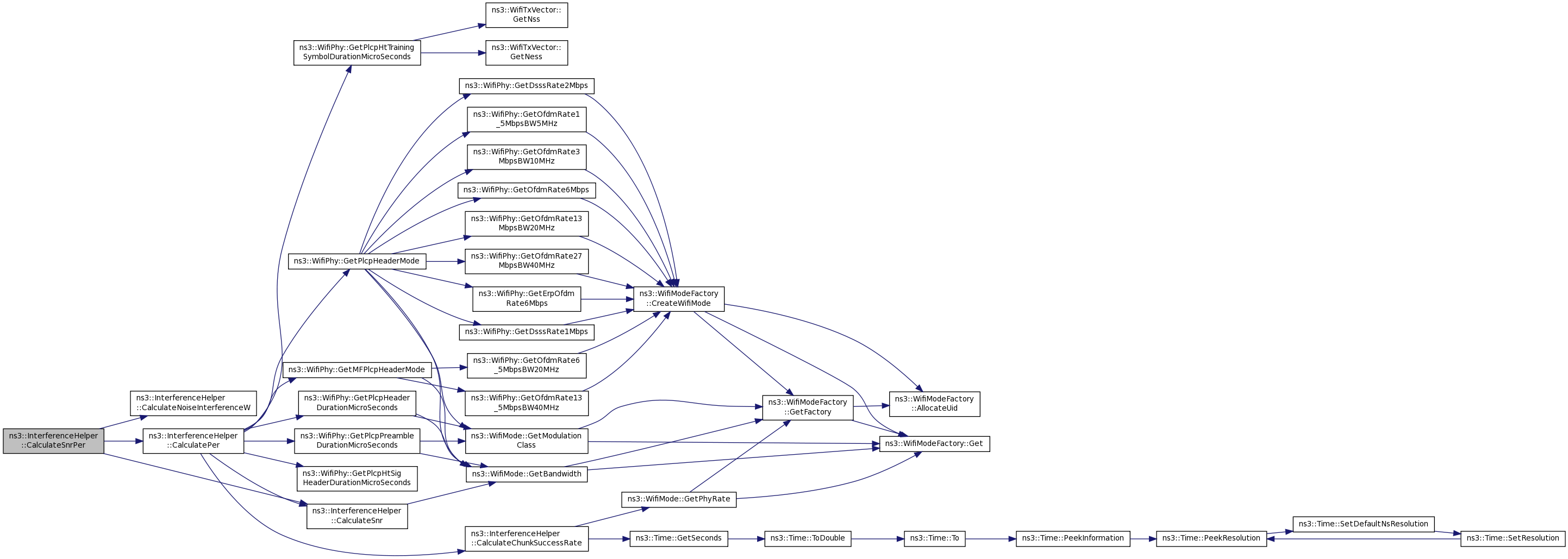

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelper::EraseEvents ( void )

Erase all events.

Definition at line 562 of file interference-helper.cc.

References m_firstPower, m_niChanges, and m_rxing.

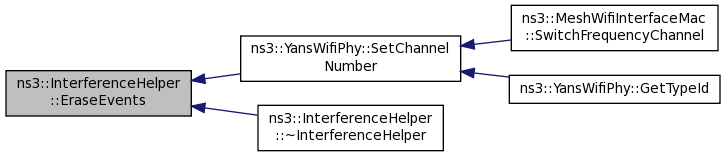

Referenced by ns3::YansWifiPhy::SetChannelNumber(), and ~InterferenceHelper().

Here is the caller graph for this function:

Time ns3::InterferenceHelper::GetEnergyDuration ( double energyW )

Parameters

energyW the minimum energy (W) requested

Returns: the expected amount of time the observed energy on the medium will be higher than the requested threshold.

Definition at line 179 of file interference-helper.cc.

References m_firstPower, m_niChanges, and ns3::Simulator::Now().

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< ErrorRateModel > ns3::InterferenceHelper::GetErrorRateModel ( void ) const

Return the error rate model.

Returns: Error rate model

Definition at line 173 of file interference-helper.cc.

References m_errorRateModel.

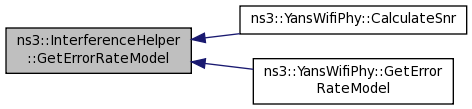

Referenced by ns3::YansWifiPhy::CalculateSnr(), and ns3::YansWifiPhy::GetErrorRateModel().

Here is the caller graph for this function:

double ns3::InterferenceHelper::GetNoiseFigure ( void ) const

Return the noise figure.

Returns: the noise figure

Definition at line 161 of file interference-helper.cc.

References m_noiseFigure.

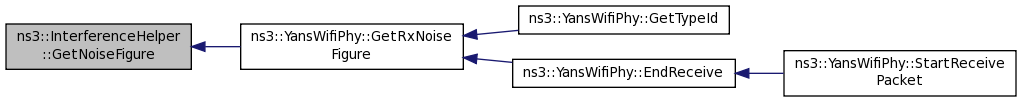

Referenced by ns3::YansWifiPhy::GetRxNoiseFigure().

Here is the caller graph for this function:

InterferenceHelper::NiChanges::iterator ns3::InterferenceHelper::GetPosition ( Time moment )

private

Returns an iterator to the first nichange, which is later than moment.

Definition at line 569 of file interference-helper.cc.

References m_niChanges.

Referenced by AddNiChangeEvent(), and AppendEvent().

Here is the caller graph for this function:

void ns3::InterferenceHelper::NotifyRxEnd ( )

Notify that RX has ended.

Definition at line 585 of file interference-helper.cc.

References m_rxing.

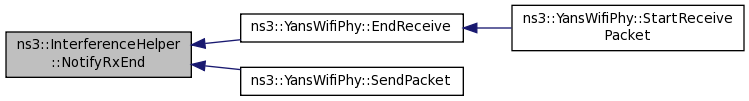

Referenced by ns3::YansWifiPhy::EndReceive(), and ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::InterferenceHelper::NotifyRxStart ( void )

Notify that RX has started.

Definition at line 580 of file interference-helper.cc.

References m_rxing.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

void ns3::InterferenceHelper::SetErrorRateModel ( Ptr< ErrorRateModel > rate )

Set the error rate model for this interference helper.

Parameters

rate	Error rate model

Definition at line 167 of file interference-helper.cc.

References m_errorRateModel.

Referenced by ns3::YansWifiPhy::SetErrorRateModel().

Here is the caller graph for this function:

void ns3::InterferenceHelper::SetNoiseFigure ( double value )

Set the noise figure.

Parameters

value noise figure

Definition at line 155 of file interference-helper.cc.

References m_noiseFigure.

Referenced by ns3::YansWifiPhy::SetRxNoiseFigure().

Here is the caller graph for this function:

Member Data Documentation

Ptr<ErrorRateModel> ns3::InterferenceHelper::m_errorRateModel

private

Definition at line 297 of file interference-helper.h.

Referenced by CalculateChunkSuccessRate(), GetErrorRateModel(), SetErrorRateModel(), and ~InterferenceHelper().

double ns3::InterferenceHelper::m_firstPower

private

Definition at line 300 of file interference-helper.h.

Referenced by AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), and GetEnergyDuration().

NiChanges ns3::InterferenceHelper::m_niChanges

private

Experimental: needed for energy duration calculation.

Definition at line 299 of file interference-helper.h.

Referenced by AddNiChangeEvent(), AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), GetEnergyDuration(), and GetPosition().

double ns3::InterferenceHelper::m_noiseFigure

private

noise figure (linear)

Definition at line 296 of file interference-helper.h.

Referenced by CalculateSnr(), GetNoiseFigure(), and SetNoiseFigure().

bool ns3::InterferenceHelper::m_rxing

private

Definition at line 301 of file interference-helper.h.

Referenced by AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), NotifyRxEnd(), and NotifyRxStart().

The documentation for this class was generated from the following files:

src/wifi/model/interference-helper.h
src/wifi/model/interference-helper.cc

Classes

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
