Signal event for a packet. More...

#include <interference-helper.h>

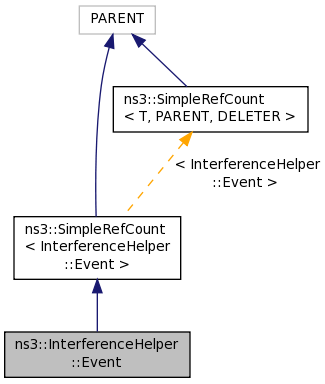

Inheritance diagram for ns3::InterferenceHelper::Event:

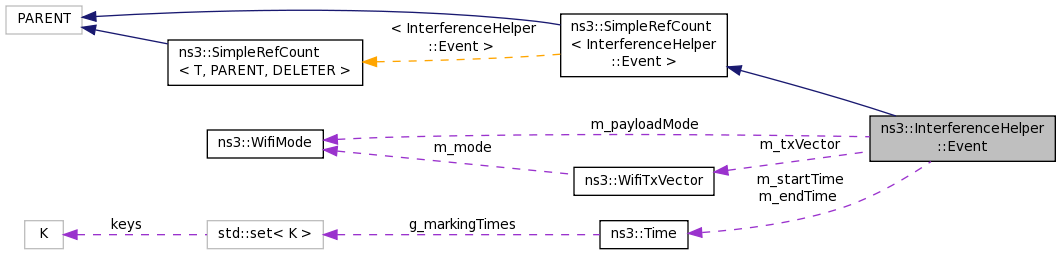

Collaboration diagram for ns3::InterferenceHelper::Event:

Public Member Functions
	Event (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble, Time duration, double rxPower, WifiTxVector txvector)
	Create an Event with the given parameters. More...

	~Event ()

Time	GetDuration (void) const
	Return the duration of the signal. More...

Time	GetEndTime (void) const
	Return the end time of the signal. More...

WifiMode	GetPayloadMode (void) const
	Return the Wi-Fi mode used for the payload. More...

enum WifiPreamble	GetPreambleType (void) const
	Return the preamble type of the packet. More...

double	GetRxPowerW (void) const
	Return the receive power (w). More...

uint32_t	GetSize (void) const
	Return the size of the packet (bytes). More...

Time	GetStartTime (void) const
	Return the start time of the signal. More...

WifiTxVector	GetTxVector (void) const
	Return the TXVECTOR of the packet. More...

Public Member Functions inherited from ns3::SimpleRefCount< InterferenceHelper::Event >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Time	m_endTime

WifiMode	m_payloadMode

enum WifiPreamble	m_preamble

double	m_rxPowerW

uint32_t	m_size

Time	m_startTime

WifiTxVector	m_txVector

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< InterferenceHelper::Event >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Signal event for a packet.

Definition at line 47 of file interference-helper.h.

Constructor & Destructor Documentation

ns3::InterferenceHelper::Event::Event	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble,
		Time	duration,
		double	rxPower,
		WifiTxVector	txvector
	)

Create an Event with the given parameters.

Parameters

size	packet size
payloadMode	Wi-Fi mode used for the payload
preamble	preamble type
duration	duration of the signal
rxPower	the receive power (w)
txvector	TXVECTOR of the packet

Definition at line 35 of file interference-helper.cc.

ns3::InterferenceHelper::Event::~Event ( )

Definition at line 47 of file interference-helper.cc.

Member Function Documentation

Time ns3::InterferenceHelper::Event::GetDuration ( void ) const

Return the duration of the signal.

Returns: the duration of the signal

Definition at line 52 of file interference-helper.cc.

Time ns3::InterferenceHelper::Event::GetEndTime ( void ) const

Return the end time of the signal.

Returns: the end time of the signal

Definition at line 62 of file interference-helper.cc.

WifiMode ns3::InterferenceHelper::Event::GetPayloadMode ( void ) const

Return the Wi-Fi mode used for the payload.

Returns: the Wi-Fi mode used for the payload

Definition at line 77 of file interference-helper.cc.

enum WifiPreamble ns3::InterferenceHelper::Event::GetPreambleType ( void ) const

Return the preamble type of the packet.

Returns: the preamble type of the packet

Definition at line 82 of file interference-helper.cc.

double ns3::InterferenceHelper::Event::GetRxPowerW ( void ) const

Return the receive power (w).

Returns: the receive power (w)

Definition at line 67 of file interference-helper.cc.

uint32_t ns3::InterferenceHelper::Event::GetSize ( void ) const

Return the size of the packet (bytes).

Returns: the size of the packet (bytes)

Definition at line 72 of file interference-helper.cc.

Time ns3::InterferenceHelper::Event::GetStartTime ( void ) const

Return the start time of the signal.

Returns: the start time of the signal

Definition at line 57 of file interference-helper.cc.

WifiTxVector ns3::InterferenceHelper::Event::GetTxVector ( void ) const

Return the TXVECTOR of the packet.

Returns: the TXVECTOR of the packet

Definition at line 88 of file interference-helper.cc.

Member Data Documentation

Time ns3::InterferenceHelper::Event::m_endTime

private

Definition at line 118 of file interference-helper.h.

WifiMode ns3::InterferenceHelper::Event::m_payloadMode

private

Definition at line 115 of file interference-helper.h.

enum WifiPreamble ns3::InterferenceHelper::Event::m_preamble

private

Definition at line 116 of file interference-helper.h.

double ns3::InterferenceHelper::Event::m_rxPowerW

private

Definition at line 119 of file interference-helper.h.

uint32_t ns3::InterferenceHelper::Event::m_size

private

Definition at line 114 of file interference-helper.h.

Time ns3::InterferenceHelper::Event::m_startTime

private

Definition at line 117 of file interference-helper.h.

WifiTxVector ns3::InterferenceHelper::Event::m_txVector

private

Definition at line 120 of file interference-helper.h.

The documentation for this class was generated from the following files:

src/wifi/model/interference-helper.h
src/wifi/model/interference-helper.cc
