This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission. More...

#include <wifi-tx-vector.h>

Collaboration diagram for ns3::WifiTxVector:

Public Member Functions
	WifiTxVector ()

	WifiTxVector (WifiMode mode, uint8_t powerLevel, uint8_t retries, bool shortGuardInterval, uint8_t nss, uint8_t ness, bool stbc)
	Create a TXVECTOR with the given parameters. More...

WifiMode	GetMode (void) const

uint8_t	GetNess (void) const

uint8_t	GetNss (void) const

uint8_t	GetRetries (void) const

uint8_t	GetTxPowerLevel (void) const

bool	IsShortGuardInterval (void) const

bool	IsStbc (void) const
	Check if STBC is used or not. More...

void	SetMode (WifiMode mode)
	Sets the selected payload transmission mode. More...

void	SetNess (uint8_t ness)
	Sets the Ness number refer to IEEE802.11n Table 20-6 for explanation. More...

void	SetNss (uint8_t nss)
	Sets the number of Nss refer to IEEE802.11n Table 20-28 for explanation and range. More...

void	SetRetries (uint8_t retries)
	Sets the number of retries. More...

void	SetShortGuardInterval (bool guardinterval)
	Sets if short gurad interval is being used. More...

void	SetStbc (bool stbc)
	Sets if STBC is being used. More...

void	SetTxPowerLevel (uint8_t powerlevel)
	Sets the selected transmission power level. More...

Private Attributes
WifiMode	m_mode
	The DATARATE parameter in Table 15-4. More...

uint8_t	m_ness

uint8_t	m_nss

uint8_t	m_retries
	The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information. More...

bool	m_shortGuardInterval

bool	m_stbc

uint8_t	m_txPowerLevel
	The TXPWR_LEVEL parameter in Table 15-4. More...

Detailed Description

This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission.

See IEEE 802.11-2007 15.2.6 "Transmit PLCP", and also 15.4.4.2 "PMD_SAP peer-to-peer service primitive parameters".

Note: the above reference is valid for the DSSS PHY only (clause 15). TXVECTOR is defined also for the other PHYs, however they don't include the TXPWRLVL explicitly in the TXVECTOR. This is somewhat strange, since all PHYs actually have a PMD_TXPWRLVL.request primitive. We decide to include the power level in WifiTxVector for all PHYs, since it serves better our purposes, and furthermore it seems close to the way real devices work (e.g., madwifi).

Definition at line 47 of file wifi-tx-vector.h.

Constructor & Destructor Documentation

ns3::WifiTxVector::WifiTxVector ( )

Definition at line 26 of file wifi-tx-vector.cc.

ns3::WifiTxVector::WifiTxVector	(	WifiMode	mode,
		uint8_t	powerLevel,
		uint8_t	retries,
		bool	shortGuardInterval,
		uint8_t	nss,
		uint8_t	ness,
		bool	stbc
	)

Create a TXVECTOR with the given parameters.

Parameters

mode	WifiMode
powerLevel	transmission power level
retries	retries
shortGuardInterval	enable or disable short guard interval
nss	the number of spatial STBC streams (NSS)
ness	the number of extension spatial streams (NESS)
stbc	enable or disable STBC

Definition at line 30 of file wifi-tx-vector.cc.

Member Function Documentation

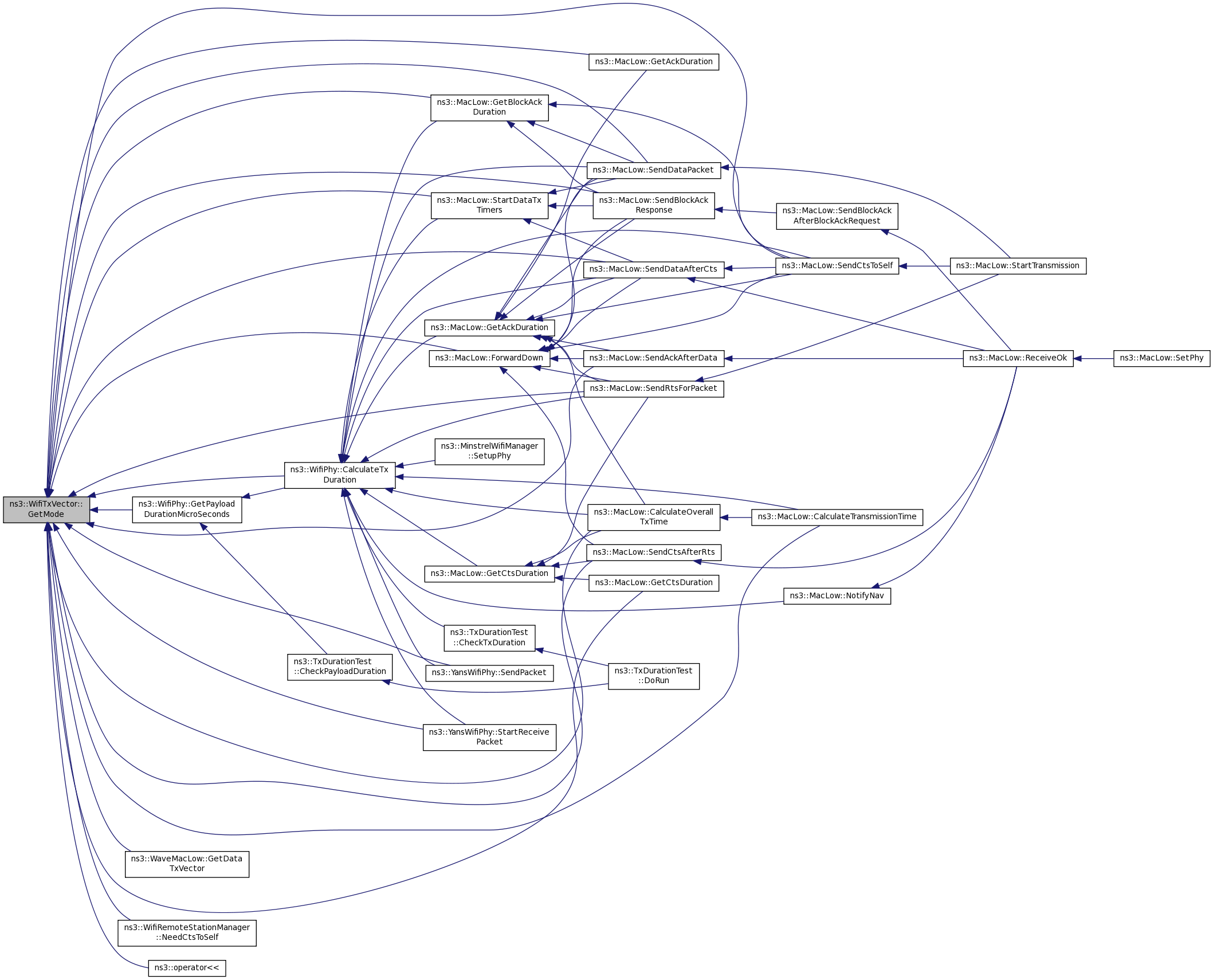

WifiMode ns3::WifiTxVector::GetMode ( void ) const

Returns: the txvector payload mode

Definition at line 42 of file wifi-tx-vector.cc.

References m_mode.

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::WifiPhy::CalculateTxDuration(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::MacLow::GetCtsDuration(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::WifiRemoteStationManager::NeedCtsToSelf(), ns3::operator<<(), ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), ns3::MacLow::StartDataTxTimers(), and ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

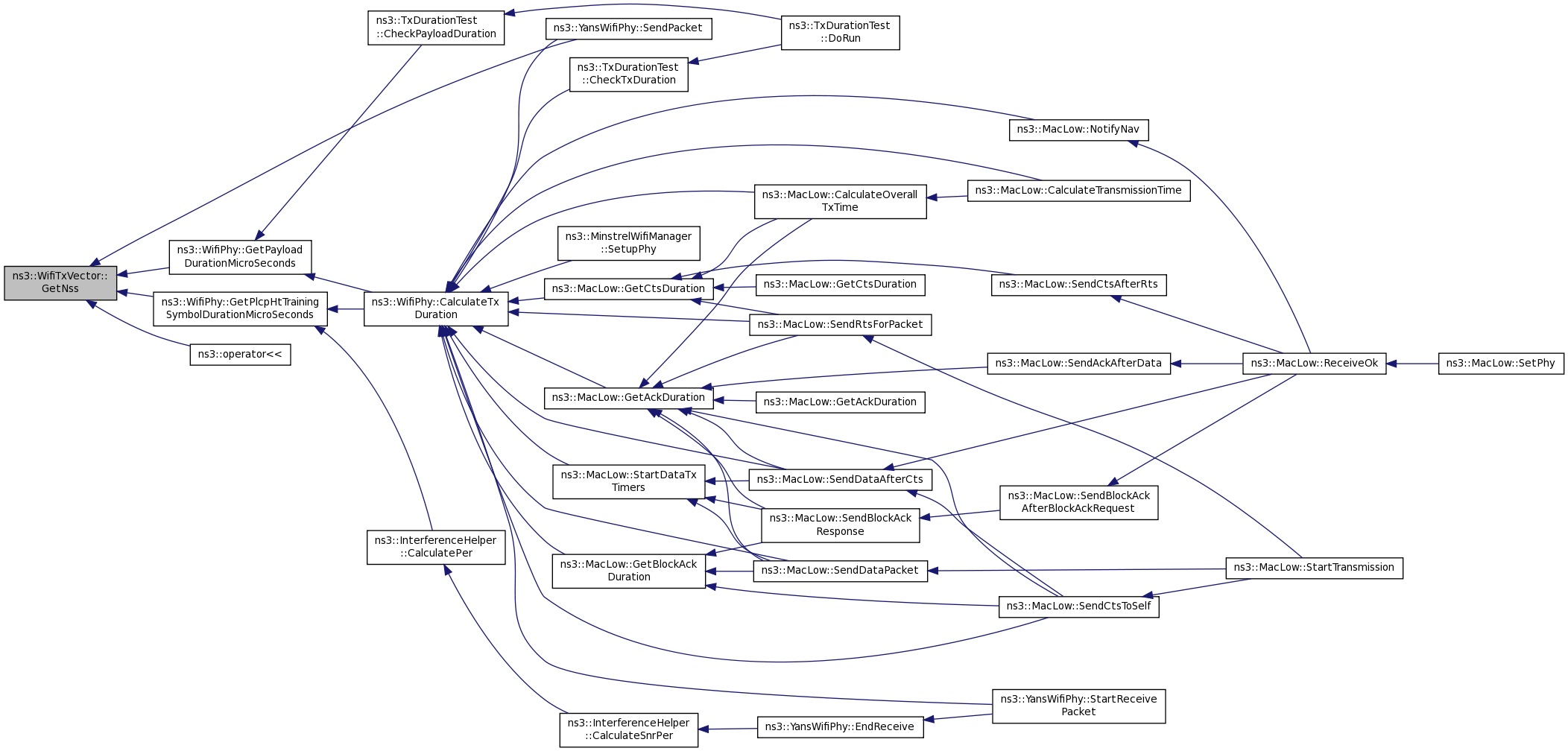

uint8_t ns3::WifiTxVector::GetNess ( void ) const

Returns: the number of Ness

Definition at line 67 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::WifiPhy::GetPlcpHtTrainingSymbolDurationMicroSeconds(), and ns3::operator<<().

Here is the caller graph for this function:

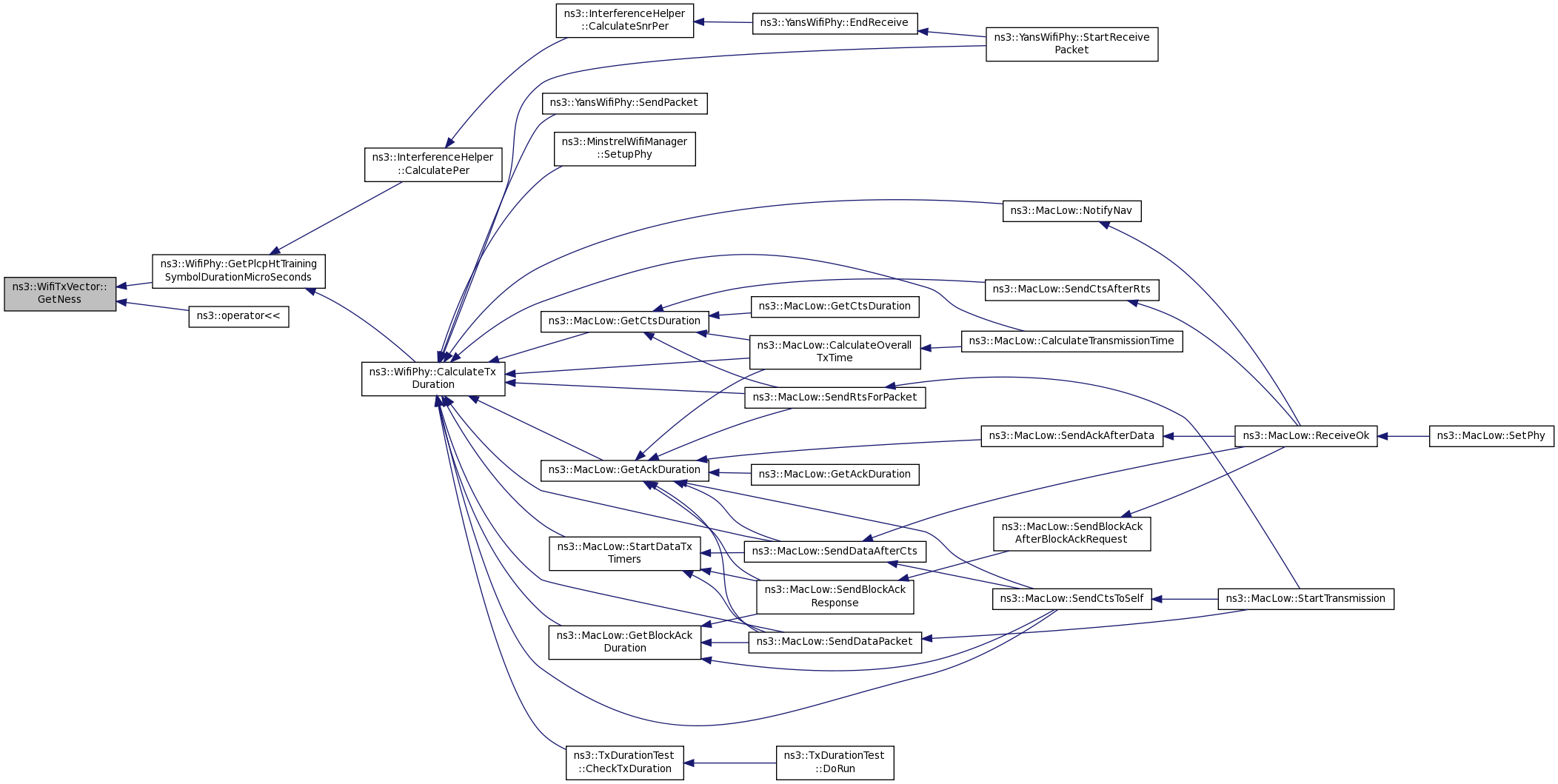

uint8_t ns3::WifiTxVector::GetNss ( void ) const

Returns: the number of Nss

Definition at line 62 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::WifiPhy::GetPayloadDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHtTrainingSymbolDurationMicroSeconds(), ns3::operator<<(), and ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetRetries ( void ) const

Returns: the number of retries

Definition at line 52 of file wifi-tx-vector.cc.

References m_retries.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

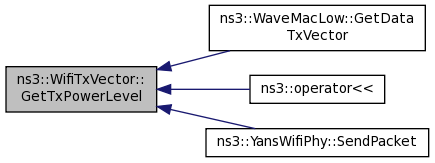

uint8_t ns3::WifiTxVector::GetTxPowerLevel ( void ) const

Returns: the transmission power level

Definition at line 47 of file wifi-tx-vector.cc.

References m_txPowerLevel.

Referenced by ns3::WaveMacLow::GetDataTxVector(), ns3::operator<<(), and ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

bool ns3::WifiTxVector::IsShortGuardInterval ( void ) const

Returns: if ShortGuardInterval is used or not

Definition at line 57 of file wifi-tx-vector.cc.

References m_shortGuardInterval.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

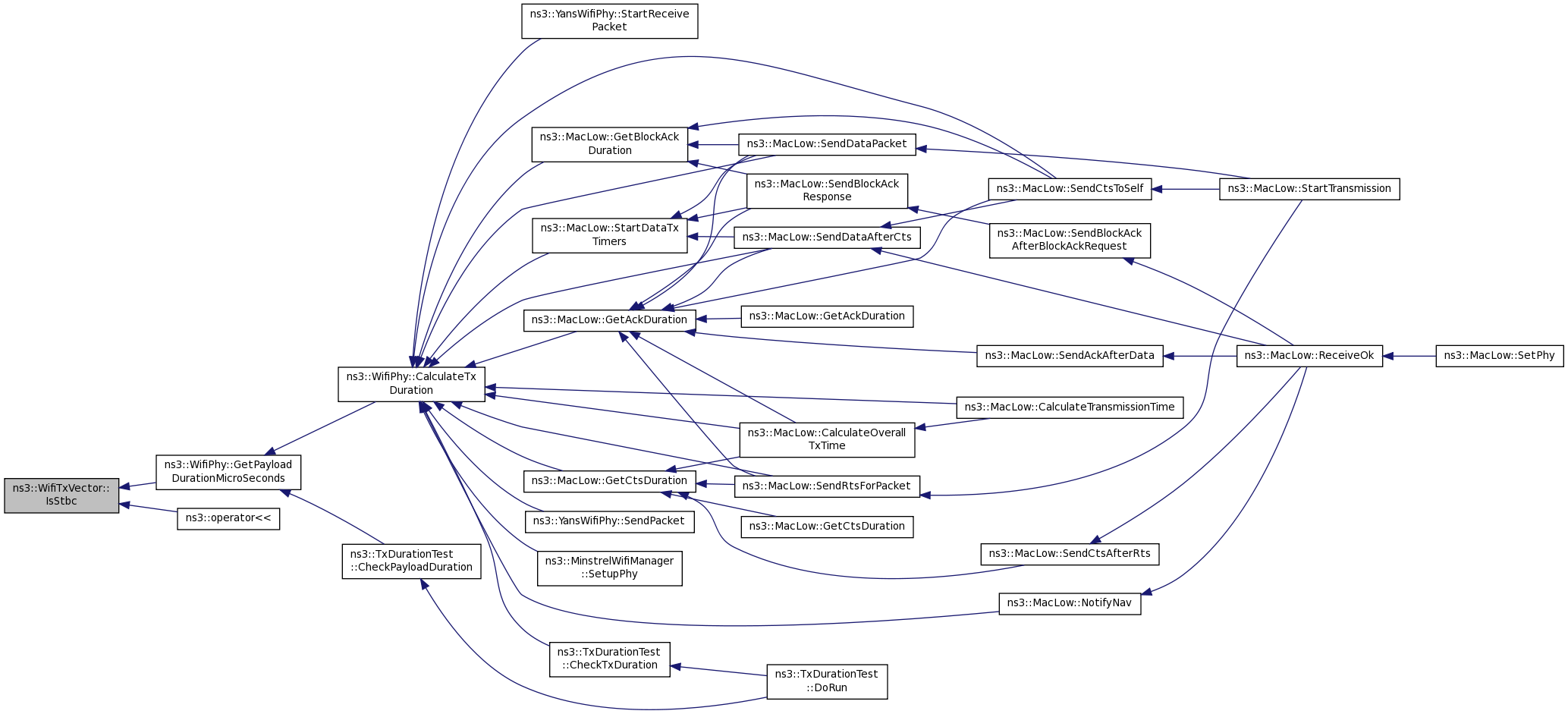

bool ns3::WifiTxVector::IsStbc ( void ) const

Check if STBC is used or not.

Returns: true if STBC is used, false otherwise

Definition at line 72 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::WifiPhy::GetPayloadDurationMicroSeconds(), and ns3::operator<<().

Here is the caller graph for this function:

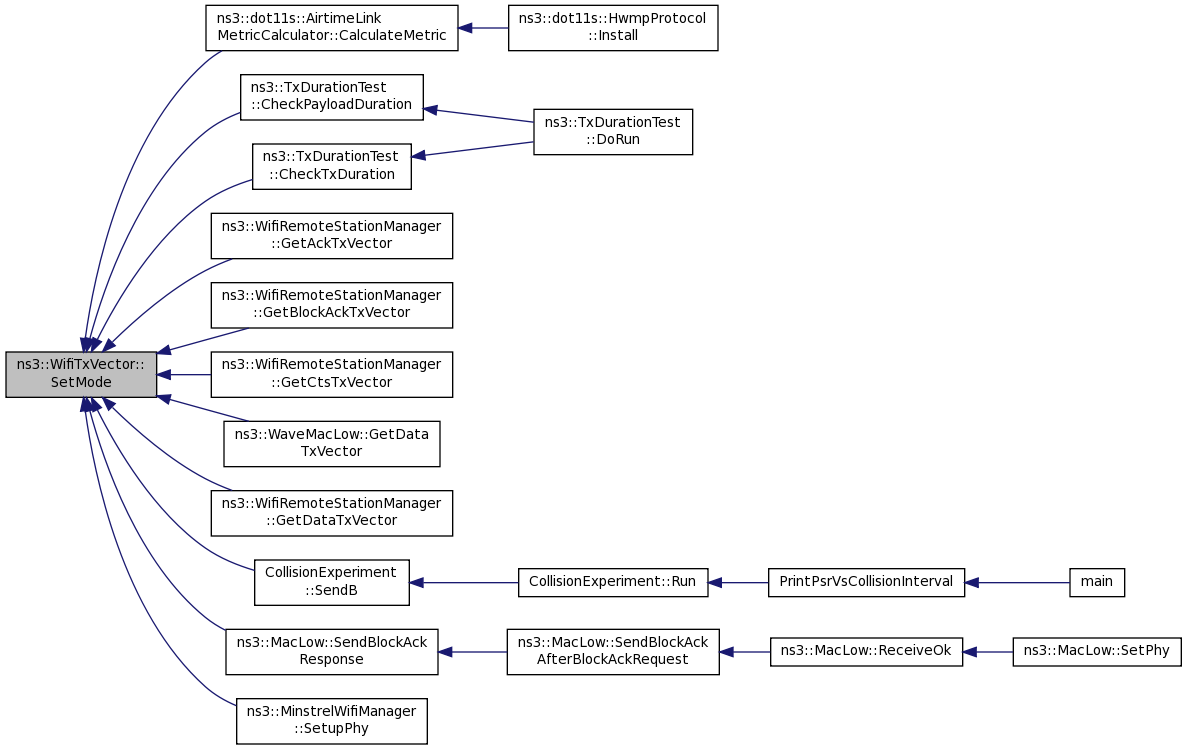

void ns3::WifiTxVector::SetMode ( WifiMode mode )

Sets the selected payload transmission mode.

Parameters

mode

Definition at line 78 of file wifi-tx-vector.cc.

References m_mode.

Referenced by ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::TxDurationTest::CheckPayloadDuration(), ns3::TxDurationTest::CheckTxDuration(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), CollisionExperiment::SendB(), ns3::MacLow::SendBlockAckResponse(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

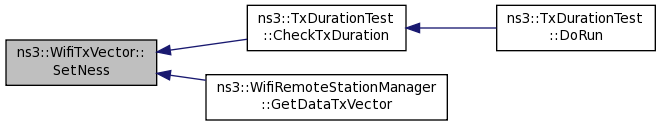

void ns3::WifiTxVector::SetNess ( uint8_t ness )

Sets the Ness number refer to IEEE802.11n Table 20-6 for explanation.

Parameters

ness

Definition at line 103 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::TxDurationTest::CheckTxDuration(), and ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNss ( uint8_t nss )

Sets the number of Nss refer to IEEE802.11n Table 20-28 for explanation and range.

Parameters

nss

Definition at line 98 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::TxDurationTest::CheckTxDuration(), ns3::WifiRemoteStationManager::GetDataTxVector(), and ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetRetries ( uint8_t retries )

Sets the number of retries.

Parameters

retries

Definition at line 88 of file wifi-tx-vector.cc.

References m_retries.

void ns3::WifiTxVector::SetShortGuardInterval ( bool guardinterval )

Sets if short gurad interval is being used.

Parameters

guardinterval enable or disable short guard interval

Definition at line 93 of file wifi-tx-vector.cc.

References m_shortGuardInterval.

Referenced by ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetStbc ( bool stbc )

Sets if STBC is being used.

Parameters

stbc	enable or disable STBC

Definition at line 108 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::TxDurationTest::CheckTxDuration(), ns3::WifiRemoteStationManager::GetDataTxVector(), and ns3::MacLow::SendBlockAckResponse().

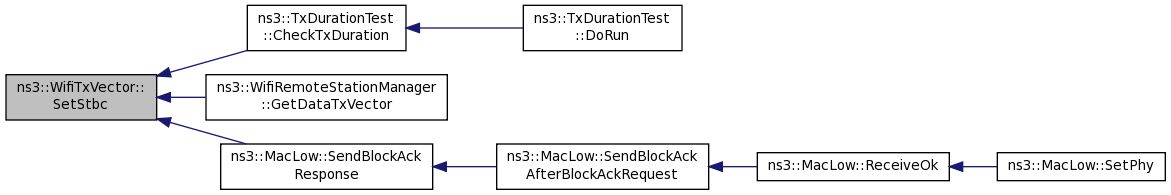

Here is the caller graph for this function:

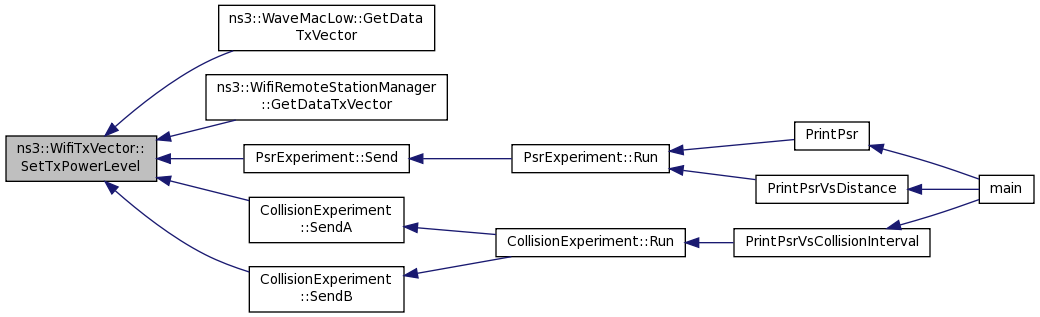

void ns3::WifiTxVector::SetTxPowerLevel ( uint8_t powerlevel )

Sets the selected transmission power level.

Parameters

powerlevel

Definition at line 83 of file wifi-tx-vector.cc.

References m_txPowerLevel.

Referenced by ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), PsrExperiment::Send(), CollisionExperiment::SendA(), and CollisionExperiment::SendB().

Here is the caller graph for this function:

Member Data Documentation

WifiMode ns3::WifiTxVector::m_mode

private

The DATARATE parameter in Table 15-4.

It is the value that will be passed to PMD_RATE.request

Definition at line 139 of file wifi-tx-vector.h.

Referenced by GetMode(), and SetMode().

uint8_t ns3::WifiTxVector::m_ness

private

Definition at line 149 of file wifi-tx-vector.h.

Referenced by GetNess(), and SetNess().

uint8_t ns3::WifiTxVector::m_nss

private

Definition at line 148 of file wifi-tx-vector.h.

Referenced by GetNss(), and SetNss().

uint8_t ns3::WifiTxVector::m_retries

private

The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information.

Definition at line 145 of file wifi-tx-vector.h.

Referenced by GetRetries(), and SetRetries().

bool ns3::WifiTxVector::m_shortGuardInterval

private

Definition at line 147 of file wifi-tx-vector.h.

Referenced by IsShortGuardInterval(), and SetShortGuardInterval().

bool ns3::WifiTxVector::m_stbc

private

Definition at line 150 of file wifi-tx-vector.h.

Referenced by IsStbc(), and SetStbc().

uint8_t ns3::WifiTxVector::m_txPowerLevel

private

The TXPWR_LEVEL parameter in Table 15-4.

It is the value that will be passed to PMD_TXPWRLVL.request

Definition at line 142 of file wifi-tx-vector.h.

Referenced by GetTxPowerLevel(), and SetTxPowerLevel().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-tx-vector.h
src/wifi/model/wifi-tx-vector.cc
