ns3::YansWifiChannel Class Reference

A Yans wifi channelThis wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...

#include <yans-wifi-channel.h>

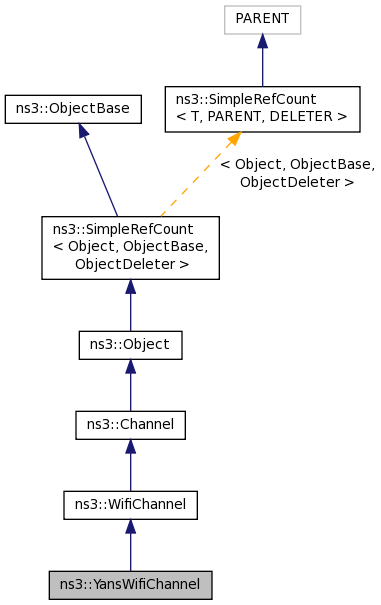

+ Inheritance diagram for ns3::YansWifiChannel:

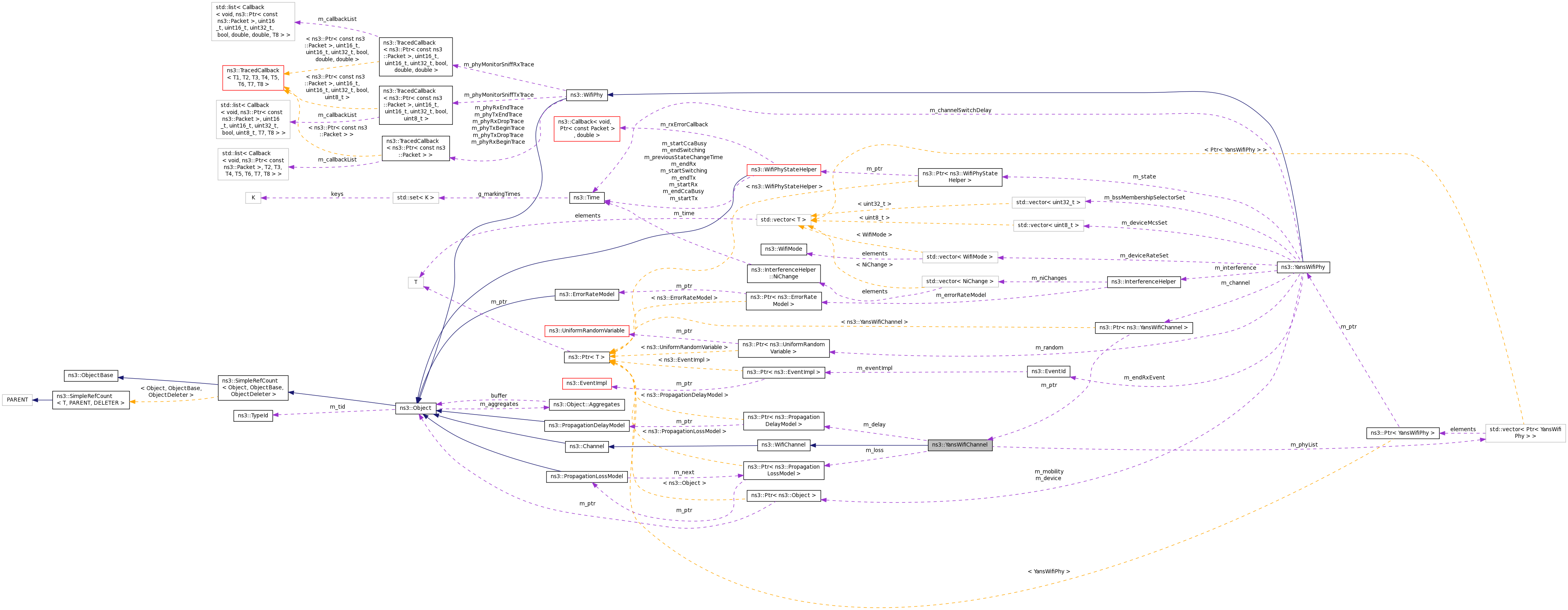

+ Collaboration diagram for ns3::YansWifiChannel:

Public Member Functions

 YansWifiChannel ()

virtual ~YansWifiChannel ()

void Add (Ptr< YansWifiPhy > phy)
 Adds the given YansWifiPhy to the PHY list. More...

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

virtual Ptr< NetDeviceGetDevice (uint32_t i) const

virtual uint32_t GetNDevices (void) const

void Send (Ptr< YansWifiPhy > sender, Ptr< const Packet > packet, double txPowerDbm, WifiTxVector txVector, WifiPreamble preamble) const

void SetPropagationDelayModel (Ptr< PropagationDelayModel > delay)

void SetPropagationLossModel (Ptr< PropagationLossModel > loss)

- Public Member Functions inherited from ns3::Channel
 Channel ()

virtual ~Channel ()

uint32_t GetId (void) const

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::WifiChannel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Channel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::vector< Ptr
< YansWifiPhy > >
PhyList
 A vector of pointers to YansWifiPhy. More...


Private Member Functions

void Receive (uint32_t i, Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble) const
 This method is scheduled by Send for each associated YansWifiPhy. More...


Private Attributes

Ptr< PropagationDelayModelm_delay
 Propagation delay model. More...

Ptr< PropagationLossModelm_loss
 Propagation loss model. More...

PhyList m_phyList
 List of YansWifiPhys connected to this YansWifiChannel. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

A Yans wifi channel

This wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This class is expected to be used in tandem with the ns3::YansWifiPhy class and contains a ns3::PropagationLossModel and a ns3::PropagationDelayModel. By default, no propagation models are set so, it is the caller's responsability to set them before using the channel.

Config Paths

ns3::YansWifiChannel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel
  • /ChannelList/[i]/$ns3::YansWifiChannel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel

Attributes

  • PropagationLossModel: A pointer to the propagation loss model attached to this channel.
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::PropagationLossModel >
    • Initial value: 0
    • Flags: construct write read
  • PropagationDelayModel: A pointer to the propagation delay model attached to this channel.
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::PropagationDelayModel >
    • Initial value: 0
    • Flags: construct write read

Attributes defined in parent class ns3::Channel

No TraceSources are defined for this type.

Definition at line 50 of file yans-wifi-channel.h.

Member Typedef Documentation

typedef std::vector<Ptr<YansWifiPhy> > ns3::YansWifiChannel::PhyList
private

A vector of pointers to YansWifiPhy.

Definition at line 110 of file yans-wifi-channel.h.

Constructor & Destructor Documentation

ns3::YansWifiChannel::YansWifiChannel ( )

Definition at line 58 of file yans-wifi-channel.cc.

ns3::YansWifiChannel::~YansWifiChannel ( )
virtual

Definition at line 61 of file yans-wifi-channel.cc.

References m_phyList, and NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::YansWifiChannel::Add ( Ptr< YansWifiPhy phy)

Adds the given YansWifiPhy to the PHY list.

Parameters
phythe YansWifiPhy to be added to the PHY list

Definition at line 137 of file yans-wifi-channel.cc.

References m_phyList.

int64_t ns3::YansWifiChannel::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 143 of file yans-wifi-channel.cc.

References ns3::PropagationLossModel::AssignStreams(), and m_loss.

+ Here is the call graph for this function:

Ptr< NetDevice > ns3::YansWifiChannel::GetDevice ( uint32_t  i) const
virtual
Parameters
iindex of NetDevice to retrieve
Returns
one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 131 of file yans-wifi-channel.cc.

References m_phyList.

uint32_t ns3::YansWifiChannel::GetNDevices ( void  ) const
virtual
Returns
the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 126 of file yans-wifi-channel.cc.

References m_phyList.

TypeId ns3::YansWifiChannel::GetTypeId ( void  )
static

Definition at line 41 of file yans-wifi-channel.cc.

References m_delay, m_loss, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::YansWifiChannel::Receive ( uint32_t  i,
Ptr< Packet packet,
double  rxPowerDbm,
WifiTxVector  txVector,
WifiPreamble  preamble
) const
private

This method is scheduled by Send for each associated YansWifiPhy.

The method then calls the corresponding YansWifiPhy that the first bit of the packet has arrived.

Parameters
iindex of the corresponding YansWifiPhy in the PHY list
packetthe packet being sent
rxPowerDbmthe received power of the packet
txVectorthe TXVECTOR of the packet
preamblethe type of preamble being used to send the packet

Definition at line 119 of file yans-wifi-channel.cc.

References m_phyList.

Referenced by Send().

+ Here is the caller graph for this function:

void ns3::YansWifiChannel::Send ( Ptr< YansWifiPhy sender,
Ptr< const Packet packet,
double  txPowerDbm,
WifiTxVector  txVector,
WifiPreamble  preamble
) const
Parameters
senderthe device from which the packet is originating.
packetthe packet to send
txPowerDbmthe tx power associated to the packet
txVectorthe TXVECTOR associated to the packet
preamblethe preamble associated to the packet

This method should not be invoked by normal users. It is currently invoked only from WifiPhy::Send. YansWifiChannel delivers packets only between PHYs with the same m_channelNumber, e.g. PHYs that are operating on the same channel.

Definition at line 79 of file yans-wifi-channel.cc.

References ns3::PropagationLossModel::CalcRxPower(), ns3::Packet::Copy(), ns3::YansWifiPhy::GetChannelNumber(), ns3::MobilityModel::GetDistanceFrom(), ns3::YansWifiPhy::GetMobility(), ns3::Object::GetObject(), m_delay, m_loss, m_phyList, NS_ASSERT, NS_LOG_DEBUG, Receive(), and ns3::Simulator::ScheduleWithContext().

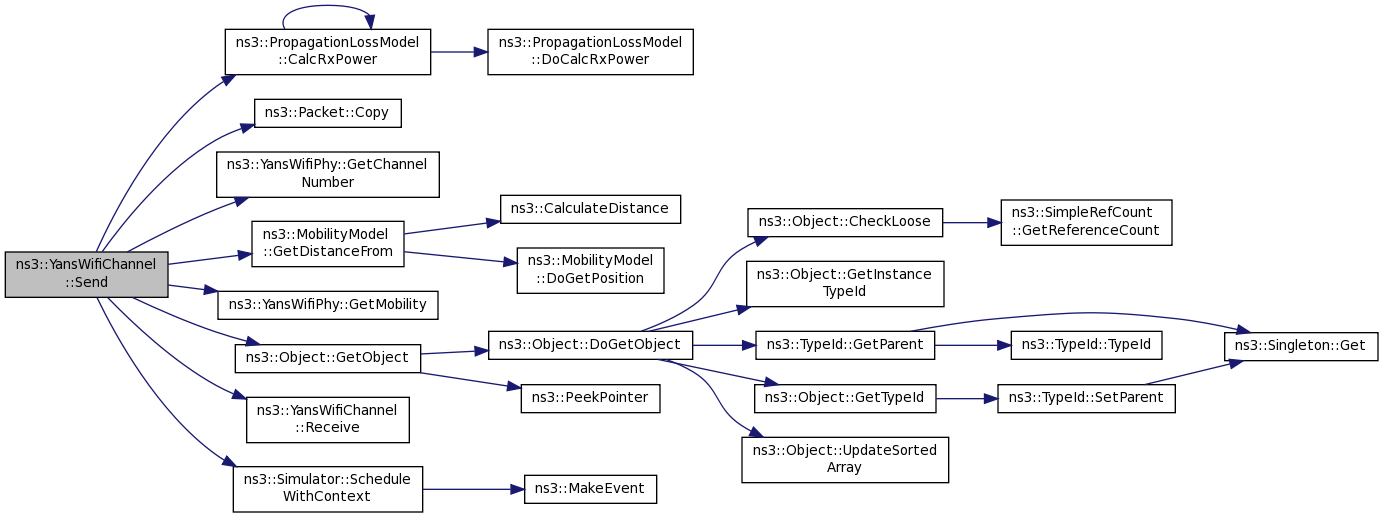

+ Here is the call graph for this function:

void ns3::YansWifiChannel::SetPropagationDelayModel ( Ptr< PropagationDelayModel delay)
Parameters
delaythe new propagation delay model.

Definition at line 73 of file yans-wifi-channel.cc.

References m_delay.

Referenced by experiment().

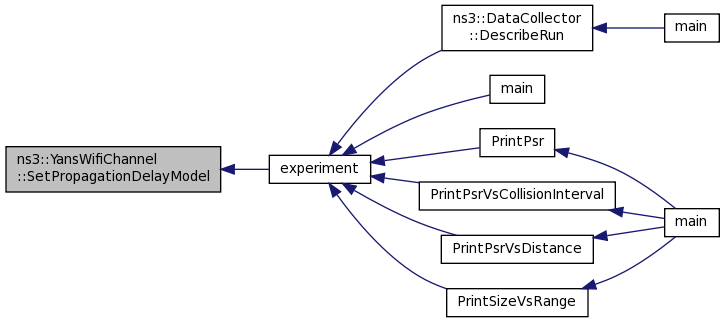

+ Here is the caller graph for this function:

void ns3::YansWifiChannel::SetPropagationLossModel ( Ptr< PropagationLossModel loss)
Parameters
lossthe new propagation loss model.

Definition at line 68 of file yans-wifi-channel.cc.

References m_loss.

Referenced by experiment().

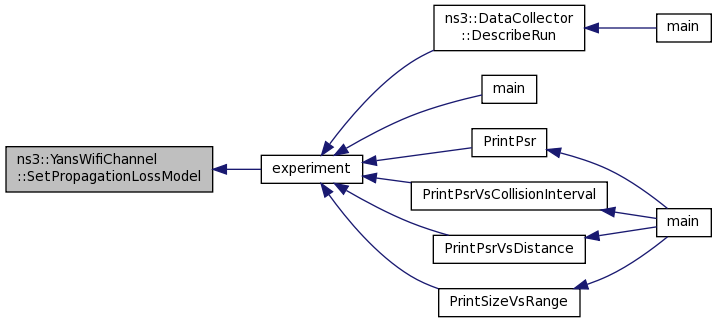

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<PropagationDelayModel> ns3::YansWifiChannel::m_delay
private

Propagation delay model.

Definition at line 128 of file yans-wifi-channel.h.

Referenced by GetTypeId(), Send(), and SetPropagationDelayModel().

Ptr<PropagationLossModel> ns3::YansWifiChannel::m_loss
private

Propagation loss model.

Definition at line 127 of file yans-wifi-channel.h.

Referenced by AssignStreams(), GetTypeId(), Send(), and SetPropagationLossModel().

PhyList ns3::YansWifiChannel::m_phyList
private

List of YansWifiPhys connected to this YansWifiChannel.

Definition at line 126 of file yans-wifi-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), Receive(), Send(), and ~YansWifiChannel().


The documentation for this class was generated from the following files:
