This class implements a testing PDCP entity. More...

#include <lte-test-entities.h>

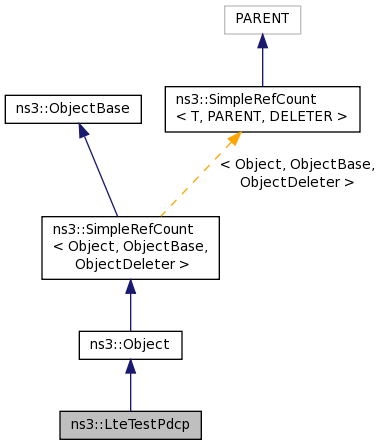

Inheritance diagram for ns3::LteTestPdcp:

Collaboration diagram for ns3::LteTestPdcp:

Public Member Functions
	LteTestPdcp (void)

virtual	~LteTestPdcp (void)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

std::string	GetDataReceived (void)

LteRlcSapUser *	GetLteRlcSapUser (void)
	Get the RLC SAP user. More...

void	SendData (Time time, std::string dataToSend)

void	SetLteRlcSapProvider (LteRlcSapProvider *s)
	Set the RLC SAP provider. More...

void	Start ()
	START. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoReceivePdcpPdu (Ptr< Packet > p)
	RLC SAP. More...

Private Attributes
std::string	m_receivedData

LteRlcSapProvider *	m_rlcSapProvider

LteRlcSapUser *	m_rlcSapUser

Friends
class	LteRlcSpecificLteRlcSapUser< LteTestPdcp >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a testing PDCP entity.

Definition at line 111 of file lte-test-entities.h.

Constructor & Destructor Documentation

ns3::LteTestPdcp::LteTestPdcp ( void )

Definition at line 246 of file lte-test-entities.cc.

References m_rlcSapUser, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and Start().

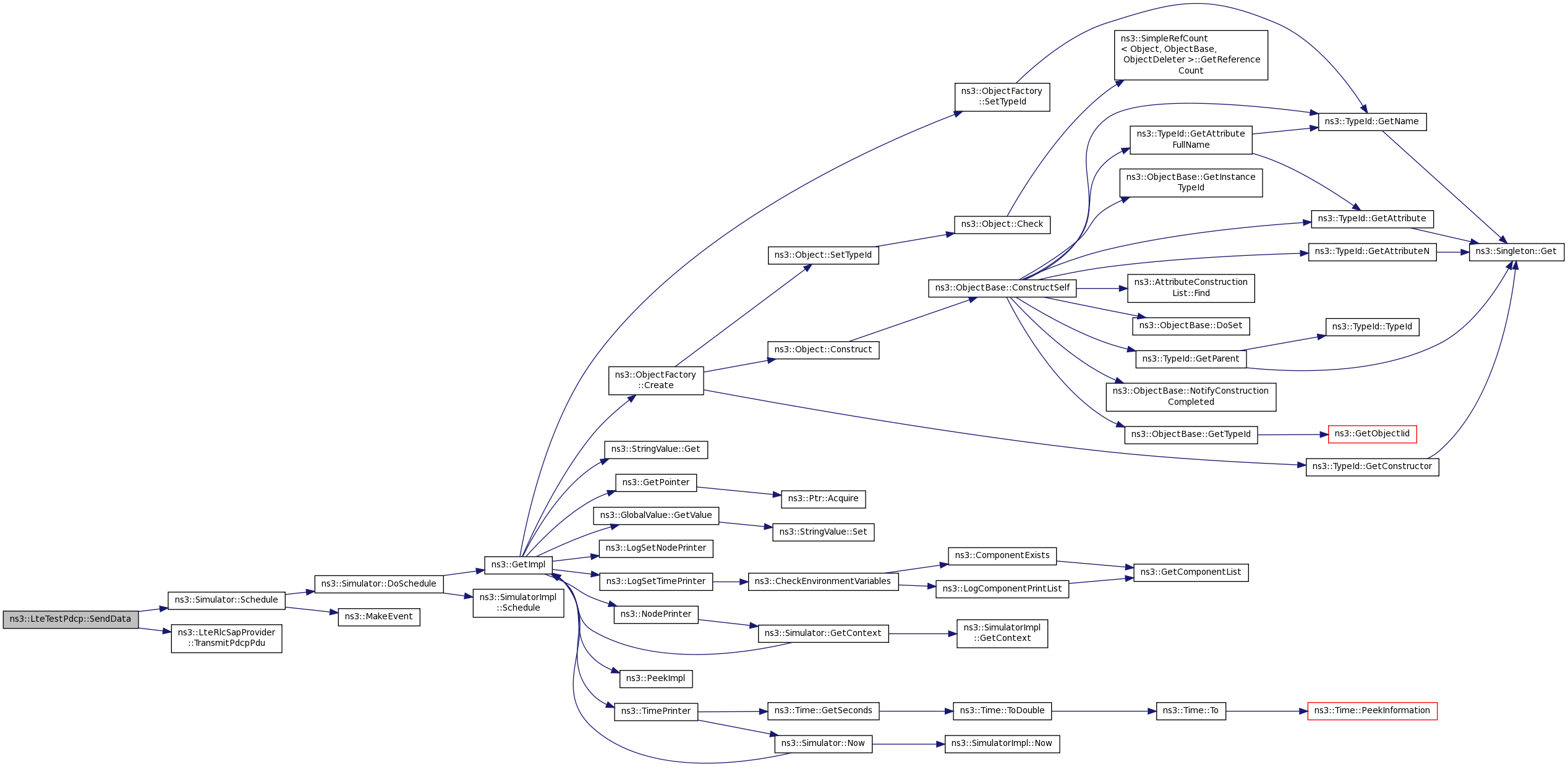

Here is the call graph for this function:

ns3::LteTestPdcp::~LteTestPdcp ( void )

virtual

Definition at line 253 of file lte-test-entities.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteTestPdcp::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 259 of file lte-test-entities.cc.

References m_rlcSapUser, and NS_LOG_FUNCTION.

void ns3::LteTestPdcp::DoReceivePdcpPdu ( Ptr< Packet > p )

privatevirtual

RLC SAP.

Definition at line 292 of file lte-test-entities.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), m_receivedData, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:
