Class to aggregate to a NetDevice if it supports MPI capability. More...

#include <mpi-receiver.h>

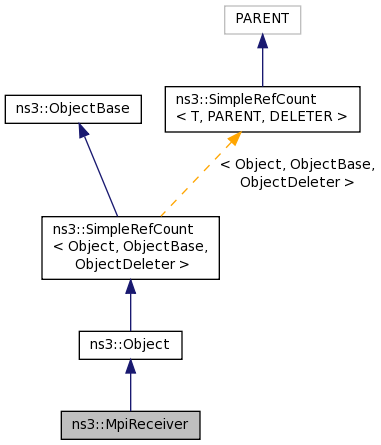

Inheritance diagram for ns3::MpiReceiver:

Collaboration diagram for ns3::MpiReceiver:

Public Member Functions
virtual	~MpiReceiver ()

void	Receive (Ptr< Packet > p)
	Direct an incoming packet to the device Receive() method. More...

void	SetReceiveCallback (Callback< void, Ptr< Packet > > callback)
	Set the receive callback to get packets to net devices. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Private Attributes
Callback< void, Ptr< Packet > >	m_rxCallback

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Class to aggregate to a NetDevice if it supports MPI capability.

MpiInterface::ReceiveMessages () needs to send packets to a NetDevice Receive() method. Since each NetDevice's Receive() method is specific to the derived class, and since we do not know whether such a NetDevice is MPI-capable, we aggregate one of these objects to each MPI-capable device. In addition, we must hook up a NetDevice::Receive() method to the callback. So the two steps to enable MPI capability are to aggregate this object to a NetDevice, and to set the callback.

Definition at line 42 of file mpi-receiver.h.

Constructor & Destructor Documentation

ns3::MpiReceiver::~MpiReceiver ( )

virtual

Definition at line 32 of file mpi-receiver.cc.

Member Function Documentation

void ns3::MpiReceiver::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 50 of file mpi-receiver.cc.

References m_rxCallback.

TypeId ns3::MpiReceiver::GetTypeId ( void )

static

Definition at line 24 of file mpi-receiver.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:
