Creation and configuration of LTE entities. More...

#include <lte-helper.h>

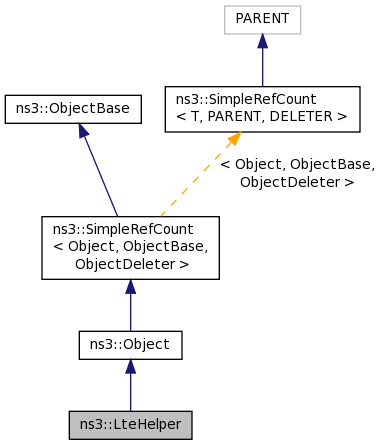

Inheritance diagram for ns3::LteHelper:

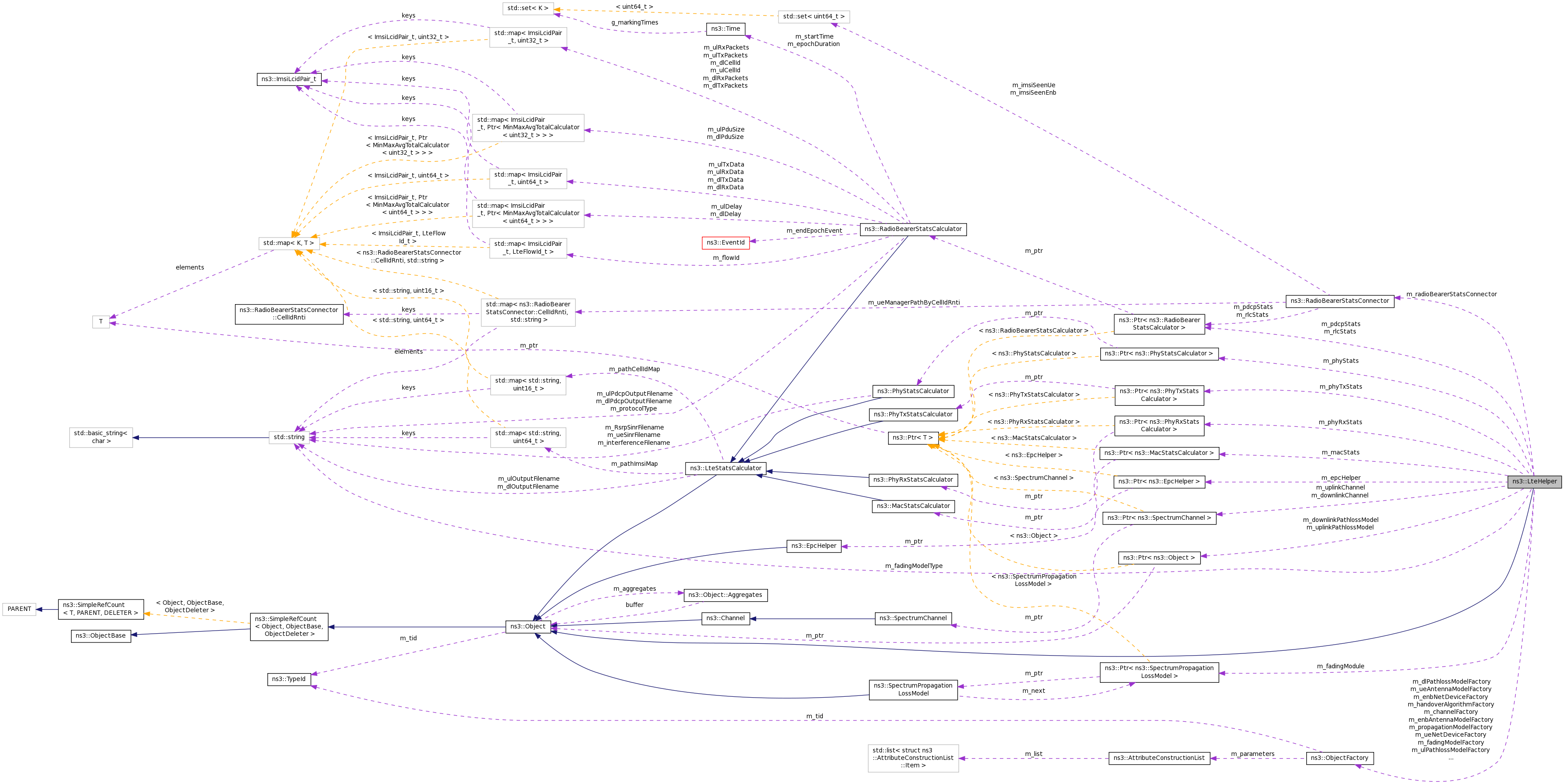

Collaboration diagram for ns3::LteHelper:

Public Types
enum	LteEpsBearerToRlcMapping_t { RLC_SM_ALWAYS = 1, RLC_UM_ALWAYS = 2, RLC_AM_ALWAYS = 3, PER_BASED = 4 }

Public Member Functions
	LteHelper (void)

virtual	~LteHelper (void)

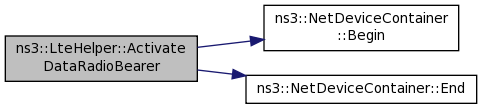

void	ActivateDataRadioBearer (NetDeviceContainer ueDevices, EpsBearer bearer)
	Call ActivateDataRadioBearer (ueDevice, bearer) for each UE device in a given set. More...

void	ActivateDataRadioBearer (Ptr< NetDevice > ueDevice, EpsBearer bearer)
	Activate a Data Radio Bearer for a simplified LTE-only simulation without EPC. More...

void	ActivateDedicatedEpsBearer (NetDeviceContainer ueDevices, EpsBearer bearer, Ptr< EpcTft > tft)
	Activate a dedicated EPS bearer on a given set of UE devices. More...

void	ActivateDedicatedEpsBearer (Ptr< NetDevice > ueDevice, EpsBearer bearer, Ptr< EpcTft > tft)
	Activate a dedicated EPS bearer on a given UE device. More...

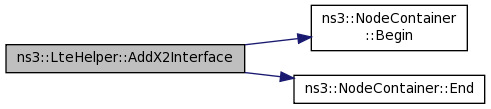

void	AddX2Interface (NodeContainer enbNodes)
	Create an X2 interface between all the eNBs in a given set. More...

void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
	Create an X2 interface between two eNBs. More...

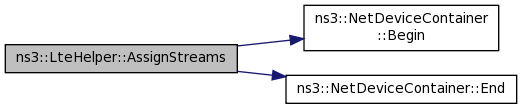

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

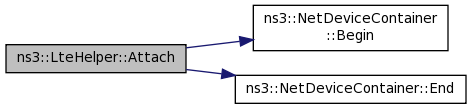

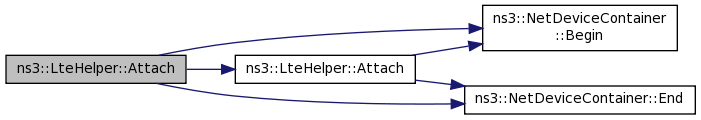

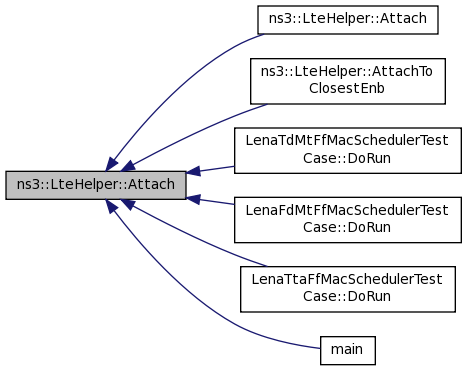

void	Attach (NetDeviceContainer ueDevices)
	Enables automatic attachment of a set of UE devices to a suitable cell using Idle mode initial cell selection procedure. More...

void	Attach (Ptr< NetDevice > ueDevice)
	Enables automatic attachment of a UE device to a suitable cell using Idle mode initial cell selection procedure. More...

void	Attach (NetDeviceContainer ueDevices, Ptr< NetDevice > enbDevice)
	Manual attachment of a set of UE devices to the network via a given eNodeB. More...

void	Attach (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice)
	Manual attachment of a UE device to the network via a given eNodeB. More...

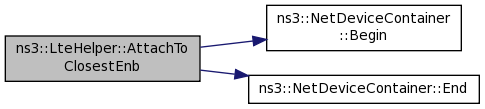

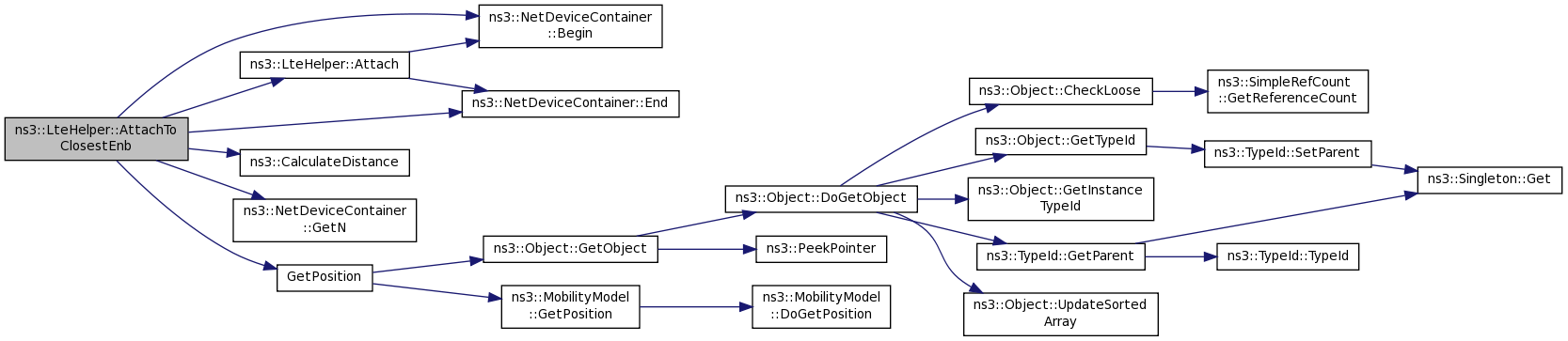

void	AttachToClosestEnb (NetDeviceContainer ueDevices, NetDeviceContainer enbDevices)
	Manual attachment of a set of UE devices to the network via the closest eNodeB (with respect to distance) among those in the set. More...

void	AttachToClosestEnb (Ptr< NetDevice > ueDevice, NetDeviceContainer enbDevices)
	Manual attachment of a UE device to the network via the closest eNodeB (with respect to distance) among those in the set. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

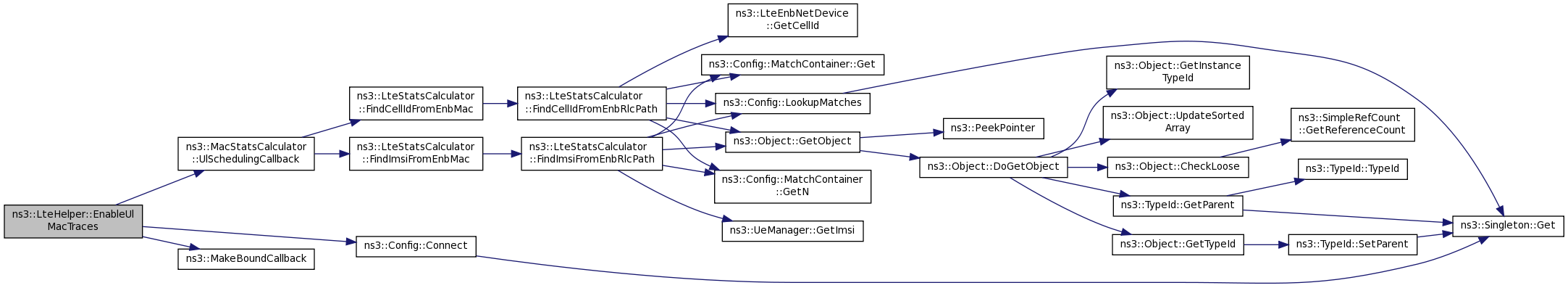

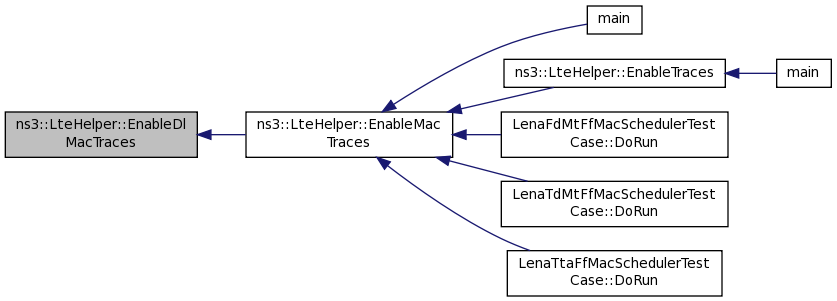

void	EnableDlMacTraces (void)
	Enable trace sinks for DL MAC layer. More...

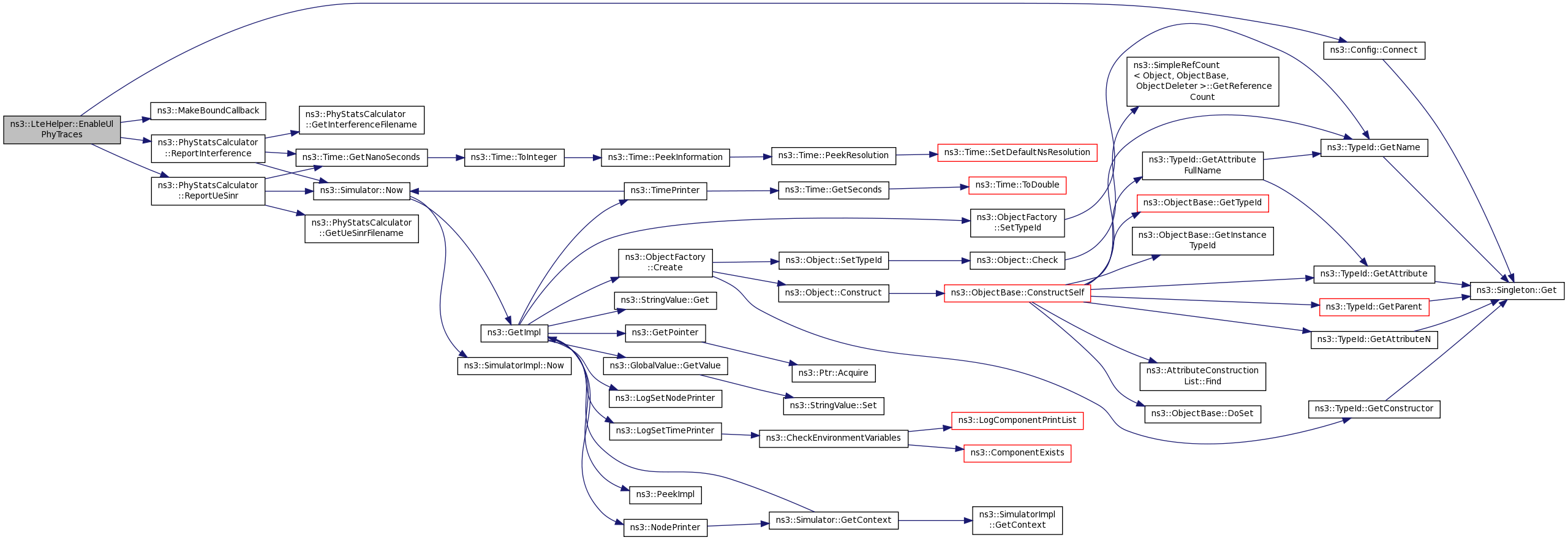

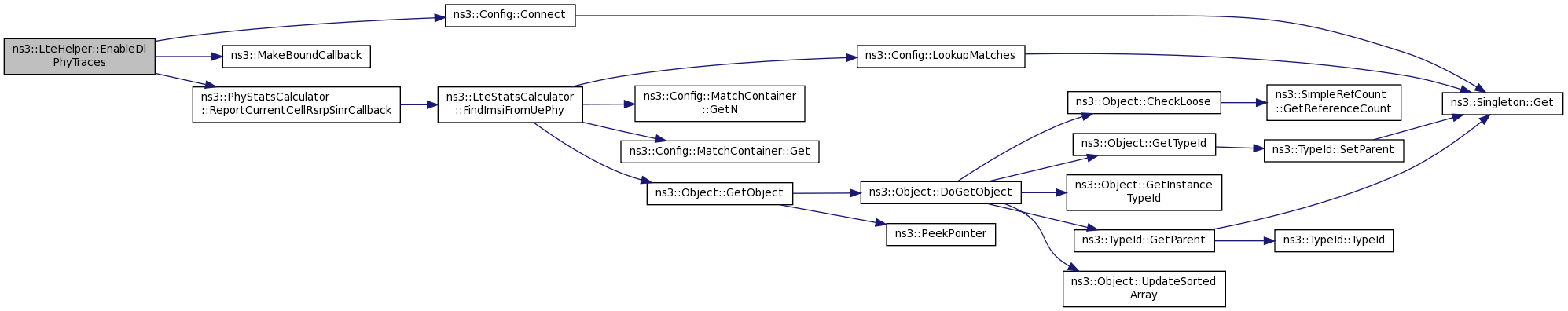

void	EnableDlPhyTraces (void)
	Enable trace sinks for DL PHY layer. More...

void	EnableDlRxPhyTraces (void)
	Enable trace sinks for DL reception PHY layer. More...

void	EnableDlTxPhyTraces (void)
	Enable trace sinks for DL transmission PHY layer. More...

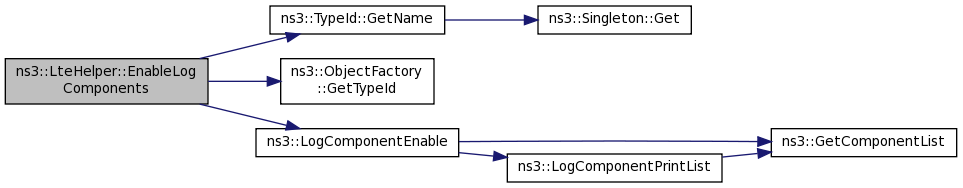

void	EnableLogComponents (void)
	Enables logging for all components of the LENA architecture. More...

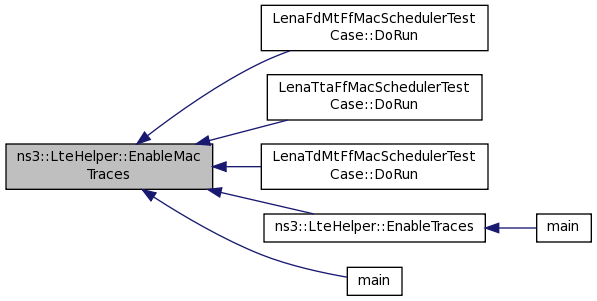

void	EnableMacTraces (void)
	Enable trace sinks for MAC layer. More...

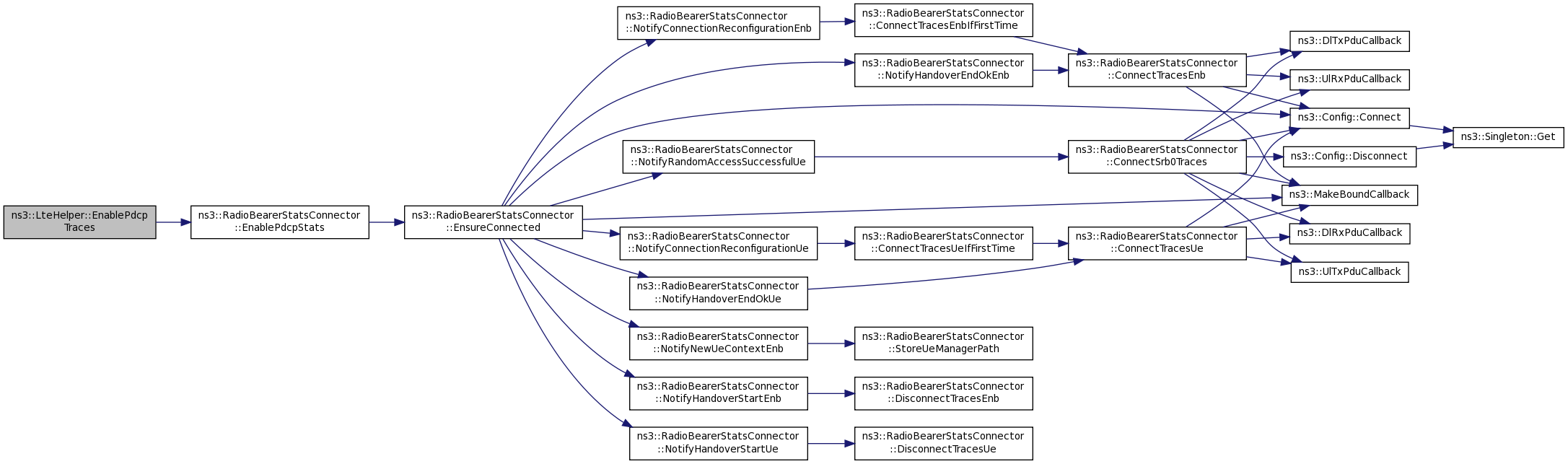

void	EnablePdcpTraces (void)
	Enable trace sinks for PDCP layer. More...

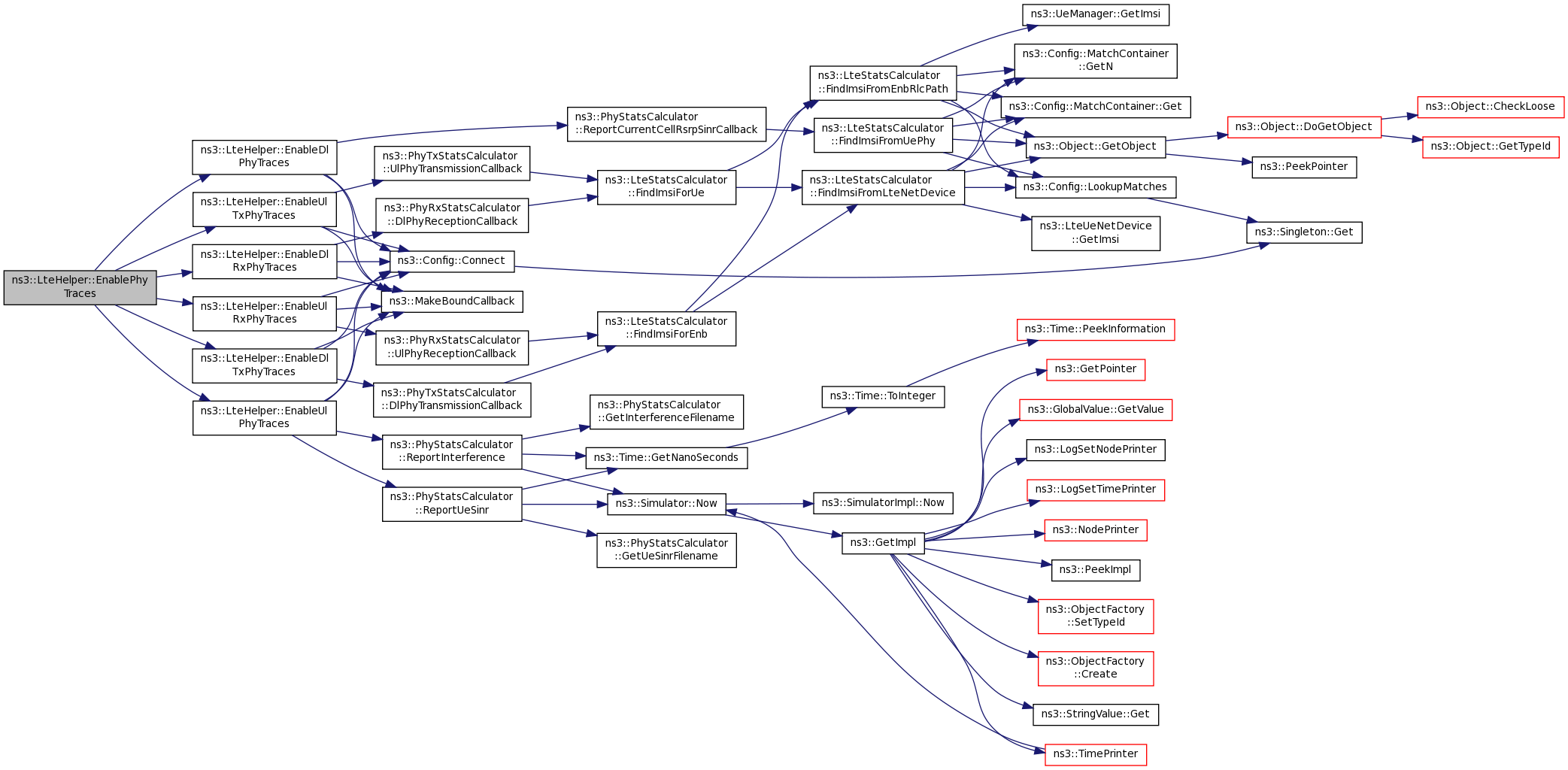

void	EnablePhyTraces (void)
	Enable trace sinks for PHY layer. More...

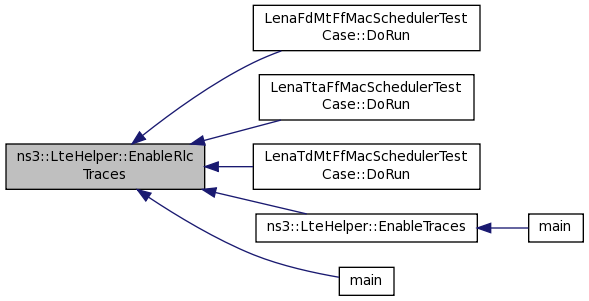

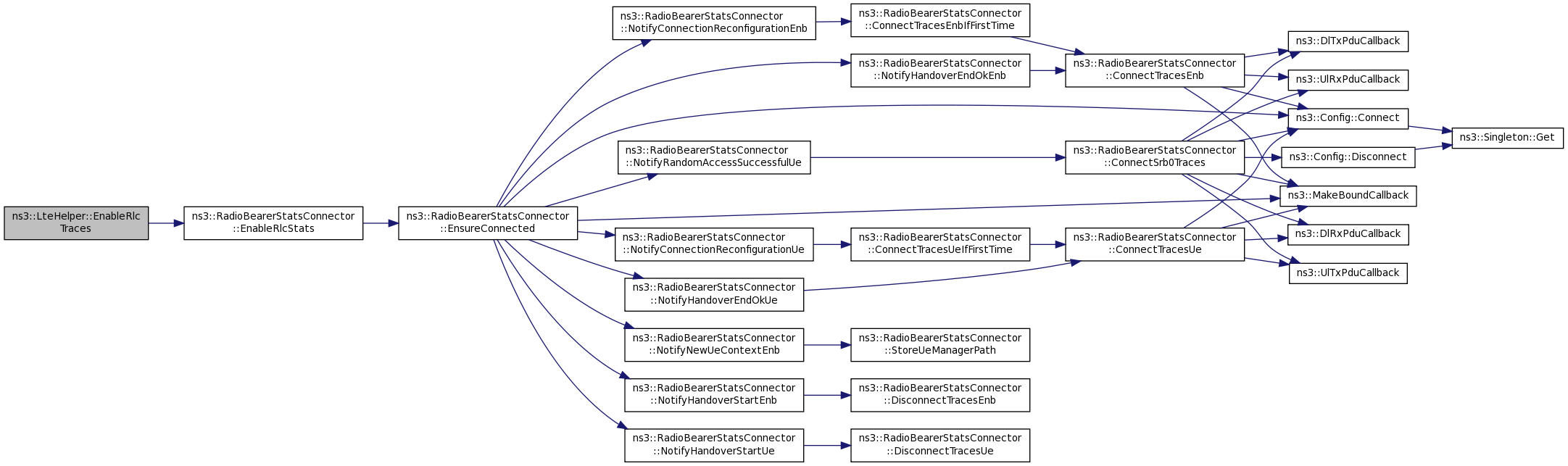

void	EnableRlcTraces (void)
	Enable trace sinks for RLC layer. More...

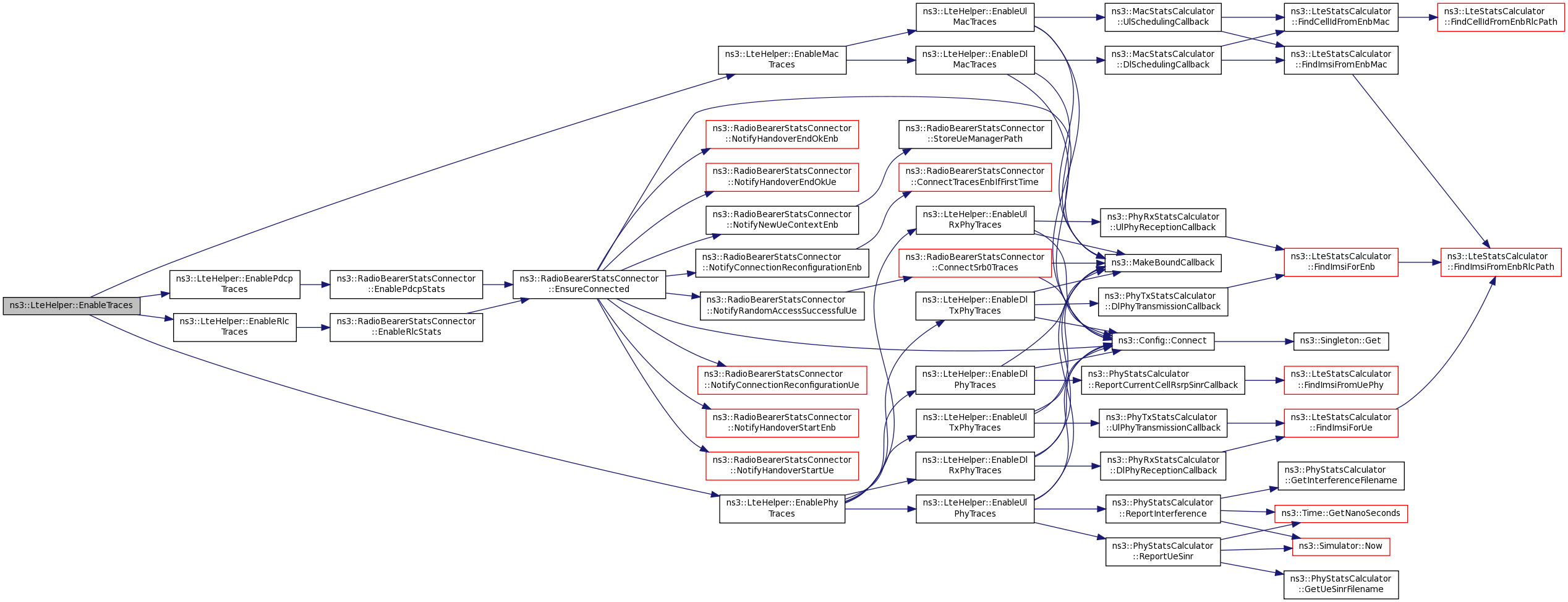

void	EnableTraces (void)
	Enables trace sinks for PHY, MAC, RLC and PDCP. More...

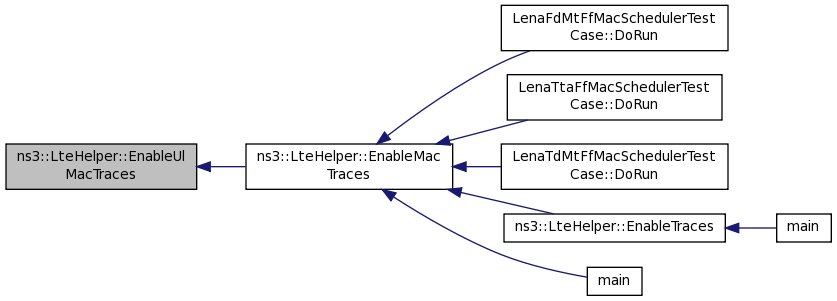

void	EnableUlMacTraces (void)
	Enable trace sinks for UL MAC layer. More...

void	EnableUlPhyTraces (void)
	Enable trace sinks for UL PHY layer. More...

void	EnableUlRxPhyTraces (void)
	Enable trace sinks for UL reception PHY layer. More...

void	EnableUlTxPhyTraces (void)
	Enable trace sinks for UL transmission PHY layer. More...

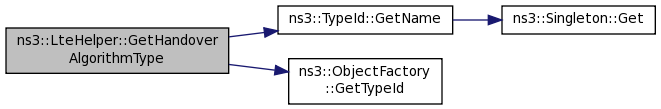

std::string	GetHandoverAlgorithmType () const

Ptr< RadioBearerStatsCalculator >	GetPdcpStats (void)

Ptr< RadioBearerStatsCalculator >	GetRlcStats (void)

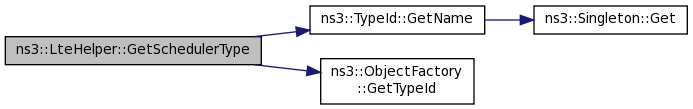

std::string	GetSchedulerType () const

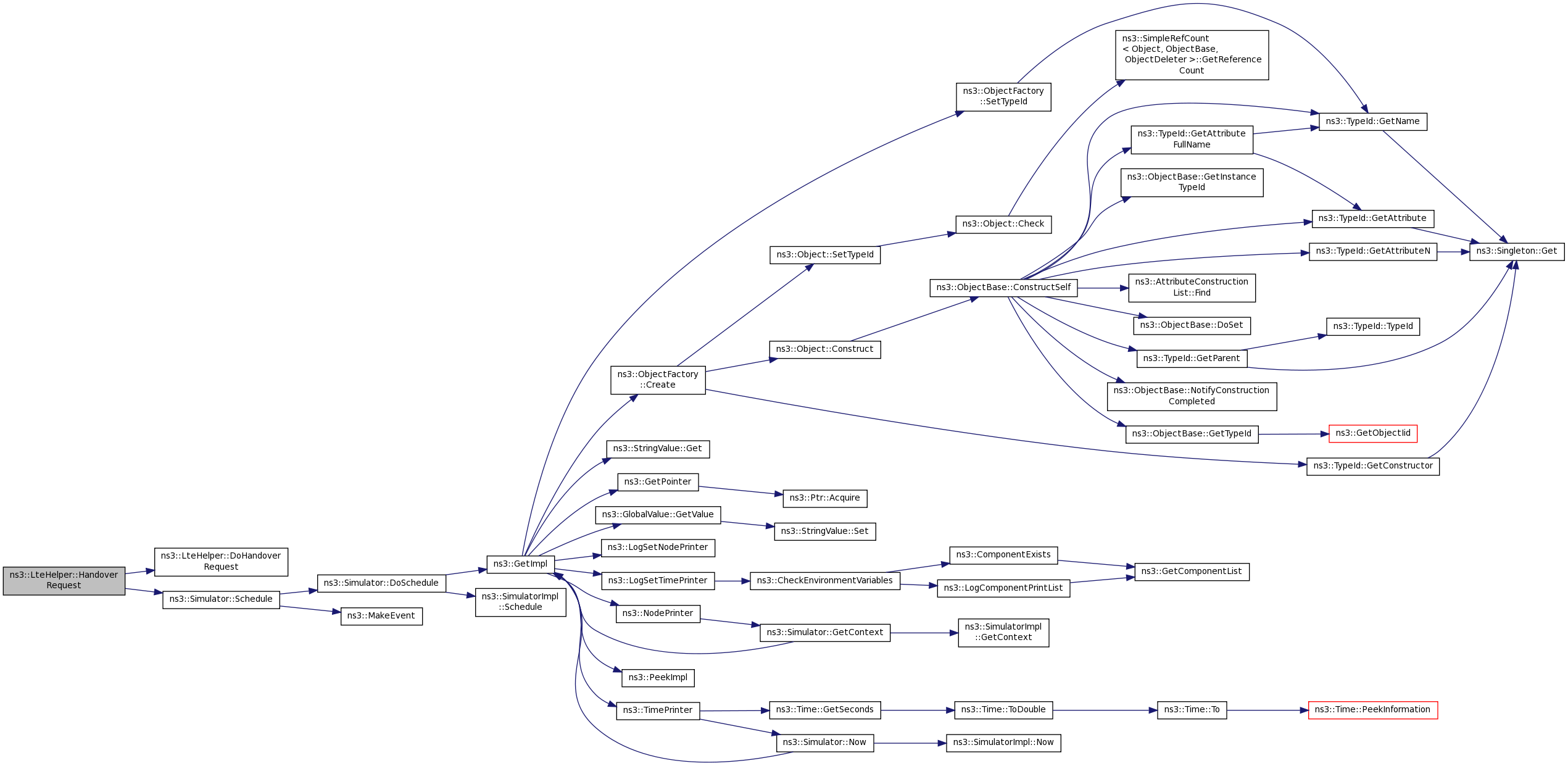

void	HandoverRequest (Time hoTime, Ptr< NetDevice > ueDev, Ptr< NetDevice > sourceEnbDev, Ptr< NetDevice > targetEnbDev)
	Manually trigger an X2-based handover of a UE between two eNBs at a specific simulation time. More...

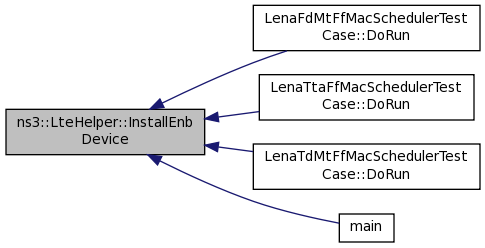

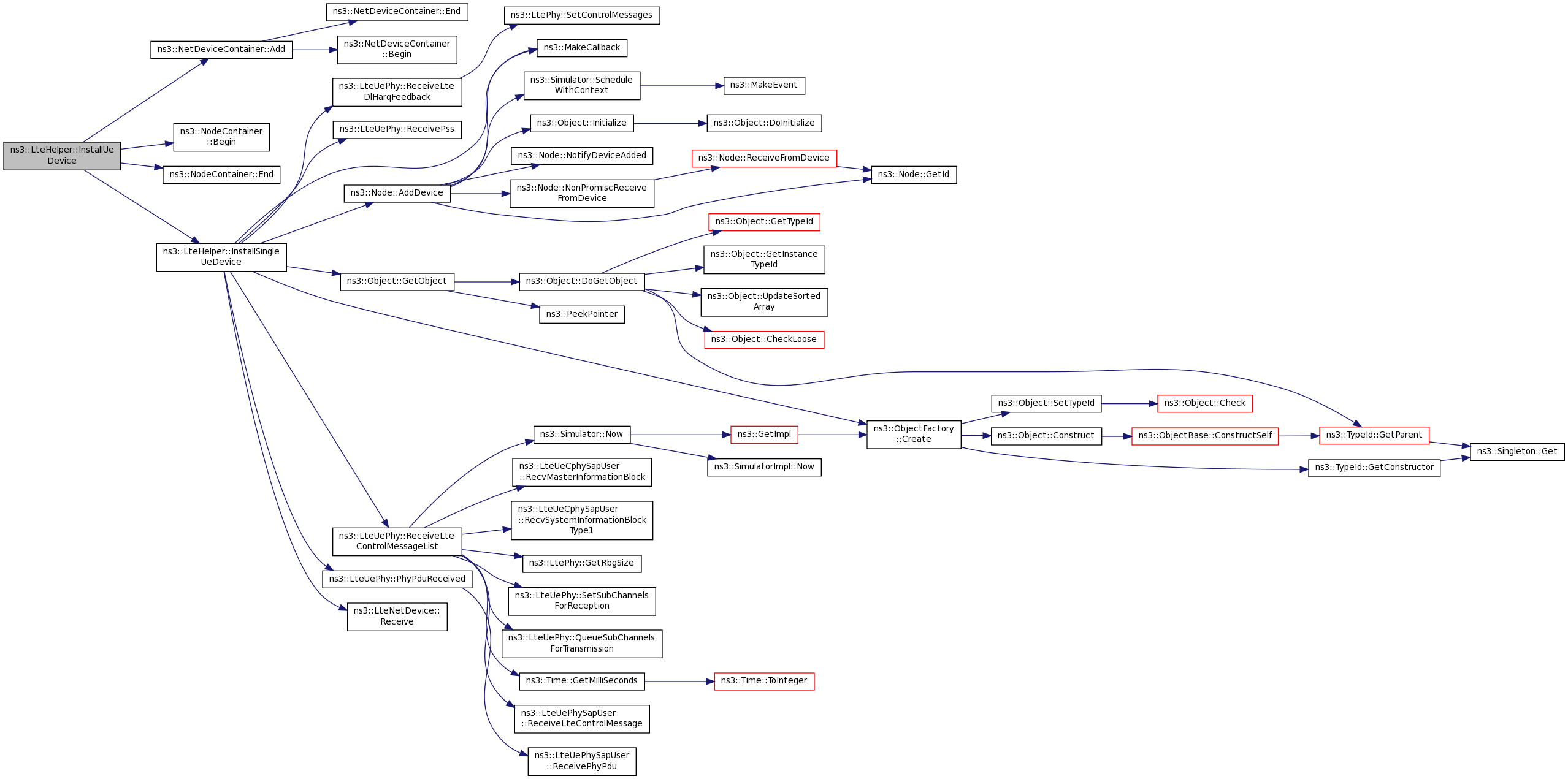

NetDeviceContainer	InstallEnbDevice (NodeContainer c)
	create a set of eNB devices More...

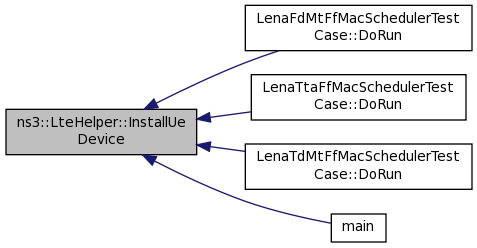

NetDeviceContainer	InstallUeDevice (NodeContainer c)
	create a set of UE devices More...

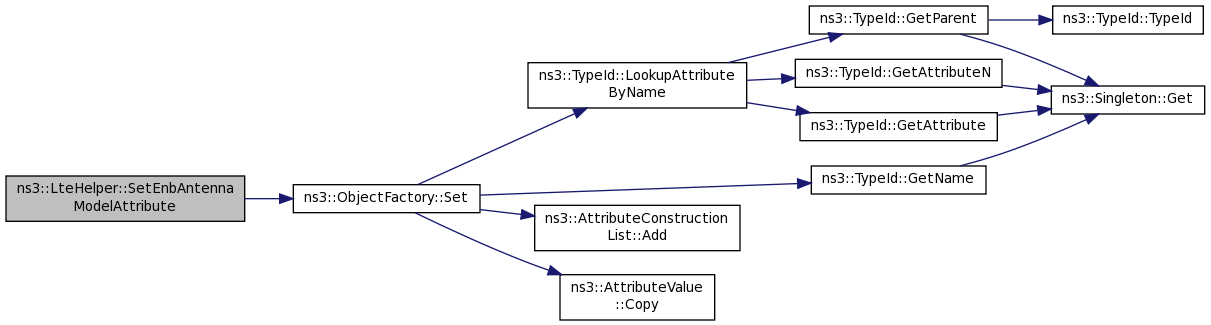

void	SetEnbAntennaModelAttribute (std::string n, const AttributeValue &v)
	set an attribute for the AntennaModel to be used for the eNBs More...

void	SetEnbAntennaModelType (std::string type)

void	SetEnbDeviceAttribute (std::string n, const AttributeValue &v)
	set an attribute for the LteEnbNetDevice to be created More...

void	SetEpcHelper (Ptr< EpcHelper > h)
	Set the EpcHelper to be used to setup the EPC network in conjunction with the setup of the LTE radio access network. More...

void	SetFadingModel (std::string model)

void	SetFadingModelAttribute (std::string n, const AttributeValue &v)
	set an attribute of the fading model More...

void	SetHandoverAlgorithmAttribute (std::string n, const AttributeValue &v)
	set an attribute for the handover algorithm to be created More...

void	SetHandoverAlgorithmType (std::string type)

void	SetPathlossModelAttribute (std::string n, const AttributeValue &v)
	set an attribute for the pathloss model to be created More...

void	SetPathlossModelType (std::string type)

void	SetSchedulerAttribute (std::string n, const AttributeValue &v)
	set an attribute for the scheduler to be created More...

void	SetSchedulerType (std::string type)

void	SetSpectrumChannelAttribute (std::string n, const AttributeValue &v)
	set an attribute for the SpectrumChannel to be used for the UEs More...

void	SetSpectrumChannelType (std::string type)

void	SetUeAntennaModelAttribute (std::string n, const AttributeValue &v)
	set an attribute for the AntennaModel to be used for the UEs More...

void	SetUeAntennaModelType (std::string type)

void	SetUeDeviceAttribute (std::string n, const AttributeValue &v)
	set an attribute for the LteUeNetDevice to be created More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

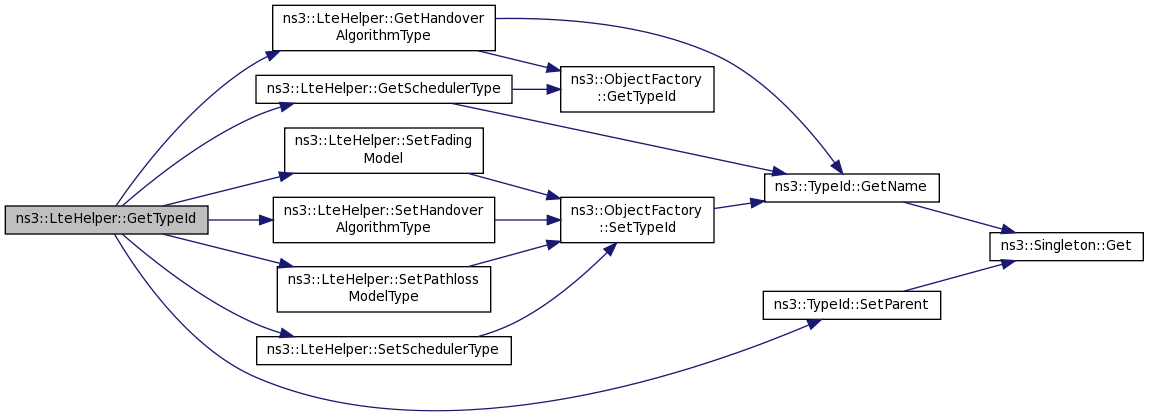

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	DoHandoverRequest (Ptr< NetDevice > ueDev, Ptr< NetDevice > sourceEnbDev, Ptr< NetDevice > targetEnbDev)
	The actual function to trigger a manual handover. More...

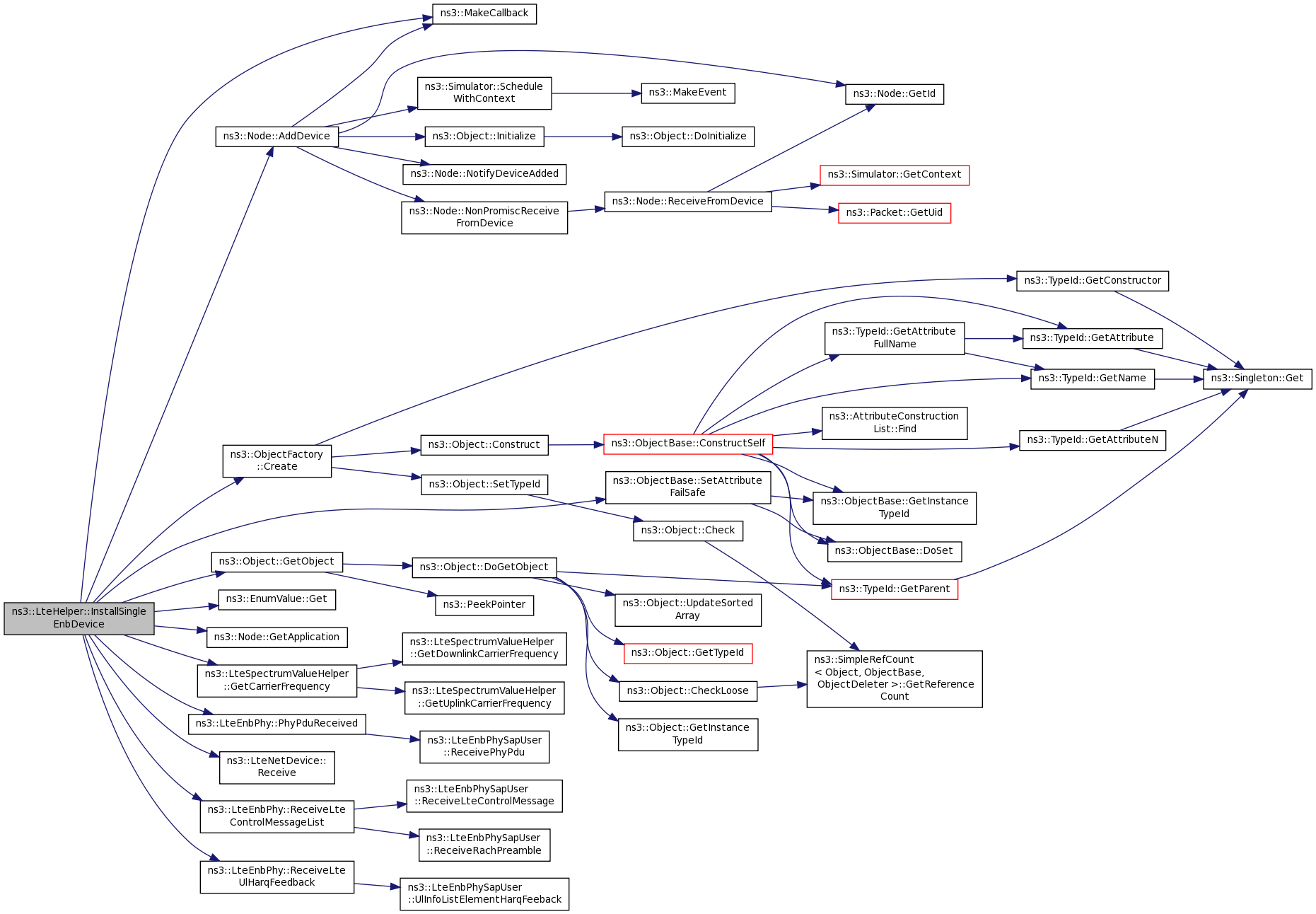

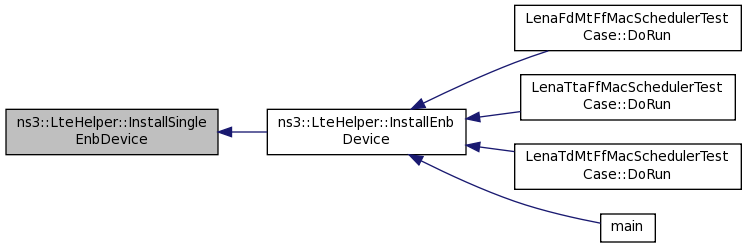

Ptr< NetDevice >	InstallSingleEnbDevice (Ptr< Node > n)
	Create an eNodeB device (LteEnbNetDevice) on the given node. More...

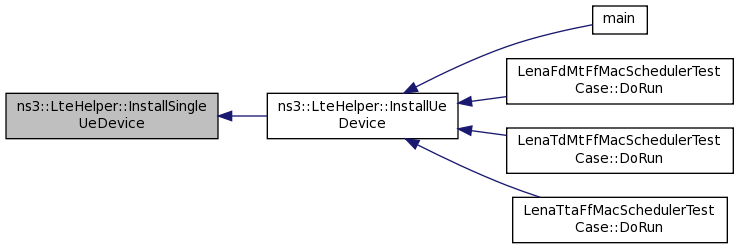

Ptr< NetDevice >	InstallSingleUeDevice (Ptr< Node > n)
	Create a UE device (LteUeNetDevice) on the given node. More...

Private Attributes
uint16_t	m_cellIdCounter

ObjectFactory	m_channelFactory

ObjectFactory	m_dlPathlossModelFactory

Ptr< SpectrumChannel >	m_downlinkChannel

Ptr< Object >	m_downlinkPathlossModel

ObjectFactory	m_enbAntennaModelFactory

ObjectFactory	m_enbNetDeviceFactory

Ptr< EpcHelper >	m_epcHelper

ObjectFactory	m_fadingModelFactory

std::string	m_fadingModelType

Ptr< SpectrumPropagationLossModel >	m_fadingModule

bool	m_fadingStreamsAssigned

ObjectFactory	m_handoverAlgorithmFactory

uint64_t	m_imsiCounter

bool	m_isAnrEnabled

Ptr< MacStatsCalculator >	m_macStats

Ptr< RadioBearerStatsCalculator >	m_pdcpStats

Ptr< PhyRxStatsCalculator >	m_phyRxStats

Ptr< PhyStatsCalculator >	m_phyStats

Ptr< PhyTxStatsCalculator >	m_phyTxStats

ObjectFactory	m_propagationModelFactory

RadioBearerStatsConnector	m_radioBearerStatsConnector

Ptr< RadioBearerStatsCalculator >	m_rlcStats

ObjectFactory	m_schedulerFactory

ObjectFactory	m_ueAntennaModelFactory

ObjectFactory	m_ueNetDeviceFactory

ObjectFactory	m_ulPathlossModelFactory

Ptr< SpectrumChannel >	m_uplinkChannel

Ptr< Object >	m_uplinkPathlossModel

bool	m_useIdealRrc

Detailed Description

Creation and configuration of LTE entities.

Doxygen introspection did not find any typical Config paths.

Attributes

Scheduler: The type of scheduler to be used for eNBs. The allowed values for this attributes are the type names of any class inheriting from ns3::FfMacScheduler.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: ns3::PfFfMacScheduler
- Flags: construct write read
HandoverAlgorithm: The type of handover algorithm to be used for eNBs. The allowed values for this attributes are the type names of any class inheriting from ns3::HandoverAlgorithm.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: ns3::NoOpHandoverAlgorithm
- Flags: construct write read
PathlossModel: The type of pathloss model to be used. The allowed values for this attributes are the type names of any class inheriting from ns3::PropagationLossModel.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: ns3::FriisPropagationLossModel
- Flags: construct write
FadingModel: The type of fading model to be used.The allowed values for this attributes are the type names of any class inheriting from ns3::SpectrumPropagationLossModel.If the type is set to an empty string, no fading model is used.
- Set with class: StringValue
- Underlying type: std::string
- Initial value:
- Flags: construct write
UseIdealRrc: If true, LteRrcProtocolIdeal will be used for RRC signaling. If false, LteRrcProtocolReal will be used.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
AnrEnabled: Activate or deactivate Automatic Neighbour Relation function
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 55 of file lte-helper.h.

Member Enumeration Documentation

enum ns3::LteHelper::LteEpsBearerToRlcMapping_t

Enumerator
RLC_SM_ALWAYS
RLC_UM_ALWAYS
RLC_AM_ALWAYS
PER_BASED

Definition at line 482 of file lte-helper.h.

Constructor & Destructor Documentation

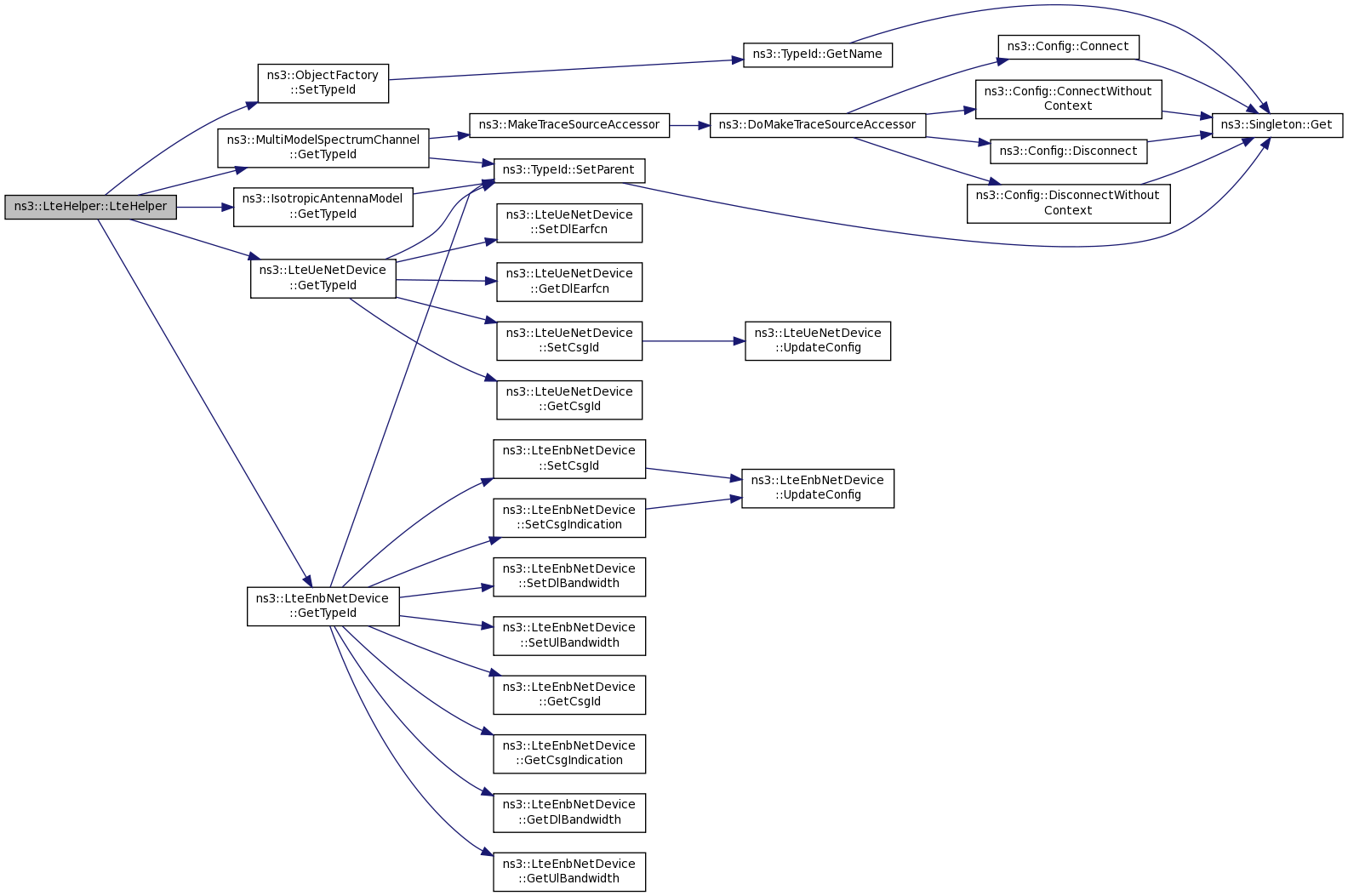

ns3::LteHelper::LteHelper ( void )

Definition at line 71 of file lte-helper.cc.

References ns3::IsotropicAntennaModel::GetTypeId(), ns3::LteUeNetDevice::GetTypeId(), ns3::LteEnbNetDevice::GetTypeId(), ns3::MultiModelSpectrumChannel::GetTypeId(), m_channelFactory, m_enbAntennaModelFactory, m_enbNetDeviceFactory, m_ueAntennaModelFactory, m_ueNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::LteHelper::~LteHelper ( void )

virtual

Definition at line 135 of file lte-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteHelper::ActivateDataRadioBearer	(	NetDeviceContainer	ueDevices,
		EpsBearer	bearer
	)

Call ActivateDataRadioBearer (ueDevice, bearer) for each UE device in a given set.

Parameters

ueDevices	the set of UE devices
bearer

Definition at line 901 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

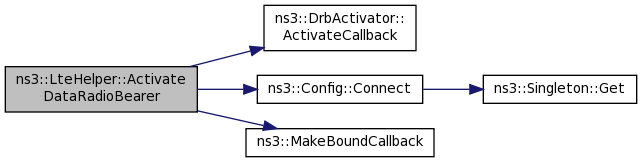

void ns3::LteHelper::ActivateDataRadioBearer	(	Ptr< NetDevice >	ueDevice,
		EpsBearer	bearer
	)

Activate a Data Radio Bearer for a simplified LTE-only simulation without EPC.

This method will schedule the actual activation of the bearer so that it happens after the UE got connected.

Parameters

ueDevice	the device of the UE for which the radio bearer is to be activated
bearer	the characteristics of the bearer to be activated

Definition at line 831 of file lte-helper.cc.

References ns3::DrbActivator::ActivateCallback(), ns3::Config::Connect(), m_epcHelper, ns3::MakeBoundCallback(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::ActivateDedicatedEpsBearer	(	NetDeviceContainer	ueDevices,
		EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate a dedicated EPS bearer on a given set of UE devices.

Parameters

ueDevices	the set of UE devices
bearer	the characteristics of the bearer to be activated
tft	the Traffic Flow Template that identifies the traffic to go on this bearer

Definition at line 755 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::ActivateDedicatedEpsBearer	(	Ptr< NetDevice >	ueDevice,
		EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate a dedicated EPS bearer on a given UE device.

Parameters

ueDevice	the UE device
bearer	the characteristics of the bearer to be activated
tft	the Traffic Flow Template that identifies the traffic to go on this bearer

Definition at line 766 of file lte-helper.cc.

References m_epcHelper, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::LteHelper::AddX2Interface ( NodeContainer enbNodes )

Create an X2 interface between all the eNBs in a given set.

Parameters

enbNodes the set of eNB nodes

Definition at line 853 of file lte-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), m_epcHelper, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::AddX2Interface	(	Ptr< Node >	enbNode1,
		Ptr< Node >	enbNode2
	)

Create an X2 interface between two eNBs.

Parameters

enbNode1	one eNB of the X2 interface
enbNode2	the other eNB of the X2 interface

Definition at line 869 of file lte-helper.cc.

References m_epcHelper, NS_LOG_FUNCTION, and NS_LOG_INFO.

int64_t ns3::LteHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the LteNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 965 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), m_fadingModule, and m_fadingStreamsAssigned.

Here is the call graph for this function:

void ns3::LteHelper::Attach ( NetDeviceContainer ueDevices )

Enables automatic attachment of a set of UE devices to a suitable cell using Idle mode initial cell selection procedure.

Parameters

ueDevices the set of UE devices to be attached

By calling this, the UE will start the initial cell selection procedure at the beginning of simulation. In addition, the function also instructs each UE to immediately enter CONNECTED mode and activates the default EPS bearer.

If this function is called when the UE is in a situation where entering CONNECTED mode is not possible (e.g. before the simulation begin), then the UE will attempt to connect at the earliest possible time (e.g. after it camps to a suitable cell).

Note that this function can only be used in EPC-enabled simulation.

Definition at line 647 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Referenced by Attach(), AttachToClosestEnb(), LenaTdMtFfMacSchedulerTestCase::DoRun(), LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::Attach ( Ptr< NetDevice > ueDevice )

Enables automatic attachment of a UE device to a suitable cell using Idle mode initial cell selection procedure.

Parameters

ueDevice the UE device to be attached

By calling this, the UE will start the initial cell selection procedure at the beginning of simulation. In addition, the function also instructs the UE to immediately enter CONNECTED mode and activates the default EPS bearer.

If this function is called when the UE is in a situation where entering CONNECTED mode is not possible (e.g. before the simulation begin), then the UE will attempt to connect at the earliest possible time (e.g. after it camps to a suitable cell).

Note that this function can only be used in EPC-enabled simulation.

Definition at line 657 of file lte-helper.cc.

References ns3::EpcTft::Default(), m_epcHelper, ns3::EpsBearer::NGBR_VIDEO_TCP_DEFAULT, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::Attach	(	NetDeviceContainer	ueDevices,
		Ptr< NetDevice >	enbDevice
	)

Manual attachment of a set of UE devices to the network via a given eNodeB.

Parameters

ueDevices	the set of UE devices to be attached
enbDevice	the destination eNodeB device

In addition, the function also instructs each UE to immediately enter CONNECTED mode and activates the default EPS bearer.

The function can be used in both LTE-only and EPC-enabled simulations. Note that this function will disable Idle mode initial cell selection procedure.

Definition at line 688 of file lte-helper.cc.

References Attach(), ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::Attach	(	Ptr< NetDevice >	ueDevice,
		Ptr< NetDevice >	enbDevice
	)

Manual attachment of a UE device to the network via a given eNodeB.

Parameters

ueDevice	the UE device to be attached
enbDevice	the destination eNodeB device

In addition, the function also instructs the UE to immediately enter CONNECTED mode and activates the default EPS bearer.

The function can be used in both LTE-only and EPC-enabled simulations. Note that this function will disable Idle mode initial cell selection procedure.

Definition at line 698 of file lte-helper.cc.

References ns3::EpcTft::Default(), m_epcHelper, ns3::EpsBearer::NGBR_VIDEO_TCP_DEFAULT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::AttachToClosestEnb	(	NetDeviceContainer	ueDevices,
		NetDeviceContainer	enbDevices
	)

Manual attachment of a set of UE devices to the network via the closest eNodeB (with respect to distance) among those in the set.

Parameters

ueDevices	the set of UE devices to be attached
enbDevices	the set of eNodeB devices to be considered

This function finds among the eNodeB set the closest eNodeB for each UE, and then invokes manual attachment between the pair.

Users are encouraged to use automatic attachment (Idle mode cell selection) instead of this function.

See also: LteHelper::Attach(NetDeviceContainer ueDevices);

Definition at line 723 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::AttachToClosestEnb	(	Ptr< NetDevice >	ueDevice,
		NetDeviceContainer	enbDevices
	)

Manual attachment of a UE device to the network via the closest eNodeB (with respect to distance) among those in the set.

Parameters

ueDevice	the UE device to be attached
enbDevices	the set of eNodeB devices to be considered

This function finds among the eNodeB set the closest eNodeB for the UE, and then invokes manual attachment between the pair.

Users are encouraged to use automatic attachment (Idle mode cell selection) instead of this function.

See also: LteHelper::Attach(Ptr<NetDevice> ueDevice);

Definition at line 733 of file lte-helper.cc.

References Attach(), ns3::NetDeviceContainer::Begin(), ns3::CalculateDistance(), ns3::NetDeviceContainer::End(), ns3::NetDeviceContainer::GetN(), GetPosition(), NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 194 of file lte-helper.cc.

References ns3::Object::DoDispose(), m_downlinkChannel, m_uplinkChannel, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteHelper::DoHandoverRequest	(	Ptr< NetDevice >	ueDev,
		Ptr< NetDevice >	sourceEnbDev,
		Ptr< NetDevice >	targetEnbDev
	)

private

The actual function to trigger a manual handover.

Parameters

ueDev	the UE that hands off, must be of the type LteUeNetDevice
sourceEnbDev	source eNB, must be of the type LteEnbNetDevice (originally the UE is attached to this eNB)
targetEnbDev	target eNB, must be of the type LteEnbNetDevice (the UE is finally connected to this eNB)

This method is normally scheduled by HandoverRequest() to run at a specific time where a manual handover is desired by the simulation user.

Definition at line 886 of file lte-helper.cc.

References NS_LOG_FUNCTION.

Referenced by HandoverRequest().

Here is the caller graph for this function:

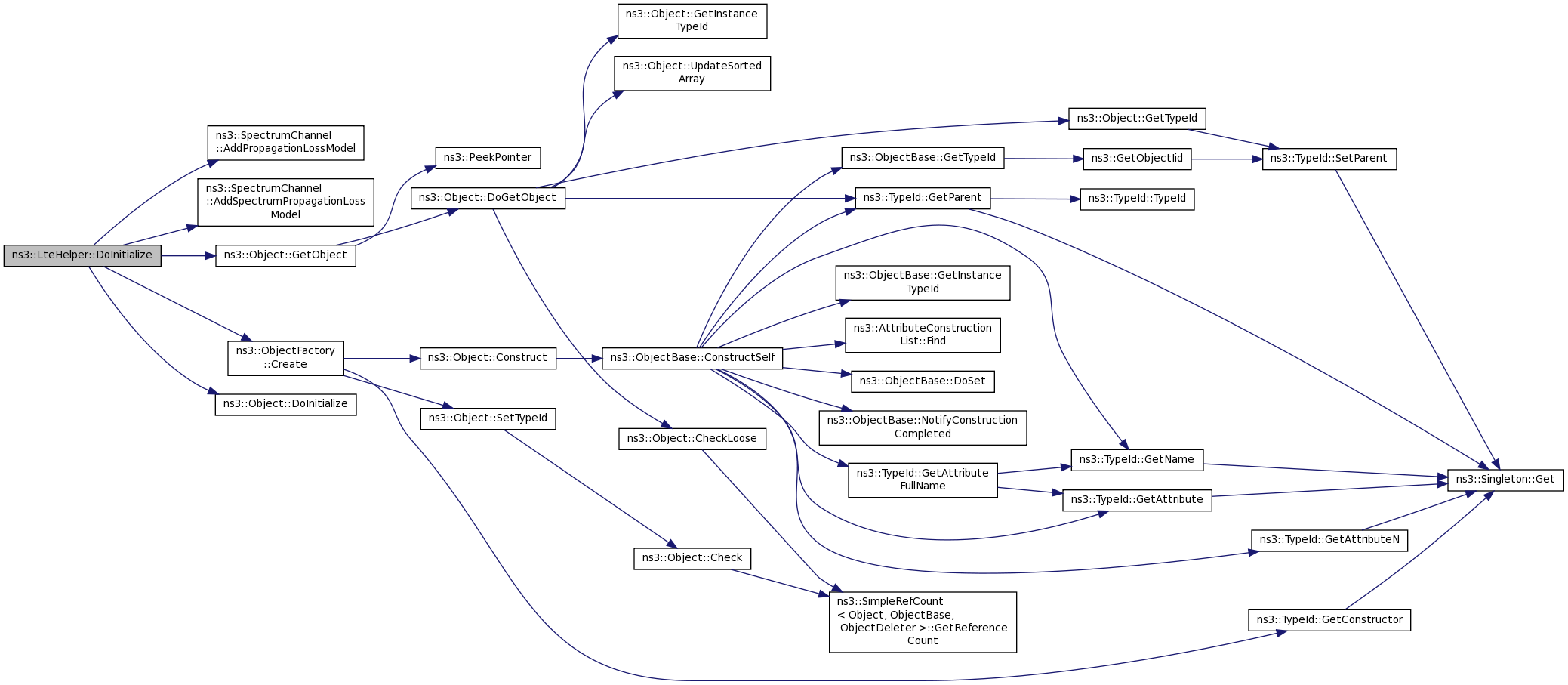

void ns3::LteHelper::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 85 of file lte-helper.cc.

References ns3::SpectrumChannel::AddPropagationLossModel(), ns3::SpectrumChannel::AddSpectrumPropagationLossModel(), ns3::ObjectFactory::Create(), ns3::Object::DoInitialize(), ns3::Object::GetObject(), m_channelFactory, m_dlPathlossModelFactory, m_downlinkChannel, m_downlinkPathlossModel, m_fadingModelFactory, m_fadingModelType, m_fadingModule, m_macStats, m_phyRxStats, m_phyStats, m_phyTxStats, m_ulPathlossModelFactory, m_uplinkChannel, m_uplinkPathlossModel, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::LteHelper::EnableDlMacTraces ( void )

Enable trace sinks for DL MAC layer.

Definition at line 1053 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::MacStatsCalculator::DlSchedulingCallback(), m_macStats, ns3::MakeBoundCallback(), and NS_LOG_FUNCTION_NOARGS.

Referenced by EnableMacTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableDlPhyTraces ( void )

Enable trace sinks for DL PHY layer.

Definition at line 1069 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinrCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableDlRxPhyTraces ( void )

Enable trace sinks for DL reception PHY layer.

Definition at line 1030 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::PhyRxStatsCalculator::DlPhyReceptionCallback(), m_phyRxStats, and ns3::MakeBoundCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableDlTxPhyTraces ( void )

Enable trace sinks for DL transmission PHY layer.

Definition at line 1016 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::PhyTxStatsCalculator::DlPhyTransmissionCallback(), m_phyTxStats, and ns3::MakeBoundCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableLogComponents ( void )

Enables logging for all components of the LENA architecture.

Definition at line 911 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), ns3::LOG_LEVEL_ALL, ns3::LogComponentEnable(), and m_dlPathlossModelFactory.

Here is the call graph for this function:

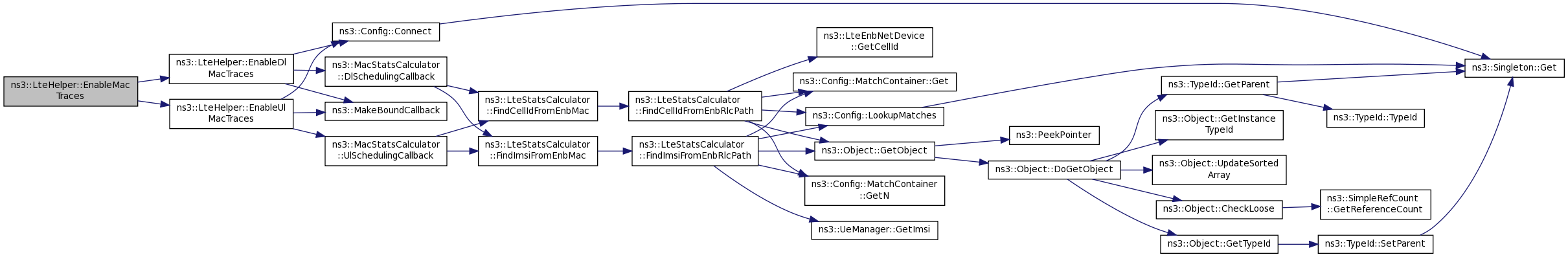

void ns3::LteHelper::EnableMacTraces ( void )

Enable trace sinks for MAC layer.

Definition at line 1045 of file lte-helper.cc.

References EnableDlMacTraces(), and EnableUlMacTraces().

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), EnableTraces(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnablePdcpTraces ( void )

Enable trace sinks for PDCP layer.

Definition at line 1094 of file lte-helper.cc.

References ns3::RadioBearerStatsConnector::EnablePdcpStats(), m_pdcpStats, m_radioBearerStatsConnector, and NS_ASSERT_MSG.

Referenced by EnableTraces(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnablePhyTraces ( void )

Enable trace sinks for PHY layer.

Definition at line 1005 of file lte-helper.cc.

References EnableDlPhyTraces(), EnableDlRxPhyTraces(), EnableDlTxPhyTraces(), EnableUlPhyTraces(), EnableUlRxPhyTraces(), and EnableUlTxPhyTraces().

Referenced by EnableTraces(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableRlcTraces ( void )

Enable trace sinks for RLC layer.

Definition at line 957 of file lte-helper.cc.

References ns3::RadioBearerStatsConnector::EnableRlcStats(), m_radioBearerStatsConnector, m_rlcStats, and NS_ASSERT_MSG.

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), EnableTraces(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableTraces ( void )

Enables trace sinks for PHY, MAC, RLC and PDCP.

To make sure all nodes are traced, traces should be enabled once all UEs and eNodeBs are in place and connected, just before starting the simulation.

Definition at line 948 of file lte-helper.cc.

References EnableMacTraces(), EnablePdcpTraces(), EnablePhyTraces(), and EnableRlcTraces().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableUlMacTraces ( void )

Enable trace sinks for UL MAC layer.

Definition at line 1061 of file lte-helper.cc.

References ns3::Config::Connect(), m_macStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::MacStatsCalculator::UlSchedulingCallback().

Referenced by EnableMacTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableUlPhyTraces ( void )

Enable trace sinks for UL PHY layer.

Definition at line 1077 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, ns3::PhyStatsCalculator::ReportInterference(), and ns3::PhyStatsCalculator::ReportUeSinr().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableUlRxPhyTraces ( void )

Enable trace sinks for UL reception PHY layer.

Definition at line 1037 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyRxStats, ns3::MakeBoundCallback(), and ns3::PhyRxStatsCalculator::UlPhyReceptionCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::EnableUlTxPhyTraces ( void )

Enable trace sinks for UL transmission PHY layer.

Definition at line 1023 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyTxStats, ns3::MakeBoundCallback(), and ns3::PhyTxStatsCalculator::UlPhyTransmissionCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::LteHelper::GetHandoverAlgorithmType ( ) const

Returns: the handover algorithm type

Definition at line 232 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_handoverAlgorithmFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< RadioBearerStatsCalculator > ns3::LteHelper::GetPdcpStats ( void )

Returns: the PDCP stats calculator object

Definition at line 1102 of file lte-helper.cc.

References m_pdcpStats.

Referenced by main().

Here is the caller graph for this function:

Ptr< RadioBearerStatsCalculator > ns3::LteHelper::GetRlcStats ( void )

Returns: the RLC stats calculator object

Definition at line 1088 of file lte-helper.cc.

References m_rlcStats.

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), and main().

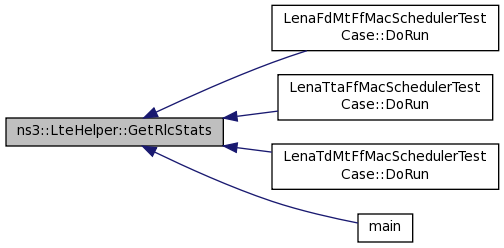

Here is the caller graph for this function:

std::string ns3::LteHelper::GetSchedulerType ( ) const

Returns: the scheduler type

Definition at line 219 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_schedulerFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LteHelper::GetTypeId ( void )

static

Definition at line 140 of file lte-helper.cc.

References GetHandoverAlgorithmType(), GetSchedulerType(), m_isAnrEnabled, m_useIdealRrc, SetFadingModel(), SetHandoverAlgorithmType(), ns3::TypeId::SetParent(), SetPathlossModelType(), and SetSchedulerType().

Here is the call graph for this function:

void ns3::LteHelper::HandoverRequest	(	Time	hoTime,
		Ptr< NetDevice >	ueDev,
		Ptr< NetDevice >	sourceEnbDev,
		Ptr< NetDevice >	targetEnbDev
	)

Manually trigger an X2-based handover of a UE between two eNBs at a specific simulation time.

Parameters

hoTime	when the Handover is initiated
ueDev	the UE that hands off, must be of the type LteUeNetDevice
sourceEnbDev	source eNB, must be of the type LteEnbNetDevice (originally the UE is attached to this eNB)
targetEnbDev	target eNB, must be of the type LteEnbNetDevice (the UE is finally connected to this eNB)

Warning: Requires the use of EPC mode. See SetEpcHelper() method.

Definition at line 878 of file lte-helper.cc.

References DoHandoverRequest(), m_epcHelper, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::LteHelper::InstallEnbDevice ( NodeContainer c )

create a set of eNB devices

Parameters

c	the node container where the devices are to be installed

Returns: the NetDeviceContainer with the newly created devices

Definition at line 347 of file lte-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), ns3::Object::Initialize(), InstallSingleEnbDevice(), and NS_LOG_FUNCTION.

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), and main().

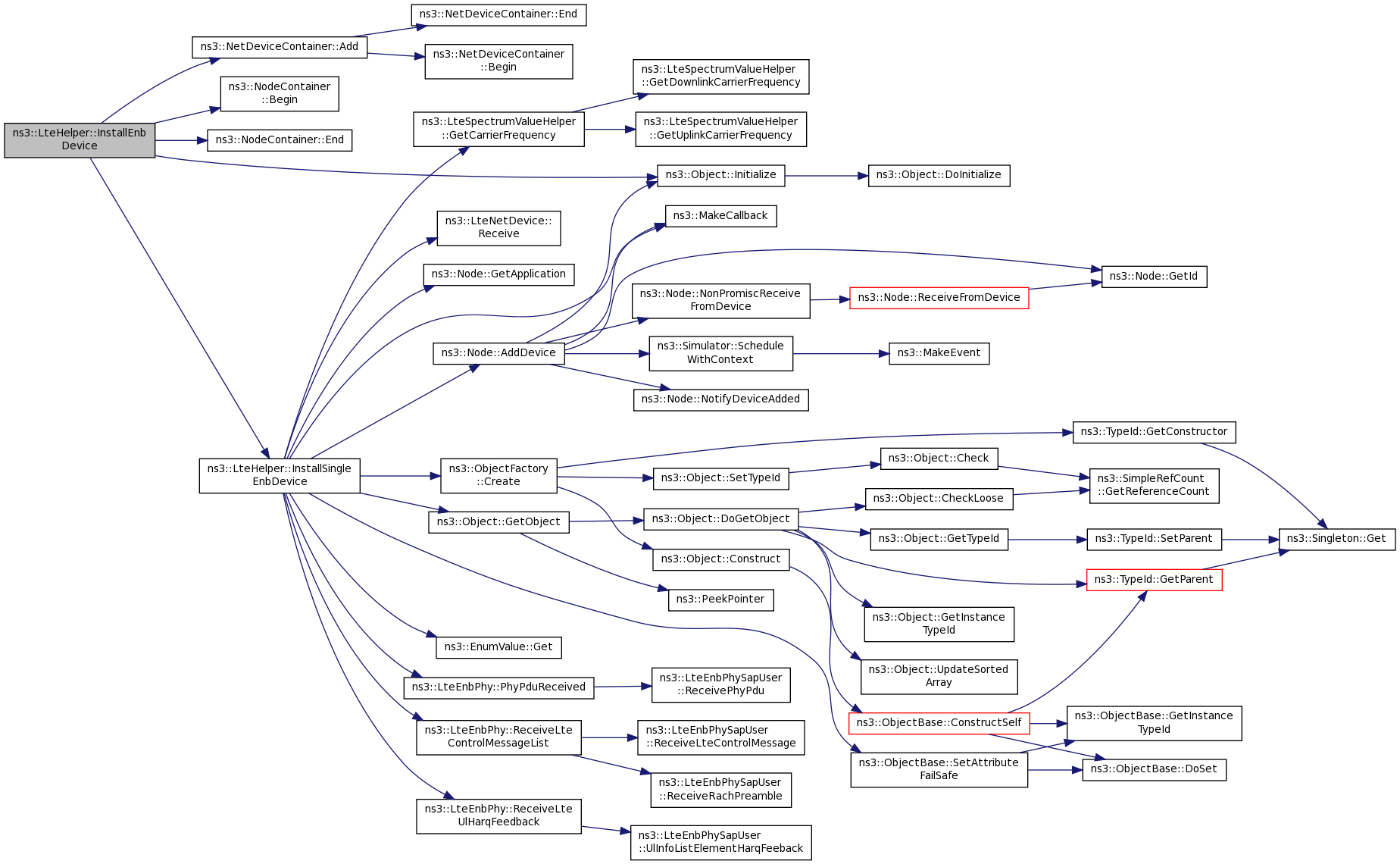

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::LteHelper::InstallSingleEnbDevice ( Ptr< Node > n )

private

Create an eNodeB device (LteEnbNetDevice) on the given node.

Parameters

n	the node where the device is to be installed

Returns: pointer to the created device

Definition at line 377 of file lte-helper.cc.

References ns3::Node::AddDevice(), ns3::ObjectFactory::Create(), ns3::EnumValue::Get(), ns3::Node::GetApplication(), ns3::LteSpectrumValueHelper::GetCarrierFrequency(), ns3::Object::GetObject(), m_cellIdCounter, m_downlinkChannel, m_downlinkPathlossModel, m_enbAntennaModelFactory, m_enbNetDeviceFactory, m_epcHelper, m_handoverAlgorithmFactory, m_isAnrEnabled, m_schedulerFactory, m_uplinkChannel, m_uplinkPathlossModel, m_useIdealRrc, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteEnbPhy::PhyPduReceived(), ns3::LteNetDevice::Receive(), ns3::LteEnbPhy::ReceiveLteControlMessageList(), ns3::LteEnbPhy::ReceiveLteUlHarqFeedback(), ns3::LteEnbRrc::RLC_SM_ALWAYS, ns3::LteEnbRrc::RLC_UM_ALWAYS, and ns3::ObjectBase::SetAttributeFailSafe().

Referenced by InstallEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::LteHelper::InstallSingleUeDevice ( Ptr< Node > n )

private

Create a UE device (LteUeNetDevice) on the given node.

Parameters

n	the node where the device is to be installed

Returns: pointer to the created device

Definition at line 535 of file lte-helper.cc.

References ns3::Node::AddDevice(), ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_downlinkChannel, m_epcHelper, m_imsiCounter, m_ueAntennaModelFactory, m_ueNetDeviceFactory, m_uplinkChannel, m_useIdealRrc, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteUePhy::PhyPduReceived(), ns3::LteNetDevice::Receive(), ns3::LteUePhy::ReceiveLteControlMessageList(), ns3::LteUePhy::ReceiveLteDlHarqFeedback(), and ns3::LteUePhy::ReceivePss().

Referenced by InstallUeDevice().

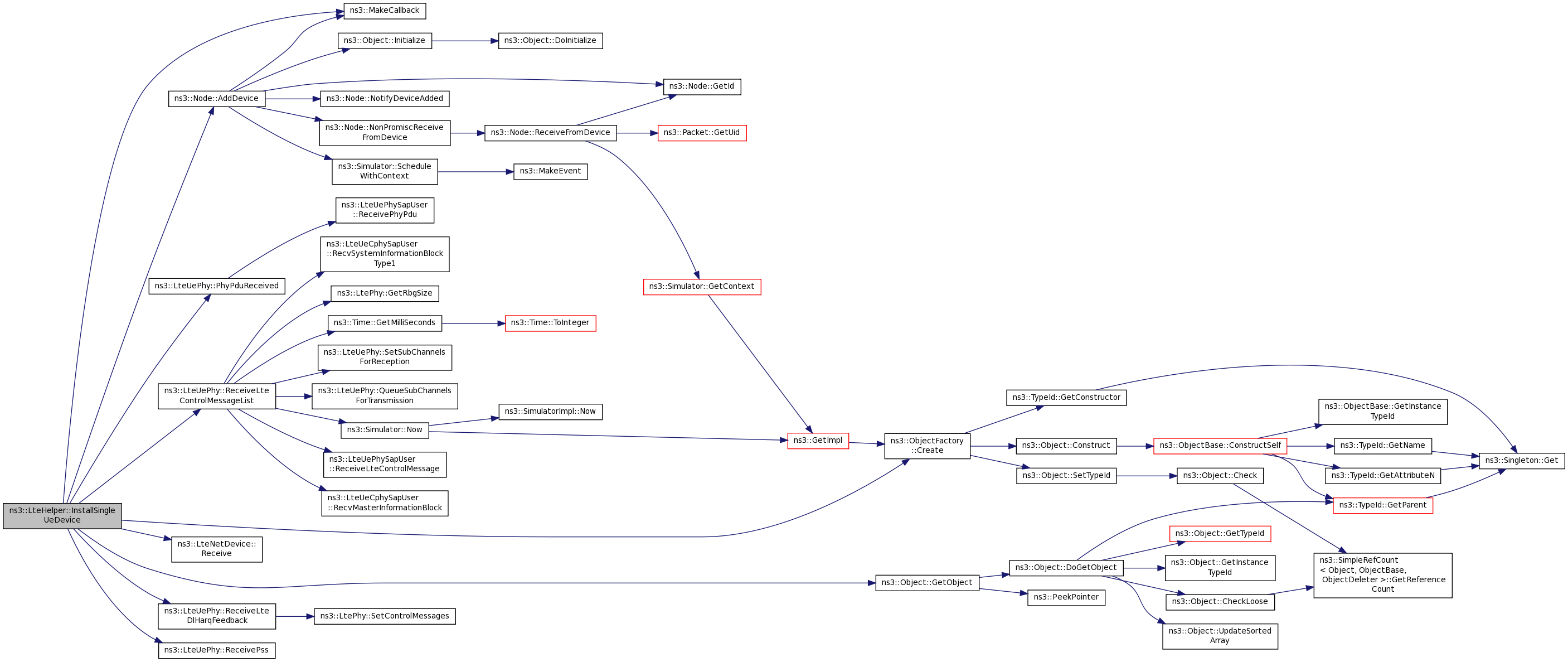

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::LteHelper::InstallUeDevice ( NodeContainer c )

create a set of UE devices

Parameters

c	the node container where the devices are to be installed

Returns: the NetDeviceContainer with the newly created devices

Definition at line 362 of file lte-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), InstallSingleUeDevice(), and NS_LOG_FUNCTION.

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetEnbAntennaModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the AntennaModel to be used for the eNBs

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 287 of file lte-helper.cc.

References m_enbAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetEnbAntennaModelType ( std::string type )

Parameters

type	the type of AntennaModel to be used for the eNBs

Definition at line 280 of file lte-helper.cc.

References m_enbAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetEnbDeviceAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the LteEnbNetDevice to be created

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 272 of file lte-helper.cc.

References m_enbNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetEpcHelper ( Ptr< EpcHelper > h )

Set the EpcHelper to be used to setup the EPC network in conjunction with the setup of the LTE radio access network.

Note: if no EpcHelper is ever set, then LteHelper will default to creating an LTE-only simulation with no EPC, using LteRlcSm as the RLC model, and without supporting any IP networking. In other words, it will be a radio-level simulation involving only LTE PHY and MAC and the FF Scheduler, with a saturation traffic model for the RLC.

Parameters

h	a pointer to the EpcHelper to be used

Definition at line 204 of file lte-helper.cc.

References m_epcHelper, and NS_LOG_FUNCTION.

Referenced by main().

Here is the caller graph for this function:

void ns3::LteHelper::SetFadingModel ( std::string model )

Parameters

model the fading model to be used

Definition at line 315 of file lte-helper.cc.

References m_fadingModelFactory, m_fadingModelType, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetFadingModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute of the fading model

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 327 of file lte-helper.cc.

References m_fadingModelFactory, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetHandoverAlgorithmAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the handover algorithm to be created

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 246 of file lte-helper.cc.

References m_handoverAlgorithmFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetHandoverAlgorithmType ( std::string type )

Parameters

type	the type of handover algorithm to be used for the eNBs

Definition at line 238 of file lte-helper.cc.

References m_handoverAlgorithmFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by GetTypeId(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetPathlossModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the pathloss model to be created

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 264 of file lte-helper.cc.

References m_dlPathlossModelFactory, m_ulPathlossModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetPathlossModelType ( std::string type )

Parameters

type	the type of pathloss model to be used for the eNBs

Definition at line 254 of file lte-helper.cc.

References m_dlPathlossModelFactory, m_ulPathlossModelFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetSchedulerAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the scheduler to be created

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 225 of file lte-helper.cc.

References m_schedulerFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

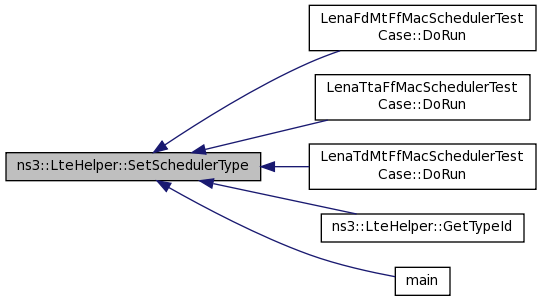

void ns3::LteHelper::SetSchedulerType ( std::string type )

Parameters

type	the type of scheduler to be used for the eNBs

Definition at line 211 of file lte-helper.cc.

References m_schedulerFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), GetTypeId(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetSpectrumChannelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the SpectrumChannel to be used for the UEs

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 340 of file lte-helper.cc.

References m_channelFactory, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

void ns3::LteHelper::SetSpectrumChannelType ( std::string type )

Parameters

type	the type of SpectrumChannel to be used for the UEs

Definition at line 333 of file lte-helper.cc.

References m_channelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteHelper::SetUeAntennaModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the AntennaModel to be used for the UEs

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 308 of file lte-helper.cc.

References m_ueAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

void ns3::LteHelper::SetUeAntennaModelType ( std::string type )

Parameters

type	the type of AntennaModel to be used for the UEs

Definition at line 301 of file lte-helper.cc.

References m_ueAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

void ns3::LteHelper::SetUeDeviceAttribute	(	std::string	n,
		const AttributeValue &	v
	)

set an attribute for the LteUeNetDevice to be created

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 294 of file lte-helper.cc.

References m_ueNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::LteHelper::m_cellIdCounter

private

Definition at line 569 of file lte-helper.h.

Referenced by InstallSingleEnbDevice().

ObjectFactory ns3::LteHelper::m_channelFactory

private

Definition at line 551 of file lte-helper.h.

Referenced by DoInitialize(), LteHelper(), SetSpectrumChannelAttribute(), and SetSpectrumChannelType().

ObjectFactory ns3::LteHelper::m_dlPathlossModelFactory

private

Definition at line 548 of file lte-helper.h.

Referenced by DoInitialize(), EnableLogComponents(), SetPathlossModelAttribute(), and SetPathlossModelType().

Ptr<SpectrumChannel> ns3::LteHelper::m_downlinkChannel

private

Definition at line 534 of file lte-helper.h.

Referenced by DoDispose(), DoInitialize(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

Ptr<Object> ns3::LteHelper::m_downlinkPathlossModel

private

Definition at line 537 of file lte-helper.h.

Referenced by DoInitialize(), and InstallSingleEnbDevice().

ObjectFactory ns3::LteHelper::m_enbAntennaModelFactory

private

Definition at line 544 of file lte-helper.h.

Referenced by InstallSingleEnbDevice(), LteHelper(), SetEnbAntennaModelAttribute(), and SetEnbAntennaModelType().

ObjectFactory ns3::LteHelper::m_enbNetDeviceFactory

private

Definition at line 543 of file lte-helper.h.

Referenced by InstallSingleEnbDevice(), LteHelper(), and SetEnbDeviceAttribute().

Ptr<EpcHelper> ns3::LteHelper::m_epcHelper

private

Definition at line 566 of file lte-helper.h.

Referenced by ActivateDataRadioBearer(), ActivateDedicatedEpsBearer(), AddX2Interface(), Attach(), HandoverRequest(), InstallSingleEnbDevice(), InstallSingleUeDevice(), and SetEpcHelper().

ObjectFactory ns3::LteHelper::m_fadingModelFactory

private

Definition at line 554 of file lte-helper.h.

Referenced by DoInitialize(), SetFadingModel(), and SetFadingModelAttribute().

std::string ns3::LteHelper::m_fadingModelType

private

Definition at line 553 of file lte-helper.h.

Referenced by DoInitialize(), and SetFadingModel().

Ptr<SpectrumPropagationLossModel> ns3::LteHelper::m_fadingModule

private

Definition at line 555 of file lte-helper.h.

Referenced by AssignStreams(), and DoInitialize().

bool ns3::LteHelper::m_fadingStreamsAssigned

private

Definition at line 556 of file lte-helper.h.

Referenced by AssignStreams().

ObjectFactory ns3::LteHelper::m_handoverAlgorithmFactory

private

Definition at line 541 of file lte-helper.h.

Referenced by GetHandoverAlgorithmType(), InstallSingleEnbDevice(), SetHandoverAlgorithmAttribute(), and SetHandoverAlgorithmType().

uint64_t ns3::LteHelper::m_imsiCounter

private

Definition at line 568 of file lte-helper.h.

Referenced by InstallSingleUeDevice().

bool ns3::LteHelper::m_isAnrEnabled

private

Definition at line 572 of file lte-helper.h.

Referenced by GetTypeId(), and InstallSingleEnbDevice().

Ptr<MacStatsCalculator> ns3::LteHelper::m_macStats

private

Definition at line 561 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlMacTraces(), and EnableUlMacTraces().

Ptr<RadioBearerStatsCalculator> ns3::LteHelper::m_pdcpStats

private

Definition at line 563 of file lte-helper.h.

Referenced by EnablePdcpTraces(), and GetPdcpStats().

Ptr<PhyRxStatsCalculator> ns3::LteHelper::m_phyRxStats

private

Definition at line 560 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlRxPhyTraces(), and EnableUlRxPhyTraces().

Ptr<PhyStatsCalculator> ns3::LteHelper::m_phyStats

private

Definition at line 558 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlPhyTraces(), and EnableUlPhyTraces().

Ptr<PhyTxStatsCalculator> ns3::LteHelper::m_phyTxStats

private

Definition at line 559 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlTxPhyTraces(), and EnableUlTxPhyTraces().

ObjectFactory ns3::LteHelper::m_propagationModelFactory

private

Definition at line 542 of file lte-helper.h.

RadioBearerStatsConnector ns3::LteHelper::m_radioBearerStatsConnector

private

Definition at line 564 of file lte-helper.h.

Referenced by EnablePdcpTraces(), and EnableRlcTraces().

Ptr<RadioBearerStatsCalculator> ns3::LteHelper::m_rlcStats

private

Definition at line 562 of file lte-helper.h.

Referenced by EnableRlcTraces(), and GetRlcStats().

ObjectFactory ns3::LteHelper::m_schedulerFactory

private

Definition at line 540 of file lte-helper.h.

Referenced by GetSchedulerType(), InstallSingleEnbDevice(), SetSchedulerAttribute(), and SetSchedulerType().

ObjectFactory ns3::LteHelper::m_ueAntennaModelFactory

private

Definition at line 546 of file lte-helper.h.

Referenced by InstallSingleUeDevice(), LteHelper(), SetUeAntennaModelAttribute(), and SetUeAntennaModelType().

ObjectFactory ns3::LteHelper::m_ueNetDeviceFactory

private

Definition at line 545 of file lte-helper.h.

Referenced by InstallSingleUeDevice(), LteHelper(), and SetUeDeviceAttribute().

ObjectFactory ns3::LteHelper::m_ulPathlossModelFactory

private

Definition at line 549 of file lte-helper.h.

Referenced by DoInitialize(), SetPathlossModelAttribute(), and SetPathlossModelType().

Ptr<SpectrumChannel> ns3::LteHelper::m_uplinkChannel

private

Definition at line 535 of file lte-helper.h.

Referenced by DoDispose(), DoInitialize(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

Ptr<Object> ns3::LteHelper::m_uplinkPathlossModel

private

Definition at line 538 of file lte-helper.h.

Referenced by DoInitialize(), and InstallSingleEnbDevice().

bool ns3::LteHelper::m_useIdealRrc

private

Definition at line 571 of file lte-helper.h.

Referenced by GetTypeId(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

The documentation for this class was generated from the following files:

src/lte/helper/lte-helper.h
src/lte/helper/lte-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
