interface for antenna radiation pattern models More...

#include <antenna-model.h>

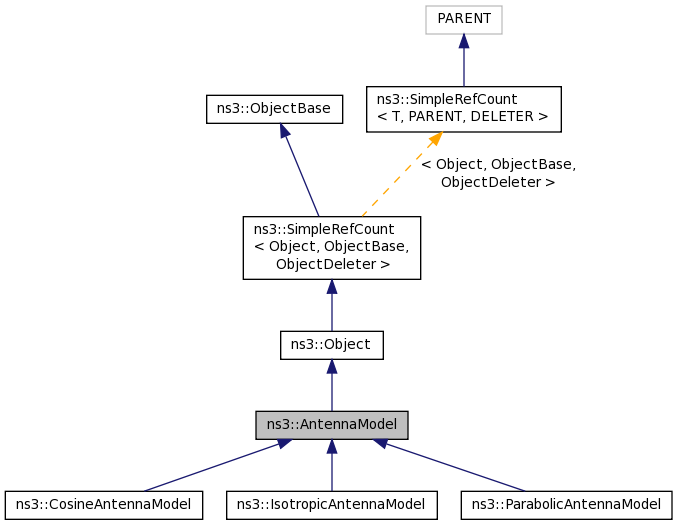

Inheritance diagram for ns3::AntennaModel:

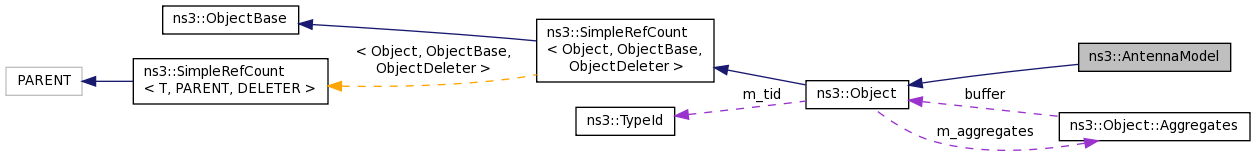

Collaboration diagram for ns3::AntennaModel:

Public Member Functions
	AntennaModel ()

virtual	~AntennaModel ()

virtual double	GetGainDb (Angles a)=0
	this method is expected to be re-implemented by each antenna model More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

interface for antenna radiation pattern models

Doxygen introspection did not find any typical Config paths.

This class provides an interface for the definition of antenna radiation pattern models. This interface is based on the use of spherical coordinates, in particular of the azimuth and inclination angles. This choice is the one proposed "Antenna Theory - Analysis and Design", C.A. Balanis, Wiley, 2nd Ed., see in particular section 2.2 "Radiation pattern".

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 44 of file antenna-model.h.

Constructor & Destructor Documentation

ns3::AntennaModel::AntennaModel ( )

Definition at line 35 of file antenna-model.cc.

ns3::AntennaModel::~AntennaModel ( )

virtual

Definition at line 39 of file antenna-model.cc.

Member Function Documentation

virtual double ns3::AntennaModel::GetGainDb ( Angles a )

pure virtual

this method is expected to be re-implemented by each antenna model

Parameters

a	the spherical angles at which the radiation pattern should be evaluated

Returns: the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implemented in ns3::ParabolicAntennaModel, ns3::CosineAntennaModel, and ns3::IsotropicAntennaModel.

TypeId ns3::AntennaModel::GetTypeId ( void )

static

Definition at line 44 of file antenna-model.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/antenna/model/antenna-model.h
src/antenna/model/antenna-model.cc
