Maintain the event list. More...

#include <scheduler.h>

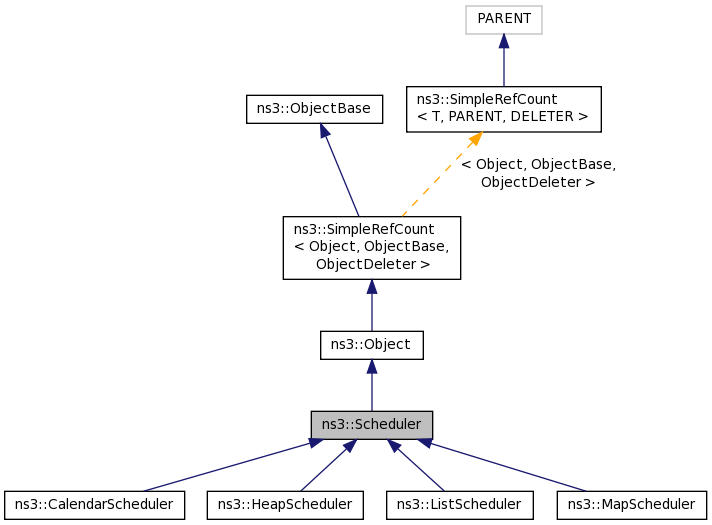

Inheritance diagram for ns3::Scheduler:

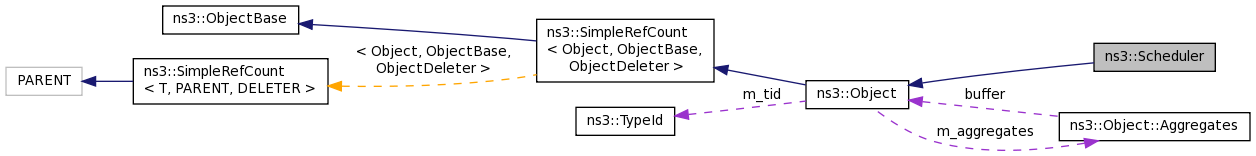

Collaboration diagram for ns3::Scheduler:

Classes
struct	Event

struct	EventKey

Public Member Functions
virtual	~Scheduler ()=0

virtual void	Insert (const Event &ev)=0

virtual bool	IsEmpty (void) const =0

virtual Event	PeekNext (void) const =0

virtual void	Remove (const Event &ev)=0

virtual Event	RemoveNext (void)=0
	This method cannot be invoked if the list is empty. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Maintain the event list.

Doxygen introspection did not find any typical Config paths.

This base class specifies the interface used to maintain the event list. If you want to provide a new event list scheduler, you need to create a subclass of this base class and implement all the pure virtual methods defined here.

The only tricky aspect of this API is the memory management of the EventImpl pointer which is a member of the Event data structure. The lifetime of this pointer is assumed to always be longer than the lifetime of the Scheduler class which means that the caller is responsible for ensuring that this invariant holds through calling EventId::Ref and SimpleRefCount::Unref at the right time. Typically, EventId::Ref is called before Insert and SimpleRefCount::Unref is called after a call to one of the Remove methods.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 57 of file scheduler.h.
