ns3::LteEnbRrcProtocolReal Class Reference

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler. More...

#include <lte-rrc-protocol-real.h>

+ Inheritance diagram for ns3::LteEnbRrcProtocolReal:
+ Collaboration diagram for ns3::LteEnbRrcProtocolReal:

Public Member Functions

 LteEnbRrcProtocolReal ()

virtual ~LteEnbRrcProtocolReal ()

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LteEnbRrcSapUserGetLteEnbRrcSapUser ()

LteUeRrcSapProviderGetUeRrcSapProvider (uint16_t rnti)

void SetCellId (uint16_t cellId)

void SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p)

void SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

LteRrcSap::RrcConnectionReconfiguration DoDecodeHandoverCommand (Ptr< Packet > p)

LteRrcSap::HandoverPreparationInfo DoDecodeHandoverPreparationInformation (Ptr< Packet > p)

Ptr< PacketDoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg)

Ptr< PacketDoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg)

void DoReceivePdcpPdu (uint16_t rnti, Ptr< Packet > p)

void DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void DoRemoveUe (uint16_t rnti)

void DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg)

void DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg)

void DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg)

void DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg)

void DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg)

void DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg)

void DoSendSystemInformation (LteRrcSap::SystemInformation msg)

void DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params)

void SendSystemInformation (LteRrcSap::SystemInformation msg)


Private Attributes

uint16_t m_cellId

std::map< uint16_t,
LteEnbRrcSapProvider::CompleteSetupUeParameters
m_completeSetupUeParametersMap

LteEnbRrcSapProviderm_enbRrcSapProvider

std::map< uint16_t,
LteUeRrcSapProvider * >
m_enbRrcSapProviderMap

LteEnbRrcSapUserm_enbRrcSapUser

uint16_t m_rnti

std::map< uint16_t,
LteEnbRrcSapUser::SetupUeParameters
m_setupUeParametersMap


Friends

class LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

class LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

class MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

class RealProtocolRlcSapUser


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 104 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::LteEnbRrcProtocolReal::LteEnbRrcProtocolReal ( )

Definition at line 357 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrcProtocolReal::~LteEnbRrcProtocolReal ( )
virtual

Definition at line 364 of file lte-rrc-protocol-real.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

LteRrcSap::RrcConnectionReconfiguration ns3::LteEnbRrcProtocolReal::DoDecodeHandoverCommand ( Ptr< Packet p)
private

Definition at line 758 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), and ns3::Packet::RemoveHeader().

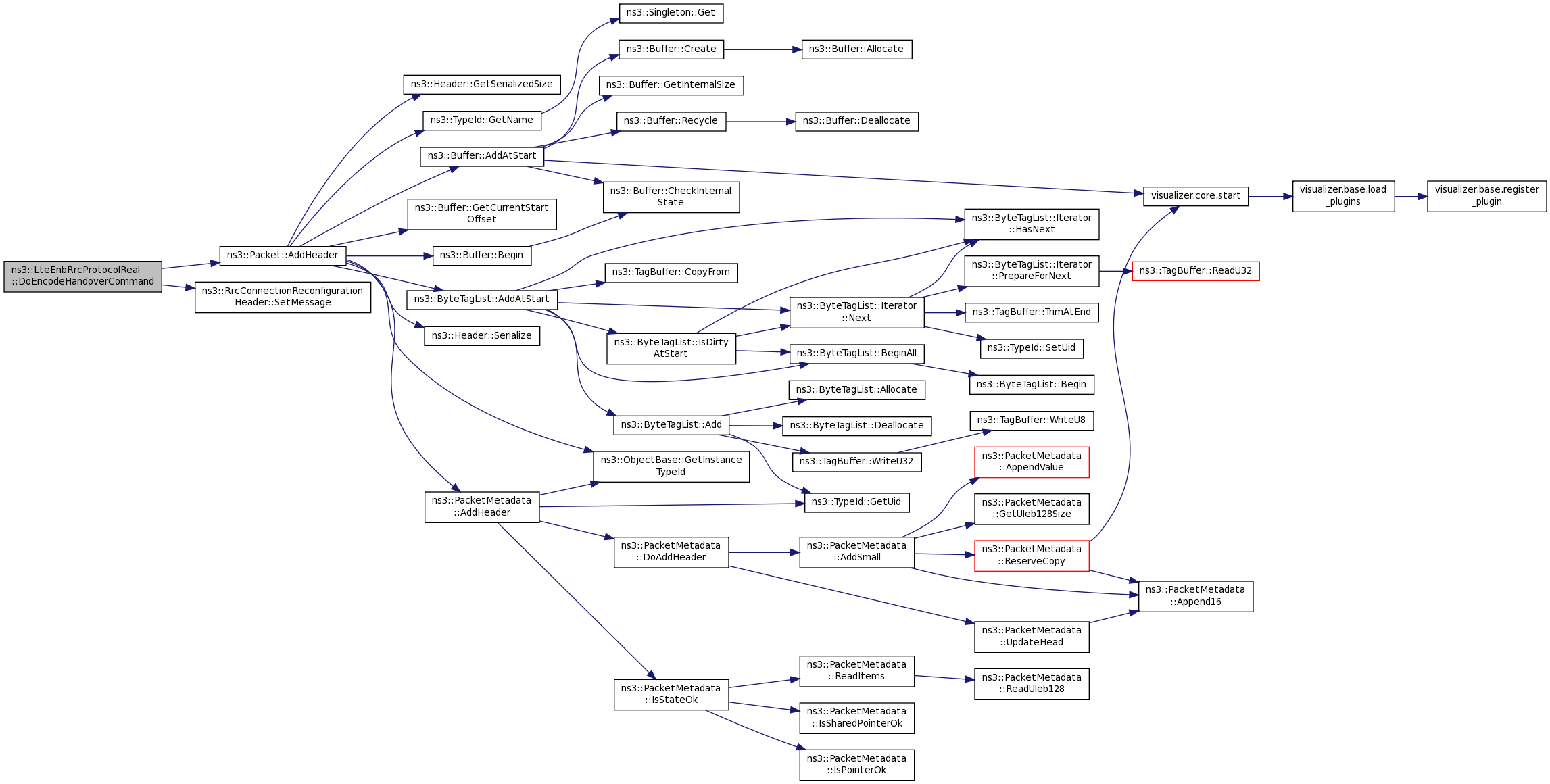

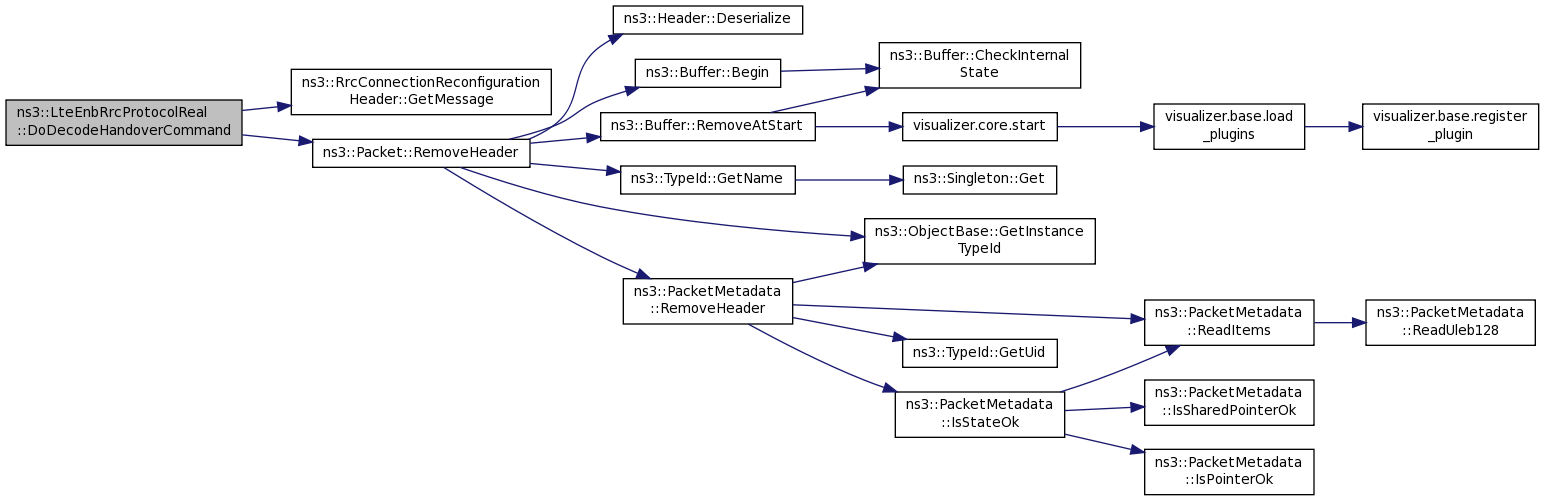

+ Here is the call graph for this function:

LteRrcSap::HandoverPreparationInfo ns3::LteEnbRrcProtocolReal::DoDecodeHandoverPreparationInformation ( Ptr< Packet p)
private

Definition at line 739 of file lte-rrc-protocol-real.cc.

References ns3::HandoverPreparationInfoHeader::GetMessage(), and ns3::Packet::RemoveHeader().

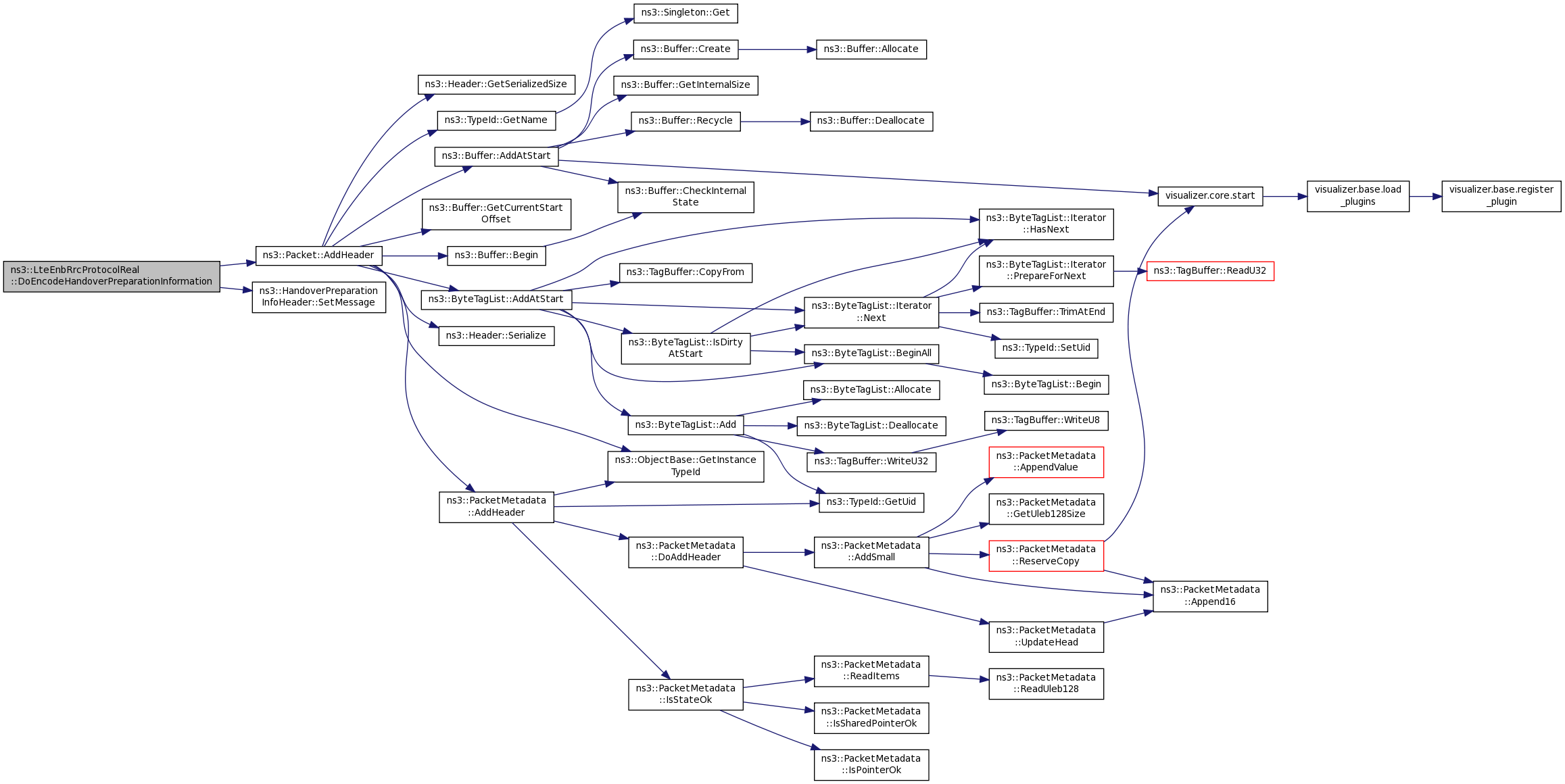

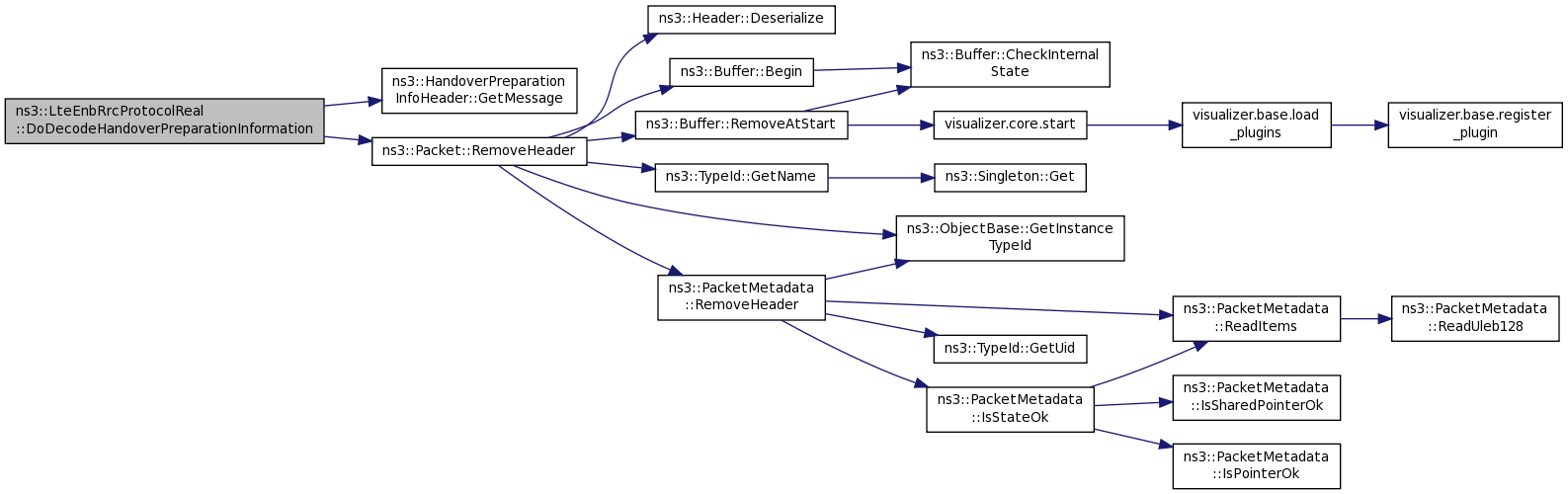

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 370 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapUser, and NS_LOG_FUNCTION.

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverCommand ( LteRrcSap::RrcConnectionReconfiguration  msg)
private

Definition at line 748 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), and ns3::RrcConnectionReconfigurationHeader::SetMessage().

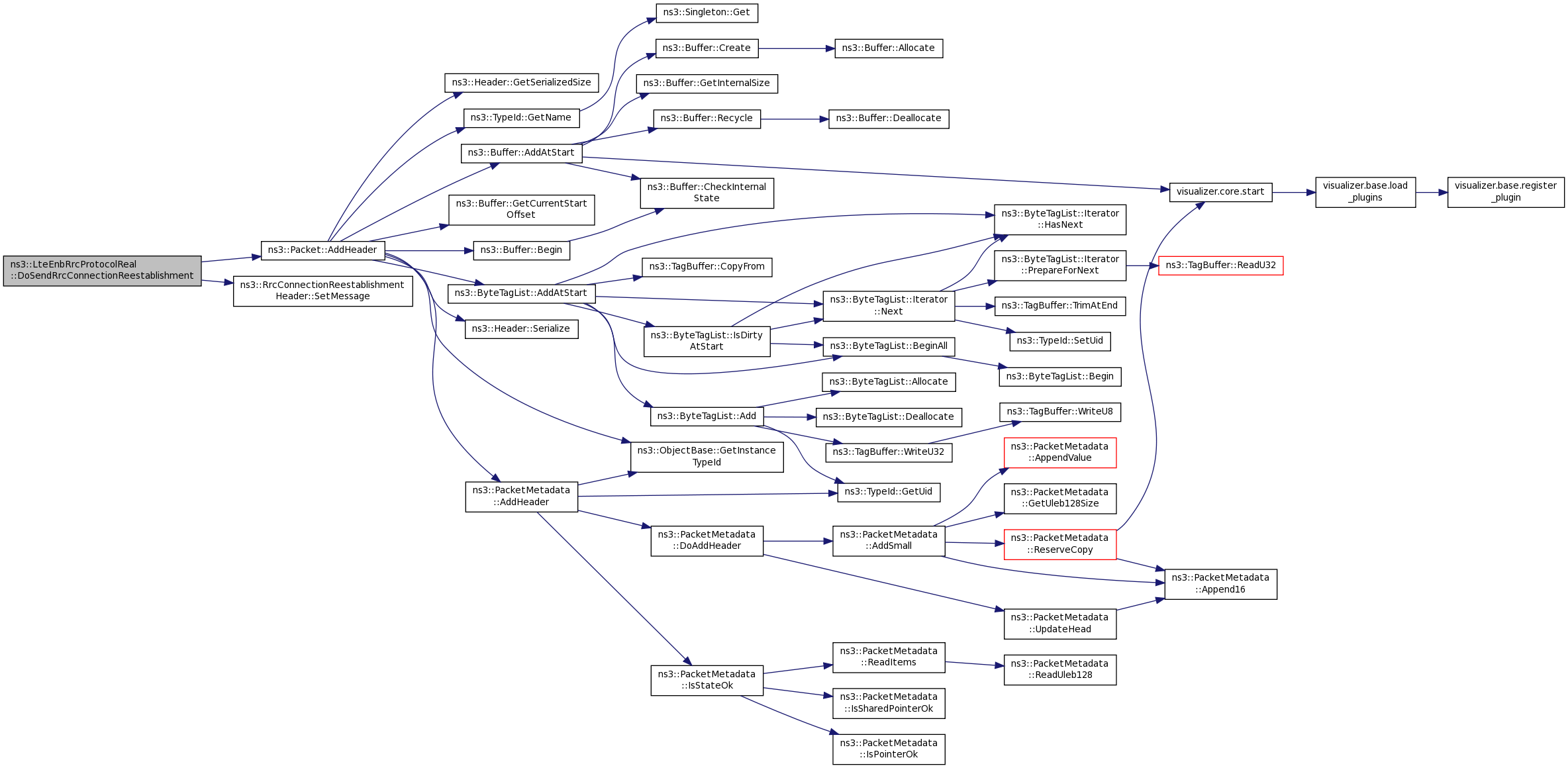

+ Here is the call graph for this function:

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverPreparationInformation ( LteRrcSap::HandoverPreparationInfo  msg)
private

Definition at line 728 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), and ns3::HandoverPreparationInfoHeader::SetMessage().

+ Here is the call graph for this function:

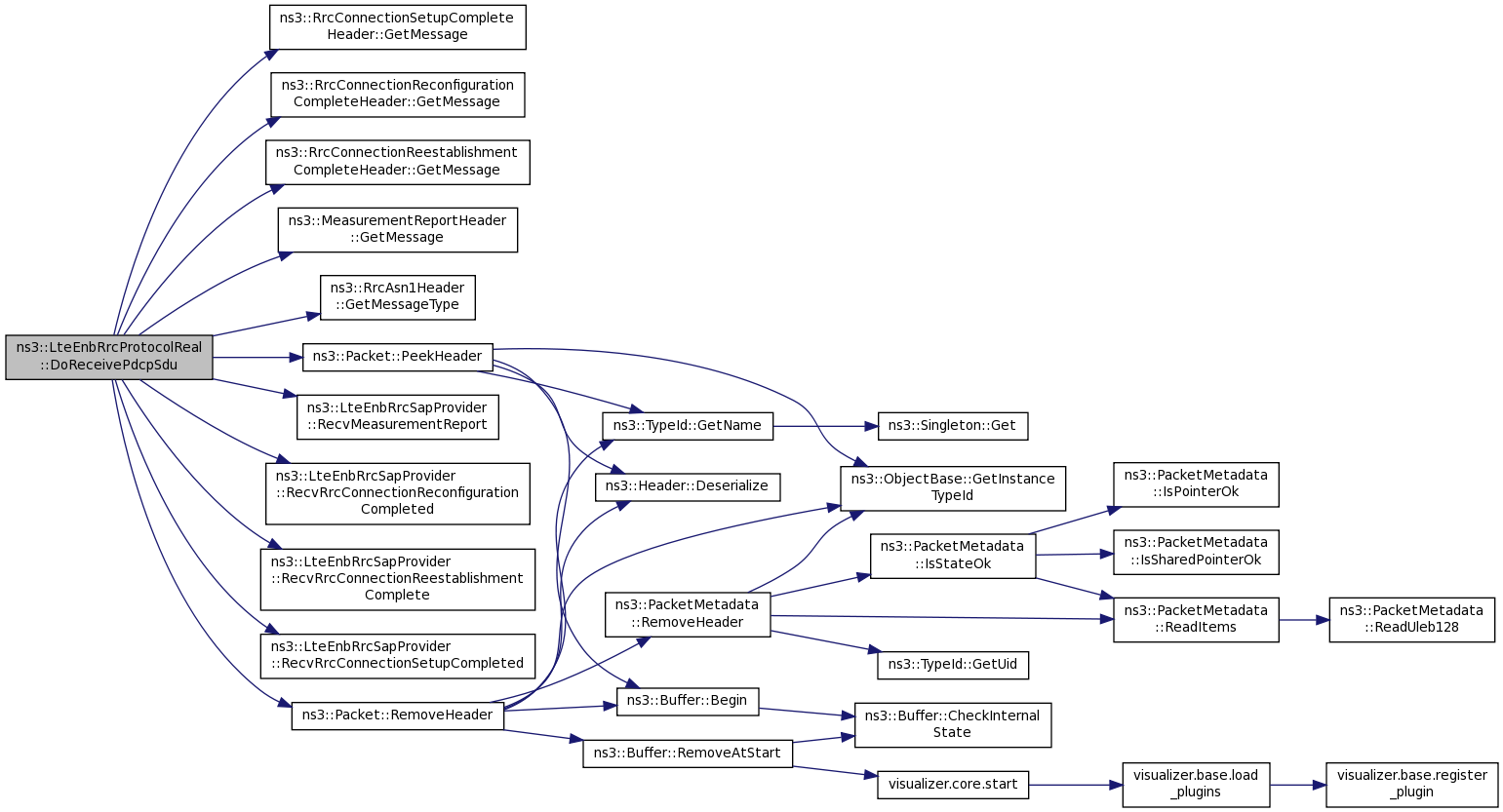

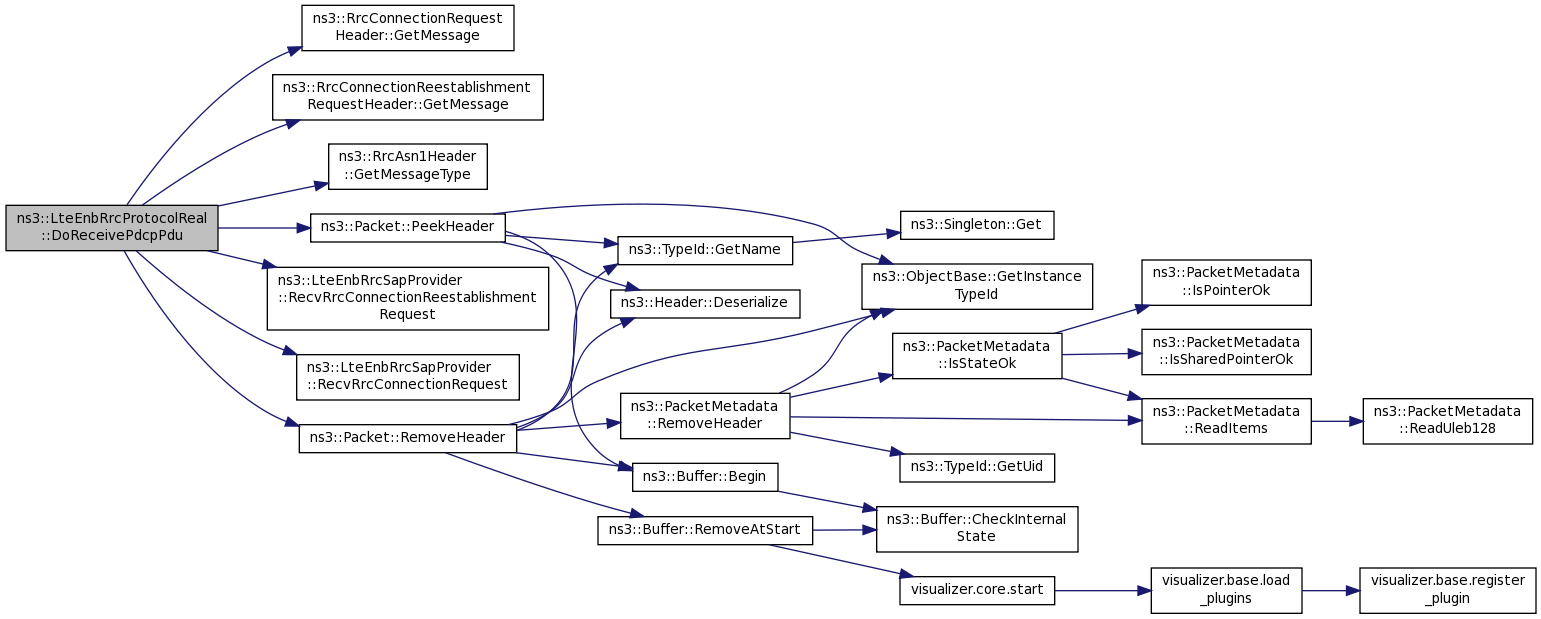

void ns3::LteEnbRrcProtocolReal::DoRemoveUe ( uint16_t  rnti)
private

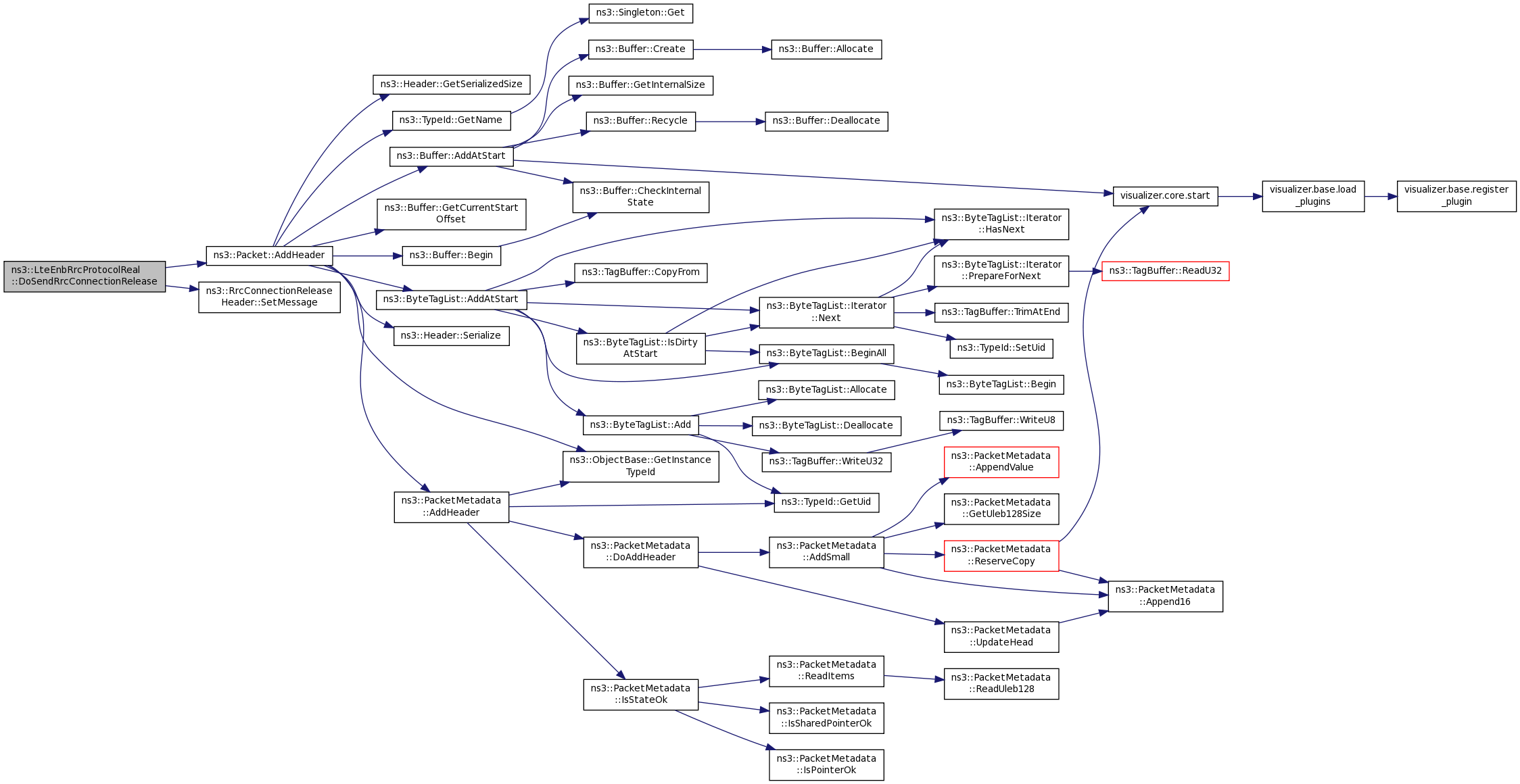

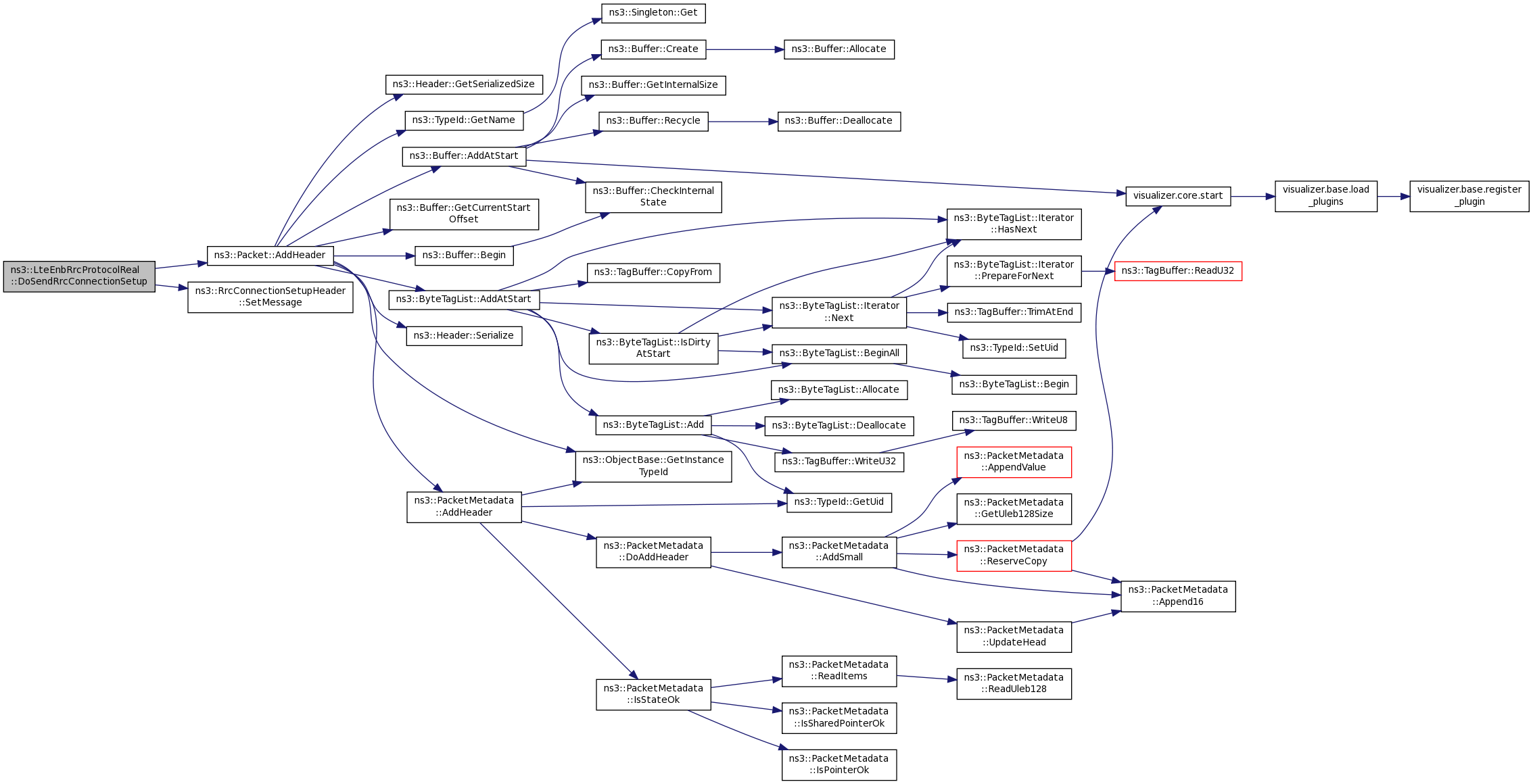

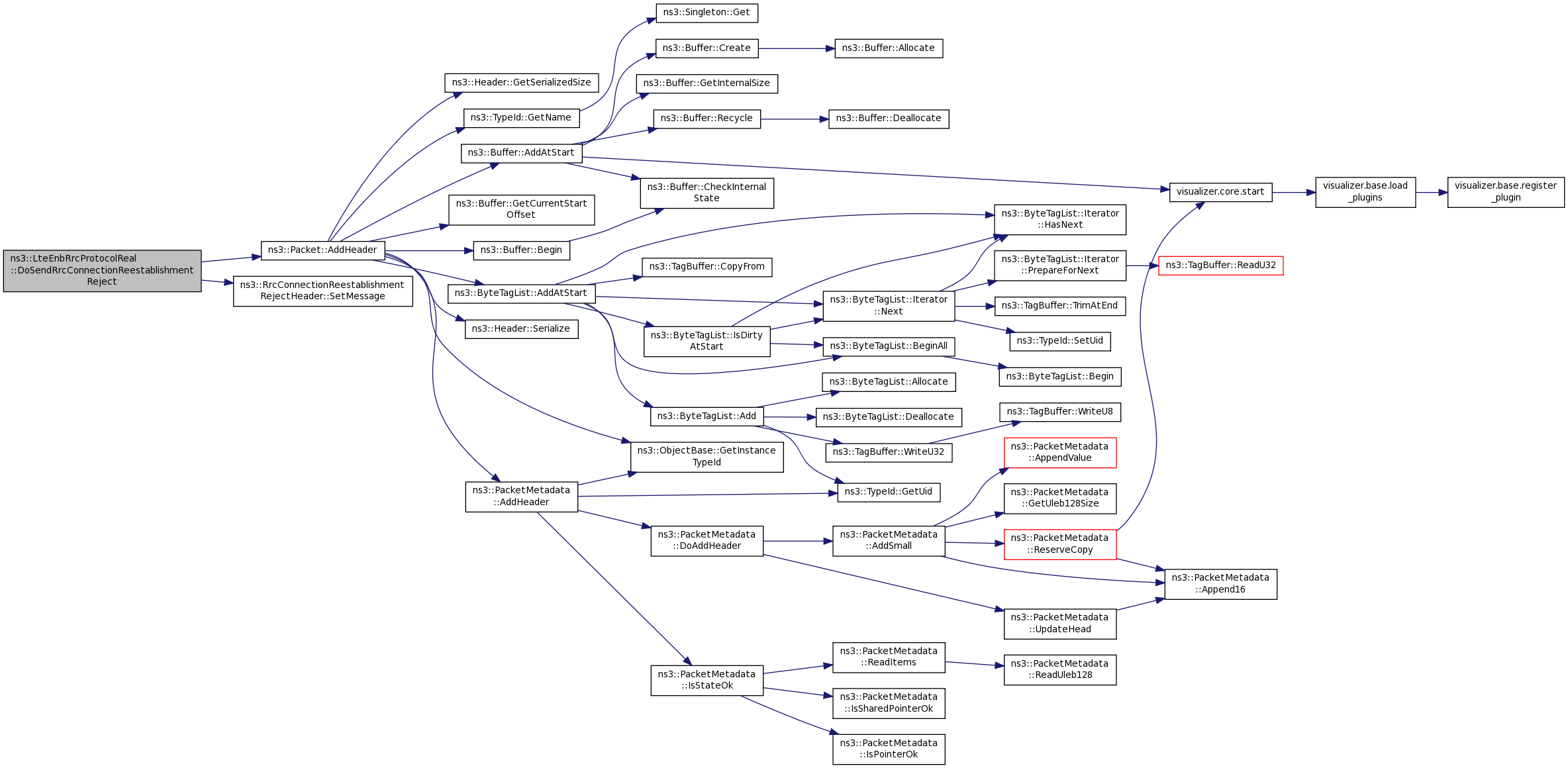

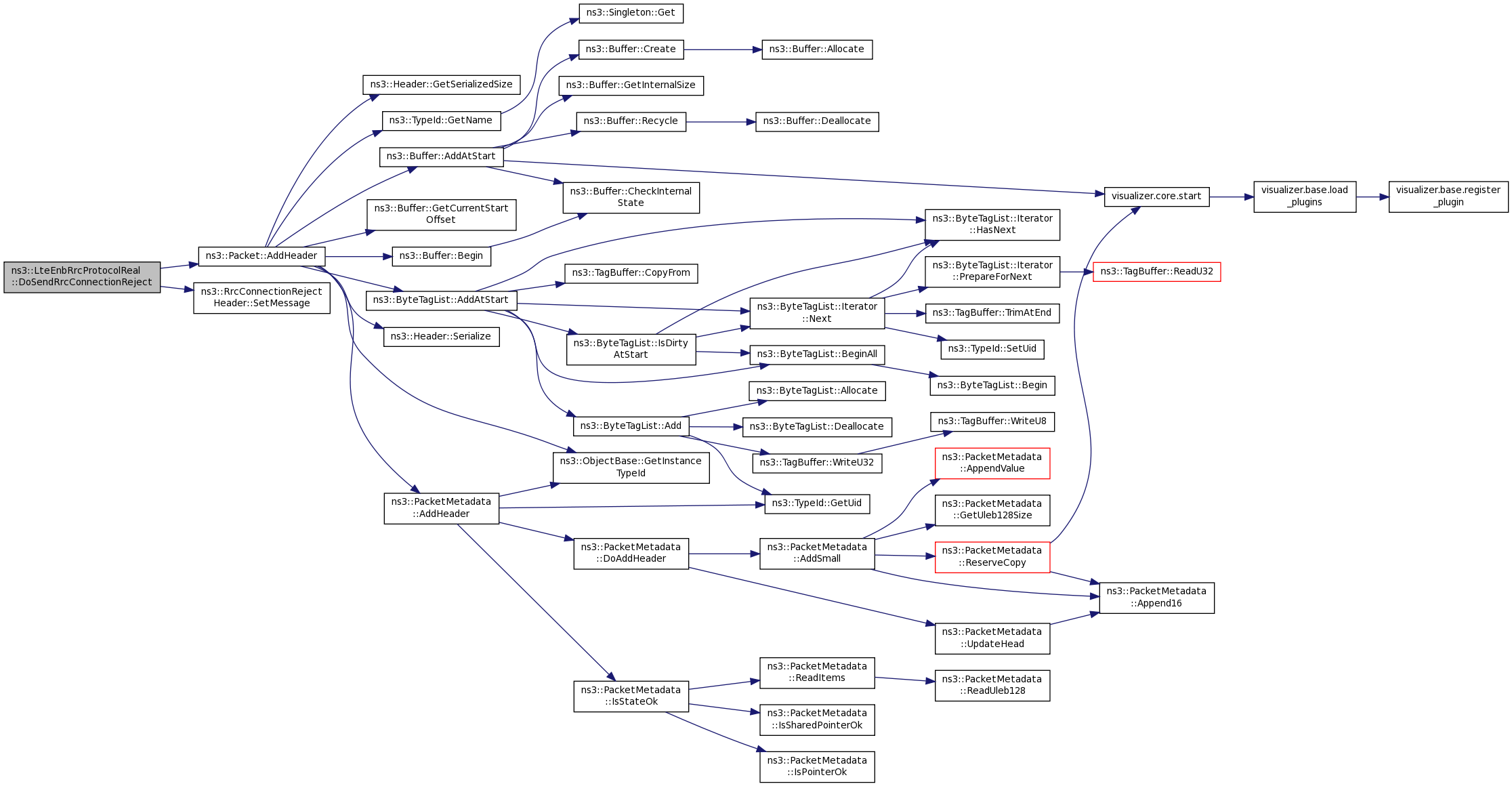

LteEnbRrcSapUser * ns3::LteEnbRrcProtocolReal::GetLteEnbRrcSapUser ( )

Definition at line 402 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser.

TypeId ns3::LteEnbRrcProtocolReal::GetTypeId ( void  )
static

Definition at line 386 of file lte-rrc-protocol-real.cc.

References ns3::TypeId::SetParent().

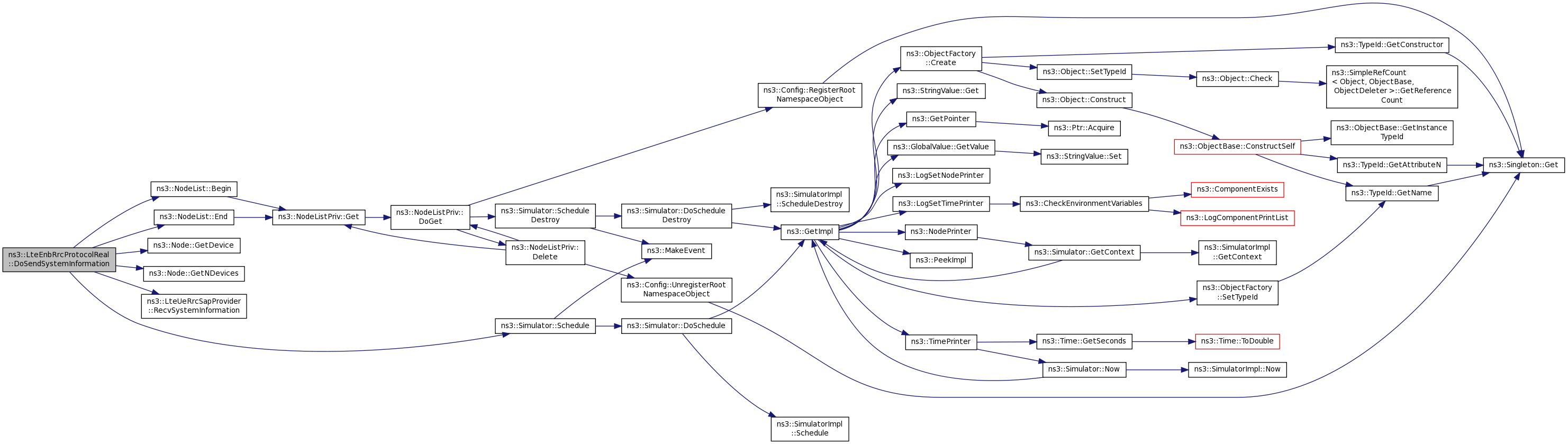

+ Here is the call graph for this function:

LteUeRrcSapProvider * ns3::LteEnbRrcProtocolReal::GetUeRrcSapProvider ( uint16_t  rnti)

Definition at line 414 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

void ns3::LteEnbRrcProtocolReal::SendSystemInformation ( LteRrcSap::SystemInformation  msg)
private
void ns3::LteEnbRrcProtocolReal::SetCellId ( uint16_t  cellId)

Definition at line 408 of file lte-rrc-protocol-real.cc.

References m_cellId.

void ns3::LteEnbRrcProtocolReal::SetLteEnbRrcSapProvider ( LteEnbRrcSapProvider p)

Definition at line 396 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProvider.

void ns3::LteEnbRrcProtocolReal::SetUeRrcSapProvider ( uint16_t  rnti,
LteUeRrcSapProvider p
)

Definition at line 423 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

Friends And Related Function Documentation

Definition at line 107 of file lte-rrc-protocol-real.h.

Definition at line 108 of file lte-rrc-protocol-real.h.

Definition at line 106 of file lte-rrc-protocol-real.h.

friend class RealProtocolRlcSapUser
friend

Definition at line 109 of file lte-rrc-protocol-real.h.

Referenced by DoSetupUe().

Member Data Documentation

uint16_t ns3::LteEnbRrcProtocolReal::m_cellId
private

Definition at line 148 of file lte-rrc-protocol-real.h.

Referenced by DoSendSystemInformation(), and SetCellId().

std::map<uint16_t, LteEnbRrcSapProvider::CompleteSetupUeParameters> ns3::LteEnbRrcProtocolReal::m_completeSetupUeParametersMap
private

Definition at line 153 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoRemoveUe(), and DoSetupUe().

LteEnbRrcSapProvider* ns3::LteEnbRrcProtocolReal::m_enbRrcSapProvider
private
std::map<uint16_t, LteUeRrcSapProvider*> ns3::LteEnbRrcProtocolReal::m_enbRrcSapProviderMap
private
LteEnbRrcSapUser* ns3::LteEnbRrcProtocolReal::m_enbRrcSapUser
private

Definition at line 150 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), GetLteEnbRrcSapUser(), and LteEnbRrcProtocolReal().

uint16_t ns3::LteEnbRrcProtocolReal::m_rnti
private

Definition at line 147 of file lte-rrc-protocol-real.h.


The documentation for this class was generated from the following files:
