Nix-vector routing protocol. More...

#include <ipv4-nix-vector-routing.h>

Inheritance diagram for ns3::Ipv4NixVectorRouting:

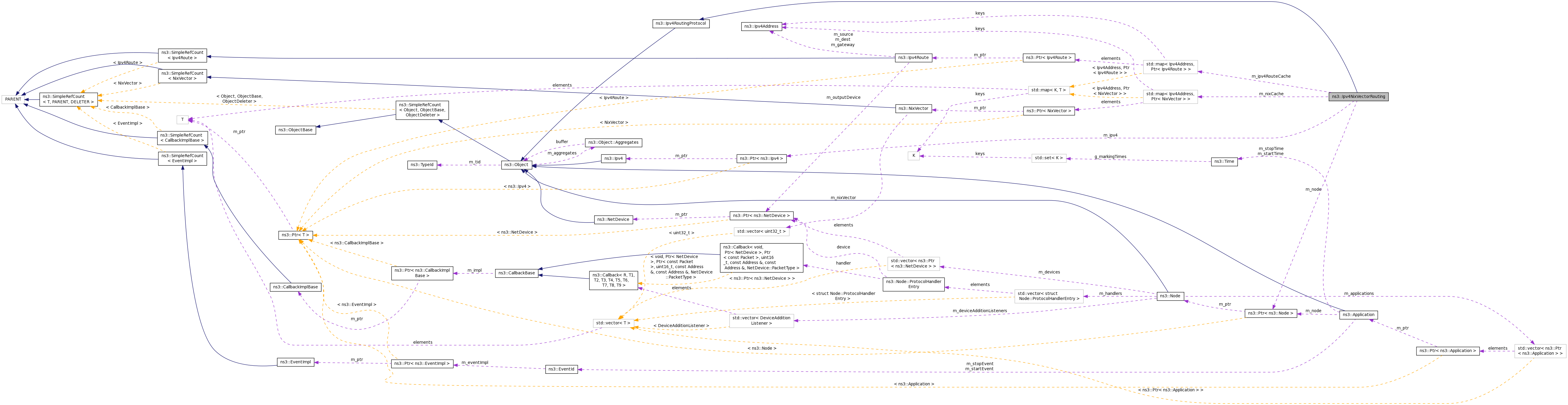

Collaboration diagram for ns3::Ipv4NixVectorRouting:

Public Member Functions
	Ipv4NixVectorRouting ()

	~Ipv4NixVectorRouting ()

void	FlushGlobalNixRoutingCache (void)
	Called when run-time link topology change occurs which iterates through the node list and flushes any nix vector caches. More...

void	SetNode (Ptr< Node > node)
	Set the Node pointer of the node for which this routing protocol is to be placed. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	The Interface ID of the Global Router interface. More...

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
bool	BFS (uint32_t numberOfNodes, Ptr< Node > source, Ptr< Node > dest, std::vector< Ptr< Node > > &parentVector, Ptr< NetDevice > oif)

bool	BuildNixVector (const std::vector< Ptr< Node > > &parentVector, uint32_t source, uint32_t dest, Ptr< NixVector > nixVector)

bool	BuildNixVectorLocal (Ptr< NixVector > nixVector)

void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

uint32_t	FindNetDeviceForNixIndex (uint32_t nodeIndex, Ipv4Address &gatewayIp)

uint32_t	FindTotalNeighbors (void)

void	FlushIpv4RouteCache (void)

void	FlushNixCache (void)

void	GetAdjacentNetDevices (Ptr< NetDevice >, Ptr< Channel >, NetDeviceContainer &)

Ptr< Ipv4Route >	GetIpv4RouteInCache (Ipv4Address)

Ptr< NixVector >	GetNixVector (Ptr< Node >, Ipv4Address, Ptr< NetDevice >)

Ptr< NixVector >	GetNixVectorInCache (Ipv4Address)

Ptr< Node >	GetNodeByIp (Ipv4Address)

Ptr< BridgeNetDevice >	NetDeviceIsBridged (Ptr< NetDevice > nd) const

virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)

virtual void	NotifyInterfaceDown (uint32_t interface)

virtual void	NotifyInterfaceUp (uint32_t interface)

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries. More...

void	ResetTotalNeighbors (void)

virtual bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

virtual Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)

Private Attributes
Ptr< Ipv4 >	m_ipv4

Ipv4RouteMap_t	m_ipv4RouteCache

NixMap_t	m_nixCache

Ptr< Node >	m_node

uint32_t	m_totalNeighbors

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr < Ipv4MulticastRoute >, Ptr < const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr < Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Nix-vector routing protocol.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 52 of file ipv4-nix-vector-routing.h.

Constructor & Destructor Documentation

ns3::Ipv4NixVectorRouting::Ipv4NixVectorRouting ( )

Definition at line 48 of file ipv4-nix-vector-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv4NixVectorRouting::~Ipv4NixVectorRouting ( )

Definition at line 54 of file ipv4-nix-vector-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::Ipv4NixVectorRouting::BFS	(	uint32_t	numberOfNodes,
		Ptr< Node >	source,
		Ptr< Node >	dest,
		std::vector< Ptr< Node > > &	parentVector,
		Ptr< NetDevice >	oif
	)

private

Definition at line 730 of file ipv4-nix-vector-routing.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), GetAdjacentNetDevices(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by GetNixVector().

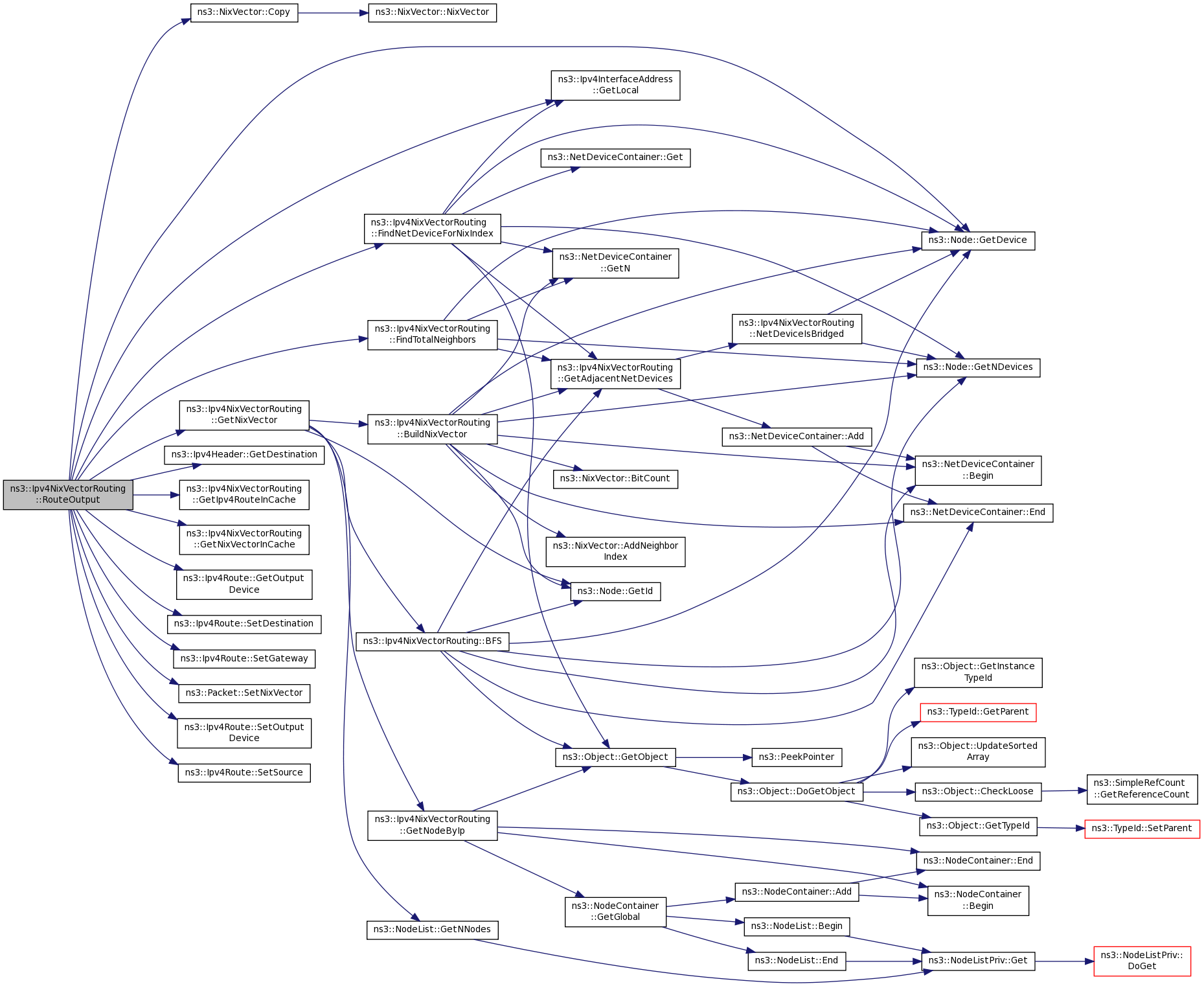

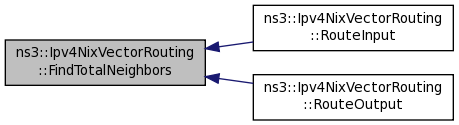

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv4NixVectorRouting::BuildNixVector	(	const std::vector< Ptr< Node > > &	parentVector,
		uint32_t	source,
		uint32_t	dest,
		Ptr< NixVector >	nixVector
	)

private

Definition at line 227 of file ipv4-nix-vector-routing.cc.

References ns3::NixVector::AddNeighborIndex(), ns3::NetDeviceContainer::Begin(), ns3::NixVector::BitCount(), ns3::NetDeviceContainer::End(), GetAdjacentNetDevices(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::NetDeviceContainer::GetN(), ns3::Node::GetNDevices(), NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by GetNixVector().

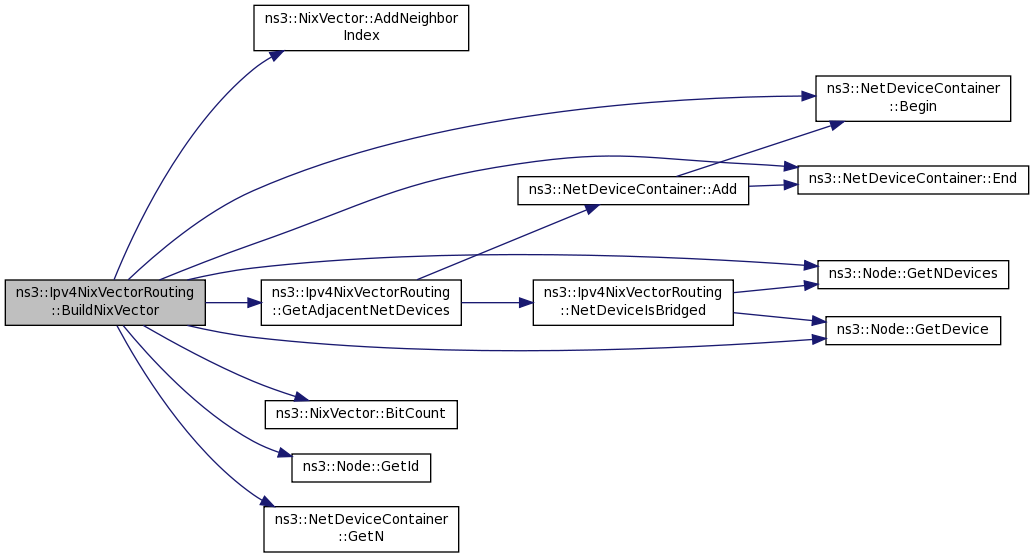

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv4NixVectorRouting::BuildNixVectorLocal ( Ptr< NixVector > nixVector )

private

Definition at line 200 of file ipv4-nix-vector-routing.cc.

References ns3::NixVector::AddNeighborIndex(), ns3::NixVector::BitCount(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Node::GetNDevices(), m_ipv4, m_node, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 70 of file ipv4-nix-vector-routing.cc.

References ns3::Object::DoDispose(), m_ipv4, m_node, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

uint32_t ns3::Ipv4NixVectorRouting::FindNetDeviceForNixIndex	(	uint32_t	nodeIndex,
		Ipv4Address &	gatewayIp
	)

private

Definition at line 439 of file ipv4-nix-vector-routing.cc.

References ns3::NetDeviceContainer::Get(), GetAdjacentNetDevices(), ns3::Node::GetDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NetDeviceContainer::GetN(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), and m_node.

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

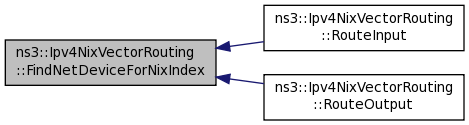

Here is the caller graph for this function:

uint32_t ns3::Ipv4NixVectorRouting::FindTotalNeighbors ( void )

private

Definition at line 368 of file ipv4-nix-vector-routing.cc.

References GetAdjacentNetDevices(), ns3::Node::GetDevice(), ns3::NetDeviceContainer::GetN(), ns3::Node::GetNDevices(), and m_node.

Referenced by RouteInput(), and RouteOutput().

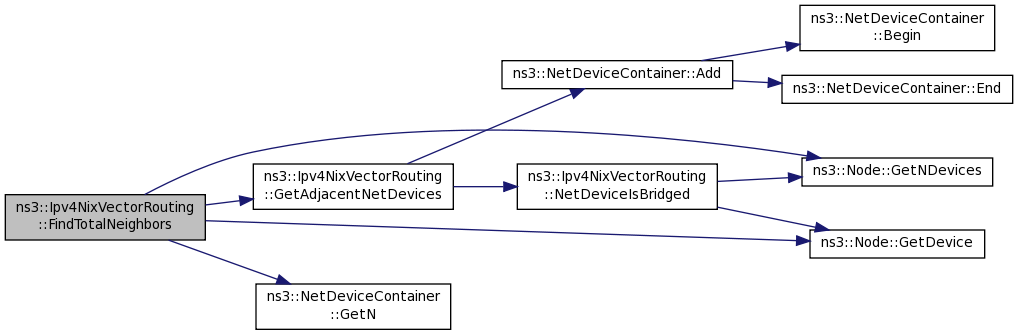

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv4NixVectorRouting::FlushGlobalNixRoutingCache ( void )

Called when run-time link topology change occurs which iterates through the node list and flushes any nix vector caches.

Definition at line 90 of file ipv4-nix-vector-routing.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by NotifyAddAddress(), NotifyInterfaceDown(), NotifyInterfaceUp(), and NotifyRemoveAddress().

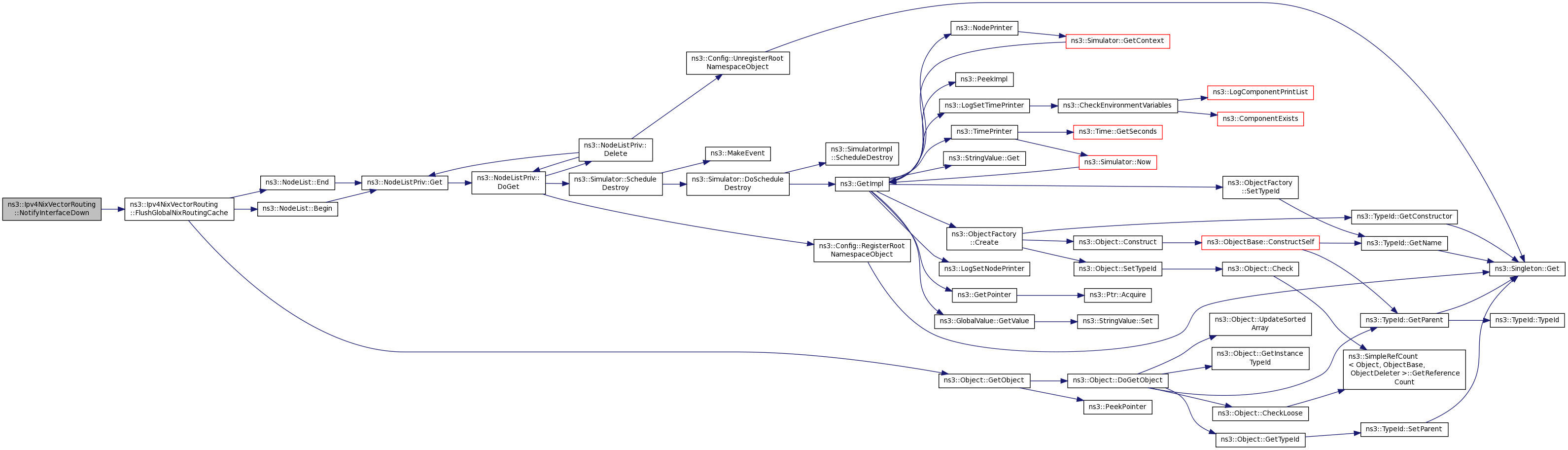

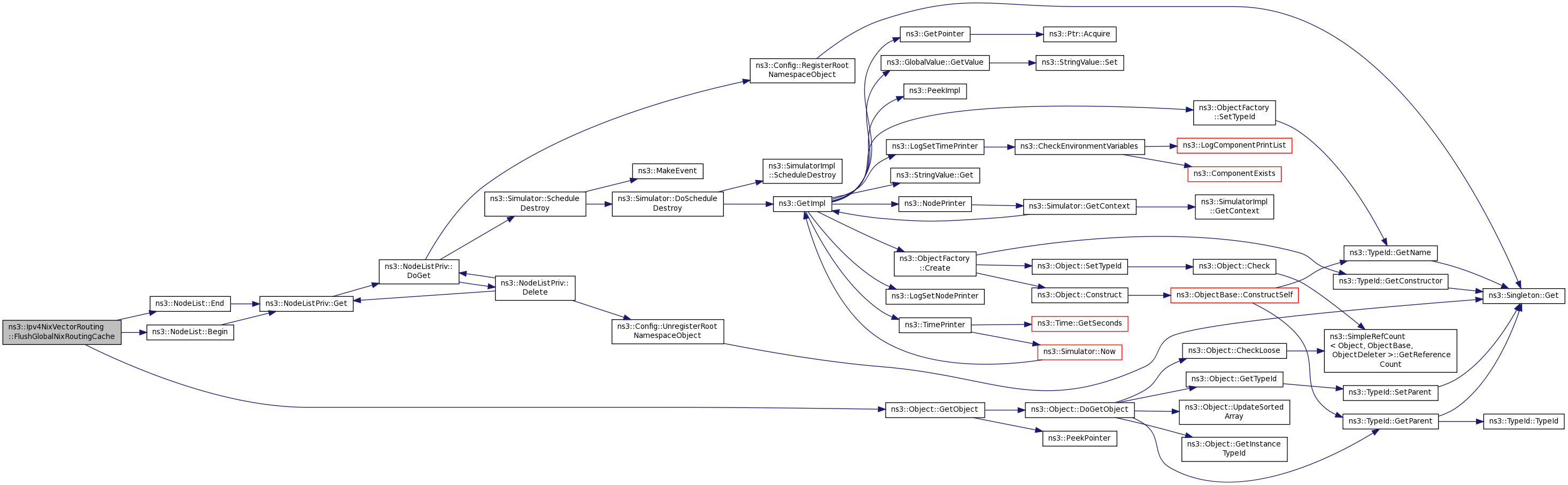

Here is the call graph for this function:

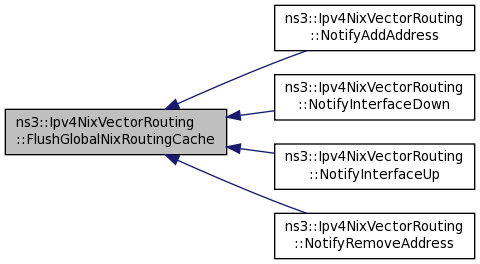

Here is the caller graph for this function:

void ns3::Ipv4NixVectorRouting::FlushIpv4RouteCache ( void )

private

Definition at line 116 of file ipv4-nix-vector-routing.cc.

References m_ipv4RouteCache, and NS_LOG_FUNCTION_NOARGS.

void ns3::Ipv4NixVectorRouting::FlushNixCache ( void )

private

Definition at line 109 of file ipv4-nix-vector-routing.cc.

References m_nixCache, and NS_LOG_FUNCTION_NOARGS.

void ns3::Ipv4NixVectorRouting::GetAdjacentNetDevices	(	Ptr< NetDevice >	netDevice,
		Ptr< Channel >	channel,
		NetDeviceContainer &	netDeviceContainer
	)

private

Definition at line 300 of file ipv4-nix-vector-routing.cc.

References ns3::NetDeviceContainer::Add(), NetDeviceIsBridged(), NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by BFS(), BuildNixVector(), FindNetDeviceForNixIndex(), and FindTotalNeighbors().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv4Route > ns3::Ipv4NixVectorRouting::GetIpv4RouteInCache ( Ipv4Address address )

private

Definition at line 184 of file ipv4-nix-vector-routing.cc.

References m_ipv4RouteCache, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by RouteInput(), and RouteOutput().

Here is the caller graph for this function:

Ptr< NixVector > ns3::Ipv4NixVectorRouting::GetNixVector	(	Ptr< Node >	source,
		Ipv4Address	dest,
		Ptr< NetDevice >	oif
	)

private

Internal:: Do not process packets to self (see Bug 1308)

Definition at line 123 of file ipv4-nix-vector-routing.cc.

References BFS(), BuildNixVector(), ns3::Node::GetId(), ns3::NodeList::GetNNodes(), GetNodeByIp(), NS_LOG_DEBUG, NS_LOG_ERROR, and NS_LOG_FUNCTION_NOARGS.

Referenced by RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NixVector > ns3::Ipv4NixVectorRouting::GetNixVectorInCache ( Ipv4Address address )

private

Definition at line 168 of file ipv4-nix-vector-routing.cc.

References m_nixCache, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by RouteOutput().

Here is the caller graph for this function:

Ptr< Node > ns3::Ipv4NixVectorRouting::GetNodeByIp ( Ipv4Address dest )

private

Definition at line 340 of file ipv4-nix-vector-routing.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::NodeContainer::GetGlobal(), ns3::Object::GetObject(), NS_LOG_ERROR, and NS_LOG_FUNCTION_NOARGS.

Referenced by GetNixVector().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::Ipv4NixVectorRouting::GetTypeId ( void )

static

The Interface ID of the Global Router interface.

See also: Object::GetObject ()

Definition at line 39 of file ipv4-nix-vector-routing.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Ptr< BridgeNetDevice > ns3::Ipv4NixVectorRouting::NetDeviceIsBridged ( Ptr< NetDevice > nd ) const

private

Definition at line 399 of file ipv4-nix-vector-routing.cc.

References ns3::Node::GetDevice(), ns3::Node::GetNDevices(), NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by GetAdjacentNetDevices().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv4NixVectorRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

privatevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 719 of file ipv4-nix-vector-routing.cc.

References FlushGlobalNixRoutingCache().

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::NotifyInterfaceDown ( uint32_t interface )

privatevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 714 of file ipv4-nix-vector-routing.cc.

References FlushGlobalNixRoutingCache().

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::NotifyInterfaceUp ( uint32_t interface )

privatevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 709 of file ipv4-nix-vector-routing.cc.

References FlushGlobalNixRoutingCache().

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

privatevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 724 of file ipv4-nix-vector-routing.cc.

References FlushGlobalNixRoutingCache().

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

privatevirtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Implements ns3::Ipv4RoutingProtocol.

Definition at line 664 of file ipv4-nix-vector-routing.cc.

References ns3::Names::FindName(), ns3::OutputStreamWrapper::GetStream(), m_ipv4RouteCache, and m_nixCache.

Here is the call graph for this function:

void ns3::Ipv4NixVectorRouting::ResetTotalNeighbors ( void )

private

bool ns3::Ipv4NixVectorRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

privatevirtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 606 of file ipv4-nix-vector-routing.cc.

References ns3::NixVector::BitCount(), ns3::NixVector::ExtractNeighborIndex(), FindNetDeviceForNixIndex(), FindTotalNeighbors(), ns3::Ipv4Header::GetDestination(), ns3::Node::GetDevice(), ns3::Node::GetId(), GetIpv4RouteInCache(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Packet::GetNixVector(), m_ipv4, m_ipv4RouteCache, m_node, m_totalNeighbors, NS_ASSERT, NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

Here is the call graph for this function:

Ptr< Ipv4Route > ns3::Ipv4NixVectorRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

privatevirtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno
