ns3::RvBatteryModel Class Reference

Rakhmatov Vrudhula non-linear battery model. More...

#include <rv-battery-model.h>

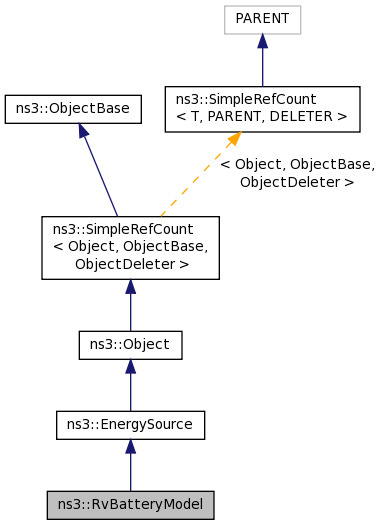

+ Inheritance diagram for ns3::RvBatteryModel:

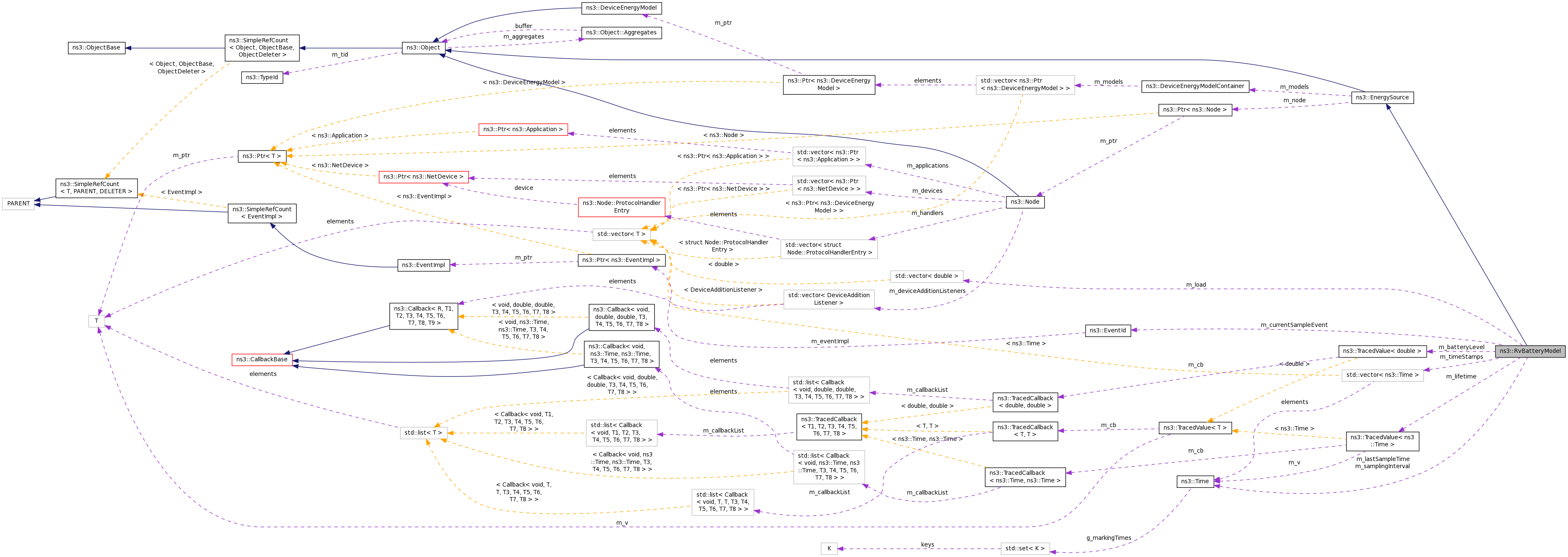

+ Collaboration diagram for ns3::RvBatteryModel:

Public Member Functions

 RvBatteryModel ()

virtual ~RvBatteryModel ()

double GetAlpha (void) const

double GetBatteryLevel (void)

double GetBeta (void) const

double GetCutoffVoltage (void) const

virtual double GetEnergyFraction (void)

virtual double GetInitialEnergy (void) const

Time GetLifetime (void) const

int GetNumOfTerms (void) const

double GetOpenCircuitVoltage (void) const

virtual double GetRemainingEnergy (void)

Time GetSamplingInterval (void) const

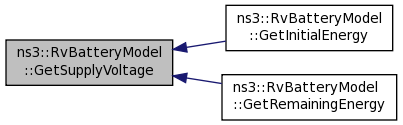

virtual double GetSupplyVoltage (void) const

void SetAlpha (double alpha)
 Sets the alpha value for the battery model. More...

void SetBeta (double beta)
 Sets the beta value for the battery model. More...

void SetCutoffVoltage (double voltage)
 Sets cutoff voltage of battery. More...

void SetNumOfTerms (int num)
 Sets the number of terms of the infinite sum for estimating battery level. More...

void SetOpenCircuitVoltage (double voltage)
 Sets open circuit voltage of battery. More...

void SetSamplingInterval (Time interval)

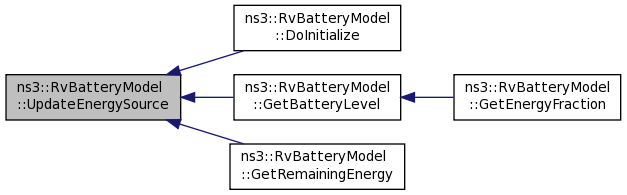

virtual void UpdateEnergySource (void)
 Implements UpdateEnergySource. More...

- Public Member Functions inherited from ns3::EnergySource
 EnergySource ()

virtual ~EnergySource ()

void AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)

void DisposeDeviceModels (void)
 Calls Dispose () method of the device energy models. More...

DeviceEnergyModelContainer FindDeviceEnergyModels (TypeId tid)

DeviceEnergyModelContainer FindDeviceEnergyModels (std::string name)

Ptr< NodeGetNode (void) const

void InitializeDeviceModels (void)
 Calls Start () method of the device energy models. More...

void SetNode (Ptr< Node > node)
 Sets pointer to node containing this EnergySource. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

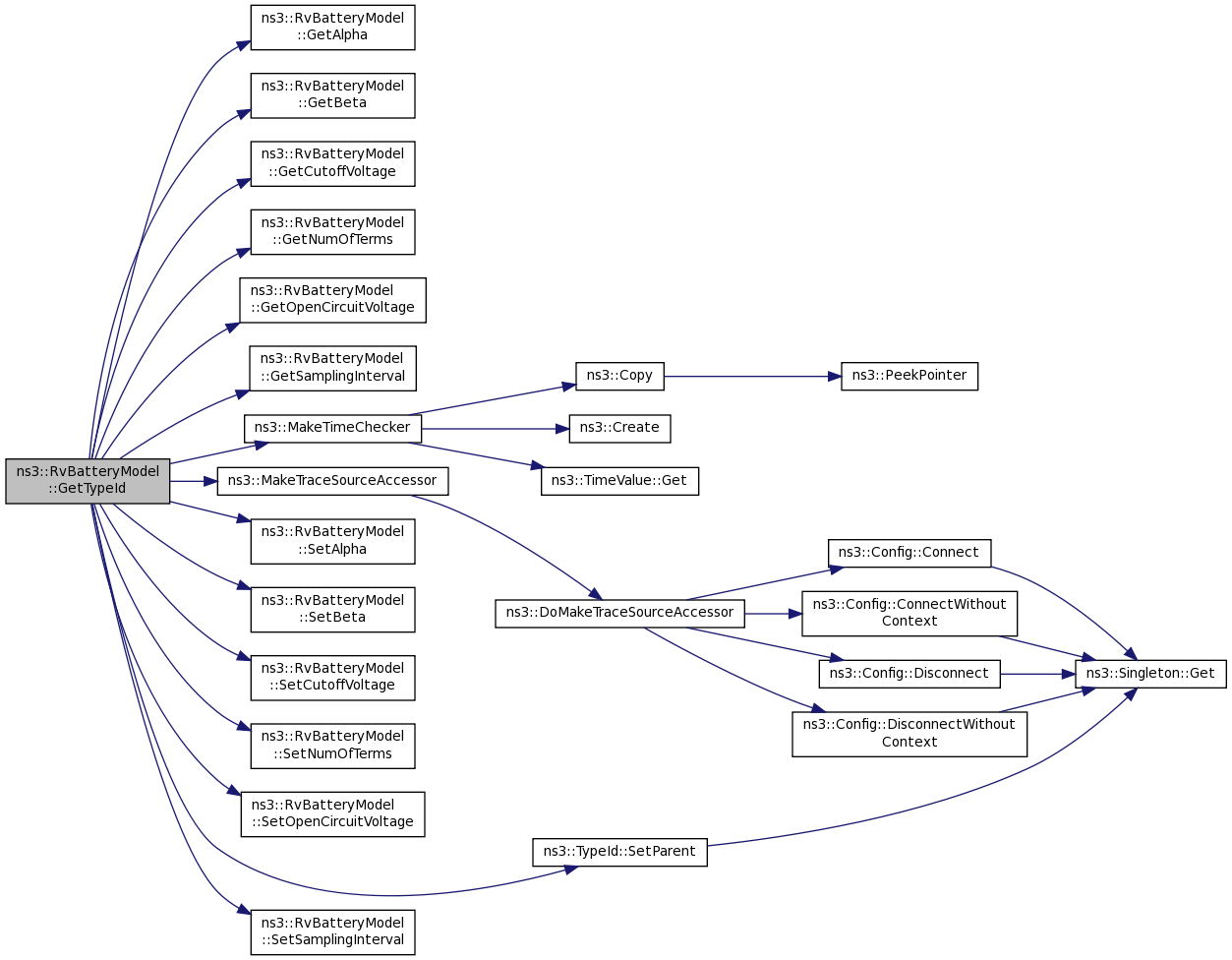

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::EnergySource
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double Discharge (double load, Time t)
 Discharges the battery. More...

virtual void DoDispose (void)
 Defined in ns3::Object. More...

virtual void DoInitialize (void)
 Defined in ns3::Object. More...

void HandleEnergyDrainedEvent (void)
 Handles the remaining energy going to zero event. More...

double RvModelAFunction (Time t, Time sk, Time sk_1, double beta)
 RV model A function. More...


Private Attributes

double m_alpha

TracedValue< double > m_batteryLevel
 Battery level is defined as: output of Discharge function / alpha value. More...

double m_beta

EventId m_currentSampleEvent

double m_cutoffVoltage

Time m_lastSampleTime

TracedValue< Timem_lifetime

std::vector< double > m_load

int m_numOfTerms

double m_openCircuitVoltage

double m_previousLoad

Time m_samplingInterval
 (1 / sampling interval) = sampling frequency More...

std::vector< Timem_timeStamps


Additional Inherited Members

- Protected Member Functions inherited from ns3::EnergySource
void BreakDeviceEnergyModelRefCycle (void)
 This function is called to break reference cycle between EnergySource and DeviceEnergyModel. More...

double CalculateTotalCurrent (void)

void NotifyEnergyDrained (void)
 This function notifies all DeviceEnergyModel of energy depletion event. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Rakhmatov Vrudhula non-linear battery model.

Doxygen introspection did not find any typical Config paths.

This (energy source) model implements an analytical non-linear battery model. It is capable of capturing load capacity and recovery effects of batteries. Batteries are characterized by 2 parameters, alpha and beta, which can both be obtained from the discharge curve of the batteries.

The model is developed by Daler Rakhmatov & Sarma Vrudhula in: "Battery Lifetime Prediction for Energy-Aware Computing" and "An Analytical High-Level Battery Model for Use in Energy Management of Portable Electronic Systems".

The real-time algorithm is developed by Matthias Handy & Dirk Timmermann in: "Simulation of Mobile Wireless Networks with Accurate Modeling of non-linear battery effects". The real-time algorithm is modified by the authors of this code for improved accuracy and reduced computation (sampling) overhead.


Attributes

  • RvBatteryModelPeriodicEnergyUpdateInterval: RV battery model sampling interval.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +1000000000.0ns
    • Flags: construct write read
  • RvBatteryModelOpenCircuitVoltage: RV battery model open circuit voltage.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 4.1
    • Flags: construct write read
  • RvBatteryModelCutoffVoltage: RV battery model cutoff voltage.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 3
    • Flags: construct write read
  • RvBatteryModelAlphaValue: RV battery model alpha value.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 35220
    • Flags: construct write read
  • RvBatteryModelBetaValue: RV battery model beta value.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.637
    • Flags: construct write read
  • RvBatteryModelNumOfTerms: The number of terms of the infinite sum for estimating battery level.
    • Set with class: ns3::IntegerValue
    • Underlying type: int32_t -2147483648:2147483647
    • Initial value: 10
    • Flags: construct write read

TraceSources

  • RvBatteryModelBatteryLevel: RV battery model battery level.
  • RvBatteryModelBatteryLifetime: RV battery model battery lifetime.

Definition at line 50 of file rv-battery-model.h.

Constructor & Destructor Documentation

ns3::RvBatteryModel::RvBatteryModel ( )
ns3::RvBatteryModel::~RvBatteryModel ( )
virtual

Definition at line 97 of file rv-battery-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

double ns3::RvBatteryModel::Discharge ( double  load,
Time  t
)
private

Discharges the battery.

Parameters
loadLoad value (total current form devices, in mA).
tTime stamp of the load value.
Returns
Calculated alpha value.

Discharge function calculates a value which is then compared to the alpha value to determine if the battery is dead. It will also update the battery level.

Note that the load value passed to Discharge has to be in mA.

Definition at line 314 of file rv-battery-model.cc.

References m_beta, m_lastSampleTime, m_load, m_previousLoad, m_timeStamps, NS_ASSERT, NS_LOG_FUNCTION, and RvModelAFunction().

Referenced by UpdateEnergySource().

+ Here is the call graph for this function:

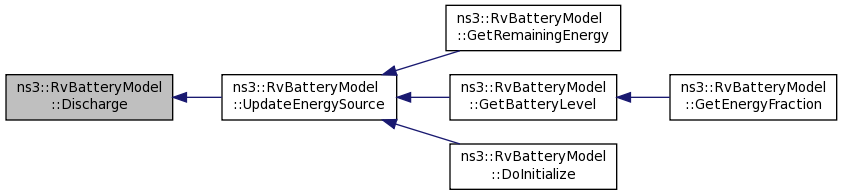

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::DoDispose ( void  )
privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::EnergySource.

Definition at line 299 of file rv-battery-model.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::RvBatteryModel::DoInitialize ( void  )
privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::Object.

Definition at line 291 of file rv-battery-model.cc.

References NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateEnergySource().

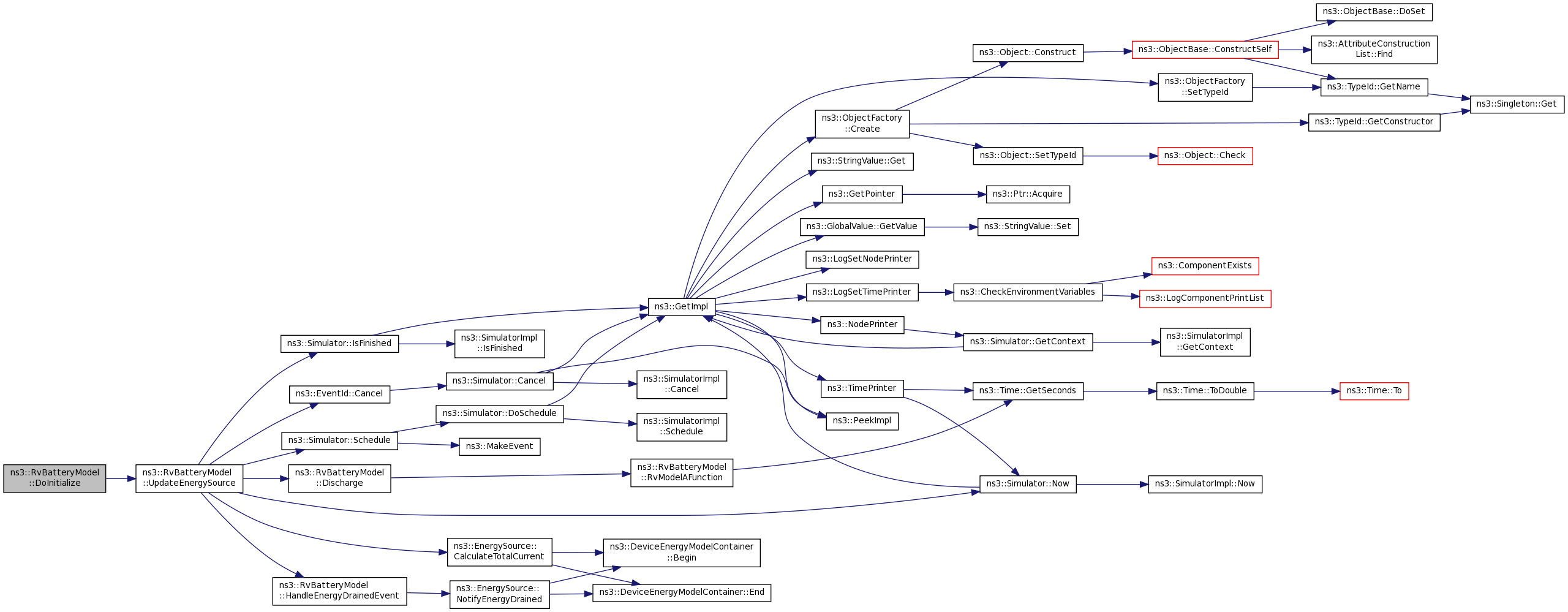

+ Here is the call graph for this function:

double ns3::RvBatteryModel::GetAlpha ( void  ) const
Returns
The alpha value used by the battery model.

Definition at line 236 of file rv-battery-model.cc.

References m_alpha, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

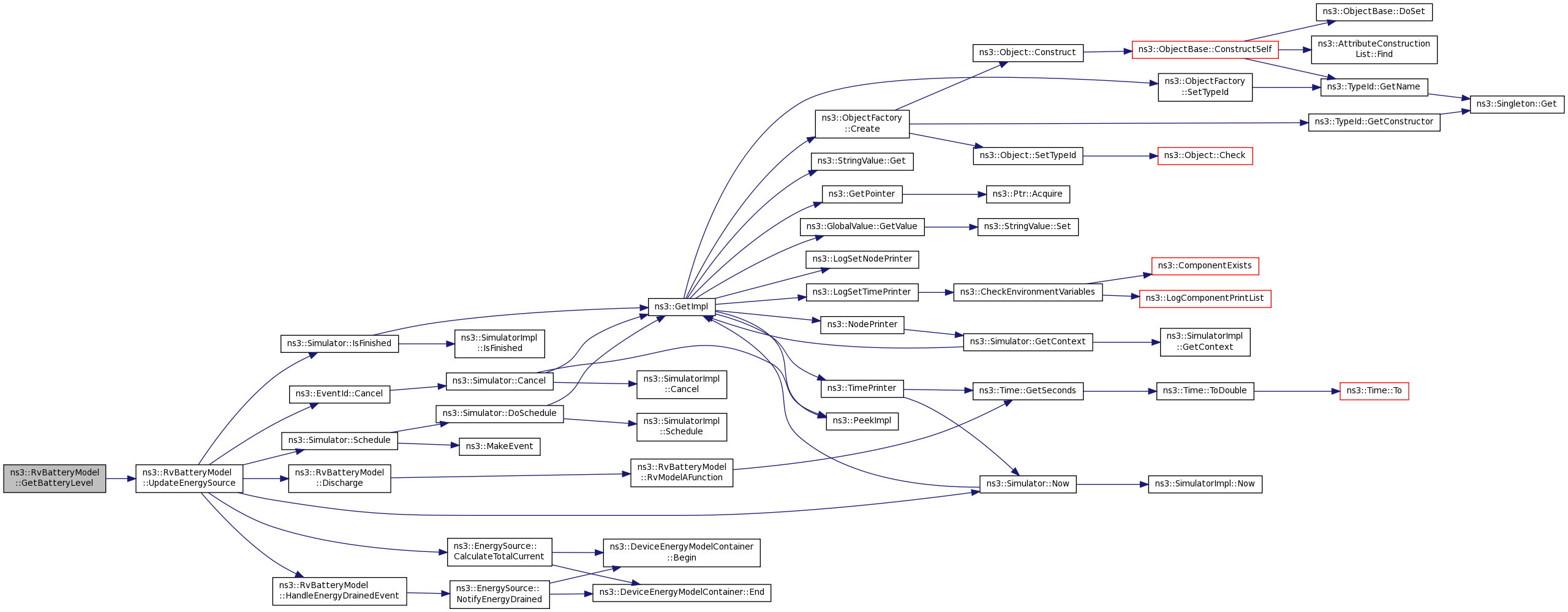

double ns3::RvBatteryModel::GetBatteryLevel ( void  )
Returns
Battery level [0, 1].

Definition at line 258 of file rv-battery-model.cc.

References m_batteryLevel, NS_LOG_FUNCTION, and UpdateEnergySource().

Referenced by GetEnergyFraction().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetBeta ( void  ) const
Returns
The beta value used by the battery model.

Definition at line 251 of file rv-battery-model.cc.

References m_beta, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetCutoffVoltage ( void  ) const
Returns
Cutoff voltage of battery.

Definition at line 221 of file rv-battery-model.cc.

References m_cutoffVoltage, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetEnergyFraction ( void  )
virtual
Returns
Energy fraction.

Implements GetEnergyFraction. For the RV battery model, energy fraction is equivalent to battery level.

Implements ns3::EnergySource.

Definition at line 126 of file rv-battery-model.cc.

References GetBatteryLevel(), and NS_LOG_FUNCTION.

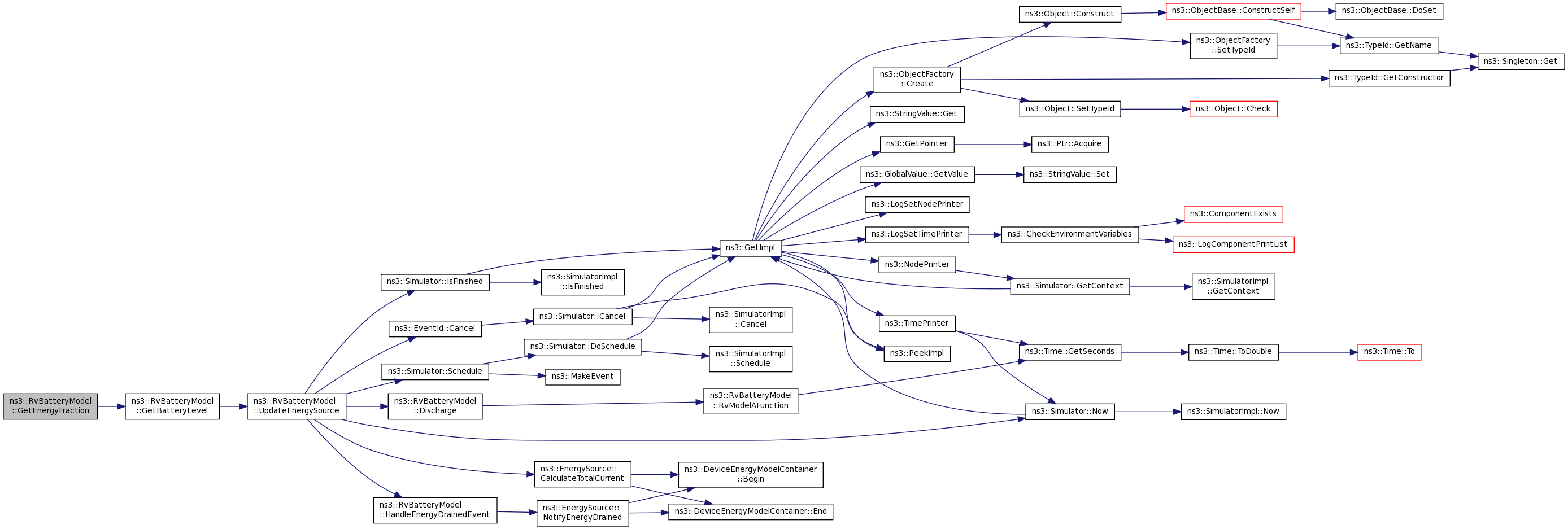

+ Here is the call graph for this function:

double ns3::RvBatteryModel::GetInitialEnergy ( void  ) const
virtual
Returns
Initial energy stored (theoretical capacity) in the battery.

Implements GetInitialEnergy.

Implements ns3::EnergySource.

Definition at line 103 of file rv-battery-model.cc.

References GetSupplyVoltage(), m_alpha, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

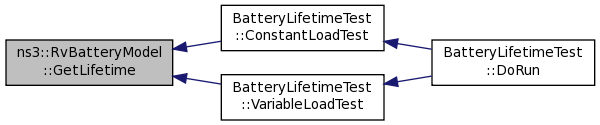

Time ns3::RvBatteryModel::GetLifetime ( void  ) const
Returns
Lifetime of the battery.

Definition at line 266 of file rv-battery-model.cc.

References m_lifetime, and NS_LOG_FUNCTION.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

+ Here is the caller graph for this function:

int ns3::RvBatteryModel::GetNumOfTerms ( void  ) const
Returns
The number of terms of the infinite sum for estimating battery level.

Definition at line 280 of file rv-battery-model.cc.

References m_numOfTerms, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetOpenCircuitVoltage ( void  ) const
Returns
Open circuit voltage of battery.

Definition at line 206 of file rv-battery-model.cc.

References m_openCircuitVoltage, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetRemainingEnergy ( void  )
virtual
Returns
Remaining energy in energy source, in Joules

Implements GetRemainingEnergy.

Implements ns3::EnergySource.

Definition at line 118 of file rv-battery-model.cc.

References GetSupplyVoltage(), m_alpha, m_batteryLevel, NS_LOG_FUNCTION, and UpdateEnergySource().

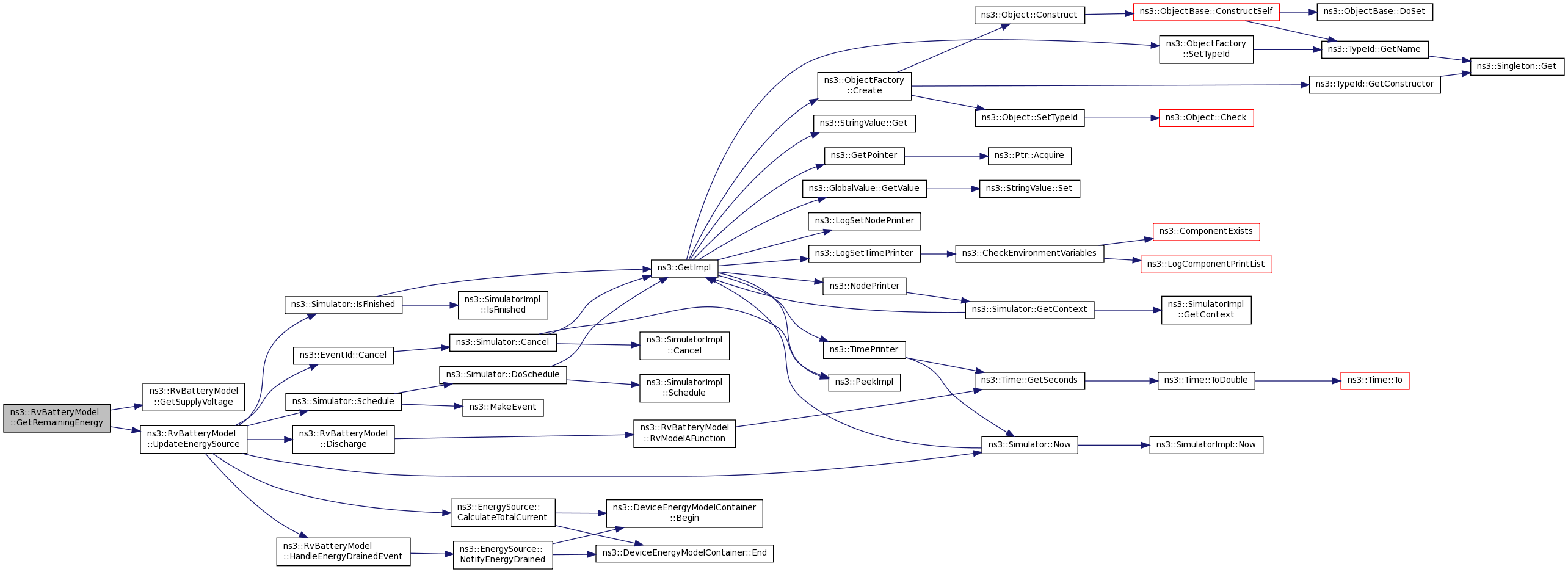

+ Here is the call graph for this function:

Time ns3::RvBatteryModel::GetSamplingInterval ( void  ) const
Returns
The interval between each energy update.

Definition at line 191 of file rv-battery-model.cc.

References m_samplingInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::GetSupplyVoltage ( void  ) const
virtual
Returns
Supply voltage at the energy source.

Implements GetSupplyVoltage.

Implements ns3::EnergySource.

Definition at line 110 of file rv-battery-model.cc.

References m_cutoffVoltage, m_openCircuitVoltage, and NS_LOG_FUNCTION.

Referenced by GetInitialEnergy(), and GetRemainingEnergy().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::HandleEnergyDrainedEvent ( void  )
private

Handles the remaining energy going to zero event.

This function notifies all the energy models aggregated to the node about the energy being depleted. Each energy model is then responsible for its own handler.

Definition at line 306 of file rv-battery-model.cc.

References ns3::EnergySource::NotifyEnergyDrained(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

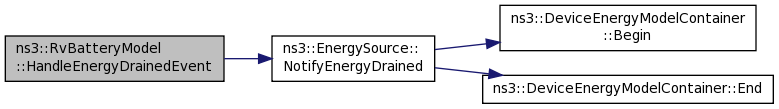

+ Here is the call graph for this function:

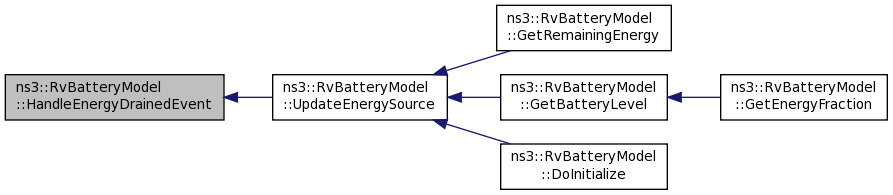

+ Here is the caller graph for this function:

double ns3::RvBatteryModel::RvModelAFunction ( Time  t,
Time  sk,
Time  sk_1,
double  beta
)
private

RV model A function.

Parameters
tCurrent time.
skTime stamp in array position k
sk_1Time stamp in array position k-1
betaBeta value used by the battery model.
Returns
Result of A function.

This function computes alpha value using the recorded load profile.

Definition at line 364 of file rv-battery-model.cc.

References ns3::Time::GetSeconds(), m_numOfTerms, and NS_LOG_FUNCTION.

Referenced by Discharge().

+ Here is the call graph for this function:

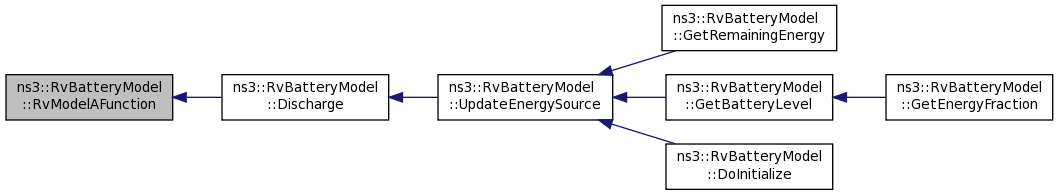

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetAlpha ( double  alpha)

Sets the alpha value for the battery model.

Parameters
alphaAlpha.

Definition at line 228 of file rv-battery-model.cc.

References m_alpha, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetBeta ( double  beta)

Sets the beta value for the battery model.

Parameters
betaBeta.

Definition at line 243 of file rv-battery-model.cc.

References m_beta, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetCutoffVoltage ( double  voltage)

Sets cutoff voltage of battery.

Parameters
voltageCutoff voltage.

Definition at line 213 of file rv-battery-model.cc.

References m_cutoffVoltage, m_openCircuitVoltage, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetNumOfTerms ( int  num)

Sets the number of terms of the infinite sum for estimating battery level.

Parameters
numNumber of terms.

Definition at line 273 of file rv-battery-model.cc.

References m_numOfTerms, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetOpenCircuitVoltage ( double  voltage)

Sets open circuit voltage of battery.

Parameters
voltageOpen circuit voltage.

Definition at line 198 of file rv-battery-model.cc.

References m_openCircuitVoltage, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::SetSamplingInterval ( Time  interval)
Parameters
intervalEnergy update interval.

This function sets the interval between each energy update.

Definition at line 184 of file rv-battery-model.cc.

References m_samplingInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RvBatteryModel::UpdateEnergySource ( void  )
virtual

Implements UpdateEnergySource.

This function samples the total load (total current) from all devices to discharge the battery.

Implements ns3::EnergySource.

Definition at line 133 of file rv-battery-model.cc.

References ns3::EnergySource::CalculateTotalCurrent(), ns3::EventId::Cancel(), Discharge(), HandleEnergyDrainedEvent(), ns3::Simulator::IsFinished(), m_alpha, m_batteryLevel, m_currentSampleEvent, m_lastSampleTime, m_lifetime, m_previousLoad, m_samplingInterval, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by DoInitialize(), GetBatteryLevel(), and GetRemainingEnergy().

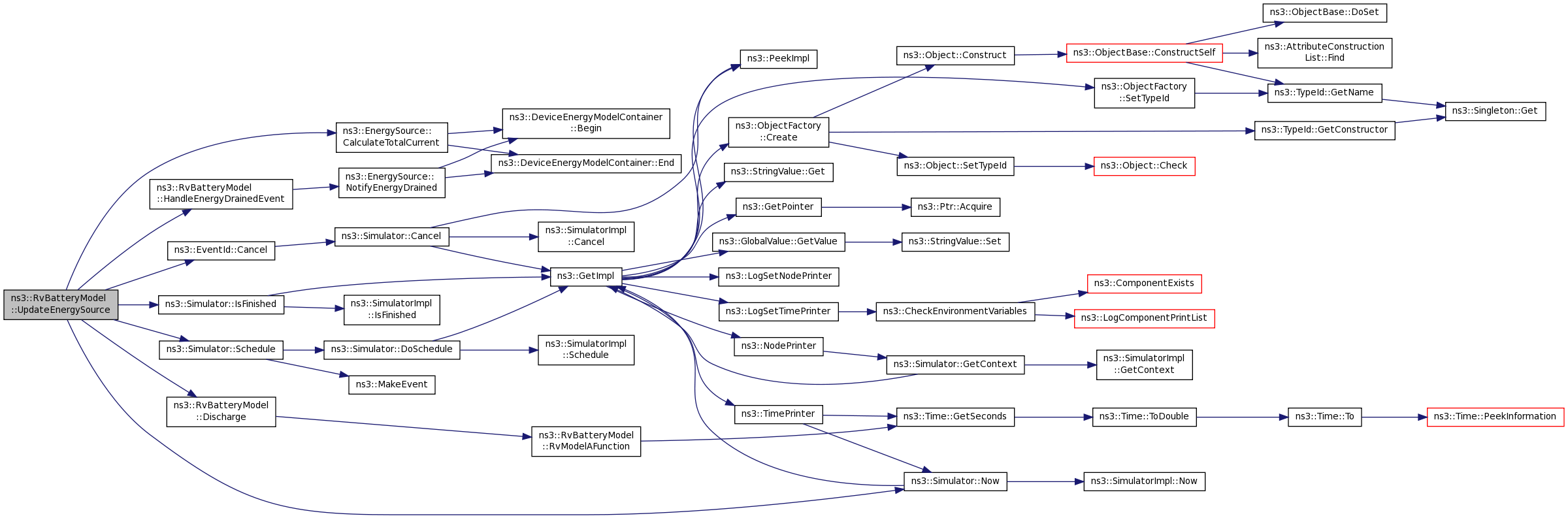

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

double ns3::RvBatteryModel::m_alpha
private
TracedValue<double> ns3::RvBatteryModel::m_batteryLevel
private

Battery level is defined as: output of Discharge function / alpha value.

The output of Discharge function is an estimated charge consumption of the battery.

The alpha value is the amount of charges stored in the battery, or battery capacity (in Coulomb).

When the battery is fully charged (no charge is consumed from the battery) the battery level is 1. When the battery is fully discharged, the battery level is 0.

NOTE Note that the definition in Timmermann's paper is the inverse of this definition. In the paper, battery level = 1 when the battery is drained.

Definition at line 247 of file rv-battery-model.h.

Referenced by GetBatteryLevel(), GetRemainingEnergy(), GetTypeId(), RvBatteryModel(), and UpdateEnergySource().

double ns3::RvBatteryModel::m_beta
private

Definition at line 222 of file rv-battery-model.h.

Referenced by Discharge(), GetBeta(), and SetBeta().

EventId ns3::RvBatteryModel::m_currentSampleEvent
private

Definition at line 253 of file rv-battery-model.h.

Referenced by UpdateEnergySource().

double ns3::RvBatteryModel::m_cutoffVoltage
private

Definition at line 220 of file rv-battery-model.h.

Referenced by GetCutoffVoltage(), GetSupplyVoltage(), and SetCutoffVoltage().

Time ns3::RvBatteryModel::m_lastSampleTime
private

Definition at line 227 of file rv-battery-model.h.

Referenced by Discharge(), RvBatteryModel(), and UpdateEnergySource().

TracedValue<Time> ns3::RvBatteryModel::m_lifetime
private

Definition at line 255 of file rv-battery-model.h.

Referenced by GetLifetime(), GetTypeId(), RvBatteryModel(), and UpdateEnergySource().

std::vector<double> ns3::RvBatteryModel::m_load
private

Definition at line 225 of file rv-battery-model.h.

Referenced by Discharge().

int ns3::RvBatteryModel::m_numOfTerms
private

Definition at line 229 of file rv-battery-model.h.

Referenced by GetNumOfTerms(), RvModelAFunction(), and SetNumOfTerms().

double ns3::RvBatteryModel::m_openCircuitVoltage
private
double ns3::RvBatteryModel::m_previousLoad
private

Definition at line 224 of file rv-battery-model.h.

Referenced by Discharge(), RvBatteryModel(), and UpdateEnergySource().

Time ns3::RvBatteryModel::m_samplingInterval
private

(1 / sampling interval) = sampling frequency

Definition at line 252 of file rv-battery-model.h.

Referenced by GetSamplingInterval(), SetSamplingInterval(), and UpdateEnergySource().

std::vector<Time> ns3::RvBatteryModel::m_timeStamps
private

Definition at line 226 of file rv-battery-model.h.

Referenced by Discharge().


The documentation for this class was generated from the following files:
