SpectrumChannel implementation which handles a single spectrum model. More...

#include <single-model-spectrum-channel.h>

Inheritance diagram for ns3::SingleModelSpectrumChannel:

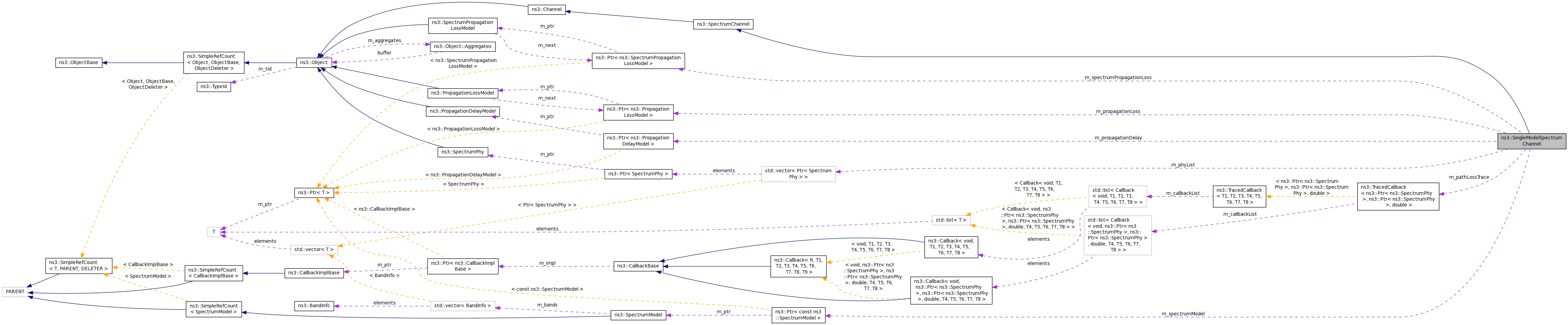

Collaboration diagram for ns3::SingleModelSpectrumChannel:

Public Types
typedef std::vector< Ptr < SpectrumPhy > >	PhyList

Public Member Functions
	SingleModelSpectrumChannel ()

virtual void	AddPropagationLossModel (Ptr< PropagationLossModel > loss)
	set the single-frequency propagation loss model to be used More...

virtual void	AddRx (Ptr< SpectrumPhy > phy)
	add a SpectrumPhy to a channel, so it can receive packets More...

virtual void	AddSpectrumPropagationLossModel (Ptr< SpectrumPropagationLossModel > loss)
	set the frequency-dependent propagation loss model to be used More...

virtual Ptr< NetDevice >	GetDevice (uint32_t i) const

virtual uint32_t	GetNDevices (void) const

virtual Ptr < SpectrumPropagationLossModel >	GetSpectrumPropagationLossModel (void)

virtual void	SetPropagationDelayModel (Ptr< PropagationDelayModel > delay)
	set the propagation delay model to be used More...

virtual void	StartTx (Ptr< SpectrumSignalParameters > params)
	Used by attached PHY instances to transmit signals on the channel. More...

Public Member Functions inherited from ns3::SpectrumChannel
virtual	~SpectrumChannel ()

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumChannel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void	StartRx (Ptr< SpectrumSignalParameters > params, Ptr< SpectrumPhy > receiver)
	used internally to reschedule transmission after the propagation delay More...

Private Attributes
double	m_maxLossDb

TracedCallback< Ptr < SpectrumPhy >, Ptr < SpectrumPhy >, double >	m_pathLossTrace

PhyList	m_phyList
	list of SpectrumPhy instances attached to the channel More...

Ptr< PropagationDelayModel >	m_propagationDelay
	propagation delay model to be used with this channel More...

Ptr< PropagationLossModel >	m_propagationLoss
	single-frequency propagation loss model to be used with this channel More...

Ptr< const SpectrumModel >	m_spectrumModel
	SpectrumModel that this channel instance is supporting. More...

Ptr< SpectrumPropagationLossModel >	m_spectrumPropagationLoss
	frequency-dependent propagation loss model to be used with this channel More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

SpectrumChannel implementation which handles a single spectrum model.

All SpectrumPhy layers attached to this SpectrumChannel

Config Paths

ns3::SingleModelSpectrumChannel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::SingleModelSpectrumChannel
/ChannelList/[i]/$ns3::SpectrumChannel/$ns3::SingleModelSpectrumChannel

Attributes

MaxLossDb: If a single-frequency PropagationLossModel is used, this value represents the maximum loss in dB for which transmissions will be passed to the receiving PHY. Signals for which the PropagationLossModel returns a loss bigger than this value will not be propagated to the receiver. This parameter is to be used to reduce the computational load by not propagating signals that are far beyond the interference range. Note that the default value corresponds to considering all signals for reception. Tune this value with care.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1e+09
- Flags: construct write read

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

TraceSources

PathLoss: This trace is fired whenever a new path loss value is calculated. The first and second parameters to the trace are pointers respectively to the TX and RX SpectrumPhy instances, whereas the third parameters is the loss value in dB. Note that the loss value reported by this trace is the single-frequency loss value obtained by evaluating only the TX and RX AntennaModels and the PropagationLossModel. In particular, note that SpectrumPropagationLossModel (even if present) is never used to evaluate the loss value reported in this trace.

Definition at line 40 of file single-model-spectrum-channel.h.

Member Typedef Documentation

typedef std::vector<Ptr<SpectrumPhy> > ns3::SingleModelSpectrumChannel::PhyList

Definition at line 62 of file single-model-spectrum-channel.h.

Constructor & Destructor Documentation

ns3::SingleModelSpectrumChannel::SingleModelSpectrumChannel ( )

Definition at line 50 of file single-model-spectrum-channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SingleModelSpectrumChannel::AddPropagationLossModel ( Ptr< PropagationLossModel > loss )

virtual

set the single-frequency propagation loss model to be used

Warning: only models that do not depend on the TX power should be used.

Parameters

loss	a pointer to the propagation loss model to be used.

Implements ns3::SpectrumChannel.

Definition at line 235 of file single-model-spectrum-channel.cc.

References m_propagationLoss, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::AddRx ( Ptr< SpectrumPhy > phy )

virtual

add a SpectrumPhy to a channel, so it can receive packets

This method is used to attach a SpectrumPhy instance to a SpectrumChannel instance, so that the SpectrumPhy can receive packets sent on that channel. Note that a SpectrumPhy that only transmits (without receiveing ever) does not need to be added to the channel.

This method is to be implemented by all classes inheriting from SpectrumChannel.

Parameters

phy	the SpectrumPhy instance to be added to the channel as a receiver.

Implements ns3::SpectrumChannel.

Definition at line 102 of file single-model-spectrum-channel.cc.

References m_phyList, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::AddSpectrumPropagationLossModel ( Ptr< SpectrumPropagationLossModel > loss )

virtual

set the frequency-dependent propagation loss model to be used

Parameters

loss	a pointer to the propagation loss model to be used.

Implements ns3::SpectrumChannel.

Definition at line 244 of file single-model-spectrum-channel.cc.

References m_spectrumPropagationLoss, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 56 of file single-model-spectrum-channel.cc.

References ns3::Object::DoDispose(), m_phyList, m_propagationDelay, m_propagationLoss, m_spectrumModel, m_spectrumPropagationLoss, and NS_LOG_FUNCTION.

Here is the call graph for this function:
