Doxygen introspection did not find any typical Config paths. More...

#include <packet-burst.h>

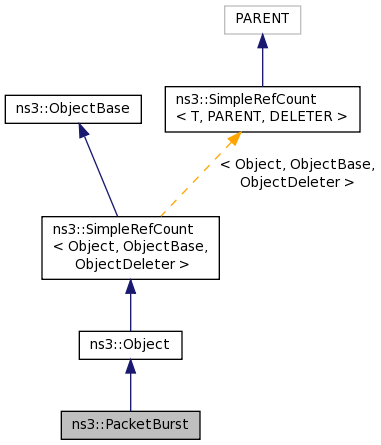

Inheritance diagram for ns3::PacketBurst:

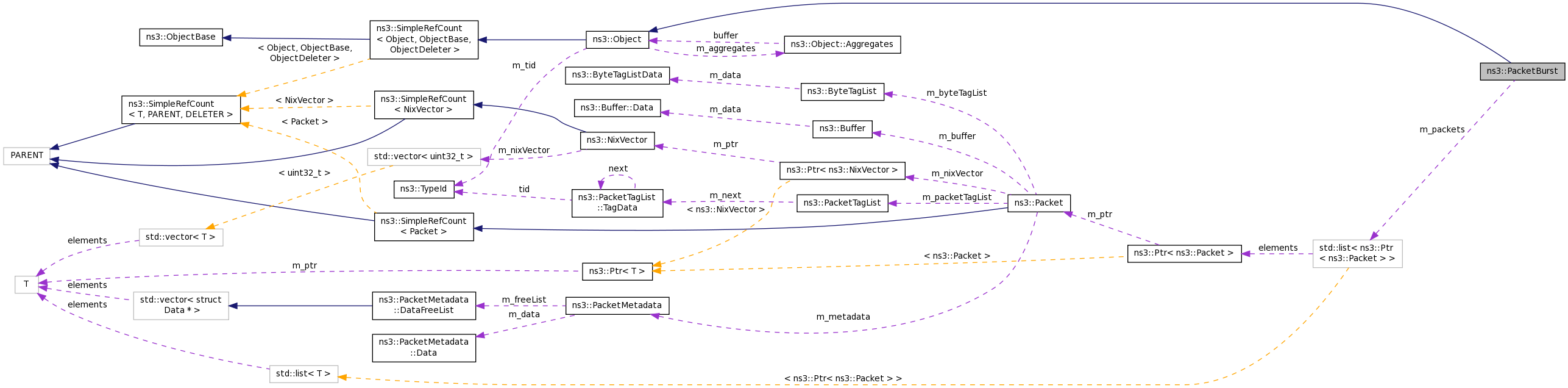

Collaboration diagram for ns3::PacketBurst:

Public Member Functions
	PacketBurst (void)

virtual	~PacketBurst (void)

void	AddPacket (Ptr< Packet > packet)
	add a packet to the list of packet More...

std::list< Ptr< Packet > >::const_iterator	Begin (void) const

Ptr< PacketBurst >	Copy (void) const

std::list< Ptr< Packet > >::const_iterator	End (void) const

uint32_t	GetNPackets (void) const

std::list< Ptr< Packet > >	GetPackets (void) const

uint32_t	GetSize (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	this class implement a burst as a list of packets More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Private Attributes
std::list< Ptr< Packet > >	m_packets

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 32 of file packet-burst.h.

Constructor & Destructor Documentation

ns3::PacketBurst::PacketBurst ( void )

Definition at line 44 of file packet-burst.cc.

References NS_LOG_FUNCTION.

ns3::PacketBurst::~PacketBurst ( void )

virtual

Definition at line 49 of file packet-burst.cc.

References list, m_packets, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::PacketBurst::AddPacket ( Ptr< Packet > packet )

add a packet to the list of packet

Parameters

packet the packet to add

Definition at line 82 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::Begin ( void ) const

Definition at line 120 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Ptr< PacketBurst > ns3::PacketBurst::Copy ( void ) const

Returns: a copy the packetBurst

Definition at line 67 of file packet-burst.cc.

References ns3::Packet::Copy(), list, m_packets, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PacketBurst::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 61 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::End ( void ) const

Definition at line 127 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

uint32_t ns3::PacketBurst::GetNPackets ( void ) const
