A Discrete-Event Network Simulator
API
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Macros Groups Pages
ns3::SocketFactory Class Referenceabstract

Object to create transport layer instances that provide a socket API to applications. More...

#include <socket-factory.h>

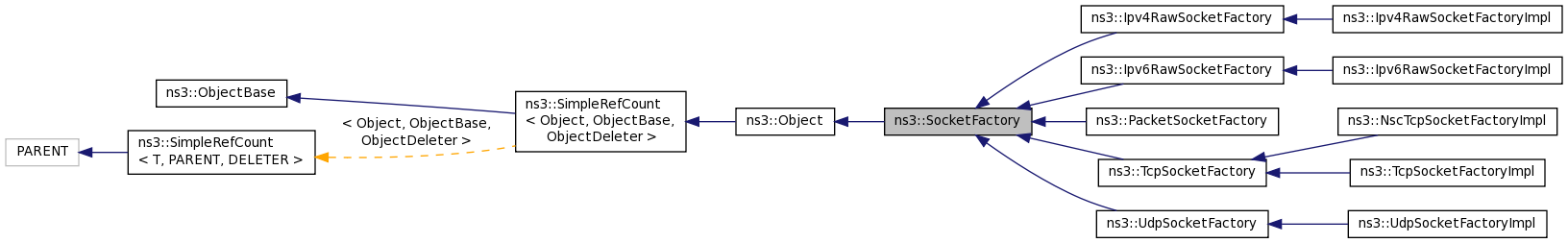

+ Inheritance diagram for ns3::SocketFactory:

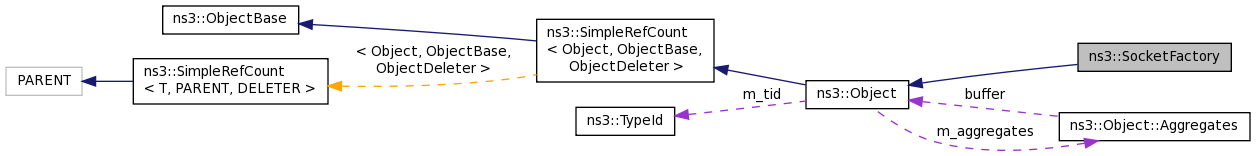

+ Collaboration diagram for ns3::SocketFactory:

Public Member Functions

 SocketFactory ()

virtual Ptr< SocketCreateSocket (void)=0

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Object to create transport layer instances that provide a socket API to applications.

Doxygen introspection did not find any typical Config paths.

This base class defines the API for creating sockets. The socket factory also can hold the global variables used to initialize newly created sockets, such as values that are set through the sysctl or proc interfaces in Linux.

If you want to write a new transport protocol accessible through sockets, you need to subclass this factory class, implement CreateSocket, instantiate the object, and aggregate it to the node.

See also
Udp
UdpImpl


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 48 of file socket-factory.h.

Constructor & Destructor Documentation

ns3::SocketFactory::SocketFactory ( )

Definition at line 37 of file socket-factory.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

TypeId ns3::SocketFactory::GetTypeId ( void  )
static

Definition at line 30 of file socket-factory.cc.

References ns3::TypeId::SetParent().

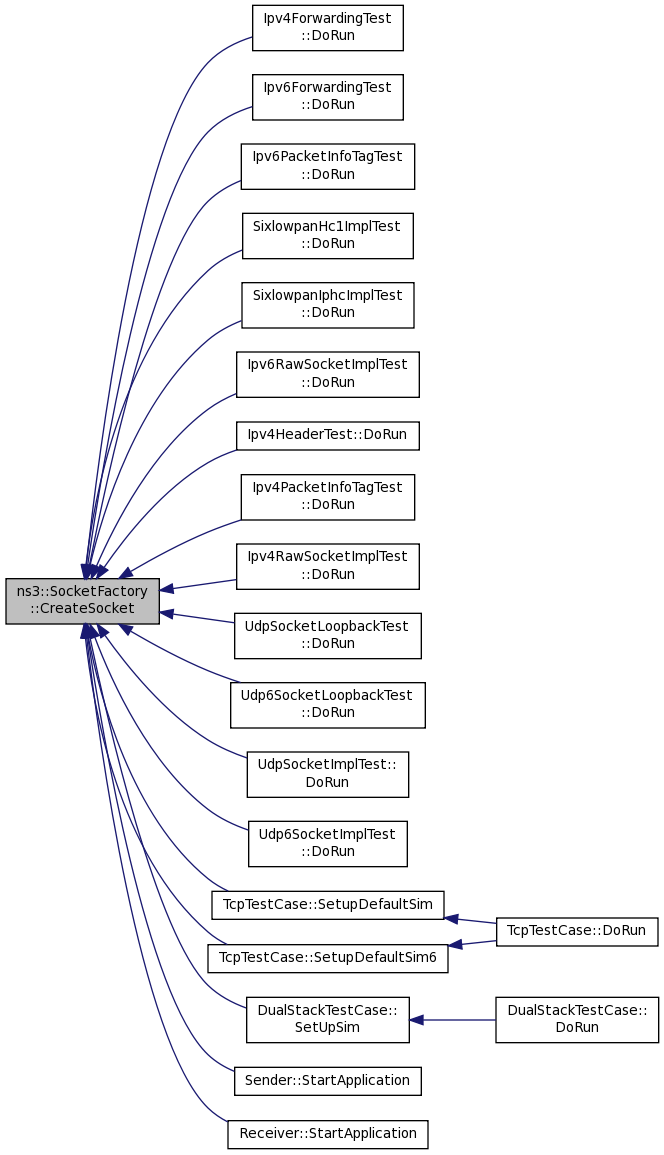

+ Here is the call graph for this function:


The documentation for this class was generated from the following files:
