ns3::BulkSendApplication Class Reference

Send as much traffic as possible, trying to fill the bandwidth. More...

#include <bulk-send-application.h>

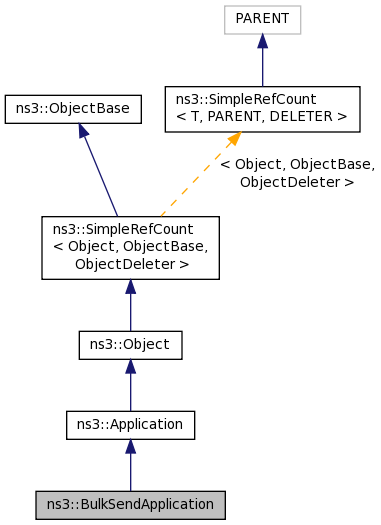

+ Inheritance diagram for ns3::BulkSendApplication:

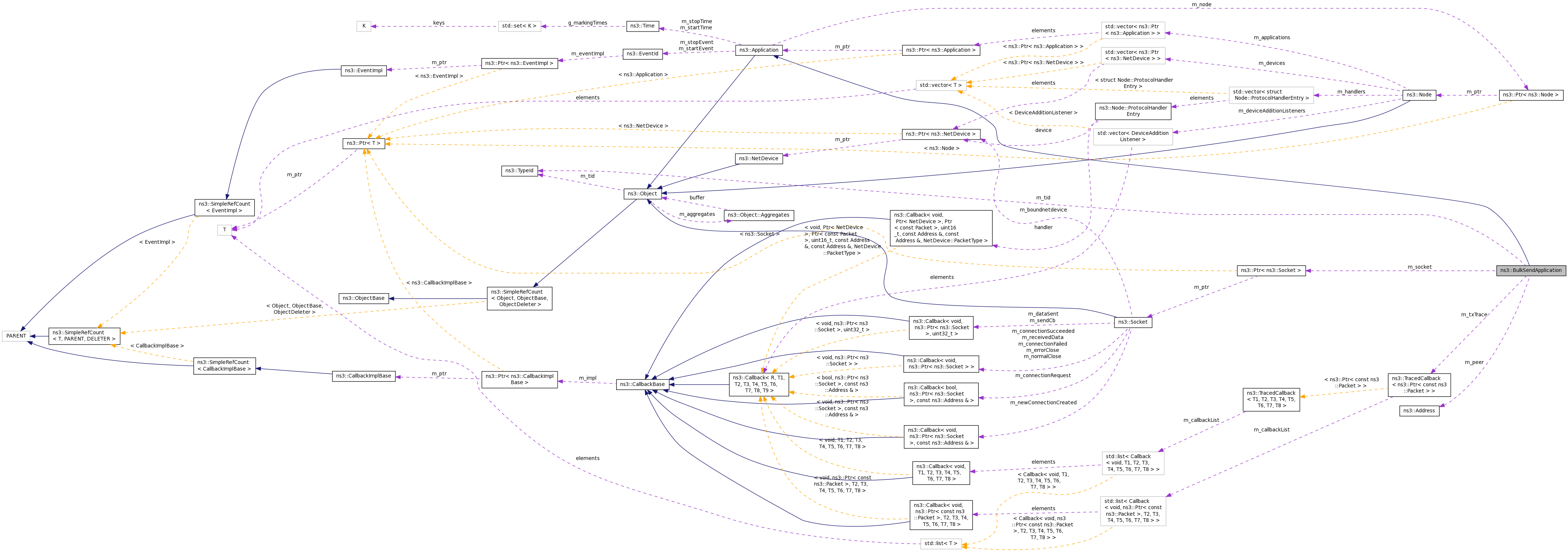

+ Collaboration diagram for ns3::BulkSendApplication:

Public Member Functions

 BulkSendApplication ()

virtual ~BulkSendApplication ()

Ptr< SocketGetSocket (void) const
 Get the socket this application is attached to. More...

void SetMaxBytes (uint32_t maxBytes)
 Set the upper bound for the total number of bytes to send. More...

- Public Member Functions inherited from ns3::Application
 Application ()

virtual ~Application ()

Ptr< NodeGetNode () const

void SetNode (Ptr< Node > node)

void SetStartTime (Time start)
 Specify application start time. More...

void SetStopTime (Time stop)
 Specify application stop time. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Application
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

- Protected Member Functions inherited from ns3::Application
virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Member Functions

void ConnectionFailed (Ptr< Socket > socket)
 Connection Failed (called by Socket through a callback) More...

void ConnectionSucceeded (Ptr< Socket > socket)
 Connection Succeeded (called by Socket through a callback) More...

void DataSend (Ptr< Socket >, uint32_t)
 Send more data as soon as some has been transmitted. More...

void SendData ()
 Send data until the L4 transmission buffer is full. More...

virtual void StartApplication (void)
 Application specific startup code. More...

virtual void StopApplication (void)
 Application specific shutdown code. More...


Private Attributes

bool m_connected
 True if connected. More...

uint32_t m_maxBytes
 Limit total number of bytes sent. More...

Address m_peer
 Peer address. More...

uint32_t m_sendSize
 Size of data to send each time. More...

Ptr< Socketm_socket
 Associated socket. More...

TypeId m_tid
 The type of protocol to use. More...

uint32_t m_totBytes
 Total bytes sent so far. More...

TracedCallback< Ptr< const
Packet > >
m_txTrace
 Traced Callback: sent packets. More...


Additional Inherited Members

- Protected Attributes inherited from ns3::Application
Ptr< Nodem_node

EventId m_startEvent
 The simulation time that the appliacation will end. More...

Time m_startTime
 The node that this application is installed on. More...

EventId m_stopEvent
 The event that will fire at m_startTime to start the application. More...

Time m_stopTime
 The simulation time that the appliacation will start. More...


Detailed Description

Send as much traffic as possible, trying to fill the bandwidth.

This traffic generator simply sends data as fast as possible up to MaxBytes or until the application is stopped (if MaxBytes is zero). Once the lower layer send buffer is filled, it waits until space is free to send more data, essentially keeping a constant flow of data. Only SOCK_STREAM and SOCK_SEQPACKET sockets are supported. For example, TCP sockets can be used, but UDP sockets can not be used.

Config Paths

ns3::BulkSendApplication is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/ApplicationList/[i]/$ns3::BulkSendApplication

Attributes

  • SendSize: The amount of data to send each time.
  • Remote: The address of the destination
    • Set with class: AddressValue
    • Underlying type: Address
    • Initial value: 00-00-00
    • Flags: construct write read
  • MaxBytes: The total number of bytes to send. Once these bytes are sent, no data is sent again. The value zero means that there is no limit.
  • Protocol: The type of protocol to use.

Attributes defined in parent class ns3::Application

  • StartTime: Time at which the application will start
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +0.0ns
    • Flags: construct write read
  • StopTime: Time at which the application will stop
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +0.0ns
    • Flags: construct write read

TraceSources

  • Tx: A new packet is created and is sent

Definition at line 68 of file bulk-send-application.h.

Constructor & Destructor Documentation

ns3::BulkSendApplication::BulkSendApplication ( )

Definition at line 74 of file bulk-send-application.cc.

References NS_LOG_FUNCTION.

ns3::BulkSendApplication::~BulkSendApplication ( )
virtual

Definition at line 82 of file bulk-send-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::BulkSendApplication::ConnectionFailed ( Ptr< Socket socket)
private

Connection Failed (called by Socket through a callback)

Parameters
socketthe connected socket

Definition at line 215 of file bulk-send-application.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by StartApplication().

+ Here is the caller graph for this function:

void ns3::BulkSendApplication::ConnectionSucceeded ( Ptr< Socket socket)
private

Connection Succeeded (called by Socket through a callback)

Parameters
socketthe connected socket

Definition at line 207 of file bulk-send-application.cc.

References m_connected, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SendData().

Referenced by StartApplication().

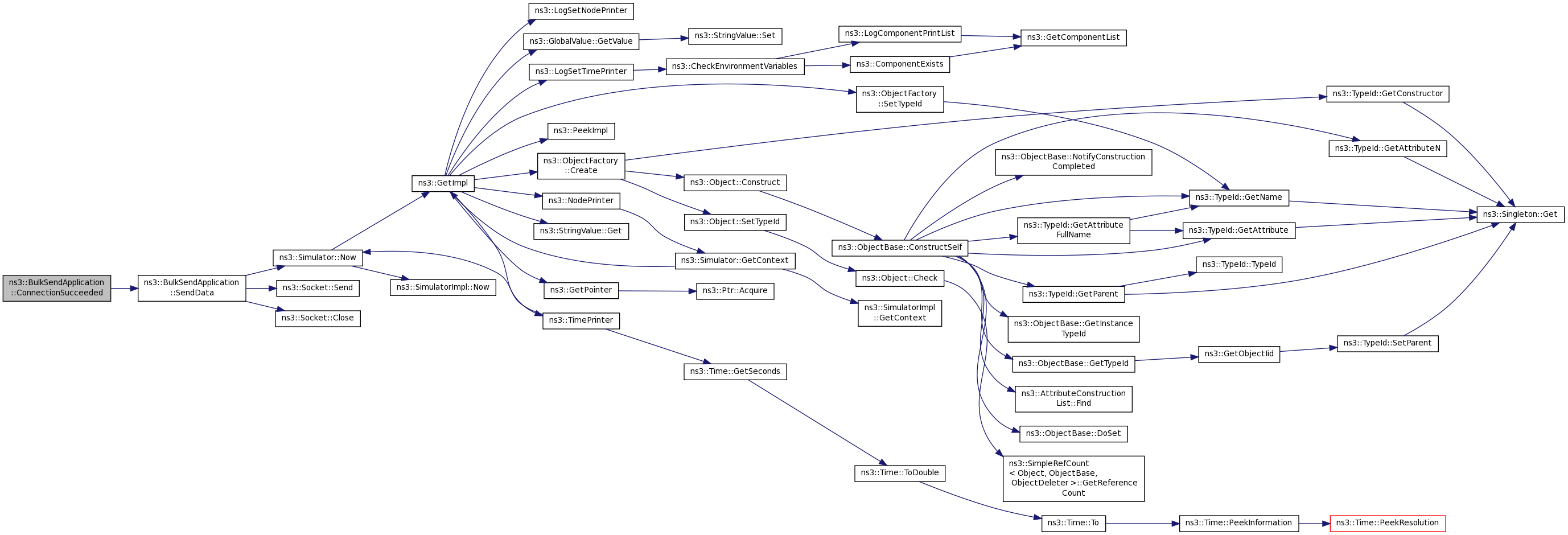

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::BulkSendApplication::DataSend ( Ptr< Socket ,
uint32_t
)
private

Send more data as soon as some has been transmitted.

Definition at line 221 of file bulk-send-application.cc.

References m_connected, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendData().

Referenced by StartApplication().

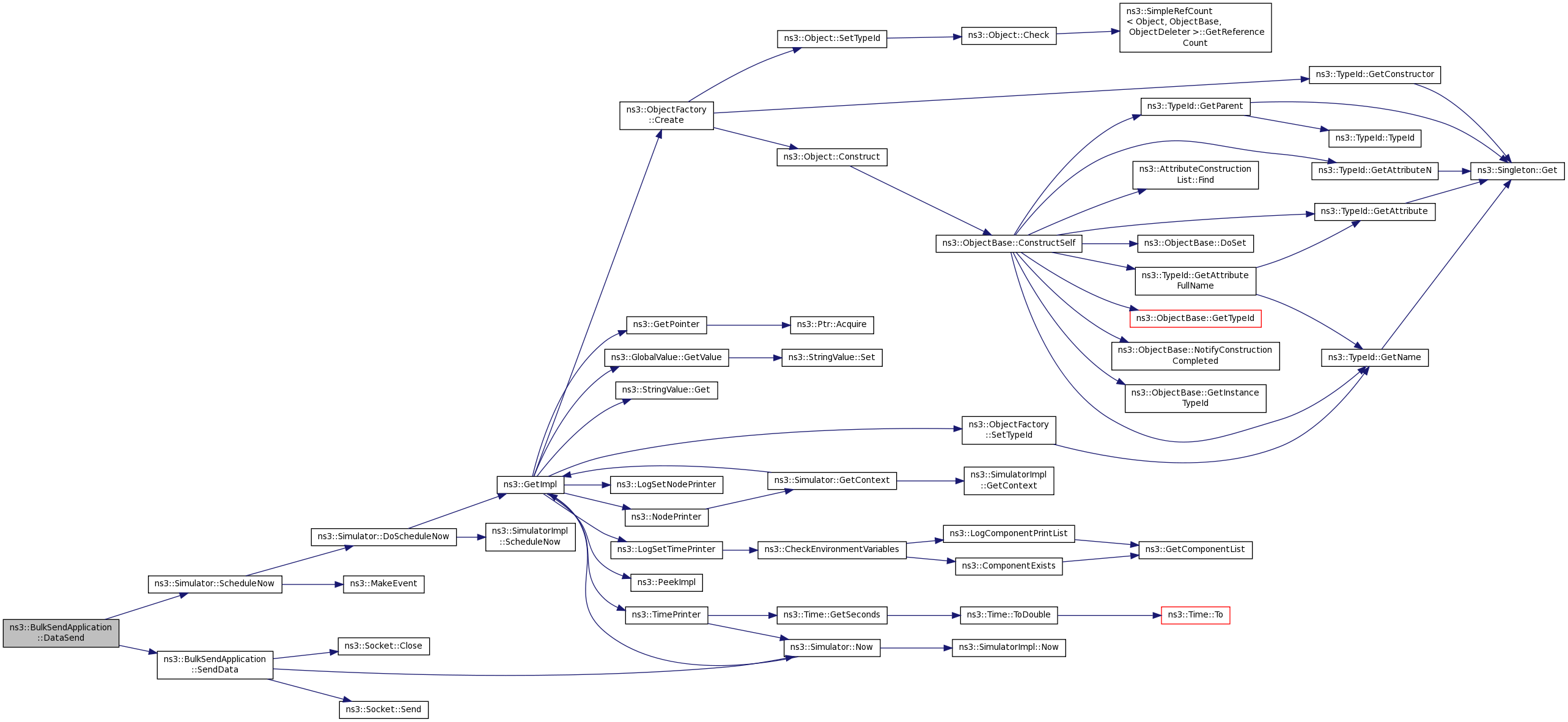

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::BulkSendApplication::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 102 of file bulk-send-application.cc.

References ns3::Application::DoDispose(), m_socket, and NS_LOG_FUNCTION.

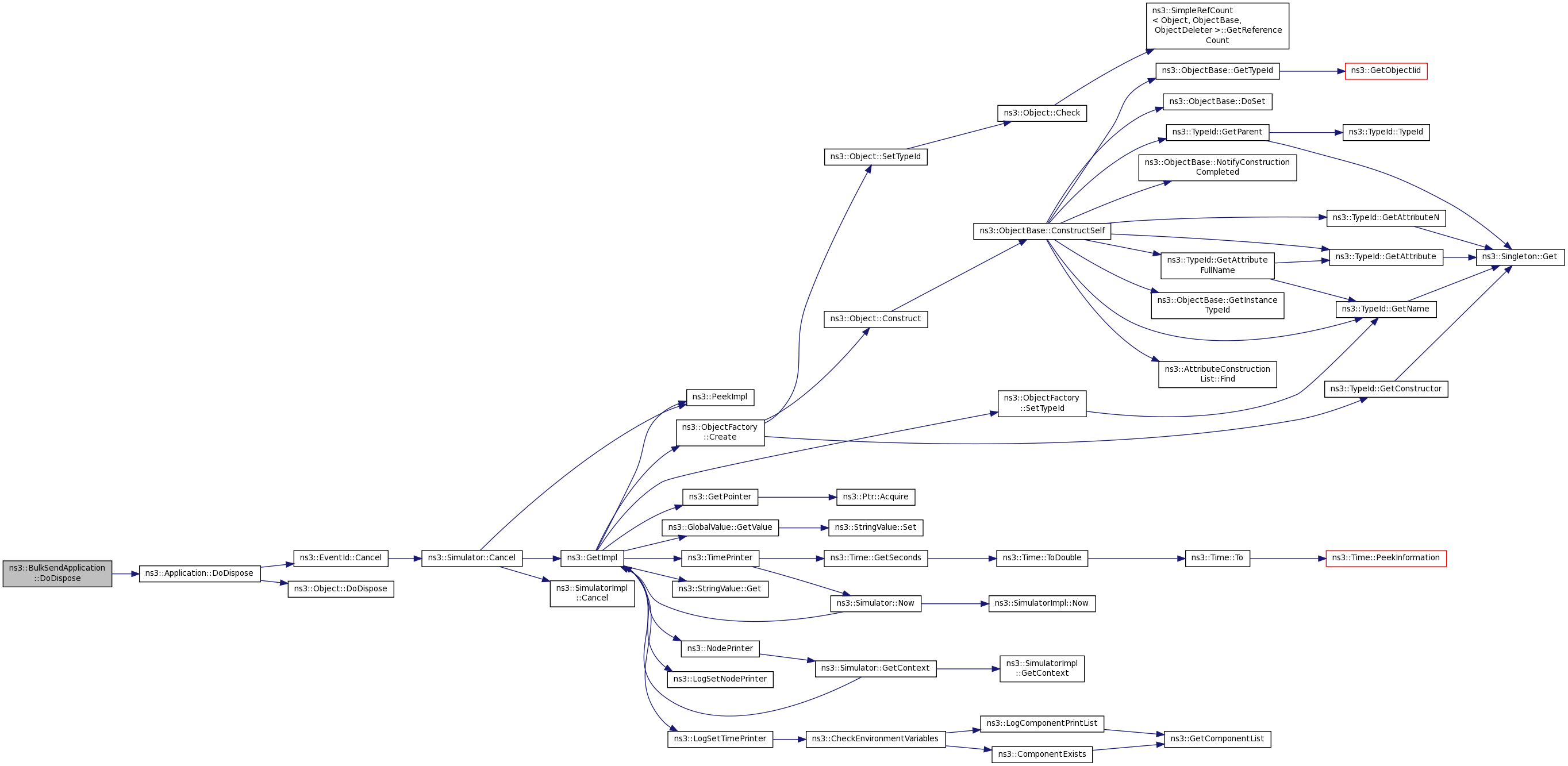

+ Here is the call graph for this function:

Ptr< Socket > ns3::BulkSendApplication::GetSocket ( void  ) const

Get the socket this application is attached to.

Returns
pointer to associated socket

Definition at line 95 of file bulk-send-application.cc.

References m_socket, and NS_LOG_FUNCTION.

TypeId ns3::BulkSendApplication::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 42 of file bulk-send-application.cc.

References ns3::TcpSocketFactory::GetTypeId(), m_maxBytes, m_peer, m_sendSize, m_tid, m_txTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

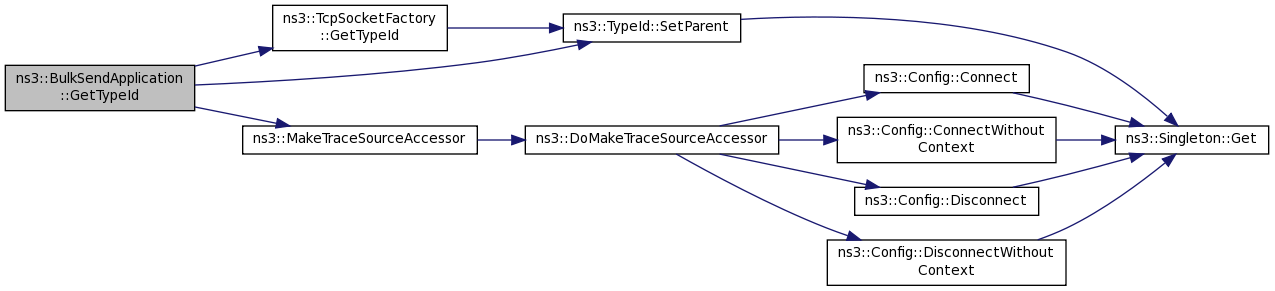

+ Here is the call graph for this function:

void ns3::BulkSendApplication::SendData ( void  )
private

Send data until the L4 transmission buffer is full.

Definition at line 171 of file bulk-send-application.cc.

References ns3::Socket::Close(), m_connected, m_maxBytes, m_sendSize, m_socket, m_totBytes, m_txTrace, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Socket::Send().

Referenced by ConnectionSucceeded(), DataSend(), and StartApplication().

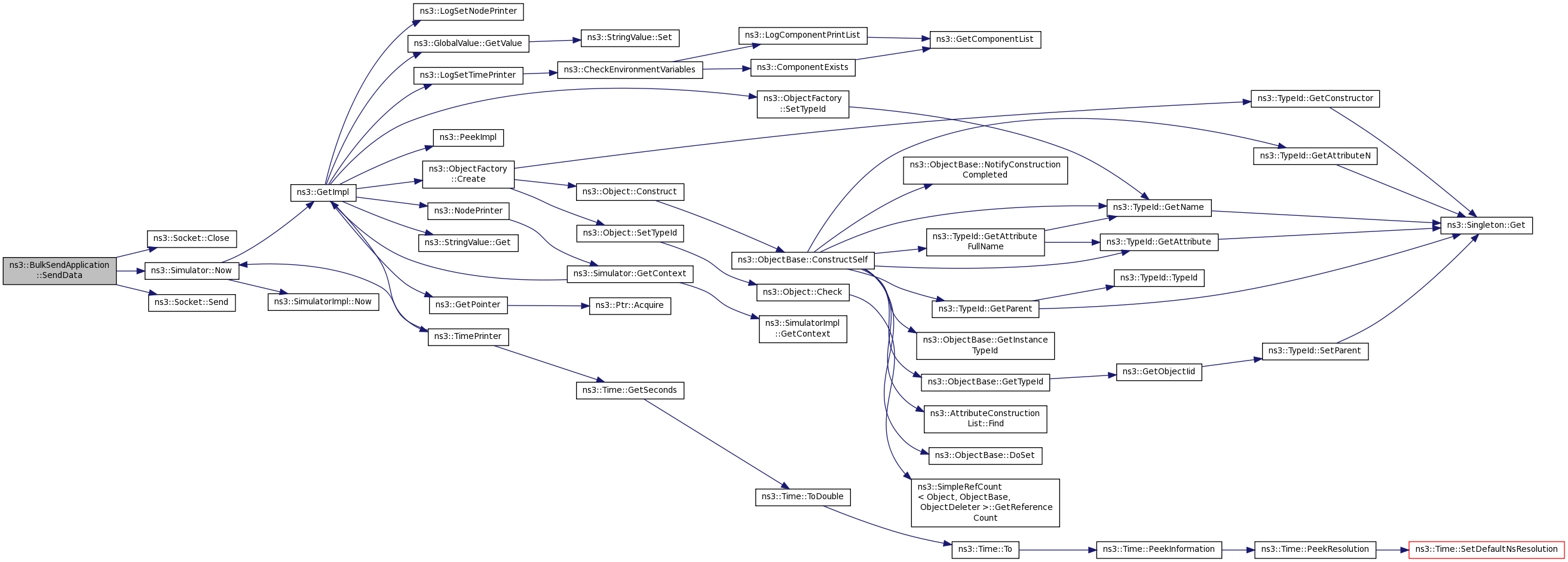

+ Here is the call graph for this function:

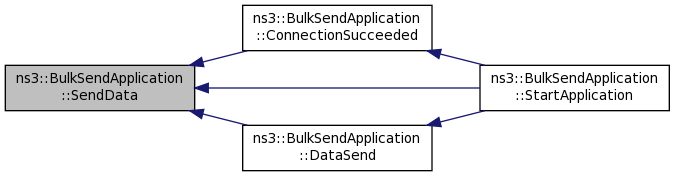

+ Here is the caller graph for this function:

void ns3::BulkSendApplication::SetMaxBytes ( uint32_t  maxBytes)

Set the upper bound for the total number of bytes to send.

Once this bound is reached, no more application bytes are sent. If the application is stopped during the simulation and restarted, the total number of bytes sent is not reset; however, the maxBytes bound is still effective and the application will continue sending up to maxBytes. The value zero for maxBytes means that there is no upper bound; i.e. data is sent until the application or simulation is stopped.

Parameters
maxBytesthe upper bound of bytes to send

Definition at line 88 of file bulk-send-application.cc.

References m_maxBytes, and NS_LOG_FUNCTION.

void ns3::BulkSendApplication::StartApplication ( void  )
privatevirtual
void ns3::BulkSendApplication::StopApplication ( void  )
privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 153 of file bulk-send-application.cc.

References ns3::Socket::Close(), m_connected, m_socket, NS_LOG_FUNCTION, and NS_LOG_WARN.

+ Here is the call graph for this function:

Member Data Documentation

bool ns3::BulkSendApplication::m_connected
private

True if connected.

Definition at line 116 of file bulk-send-application.h.

Referenced by ConnectionSucceeded(), DataSend(), SendData(), StartApplication(), and StopApplication().

uint32_t ns3::BulkSendApplication::m_maxBytes
private

Limit total number of bytes sent.

Definition at line 118 of file bulk-send-application.h.

Referenced by GetTypeId(), SendData(), and SetMaxBytes().

Address ns3::BulkSendApplication::m_peer
private

Peer address.

Definition at line 115 of file bulk-send-application.h.

Referenced by GetTypeId(), and StartApplication().

uint32_t ns3::BulkSendApplication::m_sendSize
private

Size of data to send each time.

Definition at line 117 of file bulk-send-application.h.

Referenced by GetTypeId(), and SendData().

Ptr<Socket> ns3::BulkSendApplication::m_socket
private

Associated socket.

Definition at line 114 of file bulk-send-application.h.

Referenced by DoDispose(), GetSocket(), SendData(), StartApplication(), and StopApplication().

TypeId ns3::BulkSendApplication::m_tid
private

The type of protocol to use.

Definition at line 120 of file bulk-send-application.h.

Referenced by GetTypeId(), and StartApplication().

uint32_t ns3::BulkSendApplication::m_totBytes
private

Total bytes sent so far.

Definition at line 119 of file bulk-send-application.h.

Referenced by SendData().

TracedCallback<Ptr<const Packet> > ns3::BulkSendApplication::m_txTrace
private

Traced Callback: sent packets.

Definition at line 123 of file bulk-send-application.h.

Referenced by GetTypeId(), and SendData().


The documentation for this class was generated from the following files:
