Waypoint-based mobility model. More...

#include <waypoint-mobility-model.h>

Inheritance diagram for ns3::WaypointMobilityModel:

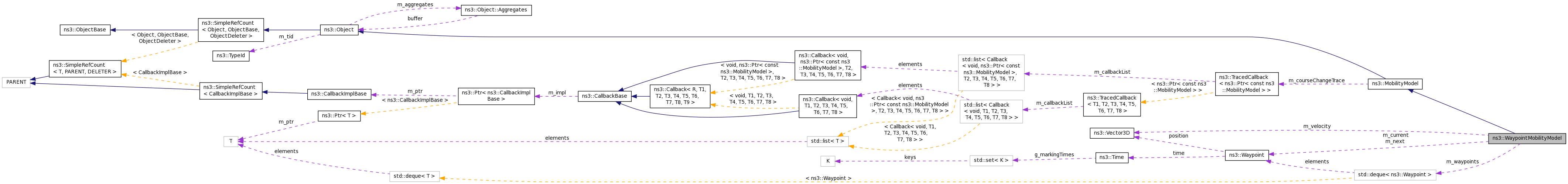

Collaboration diagram for ns3::WaypointMobilityModel:

Public Member Functions
	WaypointMobilityModel ()
	Create a path with no waypoints at location (0,0,0). More...

virtual	~WaypointMobilityModel ()

void	AddWaypoint (const Waypoint &waypoint)

void	EndMobility (void)
	Clear any existing waypoints and set the current waypoint time to infinity. More...

Waypoint	GetNextWaypoint (void) const
	Get the waypoint that this object is traveling towards. More...

uint32_t	WaypointsLeft (void) const
	Get the number of waypoints left for this object, excluding the next one. More...

Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()

virtual	~MobilityModel ()=0

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector	GetPosition (void) const

double	GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector	GetVelocity (void) const

void	SetPosition (const Vector &position)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::MobilityModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual Vector	DoGetPosition (void) const

virtual Vector	DoGetVelocity (void) const

virtual void	DoSetPosition (const Vector &position)

void	Update (void) const

Private Attributes
Waypoint	m_current

bool	m_first

bool	m_initialPositionIsWaypoint

bool	m_lazyNotify

Waypoint	m_next

Vector	m_velocity

std::deque< Waypoint >	m_waypoints

Friends
class	WaypointMobilityModelNotifyTest

Additional Inherited Members
Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const
	Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Waypoint-based mobility model.

Each object determines its velocity and position at a given time from a set of ns3::Waypoint objects. Past waypoints are discarded after the current simulation time greater than their time value.

By default, the initial position of each object corresponds to the position of the first waypoint, and the initial velocity of each object is zero. Upon reaching the last waypoint, object position becomes static and velocity is zero.

When a node is in between waypoint times, it moves with a constant velocity between the position at the previous waypoint and the position at the current waypoint. To make a node hold a certain position for a time interval, two waypoints with the same position (but different times) should be inserted sequentially.

Waypoints can be added at any time, and setting the current position of an object will set its velocity to zero until the next waypoint time (at which time the object jumps to the next waypoint), unless there are no more waypoints in which case it will not change without user intervention.

The model has two attributes with methods that allow clients to get the next waypoint value (NextWaypoint) and the number of waypoints left (WaypointsLeft) beyond (but not including) the next waypoint.

In addition, there are two attributes that govern model behavior. The first, LazyNotify, governs how the model calls the CourseChange trace. By default, LazyNotify is false, which means that each time that a waypoint time is hit, an Update() is forced and the CourseChange callback will be called. When LazyNotify is true, Update() is suppressed at waypoint times, and CourseChange callbacks will only occur when there later are actual calls to Update () (typically when calling GetPosition ()). This option may be enabled for execution run-time performance improvements, but when enabled, users should note that course change listeners will in general not be notified at waypoint times but instead at the next Update() following a waypoint time, and some waypoints may not be notified to course change listeners.

The second, InitialPositionIsWaypoint, is false by default. Recall that the first waypoint will set the initial position and set velocity equal to 0 until the first waypoint time. In such a case, the call to SetPosition(), such as from a PositionAllocator, will be ignored. However, if InitialPositionIsWaypoint is set to true and SetPosition() is called before any waypoints have been added, the SetPosition() call is treated as an initial waypoint at time zero. In such a case, when SetPosition() is treated as an initial waypoint, it should be noted that attempts to add a waypoint at the same time will cause the program to fail.

Config Paths

ns3::WaypointMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::WaypointMobilityModel

Attributes

NextWaypoint: The next waypoint used to determine position.
- Set with class: WaypointValue
- Underlying type: Waypoint
- Flags: read
WaypointsLeft: The number of waypoints remaining.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read
LazyNotify: Only call NotifyCourseChange when position is calculated.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
InitialPositionIsWaypoint: Calling SetPosition with no waypoints creates a waypoint.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::MobilityModel

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::MobilityModel

CourseChange: The value of the position and/or velocity vector changed

Definition at line 84 of file waypoint-mobility-model.h.

Constructor & Destructor Documentation

ns3::WaypointMobilityModel::WaypointMobilityModel ( )

Create a path with no waypoints at location (0,0,0).

Definition at line 68 of file waypoint-mobility-model.cc.

ns3::WaypointMobilityModel::~WaypointMobilityModel ( )

virtual

Definition at line 74 of file waypoint-mobility-model.cc.

Member Function Documentation

void ns3::WaypointMobilityModel::AddWaypoint ( const Waypoint & waypoint )

Parameters

waypoint waypoint to append to the object path.

Add a waypoint to the path of the object. The time must be greater than the previous waypoint added, otherwise a fatal error occurs. The first waypoint is set as the current position with a velocity of zero.

Definition at line 83 of file waypoint-mobility-model.cc.

References m_current, m_first, m_lazyNotify, m_next, m_waypoints, NS_ABORT_MSG_IF, ns3::Simulator::Schedule(), ns3::Waypoint::time, and Update().

Referenced by ns3::WaypointMobilityModelNotifyTest::DoRun(), WaypointInitialPositionIsWaypoint::DoRun(), WaypointMobilityModelViaHelper::DoRun(), and DoSetPosition().

Here is the call graph for this function:

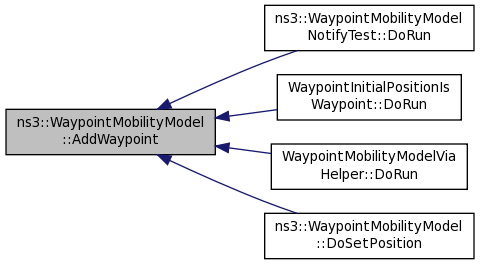

Here is the caller graph for this function:

void ns3::WaypointMobilityModel::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 78 of file waypoint-mobility-model.cc.

References ns3::Object::DoDispose().

Here is the call graph for this function:
