ns3::MobilityModel Class Referenceabstract
Mobility

Keep track of the current position and velocity of an object. More...

#include <mobility-model.h>

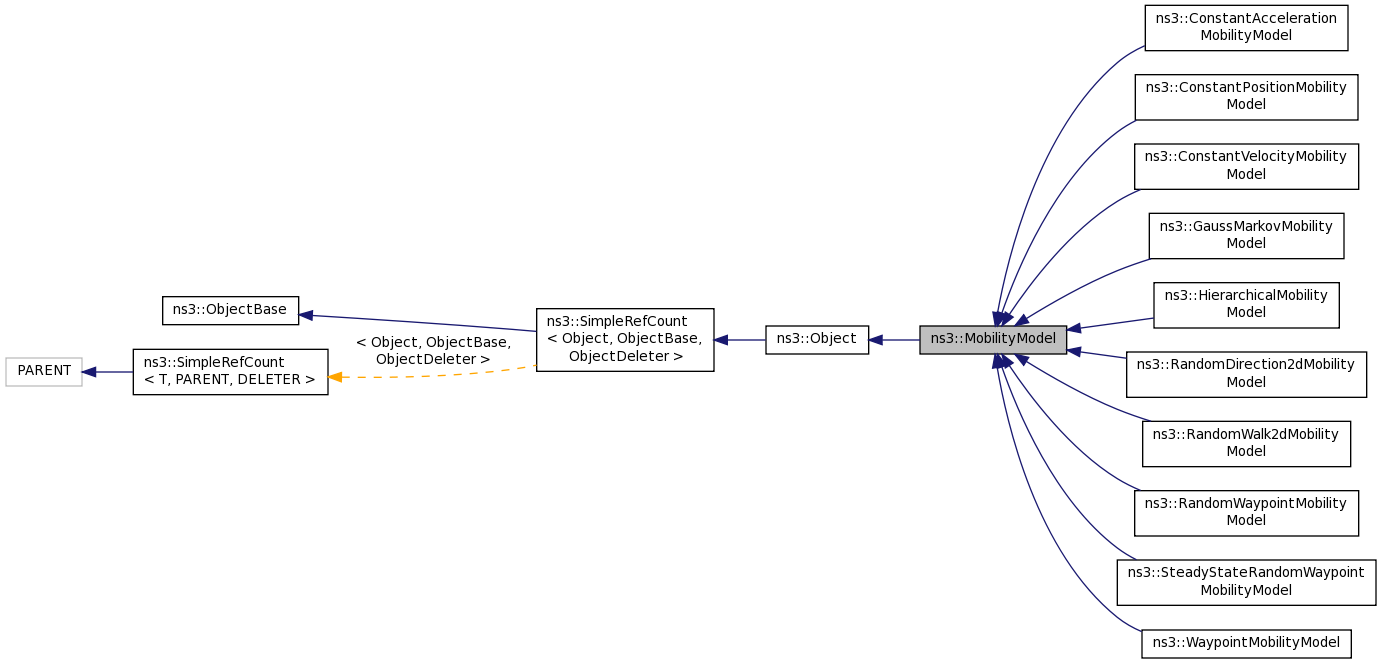

+ Inheritance diagram for ns3::MobilityModel:

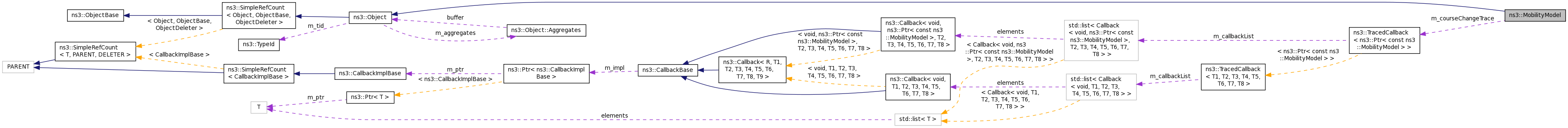

+ Collaboration diagram for ns3::MobilityModel:

Public Member Functions

 MobilityModel ()

virtual ~MobilityModel ()=0

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector GetPosition (void) const

double GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector GetVelocity (void) const

void SetPosition (const Vector &position)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

void NotifyCourseChange (void) const
 Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Member Functions

virtual int64_t DoAssignStreams (int64_t start)
 The default implementation does nothing but return the passed-in parameter. More...

virtual Vector DoGetPosition (void) const =0

virtual Vector DoGetVelocity (void) const =0

virtual void DoSetPosition (const Vector &position)=0


Private Attributes

TracedCallback< Ptr< const
MobilityModel > > 		m_courseChangeTrace
 Used to alert subscribers that a change in direction, velocity, or position has occurred. More...


Detailed Description

Keep track of the current position and velocity of an object.

All space coordinates in this class and its subclasses are understood to be meters or meters/s. i.e., they are all metric international units.

This is a base class for all specific mobility models.

Config Paths

ns3::MobilityModel is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/$ns3::MobilityModel

Attributes

  • Position: The current position of the mobility model.
  • Velocity: The current velocity of the mobility model.

TraceSources

  • CourseChange: The value of the position and/or velocity vector changed

Definition at line 39 of file mobility-model.h.

Constructor & Destructor Documentation

ns3::MobilityModel::MobilityModel ( )

Definition at line 54 of file mobility-model.cc.

ns3::MobilityModel::~MobilityModel ( )
pure virtual

Definition at line 58 of file mobility-model.cc.

Member Function Documentation

int64_t ns3::MobilityModel::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 103 of file mobility-model.cc.

References DoAssignStreams().

Referenced by ns3::MobilityHelper::AssignStreams().

+ Here is the call graph for this function:

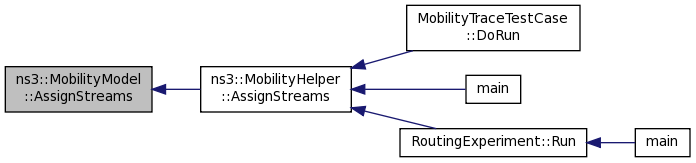

+ Here is the caller graph for this function:

int64_t ns3::MobilityModel::DoAssignStreams ( int64_t  start)
privatevirtual

The default implementation does nothing but return the passed-in parameter.

Subclasses using random variables are expected to override this.

Reimplemented in ns3::GaussMarkovMobilityModel, ns3::SteadyStateRandomWaypointMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, and ns3::RandomDirection2dMobilityModel.

Definition at line 110 of file mobility-model.cc.

Referenced by AssignStreams().

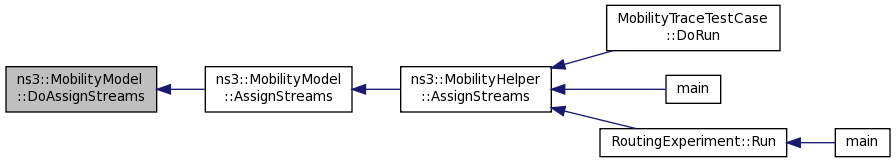

+ Here is the caller graph for this function:

virtual Vector ns3::MobilityModel::DoGetPosition ( void  ) const
privatepure virtual
Returns
the current position.

Concrete subclasses of this base class must implement this method.

Implemented in ns3::WaypointMobilityModel, ns3::HierarchicalMobilityModel, ns3::GaussMarkovMobilityModel, ns3::SteadyStateRandomWaypointMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::ConstantVelocityMobilityModel, ns3::ConstantAccelerationMobilityModel, and ns3::ConstantPositionMobilityModel.

Referenced by GetDistanceFrom(), and GetPosition().

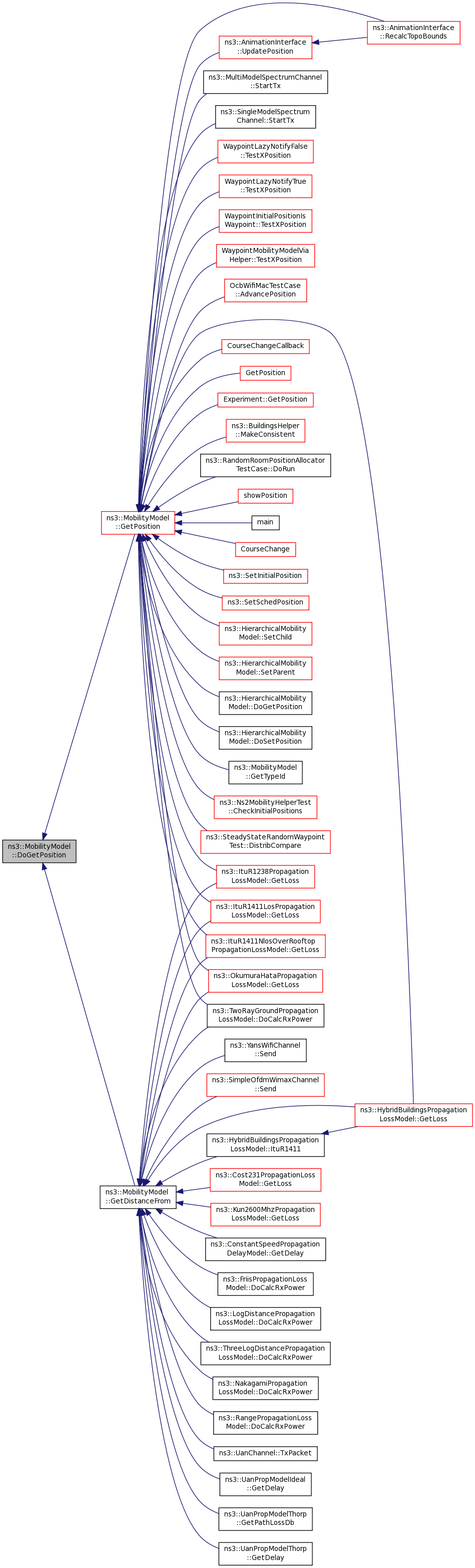

+ Here is the caller graph for this function:

virtual Vector ns3::MobilityModel::DoGetVelocity ( void  ) const
privatepure virtual
Returns
the current velocity.

Concrete subclasses of this base class must implement this method.

Implemented in ns3::WaypointMobilityModel, ns3::HierarchicalMobilityModel, ns3::GaussMarkovMobilityModel, ns3::SteadyStateRandomWaypointMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::ConstantVelocityMobilityModel, ns3::ConstantAccelerationMobilityModel, and ns3::ConstantPositionMobilityModel.

Referenced by GetVelocity().

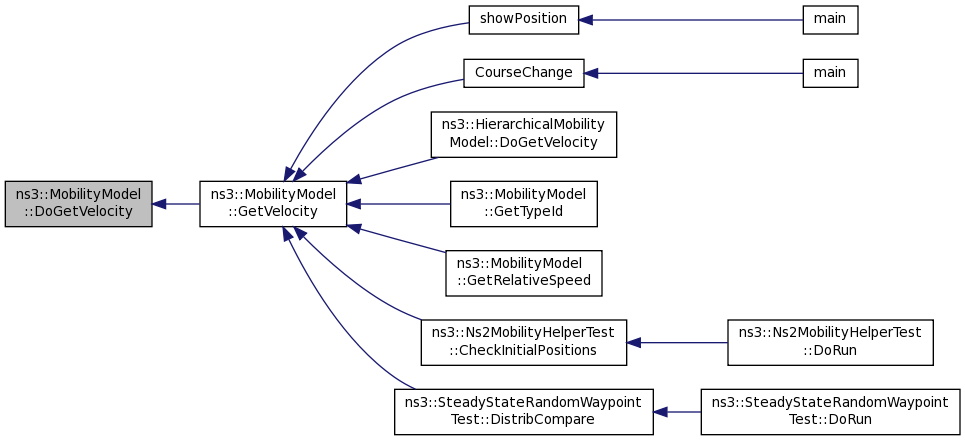

+ Here is the caller graph for this function:

virtual void ns3::MobilityModel::DoSetPosition ( const Vector &  position)
privatepure virtual
Parameters
positionthe position to set.

Concrete subclasses of this base class must implement this method.

Implemented in ns3::WaypointMobilityModel, ns3::HierarchicalMobilityModel, ns3::GaussMarkovMobilityModel, ns3::SteadyStateRandomWaypointMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::ConstantVelocityMobilityModel, ns3::ConstantAccelerationMobilityModel, and ns3::ConstantPositionMobilityModel.

Referenced by SetPosition().

+ Here is the caller graph for this function:

double ns3::MobilityModel::GetDistanceFrom ( Ptr< const MobilityModel >  position) const
Parameters
positiona reference to another mobility model
Returns
the distance between the two objects. Unit is meters.

Definition at line 80 of file mobility-model.cc.

References ns3::CalculateDistance(), and DoGetPosition().

Referenced by ns3::FriisPropagationLossModel::DoCalcRxPower(), ns3::TwoRayGroundPropagationLossModel::DoCalcRxPower(), ns3::LogDistancePropagationLossModel::DoCalcRxPower(), ns3::ThreeLogDistancePropagationLossModel::DoCalcRxPower(), ns3::NakagamiPropagationLossModel::DoCalcRxPower(), ns3::RangePropagationLossModel::DoCalcRxPower(), ns3::UanPropModelIdeal::GetDelay(), ns3::UanPropModelThorp::GetDelay(), ns3::ConstantSpeedPropagationDelayModel::GetDelay(), ns3::ItuR1238PropagationLossModel::GetLoss(), ns3::Kun2600MhzPropagationLossModel::GetLoss(), ns3::OkumuraHataPropagationLossModel::GetLoss(), ns3::Cost231PropagationLossModel::GetLoss(), ns3::ItuR1411LosPropagationLossModel::GetLoss(), ns3::ItuR1411NlosOverRooftopPropagationLossModel::GetLoss(), ns3::HybridBuildingsPropagationLossModel::GetLoss(), ns3::UanPropModelThorp::GetPathLossDb(), ns3::HybridBuildingsPropagationLossModel::ItuR1411(), ns3::SimpleOfdmWimaxChannel::Send(), ns3::YansWifiChannel::Send(), and ns3::UanChannel::TxPacket().

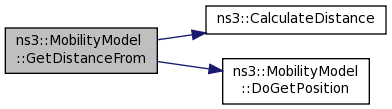

+ Here is the call graph for this function:

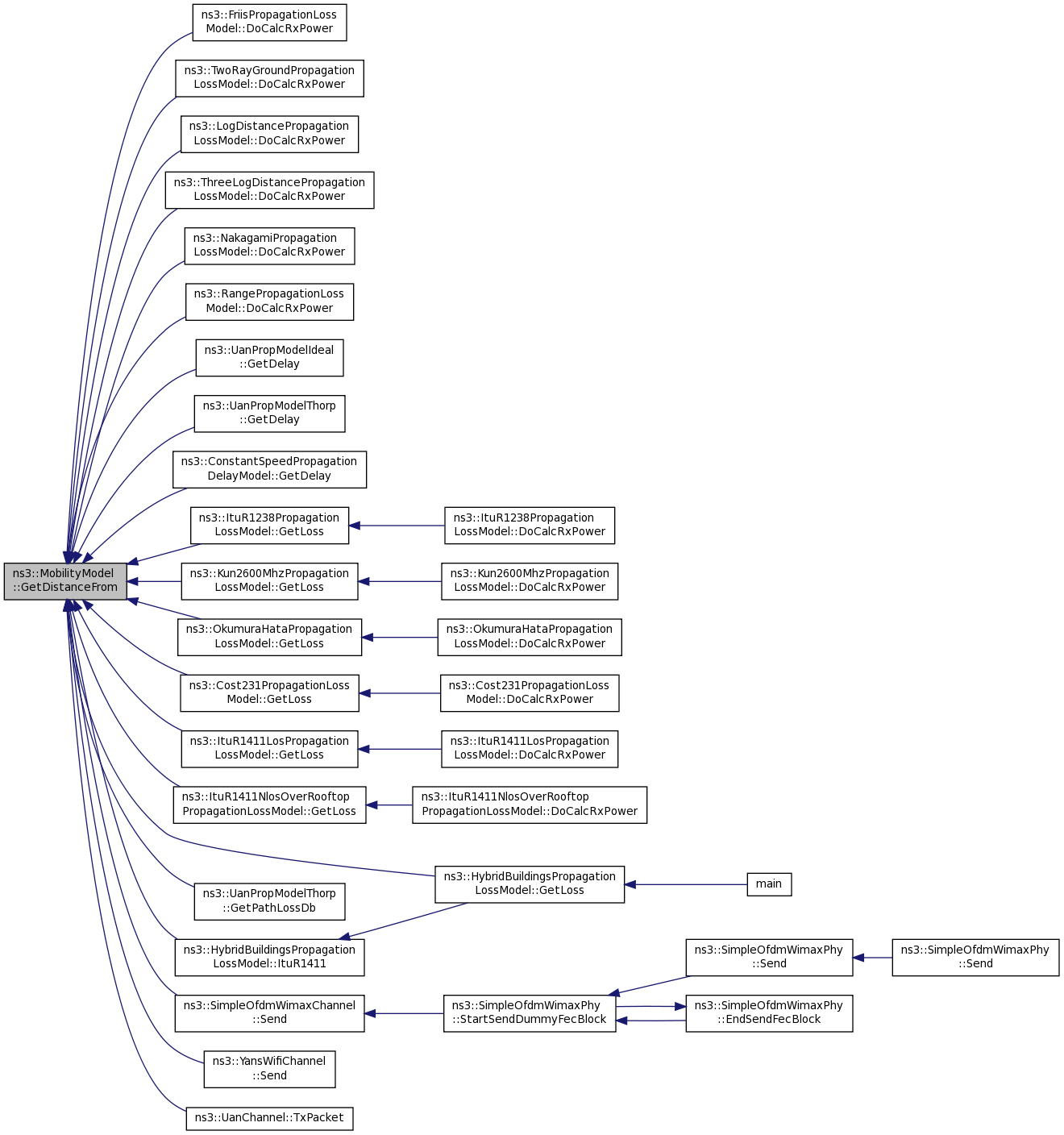

+ Here is the caller graph for this function:

Vector ns3::MobilityModel::GetPosition ( void  ) const
Returns
the current position

Definition at line 63 of file mobility-model.cc.

References DoGetPosition().

Referenced by OcbWifiMacTestCase::AdvancePosition(), ns3::Ns2MobilityHelperTest::CheckInitialPositions(), CourseChange(), CourseChangeCallback(), ns3::SteadyStateRandomWaypointTest::DistribCompare(), ns3::TwoRayGroundPropagationLossModel::DoCalcRxPower(), ns3::HierarchicalMobilityModel::DoGetPosition(), ns3::RandomRoomPositionAllocatorTestCase::DoRun(), ns3::HierarchicalMobilityModel::DoSetPosition(), OcbWifiMacTestCase::GetCurrentPosition(), ns3::ItuR1238PropagationLossModel::GetLoss(), ns3::OkumuraHataPropagationLossModel::GetLoss(), ns3::ItuR1411LosPropagationLossModel::GetLoss(), ns3::ItuR1411NlosOverRooftopPropagationLossModel::GetLoss(), ns3::HybridBuildingsPropagationLossModel::GetLoss(), Experiment::GetPosition(), GetPosition(), GetTypeId(), main(), ns3::BuildingsHelper::MakeConsistent(), OcbWifiMacTestCase::PostDeviceConfiguration(), ns3::AnimationInterface::RecalcTopoBounds(), ns3::HierarchicalMobilityModel::SetChild(), ns3::SetInitialPosition(), ns3::HierarchicalMobilityModel::SetParent(), ns3::SetSchedPosition(), showPosition(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), WaypointLazyNotifyFalse::TestXPosition(), WaypointLazyNotifyTrue::TestXPosition(), WaypointInitialPositionIsWaypoint::TestXPosition(), WaypointMobilityModelViaHelper::TestXPosition(), and ns3::AnimationInterface::UpdatePosition().

+ Here is the call graph for this function:

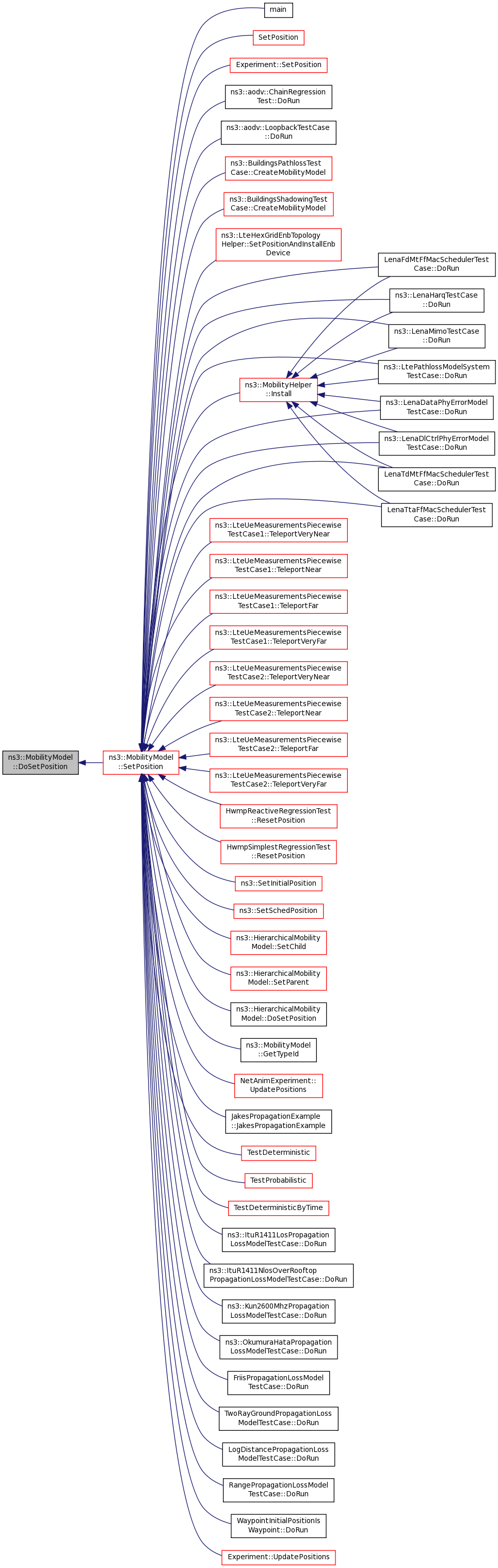

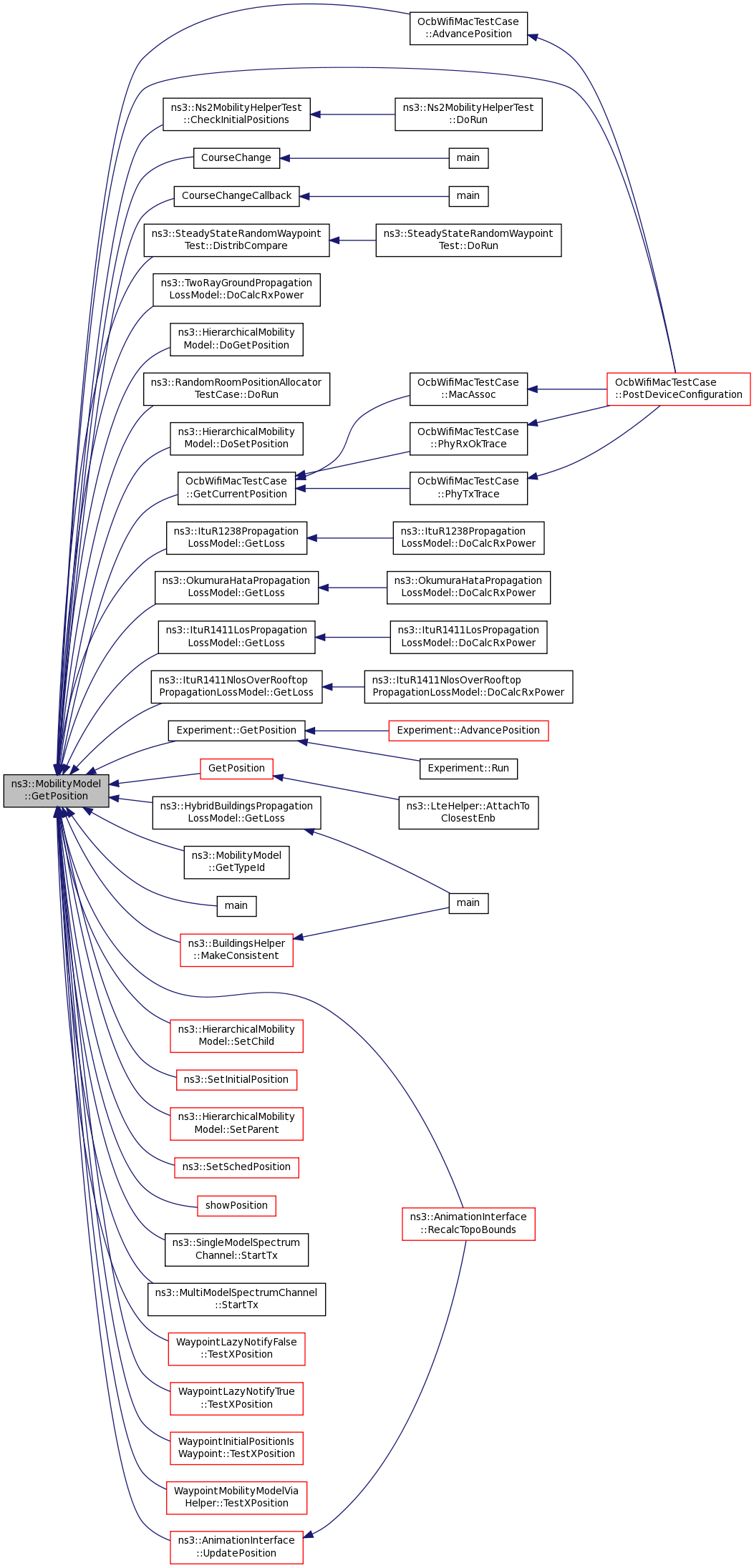

+ Here is the caller graph for this function:

double ns3::MobilityModel::GetRelativeSpeed ( Ptr< const MobilityModel >  other) const
Parameters
otherreference to another object's mobility model
Returns
the relative speed between the two objects. Unit is meters/s.

Definition at line 88 of file mobility-model.cc.

References GetVelocity(), sample-rng-plot::x, ns3::Vector3D::x, ns3::Vector3D::y, and ns3::Vector3D::z.

+ Here is the call graph for this function:

TypeId ns3::MobilityModel::GetTypeId ( void  )
static

Definition at line 32 of file mobility-model.cc.

References ns3::TypeId::ATTR_GET, ns3::TypeId::ATTR_SET, GetPosition(), GetVelocity(), m_courseChangeTrace, ns3::MakeTraceSourceAccessor(), ns3::MakeVectorChecker(), ns3::TypeId::SetParent(), and SetPosition().

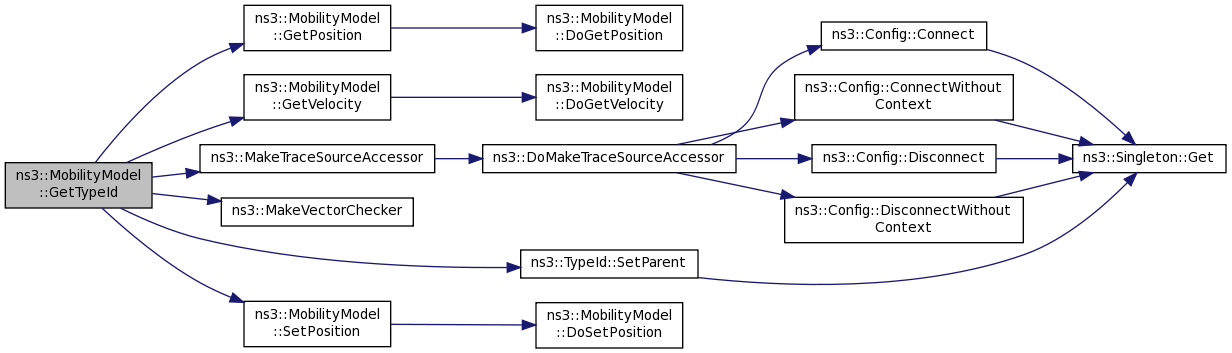

+ Here is the call graph for this function:

Vector ns3::MobilityModel::GetVelocity ( void  ) const
Returns
the current velocity.

Definition at line 68 of file mobility-model.cc.

References DoGetVelocity().

Referenced by ns3::Ns2MobilityHelperTest::CheckInitialPositions(), CourseChange(), ns3::SteadyStateRandomWaypointTest::DistribCompare(), ns3::HierarchicalMobilityModel::DoGetVelocity(), GetRelativeSpeed(), GetTypeId(), and showPosition().

+ Here is the call graph for this function:

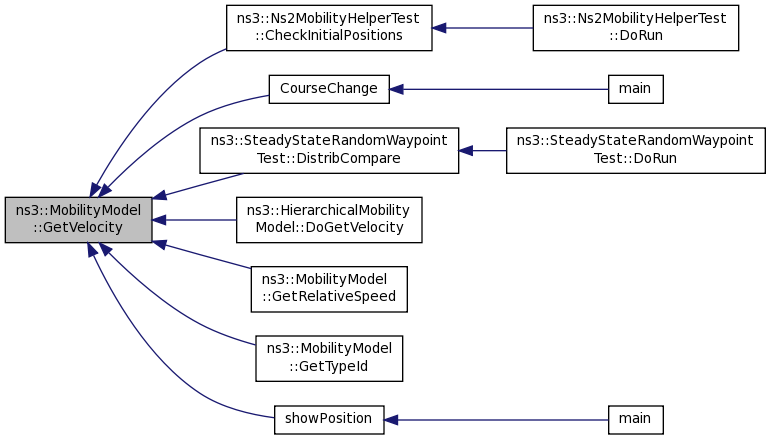

+ Here is the caller graph for this function:

void ns3::MobilityModel::NotifyCourseChange ( void  ) const
protected

Must be invoked by subclasses when the course of the position changes to notify course change listeners.

Definition at line 97 of file mobility-model.cc.

References m_courseChangeTrace.

Referenced by ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::SteadyStateRandomWaypointMobilityModel::BeginWalk(), ns3::HierarchicalMobilityModel::ChildChanged(), ns3::RandomWaypointMobilityModel::DoInitializePrivate(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::ConstantPositionMobilityModel::DoSetPosition(), ns3::ConstantAccelerationMobilityModel::DoSetPosition(), ns3::ConstantVelocityMobilityModel::DoSetPosition(), ns3::WaypointMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoWalk(), ns3::GaussMarkovMobilityModel::DoWalk(), ns3::HierarchicalMobilityModel::ParentChanged(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), ns3::ConstantVelocityMobilityModel::SetVelocity(), ns3::ConstantAccelerationMobilityModel::SetVelocityAndAcceleration(), ns3::SteadyStateRandomWaypointMobilityModel::Start(), ns3::SteadyStateRandomWaypointMobilityModel::SteadyStateBeginWalk(), and ns3::WaypointMobilityModel::Update().

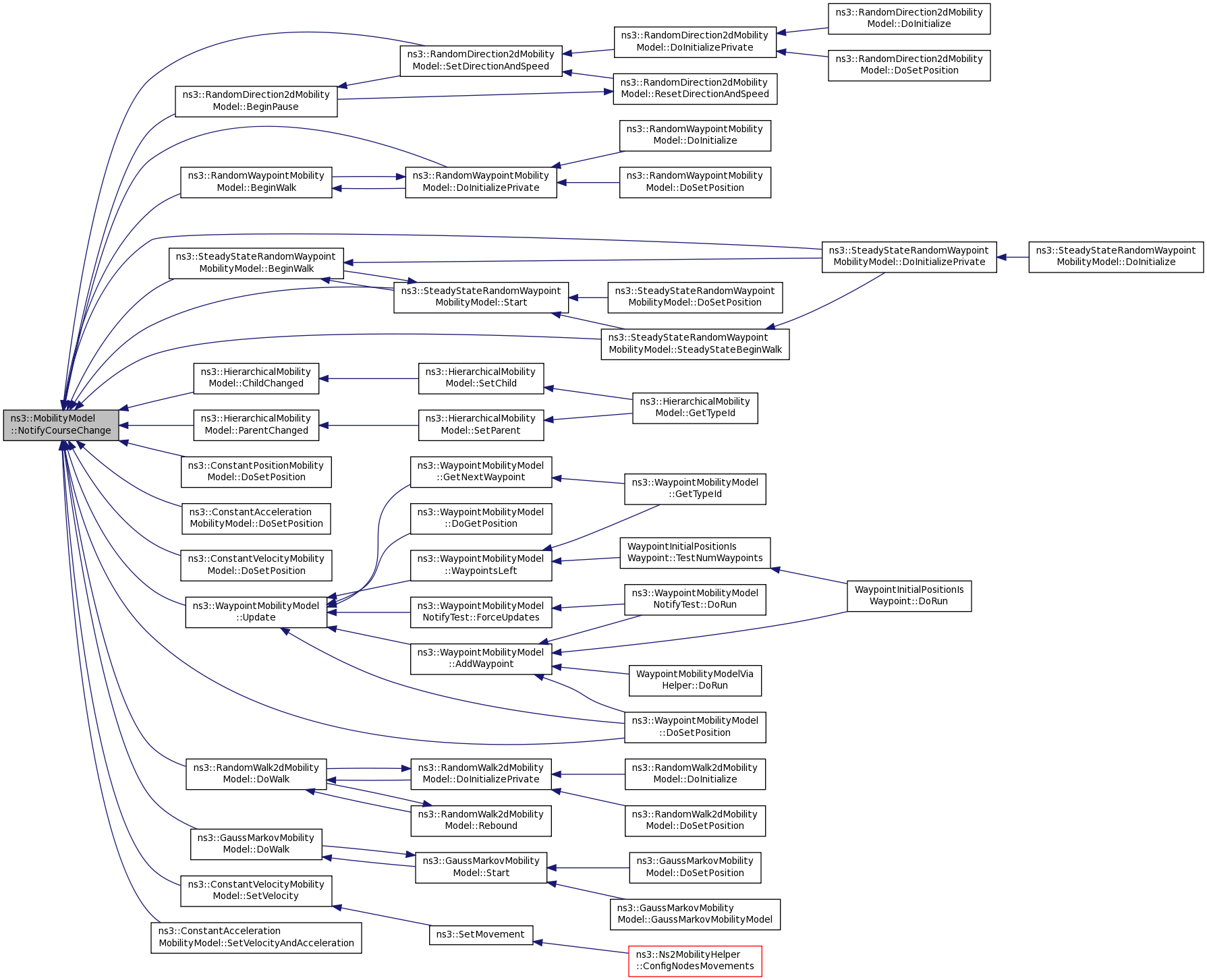

+ Here is the caller graph for this function:

void ns3::MobilityModel::SetPosition ( const Vector &  position)
Parameters
positionthe position to set.

Definition at line 74 of file mobility-model.cc.

References DoSetPosition().

Referenced by OcbWifiMacTestCase::AdvancePosition(), ns3::BuildingsPathlossTestCase::CreateMobilityModel(), ns3::BuildingsShadowingTestCase::CreateMobilityModel(), ns3::aodv::LoopbackTestCase::DoRun(), ns3::LenaMimoTestCase::DoRun(), FriisPropagationLossModelTestCase::DoRun(), ns3::ItuR1411LosPropagationLossModelTestCase::DoRun(), ns3::LenaHarqTestCase::DoRun(), ns3::Kun2600MhzPropagationLossModelTestCase::DoRun(), ns3::ItuR1411NlosOverRooftopPropagationLossModelTestCase::DoRun(), ns3::OkumuraHataPropagationLossModelTestCase::DoRun(), ns3::LenaDataPhyErrorModelTestCase::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), ns3::LtePathlossModelSystemTestCase::DoRun(), ns3::LenaDlCtrlPhyErrorModelTestCase::DoRun(), TwoRayGroundPropagationLossModelTestCase::DoRun(), WaypointInitialPositionIsWaypoint::DoRun(), ns3::aodv::ChainRegressionTest::DoRun(), LogDistancePropagationLossModelTestCase::DoRun(), RangePropagationLossModelTestCase::DoRun(), ns3::HierarchicalMobilityModel::DoSetPosition(), GetTypeId(), ns3::MobilityHelper::Install(), JakesPropagationExample::JakesPropagationExample(), main(), OcbWifiMacTestCase::PostDeviceConfiguration(), HwmpSimplestRegressionTest::ResetPosition(), HwmpReactiveRegressionTest::ResetPosition(), PsrExperiment::Run(), CollisionExperiment::Run(), ns3::HierarchicalMobilityModel::SetChild(), ns3::SetInitialPosition(), ns3::HierarchicalMobilityModel::SetParent(), Experiment::SetPosition(), SetPosition(), ns3::LteHexGridEnbTopologyHelper::SetPositionAndInstallEnbDevice(), ns3::SetSchedPosition(), ns3::LteUeMeasurementsPiecewiseTestCase1::TeleportFar(), ns3::LteUeMeasurementsPiecewiseTestCase2::TeleportFar(), ns3::LteUeMeasurementsPiecewiseTestCase1::TeleportNear(), ns3::LteUeMeasurementsPiecewiseTestCase2::TeleportNear(), ns3::LteUeMeasurementsPiecewiseTestCase1::TeleportVeryFar(), ns3::LteUeMeasurementsPiecewiseTestCase2::TeleportVeryFar(), ns3::LteUeMeasurementsPiecewiseTestCase1::TeleportVeryNear(), ns3::LteUeMeasurementsPiecewiseTestCase2::TeleportVeryNear(), TestDeterministic(), TestDeterministicByTime(), TestProbabilistic(), NetAnimExperiment::UpdatePositions(), and Experiment::UpdatePositions().

+ Here is the call graph for this function:

Member Data Documentation

TracedCallback<Ptr<const MobilityModel> > ns3::MobilityModel::m_courseChangeTrace
private

Used to alert subscribers that a change in direction, velocity, or position has occurred.

Definition at line 117 of file mobility-model.h.

Referenced by GetTypeId(), and NotifyCourseChange().

The documentation for this class was generated from the following files:
